FZB fluoroplastic self priming centrifugal pump corrosion resistance, wear resistance and high temperature resistance pumps

Share on (1600525869990):


Price:$350.00 - $400.00

Quantity:


Product Overview

Description



Product Overview

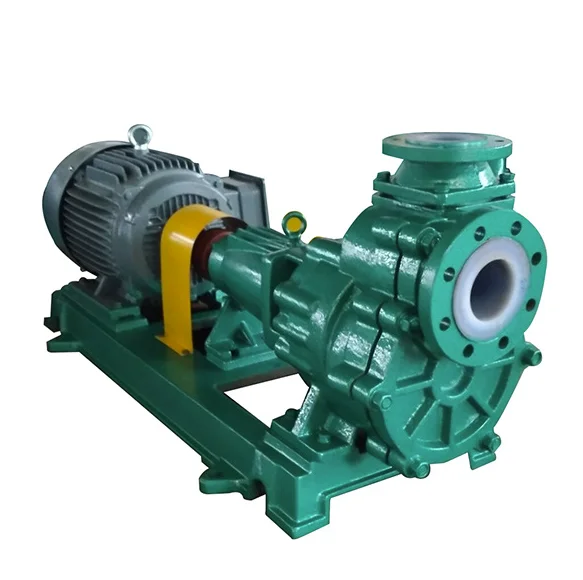

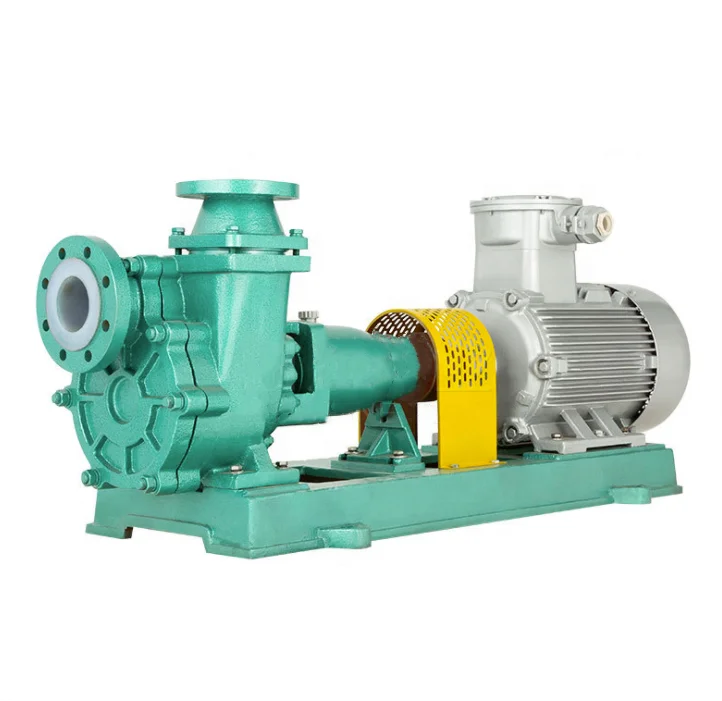

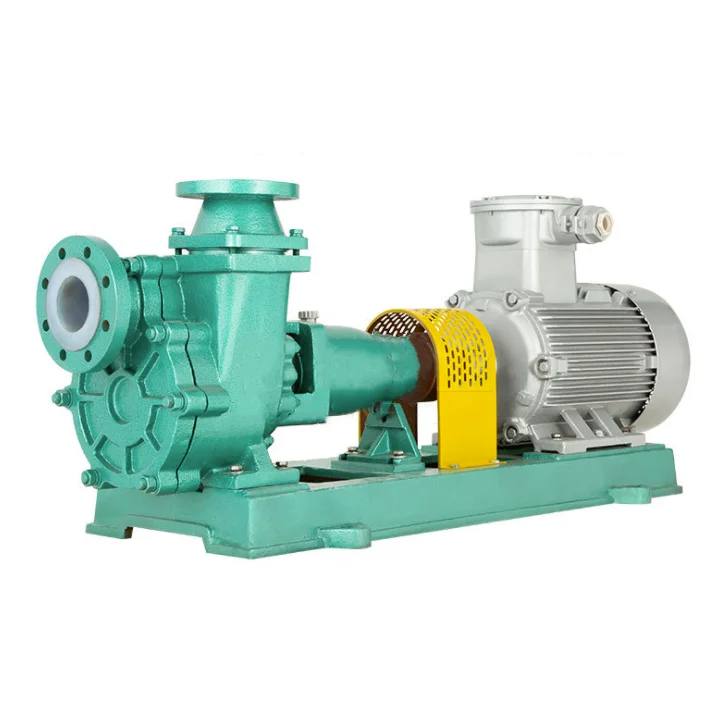

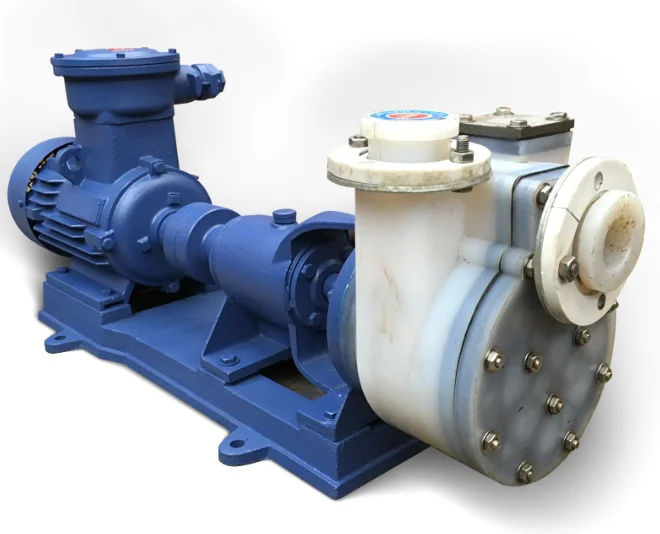

FZB fluoroplastic self-priming pump
Fzb fluoroplastic lined self-priming pump is designed and manufactured according to international standards and combined with the process of non-metallic pump. The pump body is made of metal shell lined with fluoroplastic, all flow-through parts are made of fluoroplastic alloy, the pump cover and impeller are made of metal inserts wrapped with fluoroplastic, sintered and pressed as a whole, the shaft seal adopts externally installed advanced bellows mechanical seal, the static ring adopts 999% alumina ceramic or silicon carbide), and the moving ring adopts tetrafluoro filling material, which has excellent corrosion resistance, wear resistance and sealing performance.

The inlet and outlet of the pump are reinforced with cast steel to enhance the pressure resistance of the pump.


FEATURES AT A GLANCE


The actual use shows that the pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, long service life and so on.




PRODUCT SPECIFICATIONS


No
Item
Data
1
Product Name
FZB fluoroplastic self-priming pump
2
Material
Cast steel, alloy, lined with Fluoroplastic
3
Flow
3.6~100m3/h
4
Head
20-45m
5
Self priming height
3m
6
Power
1.5~30KW
7
Speed
2900r/min
8
Voltage
Customize
