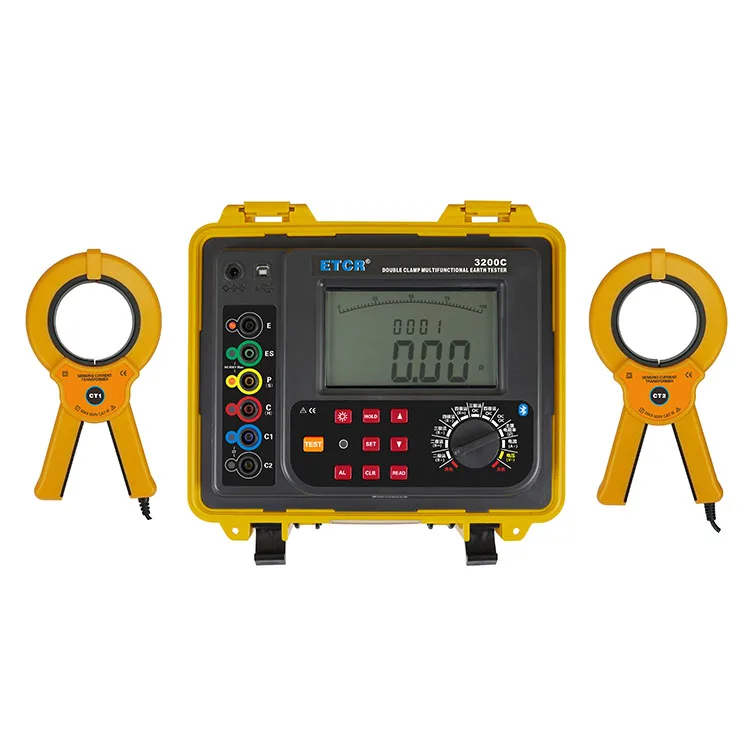

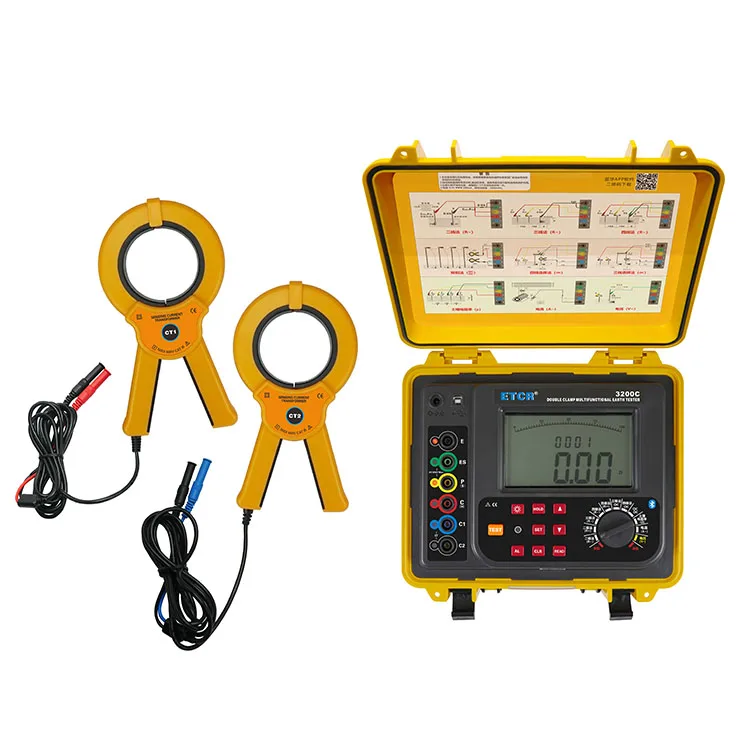

ETCR3200C New Design Resistance Tester Waterproof Double Clamp Ground Resistance Meter Test Tool With Big Screen
- Category: >>>
- Supplier: Guangzhou ETCR Electronic Technology Co. Ltd.
Share on (1600525875498):
Product Overview
Description
Power Supply | DC7.4V 2600mAh rechargeable lithium battery |
2/3/4-wire Method MeasureEarth Resistance | Range:0.00Ω~300KΩ; Resolution:0.01Ω; Accuracy:±2%rdg±3dgt |
Selection Method MeasureEarth Resistance | Range:0.00Ω~3000Ω; Resolution:0.01Ω; Accuracy:±2%rdg±3dgt |
Double Clamp Method Measure Earth Resistance | Range:0.00Ω~100Ω; Resolution:0.01Ω; Accuracy:±10%rdg±5dgt |
Earth Voltage Measurement | Range:0.0~100V AC; Resolution:0.1V; Accuracy:±2%rdg±3dgt |
Earth current Measurement | Range:0.00mA~600.0A Resolution:0.00mA; Accuracy:±2%rdg±3dgt |
Soil Resistity Measurement(p) | Range:0.00Ωm~9000KΩm; Resolution:0.01Ωm |
CT Size | φ70mm |
Short-circuit Test Current | AC 250mA max |
Open-circuit Test Current | AC 40V max |
Test Frequency | 128Hz/111Hz/105Hz/94Hz(AFC |
Data Storage | 2000 groups |
Automatic Shutdown | 15 Minutes after power on, will automatic shut down without any operation |
LCD Dimension | LCD Frame Dimension: 128mm×75mm； LCD Display Dimension:124mm×67mm |
Tester Dimension | 80mm(L)×260mm(W)×160mm(H) |
Total Weight | 6700g(include package) |
Working Current | Standby: around 25mA (Backlight close); Measurement:100mA (Backlight close) |
Test Wires | Red 40m, yellow 30m, green 20m,black 10m, red 1.6m, black 1.6m (total 6 pcs wires) |
Auxiliary Ground Rod | 4PCS：φ10mm×150mm |
USB Interface | With USB interface，software monitoring, storage data can be uploaded to computer, saved and printed |
Bluetooth Communication | Support the bluetooth communication function of Android system, after installation the APP, mobile terminals can be used to testing operations and view test records |
Alarm Function | Measure value exceed alarm setting value, will “Toot-toot-toot” alarm indication |
Battery Voltage | While battery voltage decreases to around DC 7.2V±0.1V, will display low battery voltage symbol“ ”, and remind to replace the battery |

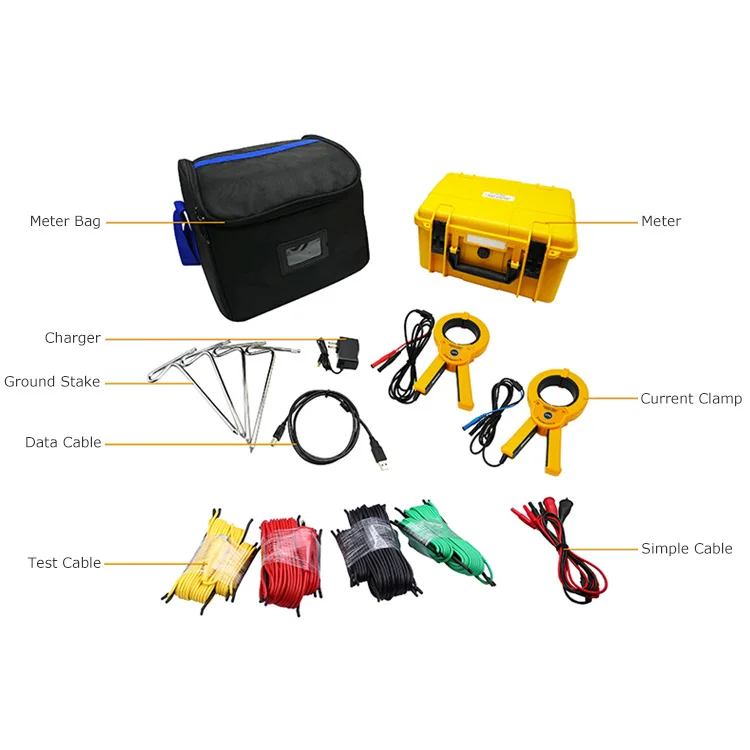

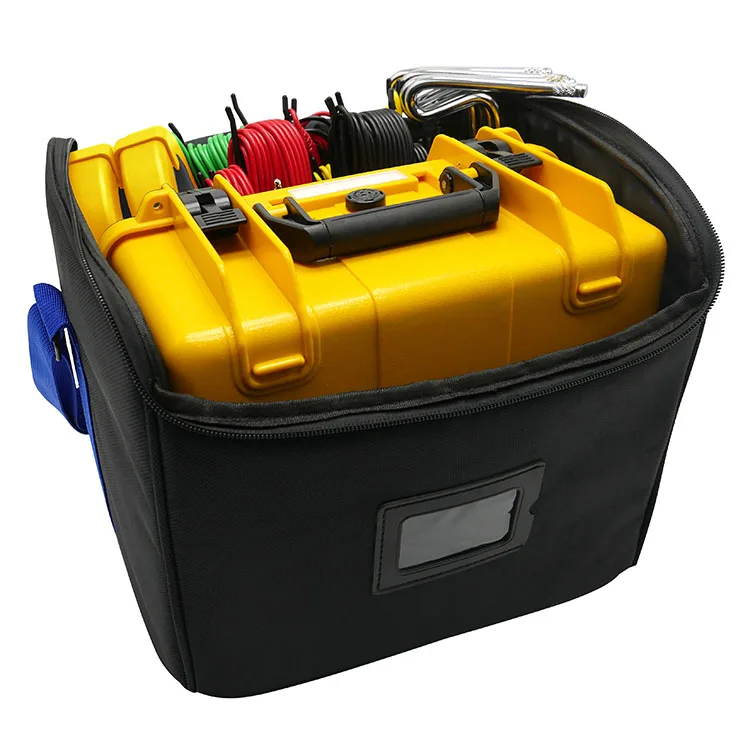

Accessories | Tester:1PC;Current Clamp Sensor:2PCS; Ground Rod:4PCS; Testing wires:6PCS; USB communication cable:1PCS; Special recahrager: 1PCS; Tester bag:1PCS |
Product Function
With 4-wire method, 3-wire method and simple 2-wire method, selection method, double clamp method to measure earth resistance, DC currentsoil resistivity,
earth voltage, AC voltage, grounding lead leakage current
earth voltage, AC voltage, grounding lead leakage current
Product Feature
1.Import FFT (Fast Fourier Transform Algorithm) and AFC (Automatic Frequency Control) technology. With unique antijamming capability and environmental adaptability, high consistency of retest.

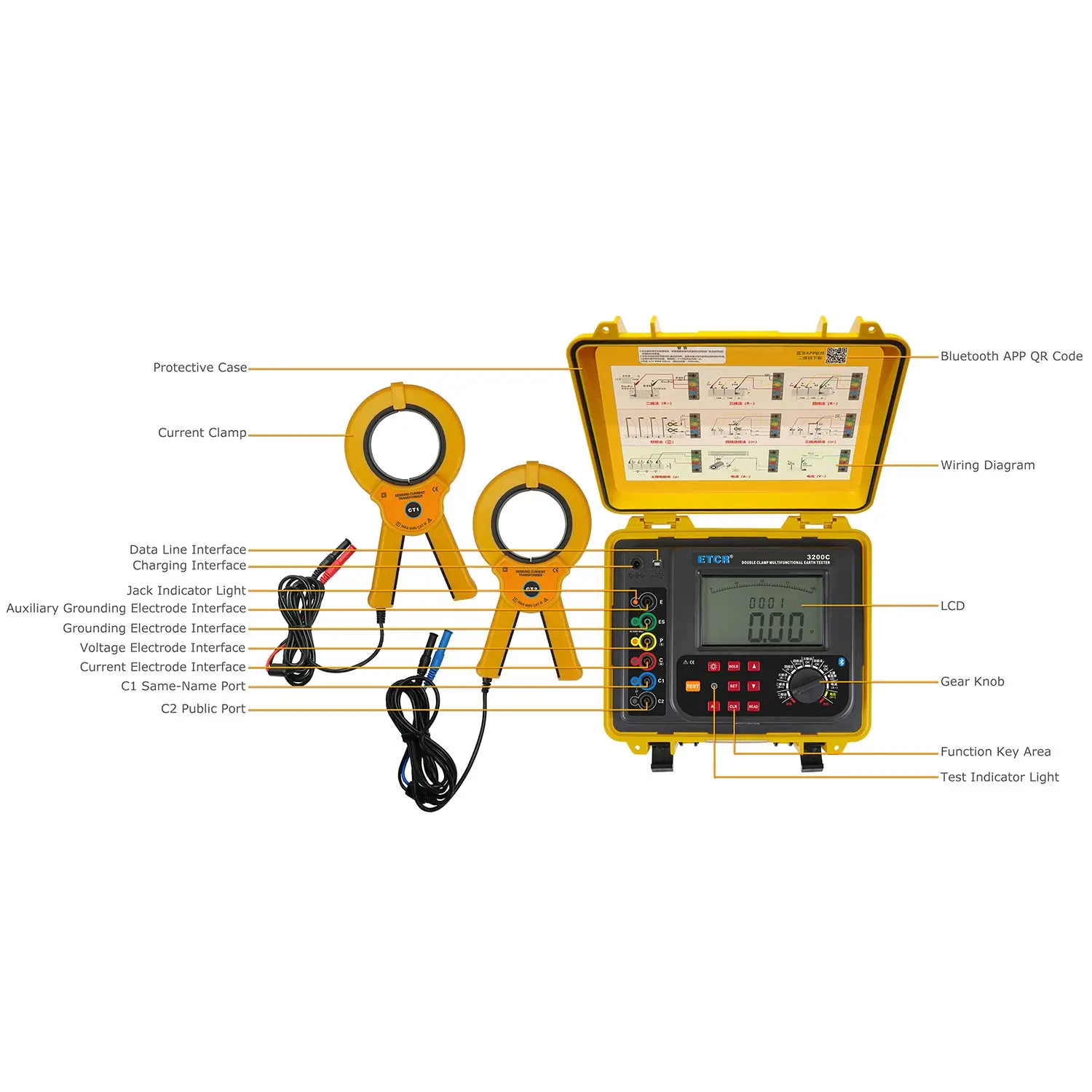

2.Unique designed plug receptacle indicator, accurately indicating the location of the plug receptacle, operation convenient. With function selection knob, all test methods clear to display, operate simple and fast.

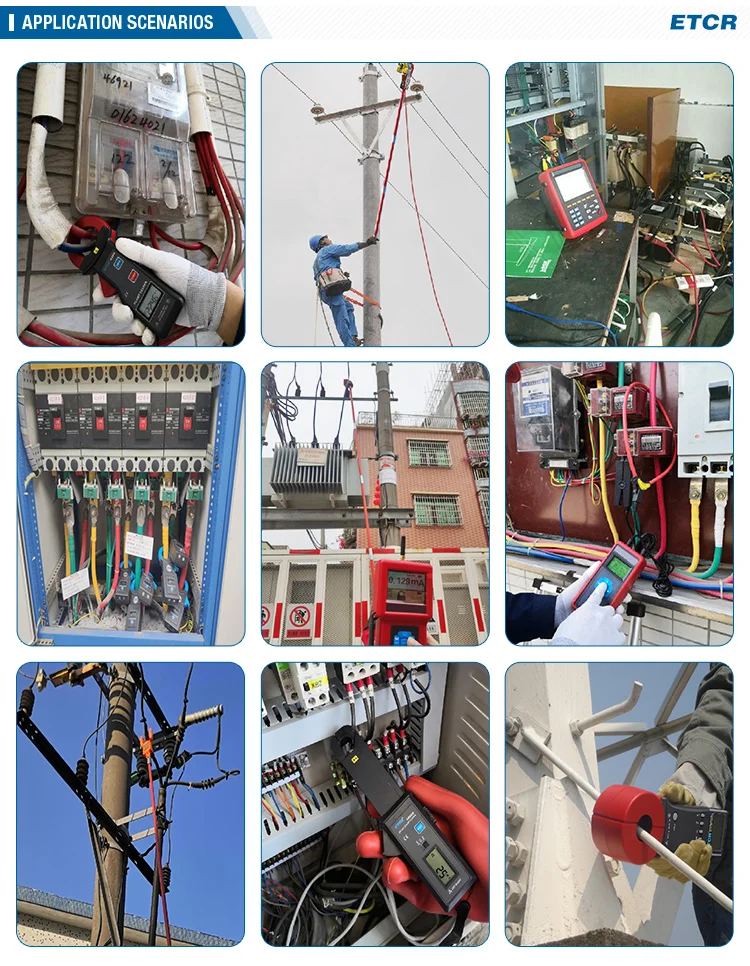

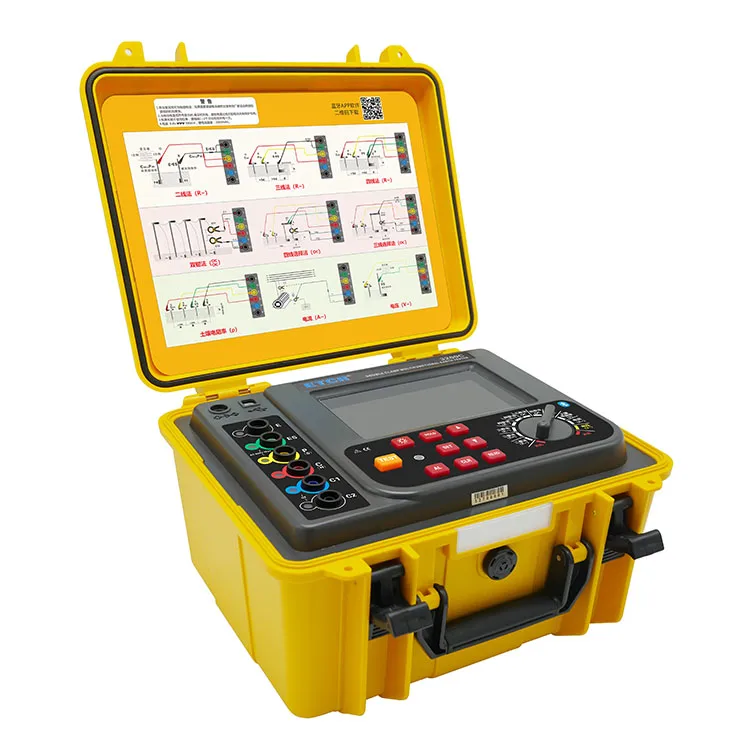

3.Package with waterproof protection box, waterproof, crash proof, anti-drop and durable, large-capacity rechargeable lithium battery pack, especially suitable for application at outdoor construction site
4.With the large LCD displayer of host machine, with white backlight and bar graph indication that can be seen clearly.
5.With alarm function, overload protection function, automatic shutdown function, also with the data storage, data access and data upload by USB interface function.
6.Support the bluetooth communication function of Android system, after installation the APP, mobile terminals can be used to testing operations and view test records.
2.Unique designed plug receptacle indicator, accurately indicating the location of the plug receptacle, operation convenient. With function selection knob, all test methods clear to display, operate simple and fast.
3.Package with waterproof protection box, waterproof, crash proof, anti-drop and durable, large-capacity rechargeable lithium battery pack, especially suitable for application at outdoor construction site
4.With the large LCD displayer of host machine, with white backlight and bar graph indication that can be seen clearly.
5.With alarm function, overload protection function, automatic shutdown function, also with the data storage, data access and data upload by USB interface function.
6.Support the bluetooth communication function of Android system, after installation the APP, mobile terminals can be used to testing operations and view test records.
