Industrial sandblaster automatic belt conveyor sand blaster cabinet
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600525881853):
Product Overview
Description
Product Description

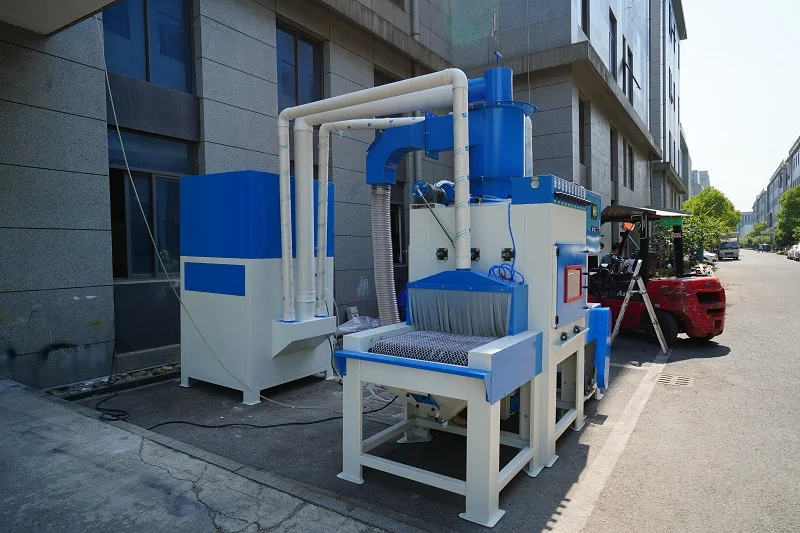

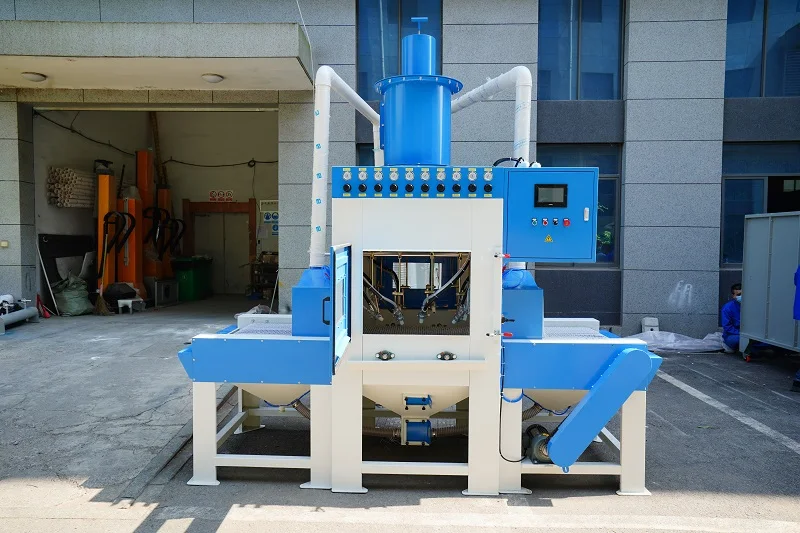

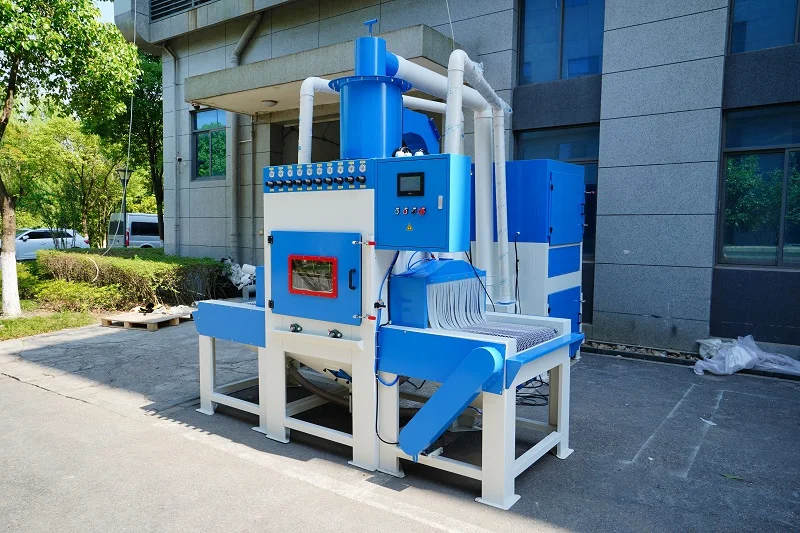

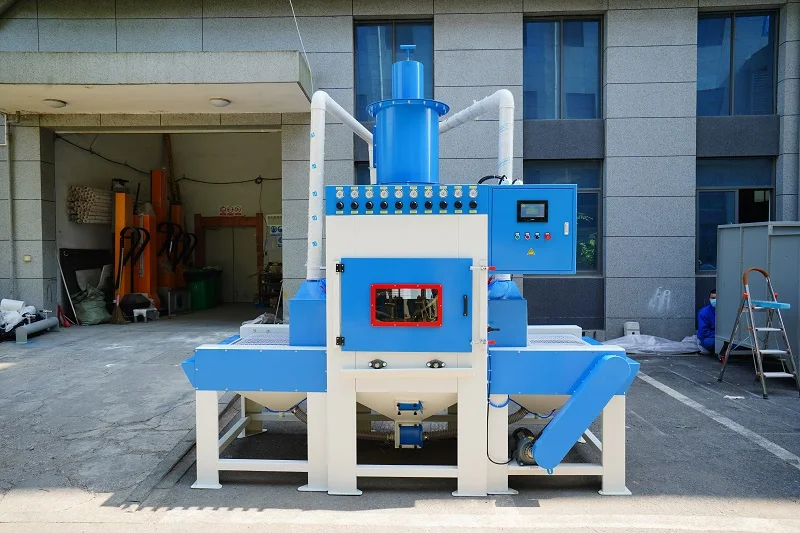

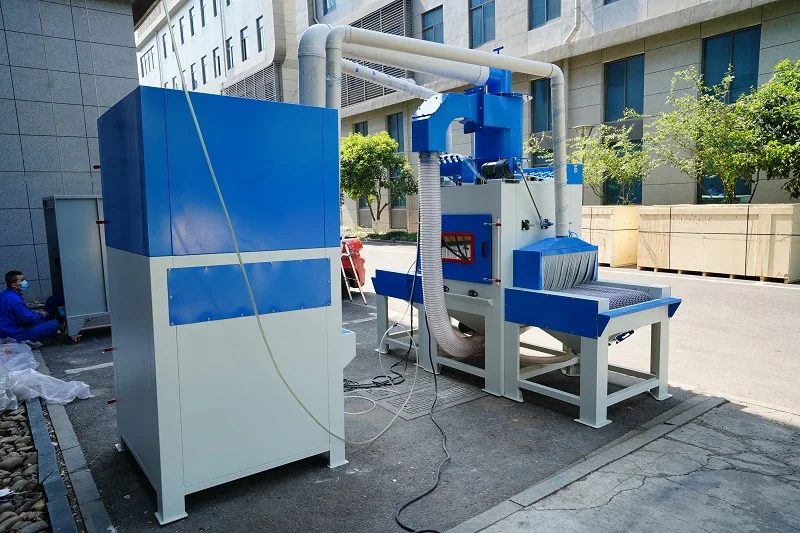

Industrial sandblaster automatic belt conveyor sand blaster cabinet
Industrial sandblaster automatic conveyor belt type sand blaster machine is designed for panel-type workpieces in high efficiency and good effect. Automatic sandblasting avoids the uneven blasting effect, chromatic aberration and quality problem.
Detailed Images
Pass Through Sand Blast Conveyor Blasting Machine Features
1. The speed of conveyor belt is controlled by variable frequency, whose flexibility ensure the optimal finishing result.
2. The swinging angle, and distance between the blasting gun and parts can be adjusted to meet particular needs.
3. Only requires operator to load and unload the work pieces, conveying and blasting by the automatic blast system, easy ane reliable.
4. A dust removing system thoroughly collects dust leaving a clear working view and ensures the recycling of pure abrasives.
5. The automatic sand blasting machine can be equipped with many spray guns, 8pcs, 10pcs, 12pcs, etc, as customer required.
2. The swinging angle, and distance between the blasting gun and parts can be adjusted to meet particular needs.
3. Only requires operator to load and unload the work pieces, conveying and blasting by the automatic blast system, easy ane reliable.
4. A dust removing system thoroughly collects dust leaving a clear working view and ensures the recycling of pure abrasives.
5. The automatic sand blasting machine can be equipped with many spray guns, 8pcs, 10pcs, 12pcs, etc, as customer required.

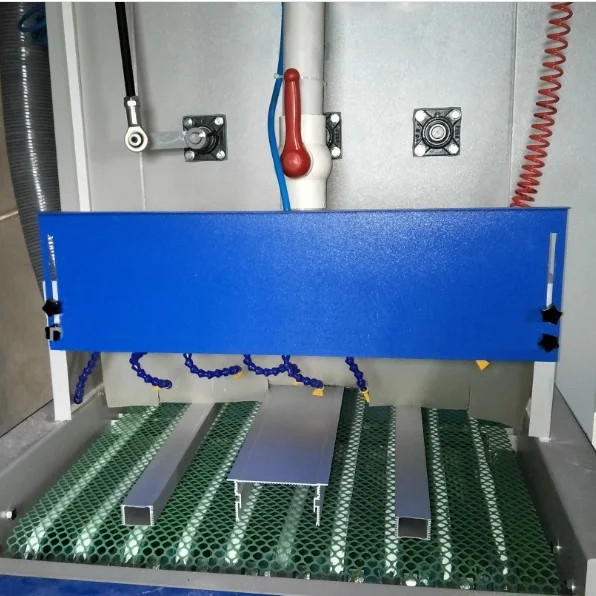

Conveyor running, speed can be adjusted.

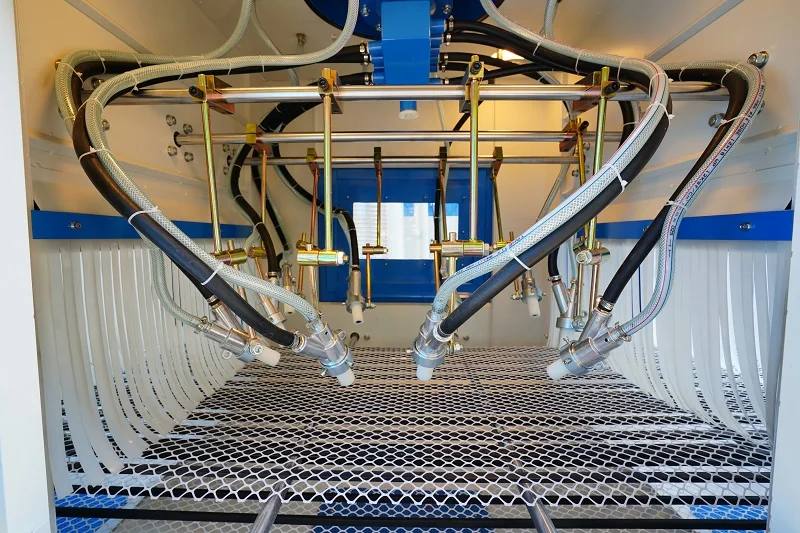

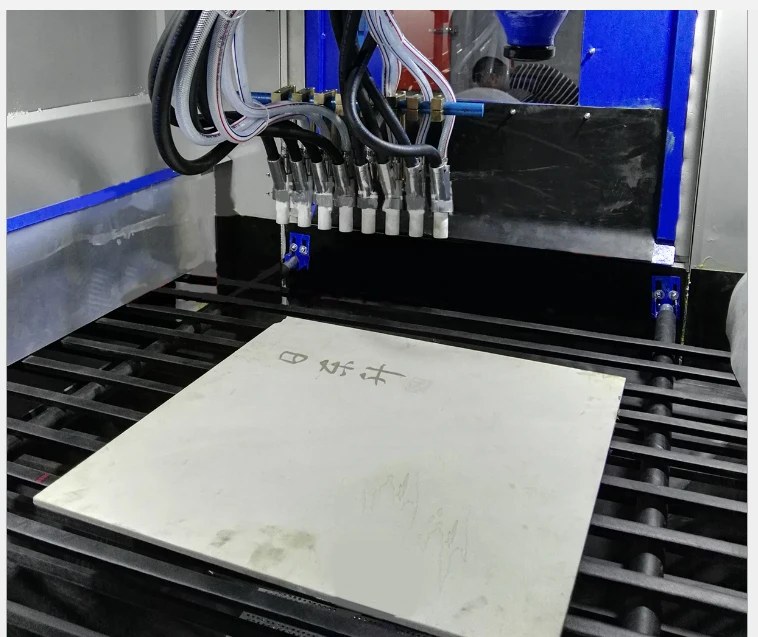

8pcs 10pcs or 12pcs can be choose, all blast gun work together work more efficiently.
Pressure Regulators
Dust Collector
Air Compressors
Fan Motor
Model | KF-6010-10A |
Type | Pass Though Conveyor Type |
Overall Size | 3200*1200*2139 (L*W*H) |
Working Space size | Length1100 * Width1200 * Height1000 mm |
Through size | Length800 * Width300 mm |
Dust collector size | Length1200 * Width1300 * Height2400mm |
Dust Collector Filter Qty | 6pcs |
Dust fan motor power | 5.5kw |
Blast gun swing motor | 370W 380V 50HZ |
Lighting | 18W fluorescent lamps, 2pcs |
The number of blast nozzles | 10pcs ( boron carbide nozzle) |
Machine Shell | 2.5mm-6mm cold-rolled steel plate welded |
Perspective window | 2 frames |
Abrasive funnel | 3pcs |
Pressure | 5-8 bar (kg / cm2) |
Air compressor | 6.8 cubic meter |
Conveyor loading capacity | 200 kg |
Total weight | 1 tons |
Application
Automatic Conveyor Belt Sand Blasting Machine Application

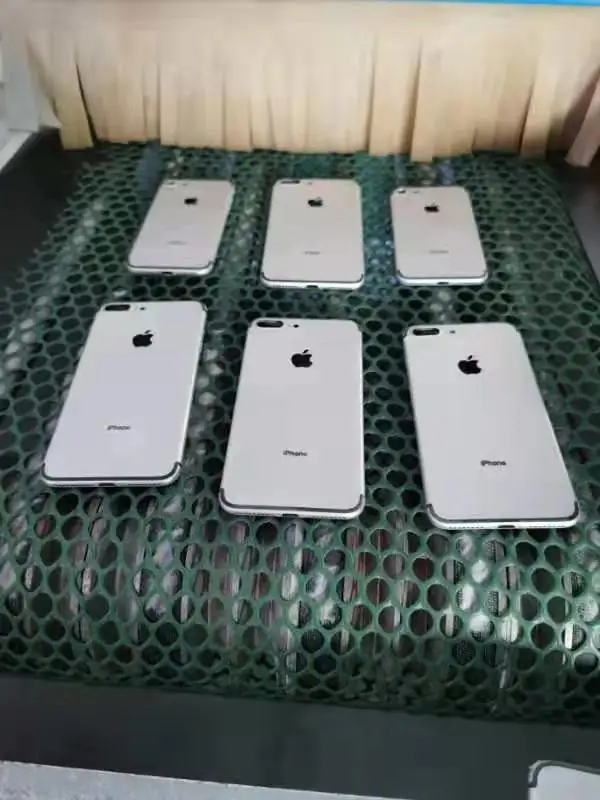

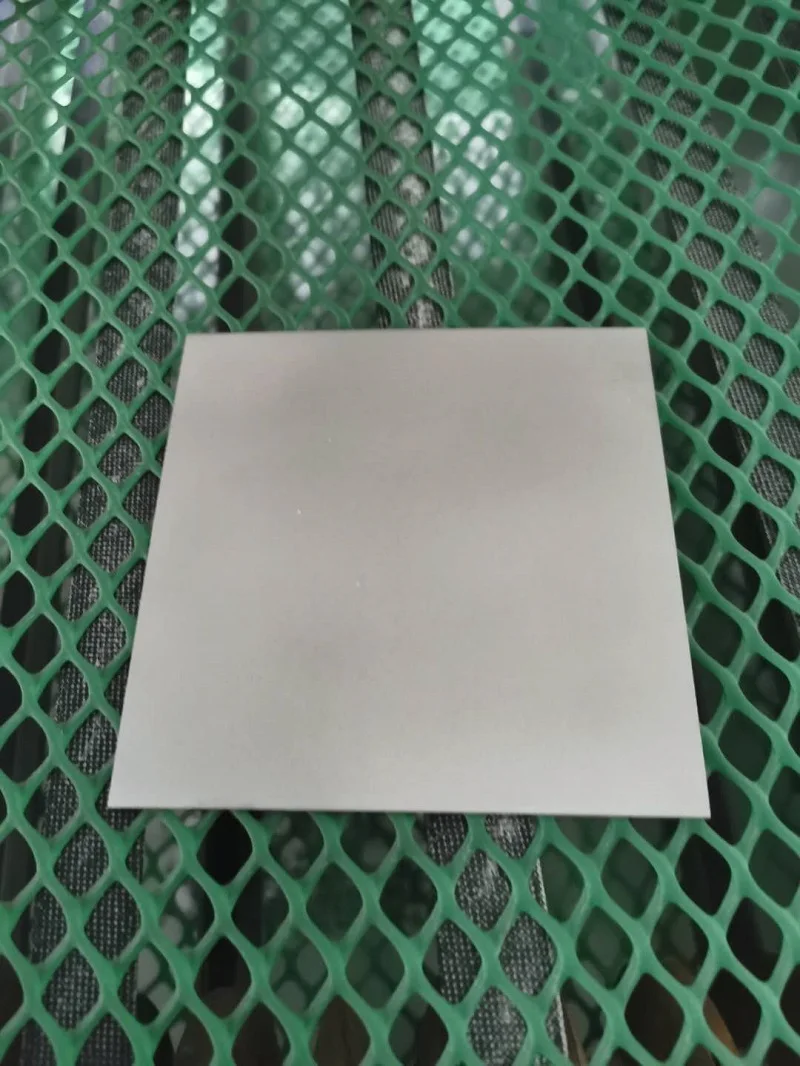

Convery sand blasting machine suitable for flat panel, disc, cages, profiles and other special parts of the sandblasting processing. Such as: flat stainless steel sheet and steel plate,glass plate, glass plate, stone, Non-stick pan, baking pan, toaster, function DVD, Panel, notebook, computer motherboard, iron floor, decorative pieces.
Customers Feedback
Related Products
The machine can be fully customized with different sizes according to the site and workpiece requirements
Model | KF-500-6A | KF -2804-8A | KF -6010-10A | KF -1280-12A | KF -3515-16A |
Through size(W*H) mm | 600 *300 | 600 *300mm | 800 *300mm | 800 * 350mm | 1000 *350mm |
Overall Size(mm) | 3200*1000*2400mm | 3200*1100*2400mm | 3200*1400*2400mm | 3500*1400*2500mm | 3500*1500*2500mm |
Packing&Shipping
All sand blasting machines comply with international export standards and are available in wooden boxes and foam films
Company Introduction
Kafan is a new brand under COLO group, whose people has specialized in powder coating equipment for more than 10 years. Our products covers: electrostatic powder coating gun, powder spray booth, powder coating oven, powder coating line and some spare parts. Such one-stop purchasing facilitate customers buy what they want. Whether for powder coating beginners or update projects.
Kafan's powder coating system optimize the application and operation. As an professional manufacturer, we devoted to supply most innovative and reliable powder coating system solution with powerful production capacity and advanced technology.
FAQ
Q1: What is the regular packaging?
A: We use wooden package. Membrane packaging for large equipment.
Q2: How to proceed an order for our productds?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q3: Can you do the design for us?
A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.
Q4. Do you have any MOQ requirment.
A: Different products have different MOQ, please contact us for details.
Q5. High Quality
A: All the Products will be pass test before delivery.
A: We use wooden package. Membrane packaging for large equipment.
Q2: How to proceed an order for our productds?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q3: Can you do the design for us?
A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.
Q4. Do you have any MOQ requirment.
A: Different products have different MOQ, please contact us for details.
Q5. High Quality
A: All the Products will be pass test before delivery.
