5 years warranty 24v 1.2W 120lm 3030 NICHIA OS RAM SIDE VIEW LED MODULE
- Category: >>>
- Supplier: Shenzhen Taionled Lighting Co. Ltd
Share on (1600525892085):
Product Overview
Description
5 years warranty 24v 1.2W 120lm 3030 NICHIA OS RAM SIDE VIEW LED MODULE:
Product details:

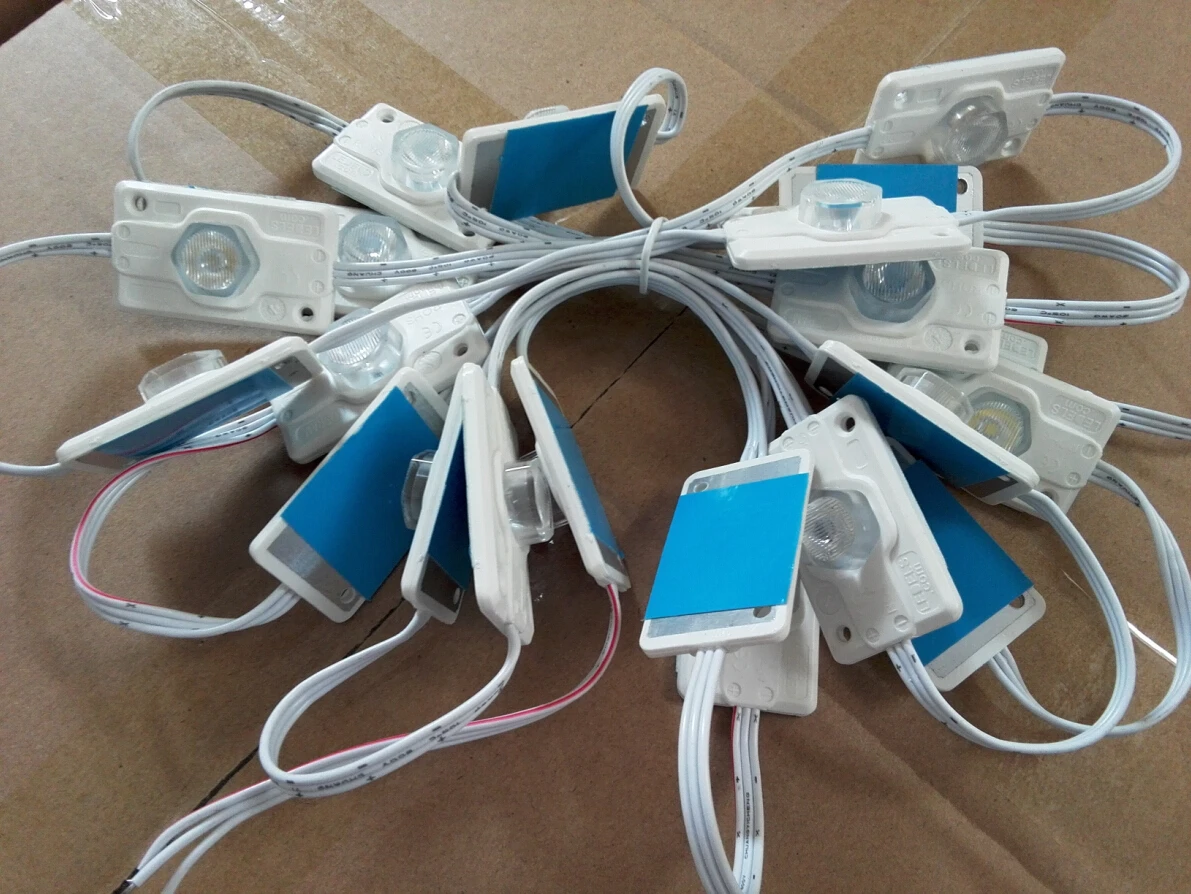

1.nichia/OS-RAM SMD3030 1.0watt led inside
2. 2.0 Thick Aluminium PCB for good heat sinking
3. Power:1.2w ,Voltage 24 Volt ,Brightness:120LM
4. 50000 hours Long lifespan, 5 years' warranty
5. Driven by constant current(Constant current IC protection).
6. 56*12degrees Wide angle lens & optical lens , uniformity is very good!

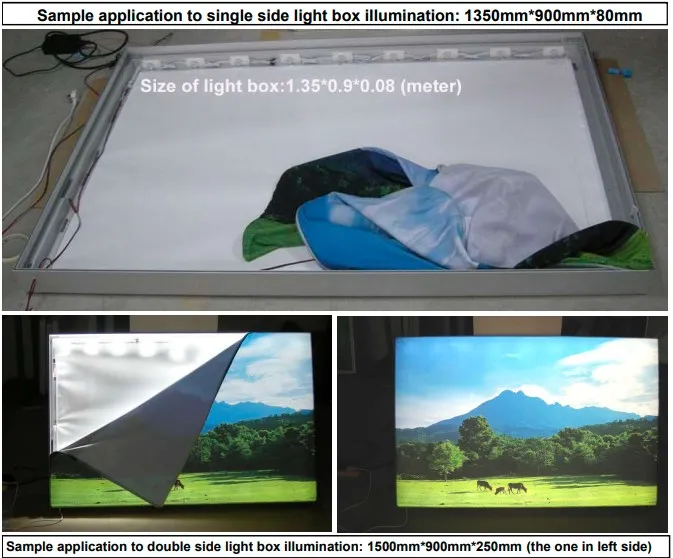

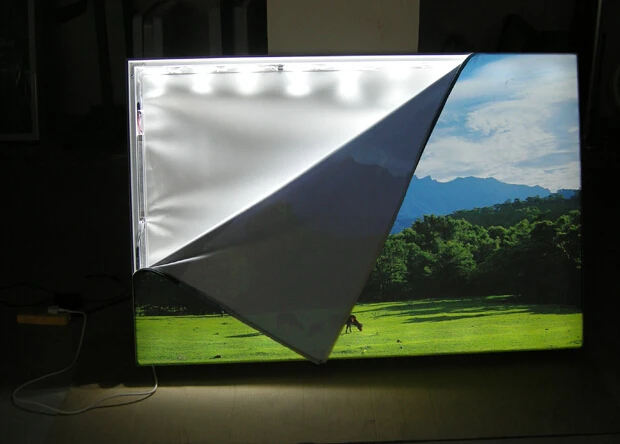

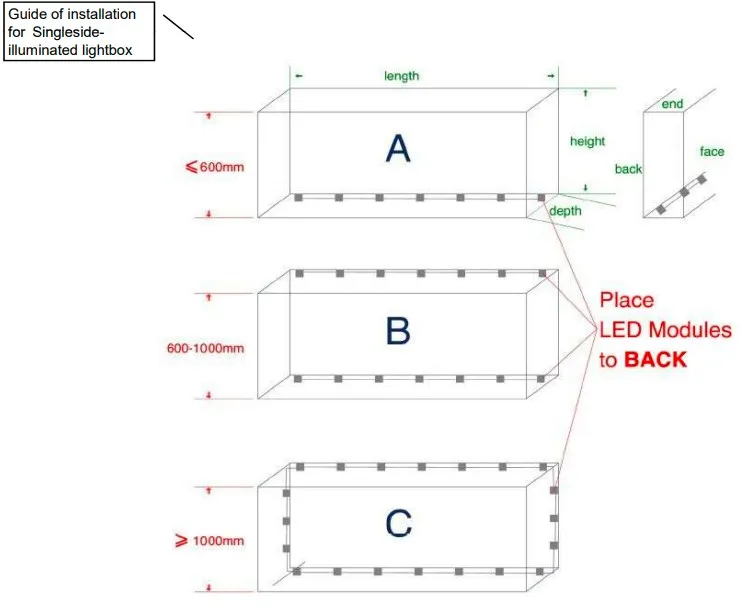

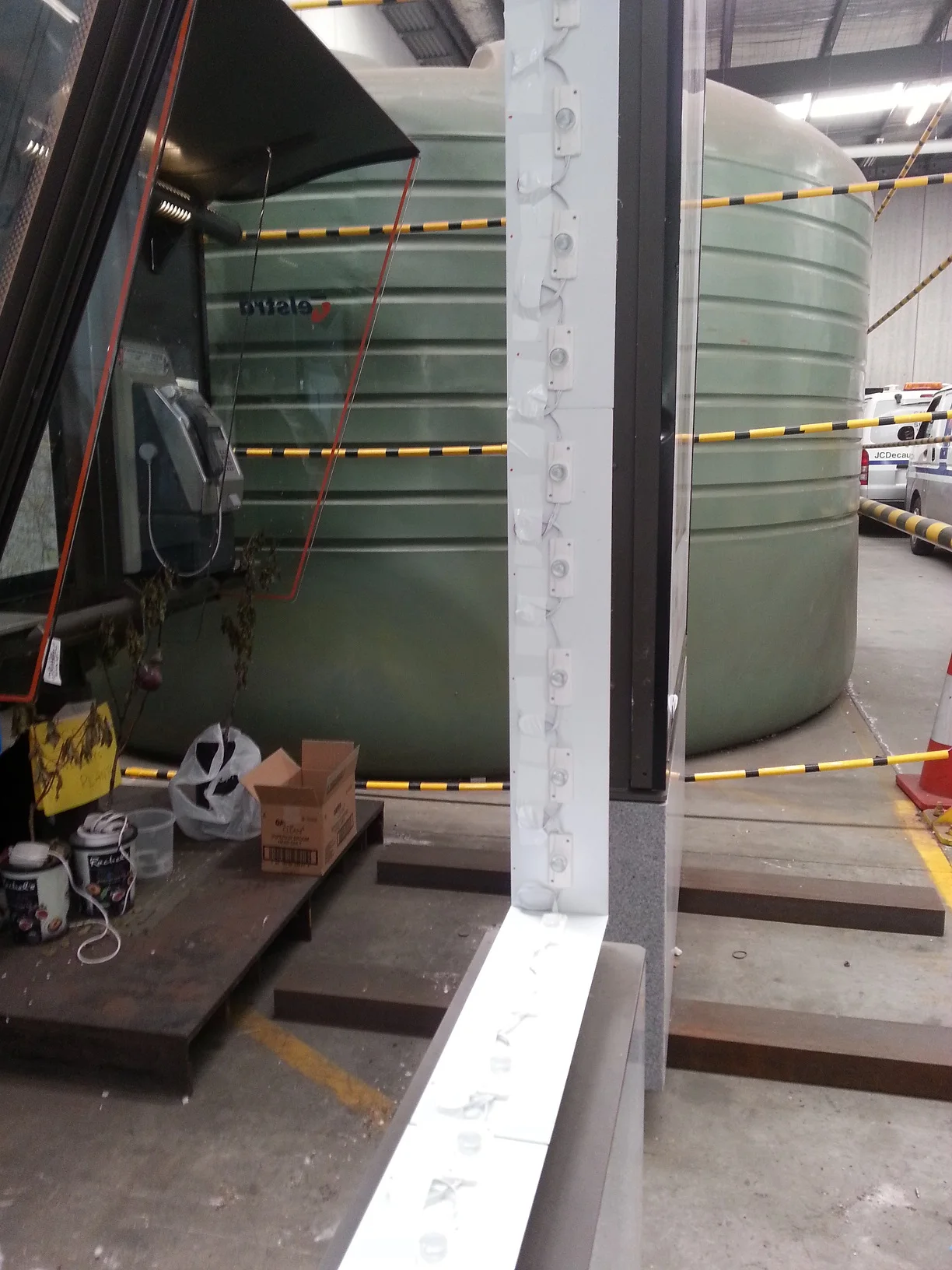

7. Edge light/Backlighting for single sided light box lighting, Cost effective for light box whose depth from 120-300mm depth
Electrical characteristics:
| Model No. | LL-F24P600W1L50 |
| LED Type | NICHIA/OS-RAM SMD3030 1.0W LED |
| Viewing angle | 56*12 degree |
| Emitting color | warm white/nature White/pure white |
| luminous flux | 120lm |
| Color temperature | 3000k,4500k,6500 kelvin |
| Operating Temperature | 24v DC |
| warranty | 5 years |
| Power consumption | 1.2att |
Physical Parameters:
| LED number | 1pcs |

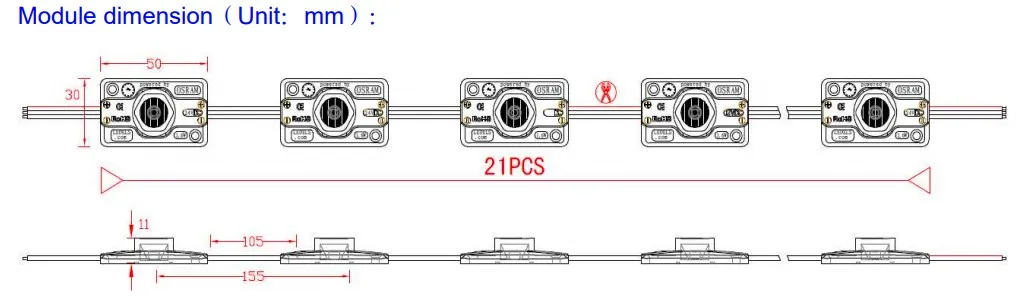

| pcs per link | 21pcs |
| IP Grade | IP65 |
| Shell material | ABS injection fire reterdant |
| Driven by | constant current(have IC protection) |
| Positioning | Screw&Autoadhesive 3M Tape |
| Operating temperature | -30°c ---+60 °c |
Storage Temperature | -40°c ---+60 °c |
Application:
a. Widely Used in Household Lighting.

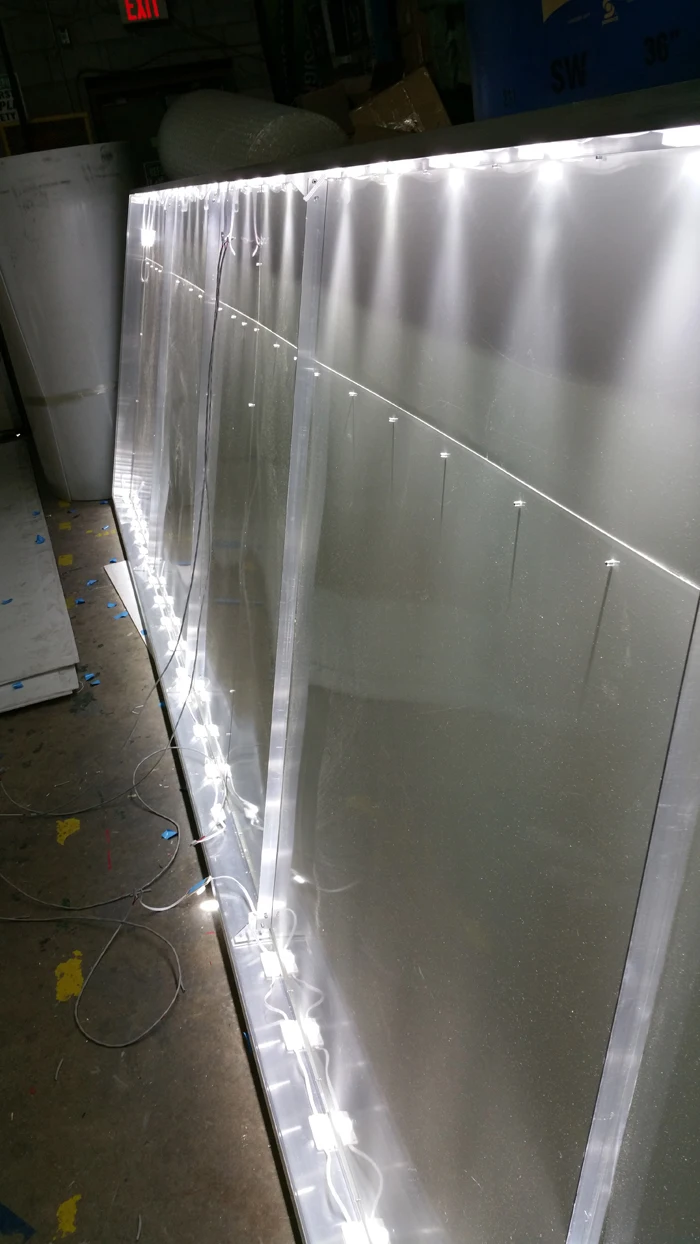

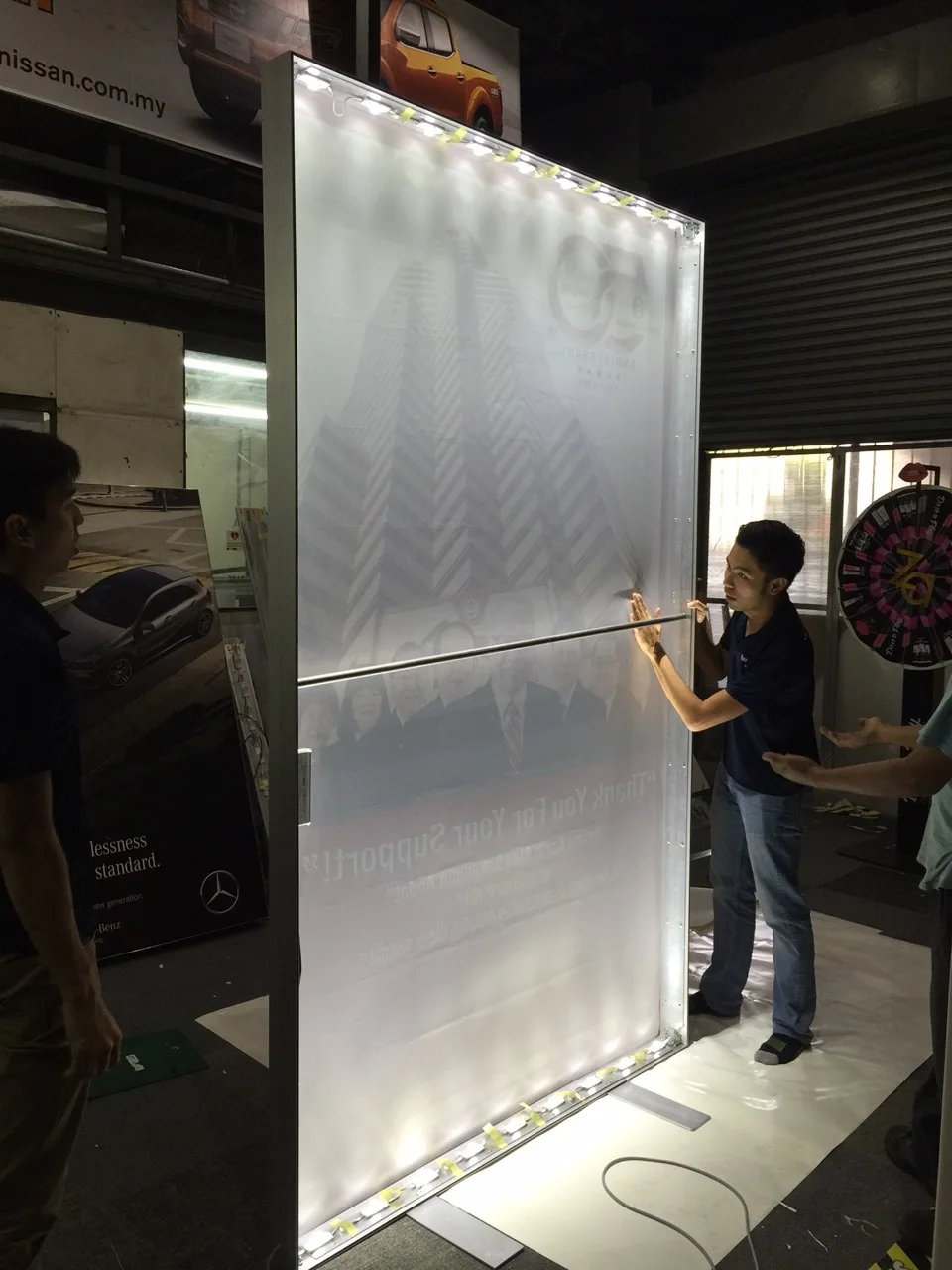

b. Backlighting /edge light for Advertisement ,Signboard and Billboard.
c. Backlighting /edge light for Lightingbox .
d. Signal Lamp for Letter Channel.
e. Emergency / rescue signs
Feature:
1. Has wide viewing angle 160degree view angle.
2. High intensity of each module, suitable for big & medium-sized LOGO & signage
3. Quick heat diffusion could prolong chips' lifespan
4. each strip is not more than 30 pieces if series connection is adopted
5. with hole on both ends, can be fixed by screw
6. Input: DC24V
7. IP rate: IP65
8. lifespan: 50,000hrs
9.Excellent Design:Graceful appearance. All Electronic components fully covered by high transparency PC are protected against terrible outdoor environments
Why Choose us ?
1.Professional:we are specialized in nothing,but one thing---led module for signage lighting over 13 years.
2.High quality:all of our led module powered by Top10 led,such as Nichia Everlight,we aim at high quality led module production,5 years' warranty
3.all of our wroker have a good training before going on duty.they like Taionled LIGHTING and work well in Taionled LIGHTING,so LEDELS own lots of employee who have abundant experience and good work skill.
4.Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
5.Certificate:CE ROHS complaint,UL listed,we have full of certificate to support our customer devolp the market in Europe and North-america.
Over 13 years experience in this industry,own lots of customer in home and abroad.good quality and innovation win good reputation.
Order infomation:
MOQ: 100pcs
Trade term: FOB Shenzhen ,EXW or CIF
Delivery time: 3-5 working days for sample order, 7-10 working days for mass order
Warranty:5 years since the date of purchase
Discounts : We offer discount for big quantity .
Delivery detail: We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about 1 week to arrive , or by sea which takes about half month or one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 12 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Contact imformation:
Leonis
skype:wu.qiang64
QQ:1454186086
Wechat:WQ372101
Mobile phone:0086-18820930242
We use Top10 led,such as CREE Osram Nichia Ecerlight etc,high quality and reasonable price,welcome your inquiry!
