High Precision Accuracy Digital Gravity Fuel Unloading Flow Meter
- Category: >>>
- Supplier: Henan Sinotech Intelligent Control Technology Co. Ltd.
Share on (1600525893399):
Product Overview
Description

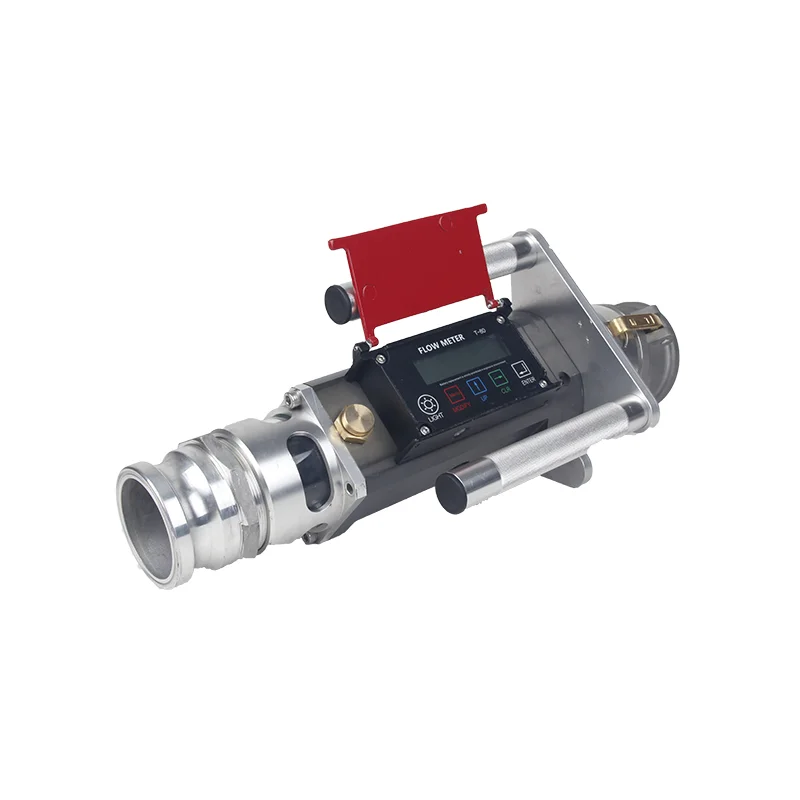

High Precision Accuracy Digital Gravity Fuel Unloading Flow Meter
Product Description

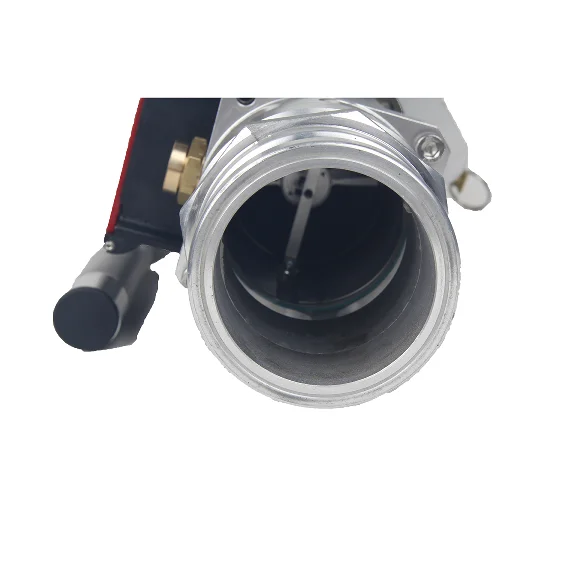

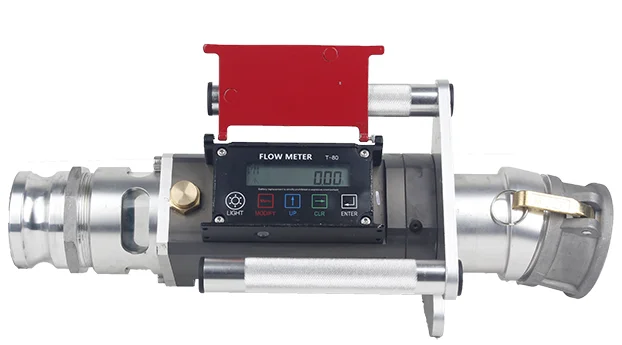

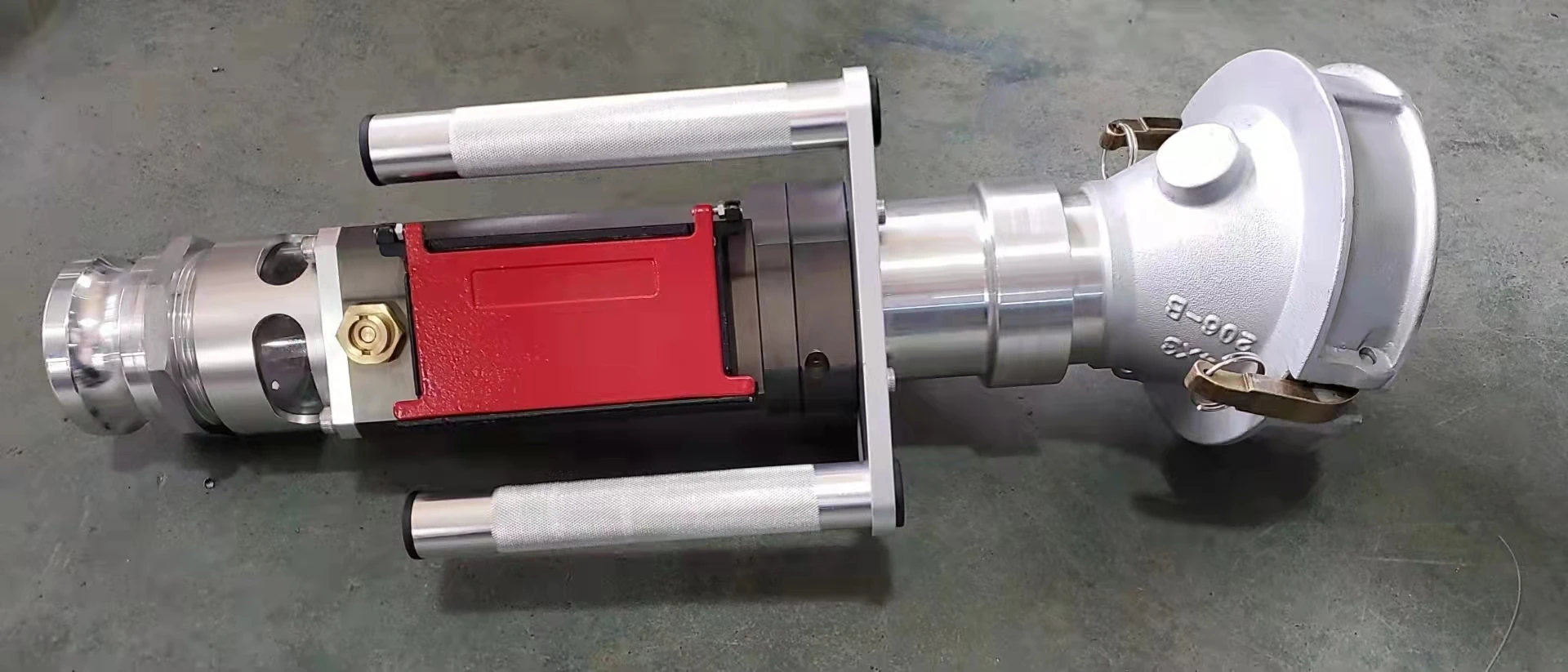

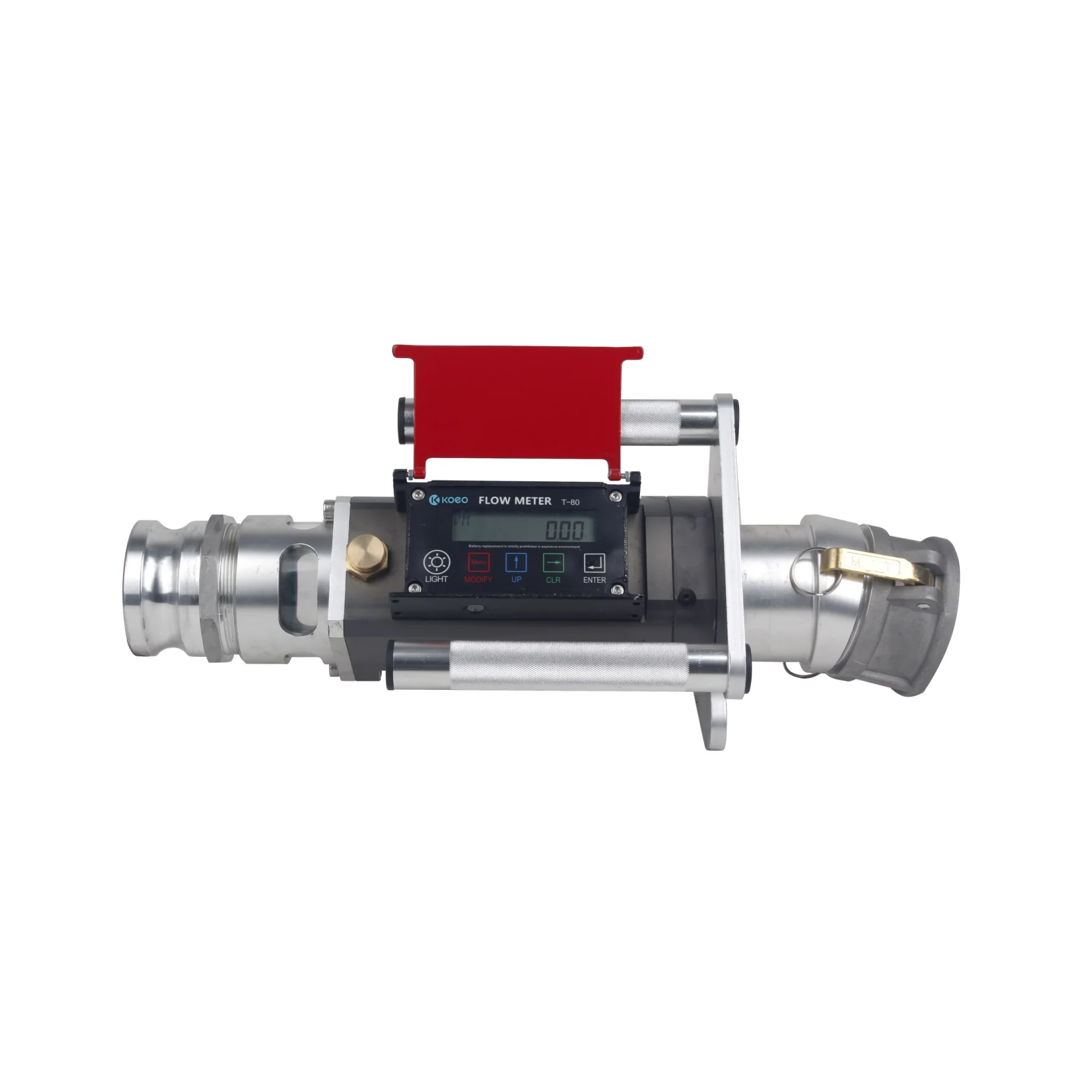

Details Images
Main Function
Safe and Reliable Measurement Data
● Realizes the whole unloading automation and eliminates the interference of human factors.
● Data can be stored and recorded to ensure the reliability and security.
● One year's measurements can be recorded

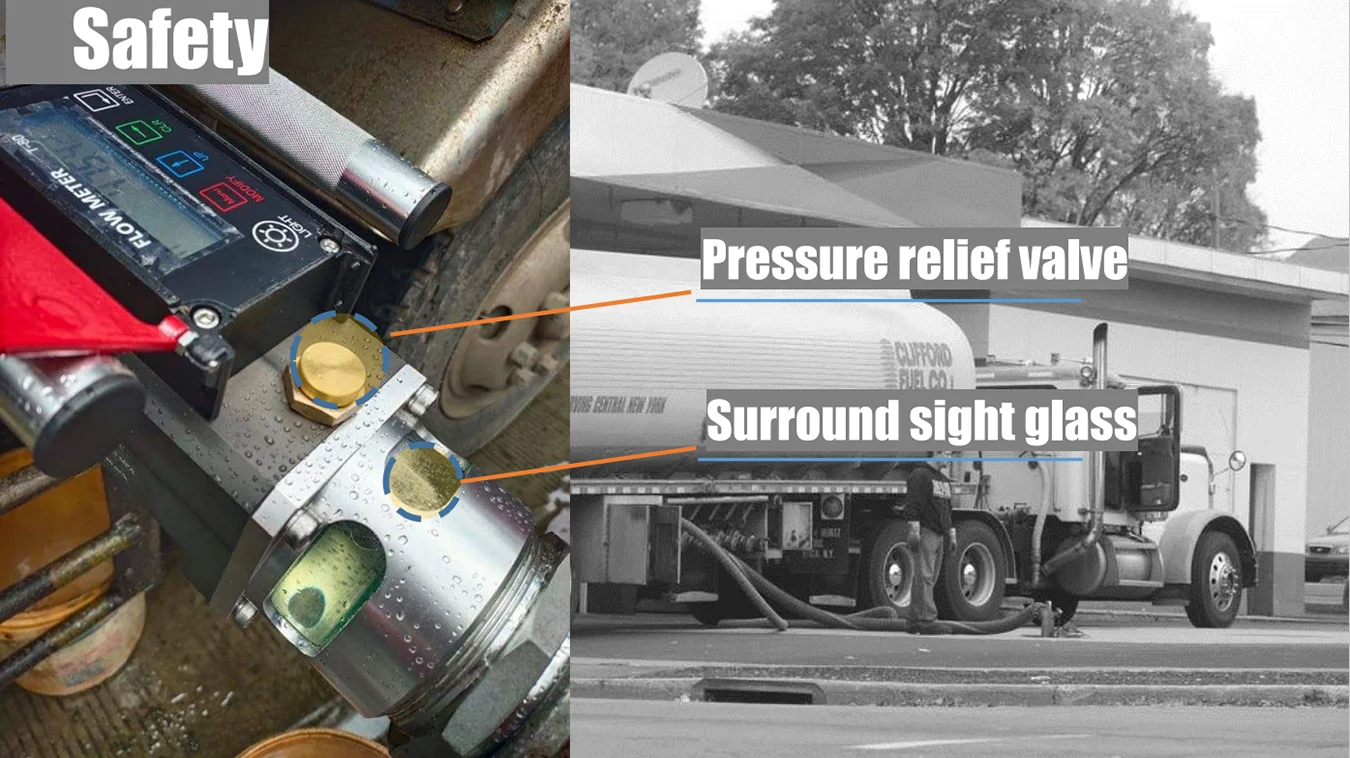

Safe and Reliable Equipment
● ATEX and China National Ex, can be fully used in dangerous areas of operation.
● Special Ex battery power supply, no external power supply, safe and reliable, 2 years life service.
1. Measure the Volume and Temp. of the tanker unloading at the station quickly and accurately.
2. Verify the accuracy of the
horizontal tanker volume table of the station accurately.
horizontal tanker volume table of the station accurately.
3. As the unloading number method of the standard tanker, it can correct
the tank table quickly and accurately.
the tank table quickly and accurately.
Product Features

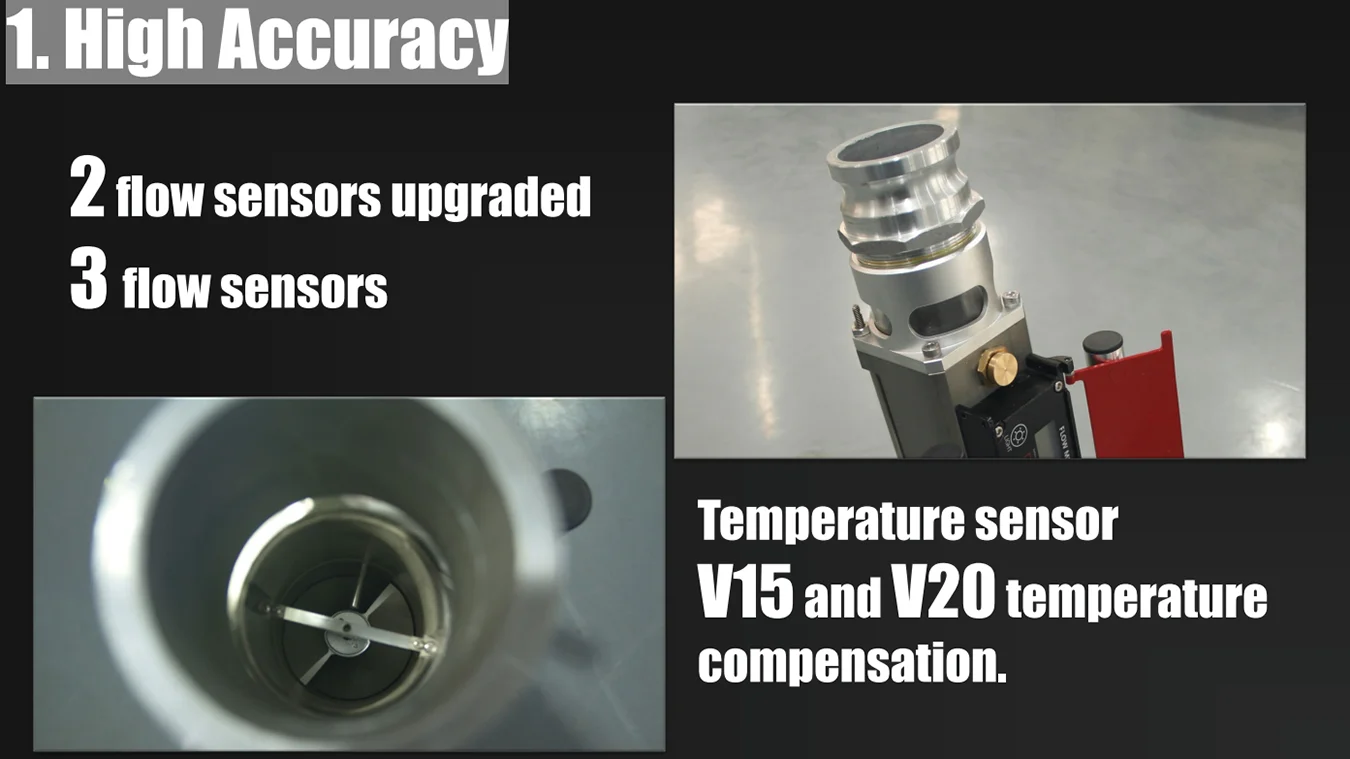

High Accuracy, High Reliability
● Accuracy: +/-0.1%
● Repeatability Accuracy: +/-0.02%
● Temp. Accuracy: +/-0.1℃
● Auto Measurement of Temp. Compensation Volume (V20)
● Auto Measurement of Oil Temp.

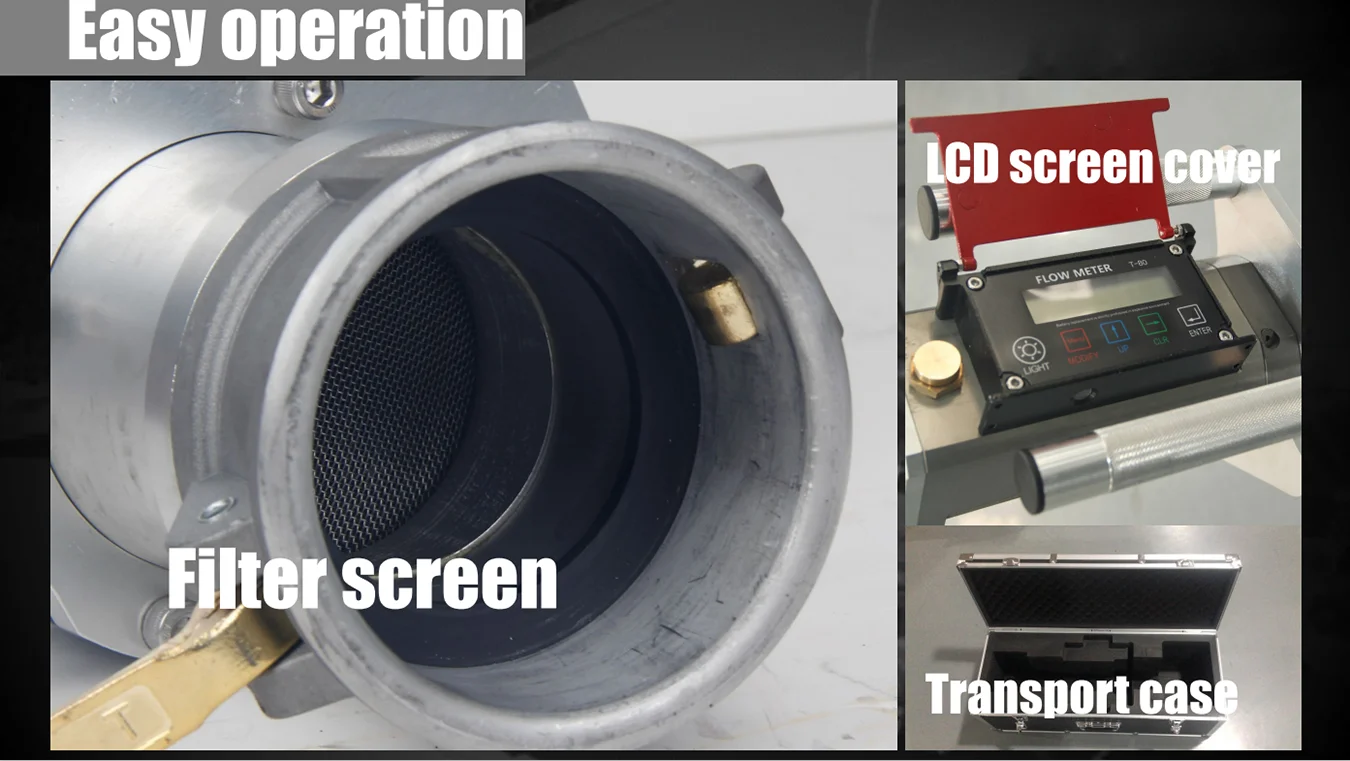

Easy to Use
● Weight 6kg, Easy to Carry

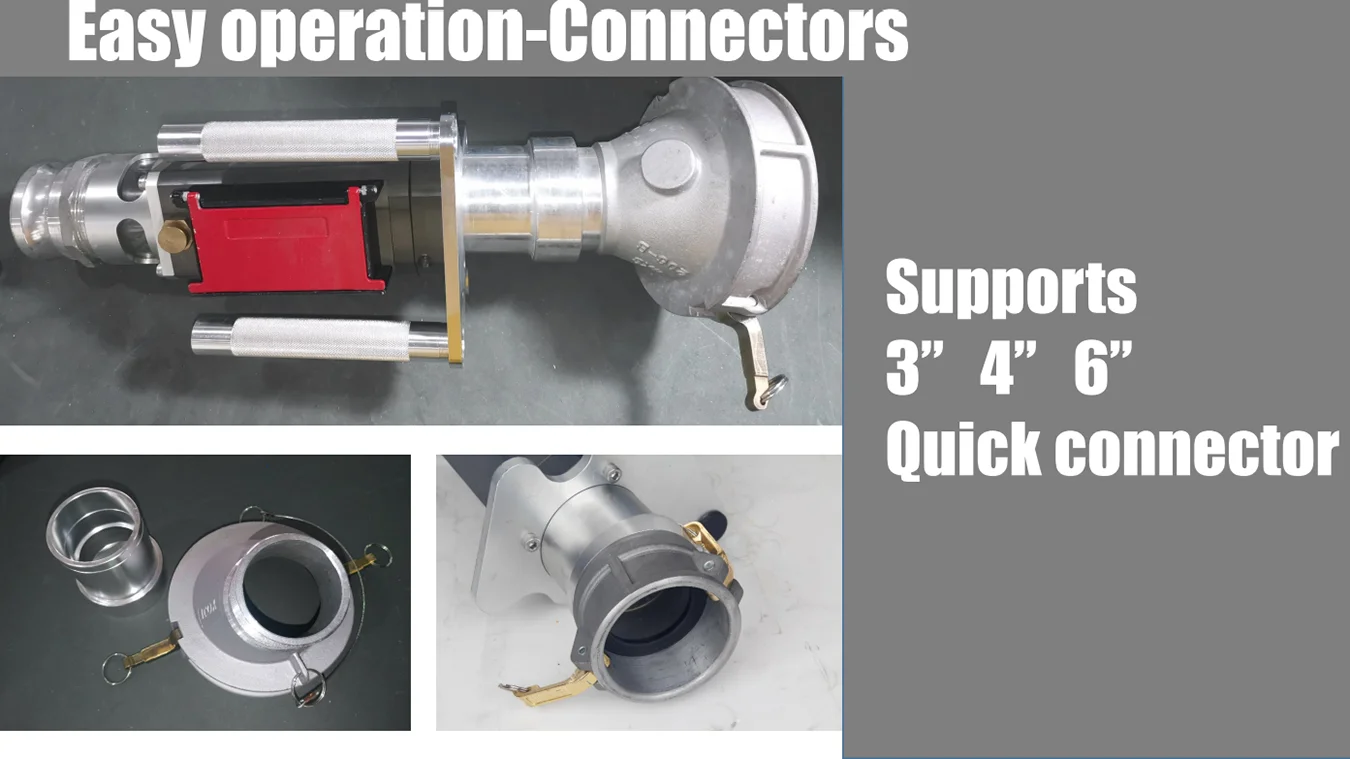

● Quick Connection, Easy to Install
● Connect to the oil unloading pipeline without affecting unloading. No Residual Oil from Unloading
● Used for a variety of Oil Products
● Weight 6kg, Easy to Carry
● Quick Connection, Easy to Install
● Connect to the oil unloading pipeline without affecting unloading. No Residual Oil from Unloading
● Used for a variety of Oil Products
Safe and Reliable Measurement Data
● Realizes the whole unloading automation and eliminates the interference of human factors.
● Data can be stored and recorded to ensure the reliability and security.
● One year's measurements can be recorded
Safe and Reliable Equipment
● ATEX and China National Ex, can be fully used in dangerous areas of operation.
● Special Ex battery power supply, no external power supply, safe and reliable, 2 years life service.
Applicable medium
● Gasoline, Diesel, Kerosene, Ethanol Gasoline, and other Oil Products
Specification
Item | Value |
Applicable Medium | Gasoline, Diesel, Kerosene, Ethanol Gasoline, and other Oil Products |

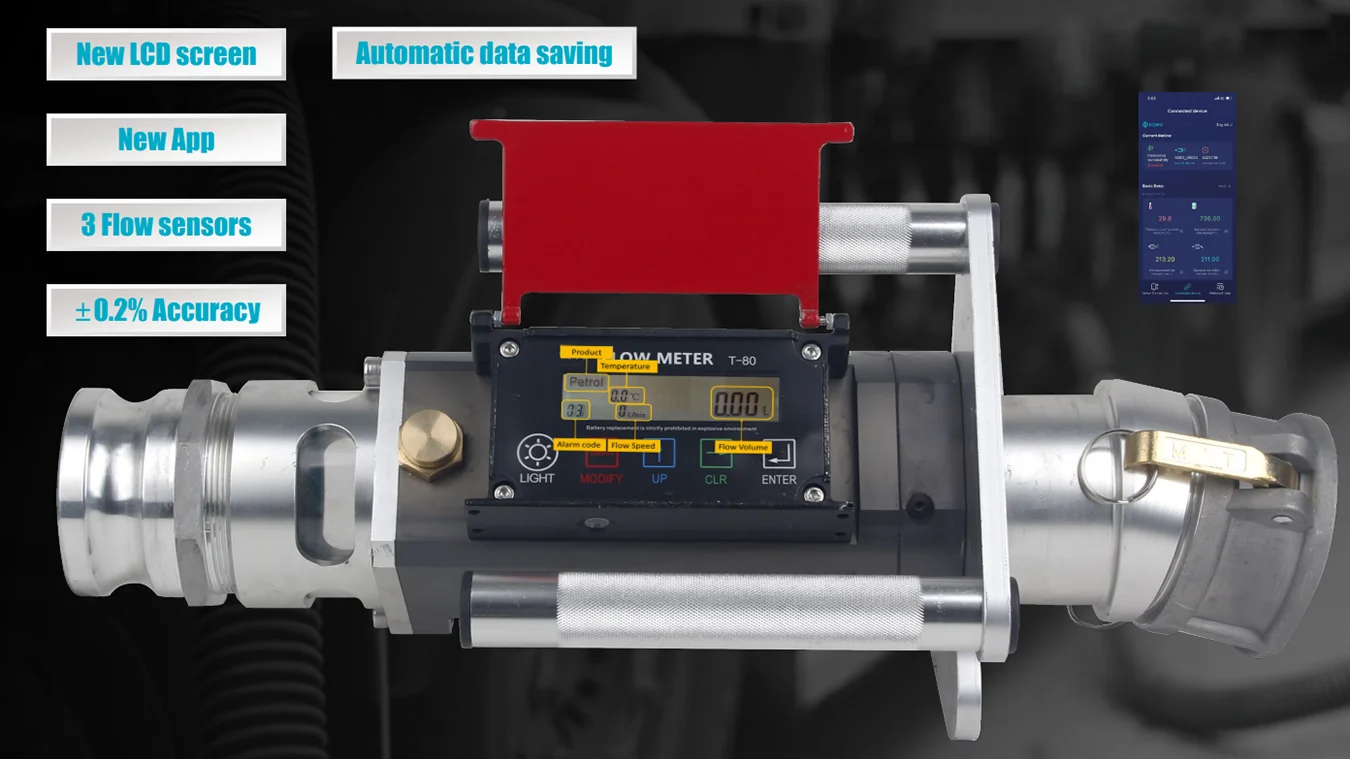

LCD Screen | English Version, 7 Digit Display |
Pipe Diameter | 3’’（DN80) |
Accuracy | ±0.2% |
Repeatability Accuracy | ±0.02% |
Weight | 6kg |
Material | Aluminum |
Flow Rate | 8-80m3/h(130-1300L/min) |
Min. Scale: | 1L |
Ex Grade: | Ex ia ll BT4 Ga |
Protection Grade | IP67 |
Temp. | -25°C-+55℃ |
Max. Pressure | 0.35MPA |
Oil Viscosity Range | ≤13mm2/s |

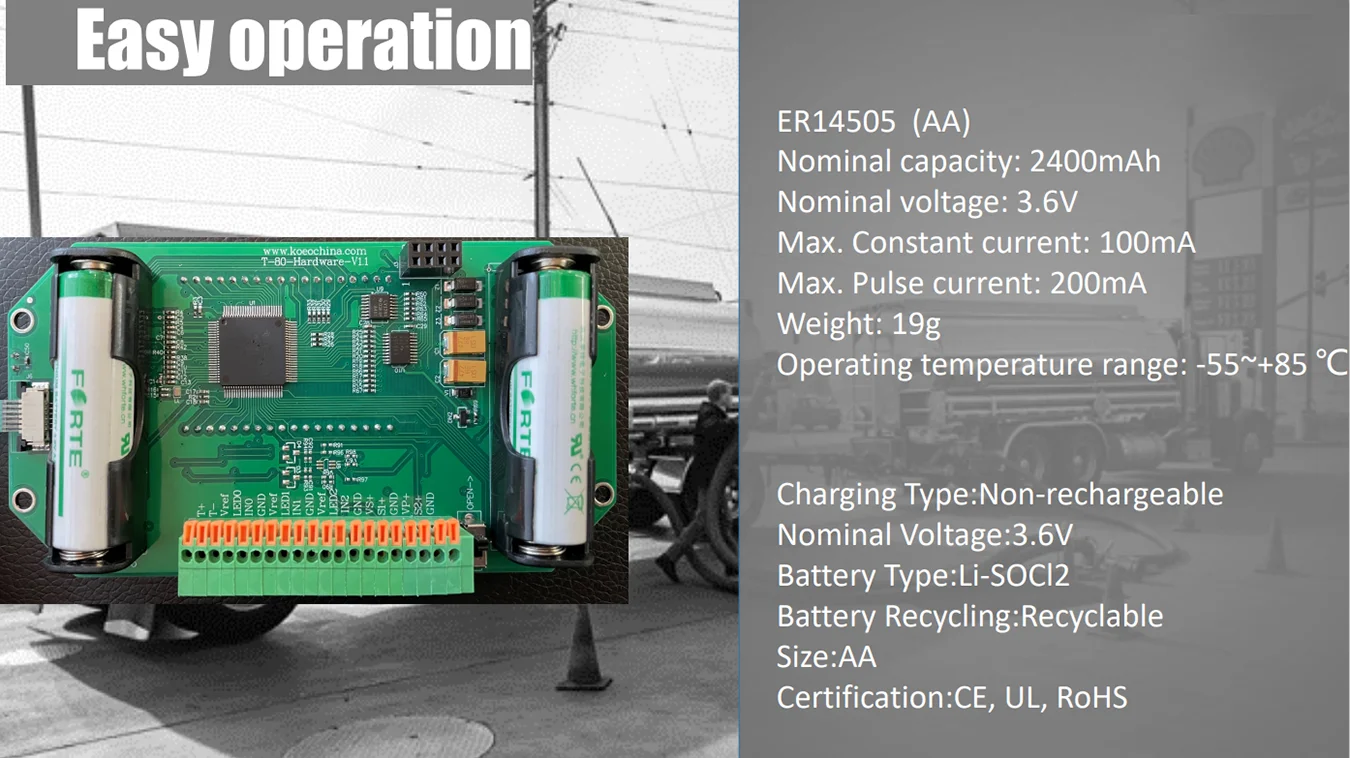

Power Supply | 2*3.6V Lithium Batteries (2 years life service |

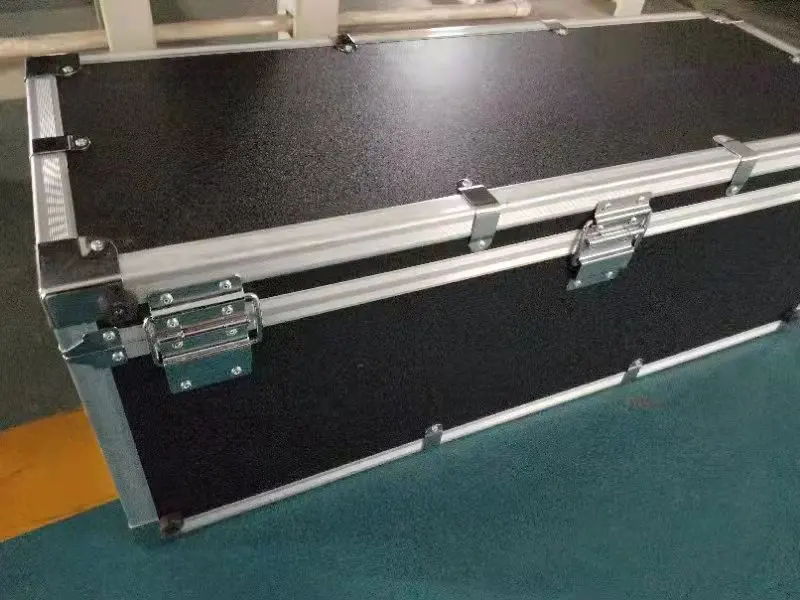

Package | Air case |
Dimension | 78*32*34cm |
Billing weight | 18KGs |

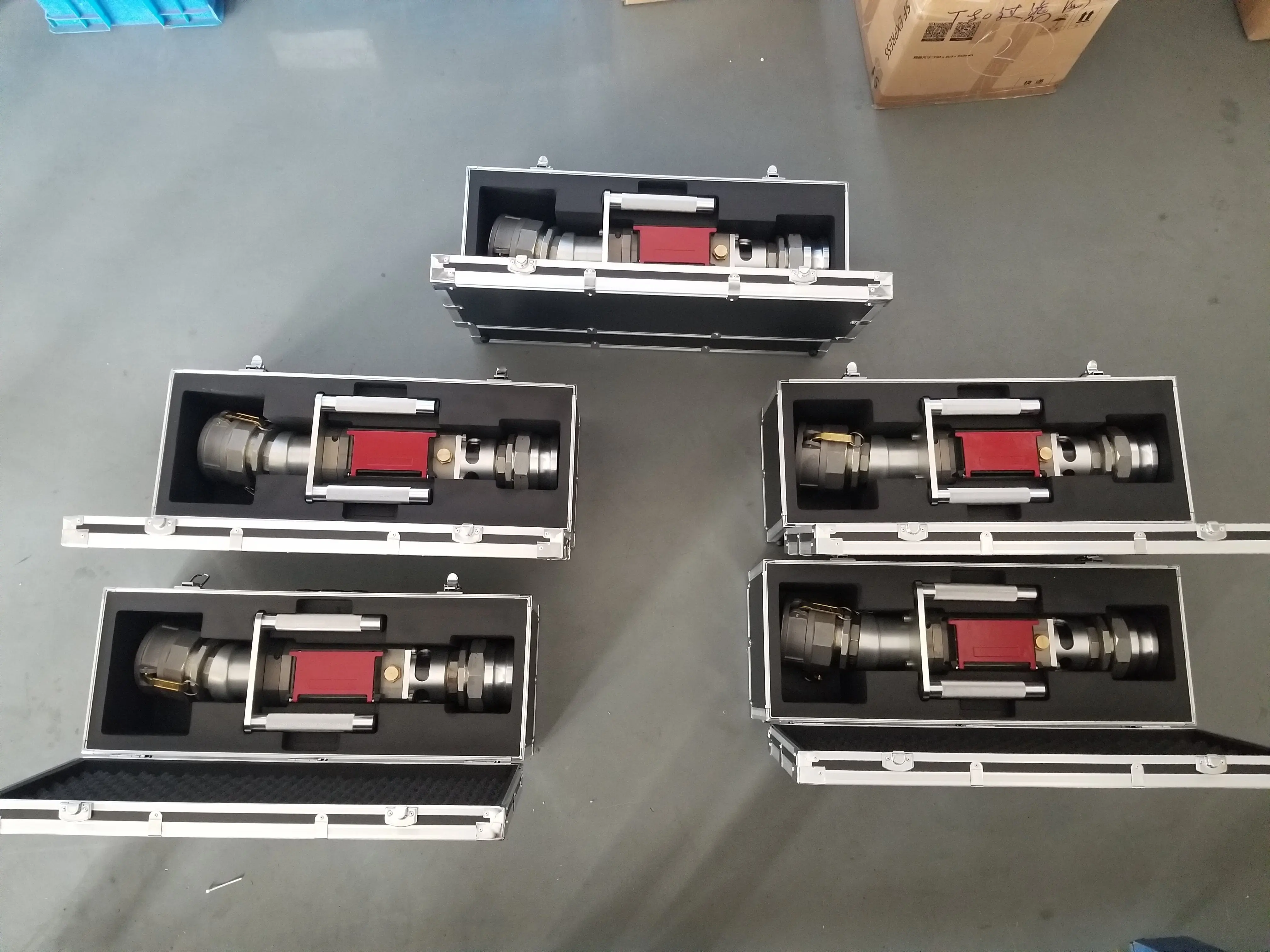

Product packaging
