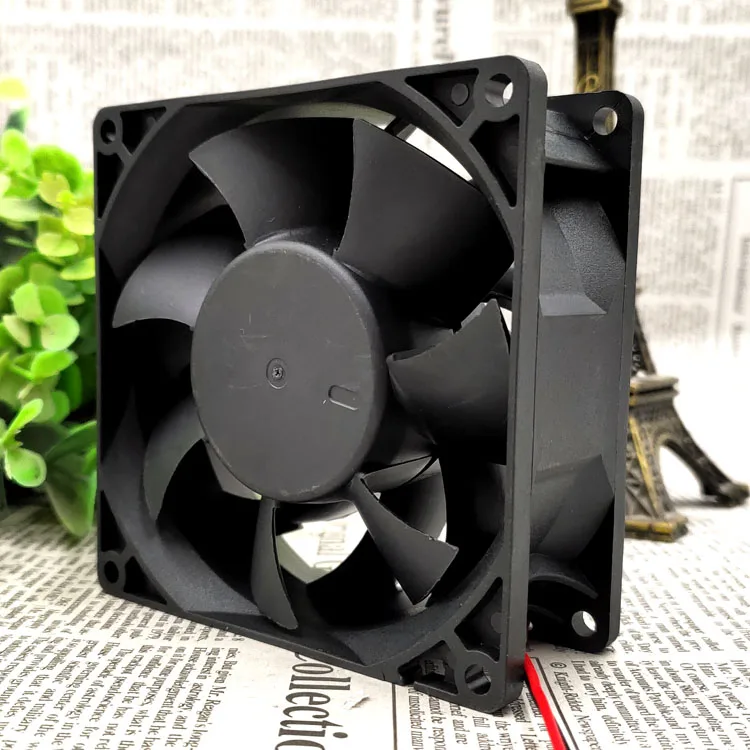

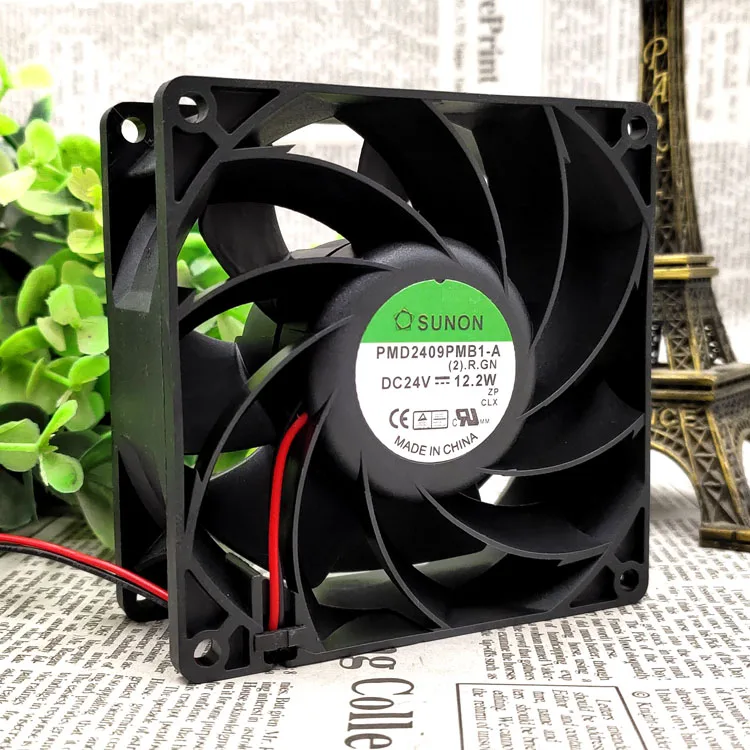

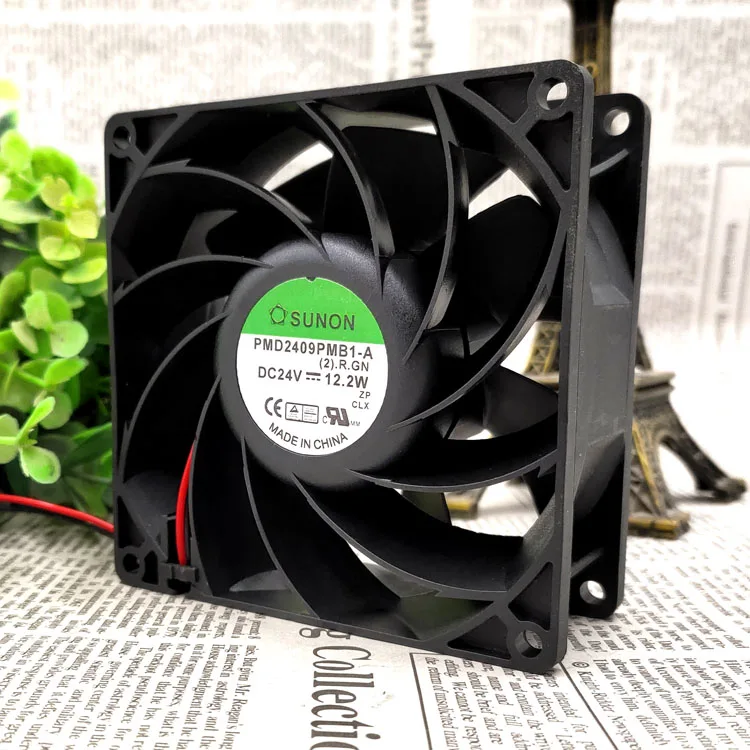

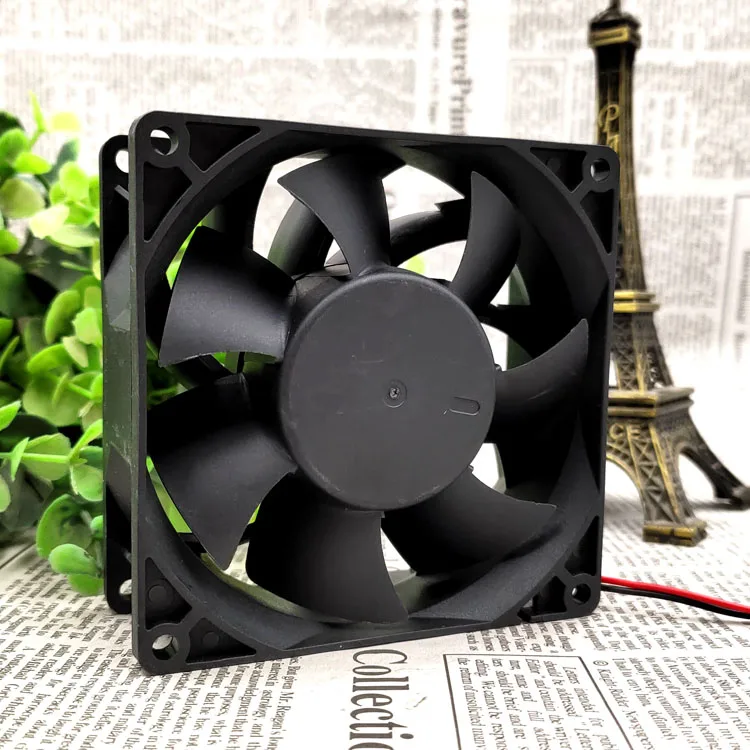

Pmd2409pmb1 a 9038 24v 12.2w 9cm Schneider Atv71 Frequency Converter Fan Cooling Fan
- Category: >>>
- Supplier: Shantou Mingshida Electronic Technology Co. Ltd.
Share on (1600525909990):
Product Overview
Description
Product Description
Specification
Size: 90 × 90 × 38MM
Model: pmd2409pmb1-a (2) GN . I55
Bearing: double ball
Voltage: DC24V
Current: 0.51a
Power: 12.2w
Speed: 4900rpm
Air volume: 120.2cfm
Wind pressure: 0.71 inch H2O
Noise: 57.6dba
Weight: 190g
Connection method: wire
Model: pmd2409pmb1-a (2) GN . I55
Bearing: double ball
Voltage: DC24V
Current: 0.51a
Power: 12.2w
Speed: 4900rpm
Air volume: 120.2cfm
Wind pressure: 0.71 inch H2O
Noise: 57.6dba
Weight: 190g
Connection method: wire
Company Profile
Shantou Mingshida Electronic Technology Co., Ltd.
We established,we are always focusing on the R&D,production and selling the cooling fans,and committed to becoming the top brand in Chinese cooling fan industry.After years of effort from all the staffs,we had built the good product R&D and production system,such as:Reliability Laboratory,Noise Testing Room,Air Flow&Pressure Testing System,Mold Manufacturing and Plastic Injection
FAQ
1. What's the difference between the sleeve and ball bearing fan?
The ball bearing brand was NMB bearing imported from Japan.The warranty for ball bearing fan is 50,000 hours but sleeve bearing just 20,000 hours.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof(IP68 optional), PWM function ,Temperature control etc.
3.What's your MOQ and delivery date ?
MOQ 200PCS
Sample lead time:3-5 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Sample lead time:3-5 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
4. What's your payment terms ?
We accept Payment by T/T, Trade assurance order
