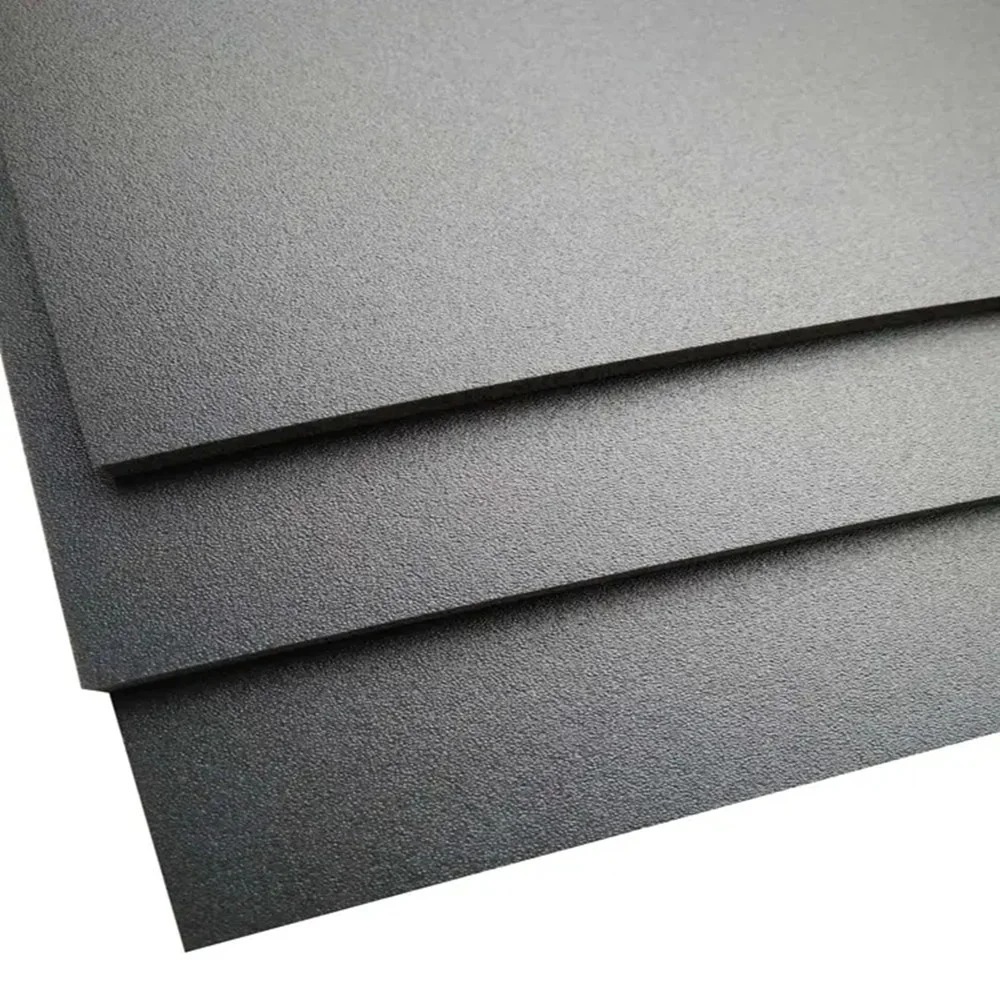

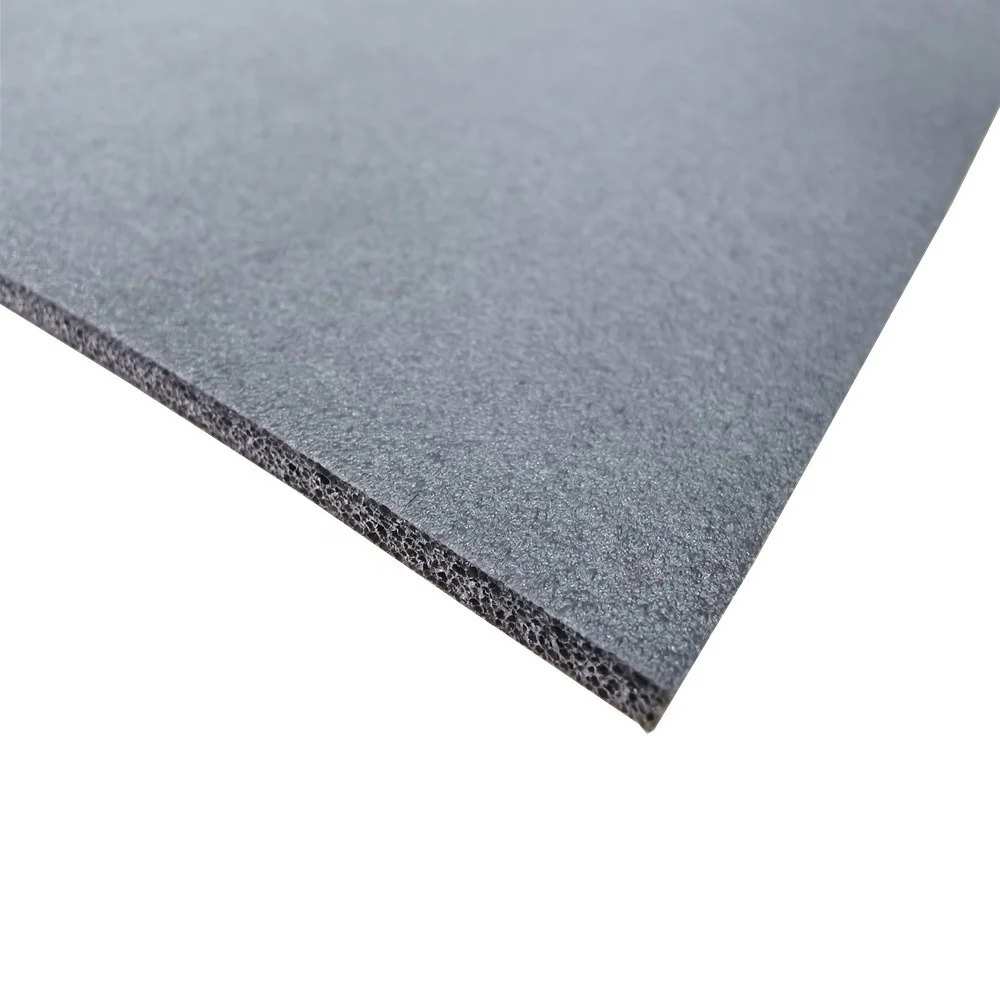

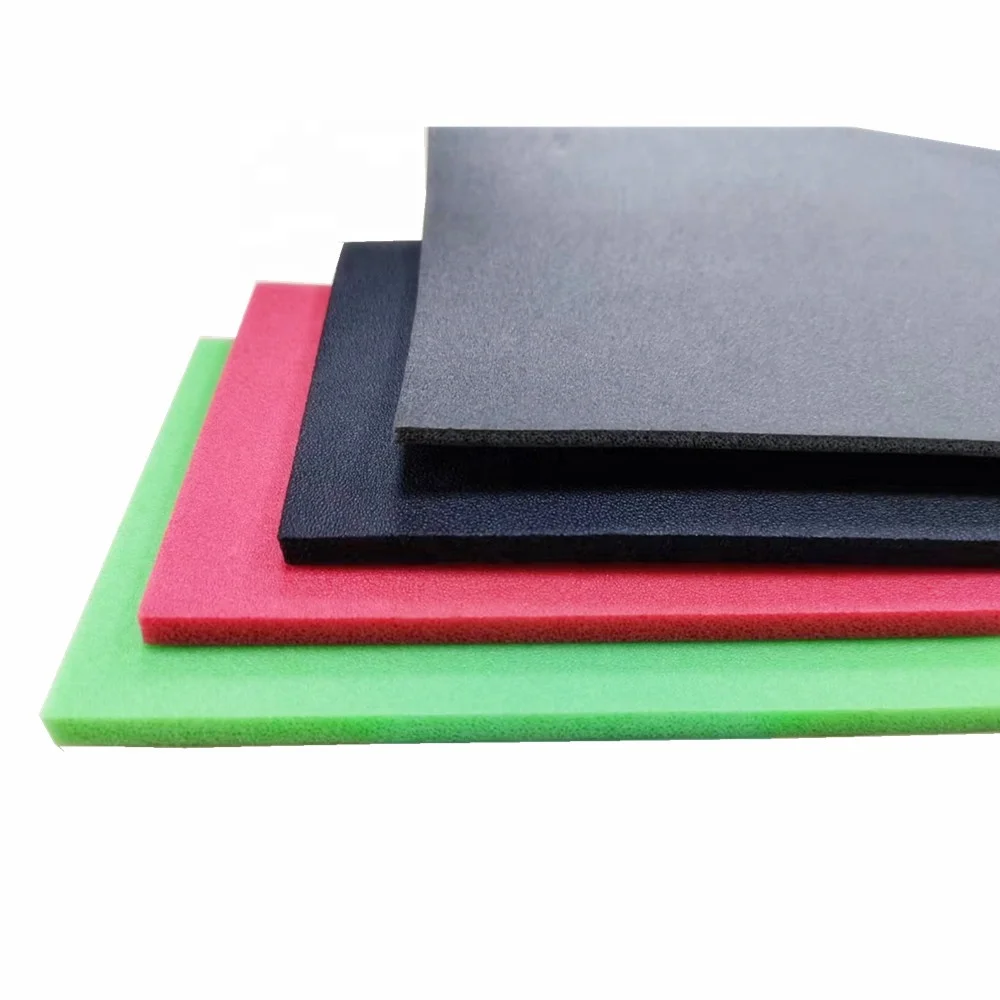

Physically Irradiation Cross linked Closed Cell Polyethylene Foam
Physically Irradiation Cross-linked Closed Cell Polyethylene Foam
Physically Irradiation Cross-linked Closed Cell Polyethylene Foam
Physically Irradiation Cross-linked Closed Cell Polyethylene Foam
Physically Irradiation Cross-linked Closed Cell Polyethylene Foam
Physically Irradiation Cross-linked Closed Cell Polyethylene Foam
Physically Irradiation Cross-linked Closed Cell Polyethylene Foam

Physically Irradiation Cross linked Closed Cell Polyethylene Foam

Share on (1600525928225):


Price:$0.85 - $1.20

Quantity:


Product Overview

Description



Product Description


Irradiation cross-linked polyethylene foam material,
IXPE is non-toxic, environmentally friendly, green and healthy polymer new material, which can gradually replace traditional foam plastics in various application fields. IXPE is made of LDPE (low density polyethylene), ADC foaming agent and color masterbatch as the main raw materials, together with other auxiliary materials. After granulation and extrusion molding process, the high-energy electron beam generated by industrial electron accelerator is used for extrusion molding. The mother sheet is irradiated to set up chain bridges between molecules, and then a dense three-dimensional mesh independent closed-cell cell structure similar to a honeycomb is formed through the foaming process. A new type of foam material produced. In the production process of IXPE, the company can add various preparations according to different application requirements to improve the existing properties of the product such as antibacterial and corrosion resistance, or give the product unique properties such as flame retardant and electrical conductivity.

Compared with traditional foam plastic materials, IXPE materials have excellent comprehensive properties such as sound insulation and noise reduction, flame resistance and heat insulation, waterproof and moisture resistance, and good weather resistance, and their application fields are also wider. In addition, the non-toxic and environmentally friendly characteristics of IXPE are also in line with the main theme of sustainable development and social needs in today's era.




Specification


Item
Value
Foaming Rate
5
8
10
15
20
25
30
35
Density (kg/m3)
200±30
125±15
100±10
67±7
50±5
40±4
33±3
28±3
Hardness (shore A)
65±5
55±5
45±5
40±5
35±5
25±5
20±5
17±3
Tensile strength（Mpa)
≥1.5
≥1.0
≥0.8
≥0.6
≥0.5
≥0.4
≥0.25
≥0.2
Elongation (%)
≥220
≥170
≥150
≥150
≥150
≥120
≥120
≥110
Tearing strength (KN/m)
≥12
≥6.5
≥6.0
≥4.0
≥3.5
≥2.5
≥1.3
≥1.3
Compression set（%）
≤2
≤3
≤5
≤7
≤8
≤9
≤10
≤11
Dimension change rate（%）
≤-6
≤-6
≤-6
≤-6
≤-8
≤-8
≤-8
≤-8
Water absorption（%）
0.2
0.2
0.2
0.2
0.3
0.3
0.4
0.4
Thermal conductivity(w/m*k)
0.095
0.084
0.073
0.065
0.055
0.040
0.035
0.032
Operating temperature (℃)
-50~95
-50~95 ℃
-50~95 ℃


Packing & Delivery

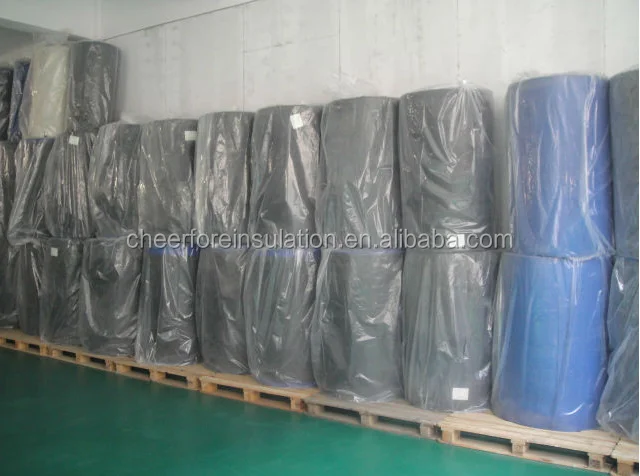

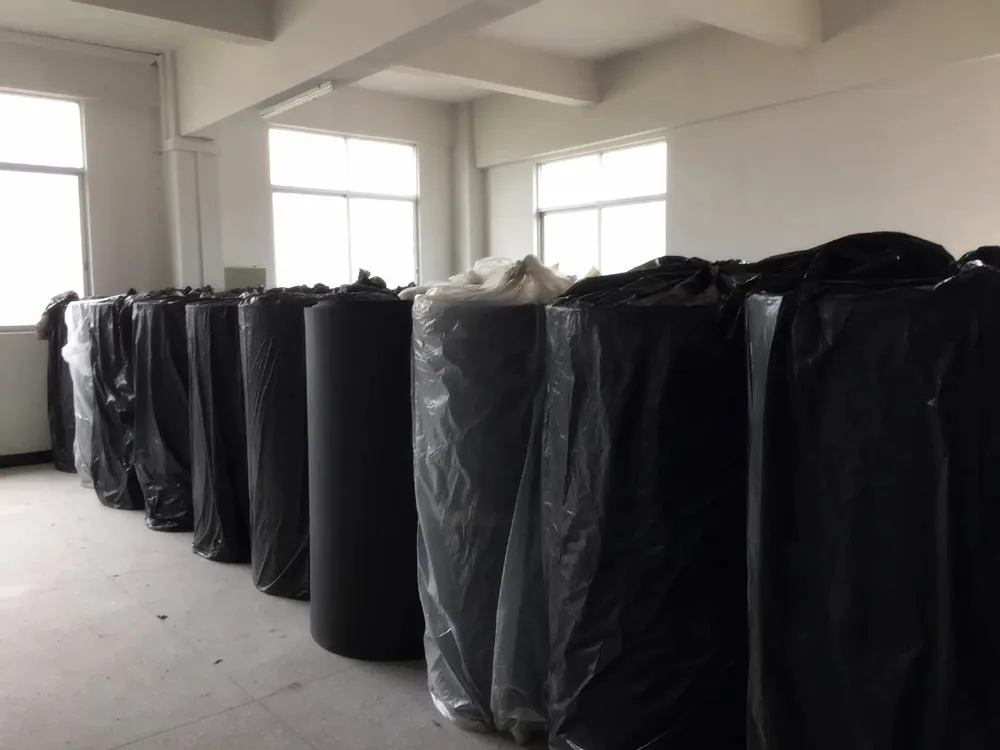

By poly bags


Company Profile






Guangzhou Cheerfore Insulation Co., Ltd. endeavors in R&D and innovation of thermal insulation, acoustic insulation, vibration absorption and sealing materials since its foundation in 2006. We concentrate on thermal insulation products for power equipments and mechanical facilities, HVAC&R and construction works, etc, and acoustic and vibration insulation products for meeting room, anechoic room, industrial buildings, automobile industry, etc, and the relative accessories which to ensure the insulations work properly and efficiently.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2014,sell to Domestic Market(70.00%),Southeast Asia(8.00%),Mid East(5.00%),North America(3.00%),South America(2.00%),South Asia(2.00%),Oceania(2.00%),Western Europe(2.00%),Eastern Asia(1.00%),Southern Europe(1.00%),Eastern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Africa(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PE Foam,NBR Foam,HVAC Insulation,Duct Insulation,Insulation

4. why should you buy from us not from other suppliers?
PROFESSIONAL MAKER AND EXPORTER OF KINDS OF INSULATION PRODUCTS IN CHINA

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,French
