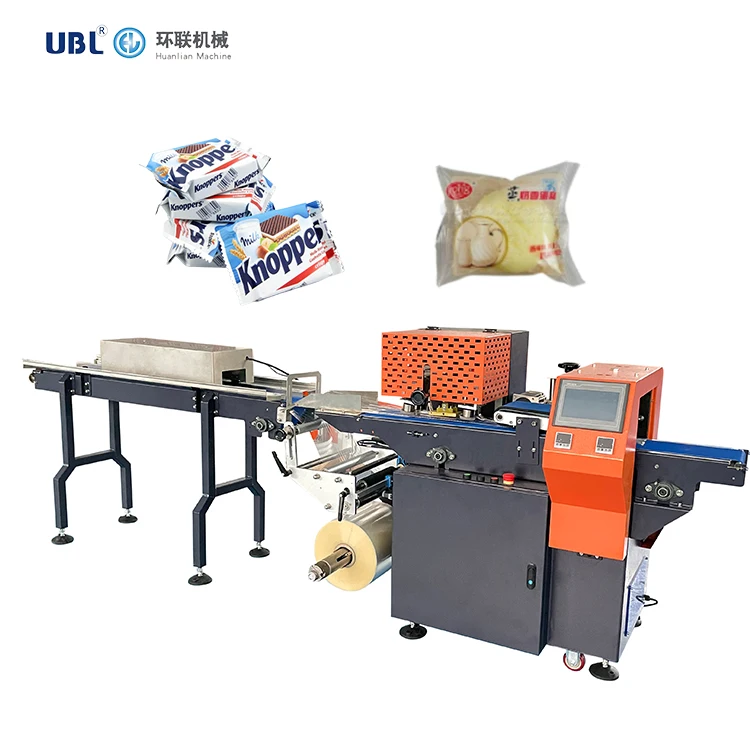

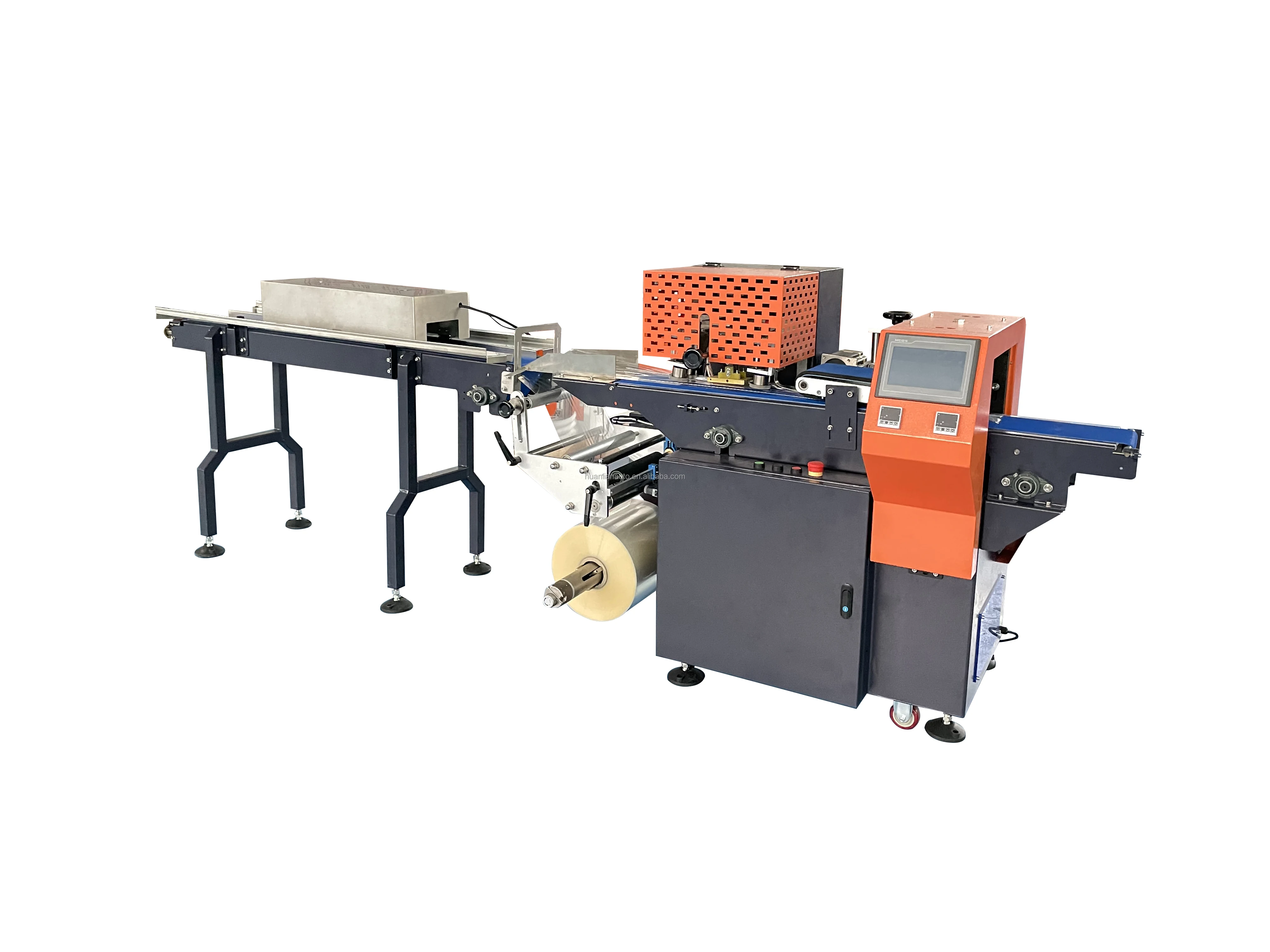

Fully automatic pillow packing machine
The functions of the packaging machine: bag making, coding, counting, filling, sealing and packaging. Realize fully automated operation, high production rate and good quality.
Products Detail
1. Function introduction:
It is used in all kinds of objects such as food,medicines, daily necessities, industrial parts, cartons, trays, etc.

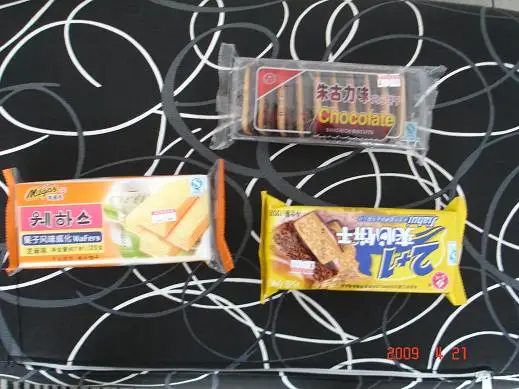

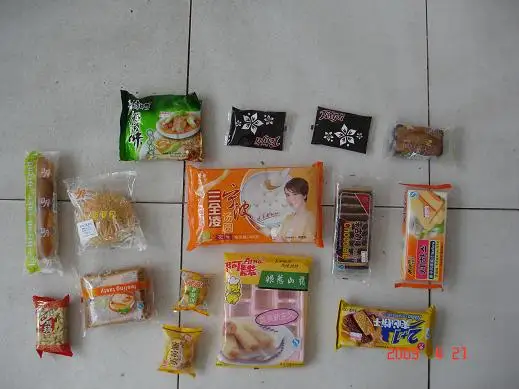

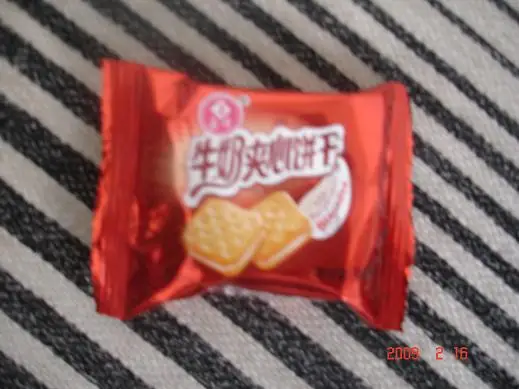

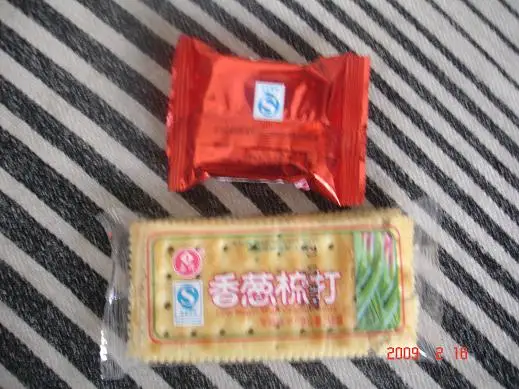

Food: biscuits, chocolate, candy, gummy, small bread, instant noodles, vegetables, jelly, lollipop, peanut, toffee, popsicle, ice cream stick, ice cubes, food trays, etc.
Other:card,pencil,eraser, plasticine,tape, toy watch, mask, maca gelatinized,syringe,foot patch,gauze,plastic medical bottle,scrapping plate,hot pack,slideway,door handle,hinge,water-tap,bearing,stainless steel tube,tee joint,socket,charger,battery,power cable,headset,earplugs,phone case,mobile phone cover,instruction manual,remote control,scouring pad,powder puff,scourer,sponge mop,rubber gloves,towels,tablecloths,sanitary napkin,gauze roll,laundry tables,laundry block,,toilet cleaning block,napkins, etc.
2. since 2009, >5000 pcs working in our customers' factory. There are 12 R&D Engineer engineer and always insist on reseaching variety packing machine, for customer's variety products, in food, in beverage, in comestic, in chemical, in electronic,in textile...They are successful applicated in every industry.
3. Main performance and structure features
1) Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2) human-machine interface, convenient and quick parameter settings.
3) Self diagnosis failure function, failure displayed clearly.
4) High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5) Separated PID control system for temperature, suitable for various packing materials..
6) Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7) Simple driving system, reliable working, convenient maintenance.
8) All controlled by program, convenient for function adjusting and upgrading.
Product Paramenters
Type | UBL-P-250X |
Film width | Max.250mm |
Bag length | 65-190mm 120-280mm |
Bag width | 30-110mm |
Product height | Max.45-60mm |
Film roll diameter | Max.320mm |
Packing speed | 40-230bag/min |
Power | 220V,50/60HZ,2.4KW |
Machine size | (L)3700mm(W)670mm (H)1450mm |
Machine Weight | About 500kg |
Film width | Max:250mm | Max:350mm | |
Bag length | 65~190mm or 120~280mm | 65~190mm or 120~280mm | |
Bag width | 30~110mm | 50~160mm | |
Product height | Max:45mm | Max:65mm | |
Packaging rate | 40~230 Pcs /min | 40~230 Pcs /min | |
Power | 220V 50/60HZ | 220V 50/60HZ | |
Machine size | L3920*W670*H1320mm | L4020*W720*H1320mm | |
Machine quality | 500 Kg | 550 Kg | |
Film roll diameter | Max:320mm | Max:320mm | |
Packing material | OPP,PET | ||
It is used in automatic bag making of various melons and fruits.
The production line can be connected before and after.
Such as: lemon, orange, bell pepper, banana, peach, mangosteen, lotus, apricot, fig, cucumber,
apple, etc.
Option function:Plastic bag punching, print production date, automatic weighing and printing labels, automatic labeling, etc.
Packaging material requirement :Printed or unprinted roll film.
Option function:Plastic bag punching, print production date, automatic weighing and printing labels, automatic labeling, etc.
Packaging material requirement :Printed or unprinted roll film.

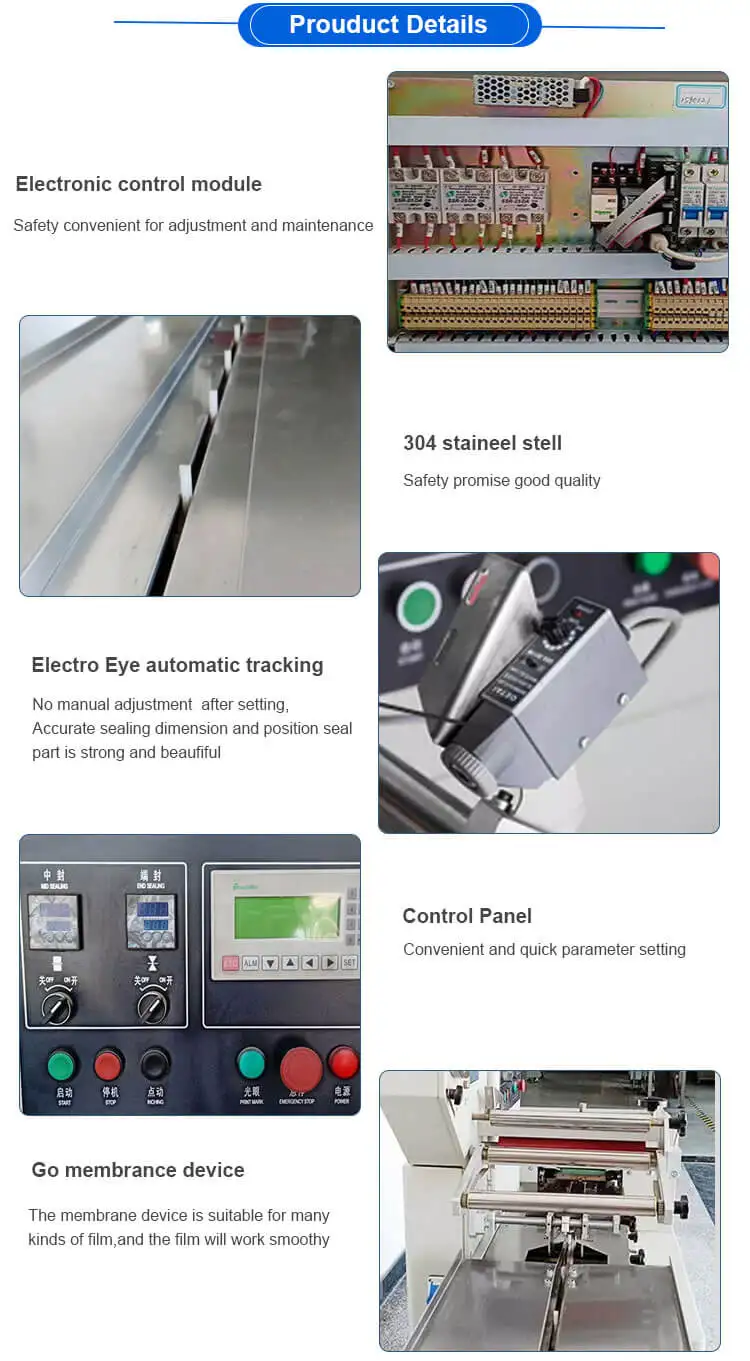

Details Images

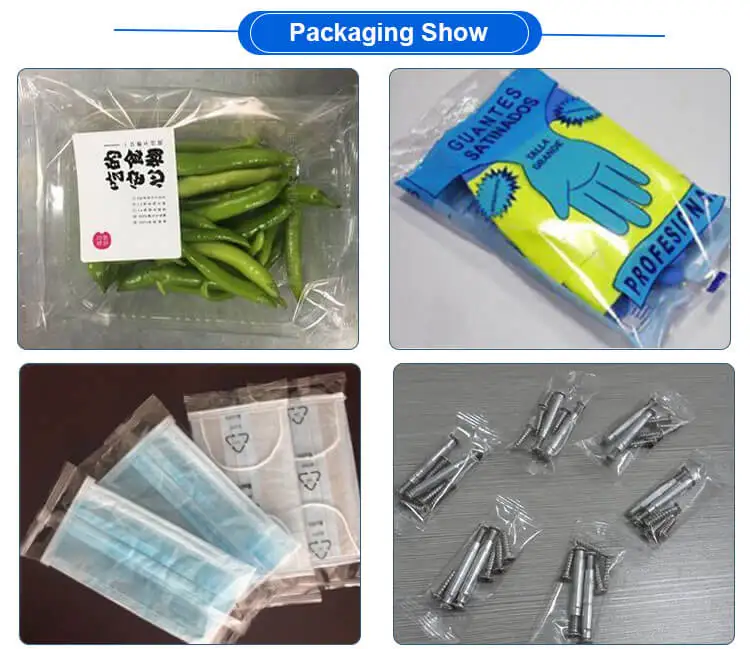

Packaging Show
Working method: manually put the melon and fruit on the conveyor belt (or connect the front line), the fruit is automatically transported, the machine automatically bags the fruit, automatically cuts the bag, and automatically outputs the finished product.
