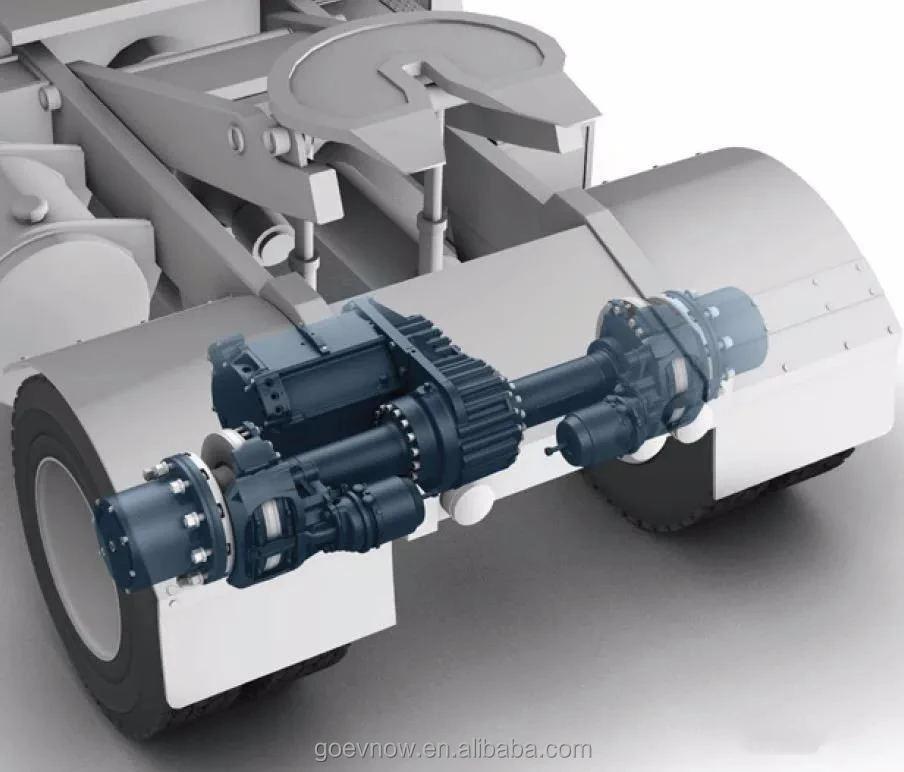

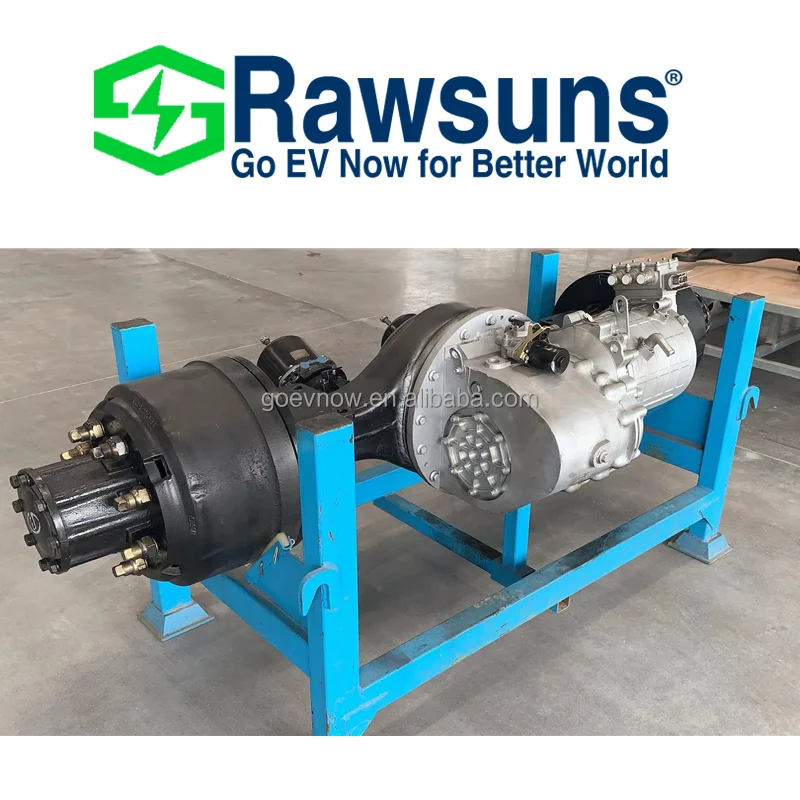

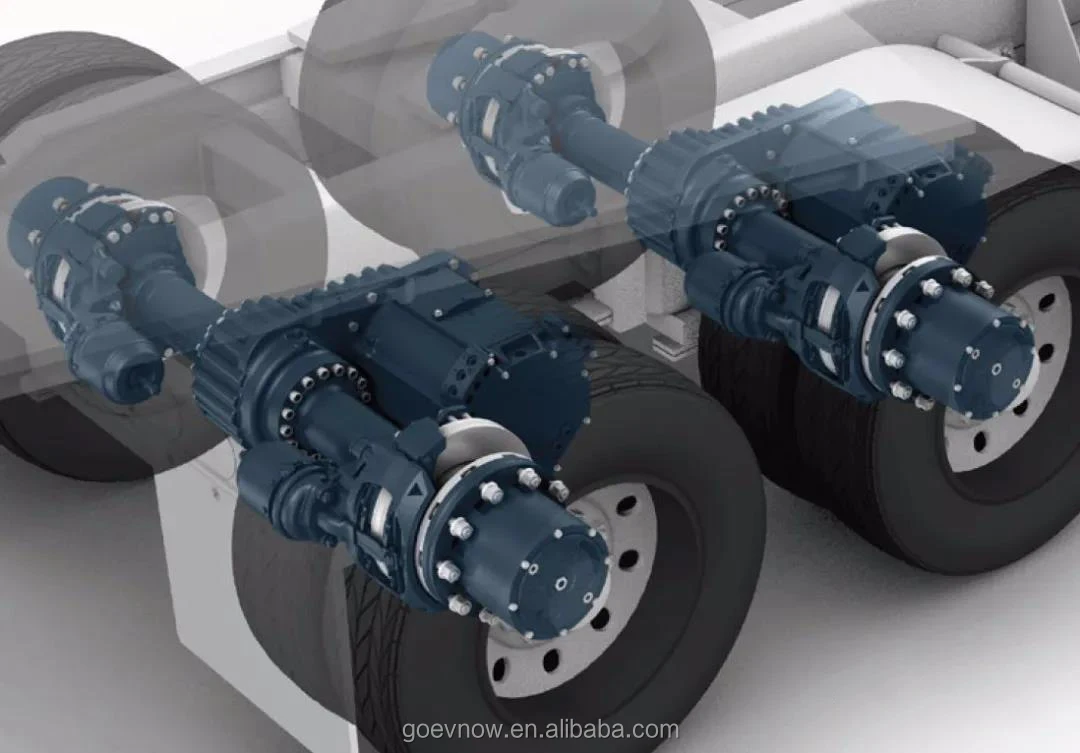

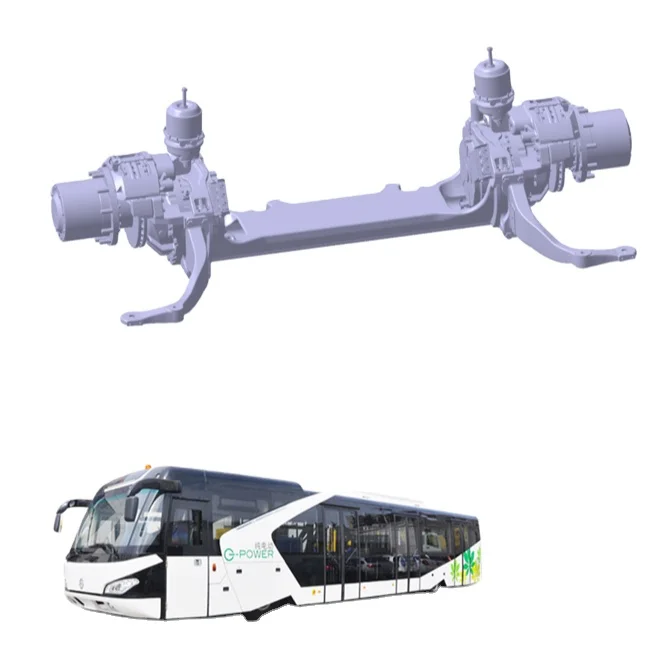

Rawsun electric wheel drive axle READ2100P for airport shuttle bus Strong torque 540v 9290nm for 50t Pure Electric truck
- Category: >>>
- Supplier: Shantou Goevnow Technology Co. Ltd.
Share on (1600525953161):
Product Overview
Description
Rawsun GOEVNOW electric vehicle motors are high efficiency designed for electric vehicles and electric boats.

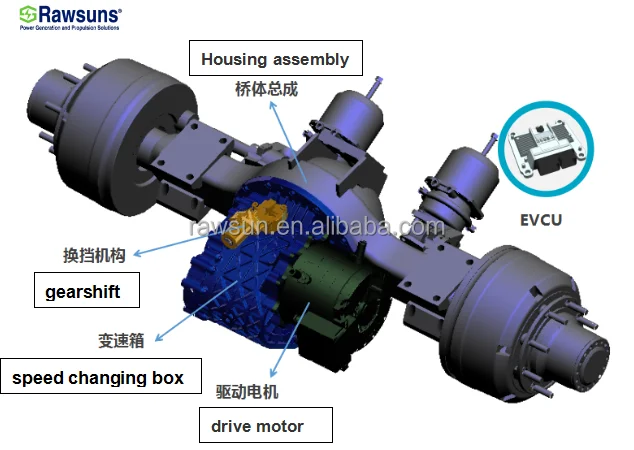

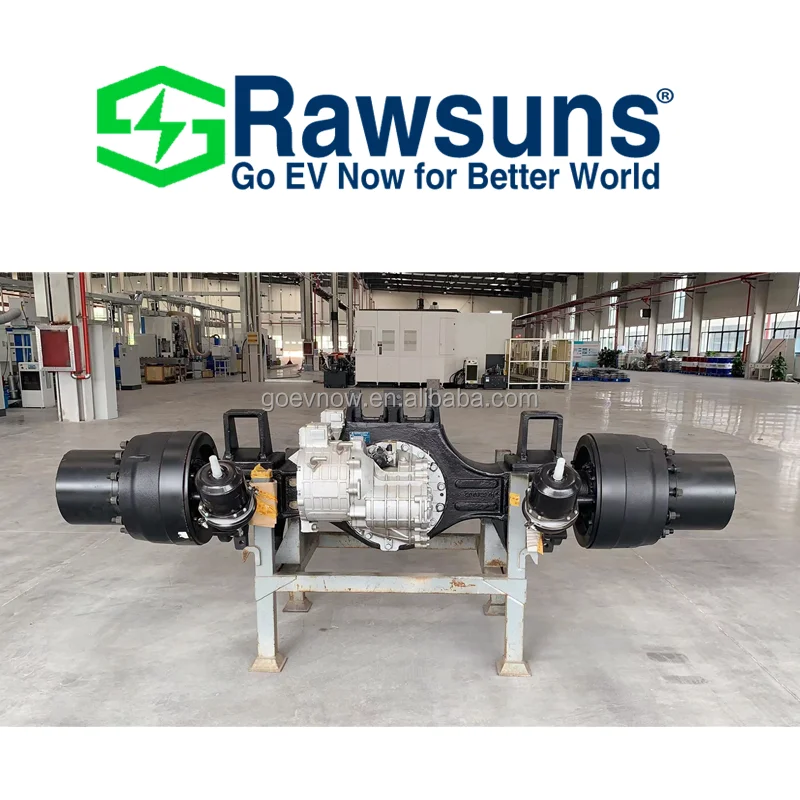

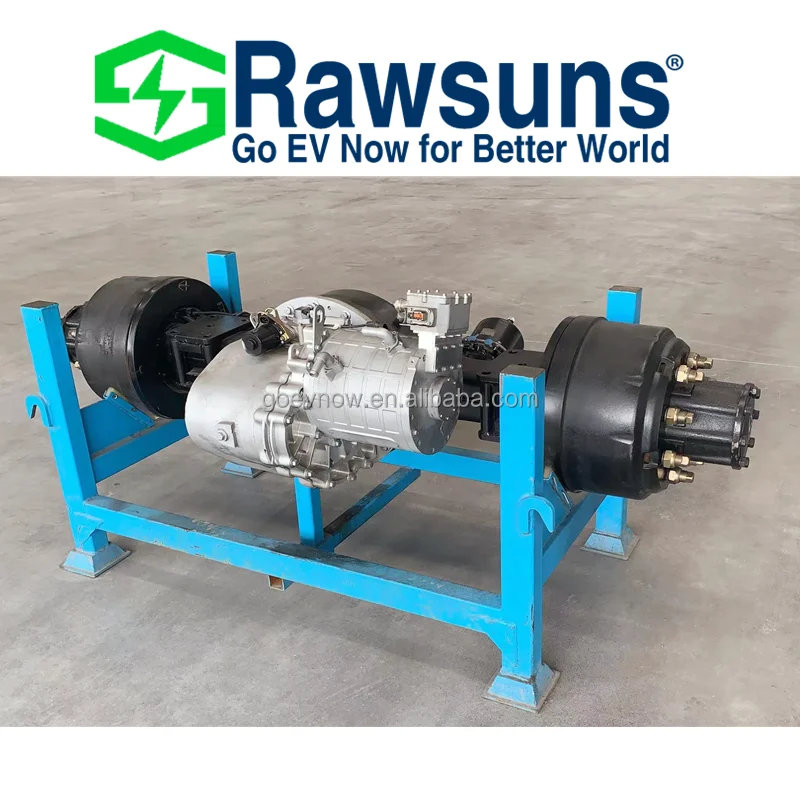

READ series ev axle with gearbox are mostly for cars/trucks/buses/ shuttles/ coaches/ tractor heads. The battery voltage range is 540V and 576V. The ev axle with output peak power 160kw to 220kw, peak torque 320Nm to 10776Nm.
Model | Battery Rated Voltage (VDC) | Rated Power (kw) | Peak Power (kw) | Rated Torque (nm) | Peak Torque (nm) | Rated Speed (rpm) | Peak Speed (rpm) |
READ2100P | 540V | NA | 160KW | NA | 9290NM | NA | 430RPM |
READ2100N11 | 540V | NA | 160KW | NA | 10776NM | NA | 430RPM |
READ2100N | 540V | NA | 160KW | NA | 9290NM | NA | 430RPM |
READ1400K01 | 540V | NA | 110KW | NA | 7060NM | NA | 430RPM |
READ800F | 540V | NA | 80KW | NA | 4000NM | NA | 940RPM |
READ800F01 | 540V | NA | 80KW | NA | 4000NM | NA | 940RPM |
READ4200Z | 540V | 60KW | 105KW | 135NM | 320NM | NA | 10000RPM |
READ5300Z | 540V | 66KW | 123KW | 135NM | 320NM | NA | 12000RPM |
READ33300Z | 540V | 68KW | 128KW | 183NM | 420NM | NA | 10000RPM |
READ40000Z | 540V | 125KW | 180KW | 350NM | 750NM | NA | 9000RPM |
READ126000Z | 576V | 115KW | 220KW | 275NM | 550NM | NA | 8500RPM |
Model for vehicles
READ5300Z---4.5-6.0 tons logistic vehicle,6m passenger car

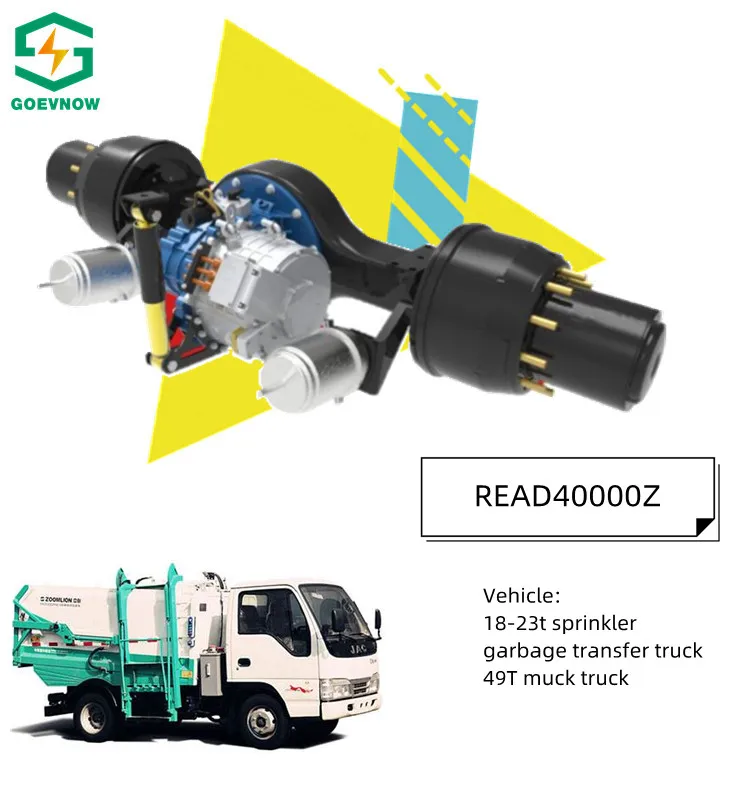

READ40000Z---18-23 tons sprinkler/refuse transfer truck

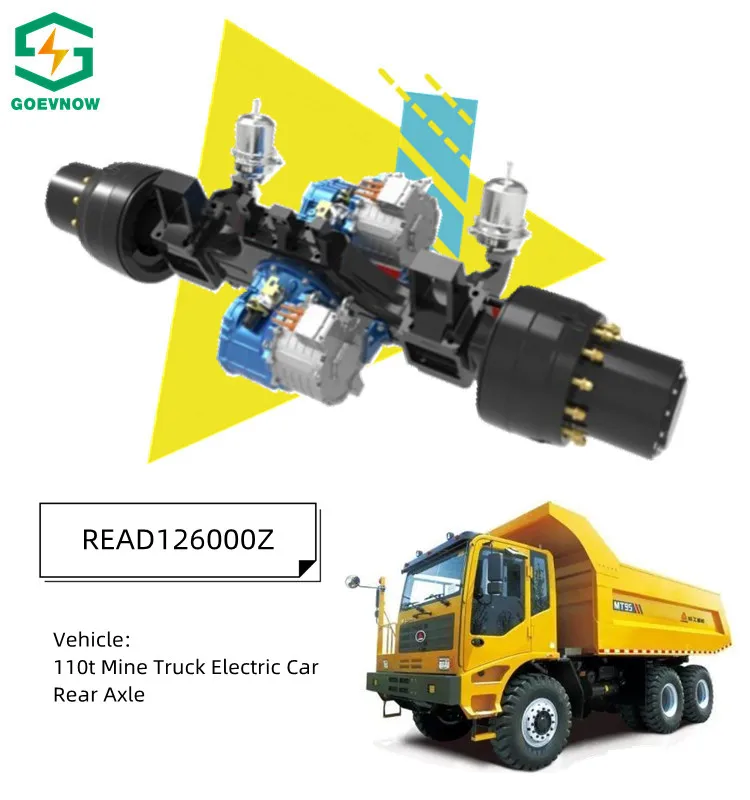

READ126000Z---110 tons Axle motor for mine truck(6x4)
READ15000L---10-12m city bus( Low-Floor Bus)

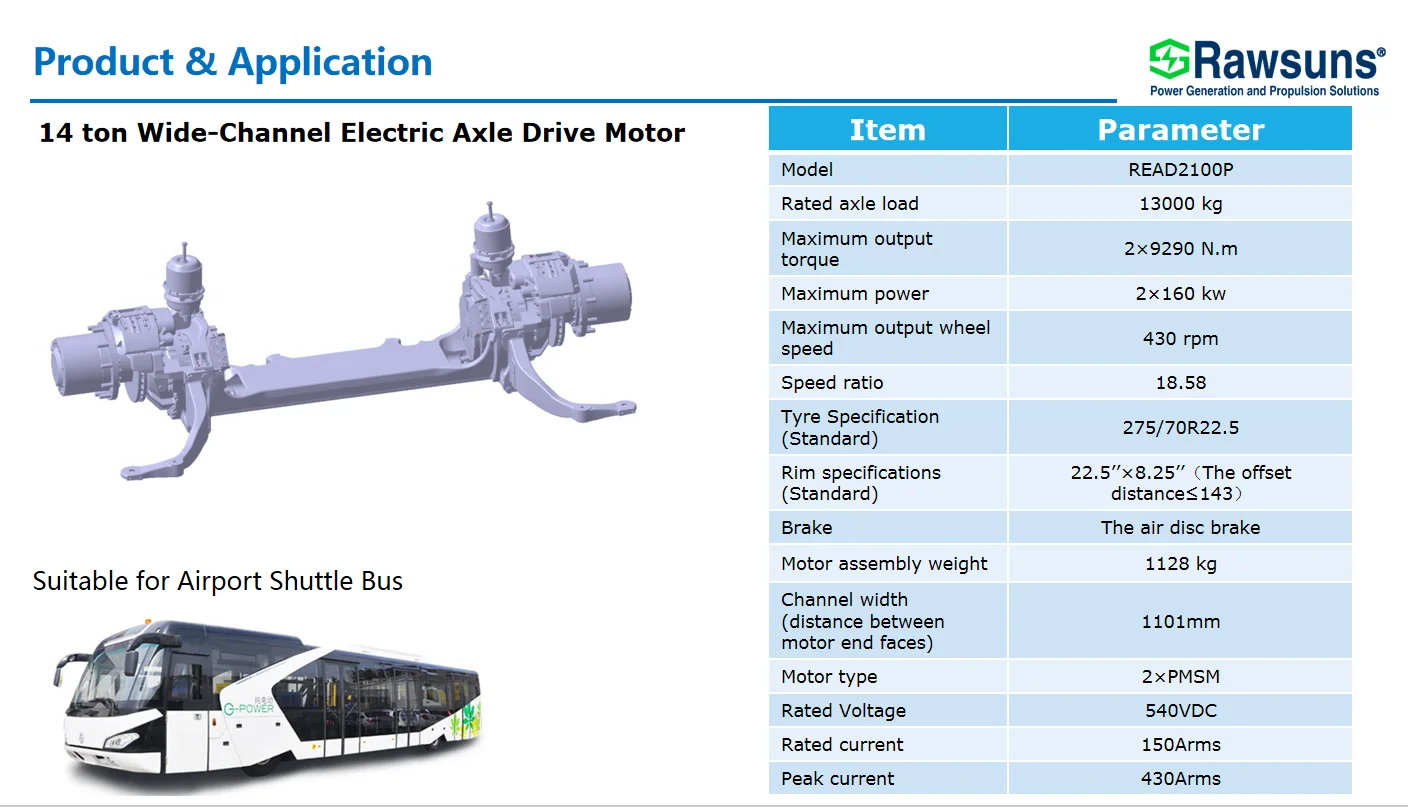

READ2100P---14 ton Wide-Channel Electric Axle Drive Motor Suitable for Airport Shuttle Bus
READ2100N11---3 ton Strong Electric Axle Drive Motor System Suitable for 18m Ticulator、10-12m Double-decker、13.7m Bus
READ2100N---13 ton Standard Electric Axle Drive Motor System Suitable for 10.5-12M Bus
READ1400K01---9 ton Standard Electric Axle Drive Motor System Suitable for 8-10M Bus
READ800F---5 ton Rigid Electric Axle Drive Motor suitable for High-end business Minibus
READ800F01---5 ton Electric Axle Drive Motor with Leaf Spring Suitable for high-end logistics vehicles, can make low-platform
READ4200Z---3.5-4.5 tons logistic vehicle, 9-16 seats Sprinter Coach Bus
READ5300Z---4.5-6.0 tons logistic vehicle,6m passenger car
READ40000Z---18-23 tons sprinkler/refuse transfer truck
READ126000Z---110 tons Axle motor for mine truck(6x4)
READ15000L---10-12m city bus( Low-Floor Bus)
READ2100P---14 ton Wide-Channel Electric Axle Drive Motor Suitable for Airport Shuttle Bus
READ2100N11---3 ton Strong Electric Axle Drive Motor System Suitable for 18m Ticulator、10-12m Double-decker、13.7m Bus
READ2100N---13 ton Standard Electric Axle Drive Motor System Suitable for 10.5-12M Bus
READ1400K01---9 ton Standard Electric Axle Drive Motor System Suitable for 8-10M Bus
READ800F---5 ton Rigid Electric Axle Drive Motor suitable for High-end business Minibus
READ800F01---5 ton Electric Axle Drive Motor with Leaf Spring Suitable for high-end logistics vehicles, can make low-platform
Shantou Goevnow Technology Co Ltd
Shantou Goevnow Technology Co Ltd, a sub company of Rawsun Technology, is a growing company committed to sales and service of Rawsuns complete electric propulsion solutions.
Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems.
Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machinery.
Goevnow products conform to the trend of green environmental protection concept of all countries in the world, Electric vehicles and electric boats with Rawsuns EV systems are conducive to reduce road exhaust pollution and oil pollution on the water surface. Goevnow customize complete set of Rawsuns electric vehicle/electric boat solutions for overseas customers according to different vehicle parameters. Goevnow has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats，electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.to vehicle/boat/ machinery manufacturer customers from East Asia, Southeast Asia, Africa，Oceania , Mid-east, Europe and America.
Why choosing Rawsun GOEVNOW?
Rawsun GOEVNOW EV Conversion Kit
Rawsun GOEVNOW EV motors range from 50kw(180Nm)-200kw (2800Nm), we also provide motor controller , DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel , battery pack with bms , wireharness to complete the ev conversion kit.
Our Services & Strength

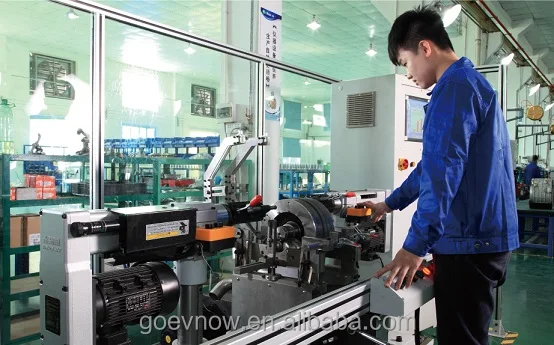

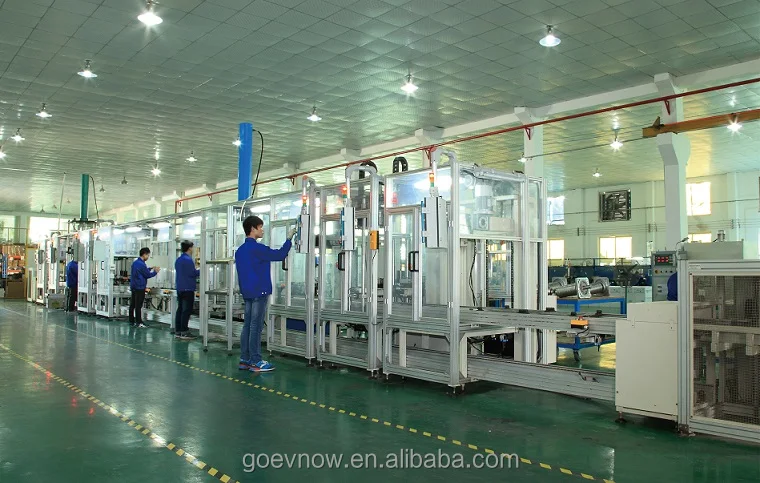

Rawsun Technology is committed to become a professional electric vehicle motor manufacturer. With Independent R&D and production strength, Rawsun practices standardized production process. Rawsun's independent production workshop includes：motor automated production lines, CNC machine tools, machining center, CNC grinding machine， CNC boring machine, CNC wire cutting machine, automatic punching machine, automatic drilling machine, automatic winding machine, large automatic painting line, etc.We have professional click testing laboratory, establish new energy motor electrical engineering experiment center and provide quality assured motor products for customers.
Rawsun GOEVNOW EV motors range from 50kw(180Nm)-200kw (2800Nm), we also provide motor controller , DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel , battery pack with bms , wireharness to complete the ev conversion kit.
Our Services & Strength
Rawsun Technology is committed to become a professional electric vehicle motor manufacturer. With Independent R&D and production strength, Rawsun practices standardized production process. Rawsun's independent production workshop includes：motor automated production lines, CNC machine tools, machining center, CNC grinding machine， CNC boring machine, CNC wire cutting machine, automatic punching machine, automatic drilling machine, automatic winding machine, large automatic painting line, etc.We have professional click testing laboratory, establish new energy motor electrical engineering experiment center and provide quality assured motor products for customers.
We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to
complete the ev conversion kit.
How I can get a quote from Rawsun? What is the procedure?
Please contact me via below or send me an email to get and fill in a Vehicle technical information demand list.
We will calculate and find a specific motor for you and recommend or develop again according to your needs.
complete the ev conversion kit.
How I can get a quote from Rawsun? What is the procedure?
Please contact me via below or send me an email to get and fill in a Vehicle technical information demand list.
We will calculate and find a specific motor for you and recommend or develop again according to your needs.
