3C QSFP ER4 40Gb/s ER4 40Km QSFP Optical Transceiver Module sfp transceivers

Product Overview

Description

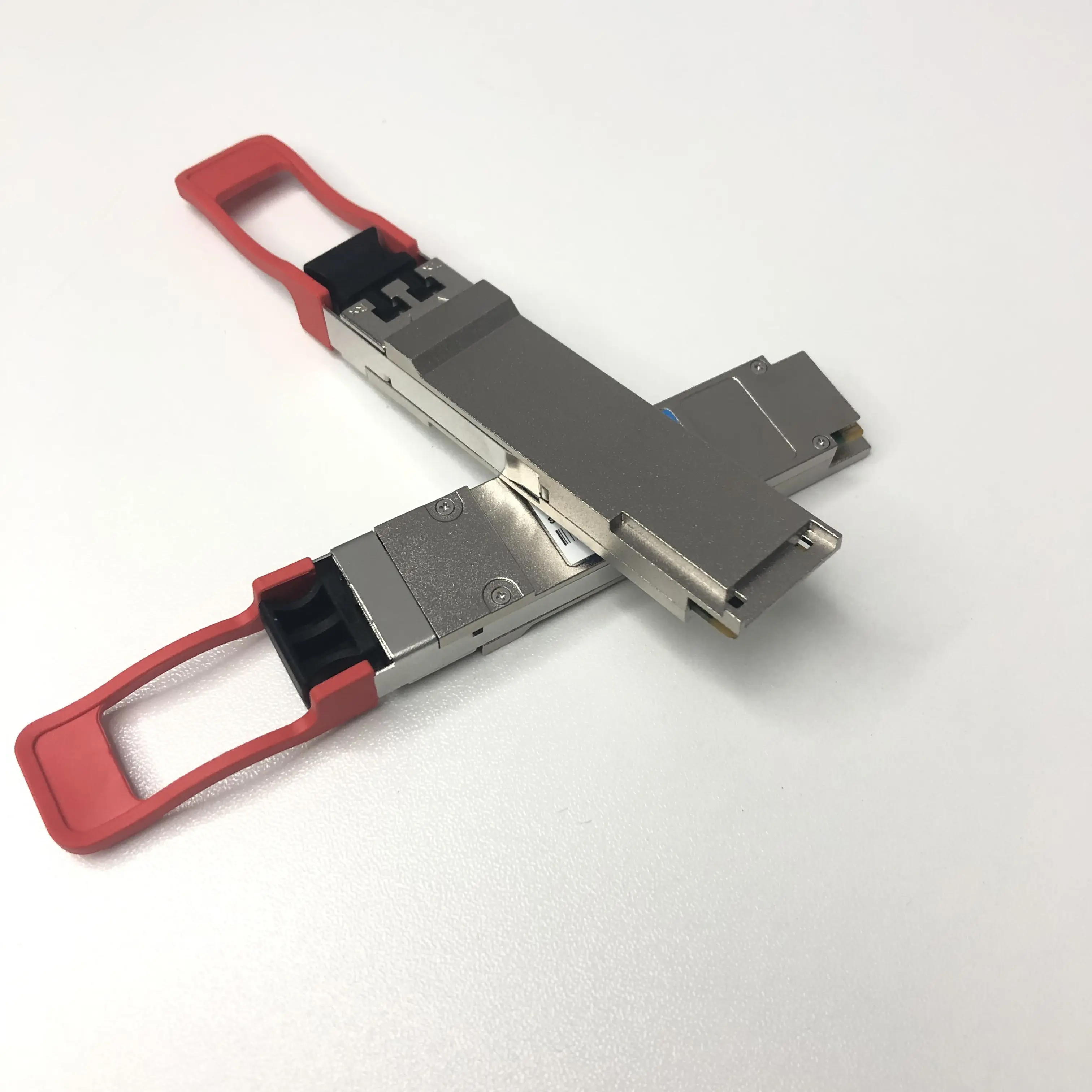

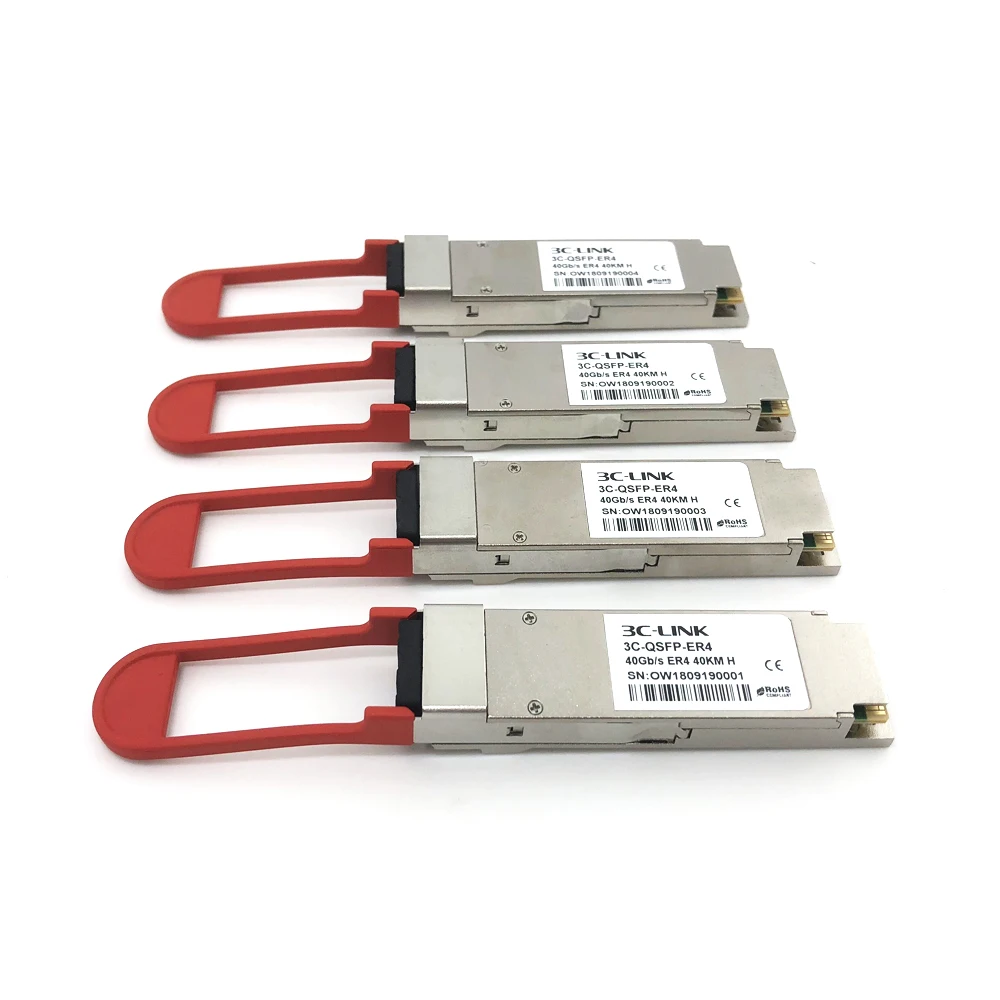

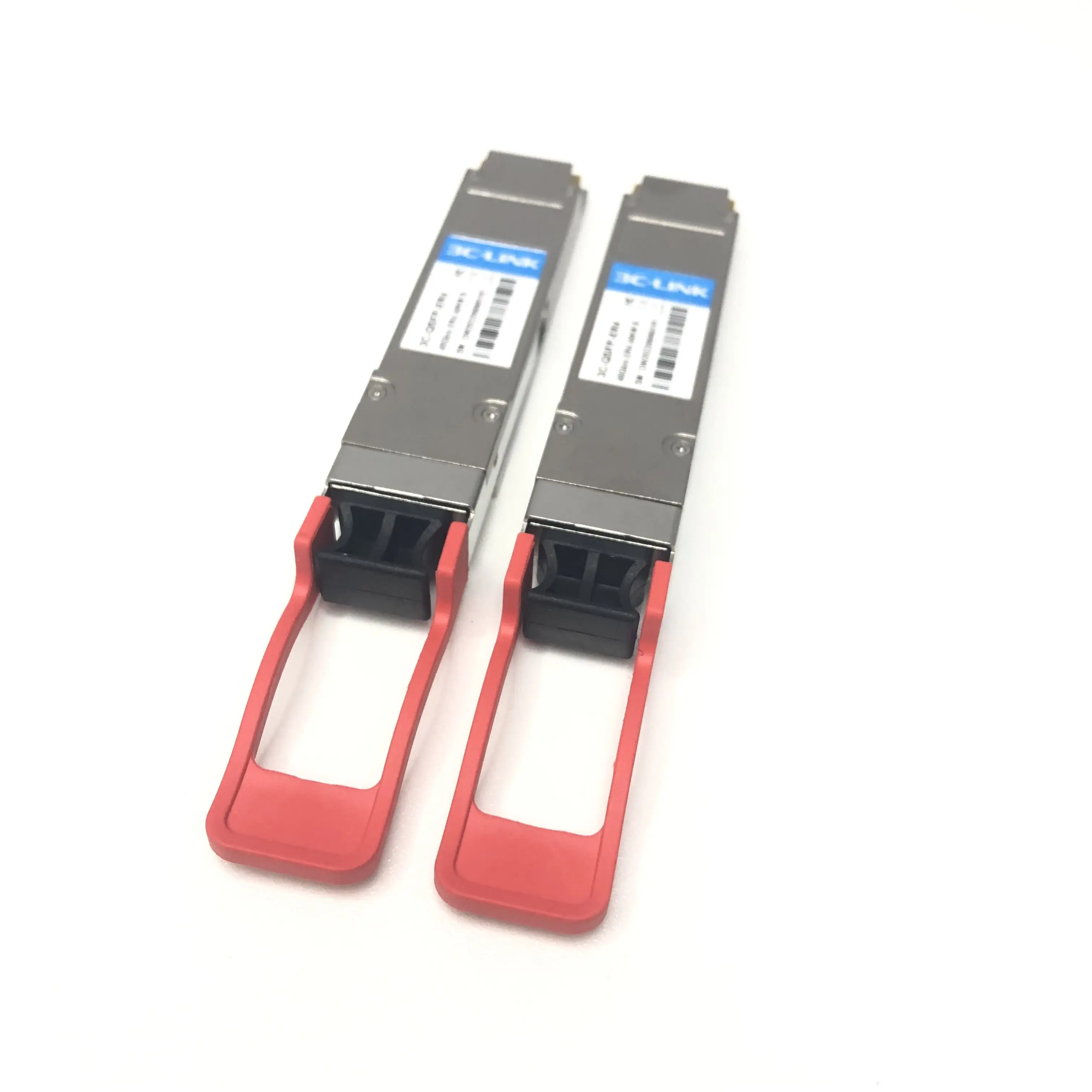

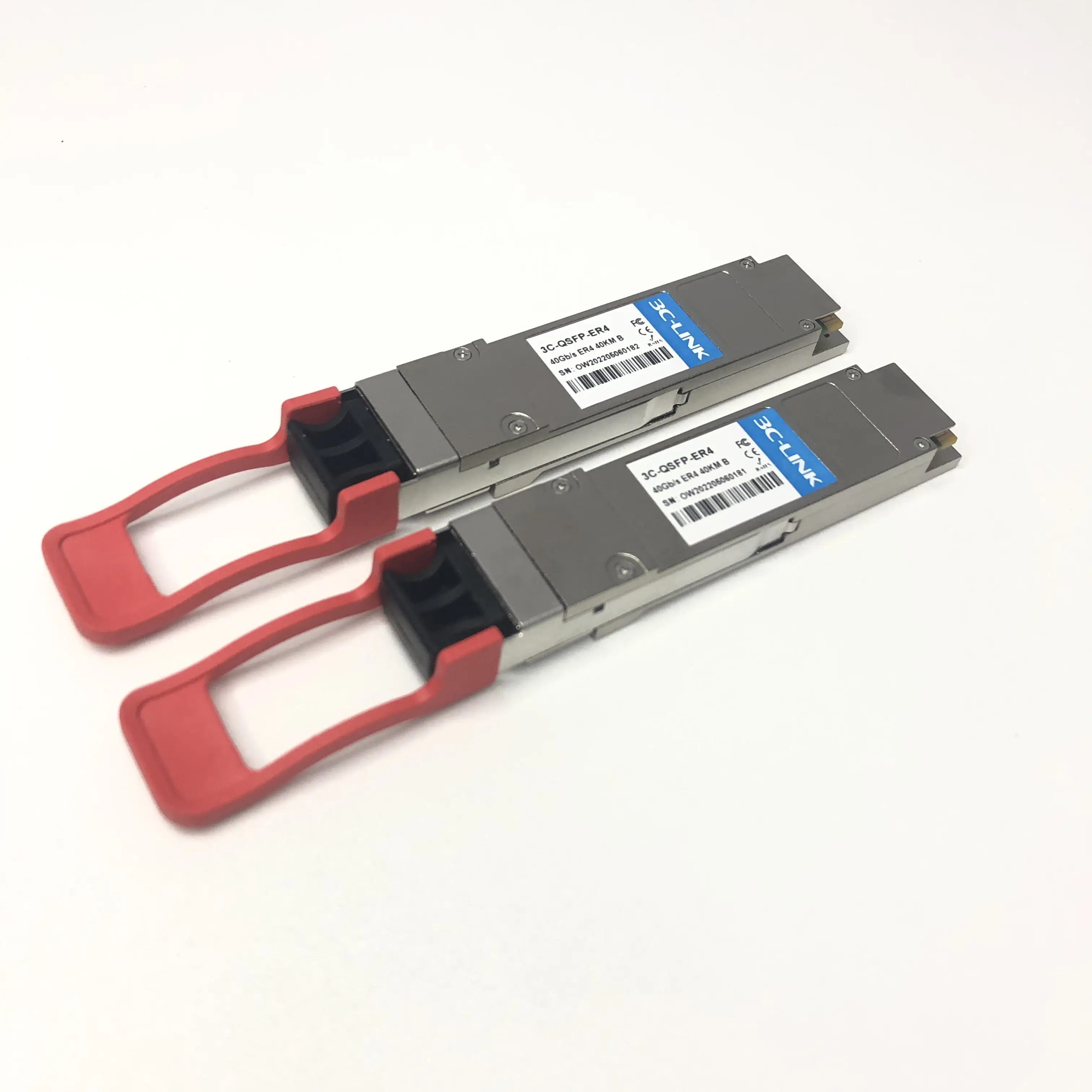

3C-QSFP-ER4  40Gb/s ER4 40Km QSFP Optical Transceiver Module sfp transceivers

3C-QSFP-ER4



The 3C-LINK 40G QSFP+ optical transceiver conform to QSFP+ MSA, the optical transceiver adopt LC or MPO optical interface, with low power consumption, small size, high reliability characteristics, is conducive to the data center to increase capacity, improve ports density and reduce power consumption, widely used in the data center network interconnection.





* Hot pluggable QSFP+ MSA form package, QSFP+ MSA compliant

* 4 independent full-duplex channels, Each channel has a maximum bandwidth of 11.2Gb/s

* 4*10Gb/s VCSEL/DFB/EML laser

* I2C management interface

* RoHS compliance

* Operating temperature range: 0~70°C(Commercial)

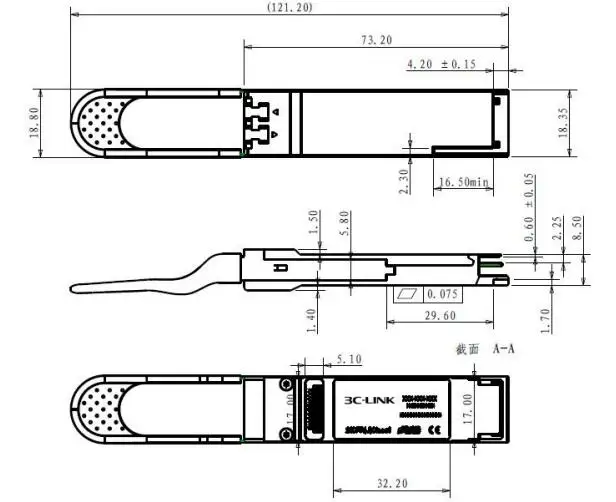

Mechanical Dimensions







Product	Package	Date Rate	Wavelength	Tx Power (dBm)	Rx Sen (dBm)	Reach	Connector	Temp.
3C-QSFP-SR4	QSFP 40G	40Gb/s	850nm	-7.6+2.4	</=-9.5	100M	MPO	C
3C-QSFP-FR4	QSFP 40G	40Gb/s	851nm	-5.5+1.5	</=-12.5	2KM	MPO	C
3C-QSFP-LR4	QSFP 40G	40Gb/s	852nm	-5.5+1.5	</=-12.5	10KM	DUPLEX LC	C
3C-QSFP-ER4	QSFP 40G	40Gb/s	853nm	-2.7+4.5	</=-19.0	40KM	DUPLEX LC	C

ESD

This transceiver is specified as ESD threshold 1kV for SFI pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

Laser Safety

This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by 3C-LINK before they become applicable to any particular order or contract. In accordance with the 3C-LINK policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of 3C-LINK or others. Further details are available from any 3C-LINK sales representative.
