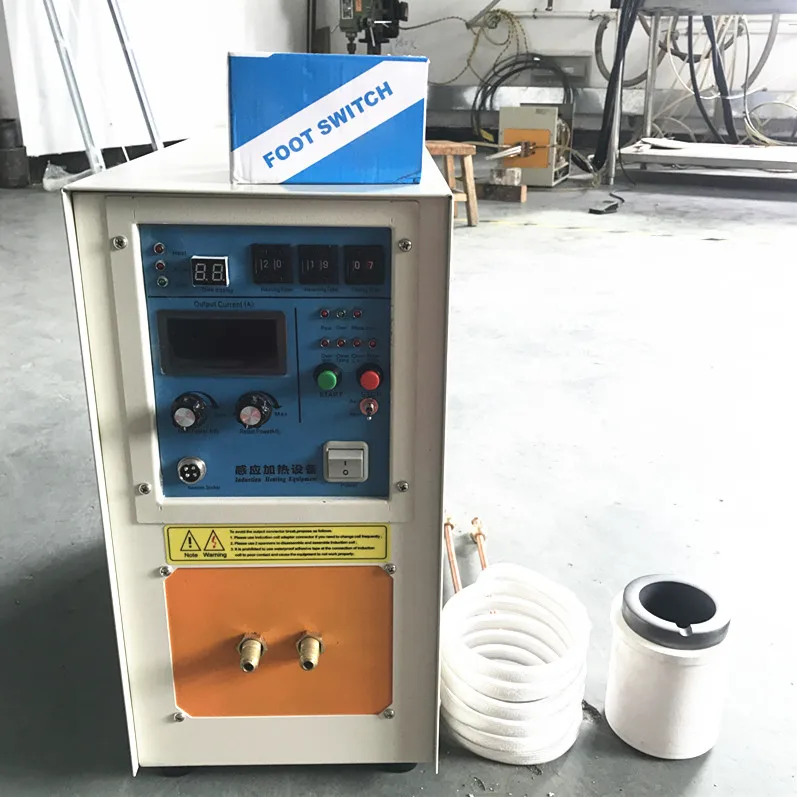

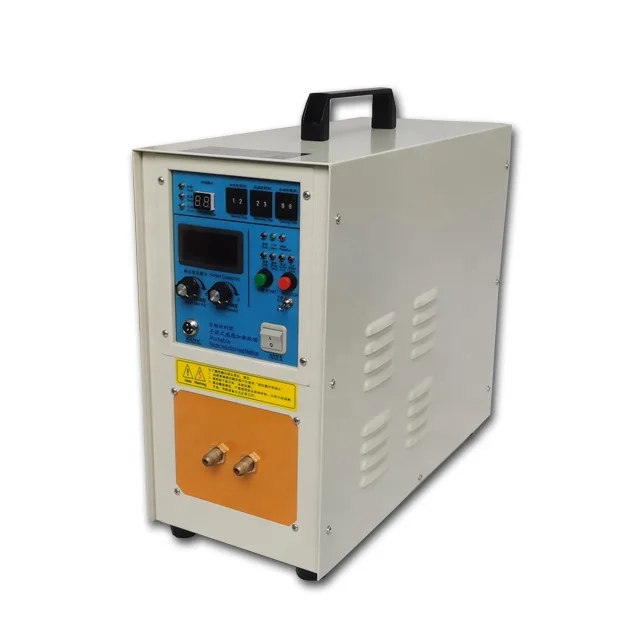

15KW high frequency induction heating machine Metal melting furnace

Product Overview

Description



The integrated filter capacitor is used after the technology upgrade, the performance is more stable, the power output is larger, and the fault caused by the manual plug-in is effectively reduced.

The motherboard is independently developed by our engineering department to ensure that all components are genuine and will be tested after assembly.









Principle of induction heating:



Induction heating is a method of heating a conductor material such as a metal material. It is mainly used for metal thermal processing, heat treatment, welding and melting.

Induction heating is the use of electromagnetic induction to generate electricity in the interior of the material being heated, relying on the energy of these eddy currents for heating purposes. The basic components of an induction heating system include induction coils, AC power and work-pieces. The coils can be made into different shapes depending on the heating target. The coil is connected to a power source that supplies an alternating current to the coil, and the alternating current flowing through the coil produces an alternating magnetic field that passes through the work-piece, which causes the work-piece to vortex to heat.

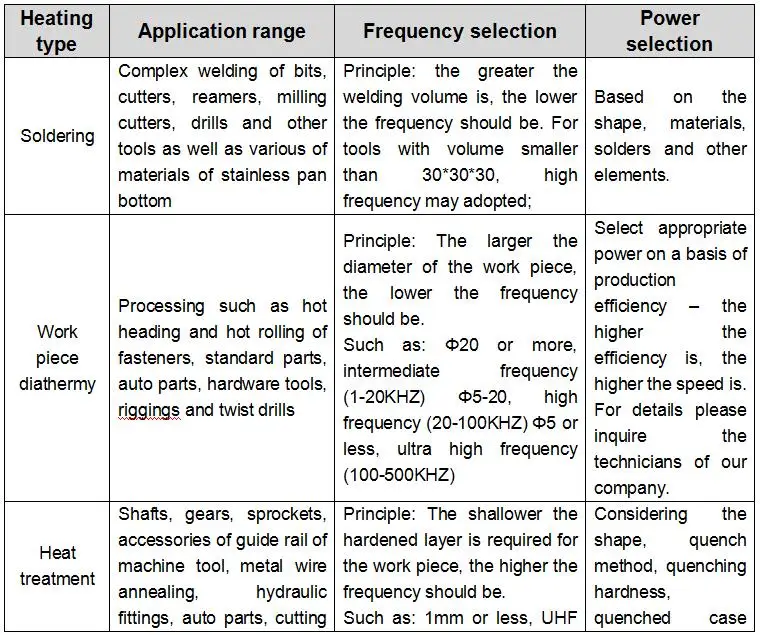

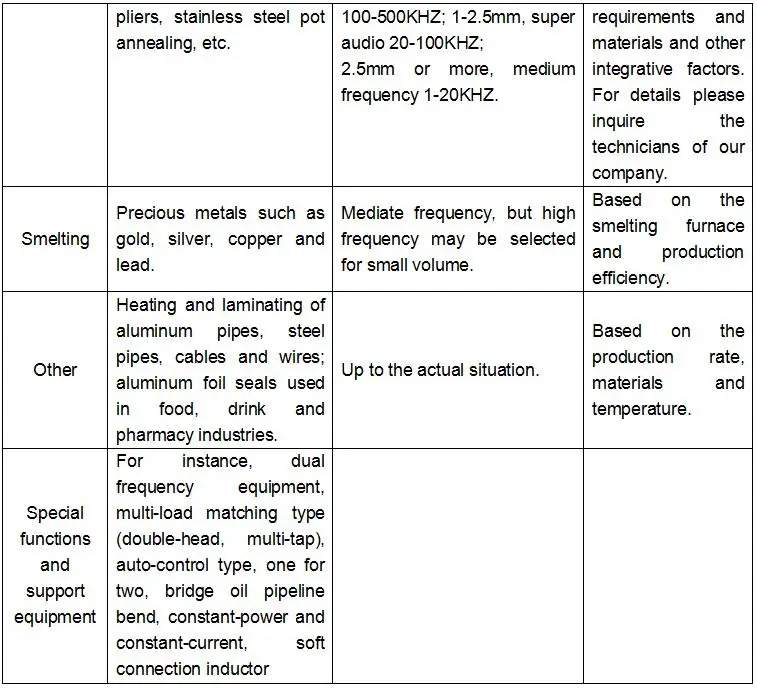

Application of Induction heating equipment:



1. Welding:

Cutting tools, drilling tools, woodworking tools, turning tools, bits, brazing, reamer, milling cutters, drill bits, saw blade serrations, frames for glasses industry, welding of steel pipes and copper pipes, picks Welding, welding of the same kind of metal, compressor, pressure gauge, relay contact point, composite welding of different materials of stainless steel pot bottom, welding of copper wire of transformer winding, storage (welding of gas nozzle, stainless steel meal, welding of kitchen utensils) .

2, heat treatment:

Gears, machine tool guides, hardware tools, pneumatic tools, power tools, hydraulic parts, ductile iron, automobile and motorcycle parts, internal fittings, mechanical metal parts (surface, inner hole, partial, integral) quenching, annealing, stainless steel The pot product is stretched.

3, Heat penetration molding:

standard parts, fasteners, large work-pieces, small hardware, straight shank twist drill, integral, partial heat and twist drill hot and hot rolling, diameter of 100mm or less round steel, metal village materials Heating annealing for stretching, molding, embossing, bending, boring, steel wire (wire) heating nailing, stainless steel product annealing, stretching, rising, thermal expansion, and the like.

4, Other heating fields:

aluminum plastic pipe, steel plastic pipe, heating coating of cable and wire, metal preheating plastic sleeve, semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, Metal-implanted aluminum foil seals used in the plastics, food, beverage, and pharmaceutical industries.



The advantages of induction heating:



1.Low energy consumption. The actual billet heating efficiency of the induction melting furnace and the induction diathermy furnace can reach 65% to 75%, while the flame furnace and various chamber furnaces are only about 30%.

 2.There is no need to heat the whole work-piece, local heating can be selected, so the electric energy consumption is small, the deformation of the work-piece is small and the heating speed is fast, so that the work-piece can reach the required temperature in a very short time, so that the surface of the work-piece is oxidized. When the heating defects are reduced to a low level, it can be used for steel materials such as steel, tungsten, molybdenum, etc. It can also be applied to the heating or heat treatment of aluminum, titanium, zirconium and hafnium which are more chemically active.

3.The induction heating equipment can be installed on the production line, which is easy to realize the automation and mechanization of the production line, and is easy to manage, which can effectively reduce transportation, save manpower and improve production efficiency.

 4. Induction heating also has the advantages of high energy utilization, environmental protection, energy saving, safety and reliability, and good working environment.









The coil can be customized, welcome contact us if you have any requirements.

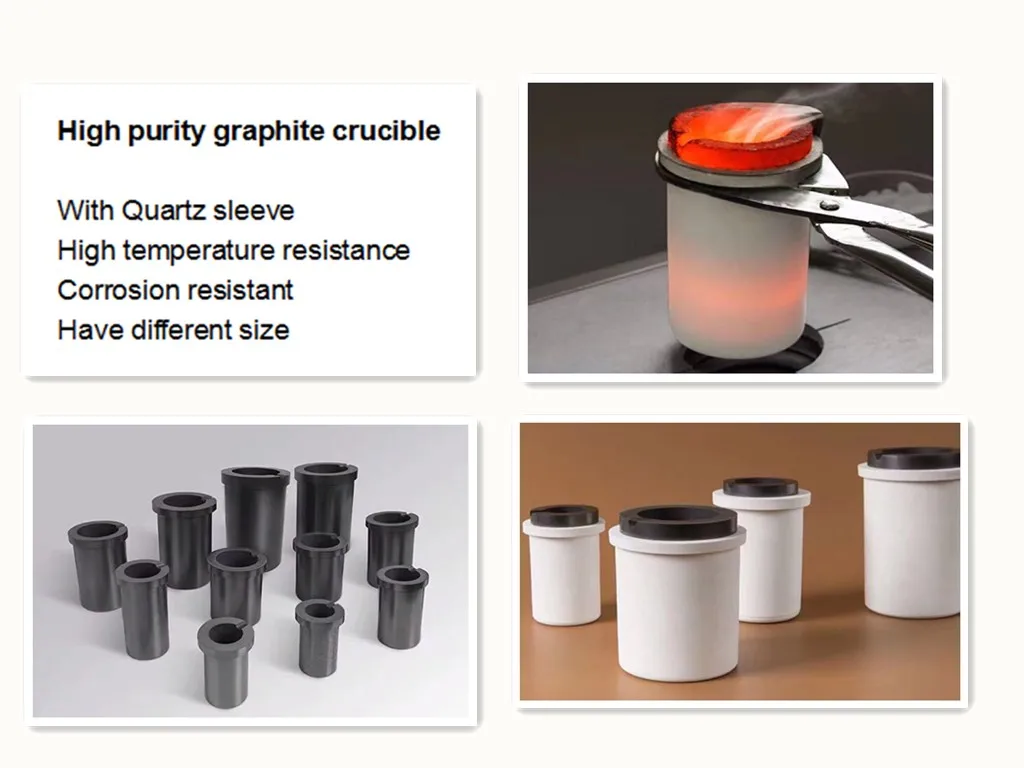

 The graphite crucible have different size, welcome contact us if you need it (Need extra charge)













About us:

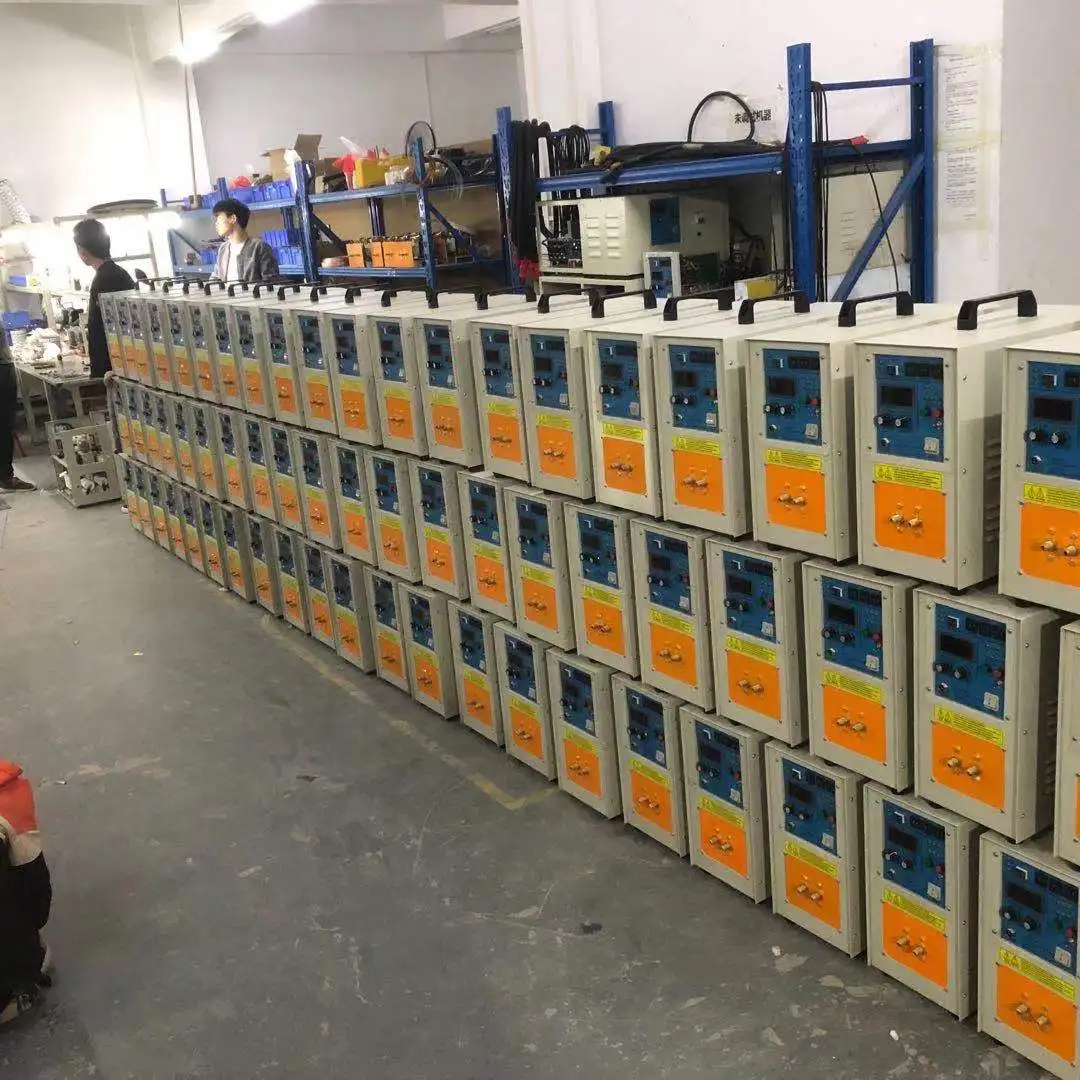

Guangdong Haituo Intelligent Technology Co., Ltd, Is built in 2007.Is a professional manufacturer,research, development, design of induction heating equipment. According to the needs of customers, we can design and manufacture various non-standard high frequency welding machines, high frequency heating machines, high frequency quenching equipment, ultra high frequency induction heating equipment, super audio induction heating equipment, medium frequency melting furnace ,medium frequency forging furance and other heat treatment equipment, automation equipment.
