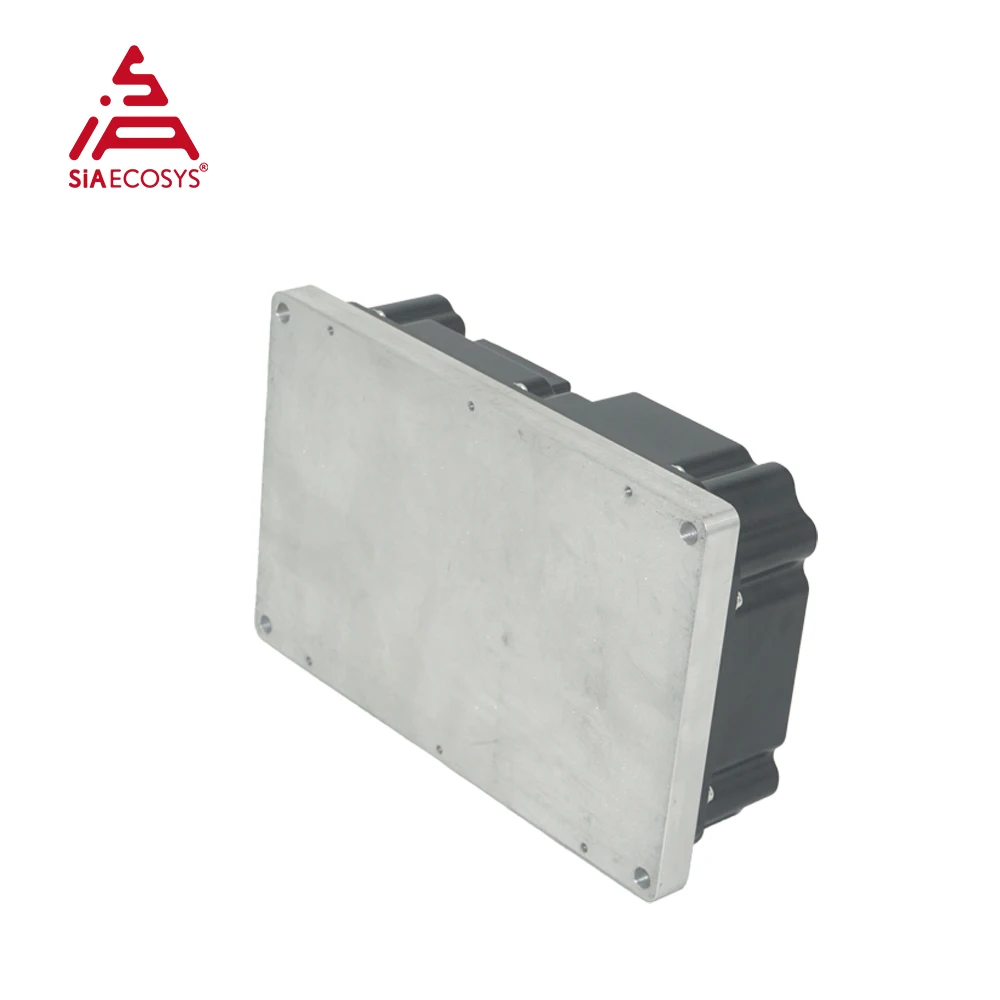

SIAECOSYS/FarDriver ND72850 72V Peak 88V BLDC 450A 6000 8000W Electric Motorcycle Controller With Regenerative Braking Function

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


SIAECOSYS/FarDriver ND72850 72V Peak 88V BLDC 450A 6000-8000W Electric Motorcycle Controller With Regenerative Braking Function


FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.


P.S. If you have any confused about the shipping cost, please feel free to contact with us.


Also could place order but don't pay first, then we could adjust the price.






One set including below kits


1. 1pcs X ND72850 sine wave controller


2. 1pcs X Blue-tooth adaptor








Key Features


1). All the raw materials are imported, using high-performance Moss tube, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.


2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board


3). Small in size


4). High efficiency, low temperature rise, small running current


5). With self-learning function, excellent commonality


6). The app compatible with Android and Apple


7). With flux weakening function.(The product does not contain magnetism)





Product Description


ND72850 is sine wave controller. Which is more cost effective with waterproofing grade IP67, suit for 6-8kw motors, the peak voltage for it is 88V.


Its hall version (as default) which suit with hall motors.


It could also support encoders, please check with sales.

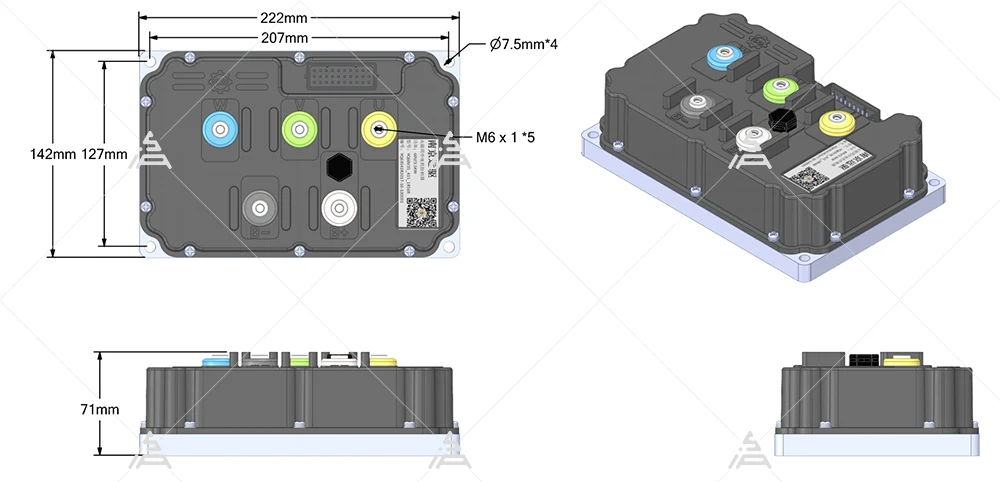

Drawing



Adapter Cable



Blue-tooth



Software interface(APP)






Programmable Software & User manual (Before you received the controller)


Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
