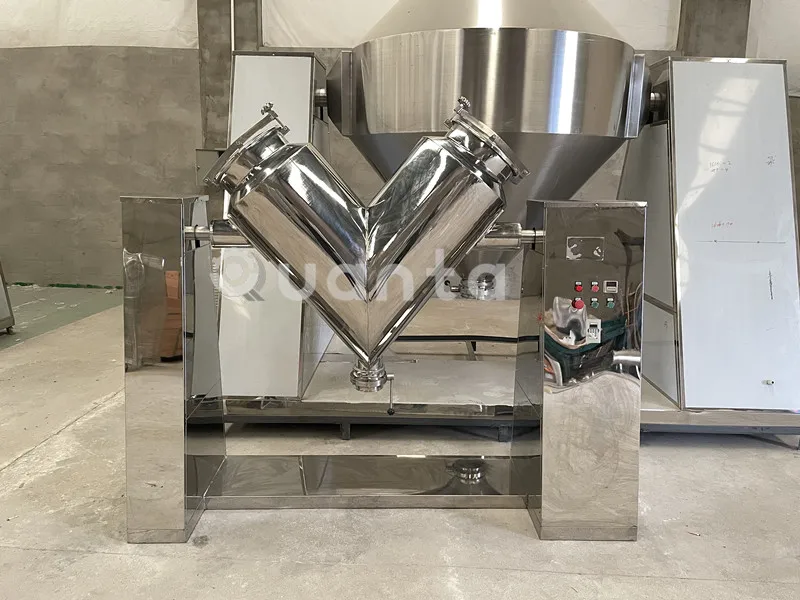

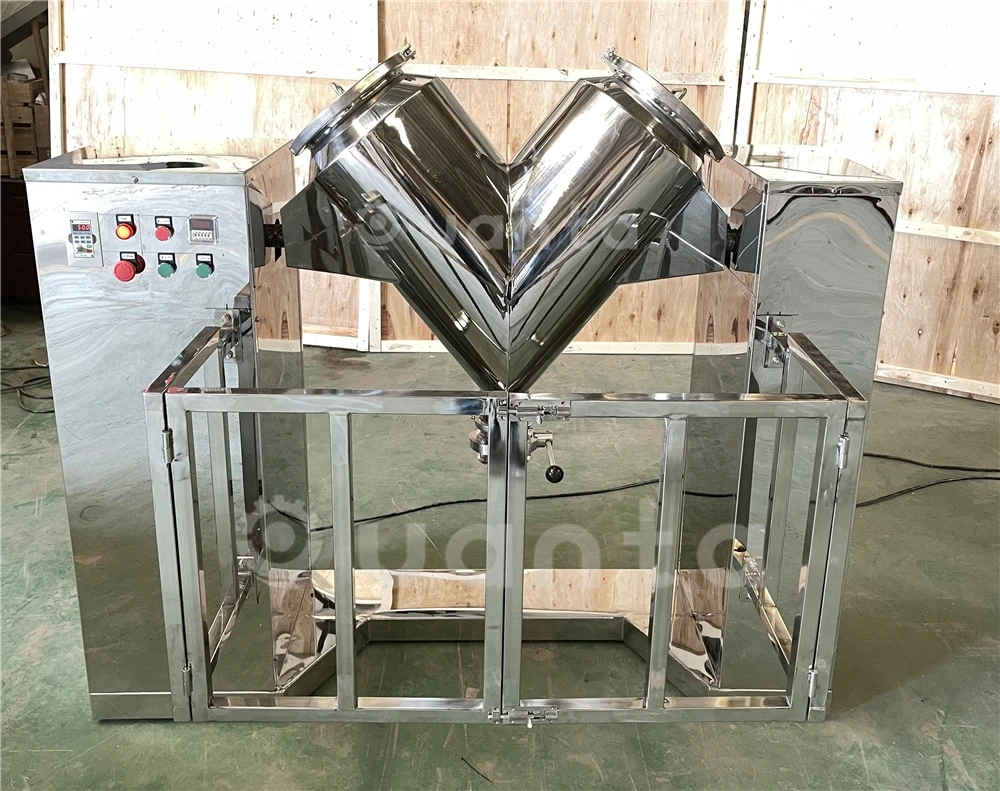

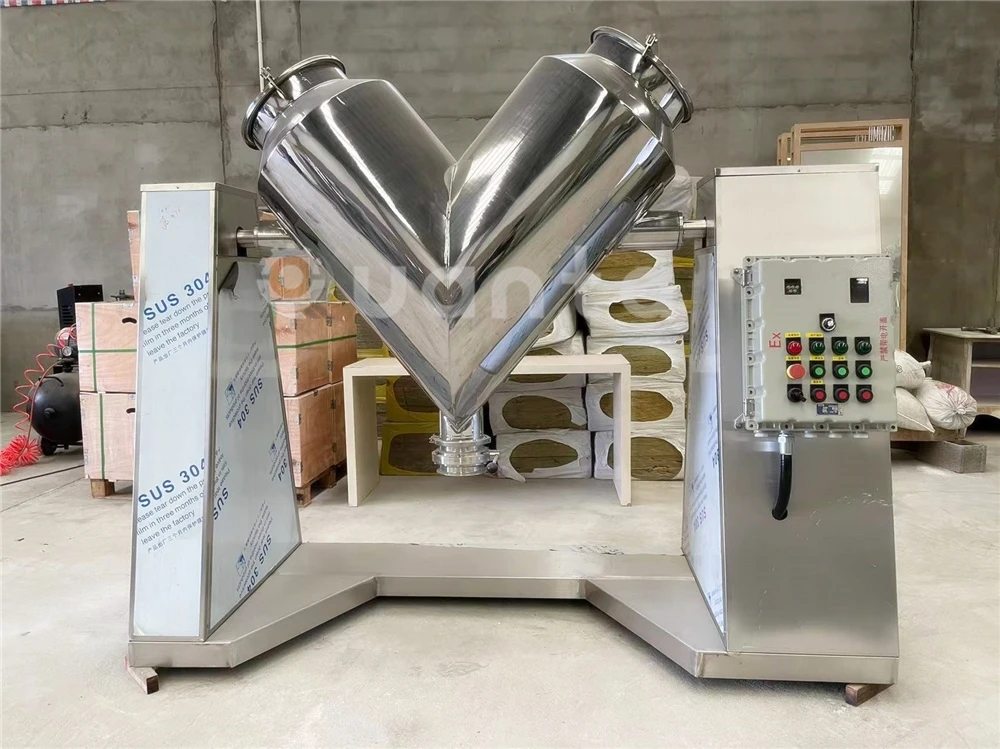

V Shape Dry Powder Factory Price Mixer Blender 12 R.p.m Rpm 50 Kg/batch 6 10min VHJ 200 SUS 304 ,SUS316 200L 0.4
- Category: >>>
- Supplier: Taizhou Quanta Machinery Equipment Co. Ltd.
Share on (1600526013130):
Product Overview
Description
Introduction:
This machine is designed for mixing two or more dry power or granule raw materials from pharmaceutical industry,chemical industry,foodstuff industry and so on.
Advantage:

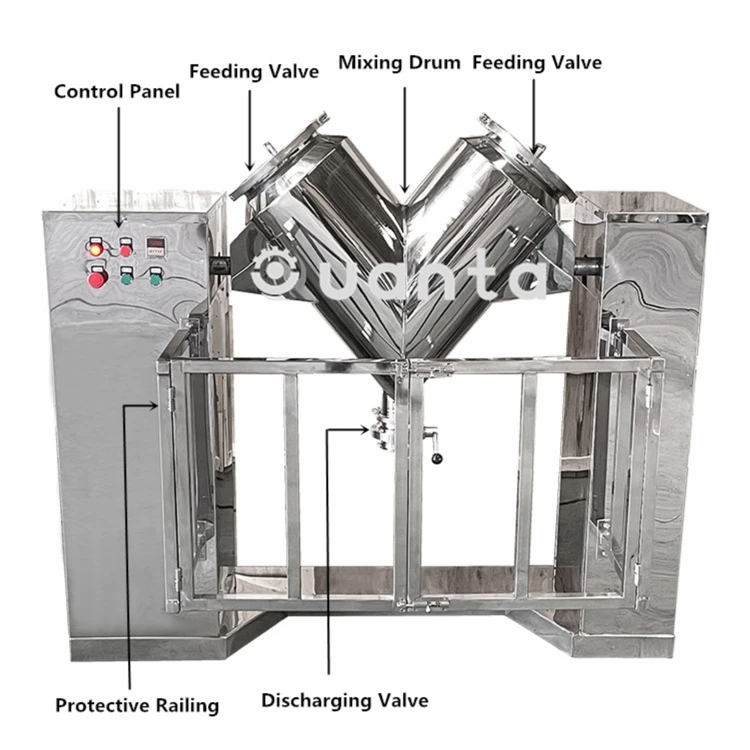

The structure of this machine in unique.Its mixing efficiency is high and no dead corner .
It is made of stainless steel304 /316L.Its inner and outer walls are processed through polishing.Its appearance is beautiful.Its mixing is uniform.Its scope of application is wide.

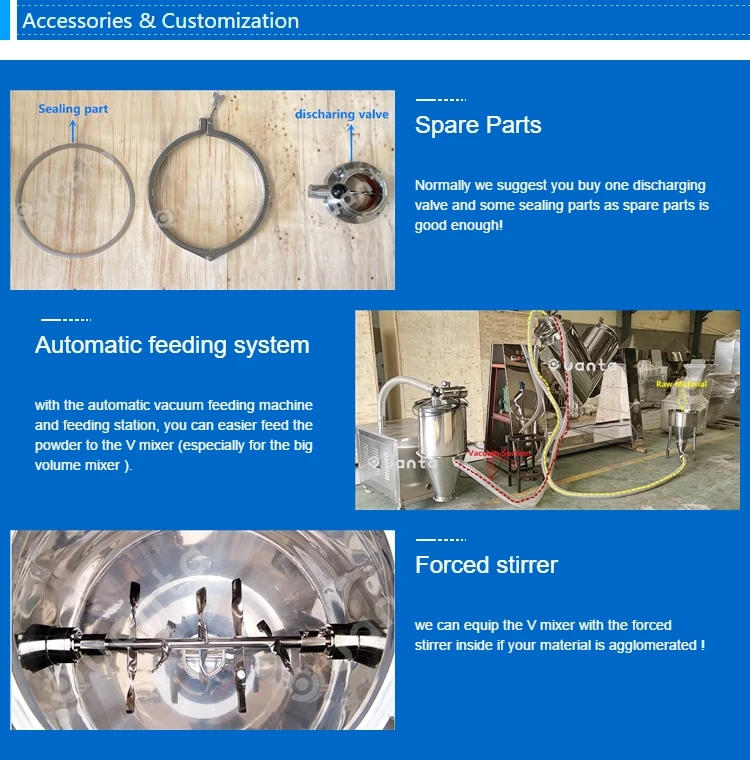

The forced stirrer can also be equipped,according to request of client, to meet the requirements of raw materials like pretty fine powder.cake and certain moist stuff.
| Model | Dimension (MM) | Total Volume | Max.loading capacity | Rotation Speed | Weight | Power | ||
| L | W | H | L | KG | Rpm/min | KG | KW | |
| VH-50 | 1300 | 700 | 1300 | 50 | 25 | 3-12 | 150 | 0.75 |
| VH-100 | 1500 | 880 | 1500 | 100 | 50 | 3-12 | 200 | 1.1 |
| VH-200 | 1800 | 1300 | 1800 | 200 | 100 | 3-12 | 300 | 1.5 |
| VH-300 | 1900 | 1360 | 1900 | 300 | 150 | 3-12 | 500 | 2.2 |
| VH-500 | 2500 | 1600 | 2250 | 500 | 250 | 3-12 | 800 | 3 |
| VH-1000 | 3050 | 2190 | 2500 | 1000 | 500 | 3-12 | 1200 | 4 |
| VH-1500 | 3350 | 2350 | 2980 | 1500 | 750 | 3-12 | 1500 | 5 |
| VH-2000 | 3800 | 2600 | 3050 | 2000 | 1000 | 3-12 | 1900 | 7.5 |
| VH-2500 | 3990 | 2850 | 3200 | 2500 | 1250 | 3-12 | 2400 | 11 |
| VH-3000 | 4650 | 3050 | 3400 | 3000 | 1500 | 3-12 | 3100 | 15 |
| VH-4000 | 4950 | 3250 | 3600 | 4000 | 2000 | 2-8 | 4200 | 18.5 |
Welcome to contact us if you need smaller or larger volume of the V type powder mixer :
