20M3 per hour Portable Mobile Concrete Batch Plant for Sale China Manufacture hot sell
- Category: >>>
- Supplier: Zhengzhou Jianxin Machinery Co. Ltd.
Share on (1600526090246):
Product Overview
Description
Product Overview

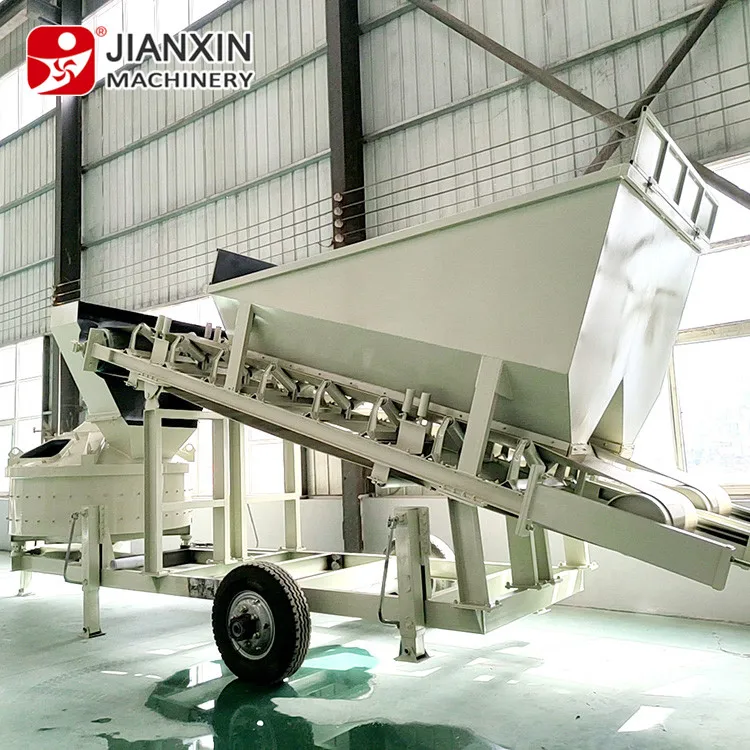

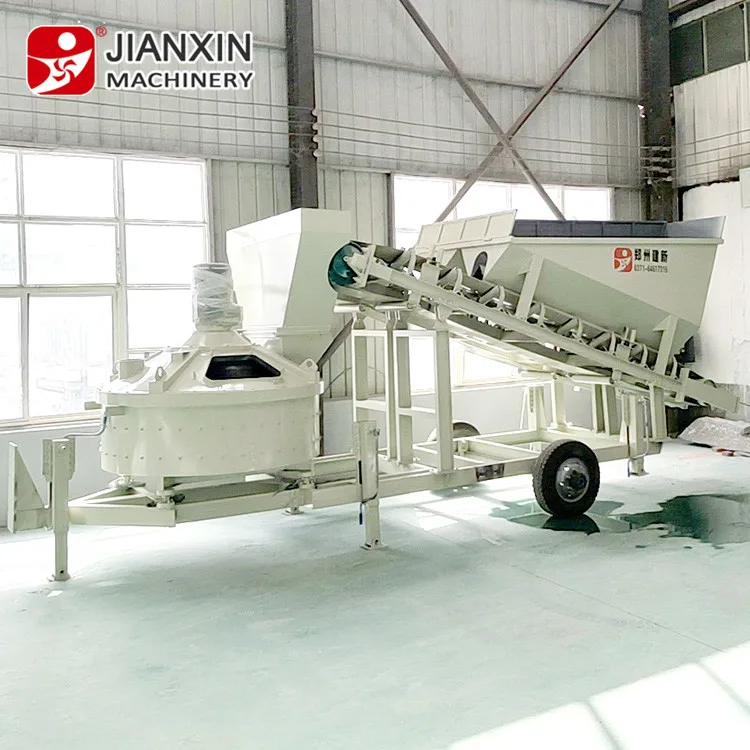

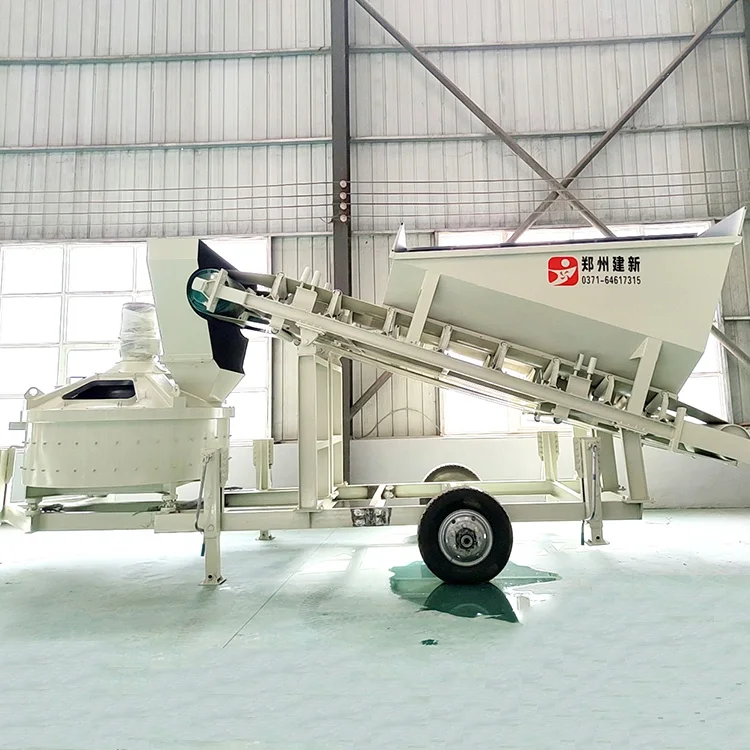

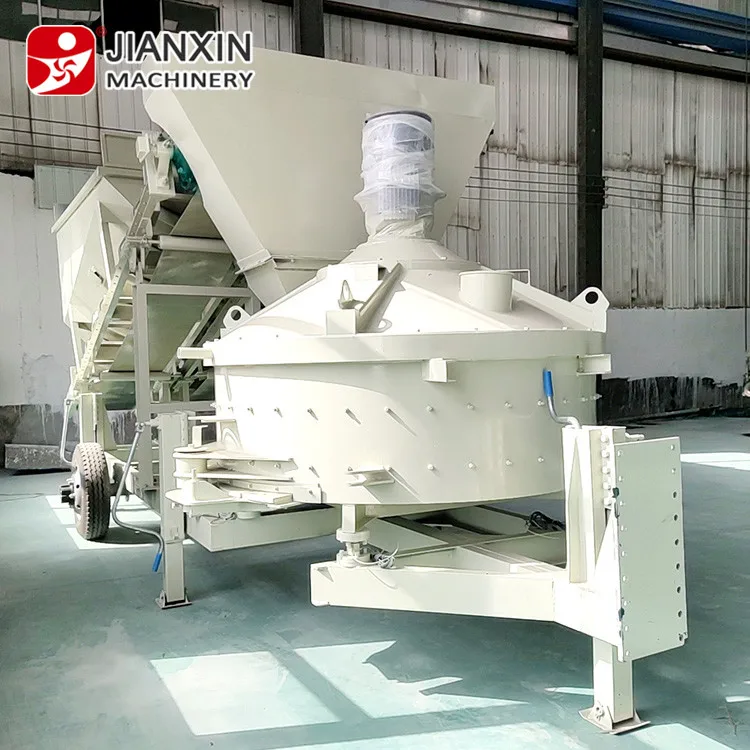

Compact vertical planetary concrete mobile batching plant
Application areas: dry-hard, semi-dry-hard and plastic concrete, high-grade concrete, lightweight concrete, cement pipes, utility poles, prefabricated components, block bricks, pipe piles, subway segments, refractory materials, metallurgy, short construction period, Long construction lines, construction occasions requiring frequent transitions, and construction with multiple points and lines.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EASY TO MOVE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Theoretical productivity | 20M³/h | 30M3/h | 50M3/h |
1 | Mixer | MPC500 | MPC750 | MPC1000 |
2 | Input /output | 750L/500L | 1000L/750L | 1250L/1000L |
3 | Production cycle | 80s | 80s | 80s |
4 | Aggregate hoppers | 2 | 2 | 2 |
5 | Maximum aggregate size | 30mm | 30mm | 50mm |
6 | Discharging height | 1meter | 1meter | 1meter |
7 | Dimensions | 8273*2700*3000mm | 9273*2700*3000mm | 10173*2700*3000mm |
8 | weighing accuracy | ±2% | ±2% | ±2% |
PRODUCT CONFIGURATION
Good quality planetary reducer

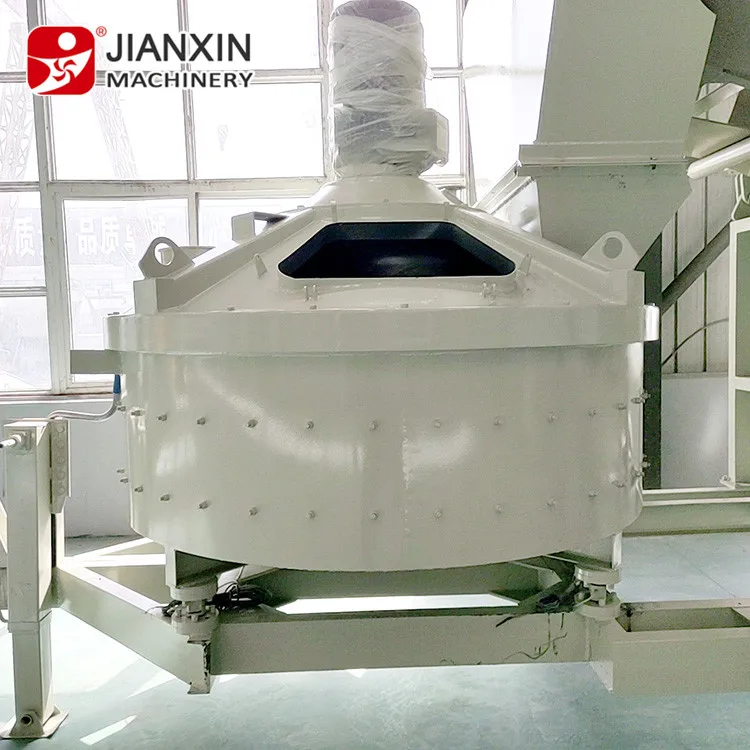

vertical shaft planetary mixer
Batching machine with 2 bins
