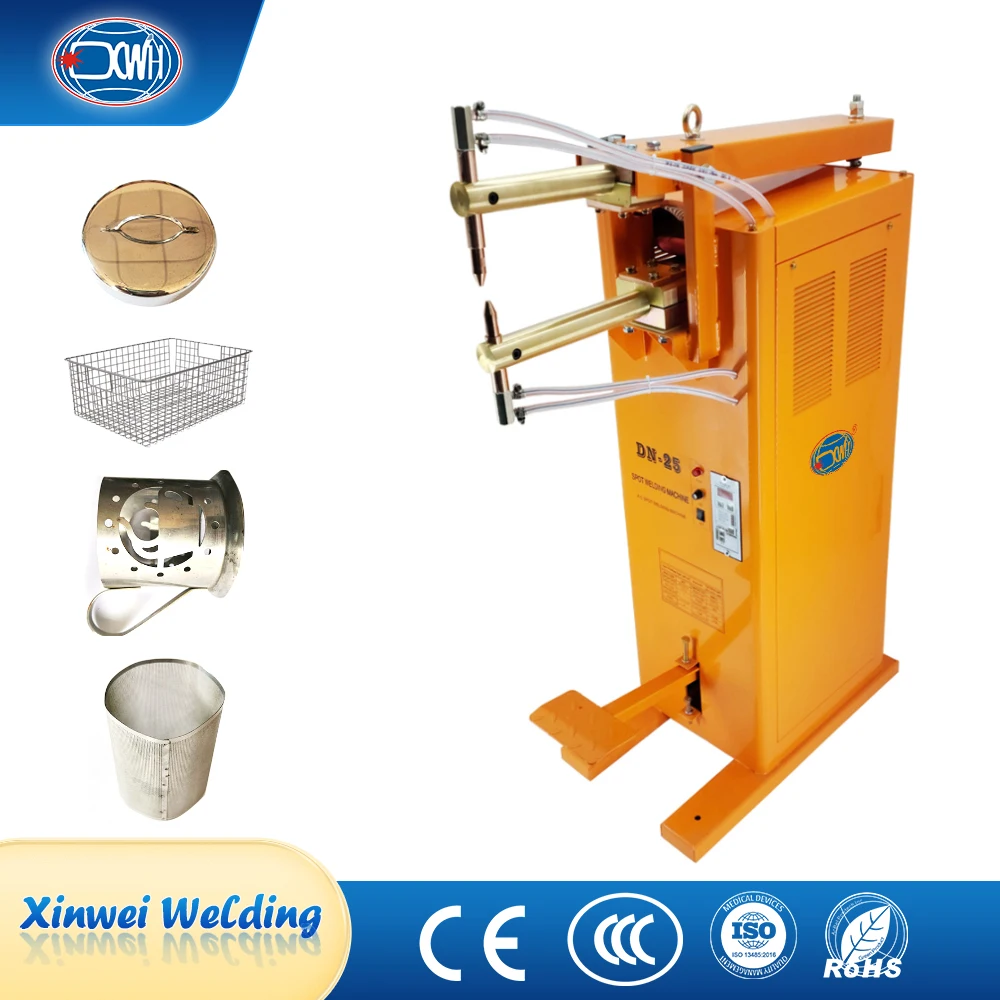

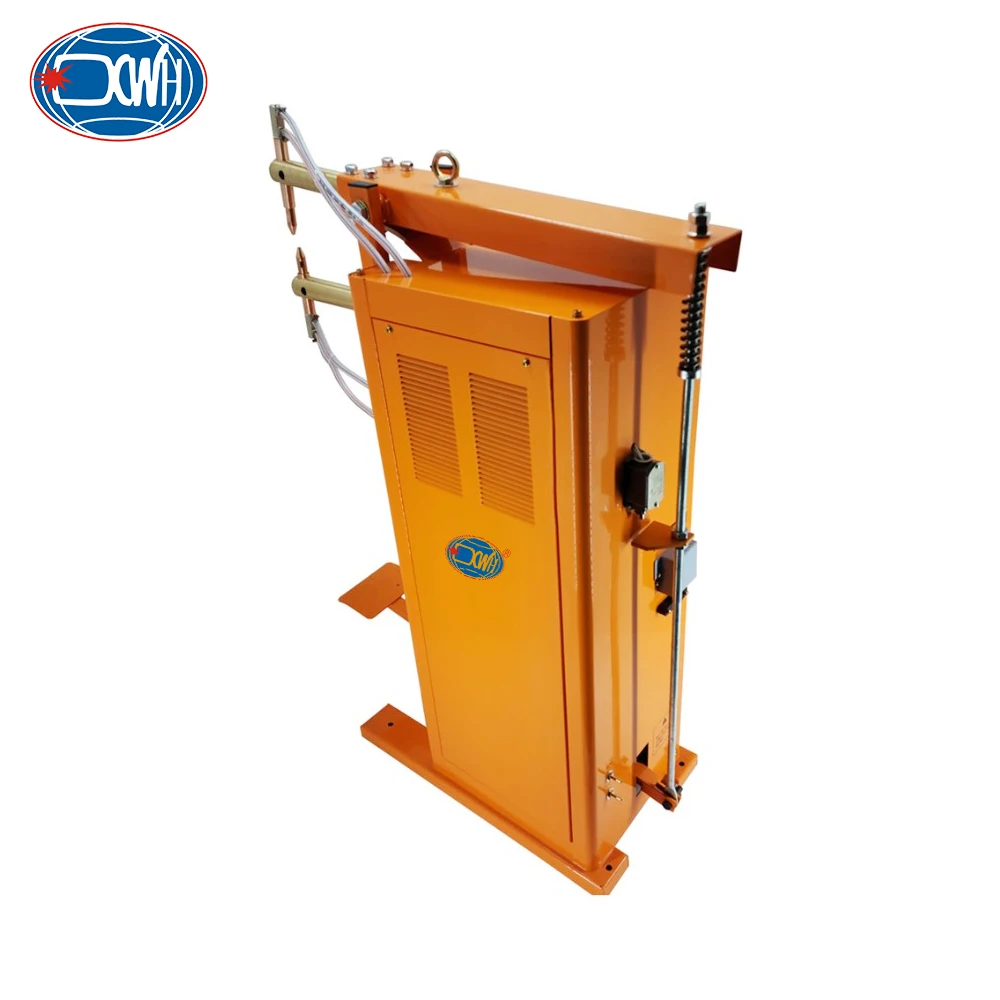

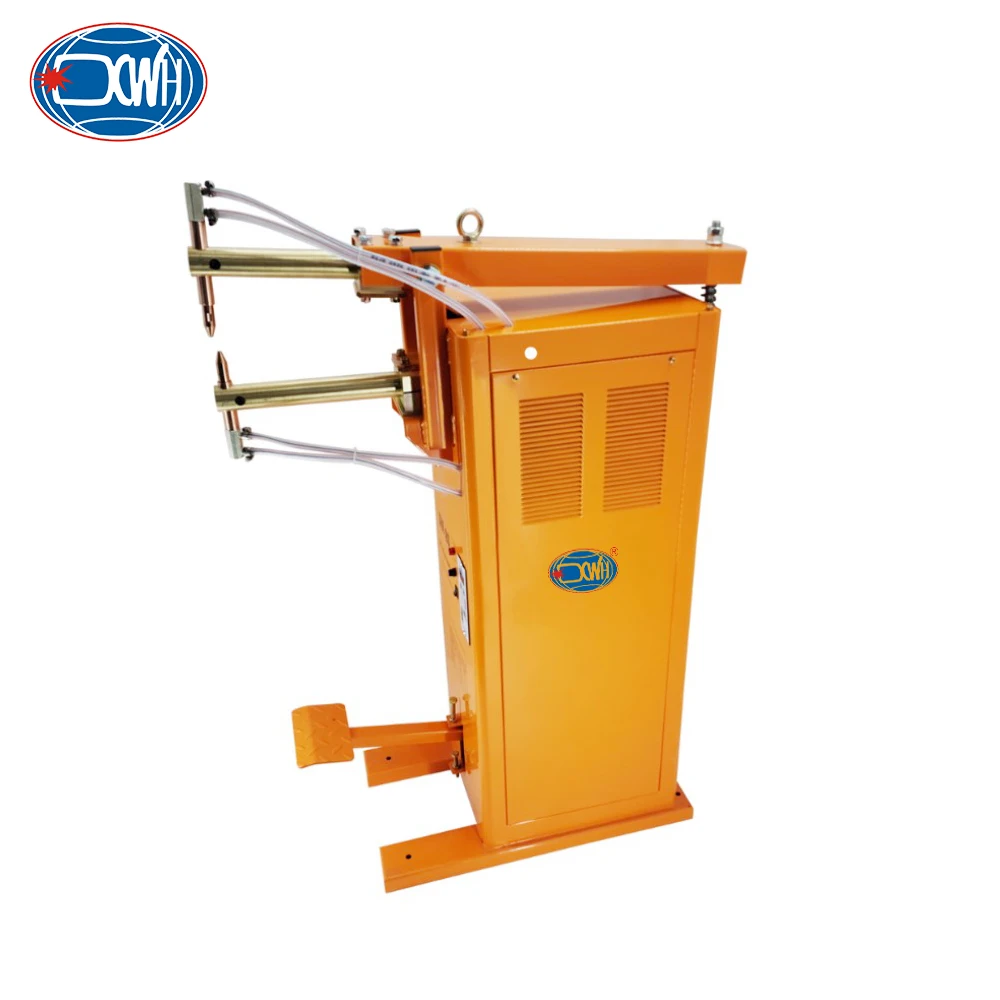

Spot Welding Machine For Bicycle Frame Use Industrial Welder Water Cooling Cable Tools Metal Stainless
- Category: >>>
- Supplier: Chengdu Xingweihan Welding Equipment Co. Ltd.
Share on (1600526092263):
Product Overview
Description
ChengDu Xingweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

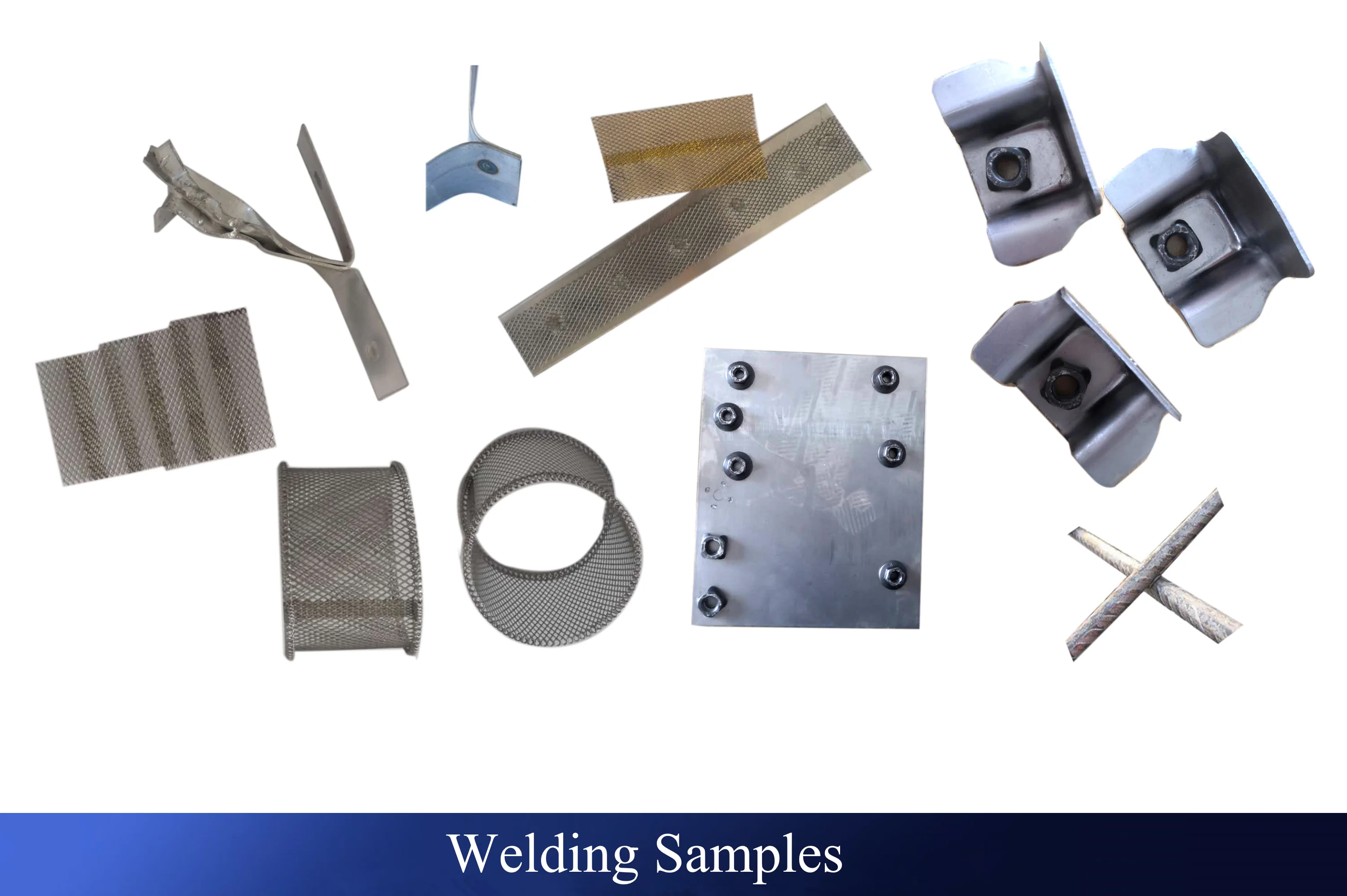

The pedal type spot welding machine is a device that forms a certain contact resistance between two layers of metal under the pressure of two electrodes. Its working current can reach thousands of amperes to tens of thousands of amperes, and it is the most advanced resistance welding technology so far. It can weld metal plates and wires, and is more suitable for wire, mesh, basket, sheet metal, medium carbon steel, low-carbon steel, stainless steel, titanium alloy, galvanized plate, aluminum alloy, High efficiency and high-quality welding of metal cabinets and other hardware handicrafts.
Technical Parameters
Product Welding Video | We provide technical guidance videos, product welding videos, and samples please contact us. | ||||||
Overseas on-site technical team | South America, Southeast Asia,etc | ||||||
One-stop service | Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip | ||||||
Models Item | DN-35 | DN-25 | DN-16 | DN-10 | |||
Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA | |||
Rated Primary Power | 380V | 380V | 380V | 380V | |||
Rated Primary Current | 92A | 66A | 42.1A | 26.3A | |||
Rated Duty Cycle | 10% | 10% | 10% | 10% | |||
Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V | |||
Adjustment Rated | 4 | 4 | 4 | 4 | |||
Welding Time Adjustment | 0～9.99s | 0～9.99s | 0～9.99s | 0～9.99s | |||
Arms Length | 280mm | 280mm | 280mm | 260mm | |||
Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm | |||
Cooling Ways | Main Transformer: Air Electrode: Water | ||||||
Main Features
1) The main transformer is made of imported cold-rolled silicon steel, less power loss and low no-load current.
2) Pivoting arm, pedal, spring press structure, easy to operate, The structure in graceful form, durable and cheap.
3) In main circuit adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld.
4) Adopt the digital control system; it is widely used in mild steel, wire, stainless steel plate and so on.
2) Pivoting arm, pedal, spring press structure, easy to operate, The structure in graceful form, durable and cheap.
3) In main circuit adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld.
4) Adopt the digital control system; it is widely used in mild steel, wire, stainless steel plate and so on.

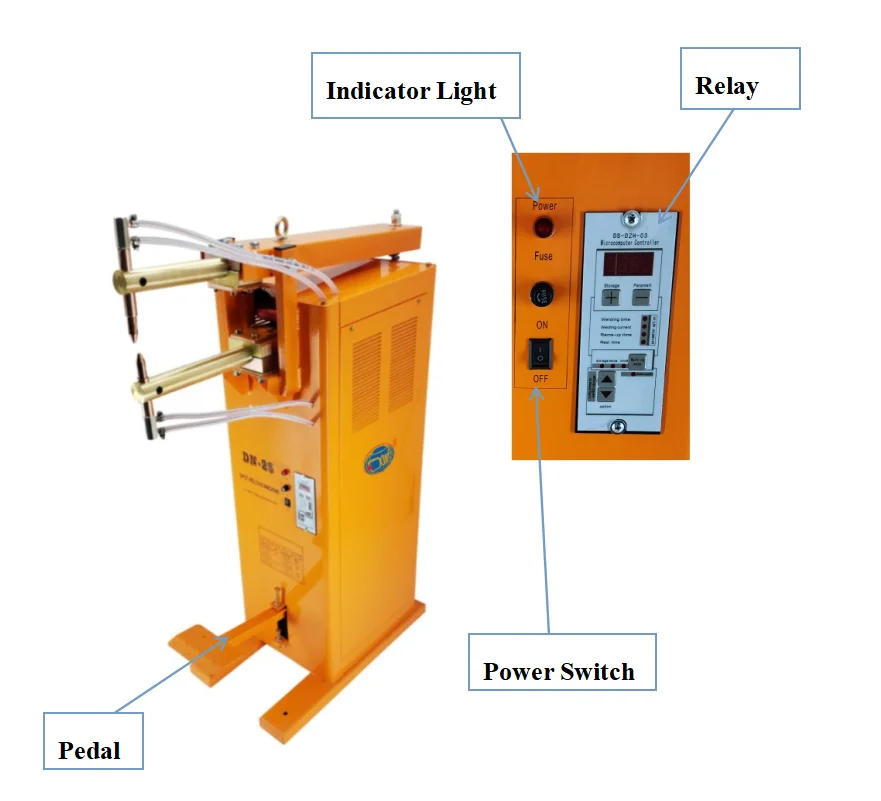

Detail Images

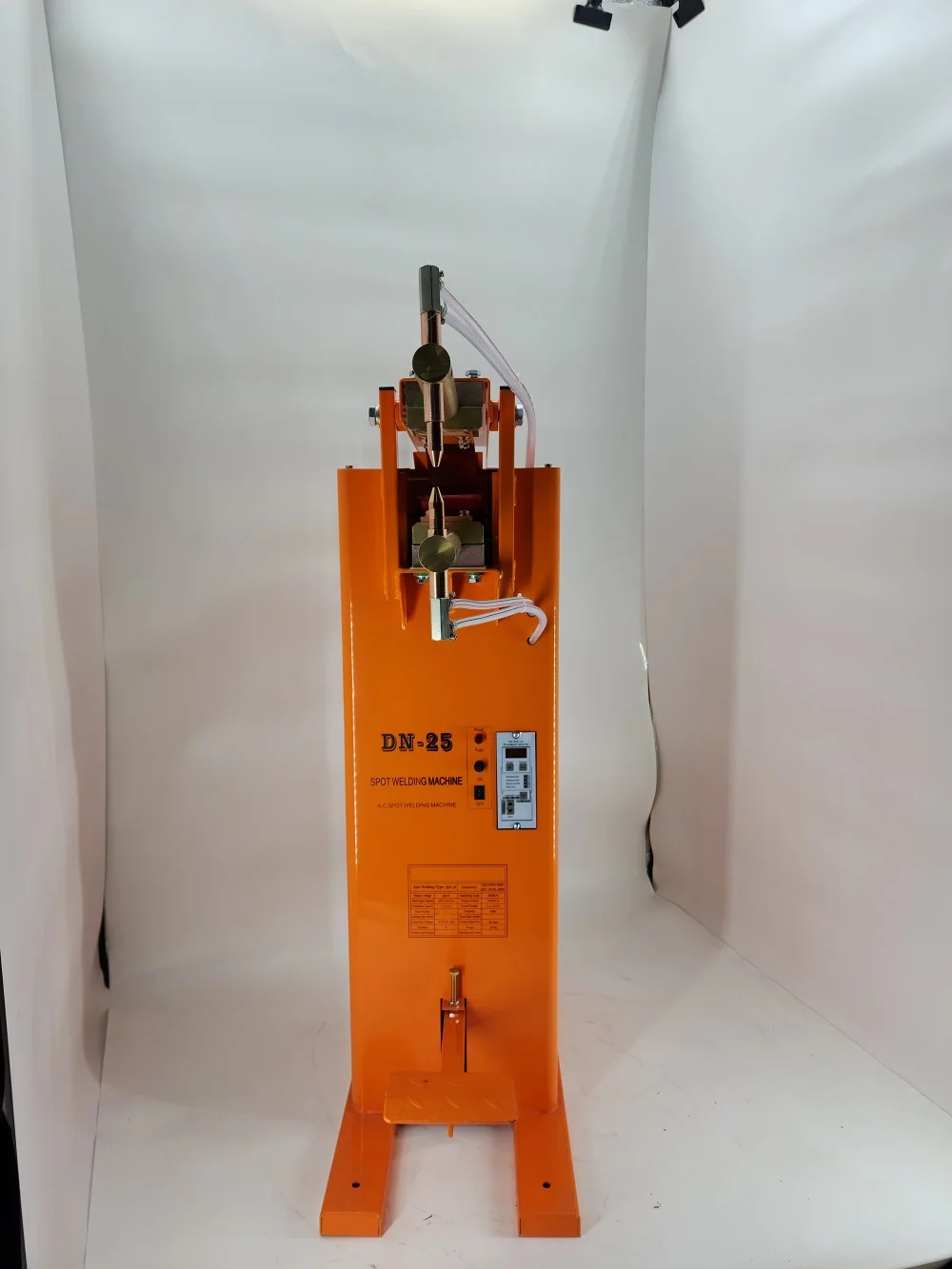

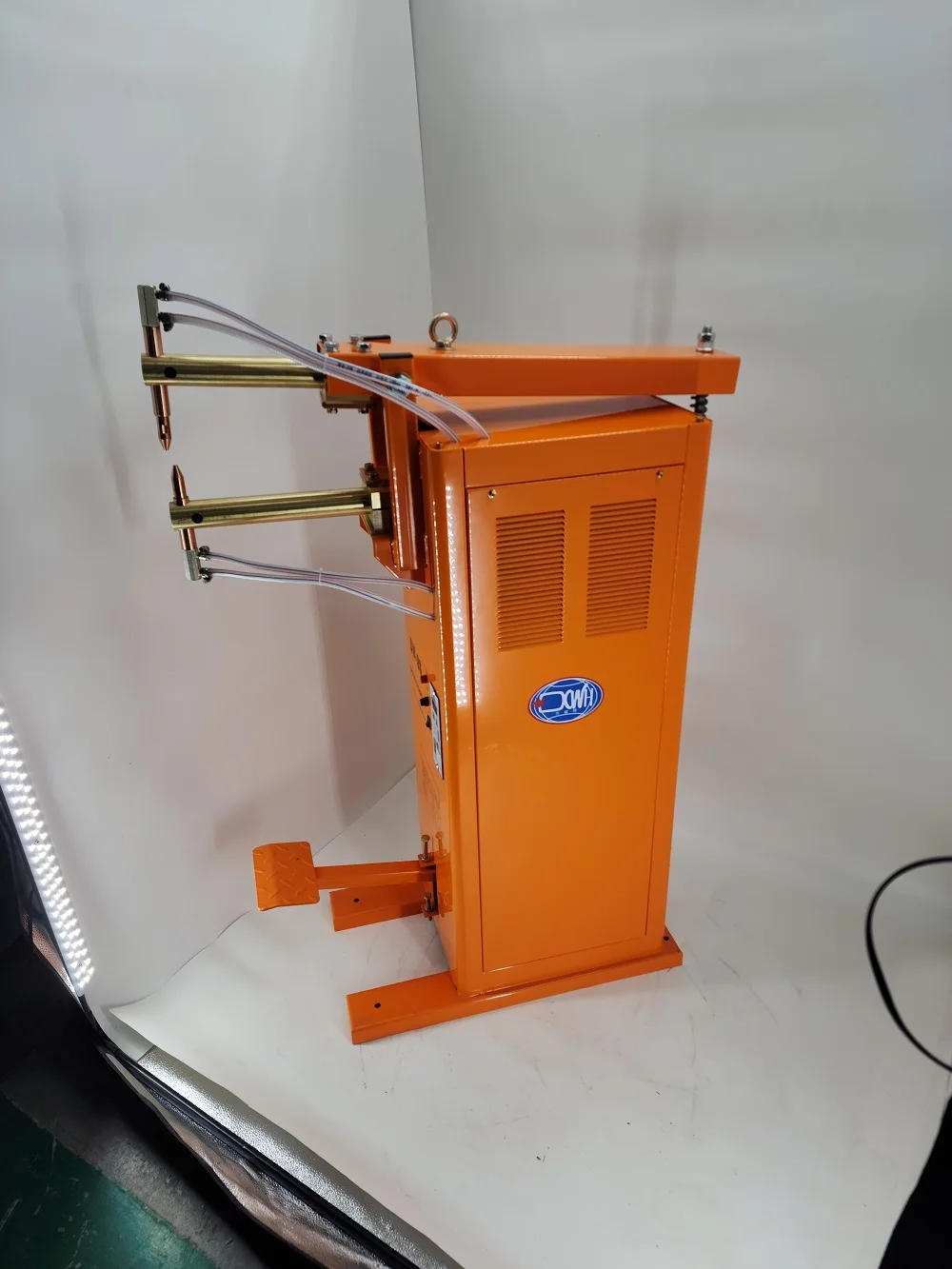

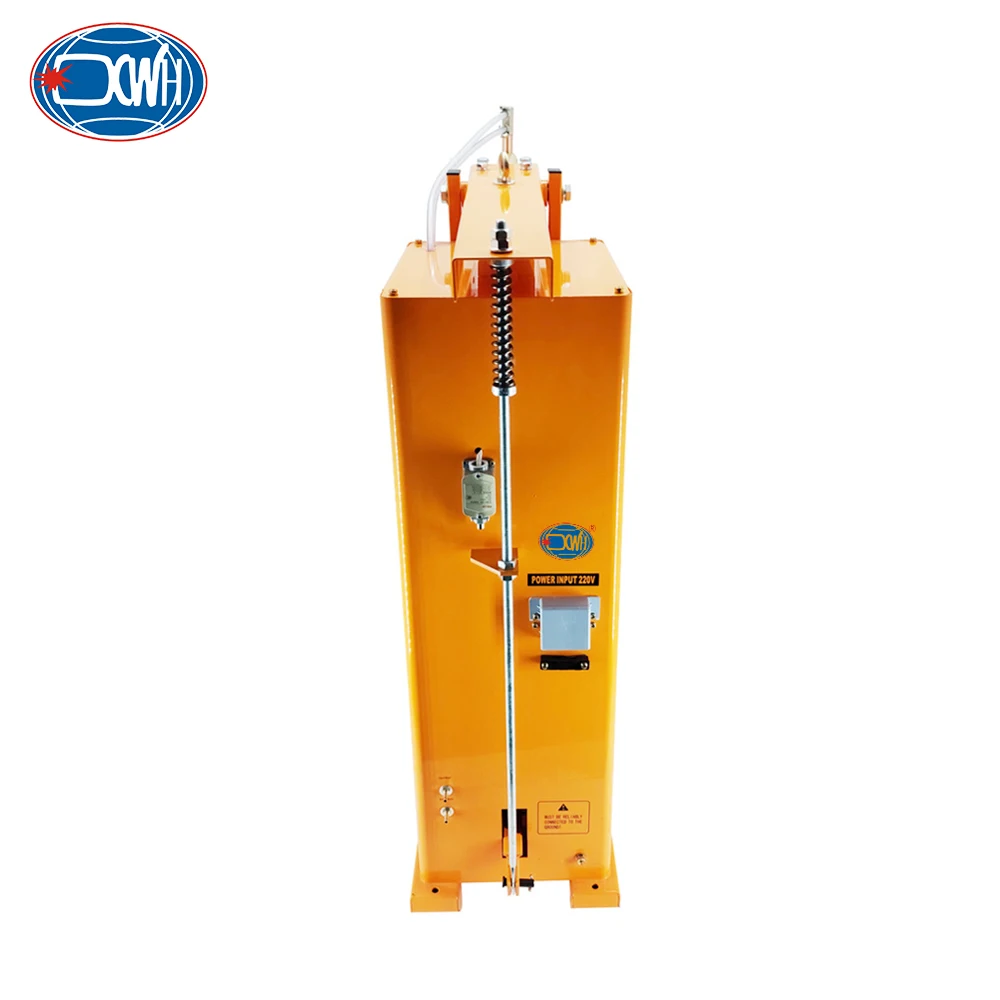

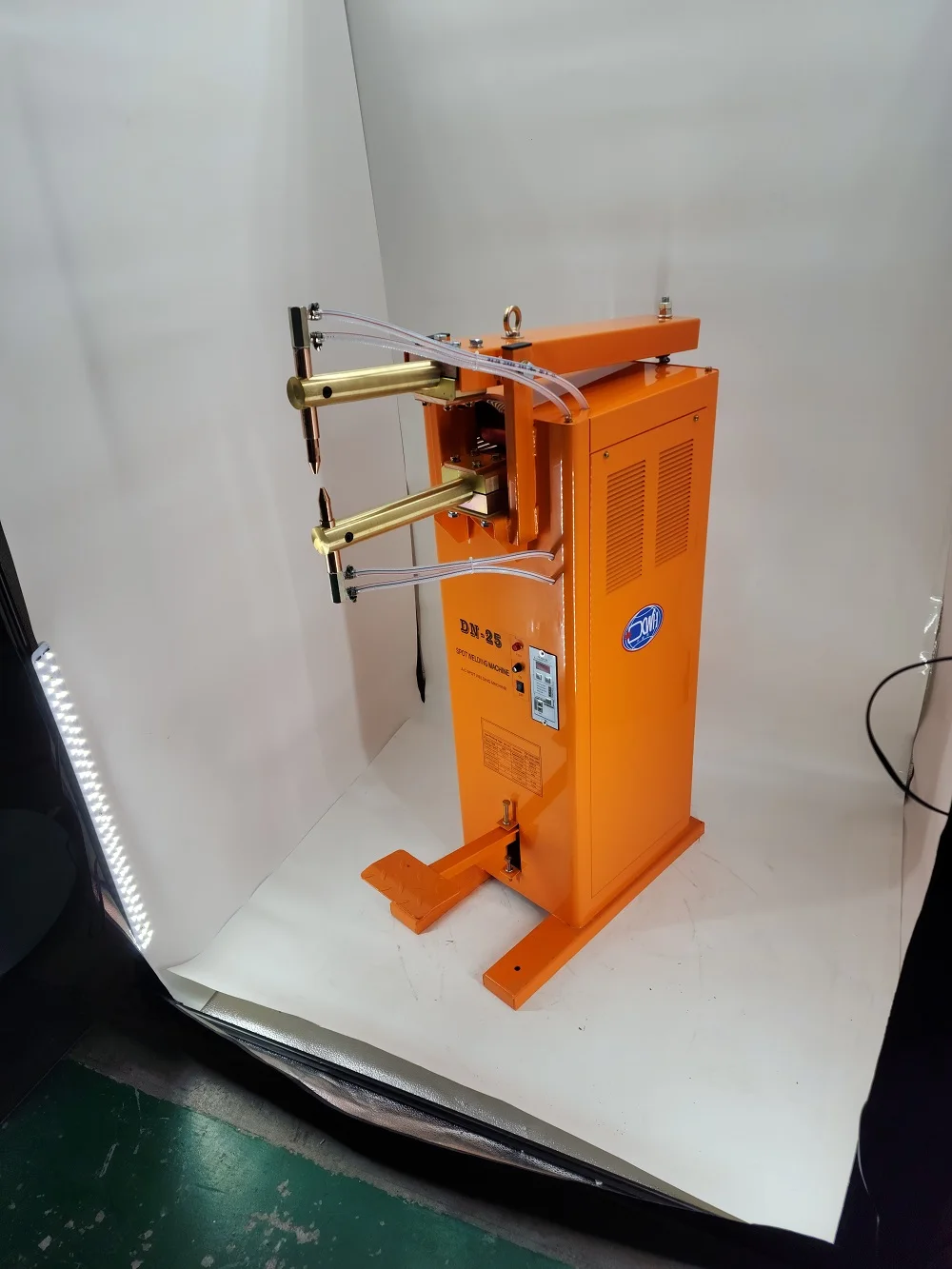

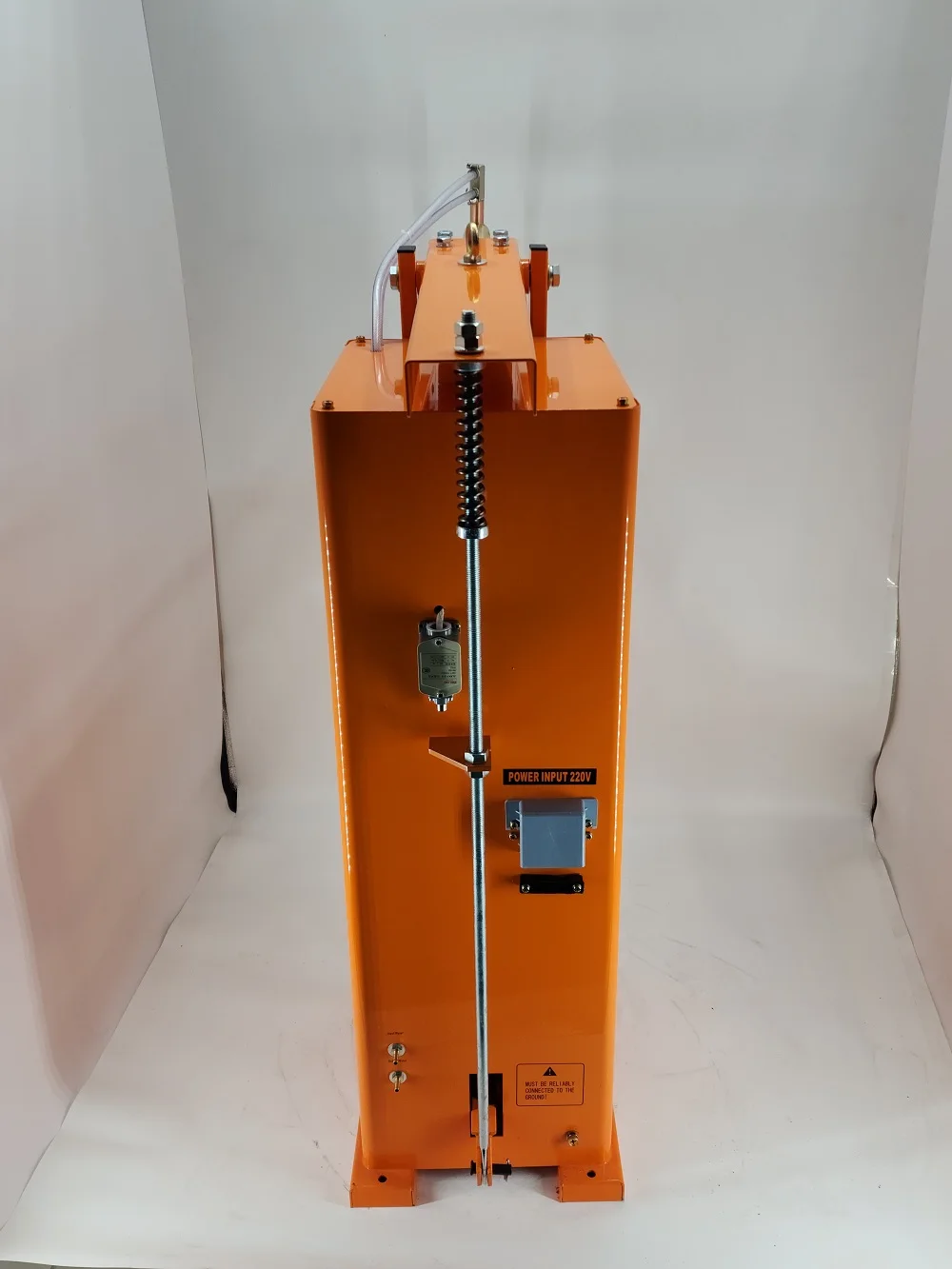

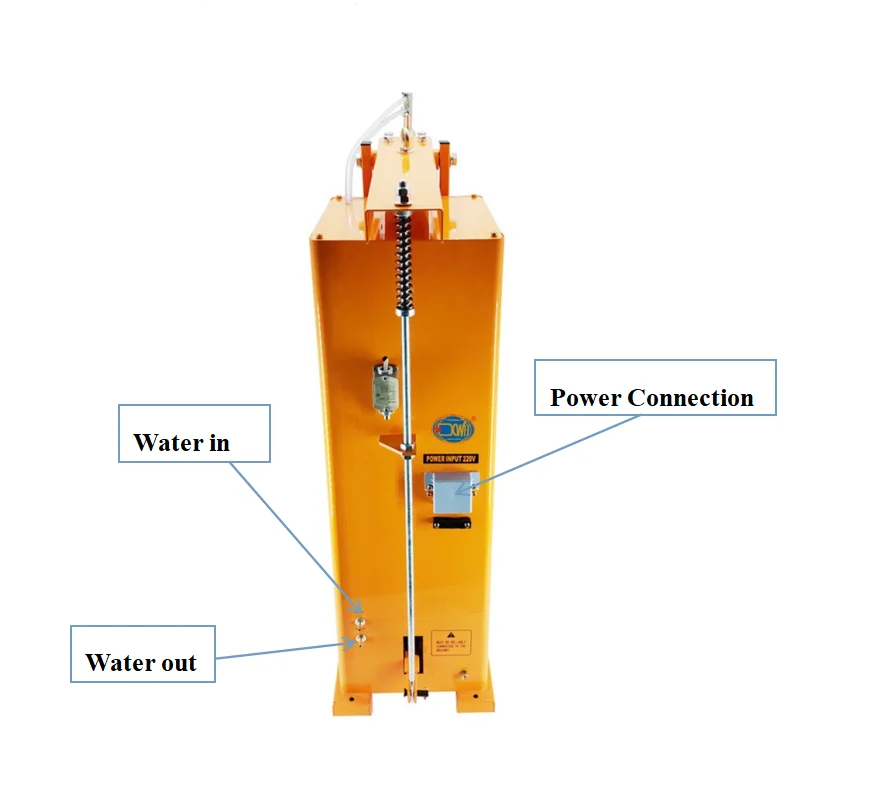

Different Angles of Product
