Aluminum Frame Glass High Quality Curtain Walls Facade For Building Exterior
- Category: >>>
- Supplier: Foshan Yuanshang Windoor & Curtain Wall Engineering Co. Ltd.
Share on (1600526109245):
Product Overview
Description

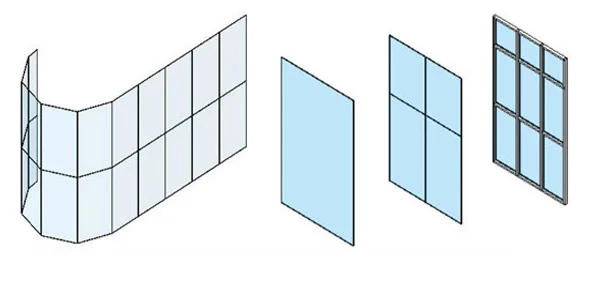

Multiple design options

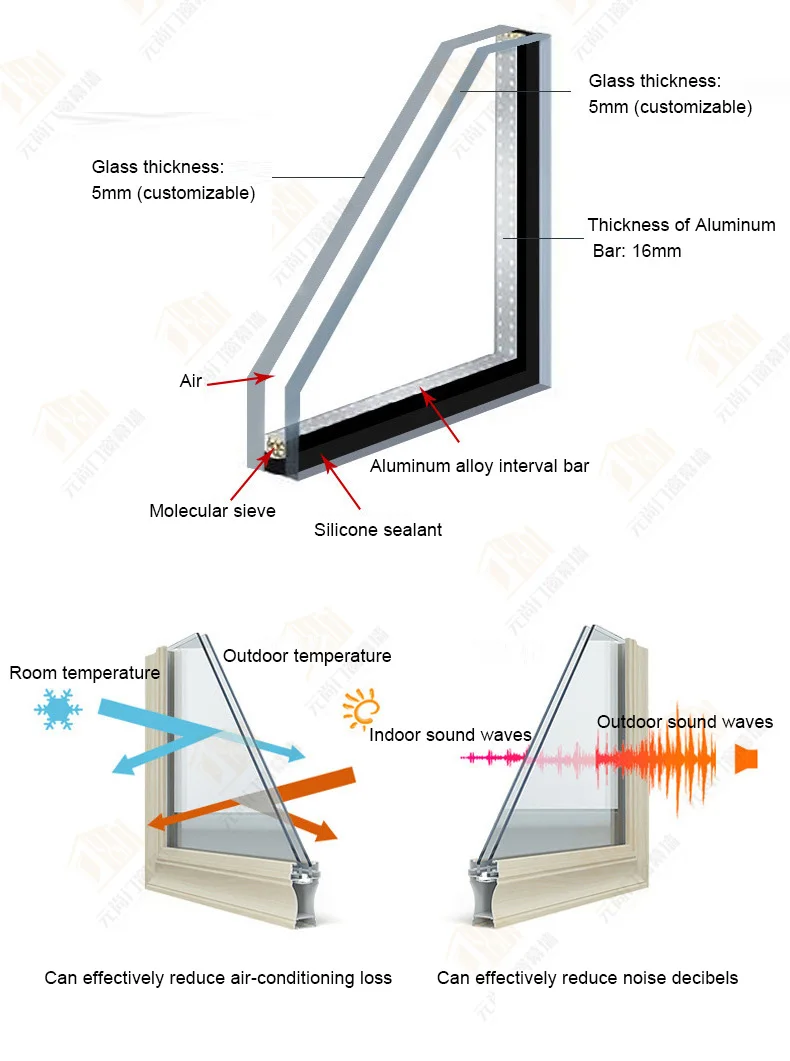

The glass curtain wall benefits from double-layer tempered glass, so it can effectively reduce heat radiation and provide better sound insulation.Can effectively reduce noise decibels. Can effectively reduce air-conditioning loss.

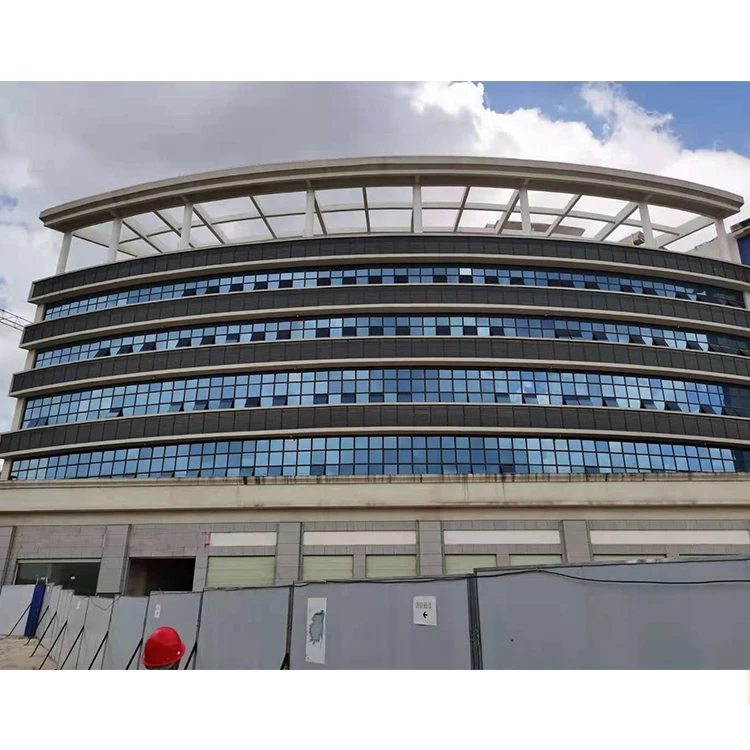

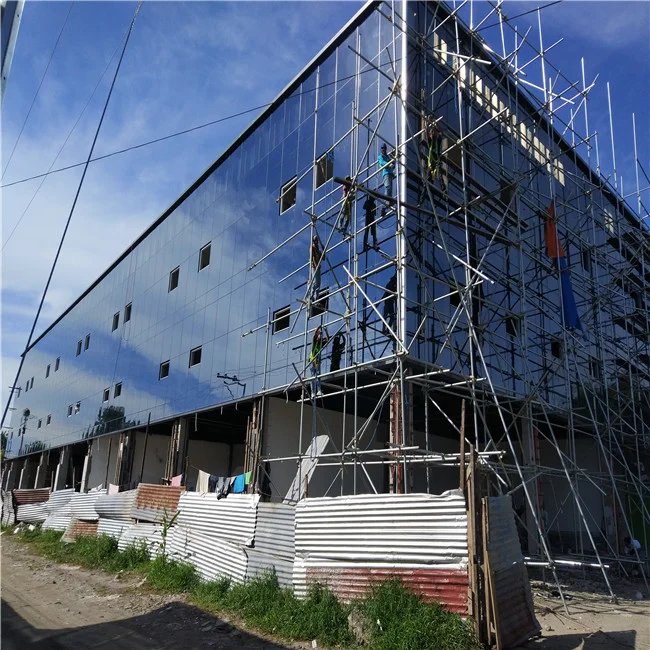

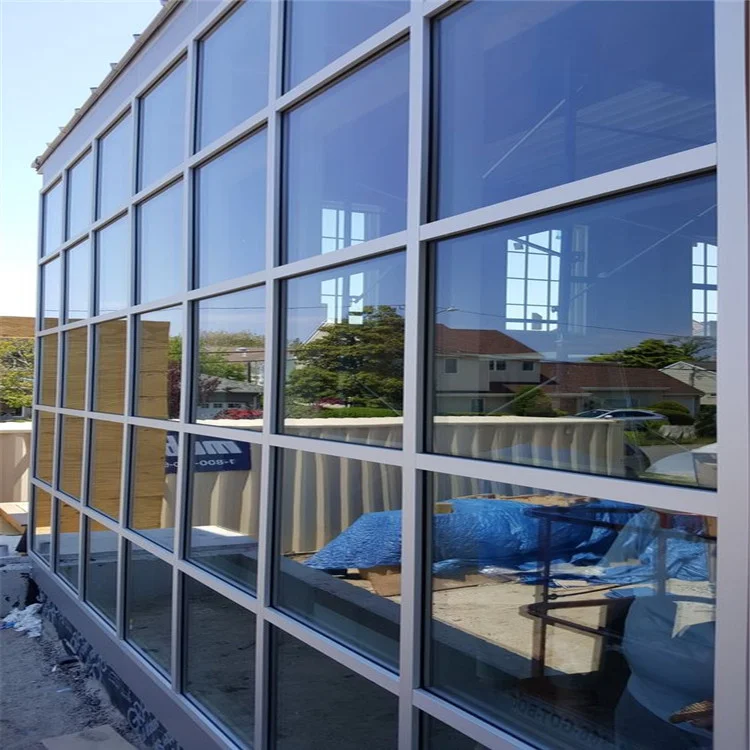

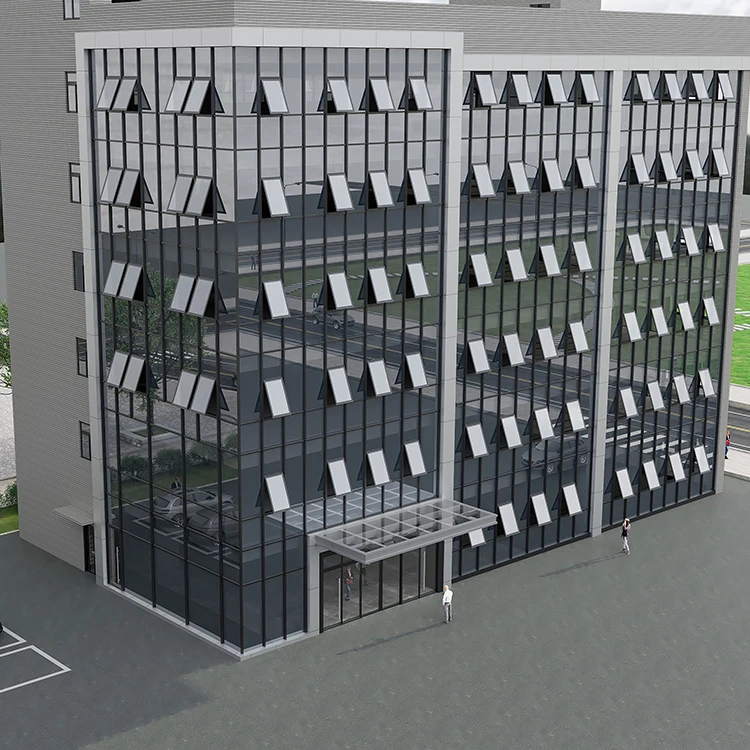

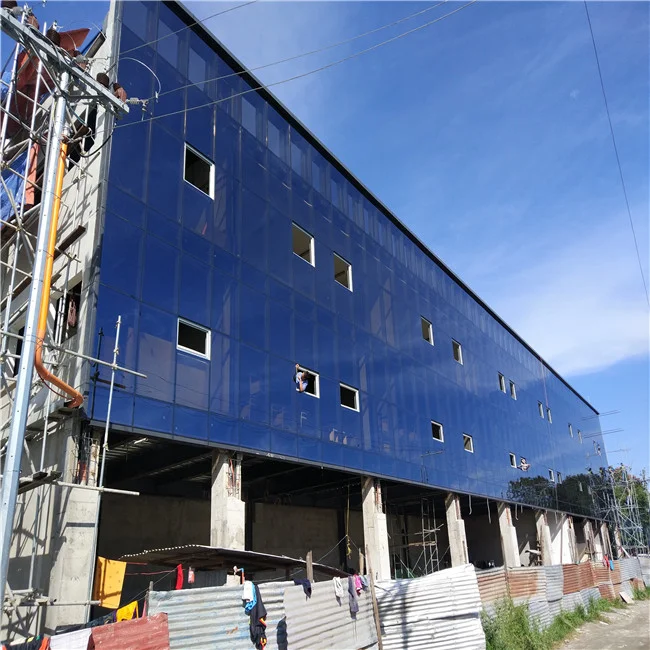

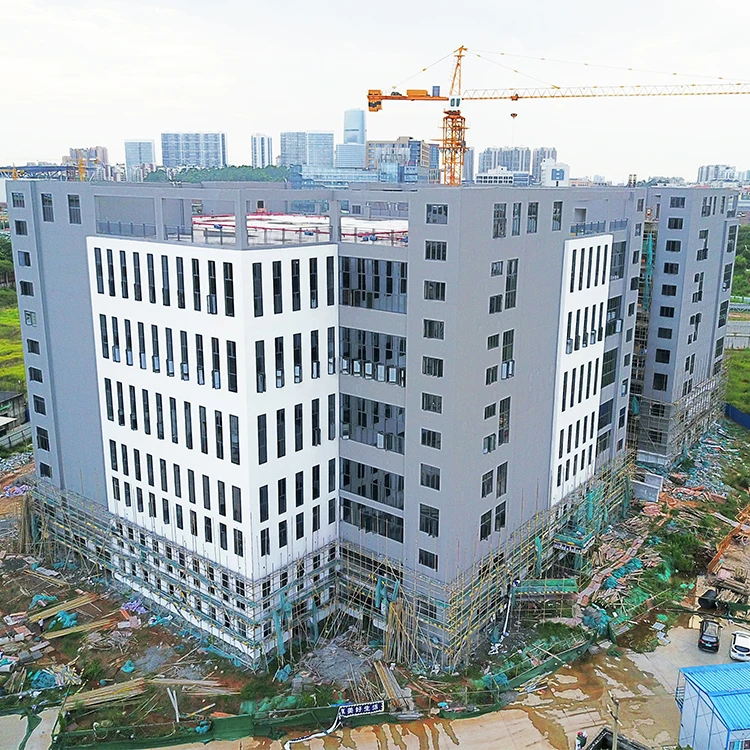

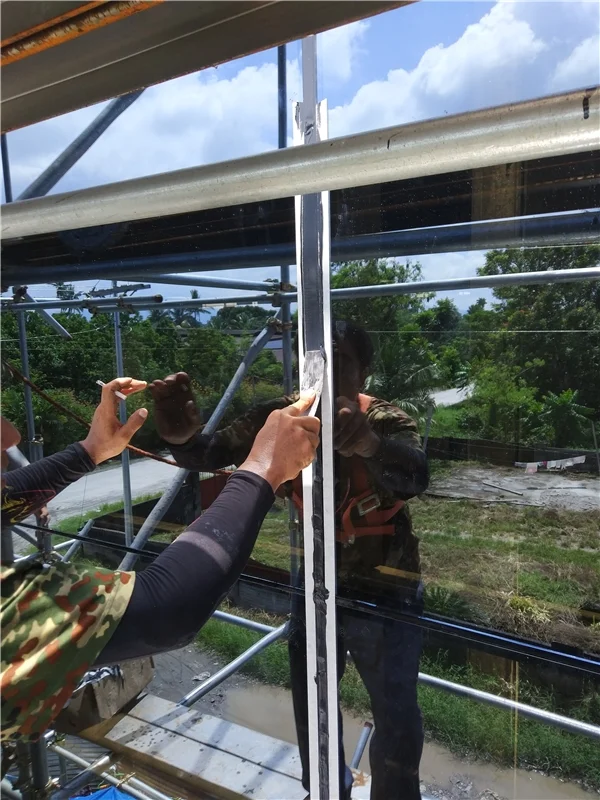

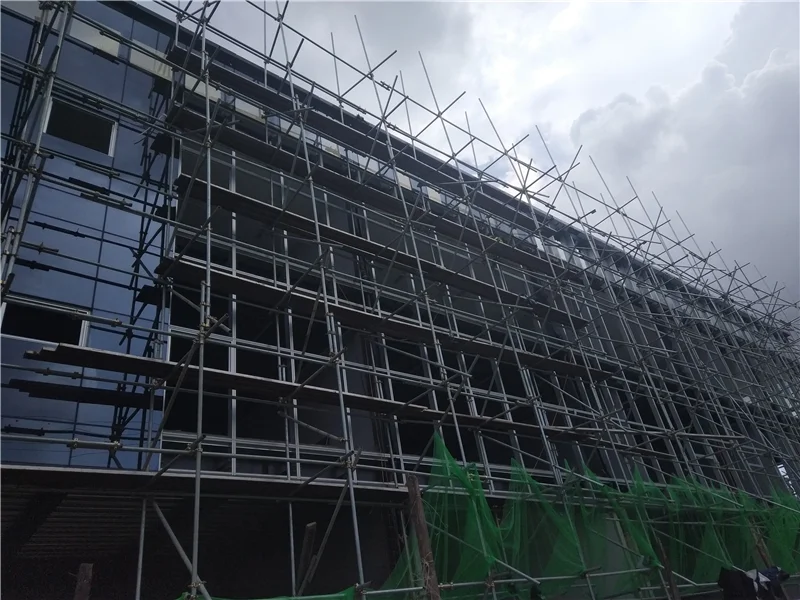

Project case
Product Presentation

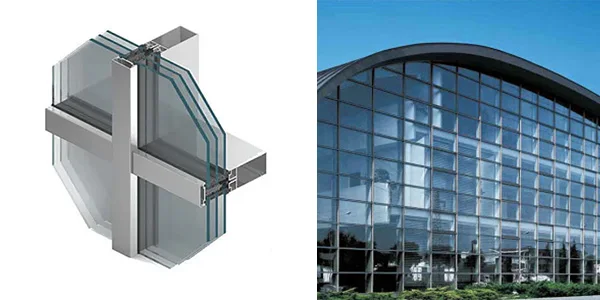

Type: visible aluminum frame glass curtain wall
Material：Aluminum extrusion profile glassDescription: glass is embedded in the aluminum frame to becomes the curtain wall component with aluminum frame on the four sides
Type: invisible aluminum frame glass curtain wall
Material：Aluminum glassDescription: glass is directly connected with the skeleton, and there is no exposed frame on the outside, making the glass curtain wall more novel and concise in appearance

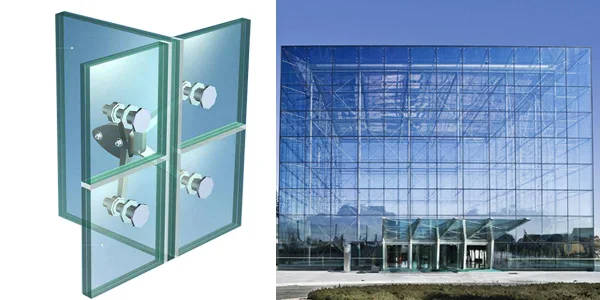

Type: Spider system glass curtain wall
Material：certain structure(like steel structure) stainless steel spider accessories glass
Material：certain structure(like steel structure) stainless steel spider accessories glass
Description: spider glass facade is a system for point-supported vertical glazing in which thermally toughened(tempered) glass sheets are used, in single glazing or in insulated glass

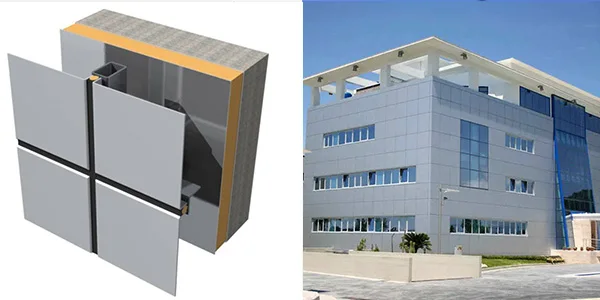

Type: Aluminium veneer curtain wall
Material：Aluminum extrusion profile, aluminum panel sheet(aluminum composite panel)
Material：Aluminum extrusion profile, aluminum panel sheet(aluminum composite panel)
Description: Aluminum composite panel is embedded in the aluminum frame to becomes with aluminum frame on the four sides
Glass Curtain Wall System | Visible frame glass curtain wall、Invisible Frame Glass Curtain Wall、Point Supported Curtain Wall、Aluminum veneer curtain wall .... |
Panel optional | Glass/ Aluminum veneer |
Glass optional | Double glass, tempered glass, floating glass, insulating glass, reflective glass, laminated glass, LOW-E etc |
Optional glass thickness | 5mm+9A/12A+5mm 6mm+9A/12A+6mm |
Available in glass color | clear, gray, green, frosted etc |
Frame material | 6063 T5 Aluminum profile |
Aluminum profile thickness | 6mm/9mm/12mm/16mm/20mm/22mm/25mm/27mm |
Aluminum Color | Silver, Black, Gray, Customized |
Wall thickness | 50 to 180mm |
U Value | 1.1 to 4.5 W/m2K |
Gas Tightness | AE 900 to 1050 |
Water Tightness | RE 800 to 1200 |
Wind Resistance | 800 to 1200 Pa |
Warranty available | 5 years, 10 years, 15 years, 20 years |
Window opening method (optional) | Sliding/ Casement/ Top-hung |
Certificate
Related Products
Company Introduction
Foshan Yuanshang Windoor & Curtain Wall Engineer Co., Ltd, located in Foshan, China. With 15 years rich experience and Strong technical background in the industry in aluminum and glass work such as curtain wall, aluminum windows and doors, glass partition, fence, shower room etc for oversea clients. We have own 4 aluminum extrusion production lines, 1 anodizing line, 1 powder coated line, 3 windows and doors advanced assembly lines that could offer you best budget. Our company have Australian and American system / certificate with high performance in hurricane-resistance, water tightness-resistance and energy-efficient.
Packing&Shipping
Pearl cotton + Shrink film + Wooden box
FAQ
Q1: why should you buy from us not from other suppliers?
1.We has been involved in the curtain wall industry for over 15 years.
2.We have our own professional designers and Construction team to meet any of your requriements
3.OEM or ODM orders are warmly welcome.
4.strong production capacity and delivery on time
Q2: Can you provide sample for testing?
Yes,we can provide sample, But the sample fee needs to be borne by the buyer, please consult the merchant for the specific cost.
Q3: Can you provide installation?
We can provide online installation technical guidance, and if necessary, we can send engineers over to guide.
