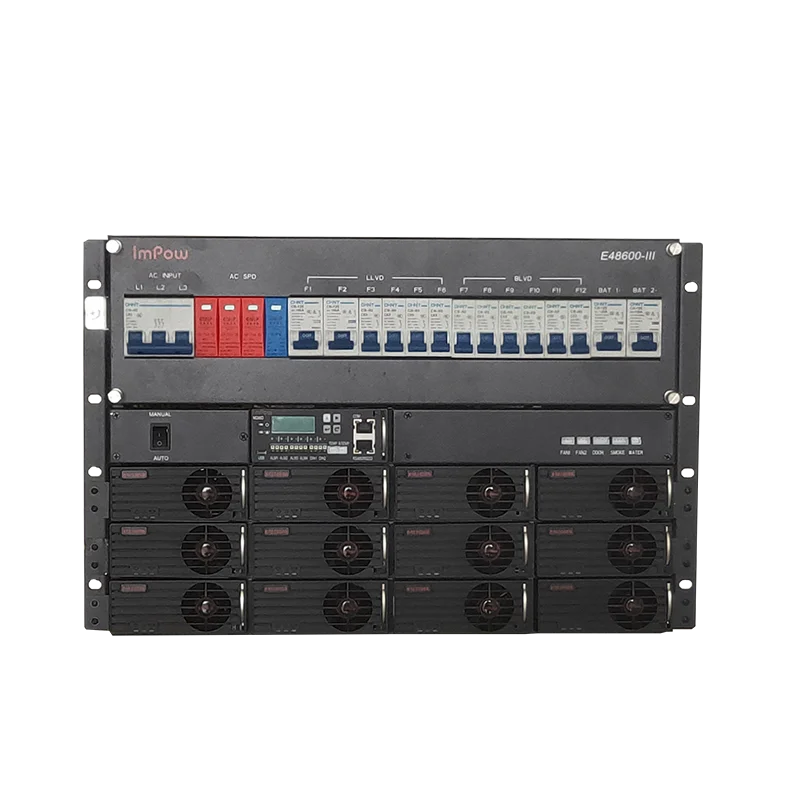

Rack mount dc ac 48Vdc to 220 230Vac 3000va inverter back up power telecom rectifier system off Grid
- Category: >>>
- Supplier: Shenzhen Impower Technology Co. Ltd.
Share on (1600526110220):
Product Overview
Description
Product Description
Telecom Power Systems Features:
1: High density, high efficiency( >95%), excellent high temperature performance(full load @ 60℃);
2: Wide operation temperature: -40℃ to 65℃;

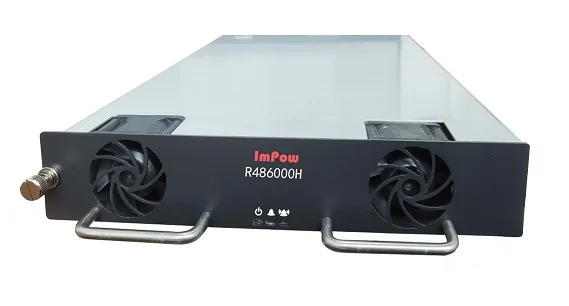

3: Hot-swappable 48V rectifiers:1200W ,2000W,3000W 48V Rectifier module available;
4:1250VA,3000VA 48v dc 220v ac inverter,1000VA 48v 220v pure sine wave inverter;

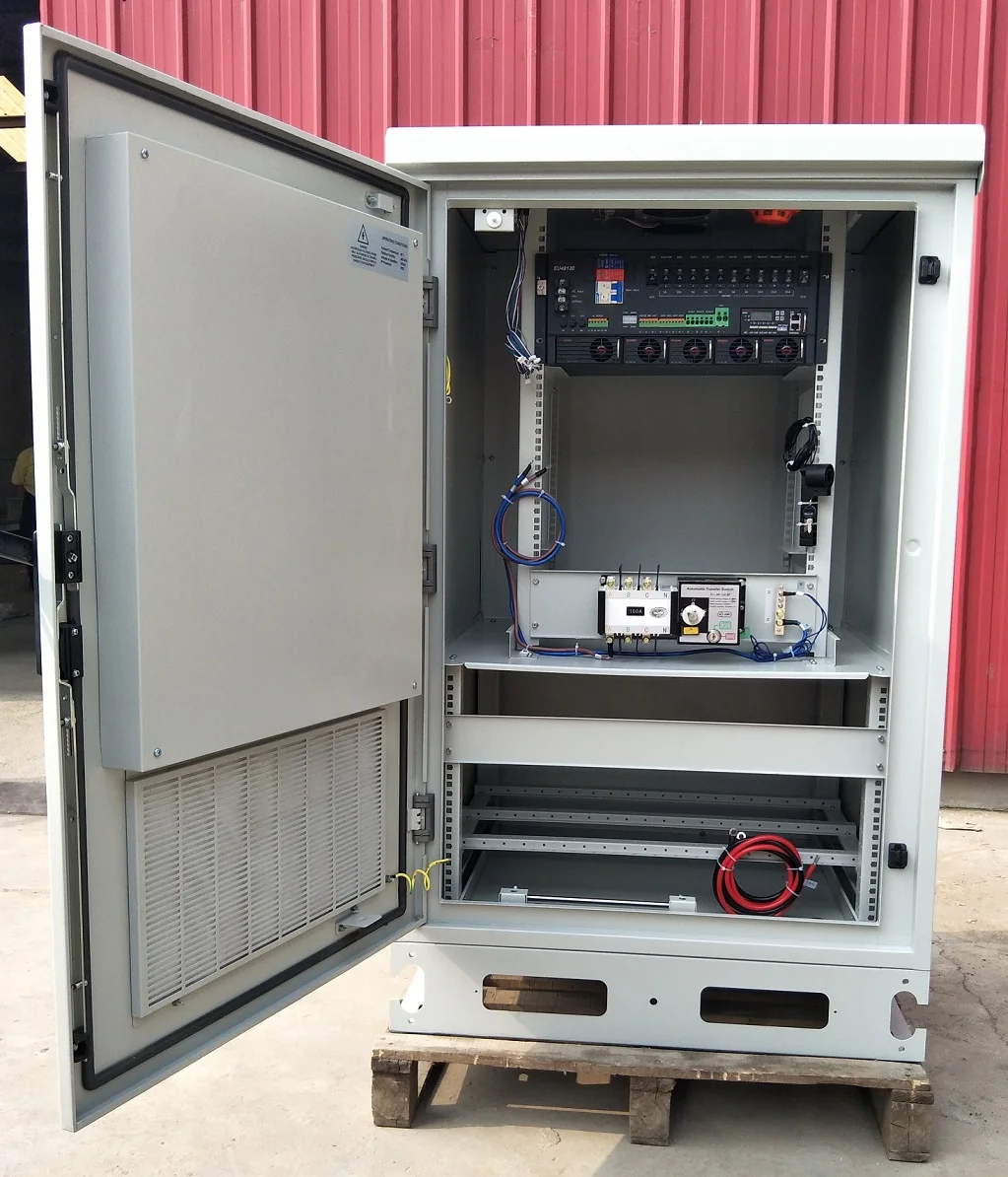

5:Ground installation,Pole mounted installation,Wall mounted installtaion;
6:Compact design(only 1U in height), 3U,5U,7U telcom power system available;
7:Intelligent battery management and protection,help to prolong battery lifespan;
8:Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface(options)
9:Controller support SNMP,Telecom power supply with SNMP function optional.

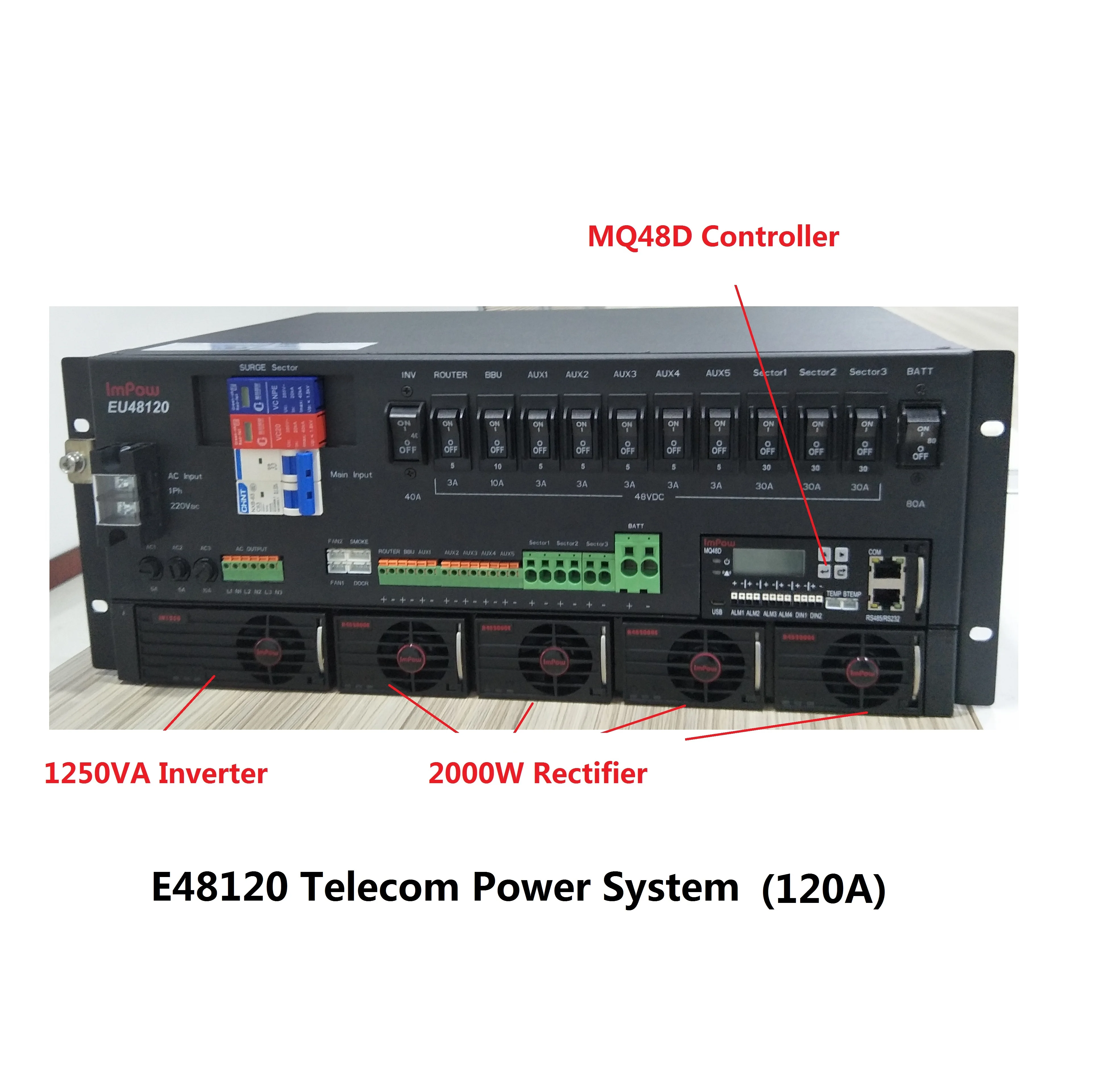

The 48V telecom power system is mainly composed by 4 parts: 19"Rack,Controller,48v Rectifier module and 1250VA/1KVA Inverter.
Telecom power system list
No. | Model | System capacity | 48v Rectifier | Rectifier Qty | Controller | Height |

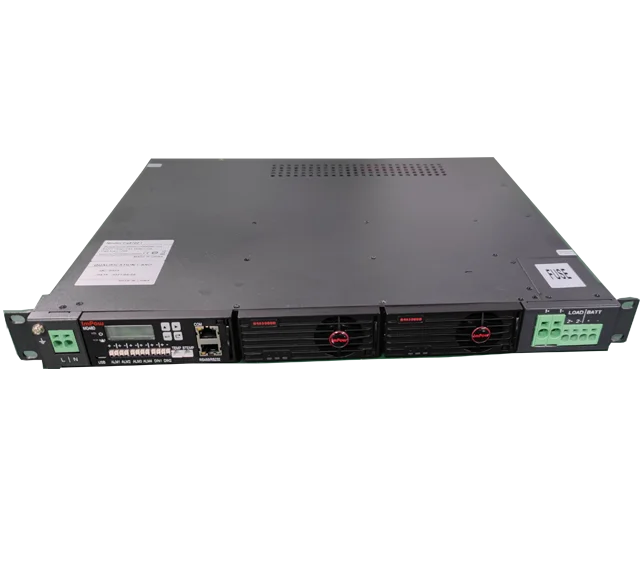

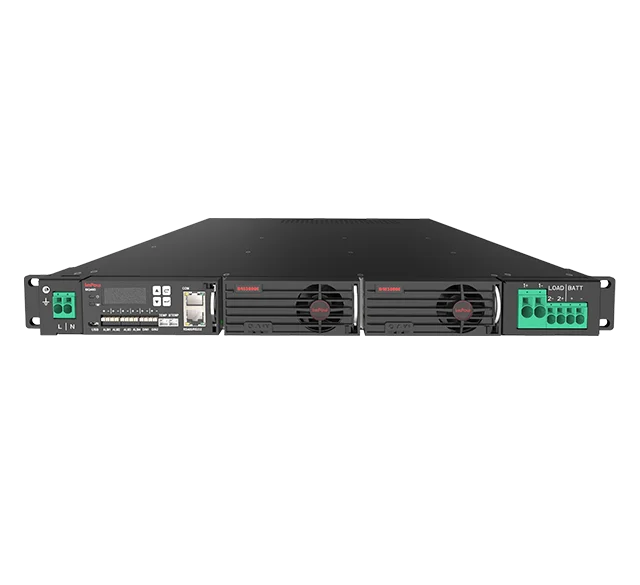

1 | E4840 | -48V/40A | R481200E/R481200H | 2 | MQ48D | 1U |
2 | E4860 | -48V/60A | R482000E/R482000H | 2 | MQ48D | 2U |
3 | E4890 | -48V/90A | R482000E/R482000H | 3 | MQ48D | 2U/3U |
4 | E48150 | -48V/150A | R482000E/R482000H | 5 | MQ48D | 3U/5U |
5 | E48200 | -48V/200A | R483000E/R483000H | 4 | MQ48D | 5U/7U |
Type | E48150 | |
Systems | Dimension | 440mm(W)×344mm(D)×132(H) |
Weight | ≤10.1kg (without rectifiers) | |
Cooling mode | Natural cooling | |
Installation mode | Installed on 19-inch rack or inside the cabinet | |
Cabling mode | Top inlet and top outlet | |
Maintenance mode | Front maintenance, support module grade change | |
Protection level | IP20 | |
AC Distribution | Input mode | 220/380VAC three-phase or 220VAC single phase |
Input capacity | 1×63A/2P or terminal | |
Output capacity | NA | |
Input frequency | 45~66Hz, rated value: 50Hz/60Hz | |
SPD | 20kA/40kA, 8/20μs | |
DC Distribution | Output voltage | -42~-58VDC, rated value: -53.5VDC |
Maximum capacity | 9000W | |
Battery breakers | 1×100A/1P | |
Load breakers | 2×12A/1P, 2×20A/1P, 4×40A/1P | |
SPD | 10kA/20kA, 8/20μs | |
Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC |
Efficiency | ＞95% | |
Rated power | 1800W(176~300VAC) | |
Working temperature | -40℃~+80℃(full load @ 60℃) | |
Dimension | 70.3mm(W)×278mm(D)×42.5mm(H) | |
Weight | ≤1.2kg | |
Cooling mode | Forced cooling | |
Power factor | ≥0.99 | |
THD | ≤5% | |
MQ48D Controller | Signal input | 1 Battery temp., ambient temp., ambient humidity, temp1, temp2 |
Alarm output | 1 Water,1 smoke, 1 gate, 4 common DI | |
Communication port | 4 dry contact | |
Display mode | RS232/485, Fast Ethernet | |
Environment | Operating temperature | LCD |
Storage temperature | -40℃~+70℃ | |
Operating humidity | 5%~95%(non-condensing) | |
Altitude | 0~2000m |
Specification
SNMP Function Demonstration.
Controller support SNMP,telecom power supply SNMP function optional
MQ48D controller has built-in web and SNMP management capabilities.
You can view the telecom power system status and set system configuration data either with internet explorer or MIB browser.
Features:
1:Monitor telecom power system data and configure system remotely by network
2:Web management with built-in authentication. User name and passwords can be changed by user
3:Support SNMP V1, V2C, V3
4:10M/100M based Ethernet interface
5:Flexible network deployment

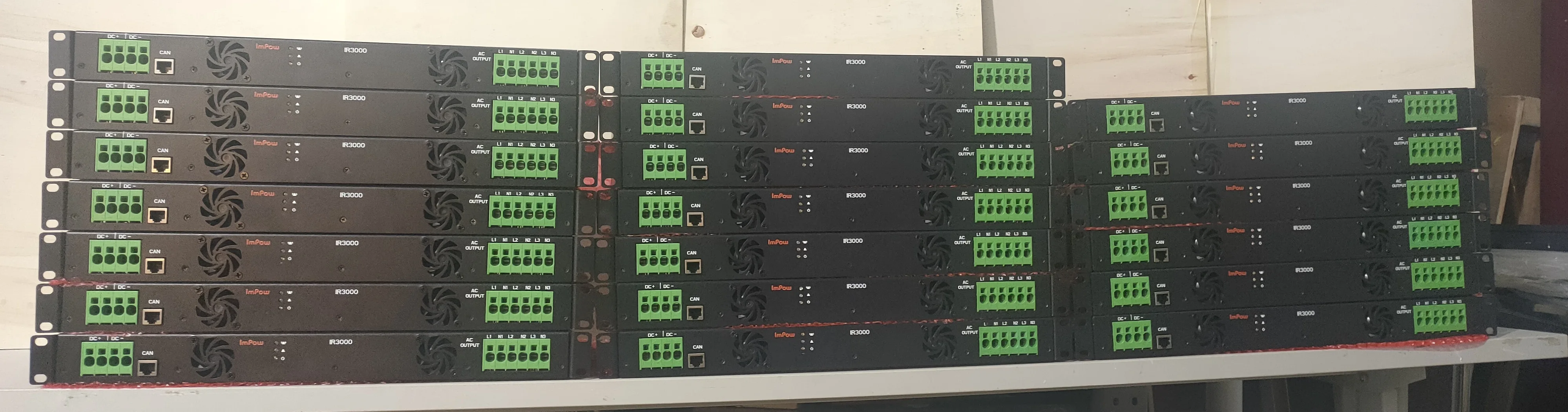

Production and shippments.
Rectifier Certs
Company Information
Telecom exhibitions
Application Scenarios:
Wireless base station
Transmission network
Transmission equipment
Communication network of enterprises
Corporation datebase.
exchanges service
Access network
Mobile/Microwave communication
Satellite communication ground station
