Crystallization / Distillation / Evaporation / Hydrolysis / Hydrogenation / Polymerization / Storage Tank Lined Reactor
- Category: >>>
- Supplier: Henan Zgcm Machinery Co. ltd.
Share on (1600526130003):
Product Overview
Description
Technical specifications
model | Nominal capacity (L) | Actual capacity (L) | heating power (kw*PCS) | Oil jacket capacity (L) | Inner pot size (mm) | Jacket size (mm) |
ZG50 | 50 | 78 | 2*4 | 96 | φ400 | φ600 |
ZG100 | 100 | 127 | 2*6 | 127 | φ500 | φ700 |
ZG300 | 300 | 327 | 4*6 | 218 | φ800 | Φ1000 |
ZG500 | 500 | 509 | 4*9 | 269 | φ900 | φ1100 |
ZG1000 | 1000 | 1017 | 4*12 | 400 | φ1200 | φ1400 |
ZG2000 | 2000 | 2154 | 4*15 | 850 | φ1400 | φ1600 |
ZG3000 | 3000 | 3201 | 5*15 | 1015 | φ1600 | φ1750 |
ZG4000 | 4000 | 4020 | 5*15 | 1226 | φ1600 | φ1750 |
Application products
Reactors are widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, food, and pressure vessels to complete processes such as vulcanization, nitration, hydrogenation, alkylation, polymerization, and condensation.
According to the heating method of the reactor, it can be divided into steam heating reactor and electric heating reactor.
According to the different sealing types of the reactor, it can be divided into: packing seal, mechanical seal and magnetic seal.
Stainless steel reaction kettle has the characteristics of rapid heating, high temperature resistance, hygienic, no environmental pollution, no need for automatic heating of boilers, and convenient use. It is widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, and food to complete vulcanization. , nitration, hydrogenation, alkylation, polymerization, condensation and other processes.
According to the heating method of the reactor, it can be divided into steam heating reactor and electric heating reactor.
According to the different sealing types of the reactor, it can be divided into: packing seal, mechanical seal and magnetic seal.
Stainless steel reaction kettle has the characteristics of rapid heating, high temperature resistance, hygienic, no environmental pollution, no need for automatic heating of boilers, and convenient use. It is widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, and food to complete vulcanization. , nitration, hydrogenation, alkylation, polymerization, condensation and other processes.
Reactor uses and characteristics:
The broad understanding of the reactor is a stainless steel container with physical or chemical reaction. Through the structural design and parameter configuration of the container, the heating, evaporation, cooling and low-speed mixing functions required by the process are realized. Stainless steel reaction kettles can be different according to different production processes and operating conditions. The design structure and parameters of the reaction kettles are different, that is, the structural styles of the reaction kettles are different, and they belong to non-standard container equipment.
The material of the reaction kettle is generally carbon steel, stainless steel and other materials. The reaction kettle can be made of stainless steel 304, 316 and other stainless steel materials. There are anchor type, frame type, paddle type, turbine type, scraper type, combined type, and the rotating mechanism can use cycloidal pinwheel reducer, stepless speed reducer or frequency conversion speed regulation. The sealing device can adopt sealing structures such as mechanical seal and packing seal. Heating and cooling can use jacket, half-pipe, coil, Miller plate and other structures, heating methods include steam, electric heating, heat transfer oil, to meet the needs of different working environments such as acid resistance, high temperature resistance, wear resistance and corrosion resistance. need. It can be designed and manufactured according to the user's technological requirements.
The material of the reaction kettle is generally carbon steel, stainless steel and other materials. The reaction kettle can be made of stainless steel 304, 316 and other stainless steel materials. There are anchor type, frame type, paddle type, turbine type, scraper type, combined type, and the rotating mechanism can use cycloidal pinwheel reducer, stepless speed reducer or frequency conversion speed regulation. The sealing device can adopt sealing structures such as mechanical seal and packing seal. Heating and cooling can use jacket, half-pipe, coil, Miller plate and other structures, heating methods include steam, electric heating, heat transfer oil, to meet the needs of different working environments such as acid resistance, high temperature resistance, wear resistance and corrosion resistance. need. It can be designed and manufactured according to the user's technological requirements.
Why must choose us

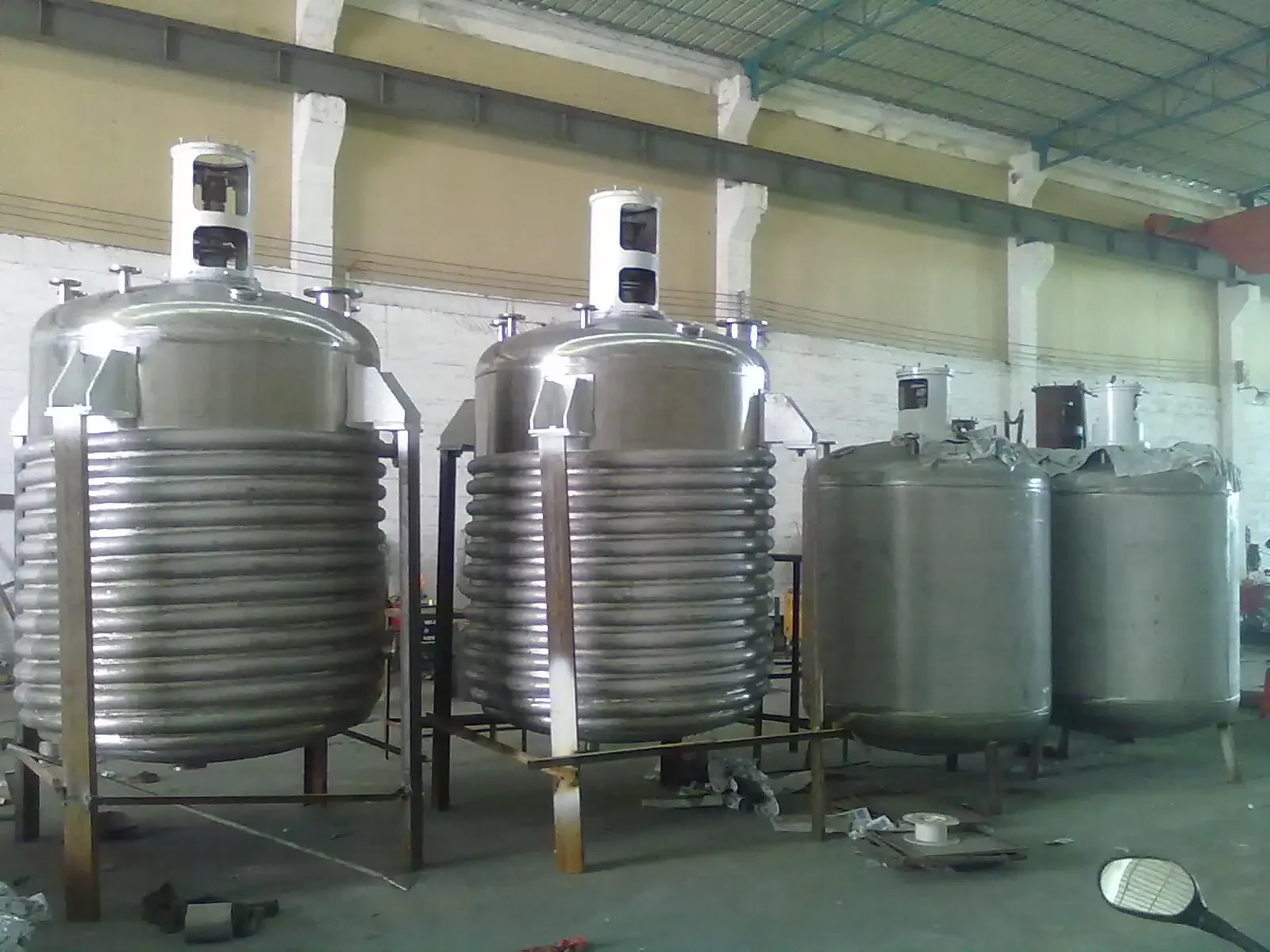

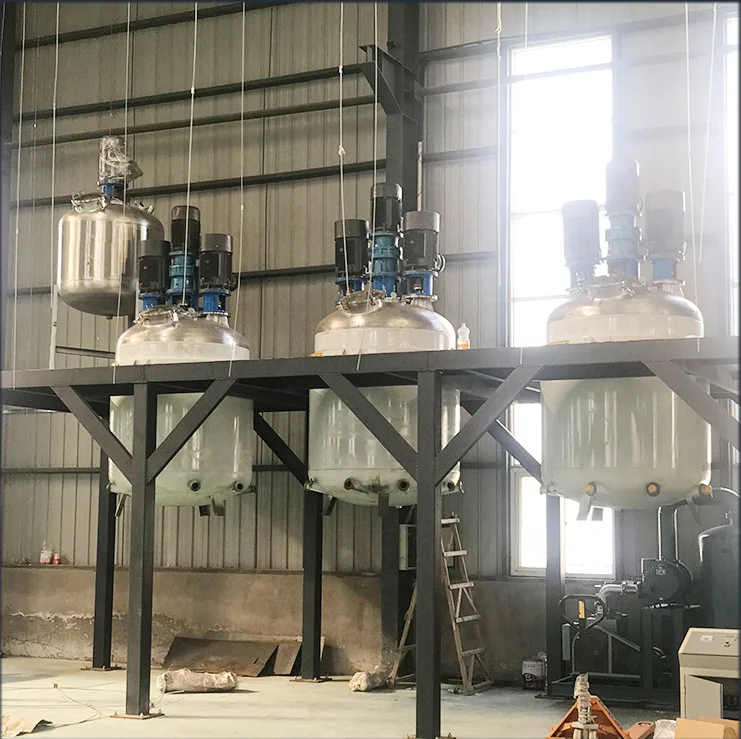

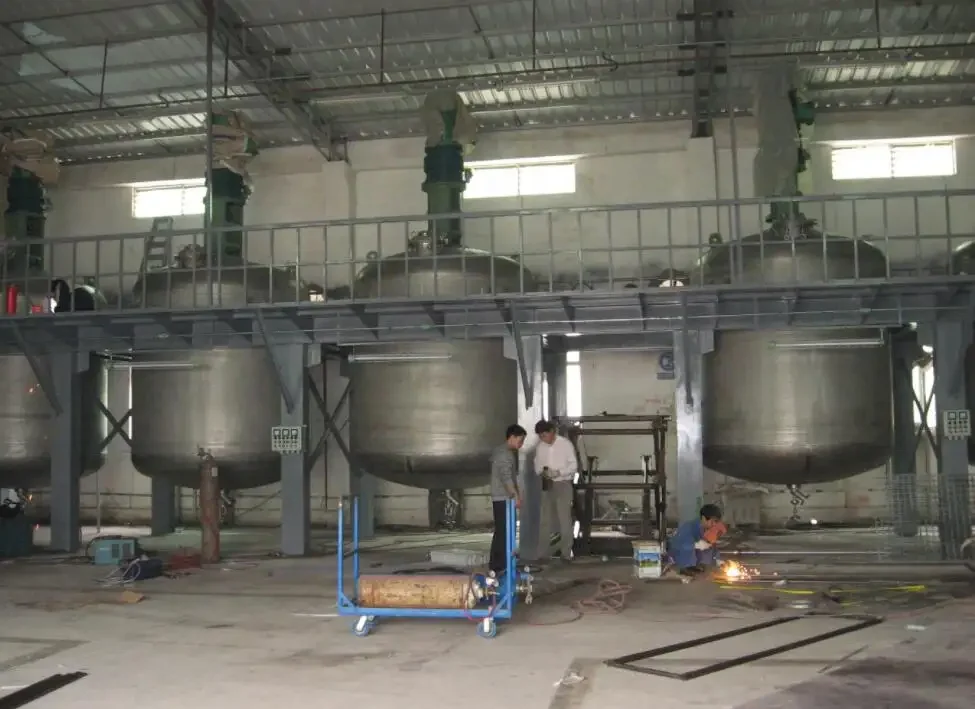

Production case

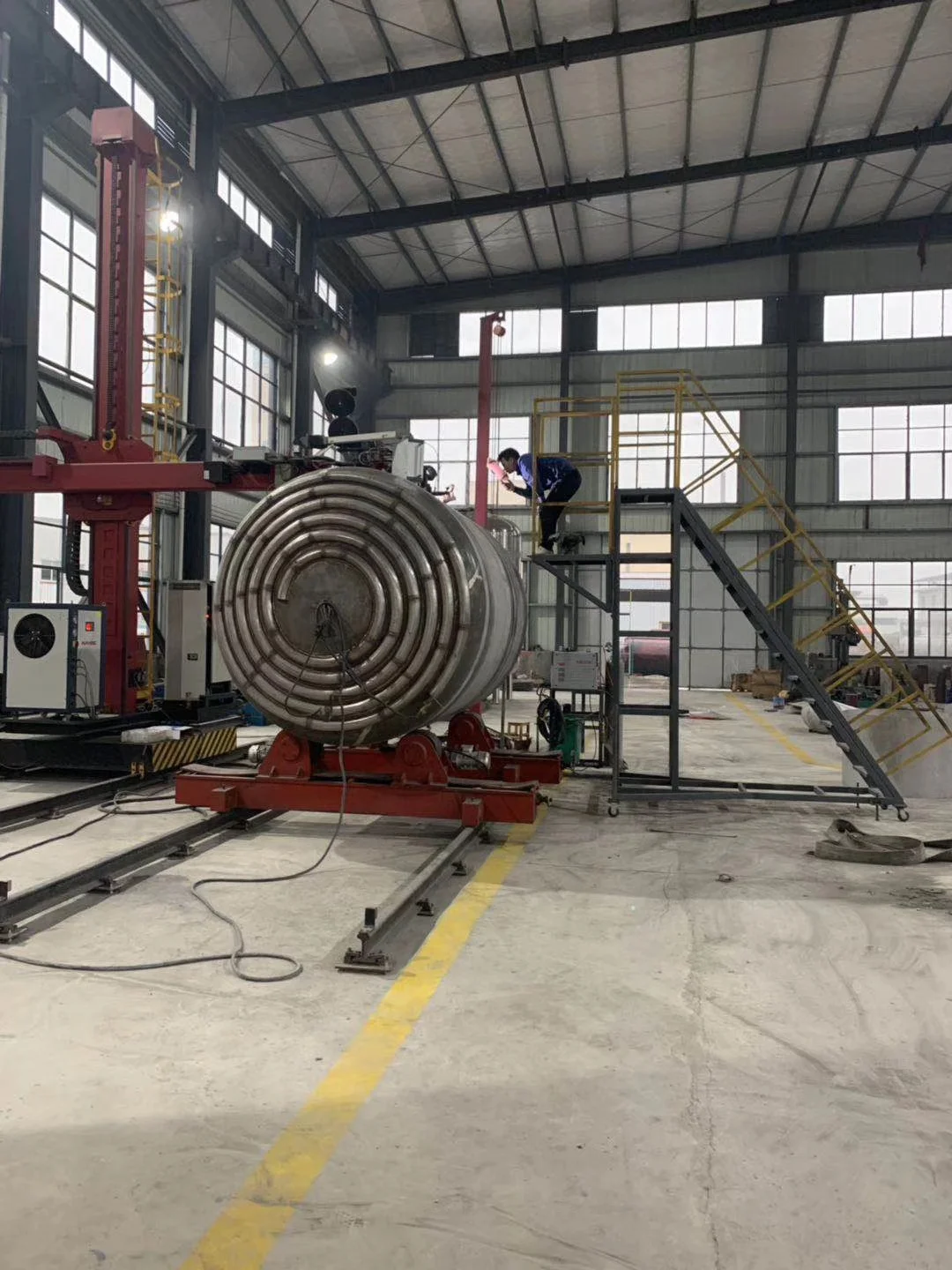

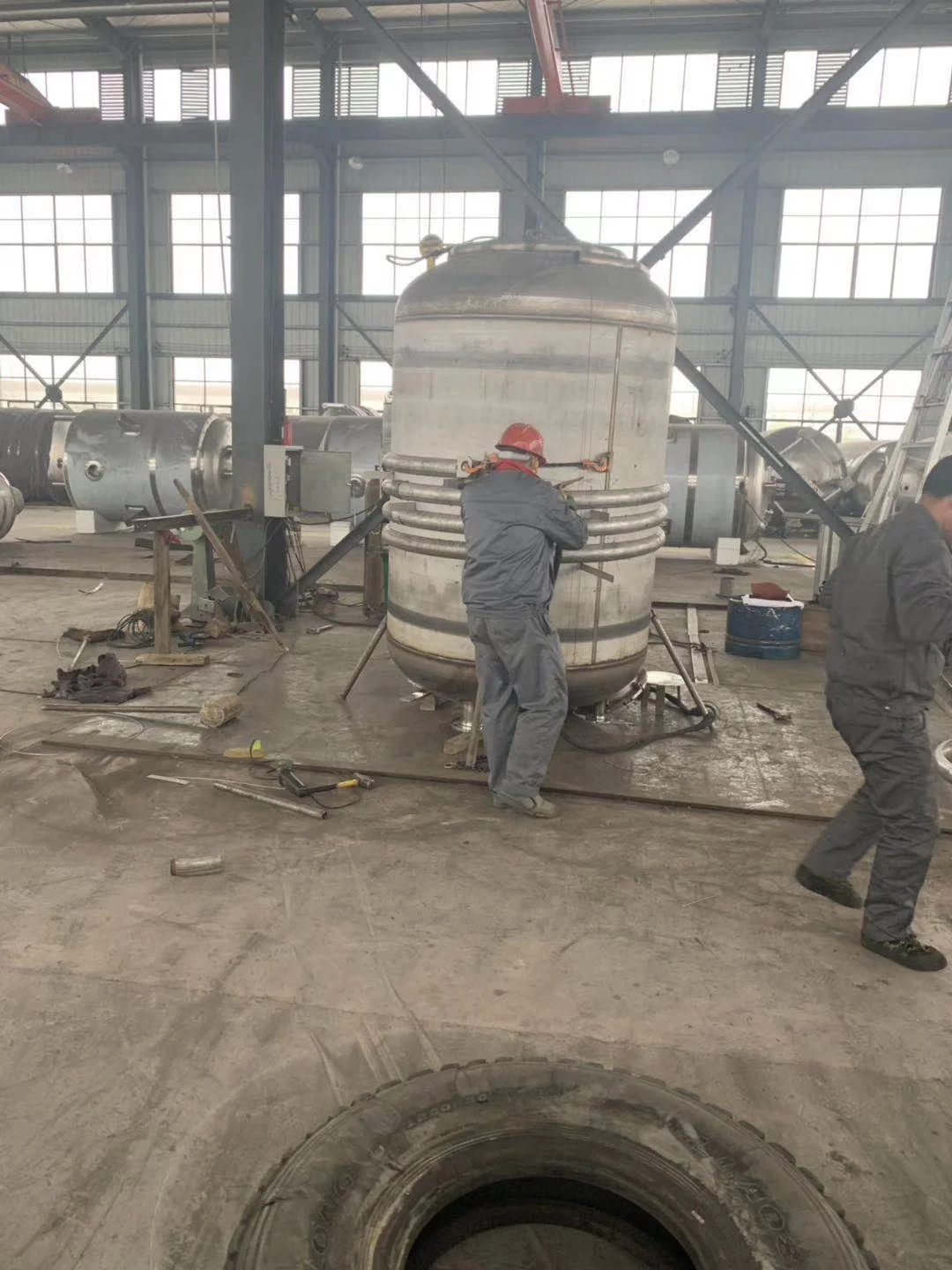

Our factory
Henan ZGCM Machinery Co.,Ltd. has a plant area of more than 10,000 square meters, which produces vertical packaging machines, automatic material sorting lines, pillow packaging machines, filling machines, etc. Among them, granule packaging machine, powder packaging machine, liquid packaging machine, sauce packaging machine, food packaging machine, multi-head weighing machine, hardware packaging machine, counting packaging machine, medical supplies packaging machine, fresh fruit and vegetable packaging machine, filling machine, Capping series, unscramble bottle washing series, filling production line, etc. are the company's main products, which are exported to hundreds of countries and regions in Southeast Asia, Europe, America, Africa, the Middle East, etc., and are well received by users from all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchanges of talents and technology with famous enterprises at home and abroad. The factory currently has more than 180 employees, including 35 in the R&D department, who are responsible for the R&D and design of non-standard equipment and advanced technology in the industry. The after-sales department has 30 masters with more than 20 years of after-sales experience, who are responsible for the installation of equipment sold at home and abroad. Commissioning, operation training and technical maintenance. We aim to realize enterprise packaging intelligence, liberate people from heavy packaging production, let machines replace manual work, reduce production costs, and improve production efficiency
Company history
Cooperation Case
Our client
transport
Frequently Asked Questions and Answers
1. Q: Do you have a finished machine to see?
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
