Product Overview
Description
PRODUCT DESCRIPTION

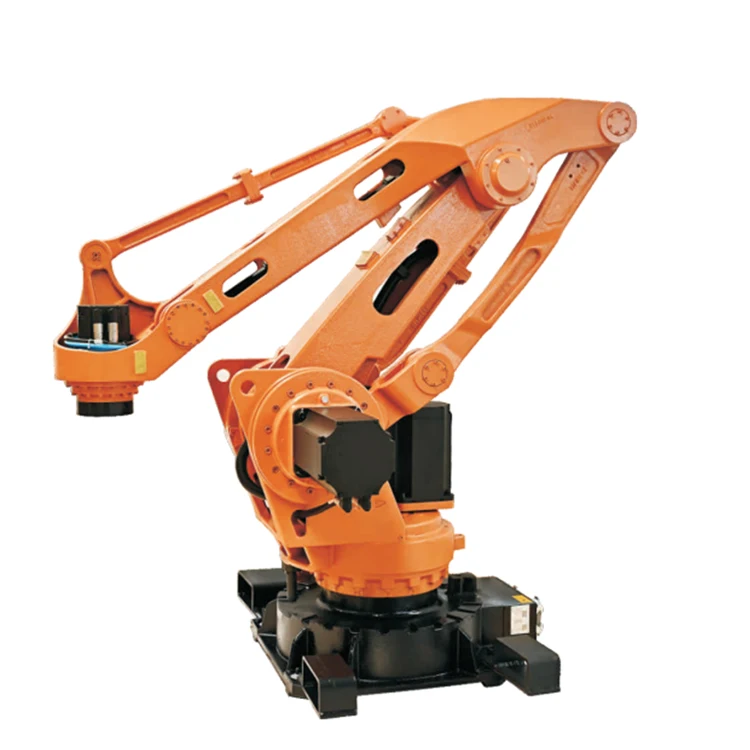

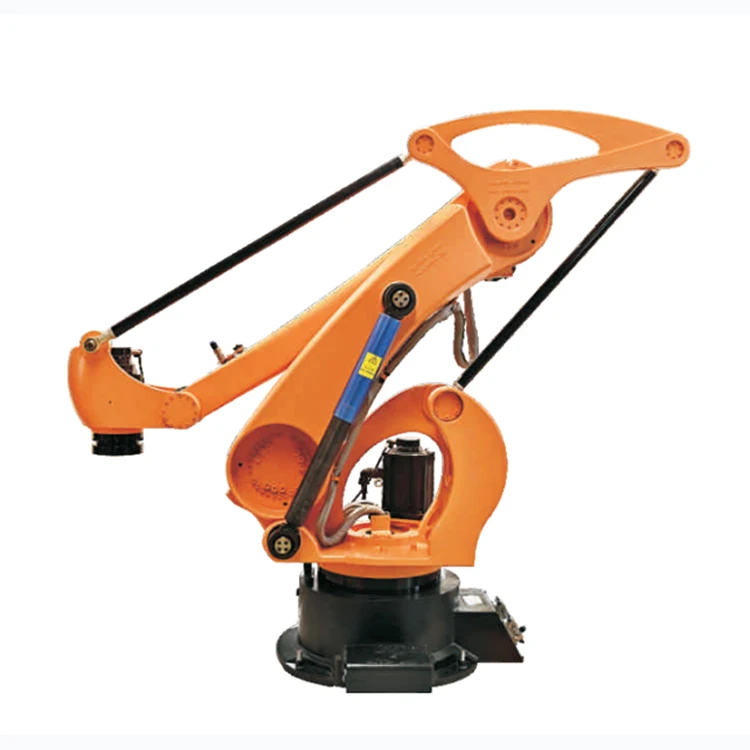

Automatic robot palletizer
◆ The new version of the control cabinet, the structure is stable
◆Support multiple fieldbus interfaces ProfiBUS, Profinet, CANopen, EtherNetlp, EtherCAT, etc.
◆ Three-phase- fivewire- power supply, in line with higher safety level
◆ Can be extended to16- axis synchronous control
◆Protection level increased to lp53
It can provide multiple functions such as user management, program management, coordinate system/tool management,
motion management, I/ management, and advanced function configuration management. It adopts an independent software system with a new appearance design and easy user experience. Equipped with an external USB2.0 interface to
support the import and export of teaching programs, effectively reducing on-site debugging time.
◆ Three-phase- fivewire- power supply, in line with higher safety level
◆ Can be extended to16- axis synchronous control
◆Protection level increased to lp53
It can provide multiple functions such as user management, program management, coordinate system/tool management,
motion management, I/ management, and advanced function configuration management. It adopts an independent software system with a new appearance design and easy user experience. Equipped with an external USB2.0 interface to
support the import and export of teaching programs, effectively reducing on-site debugging time.
PRODUCT PARAMETERS
Model: | YY-RMD | |
Power supply | V/Hz | 380V,50Hz |
Air source | Mpa | 0.6-0.7 |
Robot brand | ABB/KUKA/STPET | |
Palletizing speed | 6-10 beats/min | |
Rated wrist load | kg | 120-180 |
Max working radius | mm | 2403-3238 |
Repeatability | mm | 150-280MM |
Bottle diameter | mm | ±0.2 |
Ambient temperature | °C | 0~+40°C |
FEATURES
FEATURES AT A GLANCE
FAMOUS ROBOT BRAND
CHINESE BRAND ROBOT AS OPTION
MULTIPLE FIELDBUS INTERFACE
IP53 WATER-PROOF LEVEL
VARIOUS ANCILLARY ATTACHMENTS
EASY TO OPERATE

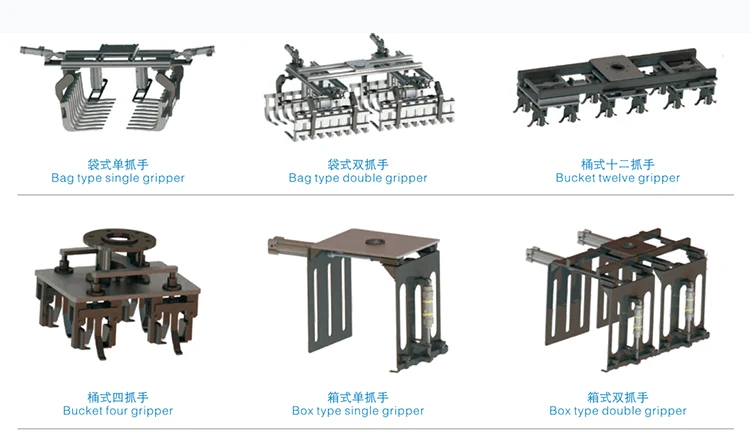

ANCILLARY ATTACHMENT
Various ancillary attachment applicable for different goods and packages
333
Box type gripper
Box gripper is applicable for stacking regular packages such like cartons, boxes, cases ,
Single bag gripper
Various types of bag gripper: single grab,double grab, double grad single release,double grad double release.
Vacuum adsorption gripper
Vacuum adsorb gripper applicable to various goods: boxes and bags ( with a special sponge sucker).

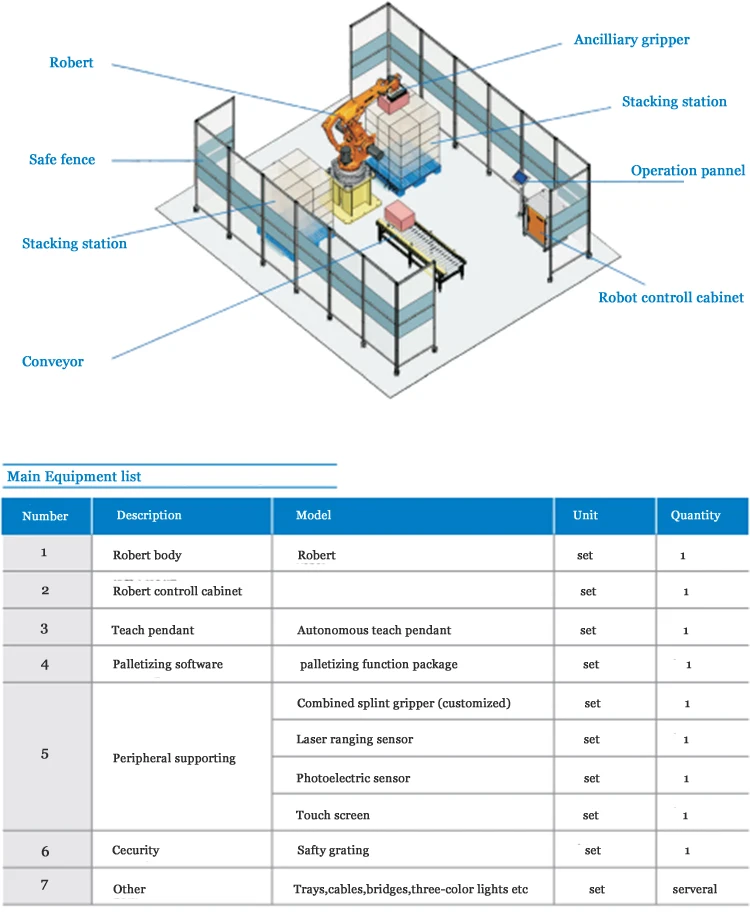

DOUBLE STATION PALLETIZING WORKSTATION
Dual-station palletizing workstation, combined with variety of industry production conditions, for the scene where one line
corresponds to two palletizing stations, adopts robot autonomous palletizing software package and zero-tray palletizing system, with touch screen, multi-sensor and small amount of operation Buttons can realize a variety of personalized functions that users need, with good human-computer interaction and simple operation.
◆The workstation is easy to operate and the normal operation workers only need to press the reservation button and replace the tray.
◆ The palletizing function package supports double station- appointment function, one-key appointment.
◆The function package supports automatic scan code renewal function to reduce the error rate of artificial code renewal.
◆The workstation supports fast switching of product batches on the touch screen, which is simple and easy to operate.
◆The standard working cycle of the workstation can reach 500 boxes/hour.
◆Real- time feedback of the status of each sensor in the workstation system can quickly find the cause of system failure.
corresponds to two palletizing stations, adopts robot autonomous palletizing software package and zero-tray palletizing system, with touch screen, multi-sensor and small amount of operation Buttons can realize a variety of personalized functions that users need, with good human-computer interaction and simple operation.
◆The workstation is easy to operate and the normal operation workers only need to press the reservation button and replace the tray.
◆ The palletizing function package supports double station- appointment function, one-key appointment.
◆The function package supports automatic scan code renewal function to reduce the error rate of artificial code renewal.
◆The workstation supports fast switching of product batches on the touch screen, which is simple and easy to operate.
◆The standard working cycle of the workstation can reach 500 boxes/hour.
◆Real- time feedback of the status of each sensor in the workstation system can quickly find the cause of system failure.
