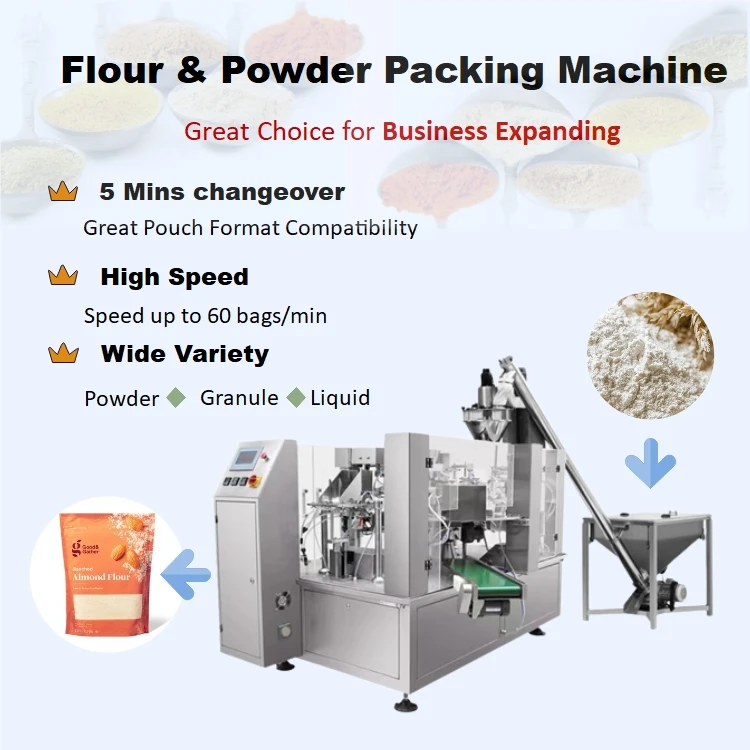

High Speed Automatic 1Kg 2Kg Cassava Corn 50g 100g 500g Wheat Flour Food Powder Ziplock Bag Stand Up Pouch Packing Machine
- Category: >>>
- Supplier: Wuhan Global Exchange Import And Export Limited
Share on (1600526181346):
Product Overview
Description

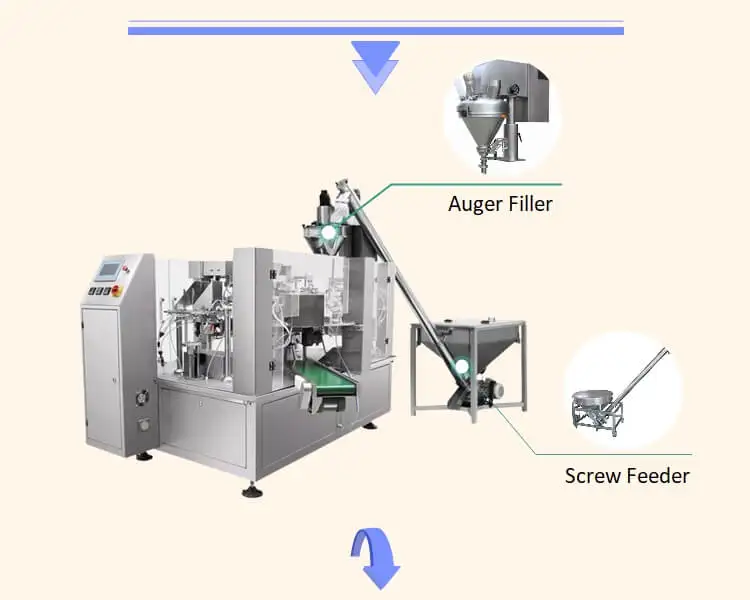

This machine suitable for filling and sealing powder into Premade Pouch， with vacuum and nitrogen filling devices.
Send Inquiry to Get Special Discount.
Send Inquiry to Get Special Discount.
Applicable Pouches | Pre-made pouches like flat pouch, normal stand up pouch(doypack), or stand up pouch with zipper, flat pouch, etc |
Applicable Products | Food Powder, Flour, Coffee Powder. |
Send Inquiry to Get Special Discount.
Send Inquiry to Get Special Discount.

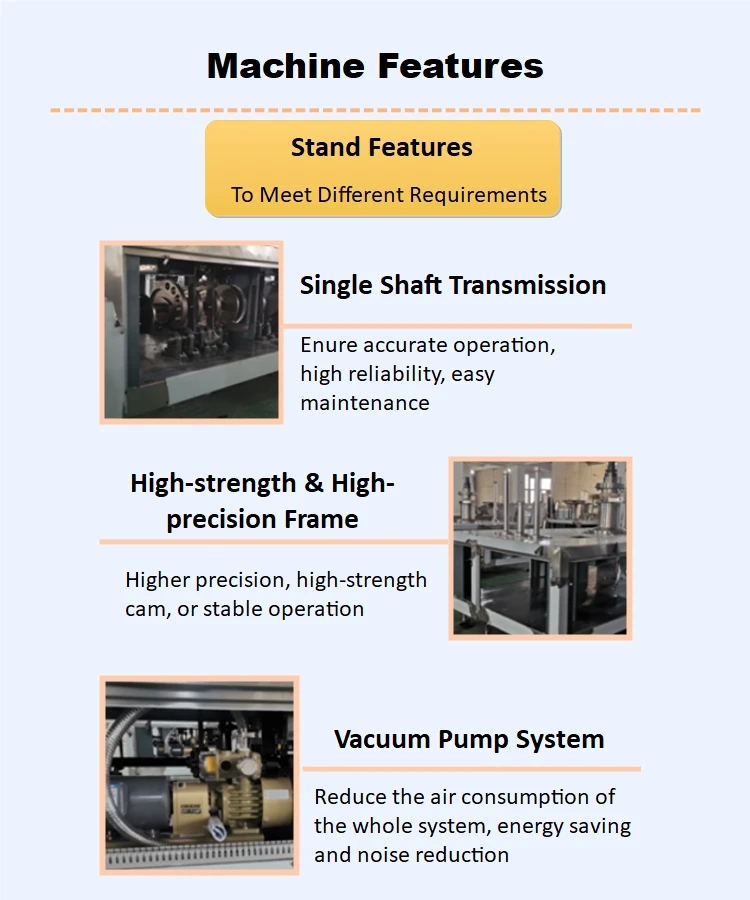

Standard Features
* PLC touch screen control, easy to operate, easy for troubleshooting
* Single shaft transmission, accurate operation, high reliability, easy maintenance
* Multi-mechanical transmission station, accurate stroke, reliable operation
* High-strength and high-precision frame, higher precision, high-strength cam, more stable operation
* Synchronous bag width adjustment device, 1 rotating wheel adjustment controls all stations
* Single shaft transmission, accurate operation, high reliability, easy maintenance
* Multi-mechanical transmission station, accurate stroke, reliable operation
* High-strength and high-precision frame, higher precision, high-strength cam, more stable operation
* Synchronous bag width adjustment device, 1 rotating wheel adjustment controls all stations

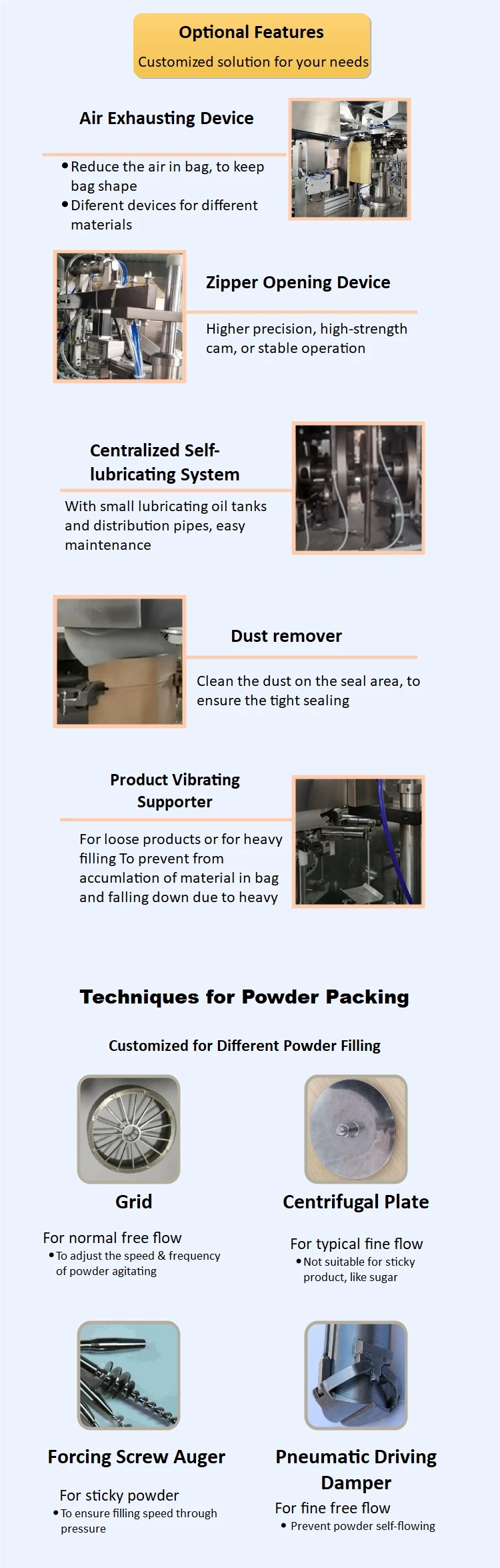

Optional Features
* Zipper opening device
* Horizontal pouch loading device
* Date printing device
* Dust collection device
* Product vibrating supporter and product settler for loose materials
* Vacuuming device
* Pouch Inflating and deflating device
* Independent vacuum chambers
Send Inquiry to Get Sepcial Discount.* Date printing device
* Dust collection device
* Product vibrating supporter and product settler for loose materials
* Vacuuming device
* Pouch Inflating and deflating device
* Independent vacuum chambers
Type/1K-xxxxx | 8-200 | 8-250 | 8-300 |
Process Stations | 8 | 8 | 8 |
Pouch Size-Length(mm) | 100-350 | 100-350 | 100-350 |
Pouch Size-Width(mm) | 70-200 | 110-250 | 180-300 |
Packing Speed (pouches/min) | 20-60 | 20-60 | 20-60 |
Power Requirement(V/Hz) | 380VAC 3P+N+E 50HZ | 380VAC 3P+N+E 50HZ | 380VAC 3P+N+E 50HZ |
Power Supply(kW) | 3.0 | 3.0 | 4.0 |
Compress Air Required(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Compress Air Consumption(m3/min) | 0.3 | 0.3 | 0.3 |
Approximate Weight(kg) | 1500 | 1500 | 1800 |
Dimension(mm) | 2160*1600*1500 | 2160*1600*1500 | 2420*1820*1500 |
