New HD 1080p portable medical endoscope camera OV9734 with led light module
- Category: >>>
- Supplier: Shenzhen Ojos Medical Co. Ltd.
Share on (1600526202138):
Product Overview
Description

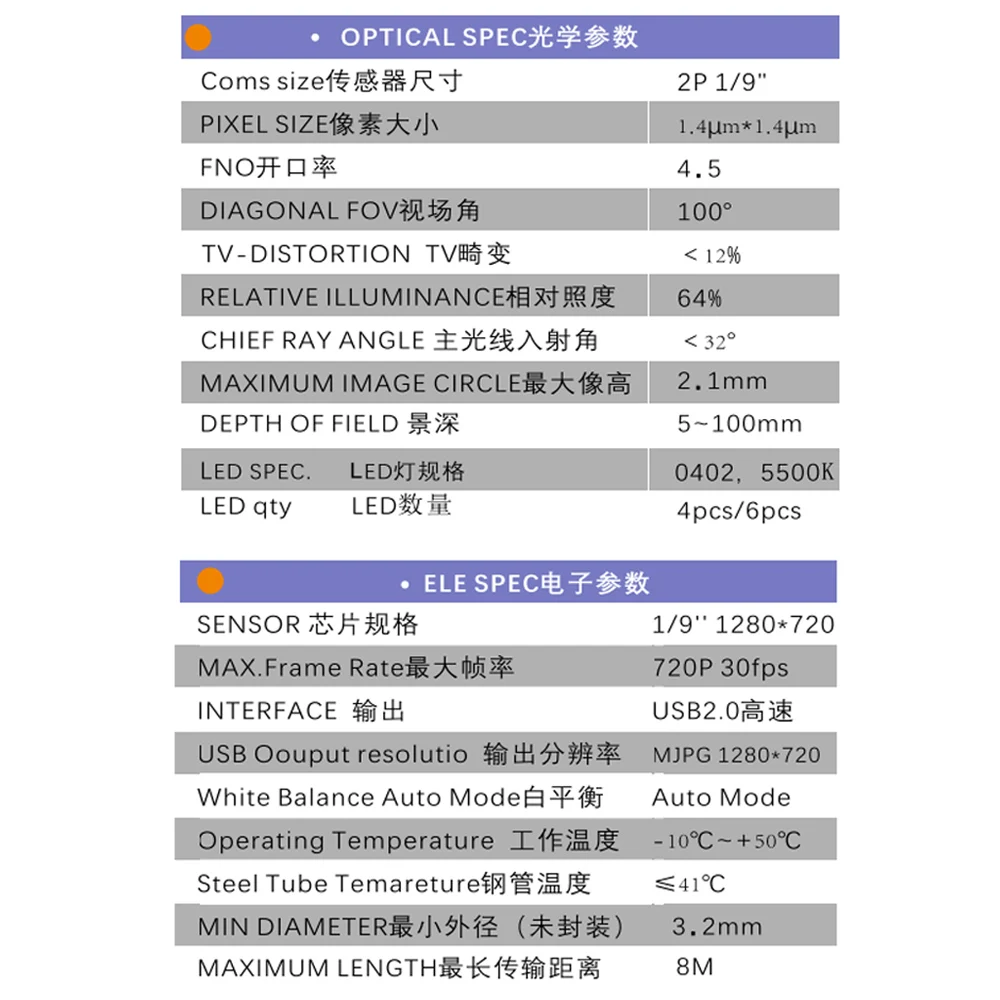

Optical Spec
| Coms size | 2P 1/9" |
| Pixel size | 1.4*1.4um |
| Fno | 4.5 |
| Diagonal Fov | 100-140 ° |
| TV-distortion | <12% |
| Relative illumiance | 64% |
| Chief ray angle | <32° |
| Maximum image circle | 2.1 mm |
| Depth of filed | 5-100 mm |
Electric spec
| Sensor | 1/9" 1280*720 |
| Max frame rate | VGA 30fps |
| Interface | USB 2.0 |
| USB output solution | MJPG 1280*720 |
| White balance auto mode | Auto mode |
| Operating temperature | -10 ~+50 ° |
| Steel tube temperature | ≤41° |
| Min diameter | 3.2 MM |
| Maximum length | 8 M |
More details for New miniature camera module for disposable medical endoscopes
