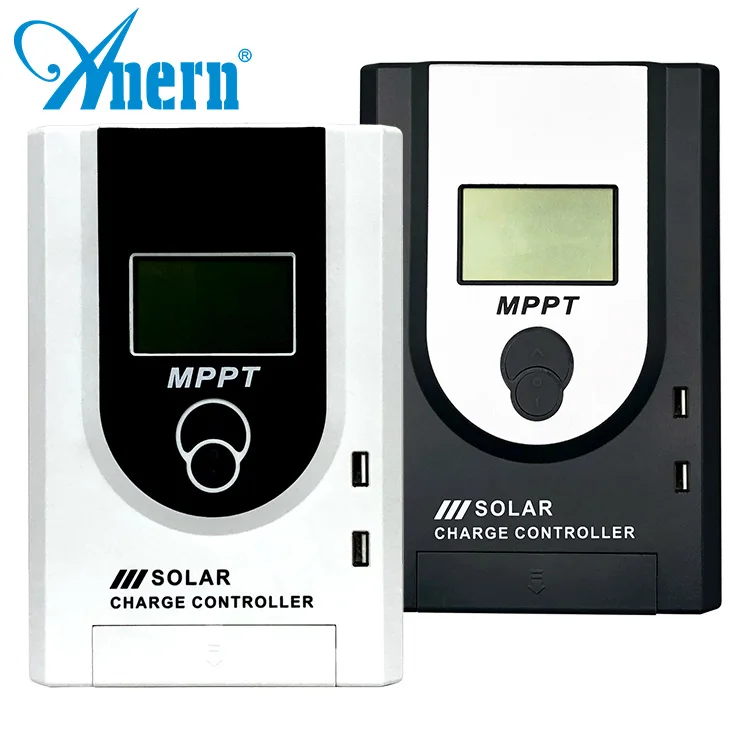

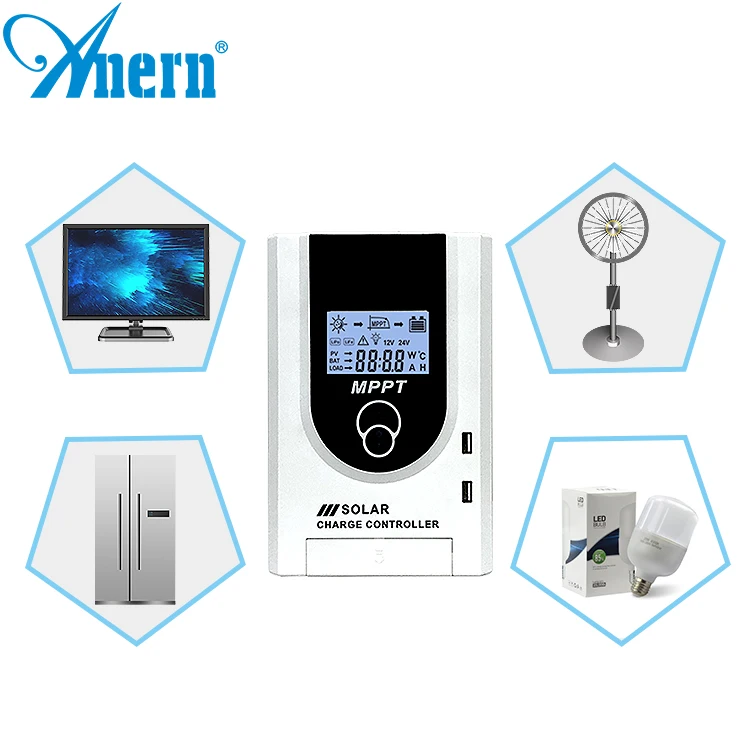

Anern Off Grid MPPT Wind Solar Hybrid Charge Controller
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1600526255446):
Product Overview
Description
Related Products
Product Description
Functions:
●Advanced MPPT maximum power point tracking technologythe tracking efficiency is no less than99.5%
●High quality components are used to improve the system performance and the maximum conversionefficiencycan reach97%
●Super fast maximum power tracking speed while ensuring tracking efficiency
●Accurate identification and trackina of the maximum power point of multi-wave peak
●Reliable maximum input power of pv array to ensure the safety ofequipment
●Wide PV array maximum power point operating voltagerange
●12/24V automaticvoltageidentification
●Wide PV array maximum power point operating voltagerange
●12/24V automaticvoltageidentification

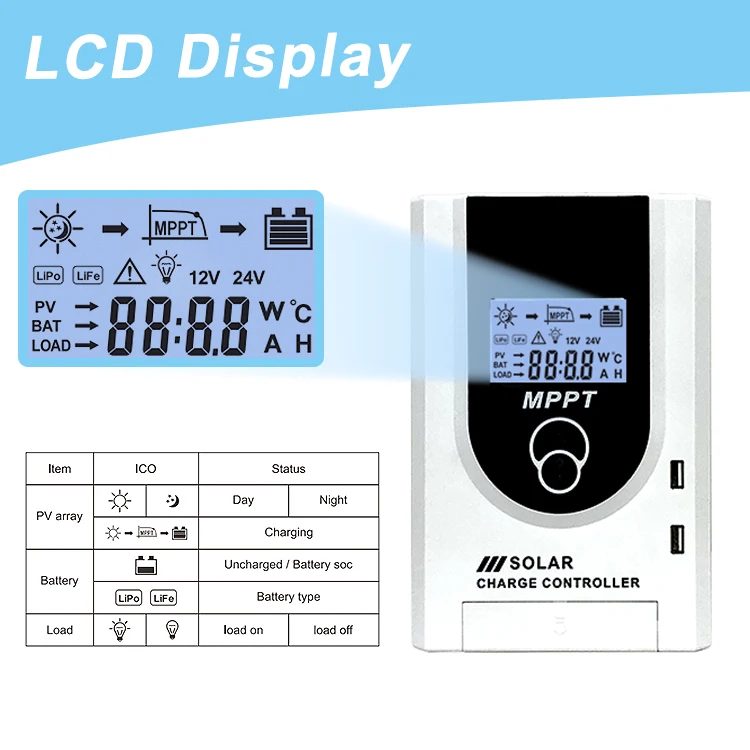

●The LCD is designed to dynamically display the operation data and working status of the
equipment
equipment
●Various load controlmodes:general modeliaht control mode. dual time mode, pure charger mode
●Seal.GEL.Flooded.LifePO4
and Li(NiCoMnO2 batterv types are available
●The function of battery temperature compensation.
● Power statistics recordingfunction
and Li(NiCoMnO2 batterv types are available
●The function of battery temperature compensation.
● Power statistics recordingfunction
●Use the Rs485 methods to maximize the communication needs of different occasions
●Support PC monitor, external display unit and other peripherals,realize real-time data view and parameter setting function
●Support PC monitor, external display unit and other peripherals,realize real-time data view and parameter setting function

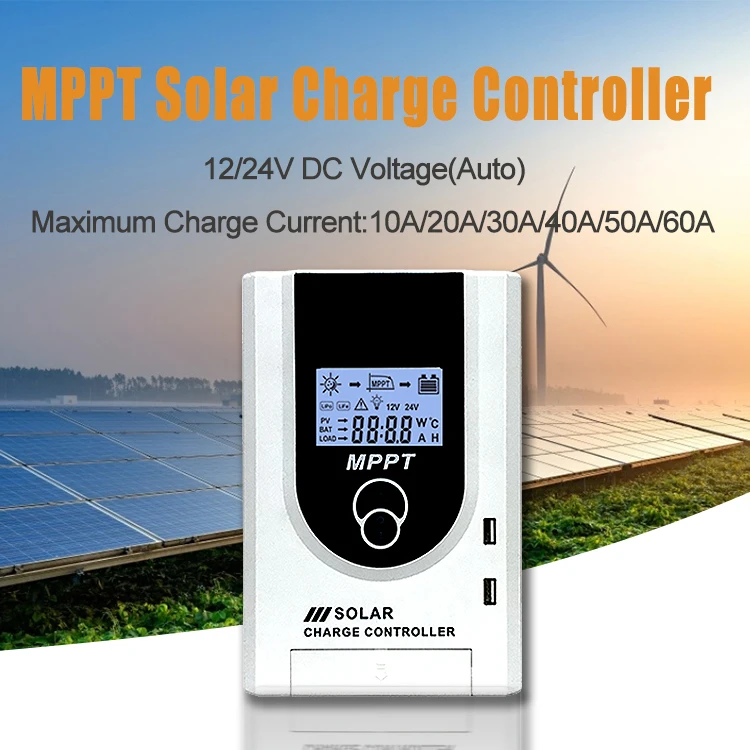

Specification
Item No. | DC Voltage(Auto) | Maximum Charge Current | PV Maximum Input Voltage | Carton Dimension | PC/Carton | G.W |
AN-MPJ2024-10A | 12/24V | 10A | 100V | 510*415*315mm | 40 | 18.5kg |
AN-MPJ2024-20A | 12/24V | 20A | 100V | 510*415*315mm | 40 | 18.5kg |
AN-MPJ4024-30A | 12/24V | 30A | 100V | 485*440*400mm | 16 | 22kg |
AN-MPJ4024-40A | 12/24V | 40A | 100V | 485*440*400mm | 16 | 22kg |
AN-MPJ6024-50A | 12/24V | 50A | 100V | 465*385*310mm | 8 | 16.7kg |
AN-MPJ6024-60A | 12/24V | 60A | 100V | 465*385*310mm | 8 | 16.7kg |

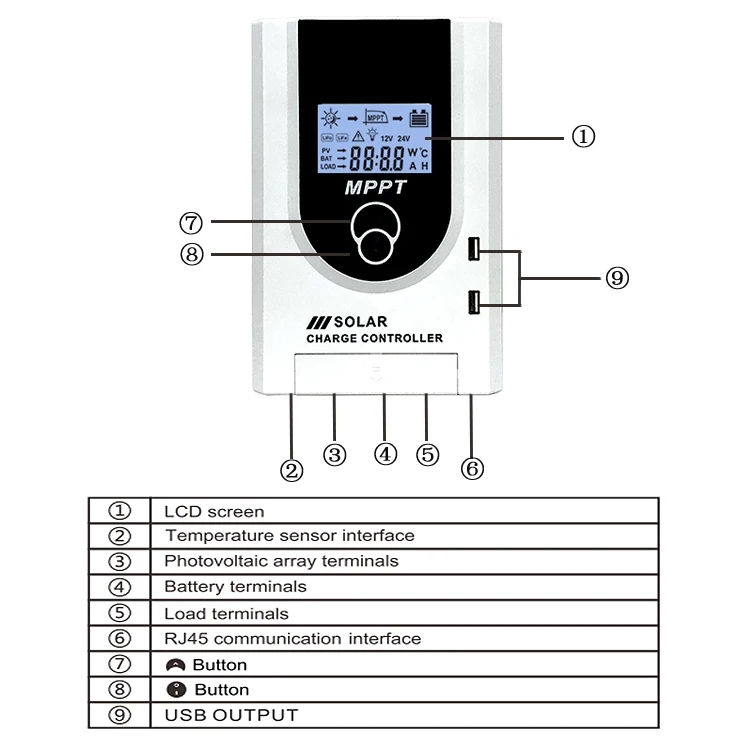

Products Details

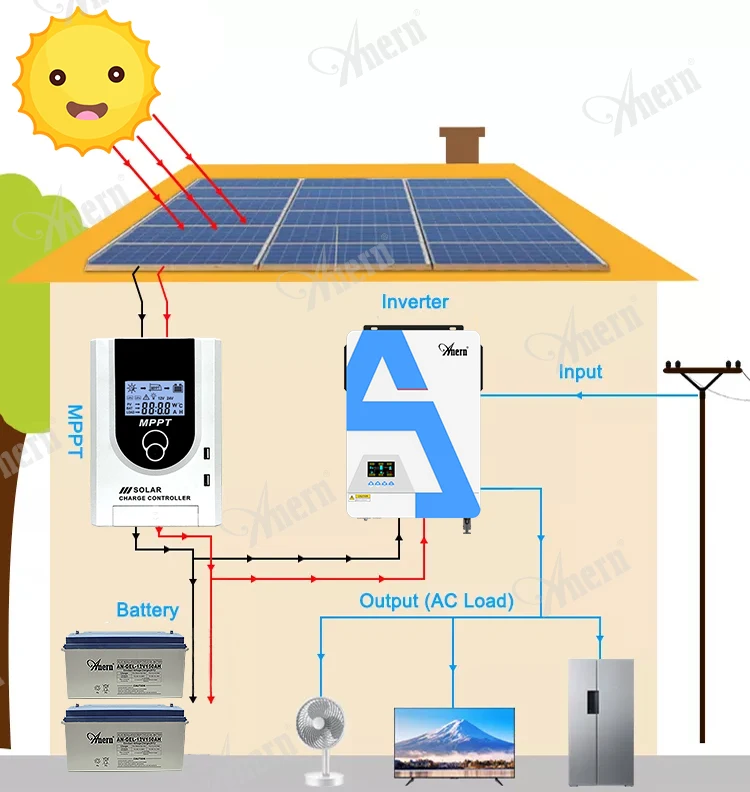

Mppt Solar Charge Controller Application:
Home photovoltaic system Communication base station,etc. Energy storage system Solar monitoring
Home photovoltaic system Communication base station,etc. Energy storage system Solar monitoring

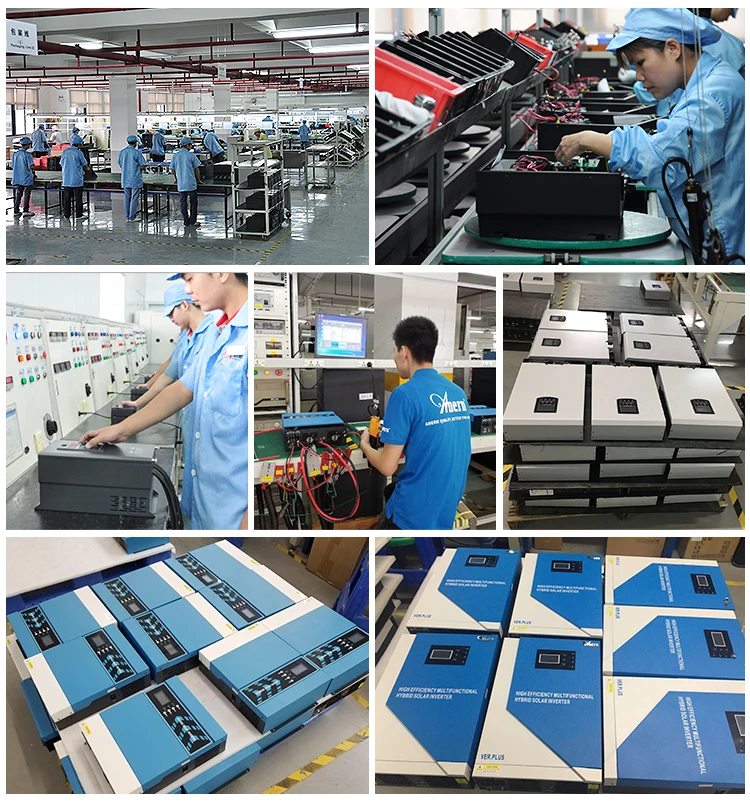

Anern Factory
Anern owns professional factory, introducing advanced production equipment, specialized production line, talented R&D team and adopting worldwide leading technology, through international standard management and strict quality control to ensure the stable-performance and high-quality products. We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor lighting solution.

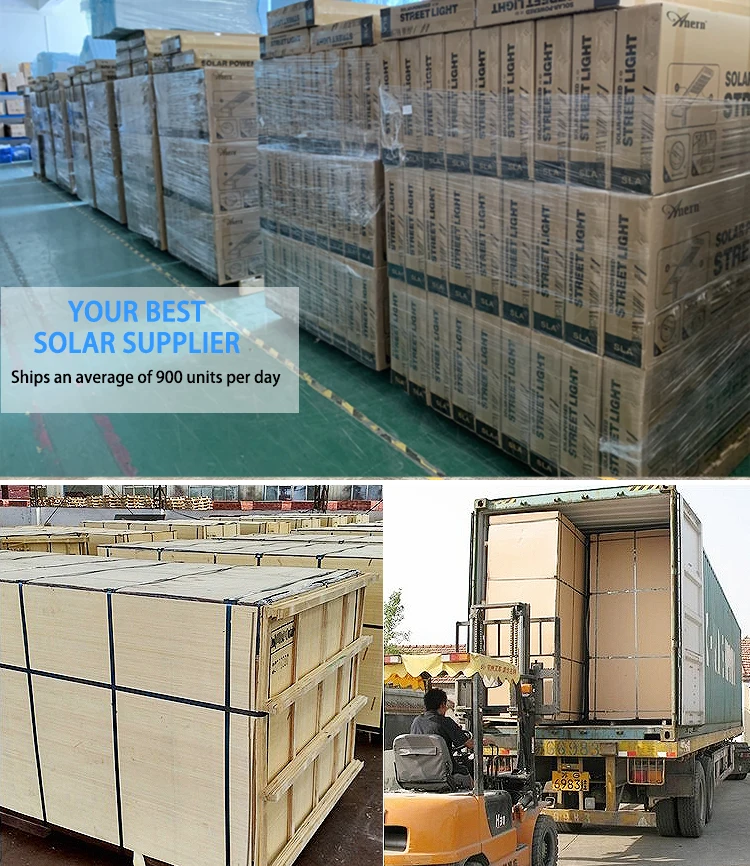

Packing&Shipping
Certifications
Company Information

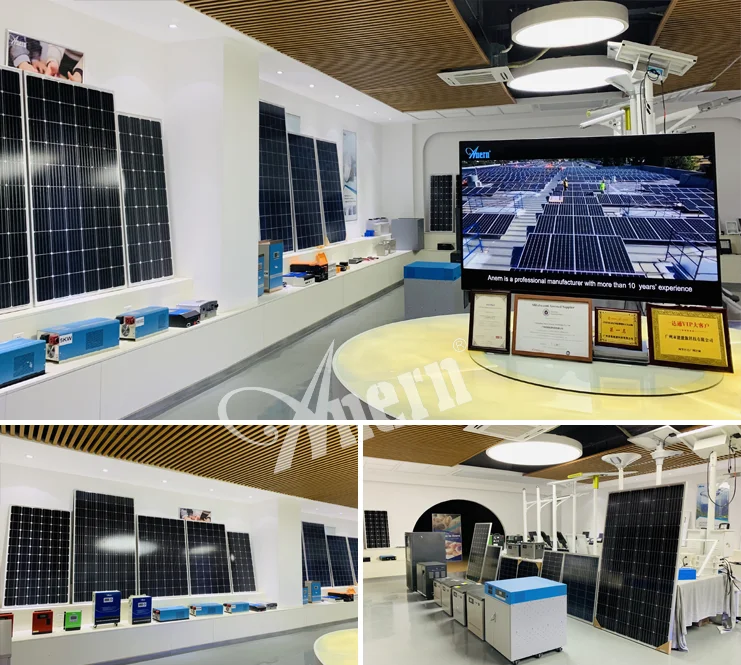

Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm, among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
