Weiquan New Product Pp Pe Film Granulating Machine Pellet Making Machine with Compactor Plastic Recycling Granulator Single
- Category: Plastic Granulators >>>
- Supplier: Zhangjiagang Weiquan Machinery Co. Ltd.
Share on (1600526494724):
Product Overview
Description
Product Overview
Pp Pe Film Granulating Machine With Compactor Plastic Pellet Making Machine
1. Application raw materials:
PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags, etc.
2.Flow chat plastic film pelletizer machine:
Water ring pelletizing/water strand pelletizing
Conveyor→Film compactor →Single screw extruder→ hydraulic screen changer → Single screw→ hydraulic screen changer → die head→Water ring pelletizing→Water tank→ Dewatering machine→Vibration sieve→Air blower→Storage silo
Water ring pelletizing/water strand pelletizing
Conveyor→Film compactor →Single screw extruder→ hydraulic screen changer → Single screw→ hydraulic screen changer → die head→Water ring pelletizing→Water tank→ Dewatering machine→Vibration sieve→Air blower→Storage silo
3.Features:
1. It is used for PP PE ABS PA PS PET crushed material extruding and granule-making.
2. It adopt the two-step structure to meet the the double-layer filter purpose.
3. It can effectively remove the impurities from the recycling material and fully exhaust the gas.

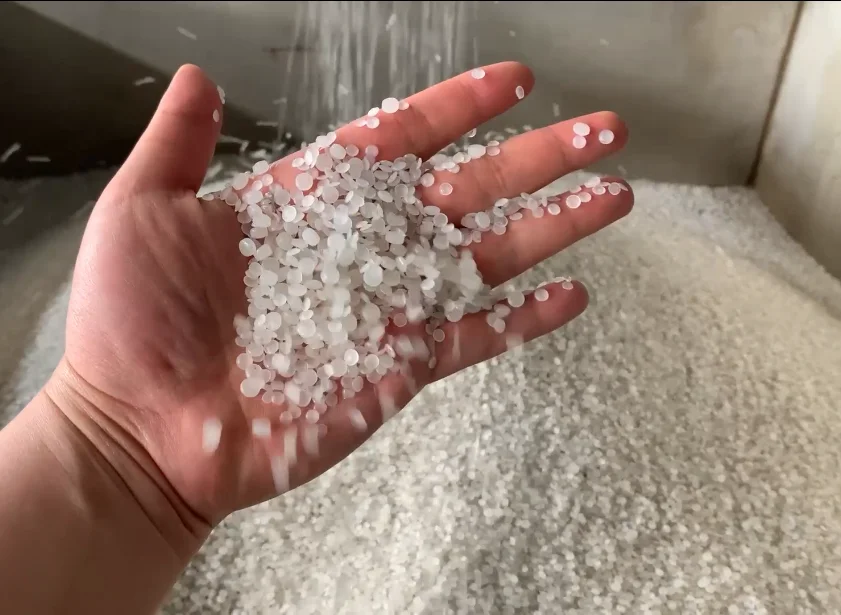

4.It can produce ample,consolidated and fine luster granules.
1. It is used for PP PE ABS PA PS PET crushed material extruding and granule-making.
2. It adopt the two-step structure to meet the the double-layer filter purpose.
3. It can effectively remove the impurities from the recycling material and fully exhaust the gas.
4.It can produce ample,consolidated and fine luster granules.
4. Usages:
Processing all kinds of thermoplastics, such as PC, PA, PP, ABS, PE, POM, PET and so on.
PRODUCT CONFIGURATION
FEATURES AT A GLANCE
1.Belt conveyor
>>Belt conveyor as standard feeding device for plastic film, raffia, filament, woven bag, nonwoven fabric, etc.
>>Belt conveyor as standard feeding device for plastic film, raffia, filament, woven bag, nonwoven fabric, etc.
>>Metal detector can be installed on conveyor as optional item, Detecting and separating the metal to protect the compactor and extruder effectively.
2.Compactor
>>With optimal design of rotary blades and stationary blades.
>>With optimal design of rotary blades and stationary blades.
>>The material got cutting, mixing and compacting in the compactor uniformly, to ensure the material heated and dried effectively which guarantee a fast and stable feeding from the compactor into the extruder.
3.Single screw extruder
>>Referring to the Germany design concept and method, designed for single screw extrusion machine, with the structure of involute gear teeth. >>High efficiency and low noise, Long use life and low maintenance cost.
>>Referring to the Germany design concept and method, designed for single screw extrusion machine, with the structure of involute gear teeth. >>High efficiency and low noise, Long use life and low maintenance cost.
>>Force vacuum degassing system with two vents to get rid of the low molecular, moisture and printing ink effectively, make sure
high quality output products.

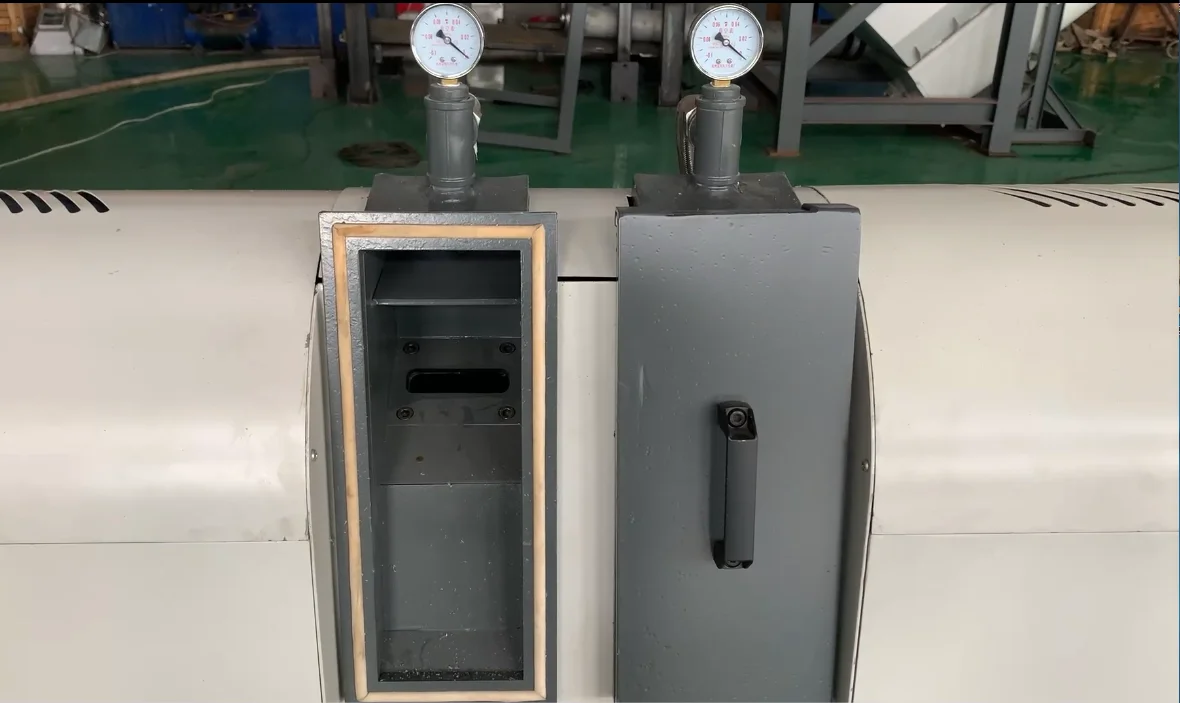

5.Filter
>>Plate type, pistion type and automatic self-cleaning type filter, Different choice according to impurity contents in material and client’s habit.
>>Plate type, pistion type and automatic self-cleaning type filter, Different choice according to impurity contents in material and client’s habit.
>>Plate type filter is cost-effective and easy to operate which mainly used for regular thermoplastic as usual filtration solution.

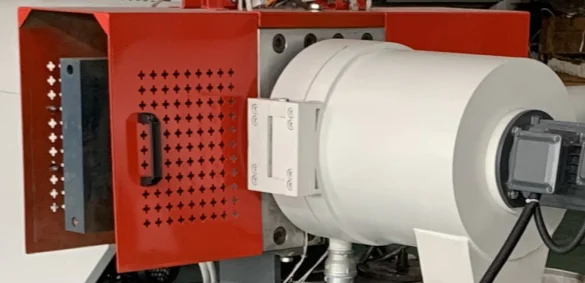

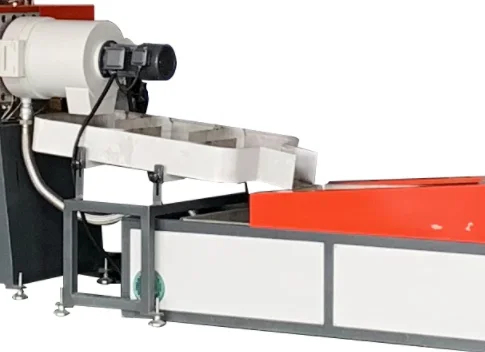

6.Water ring pelletizer
>>Cutting speed of pelletizer controlled automatically by PLC according to the pressure of die head, which could achieve the
uniform size for output pellets.
>>Cutting speed of pelletizer controlled automatically by PLC according to the pressure of die head, which could achieve the
uniform size for output pellets.
>>Blades of pelletizer touch to die plate automatically by pneumatic system, make sure blades contact with die plate properly, easy to operate and abrasion avoided.

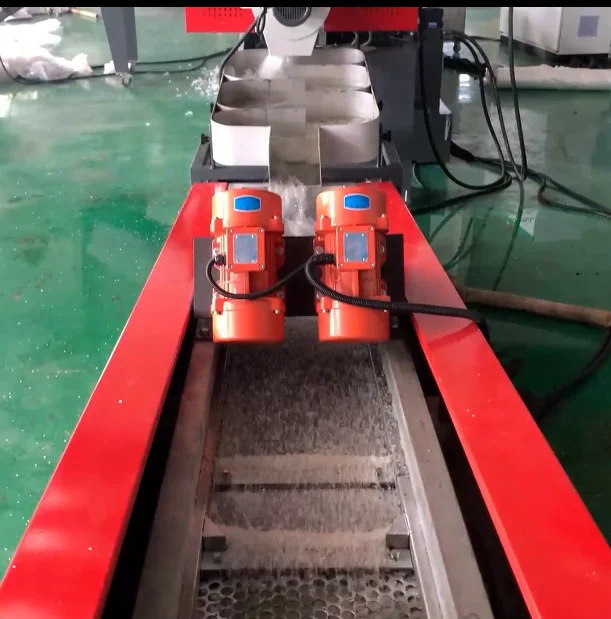

>> This system with vibration motor. When the motor works, the screen will vibrate, so that separate different size of the pellets.
>> Dry function
8.Dewatering Device
>> This drying system can get final pellet humudity less than 1%.
>> This drying system can get final pellet humudity less than 1%.
>> Horizontal design of dewaterer with small floor area.
>> compressor system can supply the air to the whole plant.
>> Vacuum system connect with the exhause port, It can remove the moisture from screw.
>>The function of the blower is to transport particles to the silo through stainless steel pipes. >>Pipes and silos are wrapped
with black sound insulation cotton, which reduces the volume from 82dB to 68dB.
>>New design makes it easier to operate.
11.Electrical control cabinet
>>All electrical units mounted in a strong safe electrical cabinet;
>>All electrical units mounted in a strong safe electrical cabinet;
>>Safety interlock principle applied in the system;
>>Inverter: ABB/FUJI/DELTA;
>>Contactor: Schneider;
>>Adopt CE safety electrical components;
>>Solid state relay is optional for heating control.
>>Inverter: ABB/FUJI/DELTA;
>>Contactor: Schneider;
>>Adopt CE safety electrical components;
>>Solid state relay is optional for heating control.
PRODUCT SPECIFICATIONS
Machine Model | WQ |
Brand | WeiQuan |
Applicable material | LDPE LLDPE HDPE PP BOPP CPP EPS PS PPS ABS PA PLA |
Capacity | 200-1200KG/H |
Screw diameter | 800-180MM |
Screw design | single screw |
L/D | 33-44 |
Screw rpm | 90-180 |
Screw material | 38CrMoAI |
Gearbox type | high torque vertical |
Motor brand | WEG/SIEMENS |
Degassing zone | 2 |
Pelletizer type | water ring pelletizer |
Total power | 159-674KW |
Delivery time | 2-4 months ready for inspection |
Guarantee | 1year |
Certificate | CE |
FAQ
1): Are you a factory or trading company?
We are a factory and can provide customized services.
2): What services will you provide?
We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
Except one year quality guarantee, we will provide after-sell service for all the life.
3): What can i buy from you?
Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
4): Why should i buy from you not from other suppliers?
We have more than 10 years experience in fabricating the machine.
5): What basic terms can you accept?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
We are a factory and can provide customized services.
2): What services will you provide?
We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
Except one year quality guarantee, we will provide after-sell service for all the life.
3): What can i buy from you?
Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
4): Why should i buy from you not from other suppliers?
We have more than 10 years experience in fabricating the machine.
5): What basic terms can you accept?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
