4axis cnc machining center vmc 1160 cnc machine vertical for metal
- Category: >>>
- Supplier: Shandong Honest Machinery Co. Ltd.
Share on (1600526535882):
Product Overview
Description
Product Description
Item | VMC840 | VMC850 | vmc855 | VMC1160 | VMC1270 | VMC1370 | VMC1580 | ||||||
Size of worktable(length×width)mm | 1000*400 | 1000*500 | 1000*550 | 1200*600 | 1400*700 | 1460*700 | 1700*800 | ||||||
T slot (mm) | 5-18*100 | 5-18*100 | 5-18*90 | 5-18*100mm | 5-18*115 | 5-22*140 | 5-22*150 | ||||||
Max loading weight on worktable | 500KG | 600kg | 600kg | 1000kg | 1000kg | 1400 | 1500 | ||||||
X-Axis travel(mm) | 800 | 800 | 800 | 1000 | 1200 | 1300 | 1500 | ||||||
Y-Axis travel(mm) | 400 | 500 | 550 | 600 | 700 | 700 | 800 | ||||||
Z-Axis travel(mm) | 500 | 500 | 500 | 600 | 700 | 700 | 700 | ||||||
Distance between spindle nose and table | 105-550 | 105-605mm | 120-620mm | 100-700mm | 130-830mm | 160-860mm | 170-840 | ||||||
Distance between spindle center and column(mm) | 450 | 550 | 540 | 667 | 767 | 775 | 810 | ||||||
Spindle taper | BT40 | BT40 | BT40 | BT40 | BT50 | ||||||||
Max. spindle speed( rpm) | 8000/10000/12000 | ||||||||||||
Spindle motor power(Kw) | 5.5KW | 7.5/11kw | 7.5/11kw | 11/15kw | 11/15kw | 15/18.5kw | 18.5kw | ||||||
Rapid feeding speed: X,Y,Z axis m/min | 16/16/16 (24/24//24 liner guidway) | ||||||||||||
Fast cutting speed m /min | 10m/min | ||||||||||||
Positional accuracy | ±0.005 mm | ±0.005 mm | ±0.005 mm | ±0.005 mm | ±0.005 mm | ±0.0075 mm | ±0.01 mm | ||||||
Repeat positional accuracy | ±0.003 mm | ±0.003 mm | ±0.003 mm | ±0.003 mm | ±0.003 mm | ±0.005 mm | ±0.005mm | ||||||
Auto Tool changer type | 16 tools head type tool changer(optional 24 arm type auto tool changer) | ||||||||||||
Max. tool length | 300mm | ||||||||||||
Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | ||||||||||||
Max.tool weight | 8kg | ||||||||||||
Tool changing time(tool-to-tool) | 7sec | ||||||||||||
Air pressure | 0.6 Mpa | ||||||||||||
Machine weight | 4200KG | 5500KG | 5800 | 7500KG | 9000KG | 10000KG | 13000KG | ||||||
Overall sizse(mm) | 2600*2300*2300 | 2600*2300*2300 | 2800*2400*2400 | 3340*2800*2700 | 3800*3000*2650 | 3870*3165*2920 | 4300*3200*3100 | ||||||

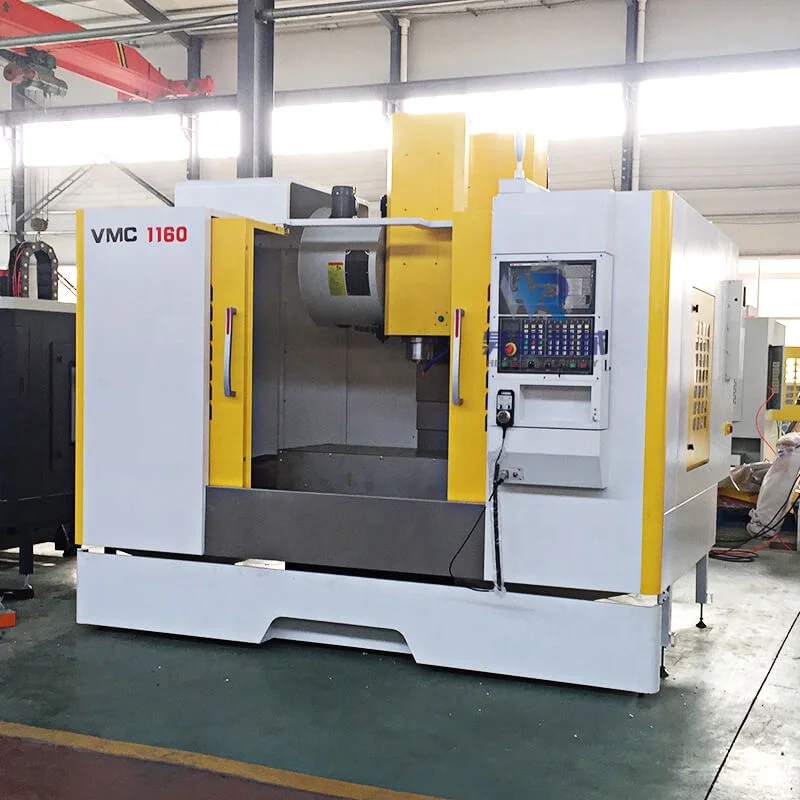

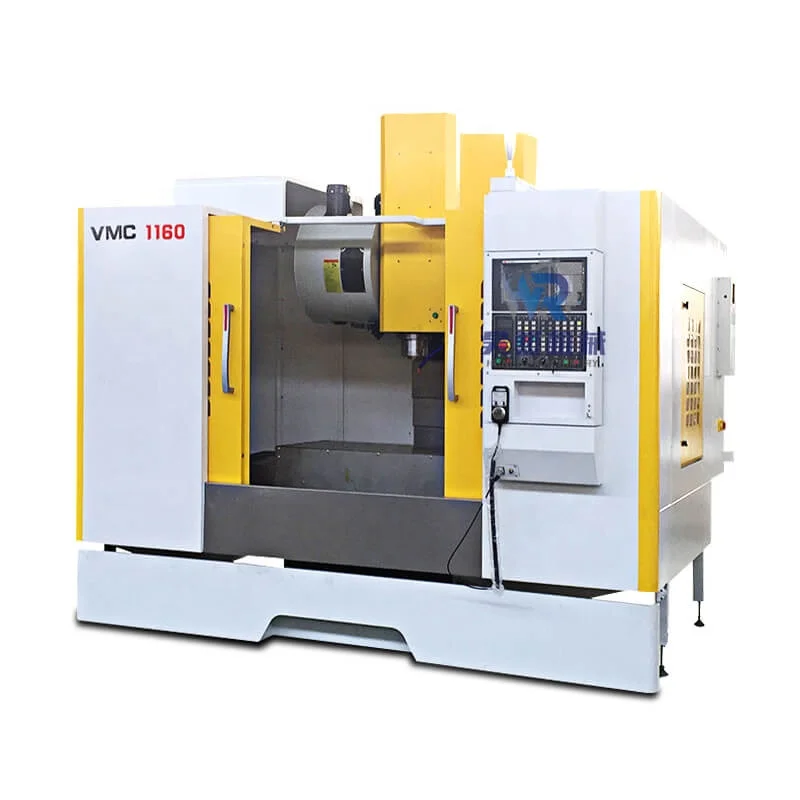

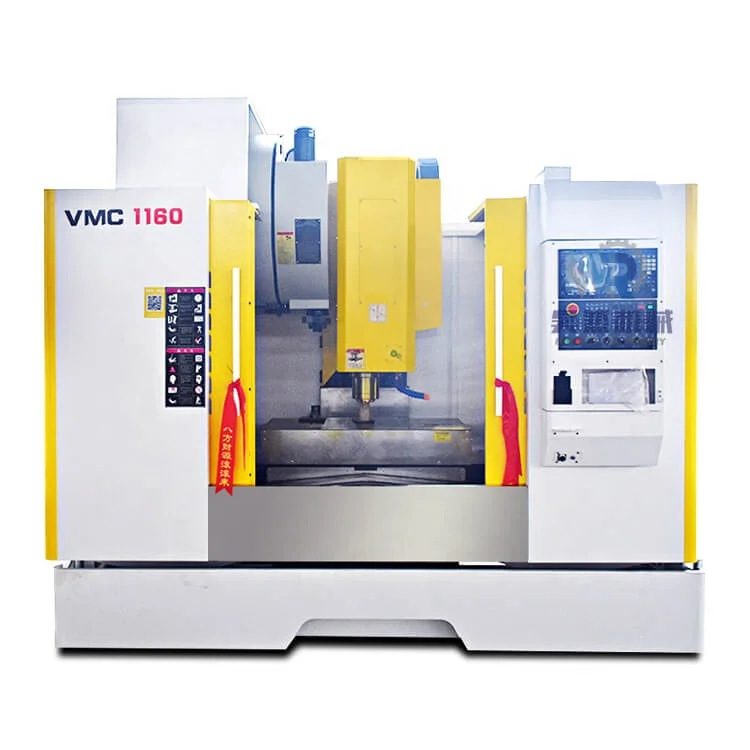

Vmc1160 CNC milling machine is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). The guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. Vmc1160 CNC milling machine It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.Vmc1160 CNC milling machine
Product Details
Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT50 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.

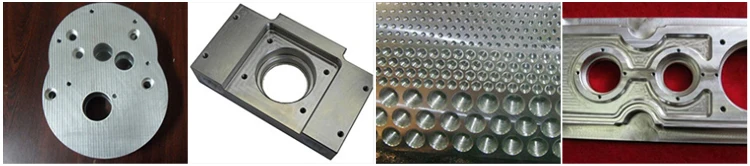

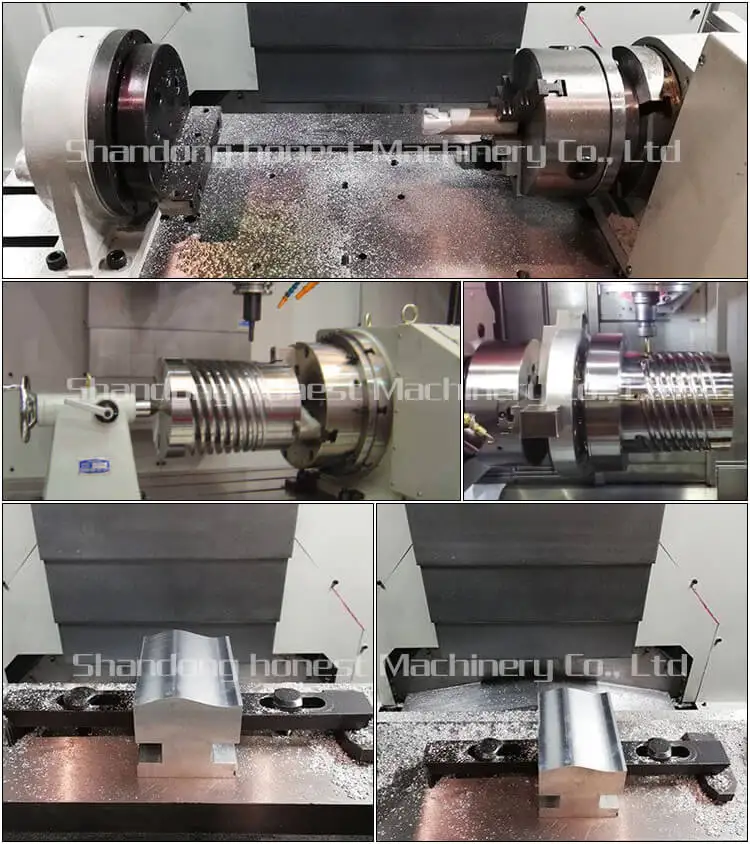

sample
it is widely used to produce the auto spare
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

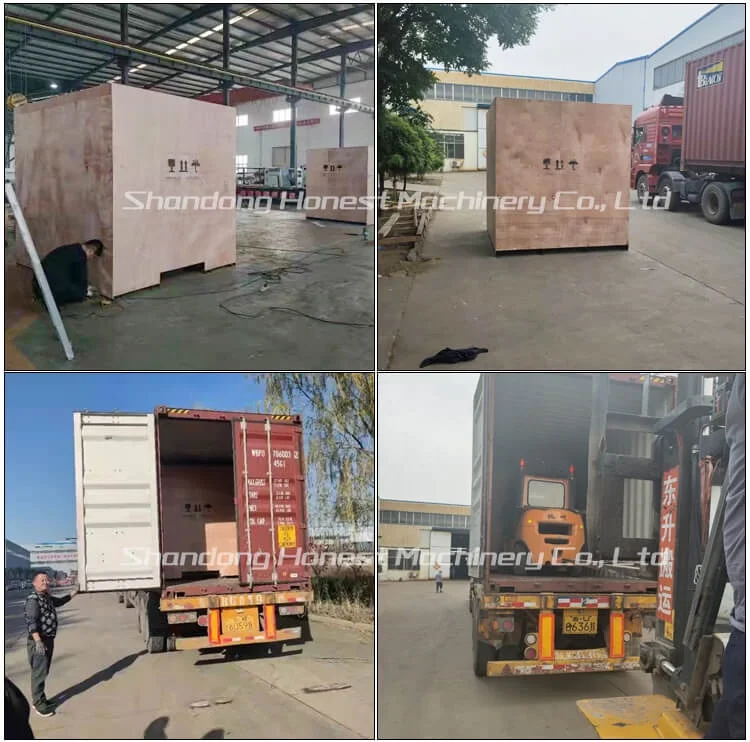

Packaging＆Shipping
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 30 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.
Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Company information
Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales.
The company has a series of cnc milling machine 、fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
The company has a series of cnc milling machine 、fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
FAQ
1.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
