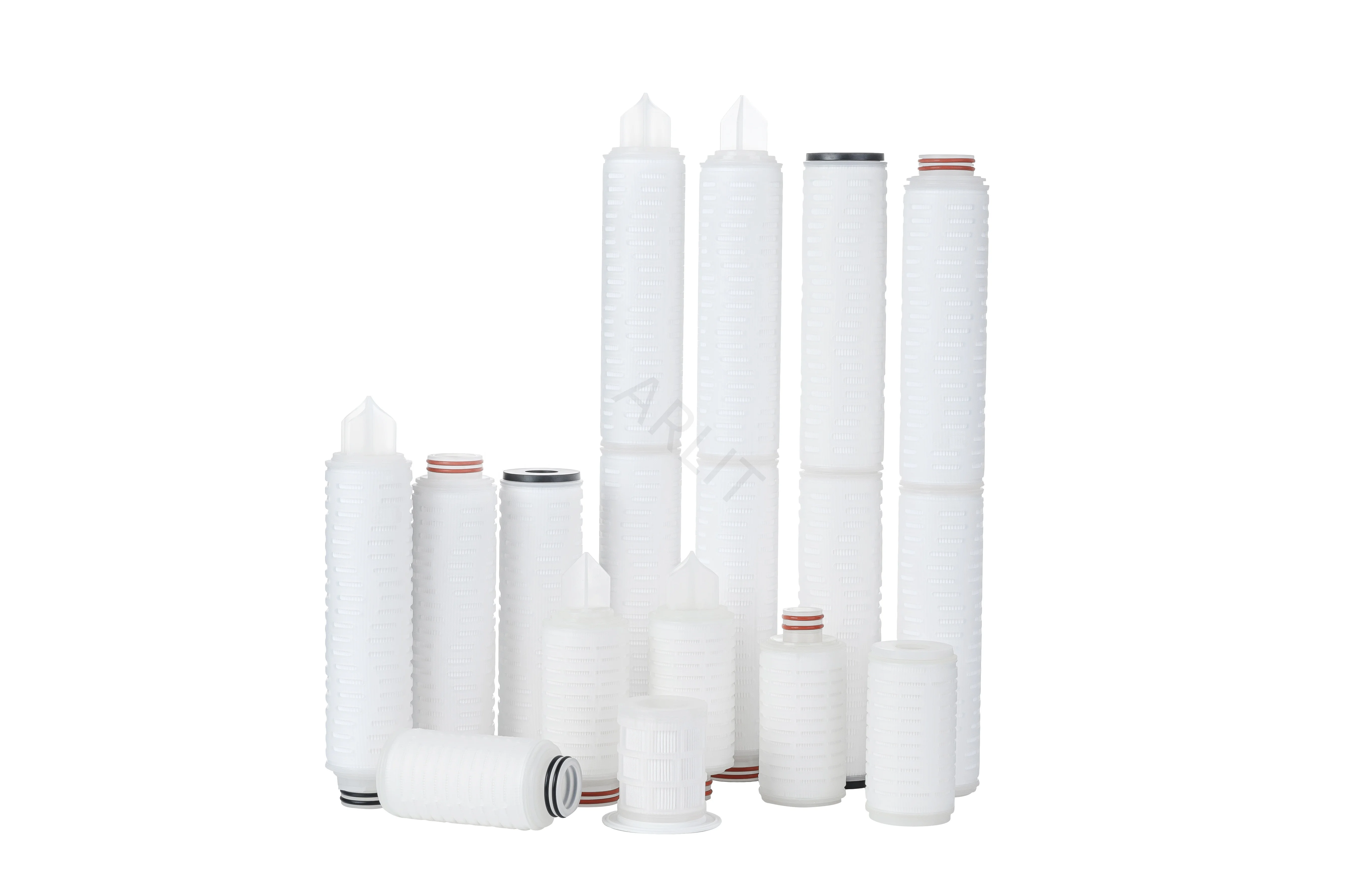

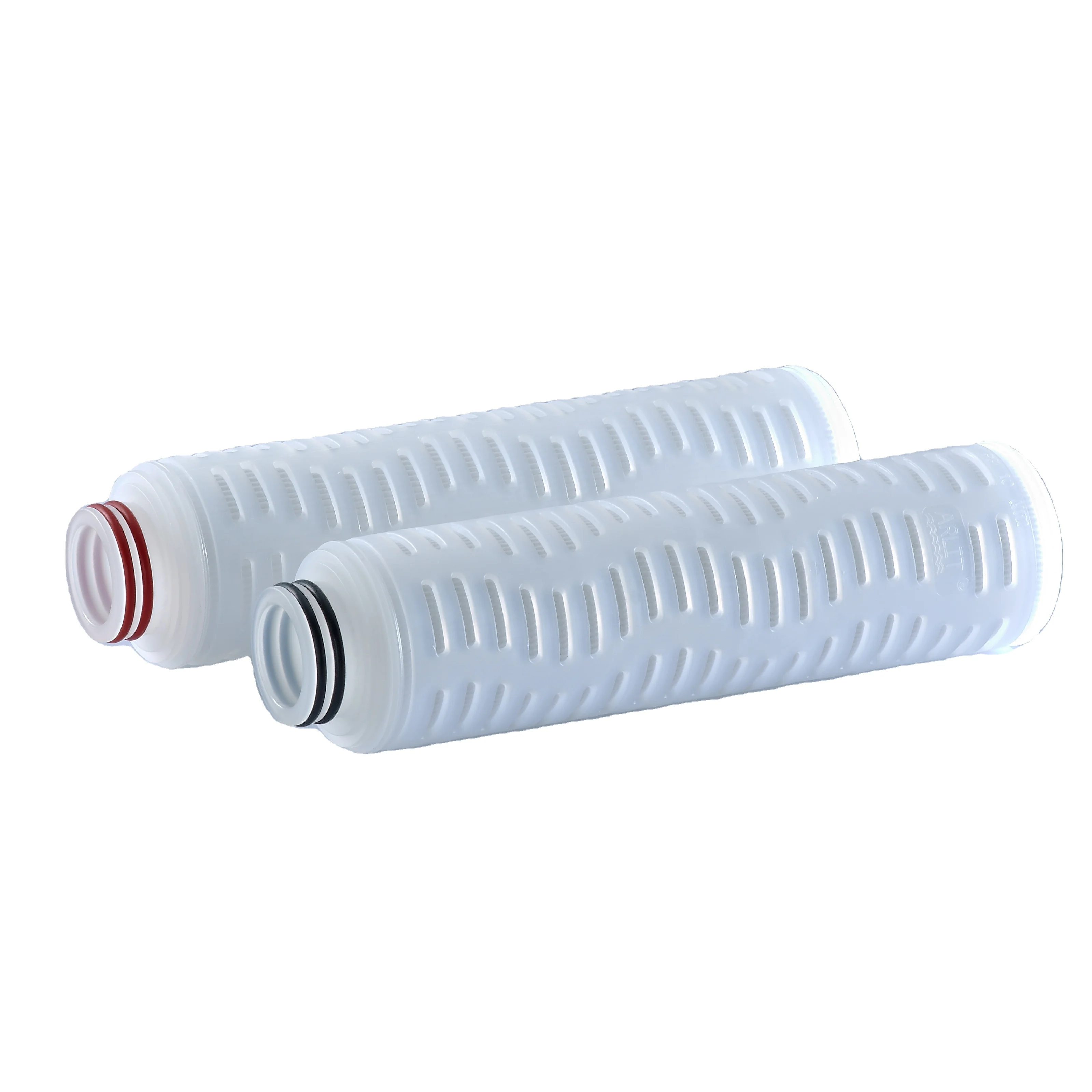

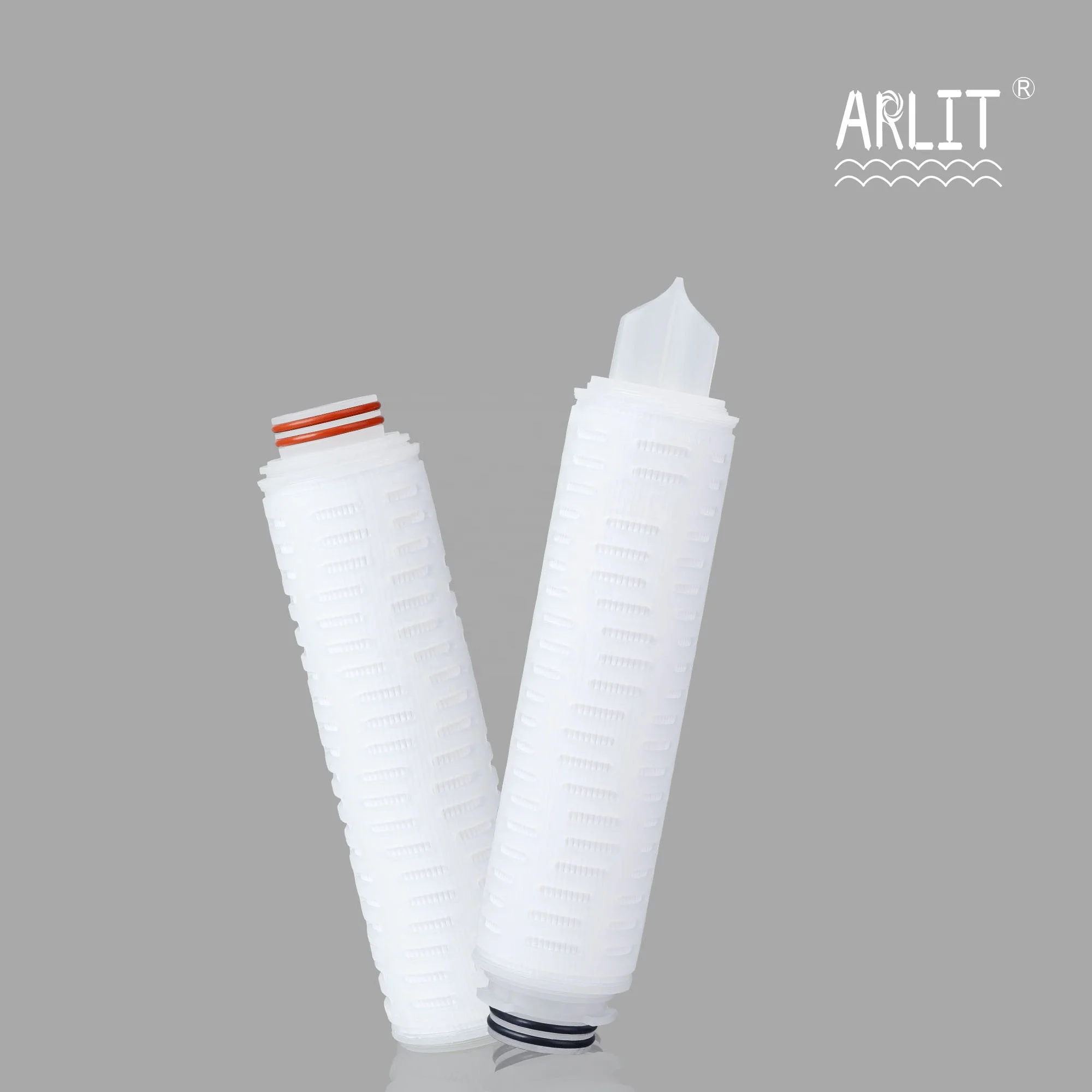

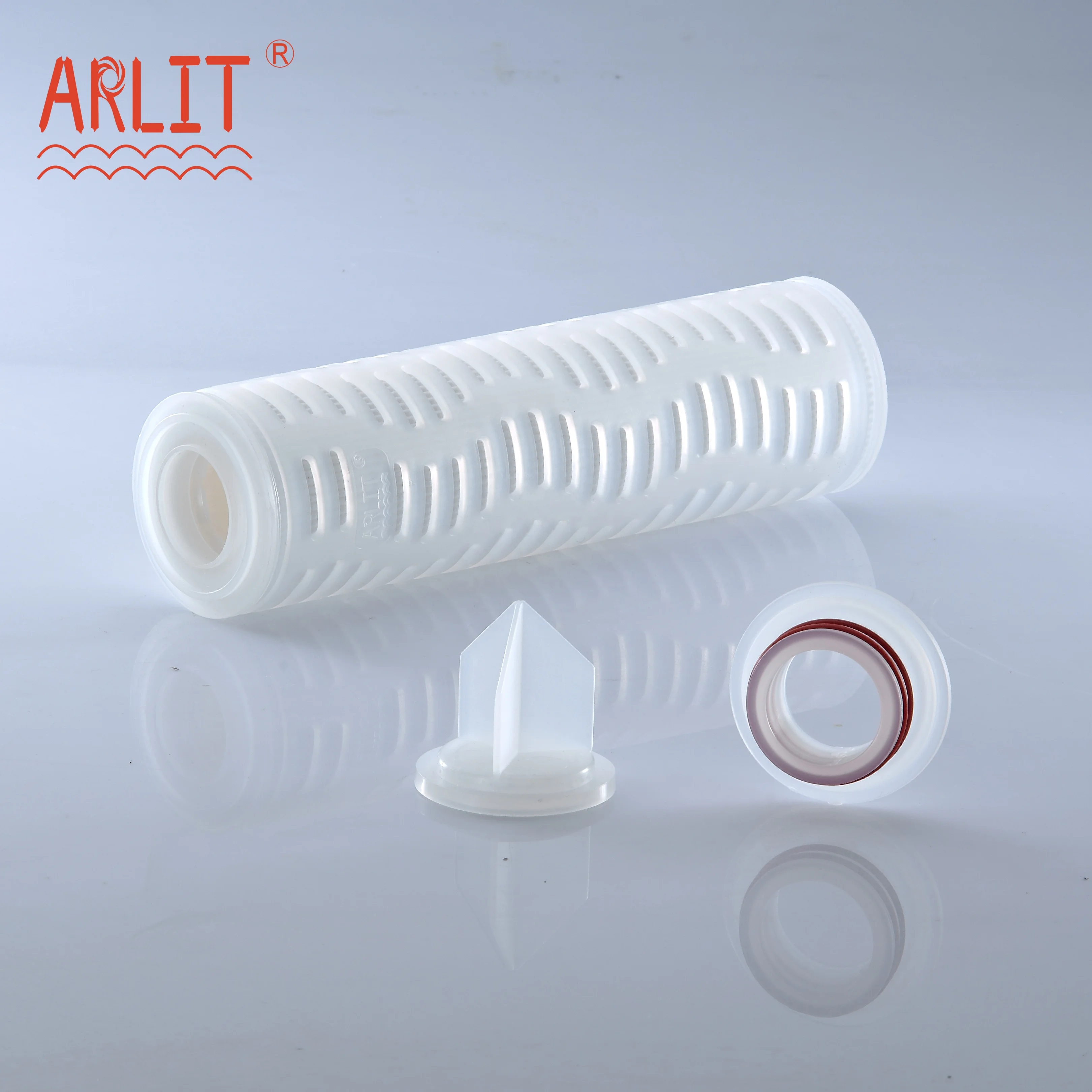

0.1 0.22 Micron Filter 10 20 inches PES Membrane Pleated Filter Cartridge For Water Filtration

The filtration media of PES membrane filter cartridge is PES membrane. High porosity (about≥80%) and geometrically unique pores of the PES cartridge contribute to high throughputs for difficult-to-filter solutions. It is constructed of two materials PES and PP to meet high standards of chemical and other industry. The benefit summary: unique hydrophilic, no including surfactant and lubricant, so it provides wide filtration pore size and high flow rate. Its wide range of Ph values and lower adsorption capacity of protein and valuable biological agents, high retention rate, super chemical tolerance and thermal stability, good strength, withstand shocks and back pressures. All products have passed 100% integrity testing.


Specification


Filter medium
Hydrophilic PES Membrane
Support layer
Polypropylene (PP)
Filter cage
Polypropylene (PP)
Pore size
0.1,0.2,0.45,0.65,1µm
Length
5/10/20/30/40  inches
OD/ID
69 mm/34 mm
Gasket / O - rings
Silicone, NBR, EPDM, Viton
Interface
DOE,215,222,226 flat/fins

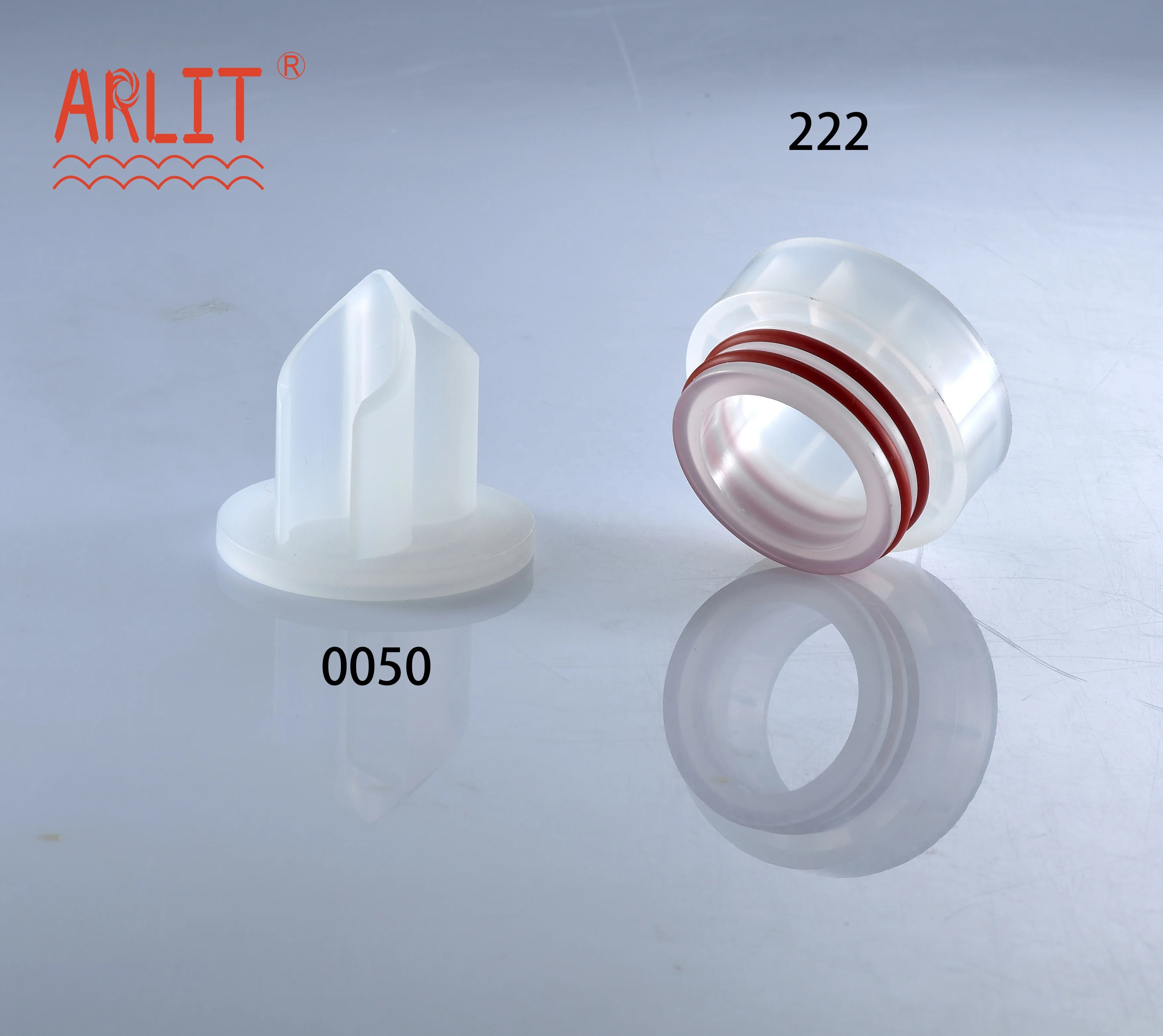

End caps
DOE,0050,0050A,0050B
Sealing method
thermal bonding technique
Effective filtration area
0.6 m2/10"
Max. operating temperature
140℃, 0.28 Mpa
Max. forwarder differential pressure
0.42 Mpa (25℃)
Max. reverse differential pressure
0.21 Mpa (25℃)
Sterilizing temperature
121℃ 30min


Typical Applications


Other industry: final filtration of injecta, eye drops, non-high temperature sterilization products, vaccine, serum
Food industry: wines, mineral water, drinking water, beverage
Electronic industry: final filtration of high purity water and chemical raw materials

Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)


Micro rating (μm)
0.1
0.2
0.45
0.65
1
Flow rate (L/min)
11
21
27
33
40

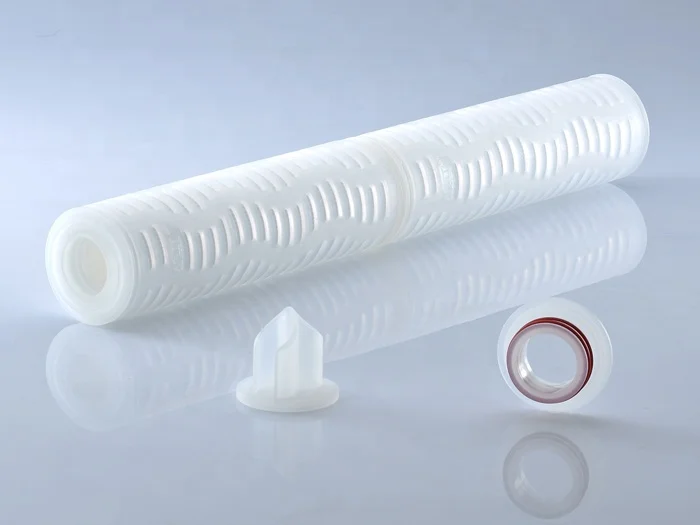

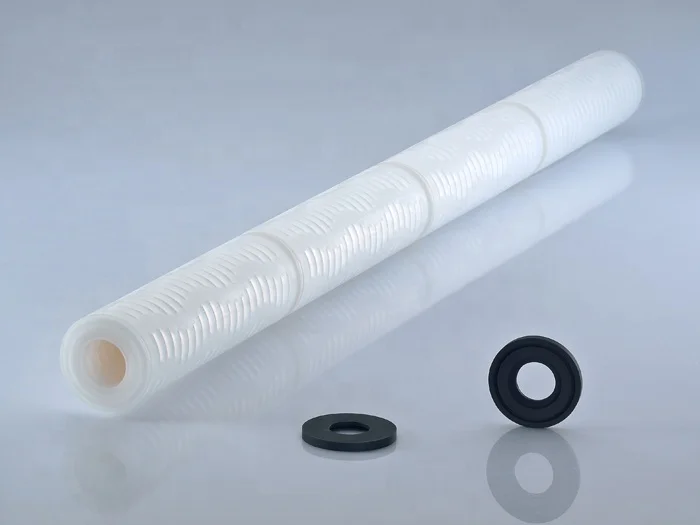

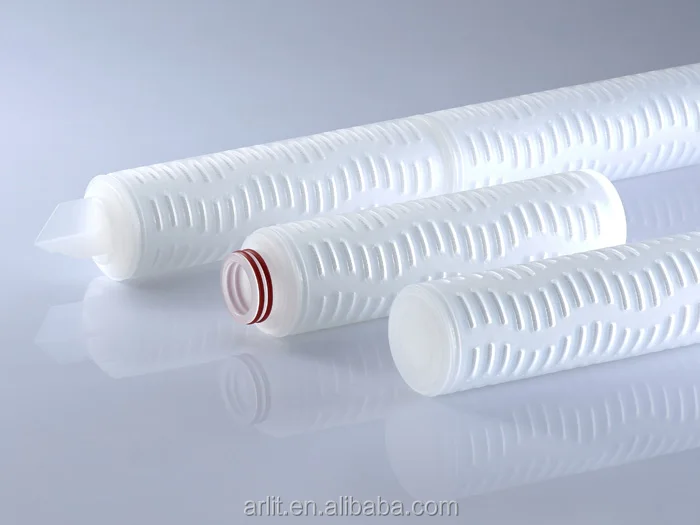

Details Images
