Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
China Professional Manufacturer High Speed 6 Lines Supermarket T Shirt Shopping Bag Poly HDPE PE Plastic Bag Making Machine
- Category: Packaging Material Making Machine >>>
- Supplier: Zhejiang Baihao Intelligent Equipment Co. Ltd.
Share on (1600526604755):
Product Overview
Description
PRODUCT DESCRIPTION
BS1020-AT t-shirt bag making machine
Baihao high quality bottom sealing t-shirt shopping bag making machine.
BS1020-AT is the new designed super highly efficient T-shirt Bag Making Machine with THREE lanes high speed production lines. It is using HDPE, LDPE roll film to produce T-shirt bags and Vest bags.
This machine adopts fully automatic PLC control, servo motor control and the touch screen display to finish the whole production process, such as feeding, sealing, cutting, punching.
BS1020-AT is very easy to operate. It can save manpower greatly and yield good economic result.
BS1020-AT is the new designed super highly efficient T-shirt Bag Making Machine with THREE lanes high speed production lines. It is using HDPE, LDPE roll film to produce T-shirt bags and Vest bags.
This machine adopts fully automatic PLC control, servo motor control and the touch screen display to finish the whole production process, such as feeding, sealing, cutting, punching.
BS1020-AT is very easy to operate. It can save manpower greatly and yield good economic result.
PRODUCT VIDEO
PRODUCT PARAMENTERS
Model | BS620 | BS820 | BS1020-AT | BS1220-AP | ||||||||||
Line | 2 | 4 | 4 | 6 | 4 | 6 | 8 | 8 | 12 | |||||
Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V | ||||||||||
Total Power | 7.0KW | 9.0KW | 11KW | 14KW | ||||||||||
Average Power | 3.0KW | 4.0KW | 5.0KW | 6.0KW | ||||||||||
Film width(mm) | 580 | 280 | 380 | 250 | 480 | 300 | 220 | 280 | 180 | |||||
Bag Length | 100-800mm | 100-800mm | 100-800mm | 100-700mm | ||||||||||
Max Speed | 150cut/min | 150cut/min | 150cut/min | 150cut/min | ||||||||||
Machine Weight | 900KG | 1000KG | 1200kg | 2200kg | ||||||||||
Machine Length | 3800mm | 3800mm | 5200mm | 6600mm | ||||||||||
Machine Width | 1200mm | 1400mm | 1400mm | 1800mm | ||||||||||
Machine Height | 1800mm | 1800mm | 1800mm | 1800mm | ||||||||||

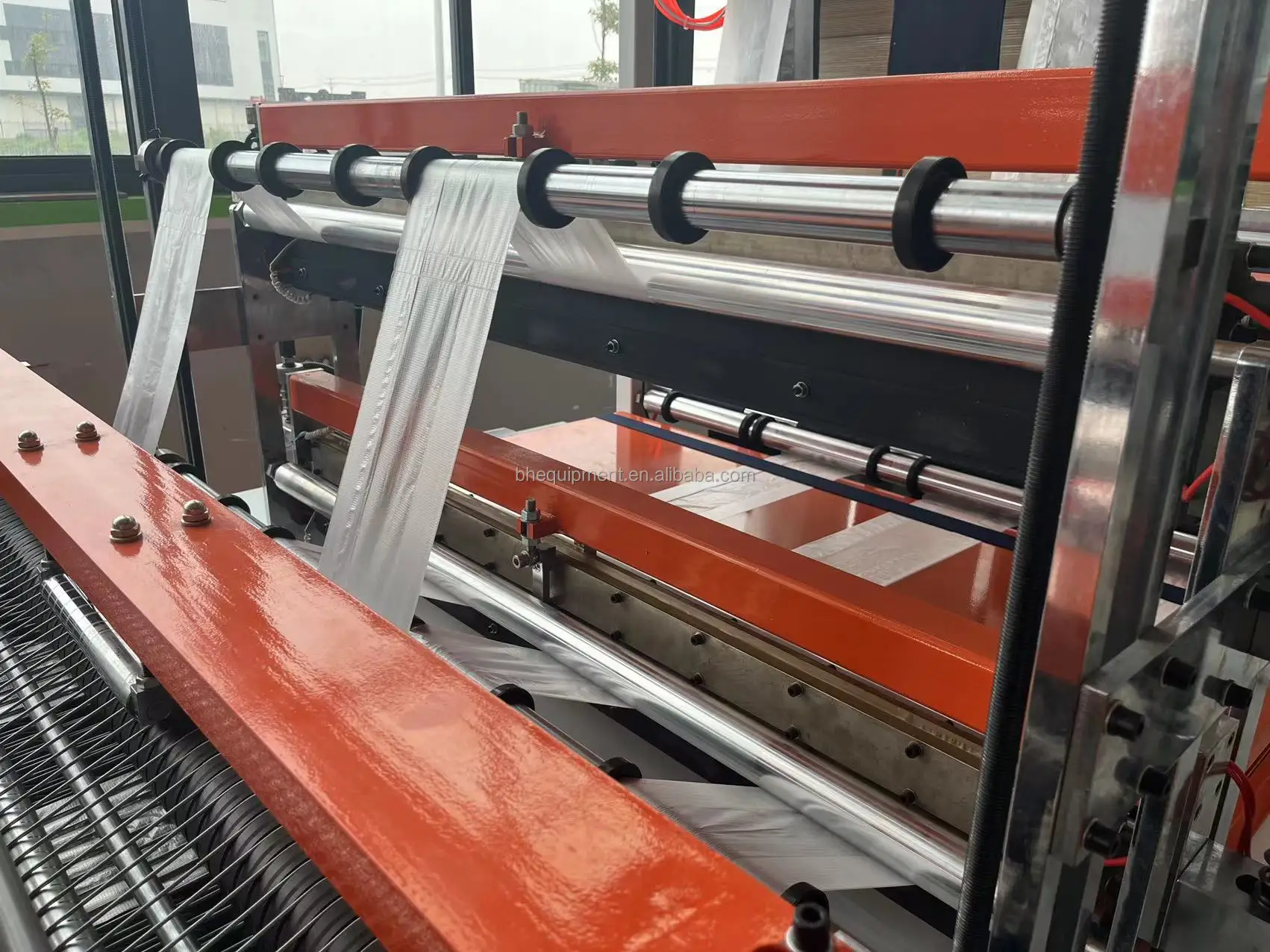

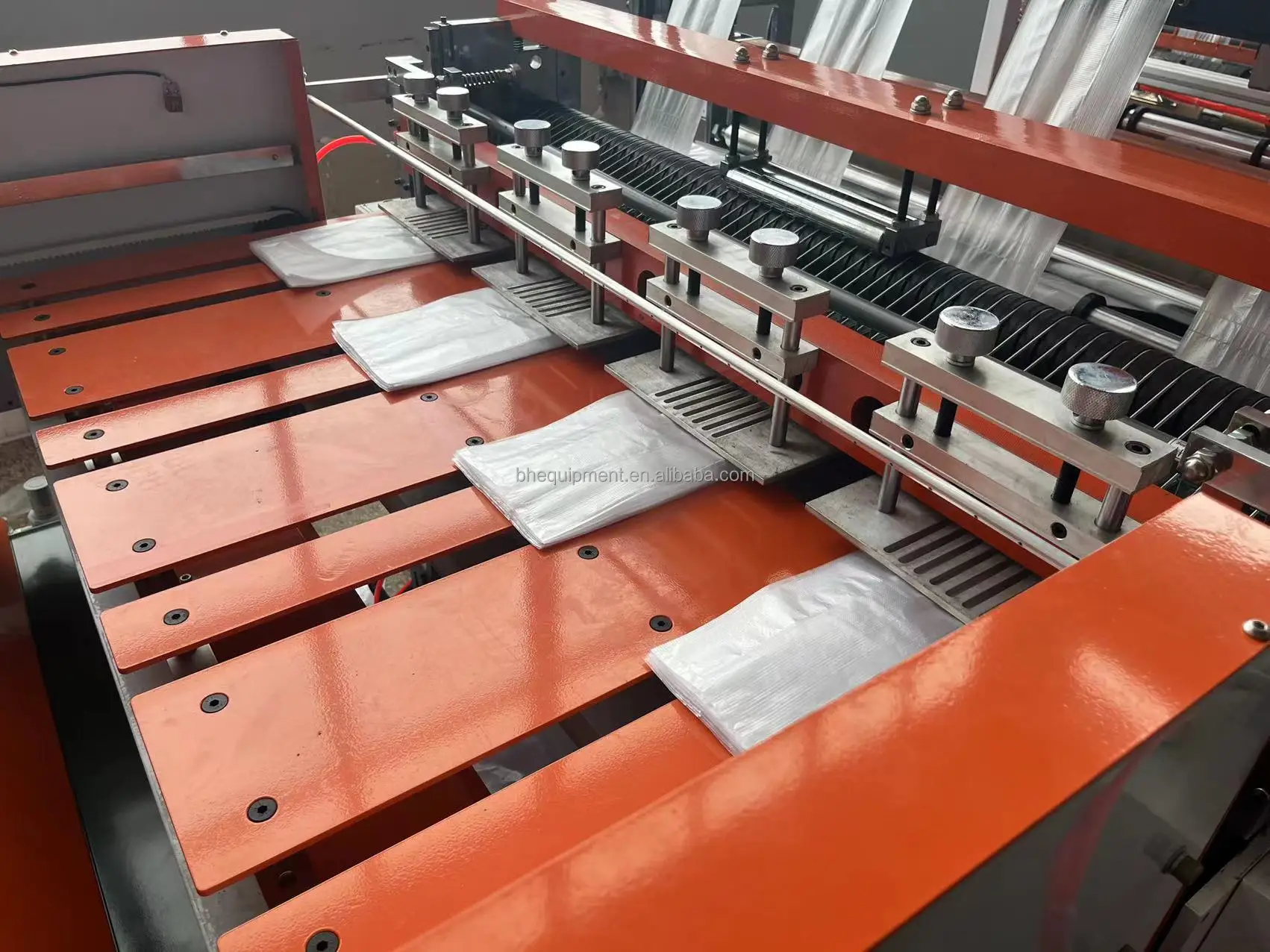

PRODUCT DETAILS

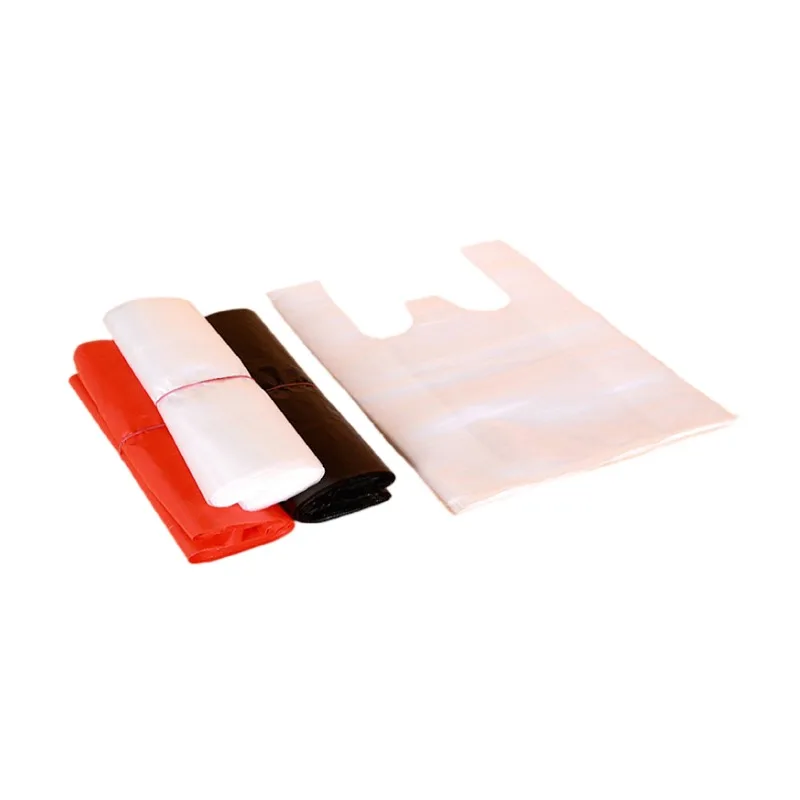

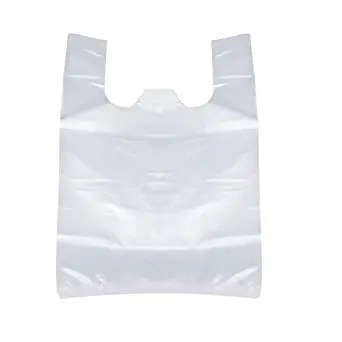

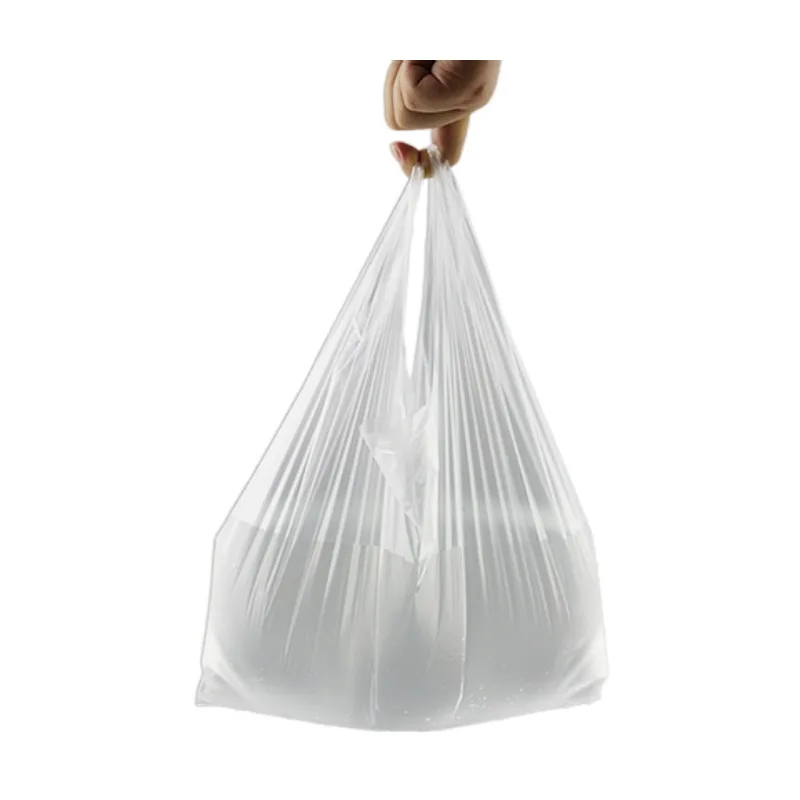

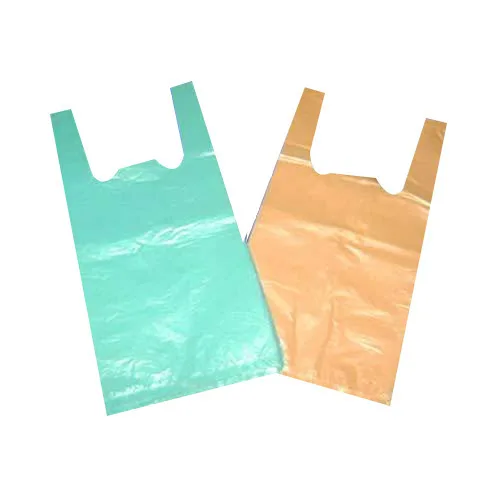

BAG SAMPLES
