High resolution thermal imaging camera module with alarming for security and border defense
- Category: >>>
- Supplier: Beijing Radifeel Technology Co. Ltd.
Share on (1600526606578):
Product Overview
Description
Product Description

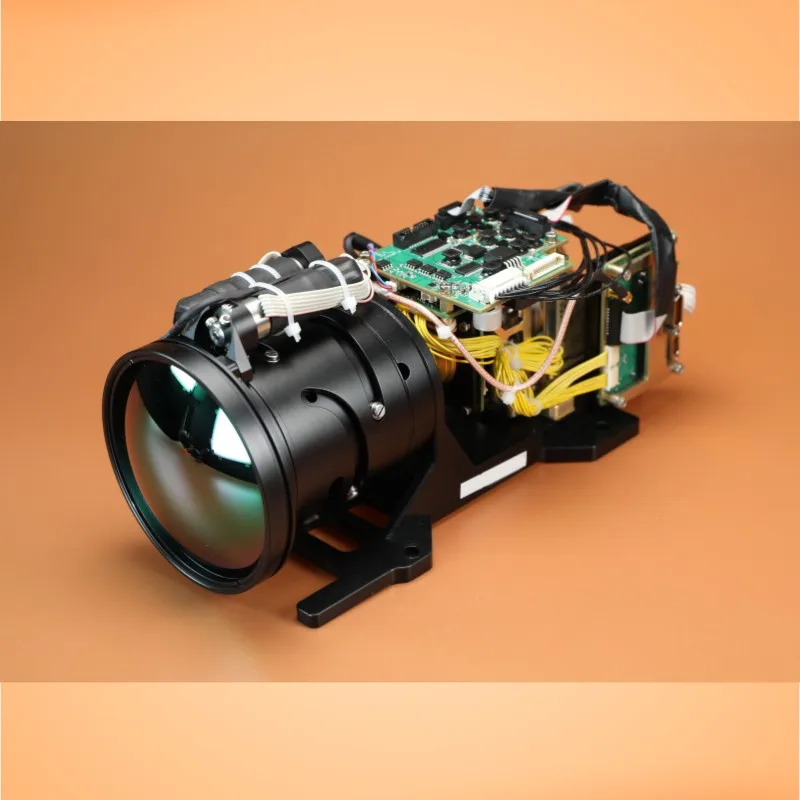

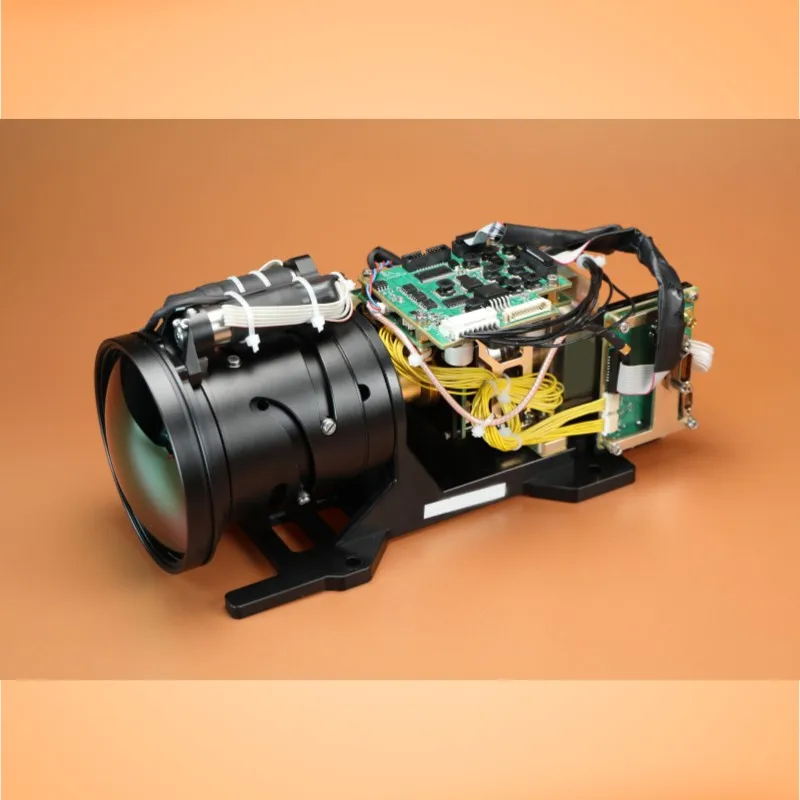

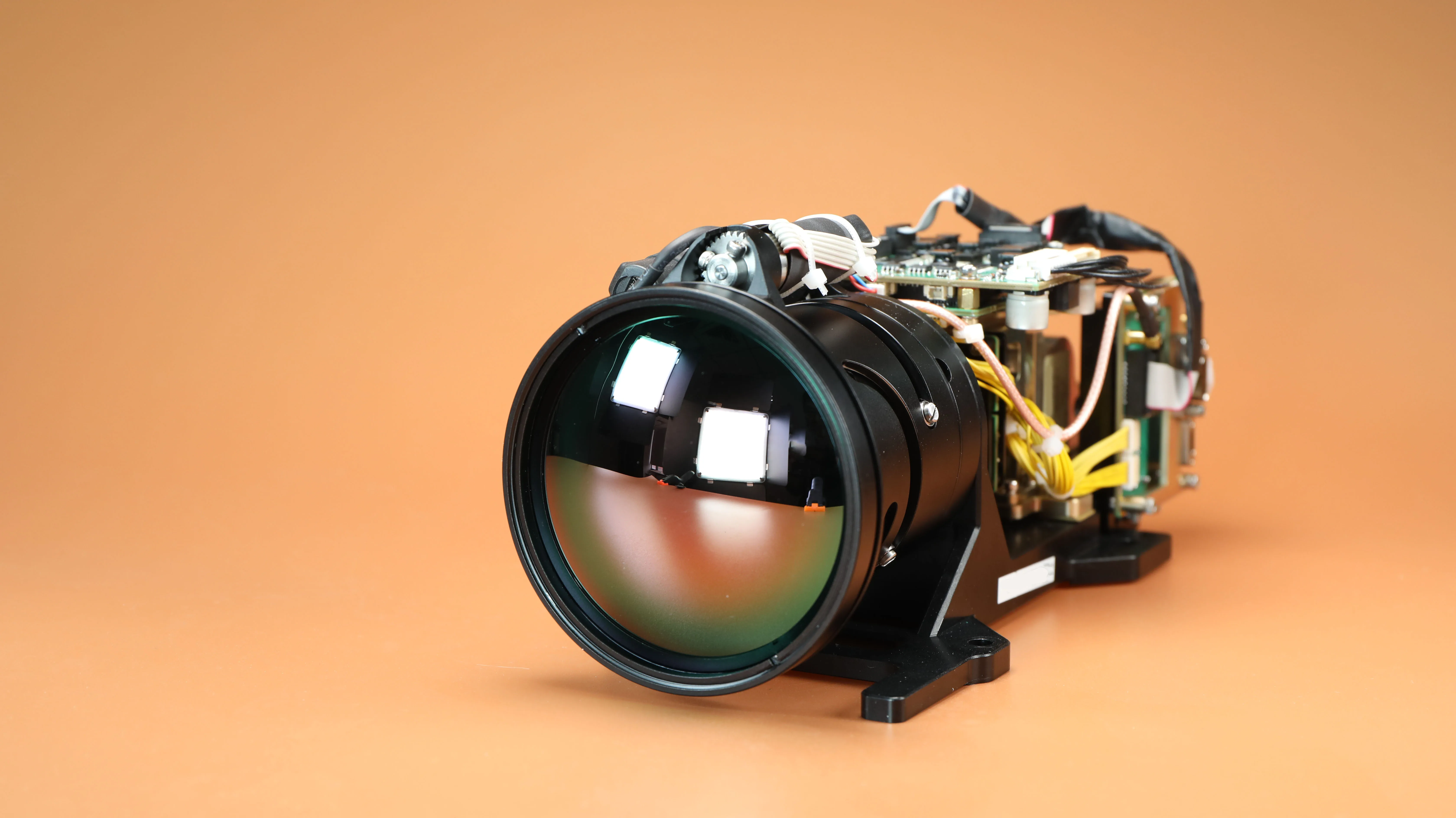

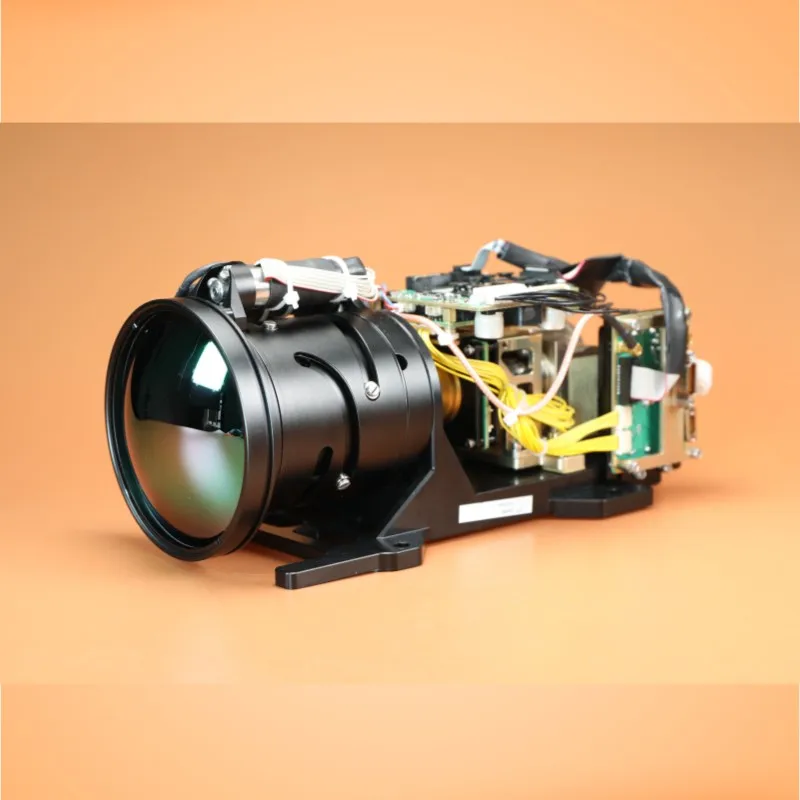

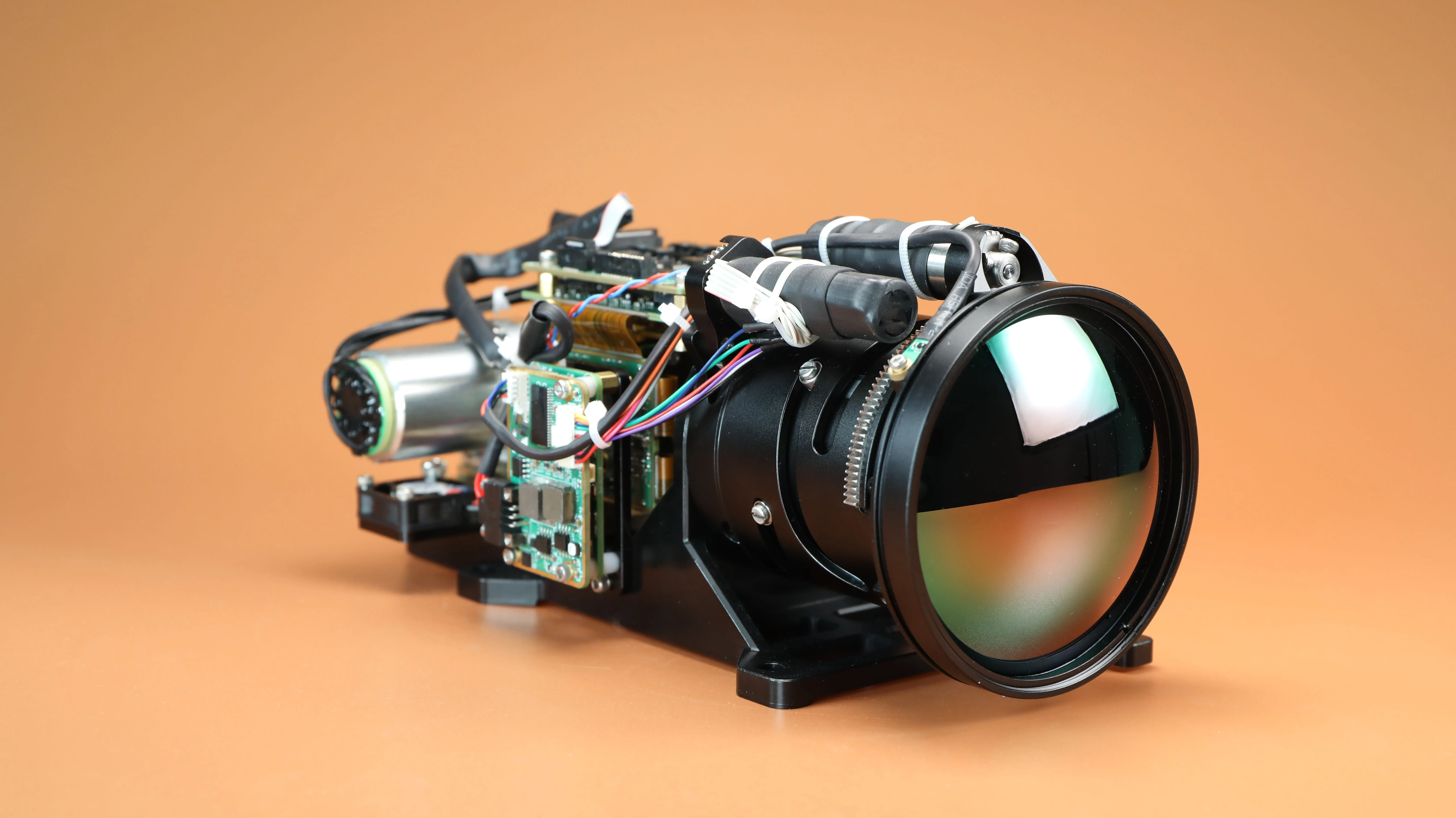

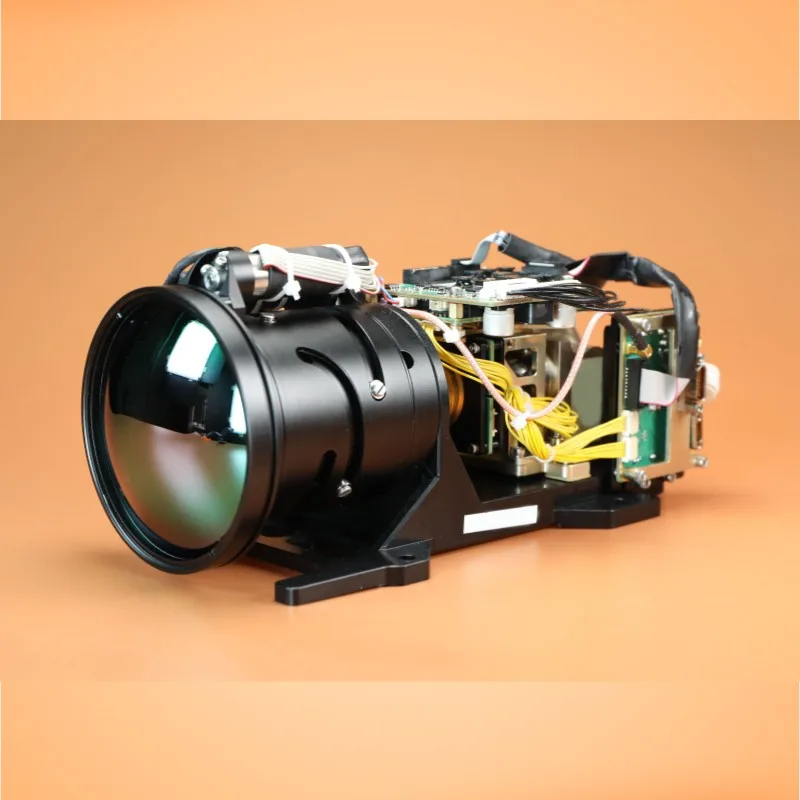

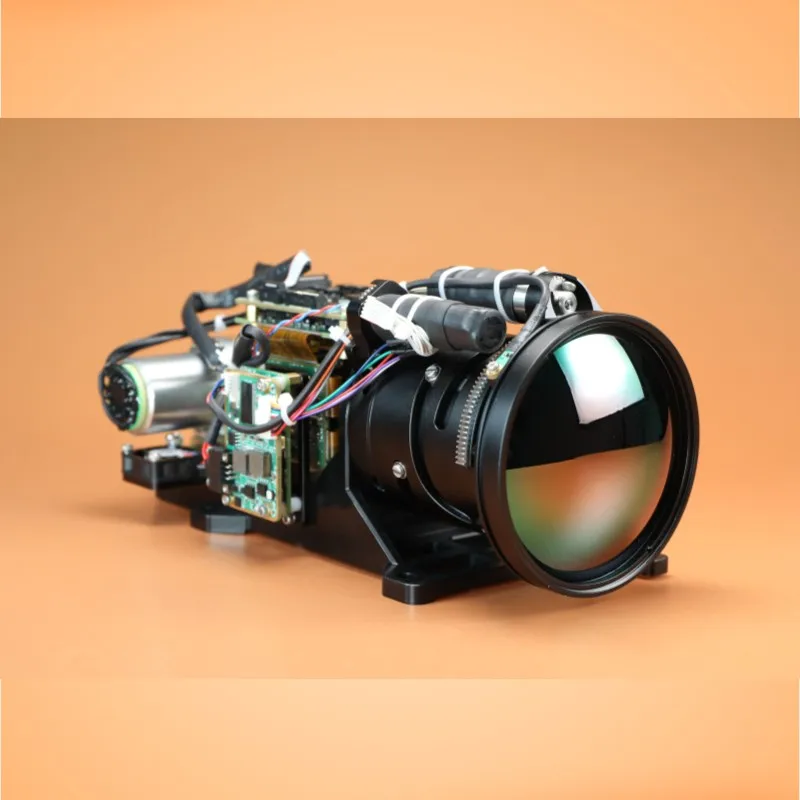

Radifeel Mid Wave Infrared Thermal Imaging Camera 640x512 Thermal Imaging Module

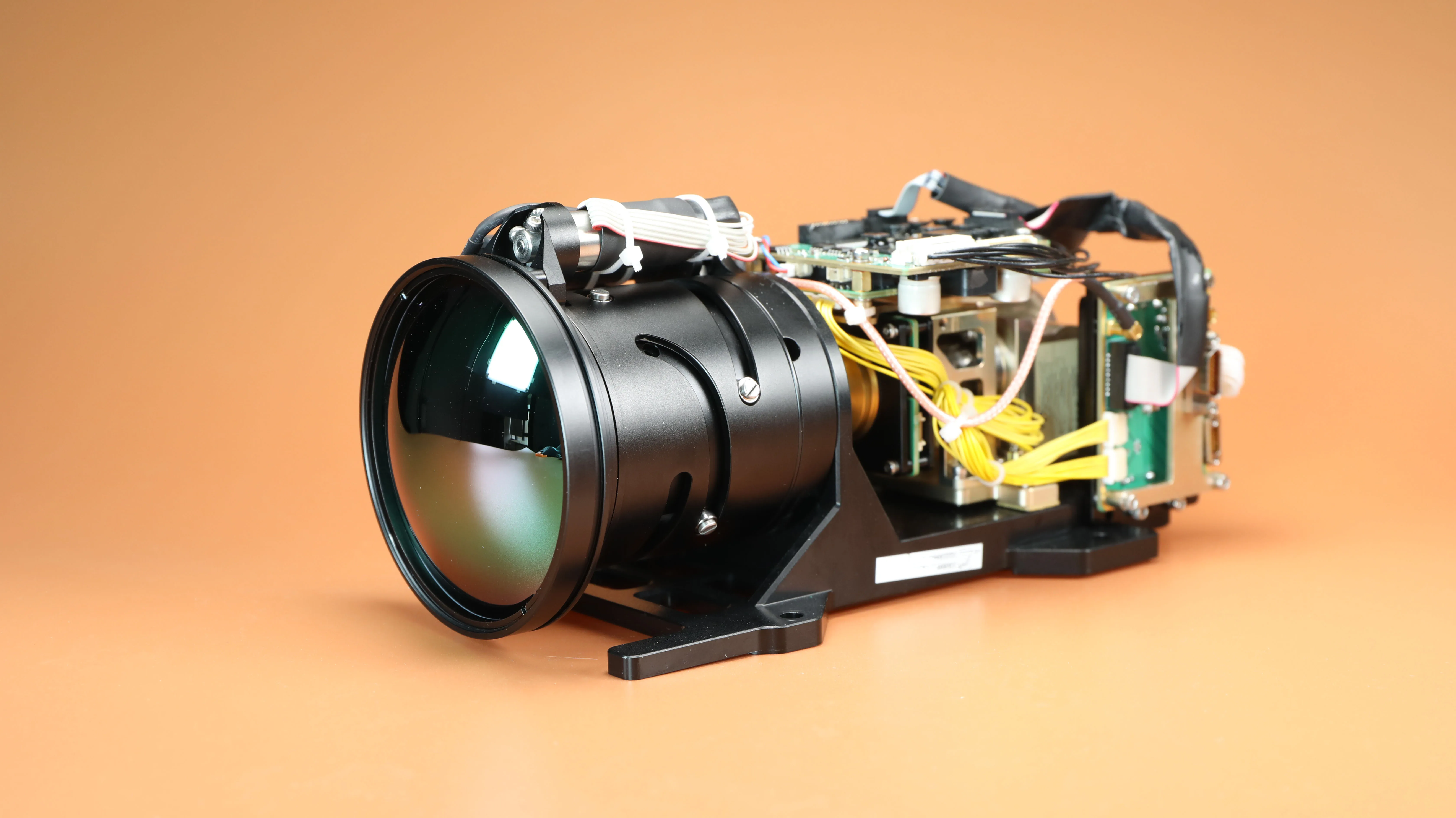

Radifeel 30-300mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection.The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 30mm~300mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people,vehicles and ships in long distance.
Specification
Detector | ||
Resolution | 640×512 | |
Pixel Pitch | 15μm | |
Detector Type | Cooled MCT | |
Spectral Range | 3.7～4.8μm | |
Cooler | Stirling | |
F# | 4 | |
Optics | ||
EFL | 30 mm～300 mm Continuous Zoom | |
FOV | 1.83°(H) ×1.46°（V）to 18.3°(H) ×14.7°（V） | |
Function and Interface | ||
NETD | ≤25mk@25℃ | |
Cooling Time | ≤8 min under room temperature | |
Analog Video Output | Standard PAL | |
Digital Video Output | Camera link | |
Power Source | ||
Power Consumption | ≤15W@25℃, standard working state | |
≤20W@25℃, peak value | ||
Working Voltage | DC 24-32V, equipped with input polarization protection | |
Command and Control | ||
Control Interface | RS232/RS422 | |
Calibration | Manual calibration, background calibration | |
Polarization | White hot/white cold | |
Digital Zoom | ×2, ×4 | |
Image Enhancement | Yes | |
Reticle Display | Yes | |
Image Flip | Vertical, horizontal | |
Environmental | ||
Working Temperature | -40℃～60℃ | |
Storage Temperature | -40℃～70℃ | |
Appearance | ||
Size | 241mm(L)×110mm(W)×96mm(H) | |
Weight | ≤2.2kg | |
Company Profile
Beijing Radifeel Technology Co., Ltd, is the integrated supplier of thermal imaging products with the capability of design, R&D and manufacture.
200 more staff work in six office buildings (cover an area of 9,000 sqm), 50% of the staff are the experts in the concerning fields, a team of experienced senior engineers, independent intellectual technology and professional product lines, support the production capacity of thermal imaging products and IR lenses assembling & debugging, our products are widely used in the field of outdoor observation，petrochemical, power supply industry, perimeter security, emergency rescue, body temperature screening,smart home and consumer electronics and more.
With the ISO 9001 QC management system, professional QC control laboratory and personnel team, Radifeel enables each component from the lines are in qualified and best condition.
Our criterion is to guarantee the quality of the products, meeting the requirements of the clients, and offering the cost-efficient solution of thermal imaging products.
200 more staff work in six office buildings (cover an area of 9,000 sqm), 50% of the staff are the experts in the concerning fields, a team of experienced senior engineers, independent intellectual technology and professional product lines, support the production capacity of thermal imaging products and IR lenses assembling & debugging, our products are widely used in the field of outdoor observation，petrochemical, power supply industry, perimeter security, emergency rescue, body temperature screening,smart home and consumer electronics and more.
With the ISO 9001 QC management system, professional QC control laboratory and personnel team, Radifeel enables each component from the lines are in qualified and best condition.
Our criterion is to guarantee the quality of the products, meeting the requirements of the clients, and offering the cost-efficient solution of thermal imaging products.
Certifications
ISO9001 CE EAC Explosive Atmospheres Certificate

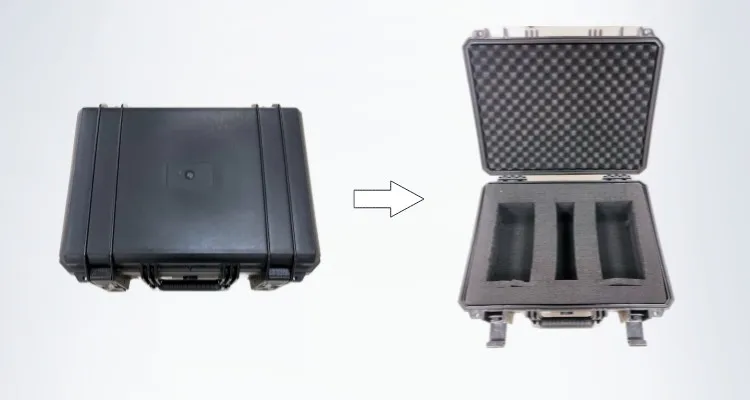

Packing & Shipping
