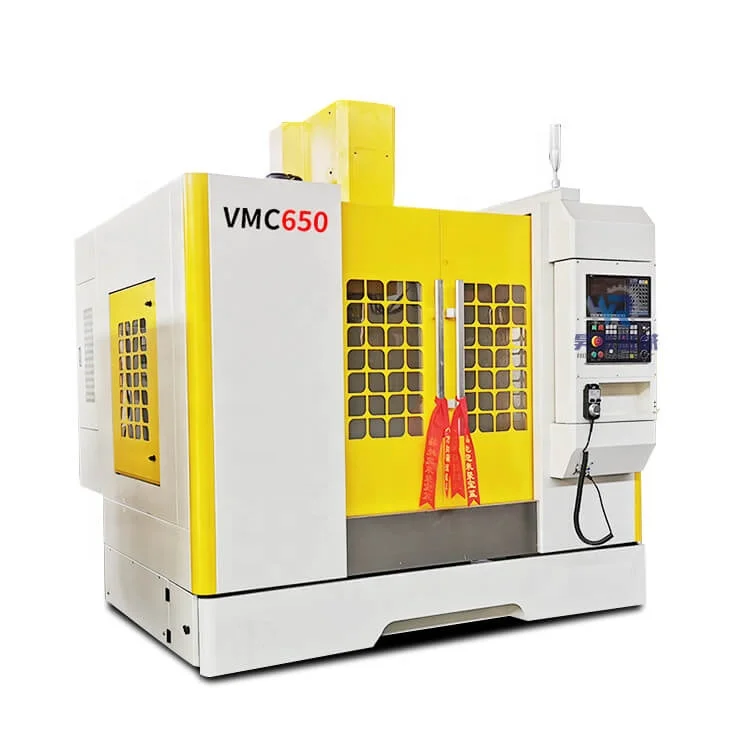

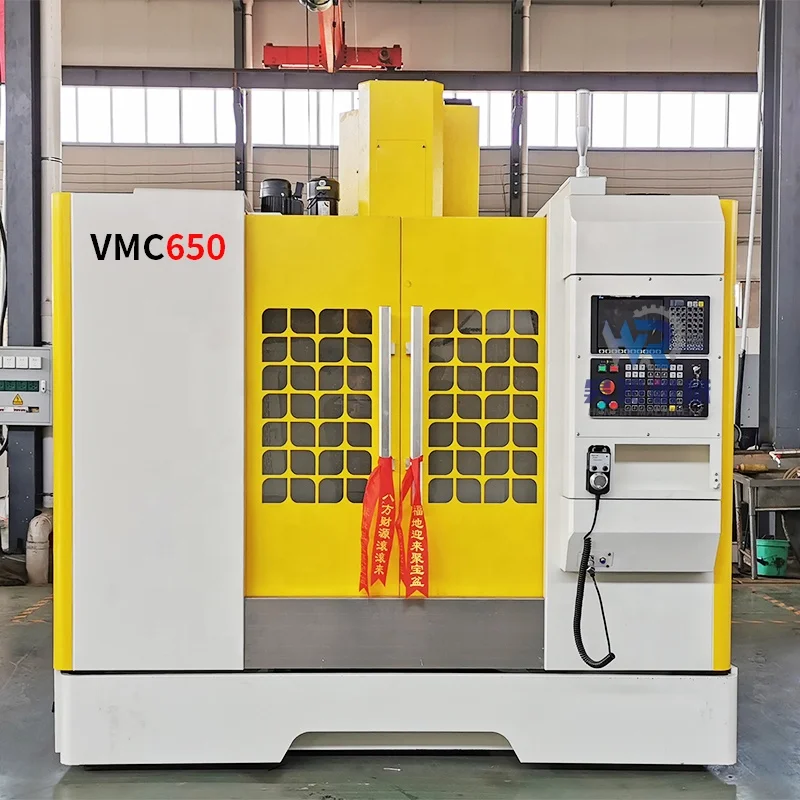

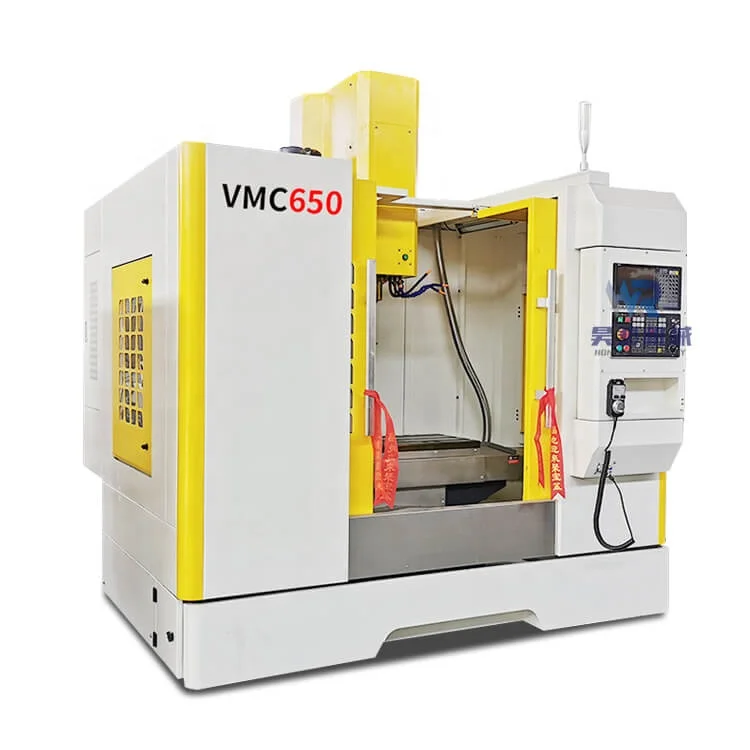

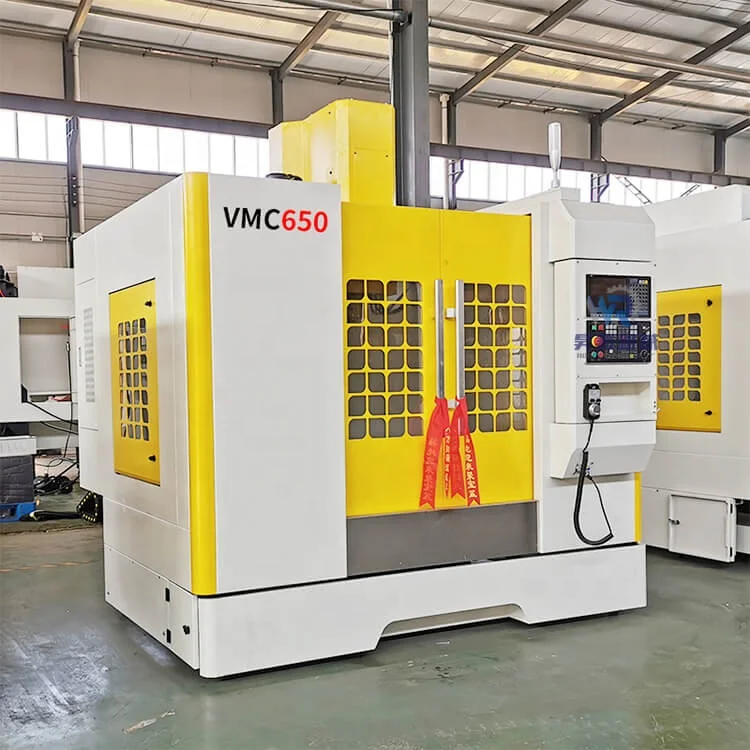

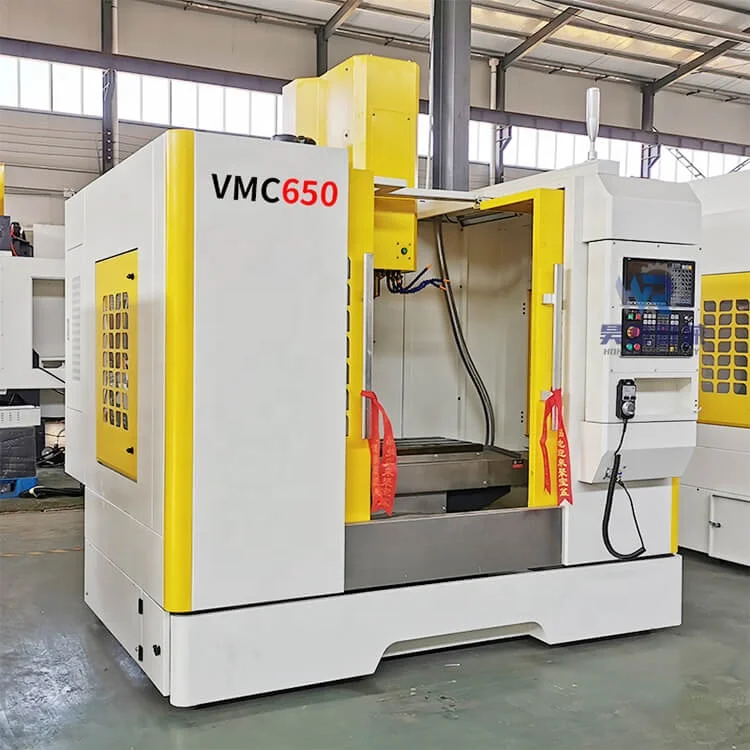

High precision mini cnc milling machine 4 axis vmc 650 cnc metal milling machine
- Category: >>>
- Supplier: Shandong Honest Machinery Co. Ltd.
Share on (1600526615613):
Product Overview
Description
High precision mini cnc milling machine 4 axis vmc 650 cnc metal milling machine
Product Paramenters
Model | VMC650 | VMC840 | VMC850 | VMC855 | VMC966 I |
Table size (mm) | 1000x400 | 1000x400 | 1000x500 | 1000x550 | 1100x550 |
Max. allowable load (Kg) | 400 | 300 | 500 | 500 | 600 |
X-axis stroke (mm) | 650 | 800 | 800 | 800 | 900 |
Y-axis travel (mm) | 400 | 400 | 500 | 550 | 600 |
Z-axis travel (mm) | 550 | 550 | 500 | 550 | 600 |
T-slot | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 | 5-18-100 |
spindle center to Z-axis guide surface (mm) | 485 | 445 | 552 | 590 | 663 |
spindle end face to work table (mm) | 100-650 | 100-650 | 110-610 | 120-670 | 100-700 |
Spindle taper hole | BT40-120 | BT40-120 | BT40-140 | BT40-150 | BT40-150 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 |
X/Y/Z rapid movement (m/min) | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 | 48/48/48 |
Machine Weight (Kg) | 3800 | 3200 | 5300 | 5500 | 5600 |
Model | VMC1050 | VMC1160 | VMC1165 | VMC1265 I | VMC1370 I | VMC1580 |
Table size (mm) | 1200x420 | 1200x600 | 1200x600 | 1200x600 | 1400x700 | 1700X800 |
Max. allowable load (Kg) | 500 | 800 | 800 | 800 | 800 | 1500 |
X-axis stroke (mm) | 1000 | 1100 | 1100 | 1200 | 1300 | 1500 |
Y-axis travel (mm) | 500 | 600 | 650 | 650 | 700 | 800 |
Z-axis travel (mm) | 550 | 600 | 650 | 650 | 750 | 700 |
T-slot | 5-18-100 | 5-18x100 | 5-18-100 | 5-18-100 | 5-18-130 | 5-22-135 |
spindle center to Z-axis guide surface (mm) | )575 | 650 | 710 | 710 | 713 | 855 |
spindle end face to work table (mm) | 100-650 | 120-720 | 120-720 | 120-770 | 120-870 | 160-860 |
Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT50-155 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 |
X/Y/Z rapid movement (m/min) | 18/18/18 | 36/36/24 | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/18 |
Machine Weight (Kg) | 5500 | 6500 | 6800 | 7000 | 8000 | 12000 |
Product Description
Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to.
The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Advantages
The advantages of Machining center vmc 650
1. The main parts of machine tool 855 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
2. Machining center 650 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 650 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.

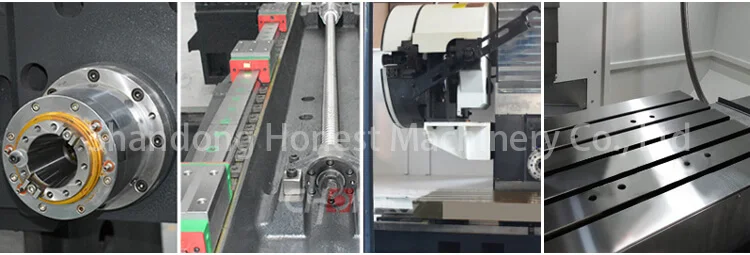

4. Machining center 650 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
2. Machining center 650 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 650 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 650 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Certifications
Customer Photos
FAQ
1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
3. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
3. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
