Dc To Ac Inverter Off Grid Hybrid Solar Inverter 12v 24v 48v Pv Photovoltaic Inverter With Built in Mppt Charge Controller
- Category: >>>
- Supplier: Lanzhou Great Wall Electrical Power Equipment Co. Ltd.
Share on (1600526622491):
Product Overview
Description
Product Description
Ls-t Dc To Ac Inverter Off Grid Hybrid Solar Inverter 12v 24v 48v Pv Photovoltaic Inverter With Built-in Mppt Charge Controller
Feature :
1. Hybrid Inverter pure sine wave output.
2. Intelligent LCD integration display.
3. Low frequency toroidal transformer lower loss.
4. Inverter Charger/ Solar Inverter Charger / Built-in PWM or MPPT controller optional.
5. AC charge current 0~30A adjustable, three working modes selectable.
6. Peak power more than 3 times, full-automatic and perfect protection function.
7. Added fault code query function, easy to monitor the operation in real time.
8. Supports diesel or gasoline generator, adapt any tough electricity situation.
9. Combine industrial and home usage, wall-mounted design, convenient installation.

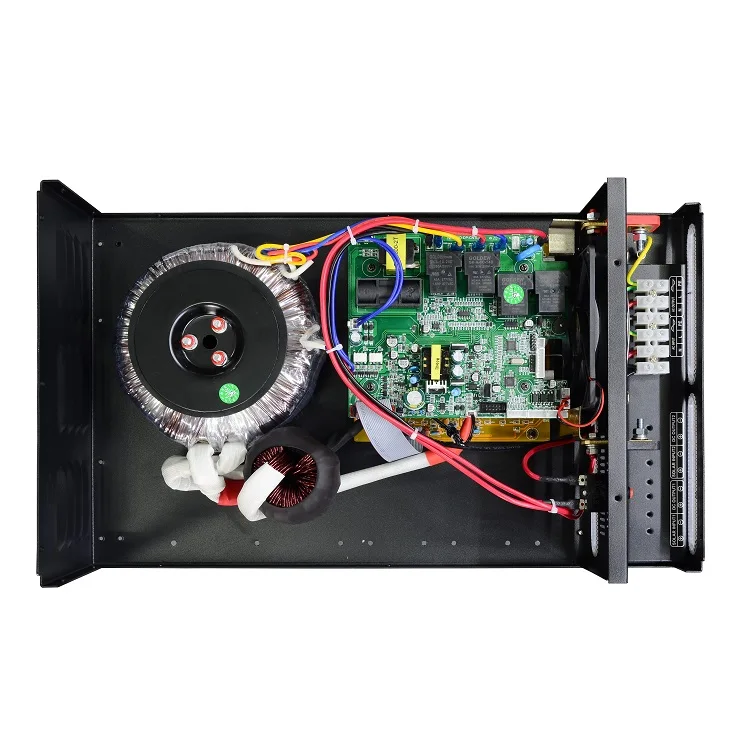

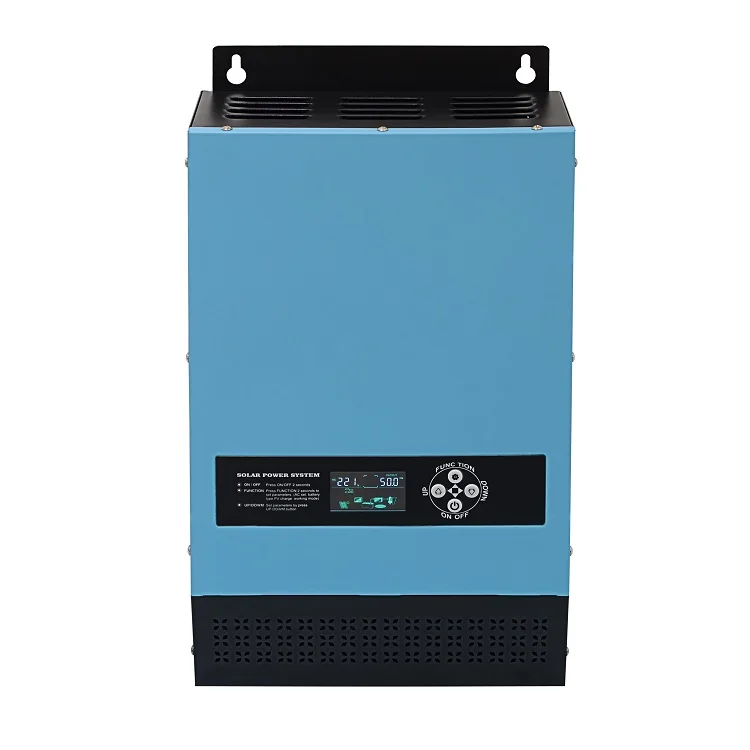

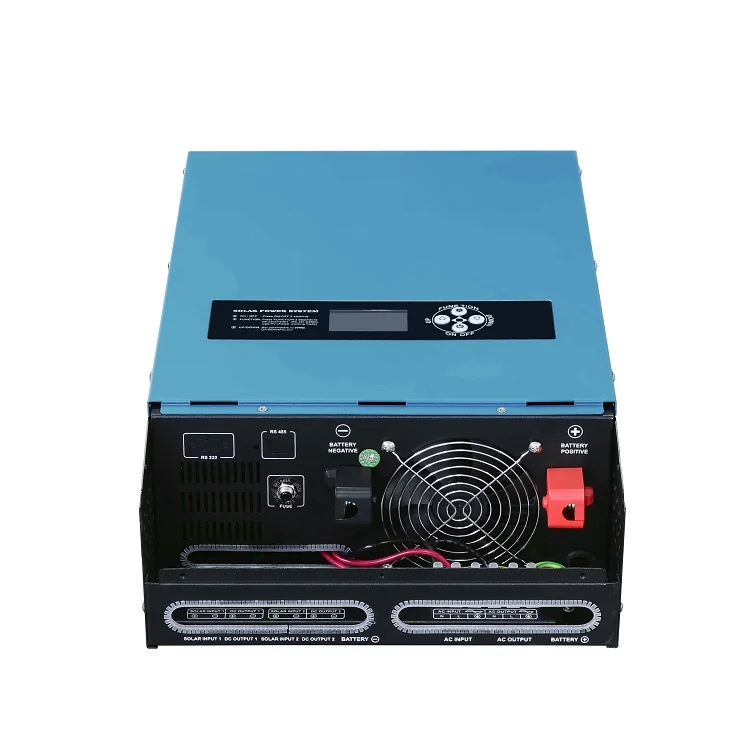

Product Details :
Specification :
| Model LS | 10212/24 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | |
| Rated Power | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW | |
| Peak Power(20ms) | 3KVA | 6KVA | 9KVA | 12KVA | 15KVA | 18KVA | |
| Start Motor | 1HP | 2HP | 3HP | 3HP | 4HP | 4HP | |
| Battery Voltage | 12/24VDC | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | ||
| Size(L*W*Hmm) | 490*300*130 | 510*320*140 | |||||
| Packing Size(L*W*Hmm) | 565*395*225 | 585*415*225 | |||||
| N.W.(kg) | 11.5 | 17.5 | 19.5 | 21.5 | 23.5 | 25.5 | |
| G.W.(kg)(Carton Packing) | 13 | 19 | 21 | 23 | 25 | 27 | |
| Installation Method | Wall-Mounted | ||||||
Parameter :
Note: All specifications are subject to charge without prior notice

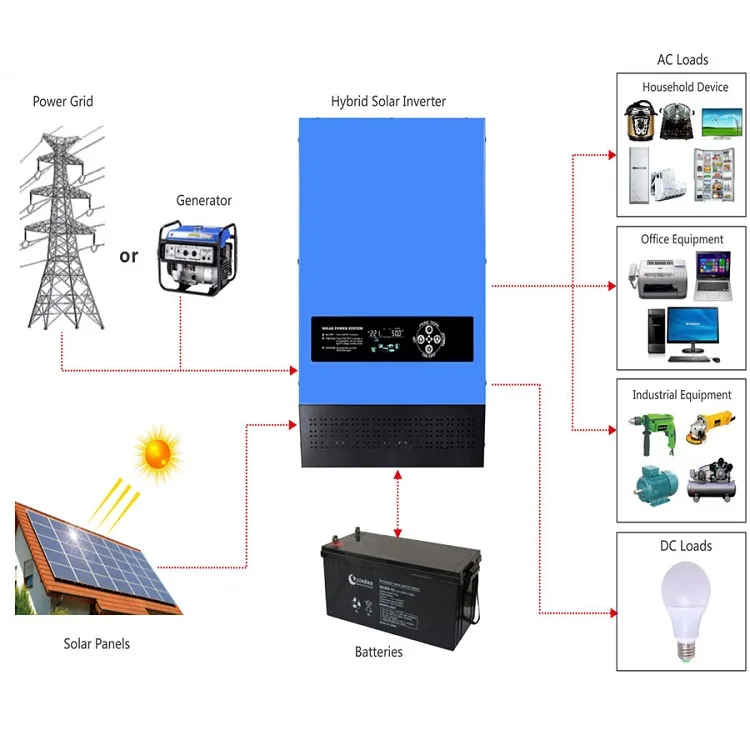

Wiring Diagram :
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.

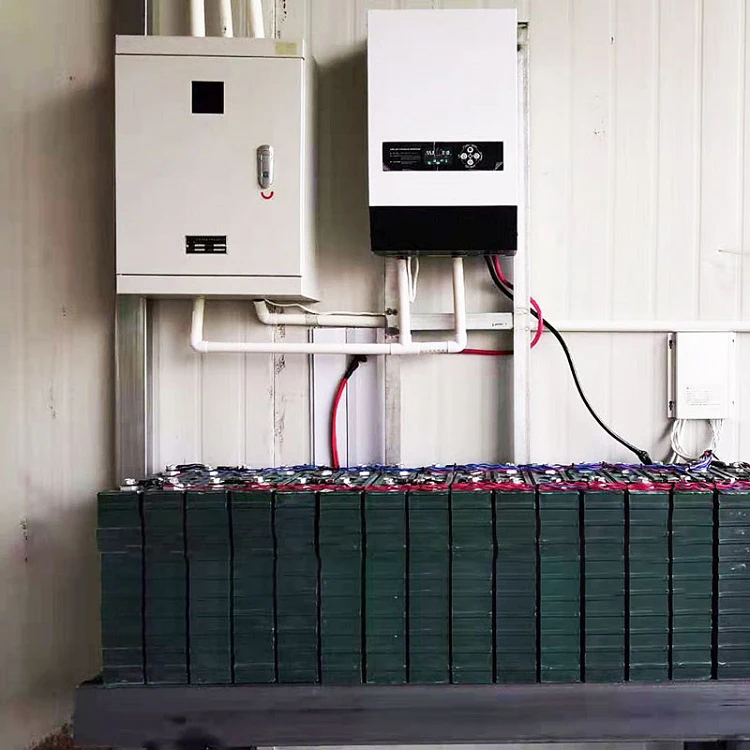

Application :
Packing :
