Precast concrete boundary wall machine for making concrete fence wall and columns

Share on (1600526626017):


Price:

Quantity:


Product Overview

Description



Product Overview


Precast Fence Wall Making Machine
The precast concrete fence wall is a new type of wall structure composed of wall panels and H-shaped columns. The production of precast fence walls requires at least two main machines, namely the concrete boundary wall panel machine and the concrete H column machine. We called the two machines as precast concrete fence wall machine or precast boundary wall machine Both machines work on
the extrusion or pushing principle.


FEATURES AT A GLANCE

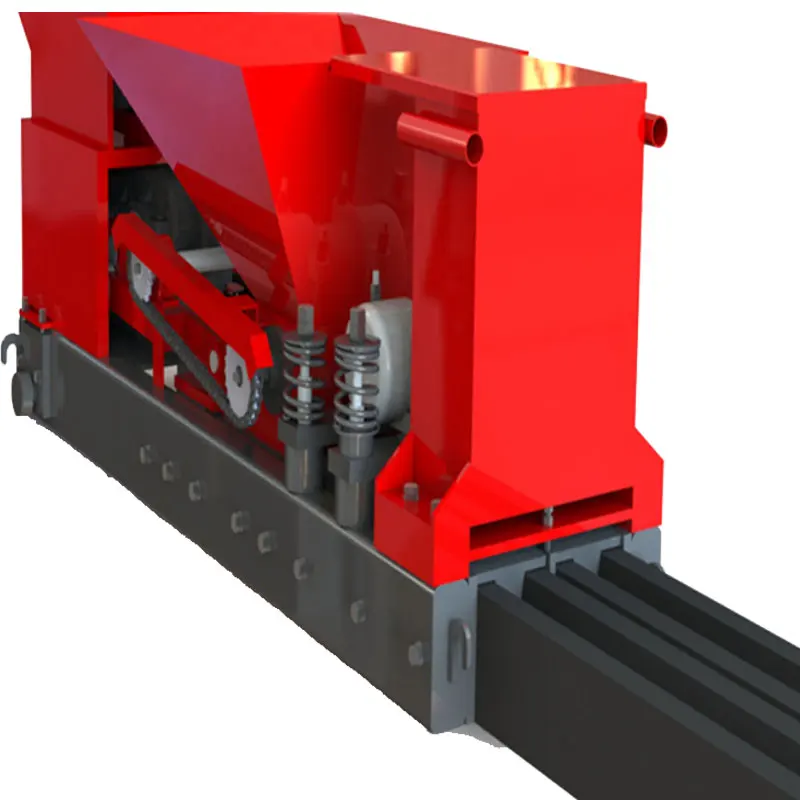

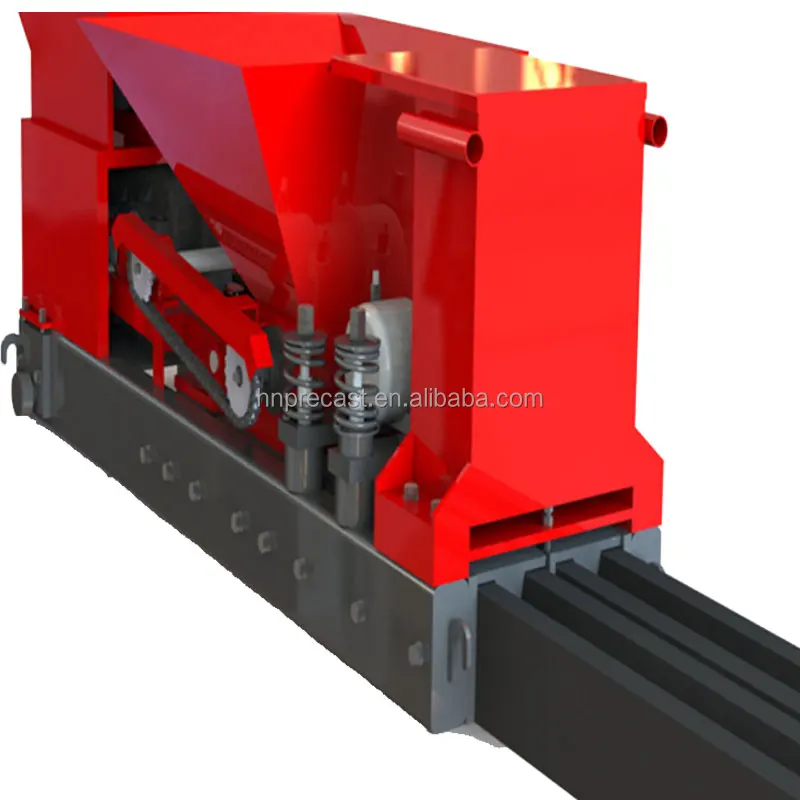

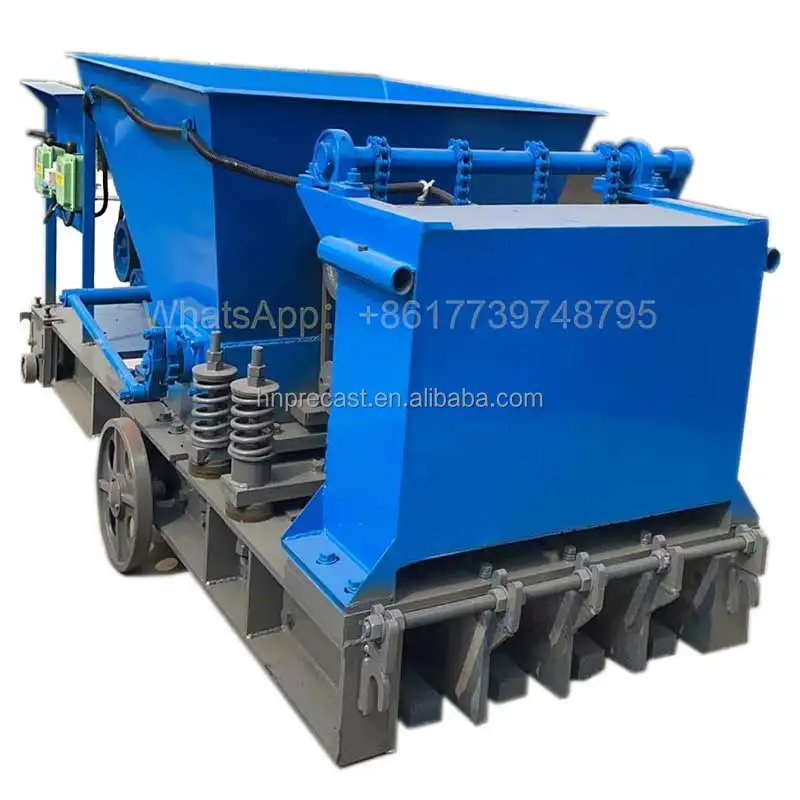

Concrete H column machine for fence walls
The equipment has many obvious features such as reasonable structure, convenient maintenance, flexible operation, low energy
consumption, and high production efficiency. It is also equipped with a lifting walking mechanism, which is flexible to move and
easy to disassemble. It is ideal and energy-saving production equipment to make concrete H posts.

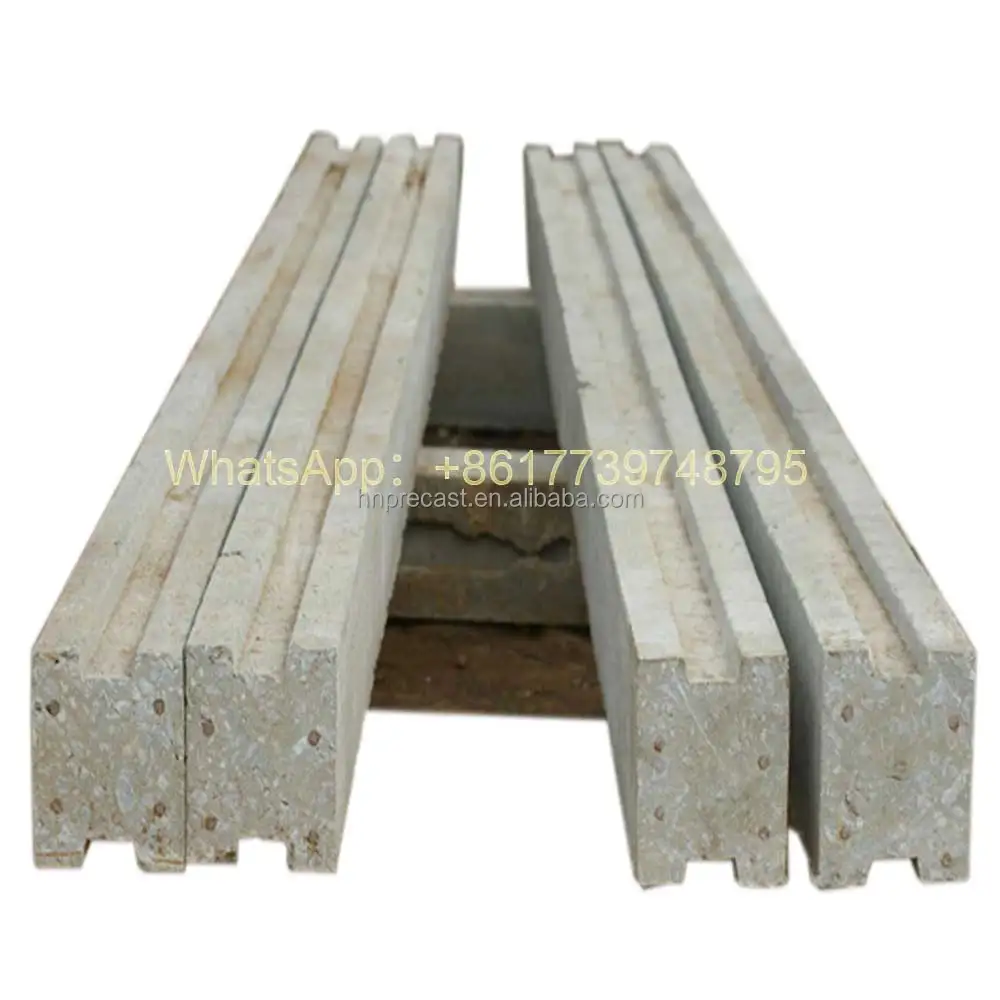

About the Finished Products of H beam
The H beam or columns are mainly used for supporting the wall panels in the structure of the concrete boundary wall. We can design
the concrete h column machine o make the different sizes (thickness×width ) of the H beams or columns to fit the different
thickness of wall panels. Please refer to below sizes of H columns and its matching wall panels


The key parts inside the machine are made of wear-resistant alloy raw materials.
The new deceleration and transmission system makes the machine run more smoothly.
Convenient operation and control switch, easier to operate. No special skills required




About the Finished Products of H beam
The H beam or columns are mainly used for supporting the wall panels in the structure of the concrete boundary wall. We can design the concrete h column machine o make the different sizes (thickness×width ) of the H beams or coulns to fit the different thickness of wall panels. Please refer to below sizes of H columns and its matching wall panels
1. H columns|beams (150×150mm) to support the 50mm thick wall panels. Size 50×300m or 50×600mm
2. H columns|beams (180×180mm) to support the 75 or 80mm thickness wall panels sizes 75*600 or 80*600
3. H columns|beams (200×200mm) to support the 90 mm thickness wall panels size 90*600mm

Besides, we can design the machine to make the H beams sizes to fit your wall panels

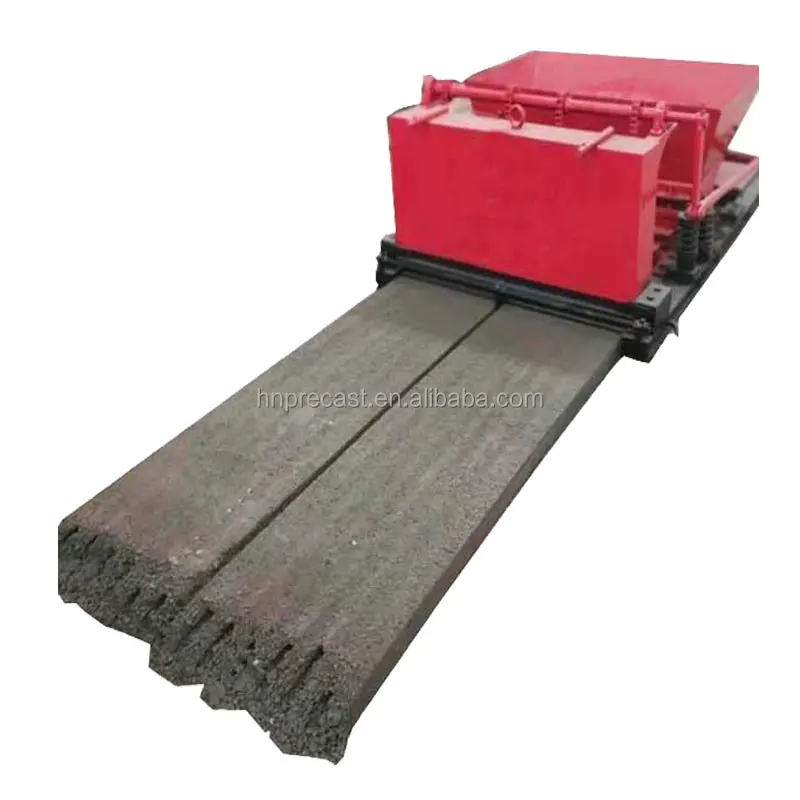

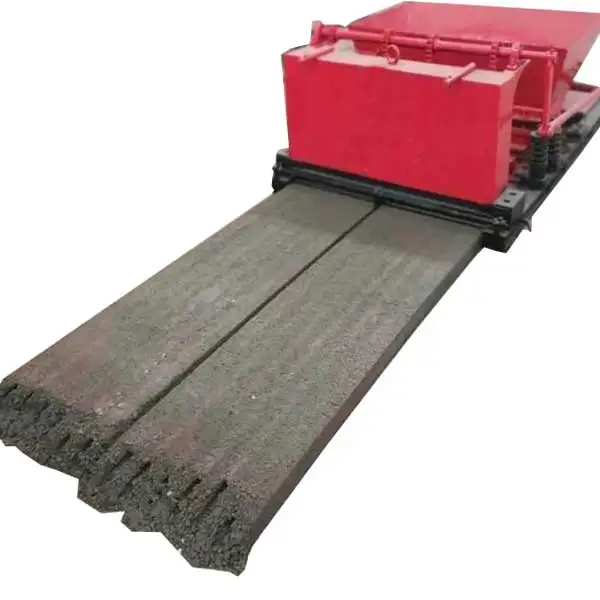

Fence wall panel machine
The machine can make two lines of wall panels at one time


PRODUCT SPECIFICATIONS


No
Models
Beam sizes
No. of beams
For Wall panel thickness
1
TWT12X12
12X12CM
4 beams
4-5CM
2
TWT-15X15
15X15CM
3-4 beams
5-6CM
3
TWT 18X18
18X18CM
2 beams
7-8CM
4
TWT-20X20
20X20CM
2 beams
9-10CM
5
TWT-22X25
25X25CM
2 beams
12-15CM


Finshed Products And Applications

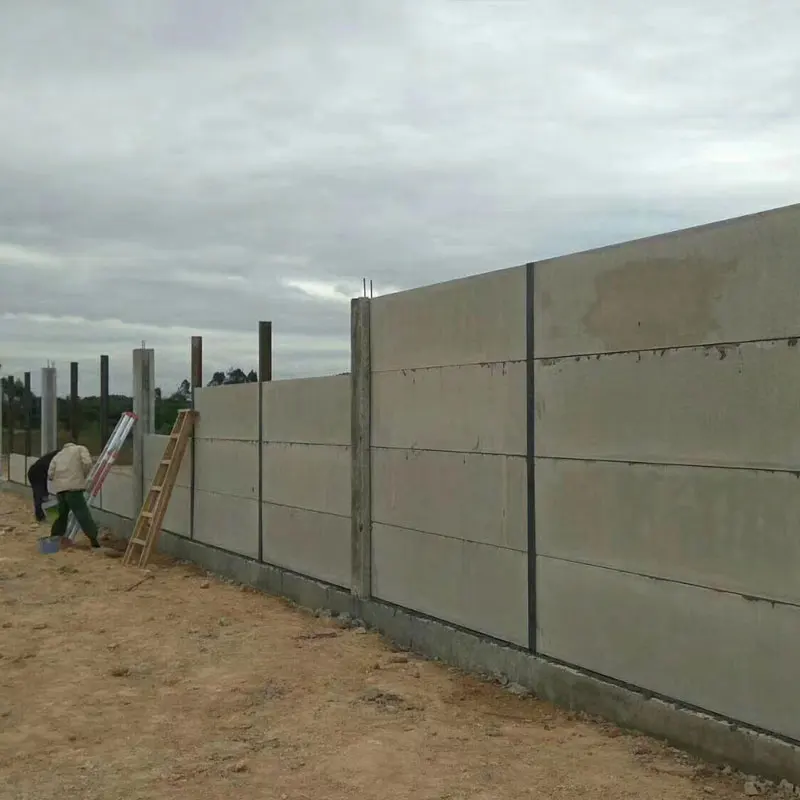

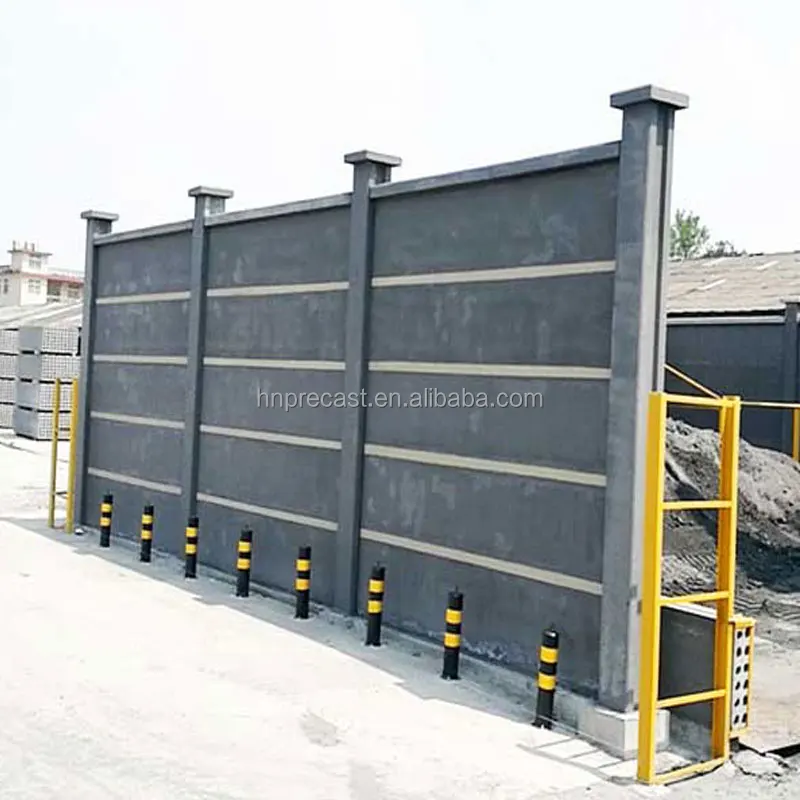

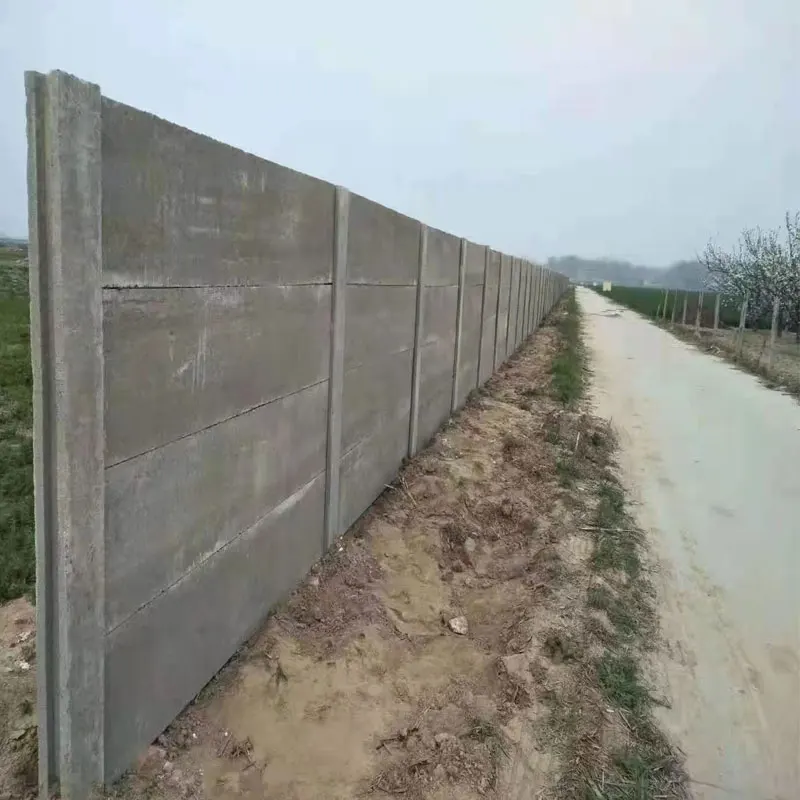

Concrete boundary wall

H columns
Simple Precast concrete house




FAQ


Q1:What sizes of beam your machine can make ?
A1: We can customize the machine as per your requirement
Q2: How long is your lead time?
A2: 10- 15working days
Q3: How is this machine packed and shipped
A3:wood case for LCL or nude packed in the container
