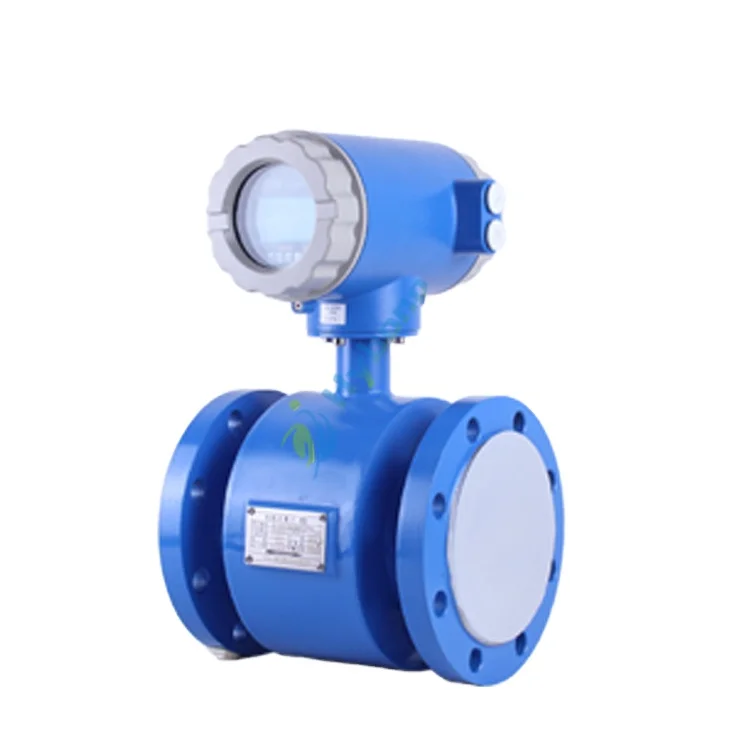

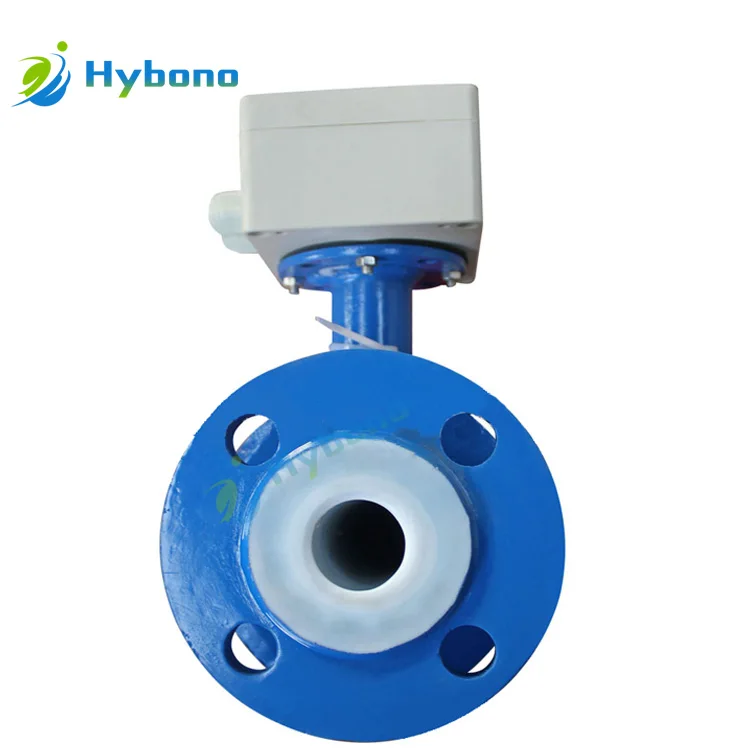

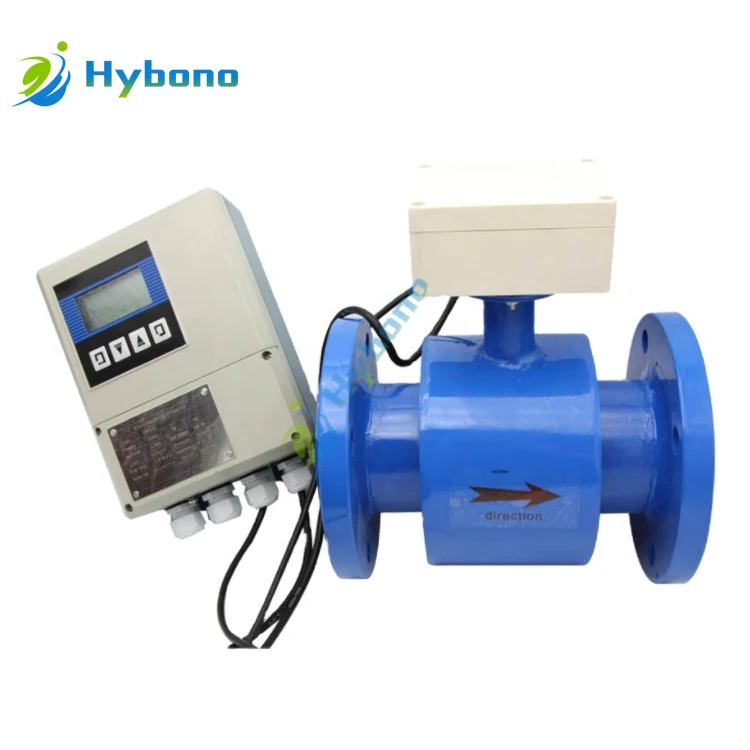

Digital flowmeter electronic flow meter industrial intelligent sewage water magnetic electromagnetic flowmeter

Medium

Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc

Diameter

DN6~DN2200mm

Accuracy

±0.5%

Medium temperature

<60℃

Nominal pressure

GB 0.6MPa (DN700~DN2000)

GB 1.0MPa (DN200~DN600)

GB 1.6MPa (DN6~DN150)

DIN PN16,PN25,PN40,PN63

JIS10K,20K,40K

ANSI Class150,Class300,Class600, others can be customized

Flow rate

0.3~10m/s

Straight pipe required

Upstream ≥5DN,downstream ≥3DN

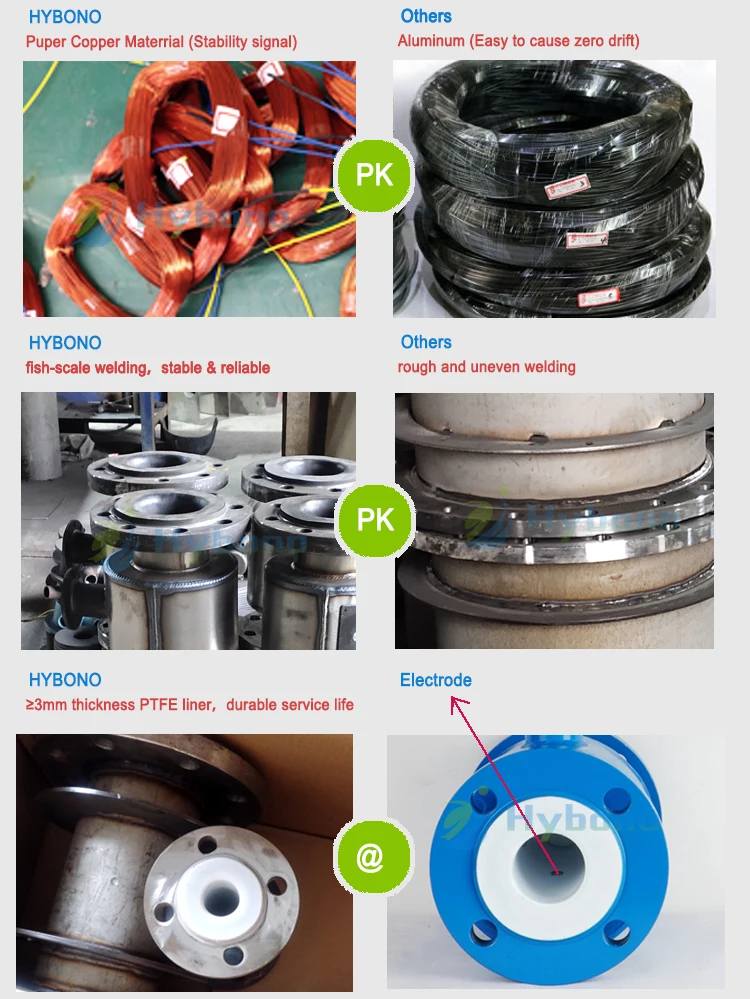

Electrode

316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt)

Lining material

Chloroprene rubber(CR), polyurethane rubber(PU)

Installation way

Carbon steel flange (standard), Stainless steel flange(optional)

Body material

Carbon steel (standard),Stainless steel(optional)

Power supply

220VAC/24VDC/lithium battery

Signal output

Pulse and 4~20mA; (if use lithium battery, without signal output)

Communication

RS485,GPRS,Hart

Explosion-proof

EXdeibmIICT3-T6

Protection proof

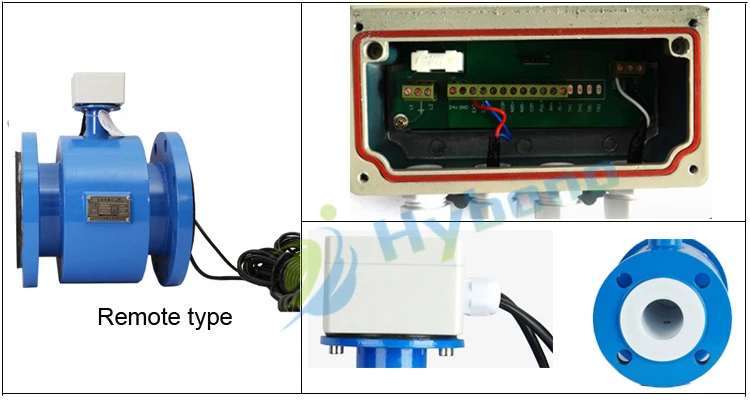

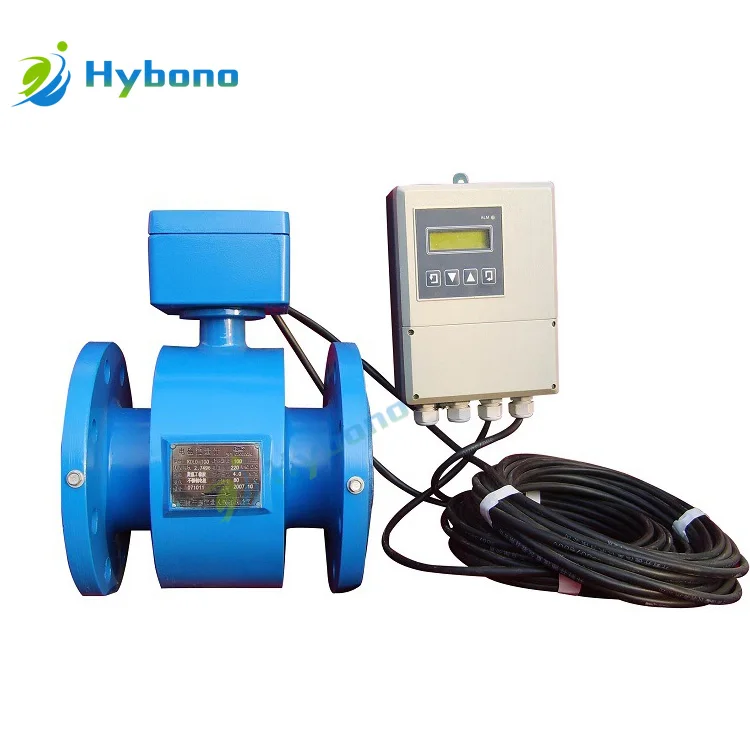

IP65 (compact type); IP67,IP68(suitable for remote type)

Work environment

Ambient temperature:-20~+60℃,Ambient humidity:5%~90%

Power

<20W
