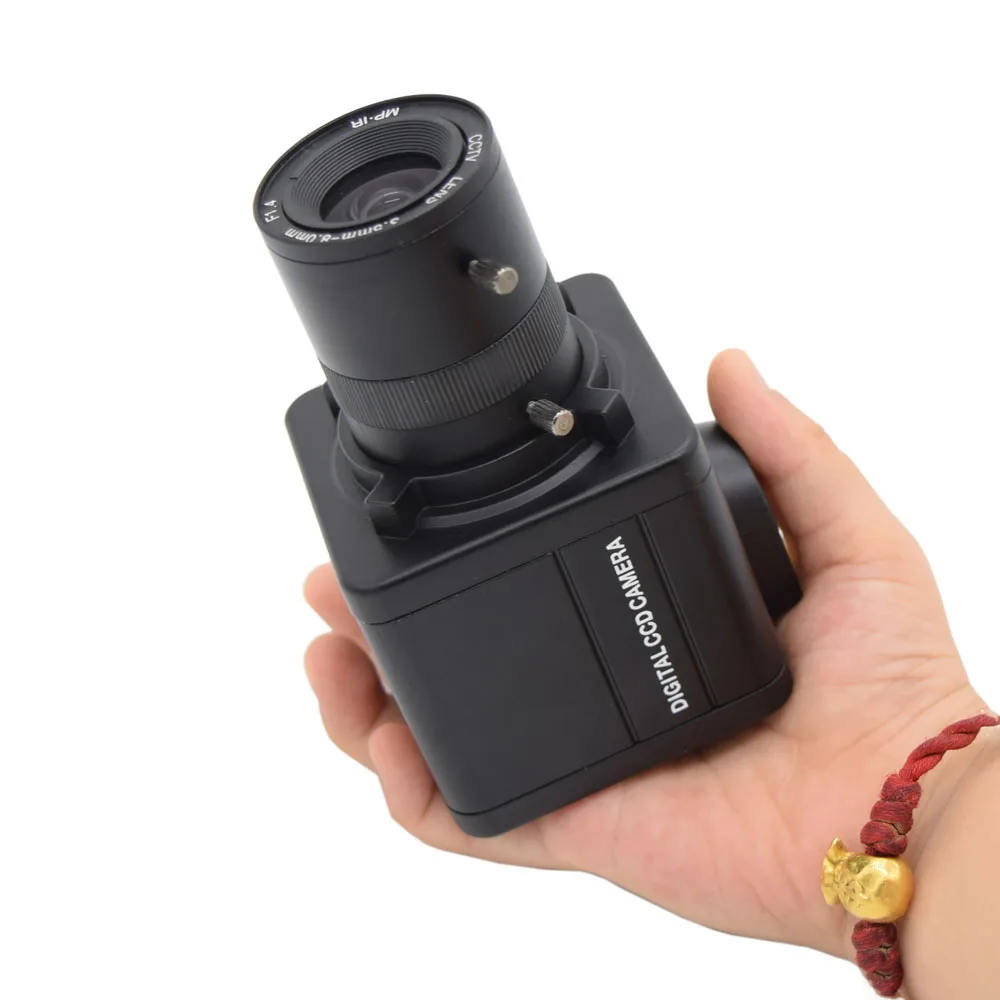

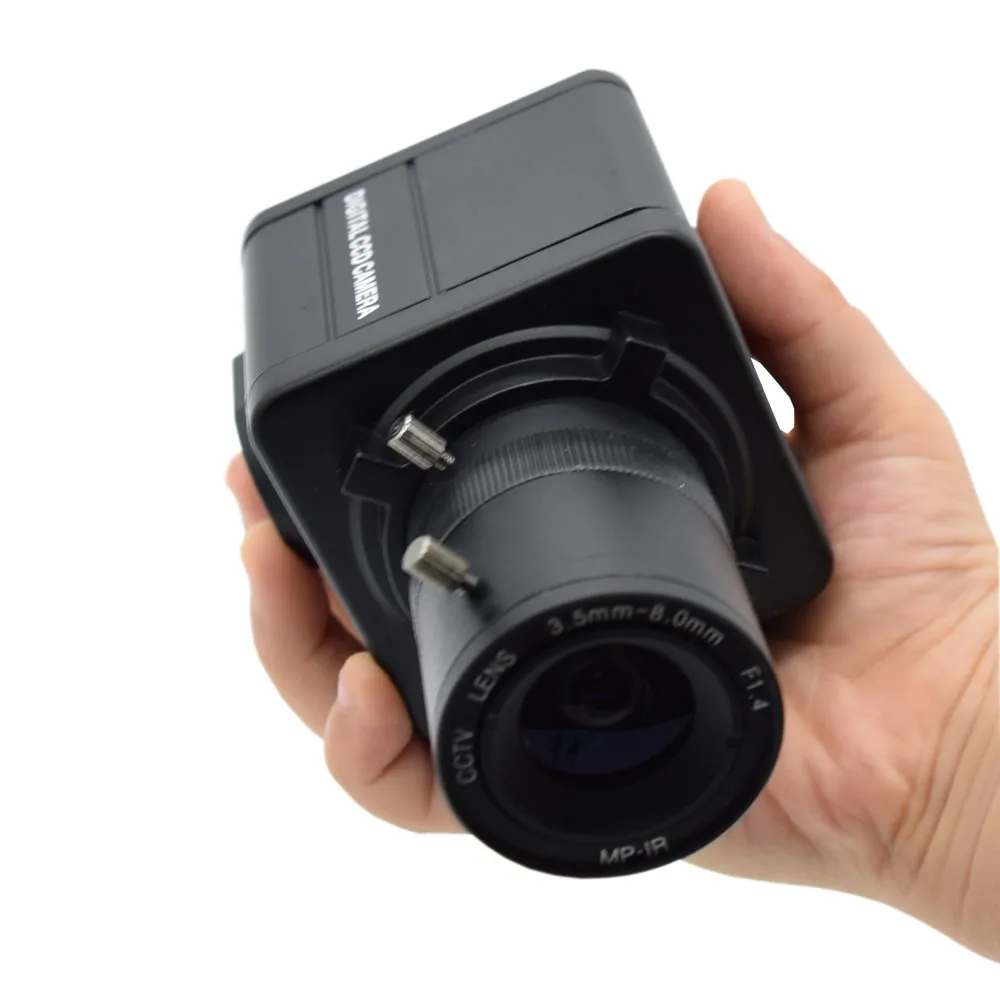

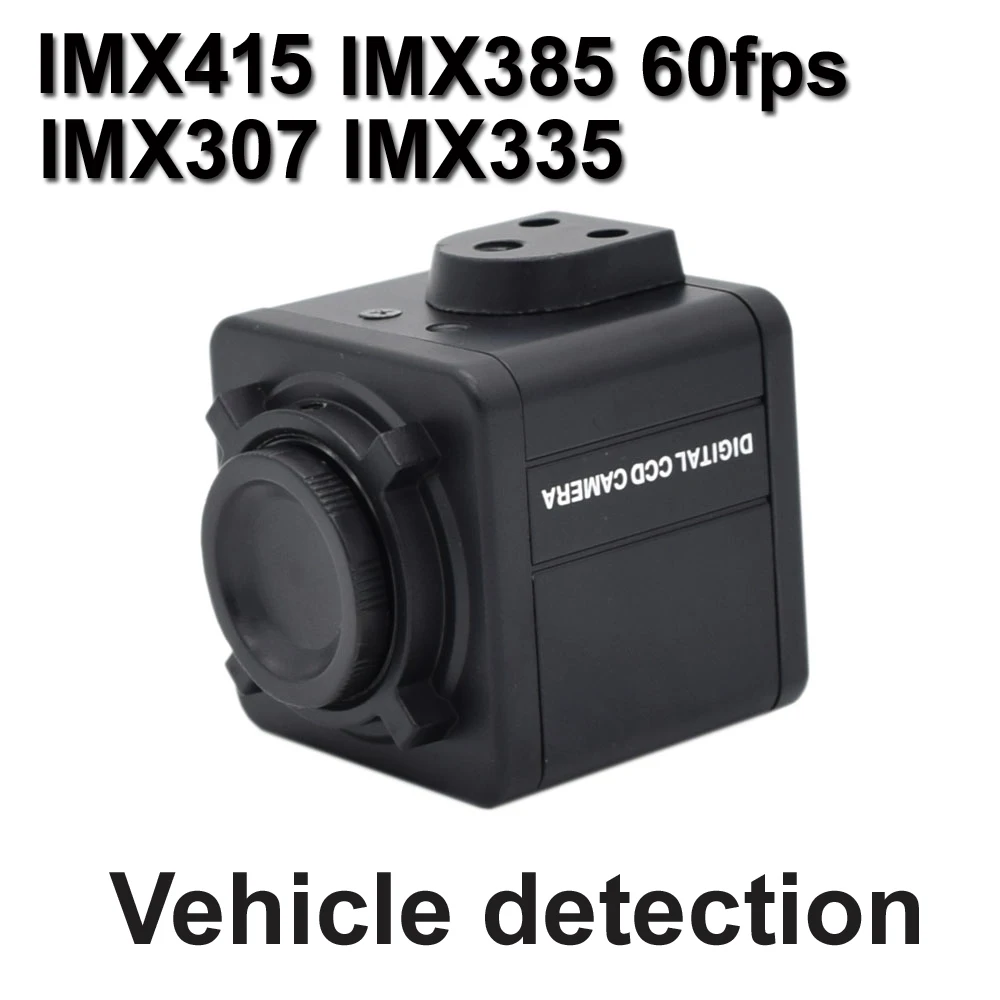

USB BOX CAMERA Webcam IMX274 IMX298 IMX317 IMX334 IMX377 IMX415 IMX577 IMX385 Starvis 120fps 60Fps PC Industrial Medical
- Category: >>>
- Supplier: Shenzhen Hanqin Electronic Technology Co. Ltd.
Share on (1600526630642):
Product Overview
Description
IMX385 Specifications

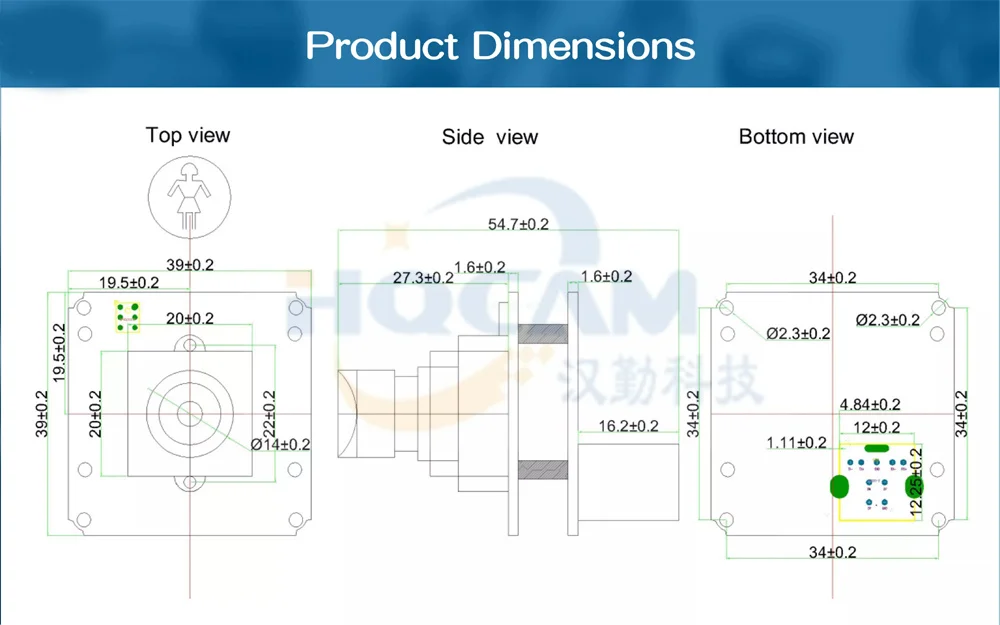

Module Size | 39*39mm |
Sensor | 1/2-Inch IMX385 CMOS Sensor |
Pixel Size | 3.75*3.75µm |
Resolution | 1920 H x 1080 V |
Output Format | MJPEG, YUY2 |
FOV | D:63.3°H:54°V:29° |
Lens | FEL:6mm F/NO:1.2 5G+650IR(M12-0.35P) |
Focus Type | Fixed Focus or Manual Focus |
Shutter Type | Electronic Rolling Shutter |
Audio Input | Digital Mic |
Output and Power Supply | High Speed USB2.0 |

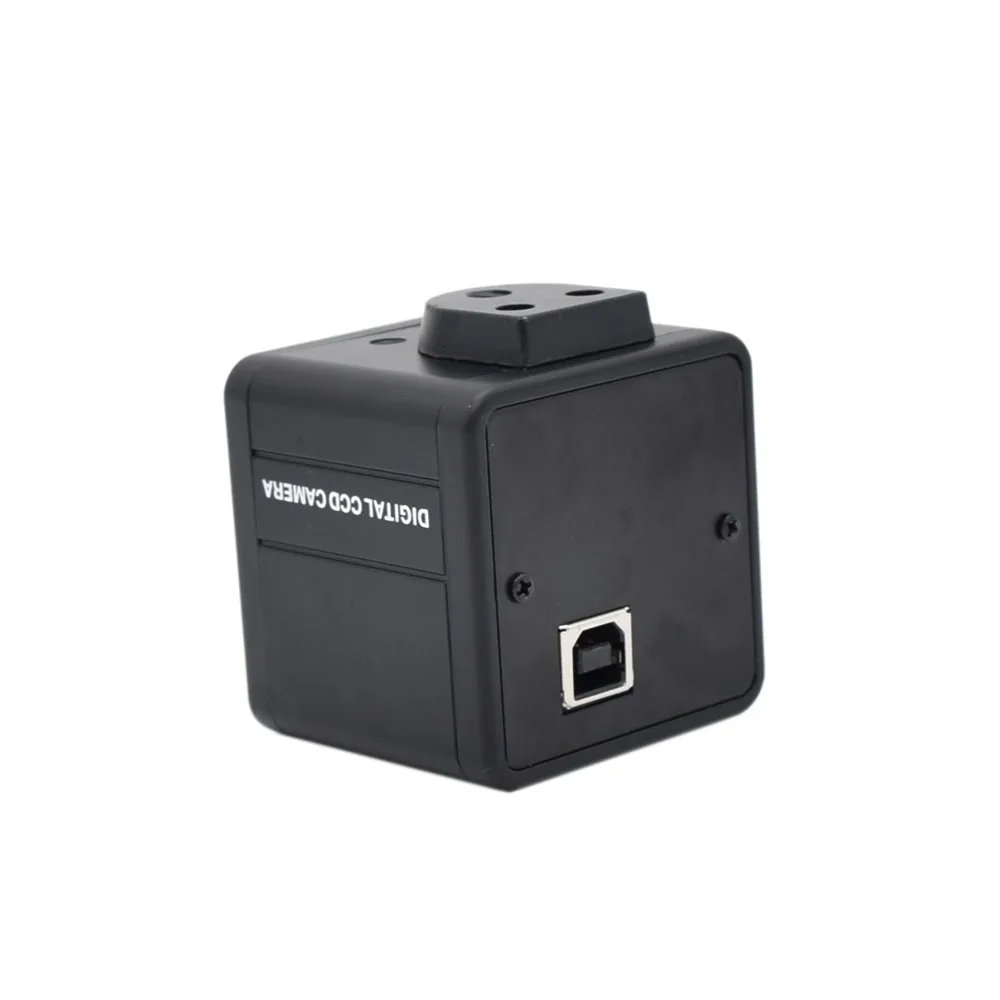

Interface | USB Type B Male Socket |
Controllable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS | Windows, Android, Linux, Mac OS |
Cable Length | Default 1.0 Meter USB Cable |
Format | Resolution | Frame Rate (USB2.0) |
MJPEG | 1920 x 1080 | 60FPS |
1280 x 720 | 60FPS | |
640 x 480 | 60FPS | |
YUY2 | 1920 x 1080 | 5FPS |
1280 x 720 | 8FPS | |
640 x 480 | 30FPS |
Pin No. | Signal Name | Description |
1 | VCC | 5V Power |
2 | DM | USB2.0 Data- |
3 | DP | USB2.0 Data+ |
4 | GND | GND |
Operating Voltage | USB DC +5V Supply |
Operating Current | 200mA |
Operating Temperature | -20℃ ~ 70℃ |
Storage Temperature | -20℃ ~ 85℃ |
Humidity | 80 ~85% |
usb

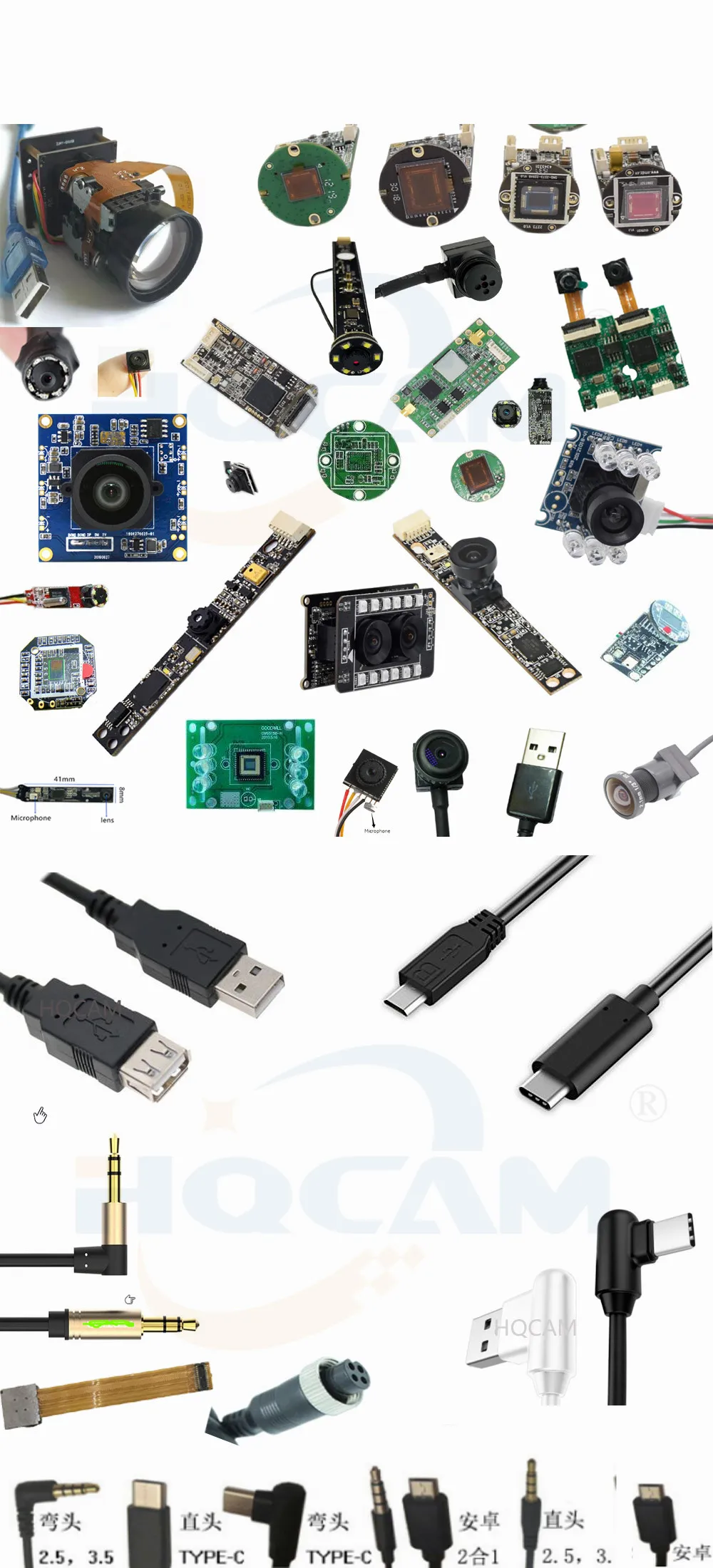

| PRODUCT CATEGORIES | ||||||||
 |  |  |  | |||||
| web camera | usb camera size 15x15mm | 4K | OTG | |||||
 |  |  |  | |||||
| endoscopic | Iris recognition | Global Shutter | Binocular camera | |||||
As for OEM, we can accept customization of different sizes and schemes. We promise not to charge development fee, but only charge deposit. The deposit will be returned after the purchase quantity meets the requirements.
