Household Use Freeze Dryer Machine Table Tope Freeze Dryer
- Category: >>>
- Supplier: Faithful Instrument (Hebei) Co. Ltd
Share on (1600526648023):
Product Overview
Description
VR
Product Description

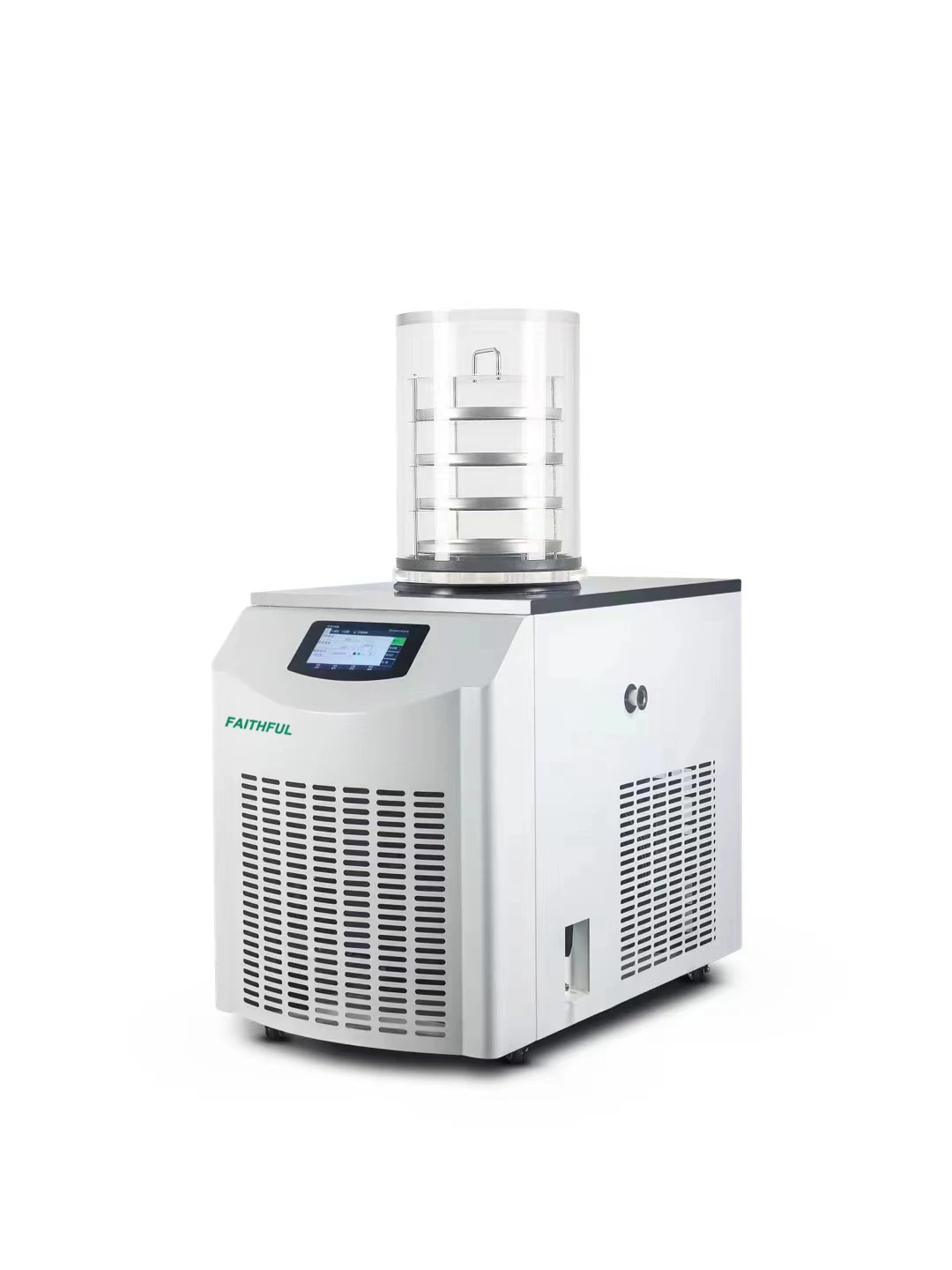

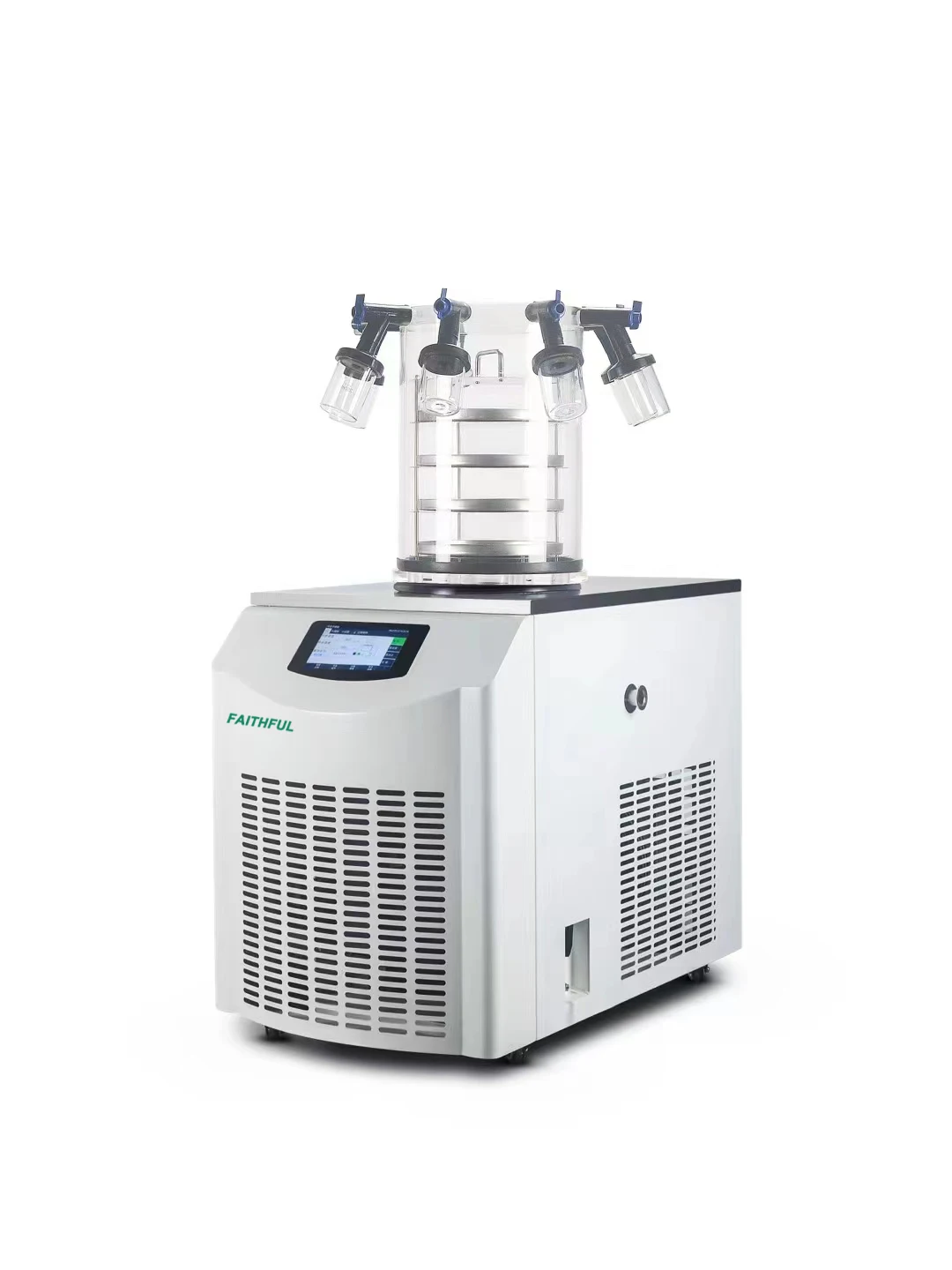

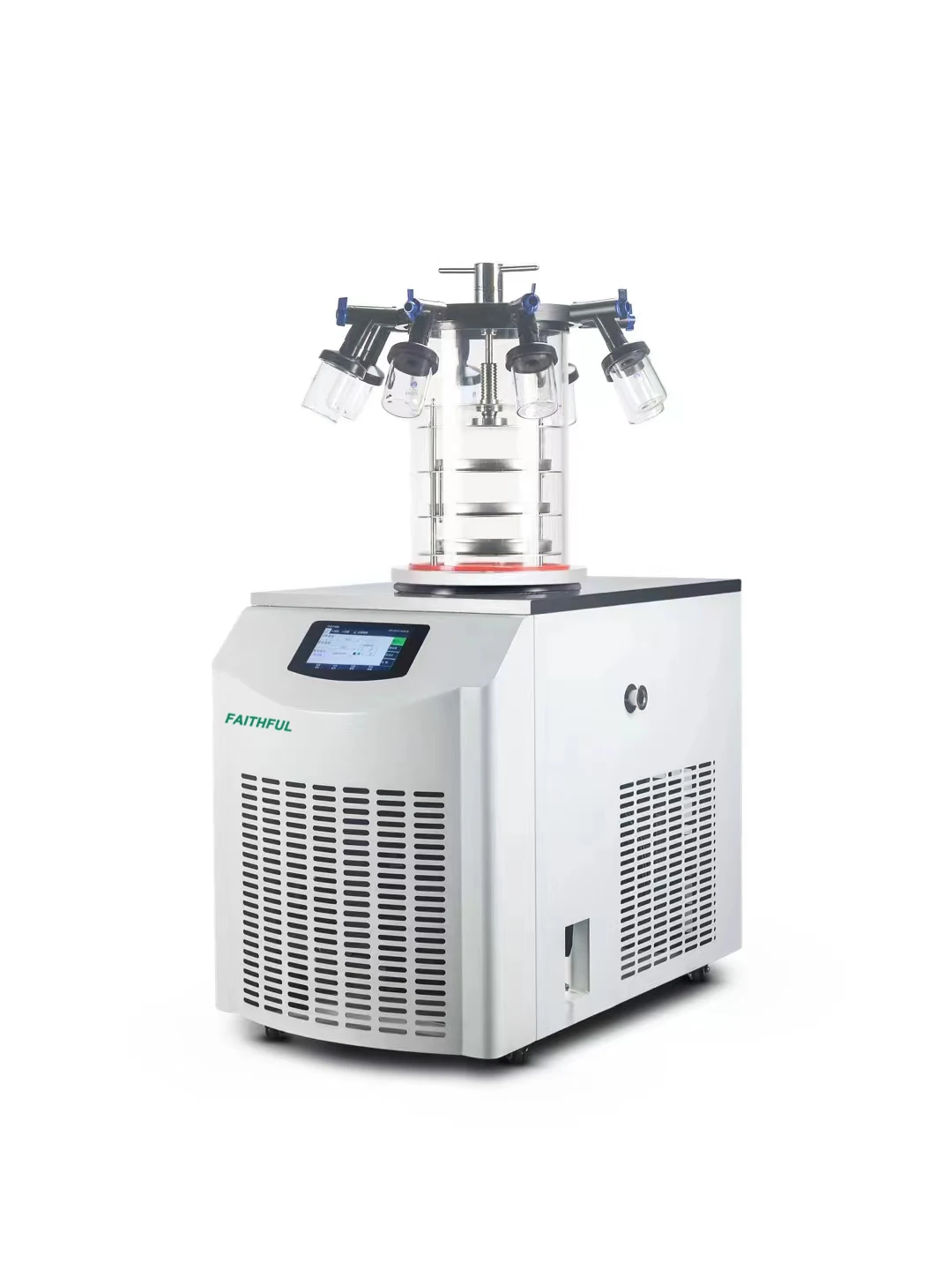

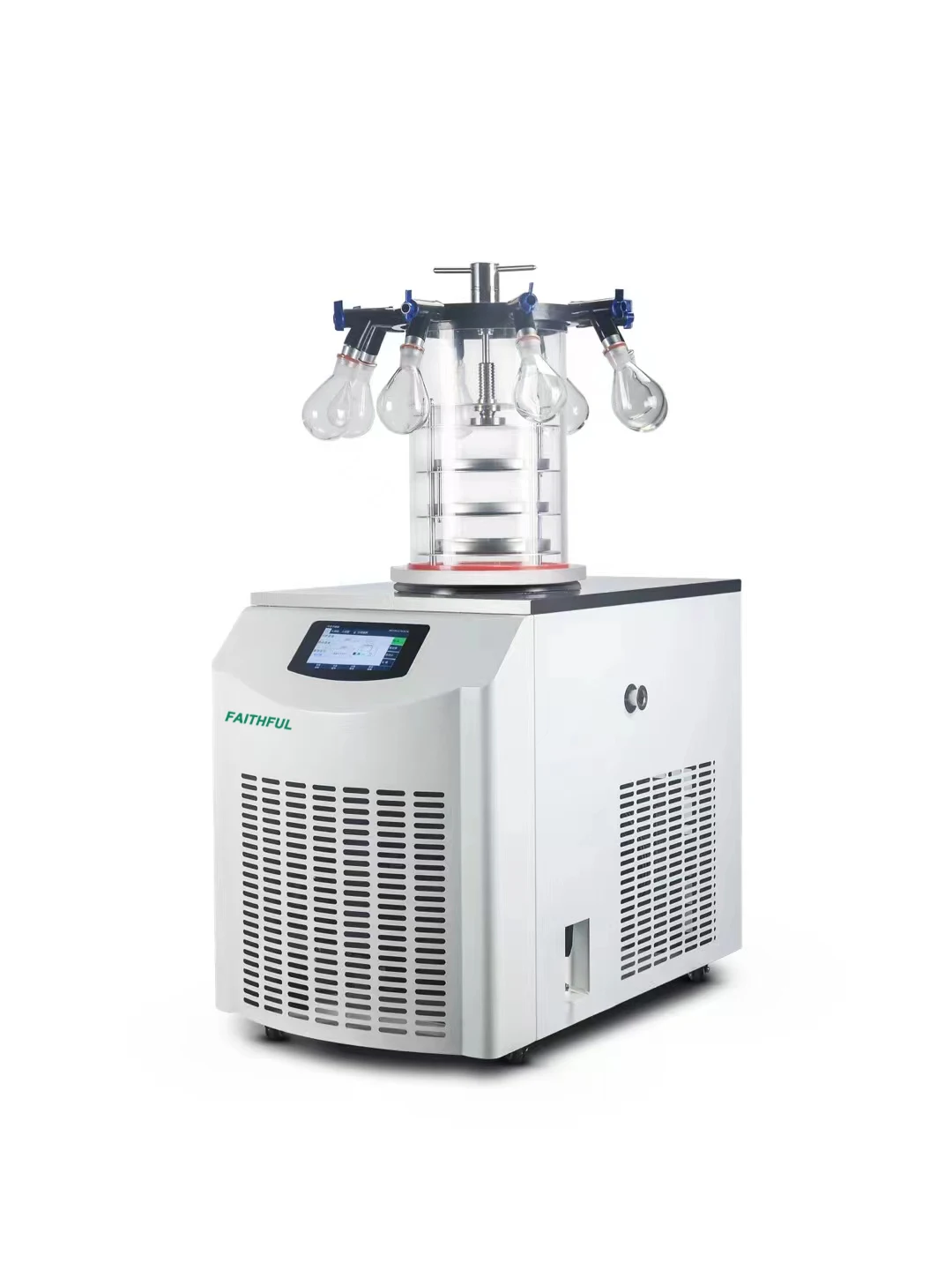

Table Top Freeze Dryer
Widely used in the fields of medicine, pharmacy, biological research, chemical industry and food. The freeze-dried articles are easy to be stored for a long time, and can be restored to the state before freeze-drying and maintain the original biochemical properties after processing.
Features
1. Refrigeration uses Linde-hampson, the world's leading technology, with a refrigeratory (secondary cooling by refrigeration),high refrigeration efficiency; 2. The use of environmentally friendly refrigerants (absolutely does not contain the refrigerantsbanned by the state, some manufacturers still use the mixed refrigerant scheme with the ratio of R 12 and R22 banned by the state);
3. Refrigeration temperature :
3.1 Temperature of cold trap up to standard (no load): <60 (DegC) and room temperature <28 (DegC)
3.2 Limit cold trap temperature (no load): <65 C, room temperature <25 C;
4. Using a 7-inch touch screen, the display is intuitive and easy to operate, without defining the inexplicable button selection.
5. Support freeze-drying data curve recording function;
6. The requirement of cold trap temperature can be set when the vacuum pump starts, so as to avoid starting the vacuum pump when the cold trap temperature does not reach the effective low-temperature water catching performance, resulting in water entering the vacuum pump;
7. With an additional set of sensors, it can be used to measure sample temperature and record data;
8. Temperature and vacuum have correction function;
9. Switching unit with vacuum pressure display, supporting Mbar (millibar), Pa (Pascal), Torr (Toll);
10. Free upgrade of electric defrosting function;
3. Refrigeration temperature :
3.1 Temperature of cold trap up to standard (no load): <60 (DegC) and room temperature <28 (DegC)
3.2 Limit cold trap temperature (no load): <65 C, room temperature <25 C;
4. Using a 7-inch touch screen, the display is intuitive and easy to operate, without defining the inexplicable button selection.
5. Support freeze-drying data curve recording function;
6. The requirement of cold trap temperature can be set when the vacuum pump starts, so as to avoid starting the vacuum pump when the cold trap temperature does not reach the effective low-temperature water catching performance, resulting in water entering the vacuum pump;
7. With an additional set of sensors, it can be used to measure sample temperature and record data;
8. Temperature and vacuum have correction function;
9. Switching unit with vacuum pressure display, supporting Mbar (millibar), Pa (Pascal), Torr (Toll);
10. Free upgrade of electric defrosting function;
Specification
Model | FSF-18N | ||||||
-60A | -60B | -60C | -60D | ||||
Basic Type | Top-down | Manifold | Down ＆ Manifold | ||||
Drying Area (M2) | 0.27 | 0.092 | 0.27 | 0.092 | |||
Tray (mm) | 240*4 | 200*3 | 240*4 | 200*3 | |||
Tray Capacity (L) | 2 | 1 | 2 | 1 | |||
No-Load Temperature | ＜-60℃ ( -80 ℃optional ) | ||||||
Vacuum （Pa） | ＜10Pa | ||||||
Inter Layer Spacing (mm) | 70 | ||||||
Ability To Capture Water (kg) | 6 | ||||||
Voltage (V/HZ) | 220V/50Hz/ I IOV/60HZ | ||||||
Power | 1300W | ||||||
Machine Size （mm) | 800*530*900 | ||||||
Applications
Company Profile
Huanghua Faithful Instrument Co., LTD, founded in 90s and located in coastal city-HuangHua, our factory covered 40,000 square meters, with more than 200 employees. Huanghua Faithful Instrument Co., LTD is a specialized supplier of scientific and laboratory instruments. Faithful has established enviable reputation for its ability to design and manufacture high quality products, now we are dedicated to developing and manufacturing instruments as well as distributing world-renowned products and offering unmatched scientific performance and proven value.
We have obtained ISO9001 and passed the CE Certificate. Presented as a high level of instruments manufacture, our products cover more than 20 series of Instruments for Laboratory, including 120 categories. We provide a wide range instruments which include Drying Oven, Incubator, Magnetic Stirrer, Heating Mantle, Stainless Steel Water Still, Growth Chamber with Humidity Control, Furnace, Water Bath, Laminar Flow Cabinet, Disintegrator, Vortex Mixer etc. Designed in compliance with the international norms, these products meet the application requirements of research institutes, laboratories and other sectors.
We have obtained ISO9001 and passed the CE Certificate. Presented as a high level of instruments manufacture, our products cover more than 20 series of Instruments for Laboratory, including 120 categories. We provide a wide range instruments which include Drying Oven, Incubator, Magnetic Stirrer, Heating Mantle, Stainless Steel Water Still, Growth Chamber with Humidity Control, Furnace, Water Bath, Laminar Flow Cabinet, Disintegrator, Vortex Mixer etc. Designed in compliance with the international norms, these products meet the application requirements of research institutes, laboratories and other sectors.
