Product Overview
Description
Neofibo Janpan DJ5D 1um polishing films purple grey 1um 127 polishing films purple lapping film 1um
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 13-year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
Products Description
Key Feature:
1. Stable fiber height over use of film life for both 2.5mm and 1.25mm polishing.
2. Scratch less polishing.
3. Use only purified water.
4. Designed to provide GR-326 endface geometry.
5. Lasts longer compared to exiting finishing films.
6. Easily achieve cost reduction by longer service life.
7. Ideal for UPC and APC quality polishing.
2. Scratch less polishing.
3. Use only purified water.
4. Designed to provide GR-326 endface geometry.
5. Lasts longer compared to exiting finishing films.
6. Easily achieve cost reduction by longer service life.
7. Ideal for UPC and APC quality polishing.
8.Fiber optic polishing film from Japan Seikoh Giken.

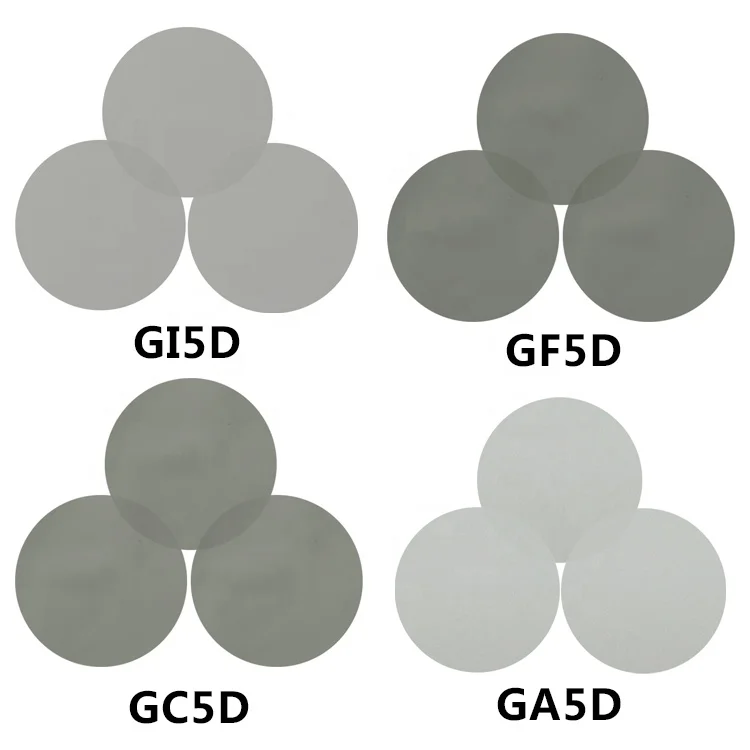

9.Seikoh Giken Polishing film : DC5D, DJ5D, DM5D, GI5D, XF5D.
10.The fiber polishing film is used in grinding the spherical surface.
Specification
Part Number | DJ5D-1μm |
Brand | Seikoh Giken |
Original Place | Japan |
Material | Diamond polishing film |
Diameter | 127mm/70mm |
Color | Different by particle size |

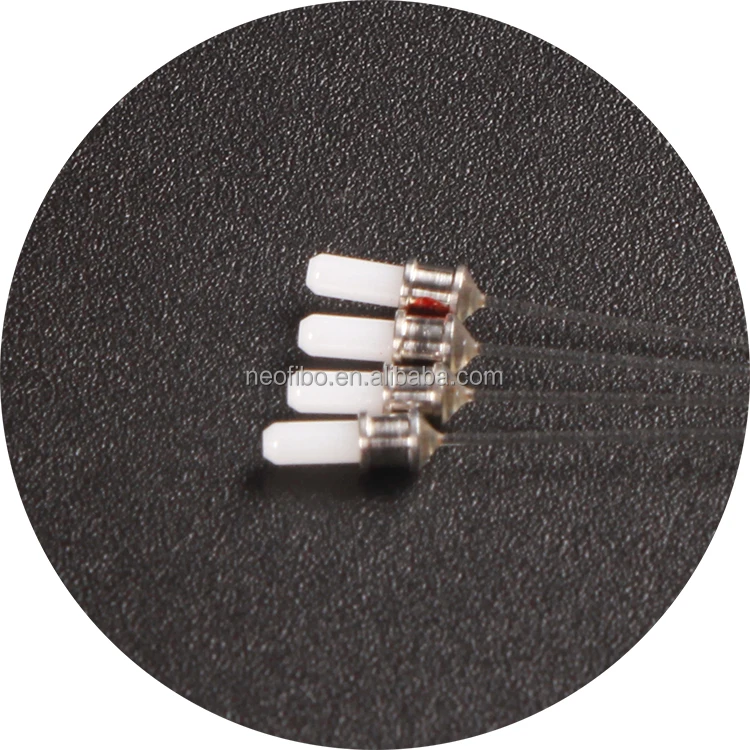

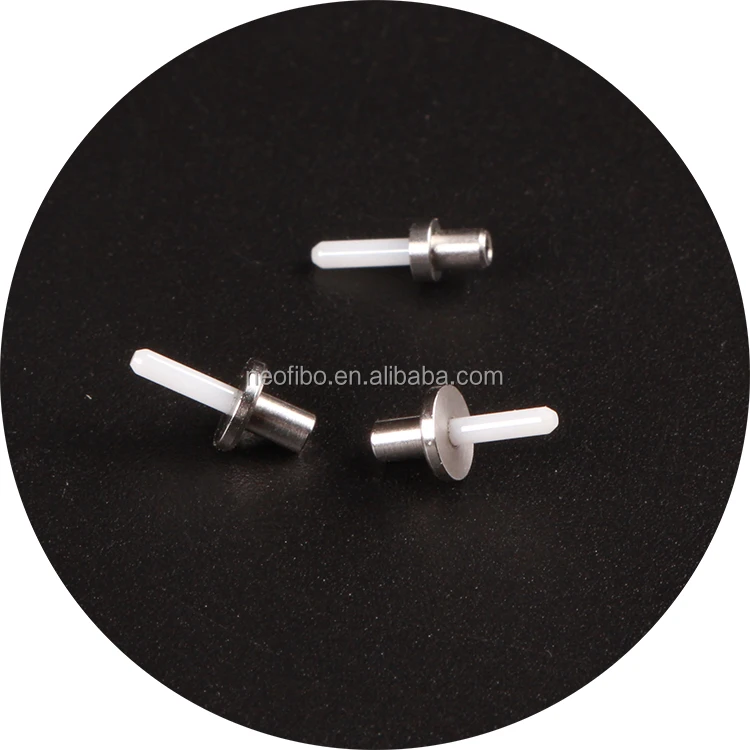

Application | 2.5mm and 1.25mm Zr. Ferrule |
Film Life | 20 to 40 times |
Package | 20pcs / set |
Storage Condition | Temp: 10~30℃ Humid: 30~70% |

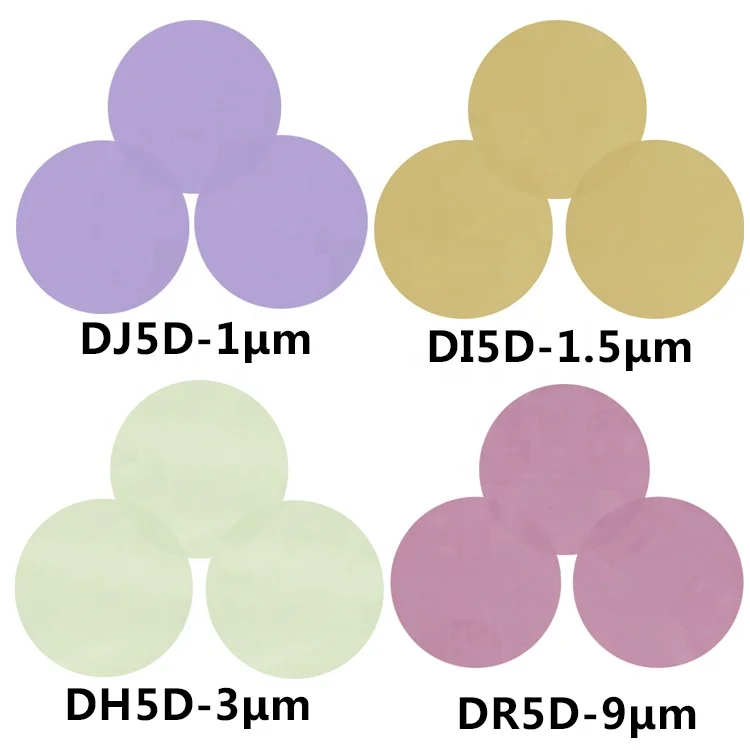

Related Films:
Part Number | Color | Diameter | Particle Size | Sheet/Pack |
DA5D-30U | Green | 127mm | 30um | 20 |
DR5D-9U | Pink | 127mm | 9um | 20 |
DG5D-5U | Orange | 127mm | 5um | 20 |
DH5D-3U | Light Yellow Green | 127mm | 3um | 20 |
DI5D-1.5U | Yellow | 127mm | 1.5um | 20 |
DJ5D-1U | Lavender | 127mm | 1um | 20 |
Application
1. For Various Single Fiber & Multi-fiber Connector Applications.
2. Applied for Seiko Intruments OFL-15 and OFL-16 machines.
3. 5" disk is the standard size for the Seikoh Giken SFP-550, SFP-520, SFP-510, SFP-500.
4. Used for NEOFIBO NEOPL-2000A, NEOPL-1200A, and some other fiber polishing machine.
5. Applied for Seiko Intruments OFL-15 and OFL-16 machines.
2. Applied for Seiko Intruments OFL-15 and OFL-16 machines.
3. 5" disk is the standard size for the Seikoh Giken SFP-550, SFP-520, SFP-510, SFP-500.
4. Used for NEOFIBO NEOPL-2000A, NEOPL-1200A, and some other fiber polishing machine.
5. Applied for Seiko Intruments OFL-15 and OFL-16 machines.
Polishing Effect

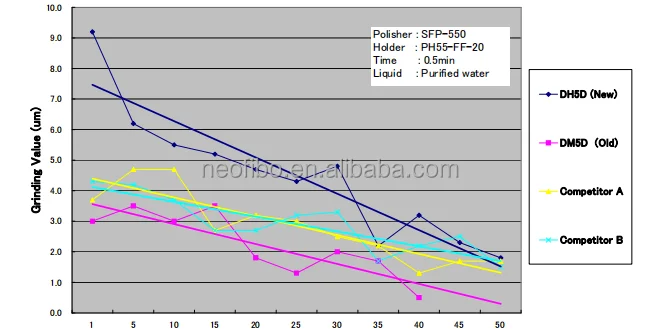

Test Data:
3um Diamond Film Grinding Value Comparison
Polishing Round
Note: Data in this sheet was under the condition of using SG polishing machine and process.
SG diamond film shows consistent grinding force and film service
life over other tested finishing films.
life over other tested finishing films.
