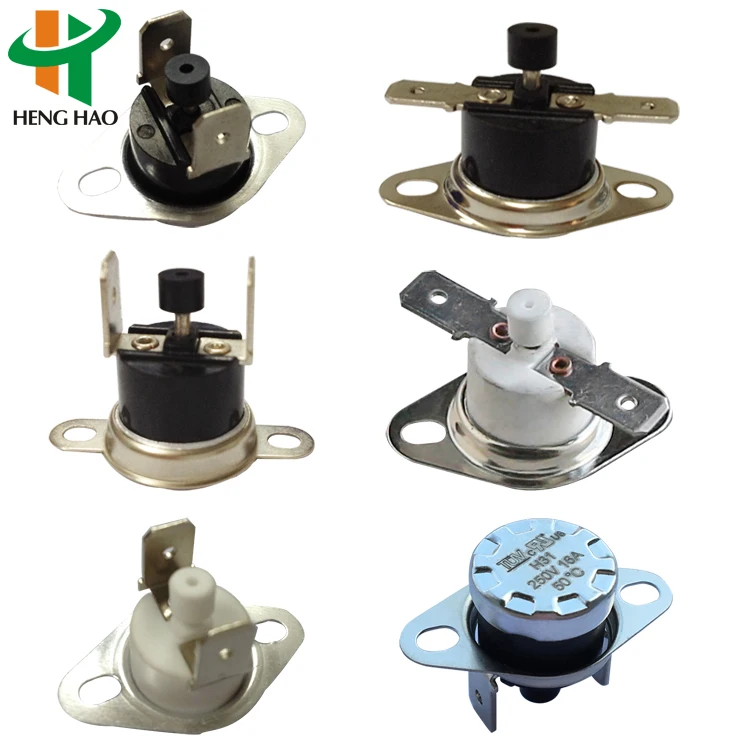

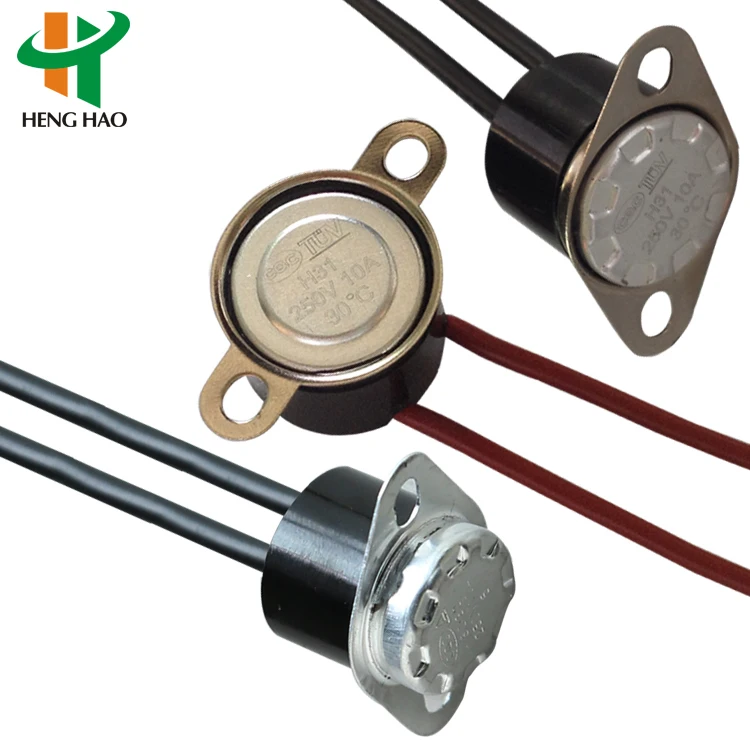

ksd bimetallic thermostat factory outlet ksd301 snap action bimetallic thermostat 250V 10A 16A 0 to 300 C
- Category: Home Appliance Parts >>>
- Supplier: Dongguan City Heng Hao Electric Co. Ltd.
Share on (1600526719650):
Product Overview
Description
Product Paramenters
KSD301 bimetallic thermostat's Principle and structure
The main principle of KSD series thermostat is that one function of bimetallic discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flash over longer working life and less radio interference.
KSD301 bimetallic thermostat’s specification
1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
2. Action Temperature: 0~250 degree
3. Recovery and action temperature difference: 10 to 25 degrees, or according to client's request.
4. Temperature deviation: ±3 / ±5 / ±10 degree or according to client's request
5. Circuit resistance: ≤50mΩ (Initial value)
6. Insulation resistance: ≥100mΩ (DC500V Normal State)
7. Dielectric Strength: AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle: ≥100000
8. Normally closed or open
9. Two kinds of mounting bracket: movable or immovable
10. Terminal
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
11. Two kinds of body: plastic or ceramic.
12. Two kinds of temperature sensor face: aluminum cap or copper head.
The main principle of KSD series thermostat is that one function of bimetallic discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flash over longer working life and less radio interference.
KSD301 bimetallic thermostat’s specification
1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
2. Action Temperature: 0~250 degree
3. Recovery and action temperature difference: 10 to 25 degrees, or according to client's request.
4. Temperature deviation: ±3 / ±5 / ±10 degree or according to client's request
5. Circuit resistance: ≤50mΩ (Initial value)
6. Insulation resistance: ≥100mΩ (DC500V Normal State)
7. Dielectric Strength: AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle: ≥100000
8. Normally closed or open
9. Two kinds of mounting bracket: movable or immovable
10. Terminal
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
11. Two kinds of body: plastic or ceramic.
12. Two kinds of temperature sensor face: aluminum cap or copper head.

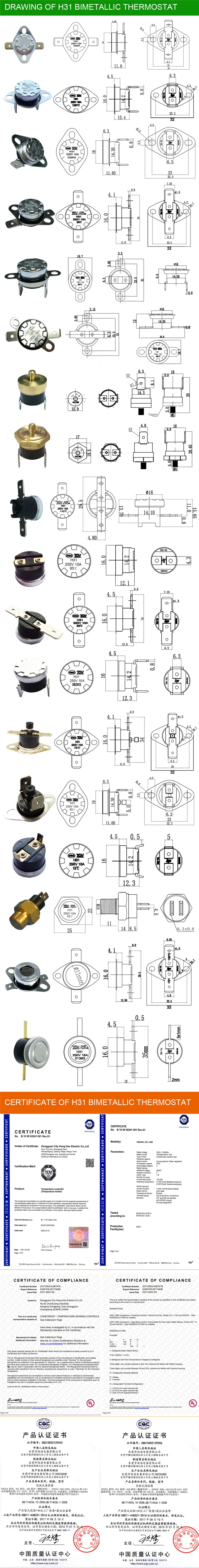

Details Images

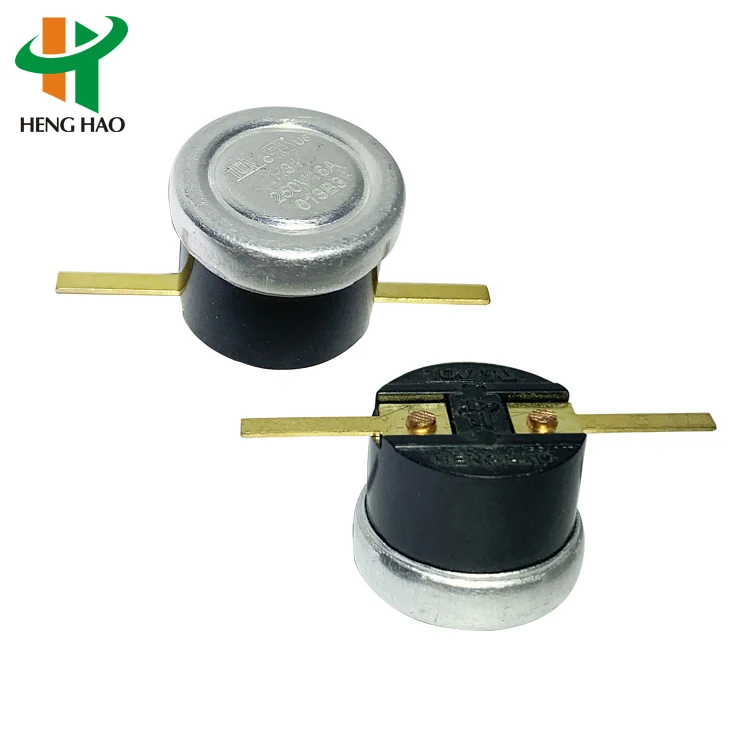

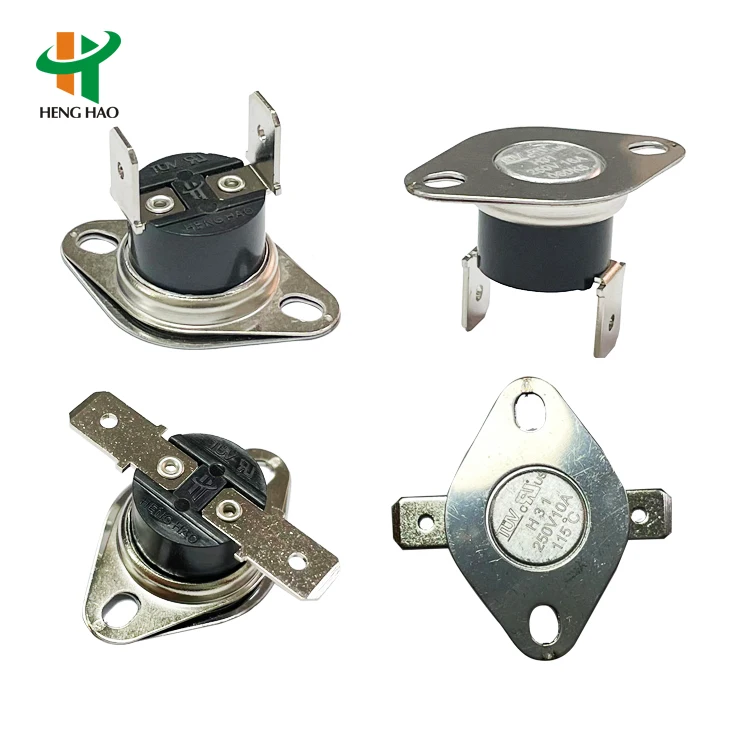

KSD bimetallic thermostat - bakelite body series
Type:Normally closed type, Normally open type
Temperature range: 0~150℃
Voltage & Current: 250V 10A to 16A
Reset: auto reset

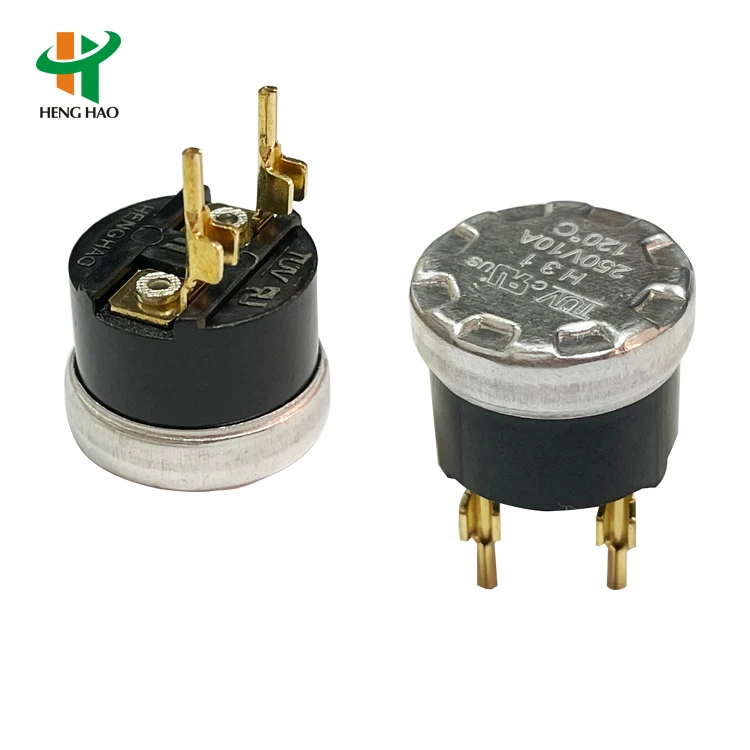

KSD bimetallic thermostat - ceramic body series
Type:Normally closed type, Normally open typeTemperature range: 0~300℃
Voltage & Current: 250V 10A to 16A
Reset: auto reset
Voltage & Current: 250V 10A to 16A
Reset: auto reset
Certifications
Our Advantages
1) Sales philosophy:
Customer first, continuing to create value for customers.
2）Customer response:
HENGHAO has improved the sales system and lean management system, well-trained sales team members foreigners, learning and research, and strive to provide customers with timely and effective solutions and products.
3）Free samples and delivery:
HENGHAO offers free standard samples and customer demand customized sample 100 or less, freight borne by the customer. Product categories covering 12 categories, thousands of models, existing stock more than 50 million. (Represented by sheet pcs)
5）Transportation:
HENGHAO has the import and export rights recognized by the Ministry of Commerce of China, and is equipped with professional customs brokers and freight forwarding companies to deliver orders. We will ensure that the products reach customers as soon as possible through the transportation methods that customers like, including UPS, TNT, FedEx, sea, and air. For customers in Russia,Europe, the Middle East and other places, we can also use the cheap and fast China-Europe Railway to transport goods. Its freightis quite low and the goods can be delivered within a week. We also accept the shipping method designated by the customer and we will deliver the goods to the warehouse designated by the customer. All transportation costs within China will be borne by our company, and customers only need to pay the freight outside China.
6）Sales service and technical support:
Delivery provides quality test data and report quality certification, also offers a free sample test reports and follow-up
technical support for customers.We have OEM and ODM service, can be customized according to customer special shape products.
Customer first, continuing to create value for customers.
2）Customer response:
HENGHAO has improved the sales system and lean management system, well-trained sales team members foreigners, learning and research, and strive to provide customers with timely and effective solutions and products.
3）Free samples and delivery:
HENGHAO offers free standard samples and customer demand customized sample 100 or less, freight borne by the customer. Product categories covering 12 categories, thousands of models, existing stock more than 50 million. (Represented by sheet pcs)
Delivery: sample and stock, 3 to 7 days delivery; and the specific needs of a given product samples or customer order takes 4 weeks.
4）Quality Systems:
HENGHAO has improved and strict quality management system, the factory passed the ISO9001 management system, the product passed the UL, TUV CQC KC ROHS and other various safety certification. We have a comprehensive standard to achieve UL witnessed laboratory.
4）Quality Systems:
HENGHAO has improved and strict quality management system, the factory passed the ISO9001 management system, the product passed the UL, TUV CQC KC ROHS and other various safety certification. We have a comprehensive standard to achieve UL witnessed laboratory.
5）Transportation:
HENGHAO has the import and export rights recognized by the Ministry of Commerce of China, and is equipped with professional customs brokers and freight forwarding companies to deliver orders. We will ensure that the products reach customers as soon as possible through the transportation methods that customers like, including UPS, TNT, FedEx, sea, and air. For customers in Russia,Europe, the Middle East and other places, we can also use the cheap and fast China-Europe Railway to transport goods. Its freightis quite low and the goods can be delivered within a week. We also accept the shipping method designated by the customer and we will deliver the goods to the warehouse designated by the customer. All transportation costs within China will be borne by our company, and customers only need to pay the freight outside China.
6）Sales service and technical support:
Delivery provides quality test data and report quality certification, also offers a free sample test reports and follow-up
technical support for customers.We have OEM and ODM service, can be customized according to customer special shape products.
Why Choose Us
R & D Strength
◆ Over 20 R&D team, 60% over 10 years industry experience
◆ Efficient R & D management process, industry leading R&D equipment
◆ A wealth of technical reserves to support the rapid commercialization of new technologies
◆ Unique chip molding industry patent
Quality Assurance
◆ The whole process quality control system to ensure product reliability
◆ Product with UL、TUV、CQC KC ROHS Safety certification
◆ With ISO9001 quality system certification
◆ Special continuous improvement
、Delivery Capacity

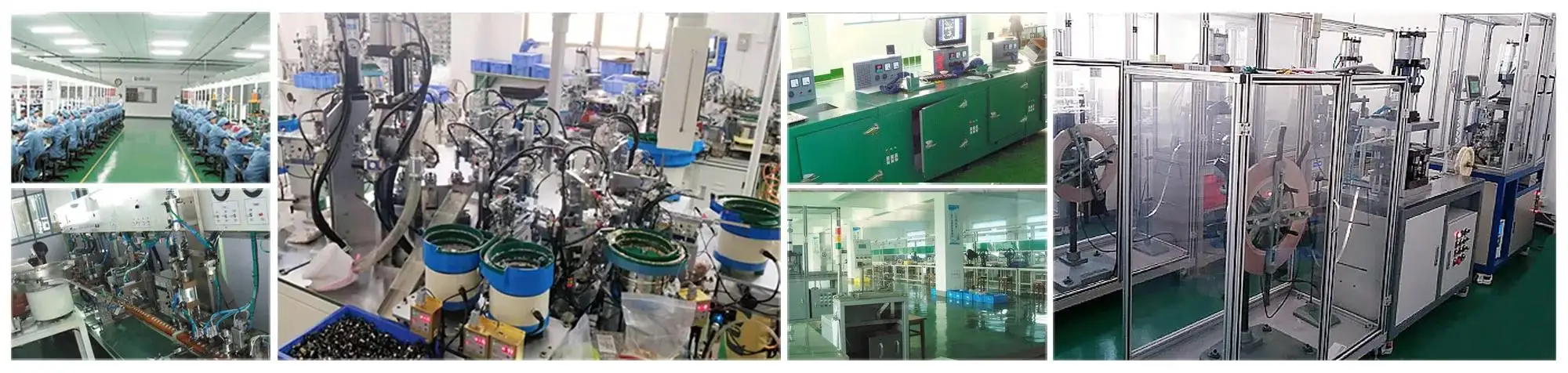

◆ lt has monthly production capacity of about 120Mea with delivery flexibility
◆ lt insists on automation orientation for production
◆ lt supports long life cycle maintenance for product
Supply Chain Management
◆ lt select the world well-know quality suppliers for the core material import
◆ Perfect supplier quality management system
CS Service
◆ Exclusive customer service team
◆ Being customer-centered, it continuously improves the service quality
OEM Manufacturing
◆ Can provide customers with a full range of bimetallic thermostat, thermal protector and temperature sensor product trademark
licensed manufacturing and Certification column names
◆ with OEM and ODM service, can be customized according to customer special shape products.
◆ Over 20 R&D team, 60% over 10 years industry experience
◆ Efficient R & D management process, industry leading R&D equipment
◆ A wealth of technical reserves to support the rapid commercialization of new technologies
◆ Unique chip molding industry patent
Quality Assurance
◆ The whole process quality control system to ensure product reliability
◆ Product with UL、TUV、CQC KC ROHS Safety certification
◆ With ISO9001 quality system certification
◆ Special continuous improvement
、Delivery Capacity
◆ lt has monthly production capacity of about 120Mea with delivery flexibility
◆ lt insists on automation orientation for production
◆ lt supports long life cycle maintenance for product
Supply Chain Management
◆ lt select the world well-know quality suppliers for the core material import
◆ Perfect supplier quality management system
CS Service
◆ Exclusive customer service team
◆ Being customer-centered, it continuously improves the service quality
OEM Manufacturing
◆ Can provide customers with a full range of bimetallic thermostat, thermal protector and temperature sensor product trademark
licensed manufacturing and Certification column names
◆ with OEM and ODM service, can be customized according to customer special shape products.
