7.5HP 100HP High Quality Refrigerated Compressed Air Dryer for Compressor
- Category: Industrial Compressor Parts >>>
- Supplier: Shanghai,Sunwin,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Product
7.5HP-100HP High Quality Refrigerated Compressed Air Dryer for Compressor

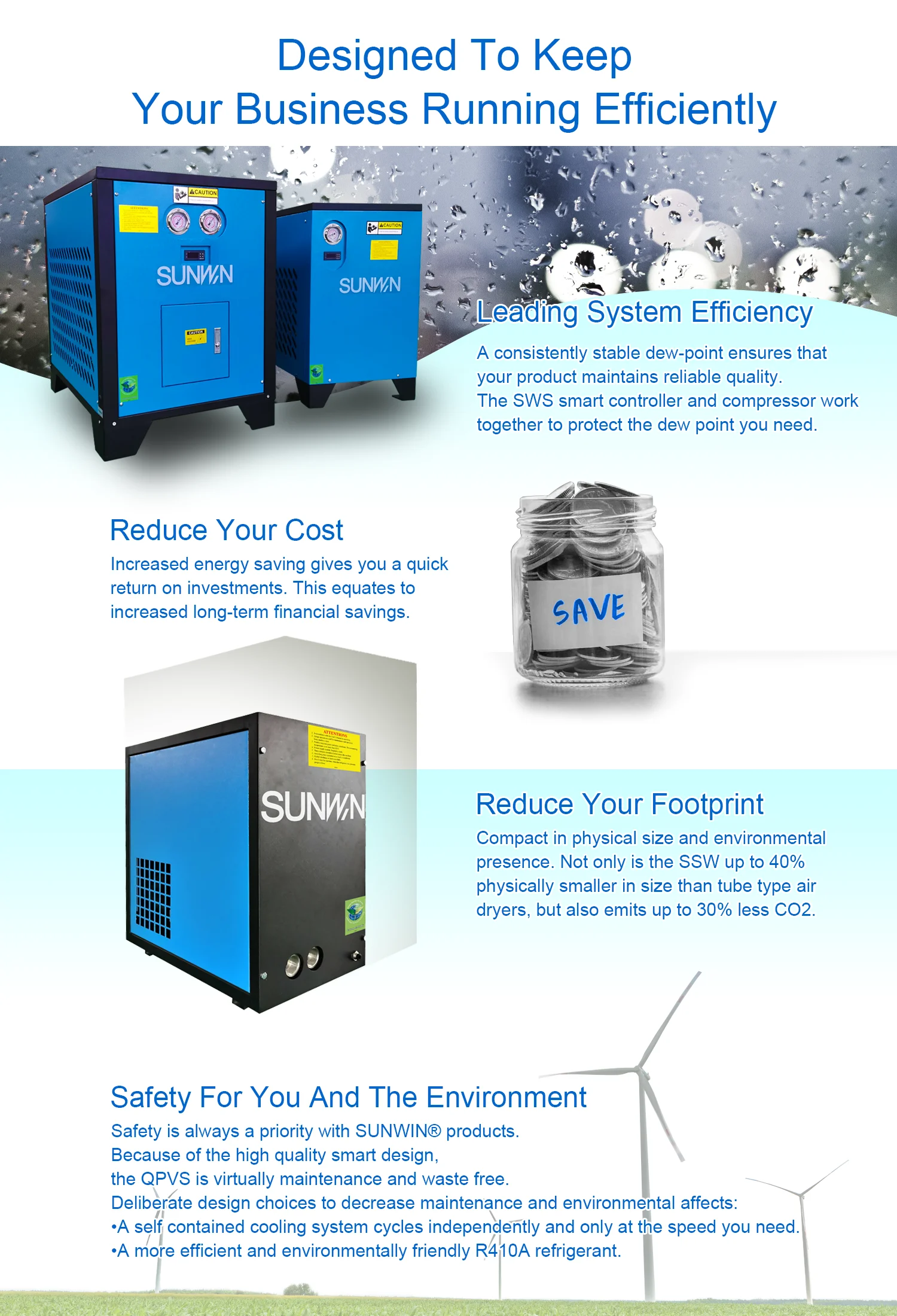

SUNWIN® refrigerated compressed air dryers play the important role of removing condensation from the air compressor systems. Without a dryer, moisture can accumulate in a compressor. With this moisture comes dirt and other particulate matter, which can cause oxidation and other types of premature wear on delicate compressor components. SUNWIN® refrigerated dryer eliminates the problem by cooling moisture in the air to approximately 3℃, where it condenses and can be removed from the compressor system by way of an automatic drain.
All SUNWIN® refrigerated air compressor dryers can be counted on to deliver exceptional performance in any situation. Our products are backed by a comprehensive warranty as well as support from our nationwide team of compressed air experts. We have been manufacturing refrigerated air dryers, filters, drain systems and other related air preparation components designed to remove moisture and contaminates from compressed air systems.
Core Technologies
Stainless Steel 3 in 1 Configuration
The 304L air-to-air exchanger, evaporators and demister separator are combined in one module. This ensures a very compact, robust and energy efficient performance design.
Smart Digital Display Control
Easy to use, advanced microprocessor control that lets you easily adjust and manage system parameters.
High Speed Cooling Fan
Low noise: we adopt two-sides banlances on fan, Vibration speed virtual value of fans ≤0.5 mm/s
High stabitility: we test every fan and blowers before shipment, and life time more than 30000 h
Fully Hermetic Refrigeration Compressor
Energy-saving and fully hermetic compressors with Environment friendly R410A or R407C.
Famous and stable brand with LG,Panasonic,Hitachi
Famous and stable brand with LG,Panasonic,Hitachi
Customer Feedbacks
Product Parameters
Model | Capacity | Nominal Power | Power Supply | Air connections | Dimensions(mm) | Weight | ||||
Nm3/min | Hp | V/Ph/Hz | L | W | H | kg | ||||
SSW-14HTF | 1.4 | 1/2 | 220/1/50 220/1/60 115/1/60 | 1/2 | 500 | 300 | 525 | 32 | ||
SSW-18HTF | 1.8 | 3/4 | 220/1/50or 220/1/60 | 3/4 | 520 | 440 | 680 | 50 | ||
SSW-24HTF | 2.4 | 1 | 3/4 | 520 | 440 | 680 | 52 | |||
SSW-38HTF | 3.8 | 1-1/4 | 1 | 680 | 490 | 830 | 68 | |||
SSW-65HTF | 6.5 | 1-1/2 | 1-1/2 | 680 | 500 | 830 | 78 | |||
SSW-85HTF | 8.5 | 1-1/2 | 1-1/2 | 680 | 500 | 830 | 82 | |||
SSW-107HTF | 10.7 | 3 | 380/3/50 400/3/60 415/3/50 | 2 | 1180 | 650 | 955 | 140 | ||
SSW-135HTF | 13.5 | 3 | 2 | 1180 | 650 | 955 | 147 | |||
SSW-180HTF | 18.0 | 3-1/2 | 2 | 1180 | 650 | 955 | 169 | |||
SSW-250HTF | 25.0 | 5 | DN80 | 1470 | 700 | 1360 | 230 | |||
SSW-350HTF | 35.0 | 6 | DN100 | 1800 | 900 | 1810 | 370 | |||
SSW-450HTF | 45.0 | 10 | DN100 | 1900 | 900 | 1810 | 590 | |||
SSW-550HTF | 55.0 | 12 | DN125 | 2400 | 1400 | 1900 | 730 | |||
SSW-650HTF | 65.0 | 15 | DN125 | 2500 | 1420 | 1995 | 860 | |||
