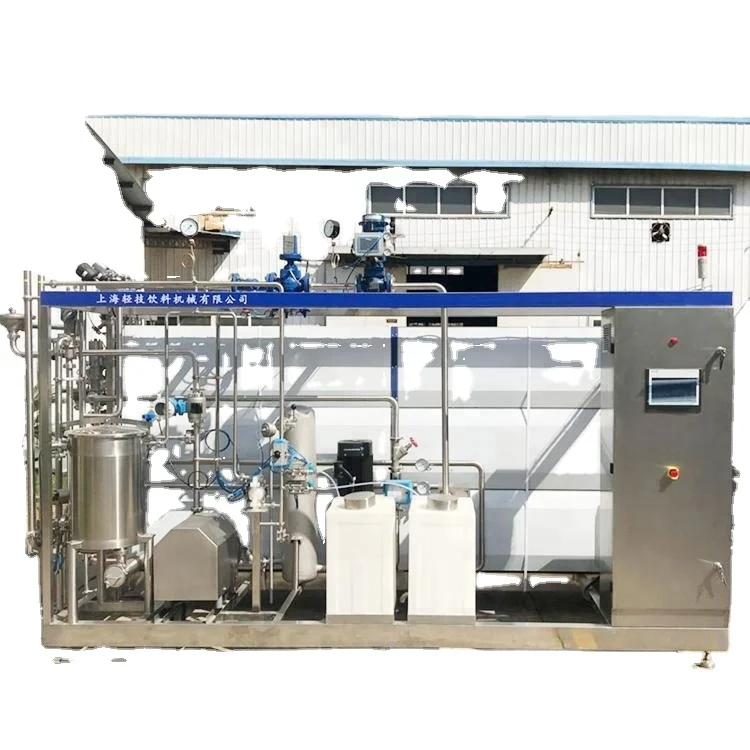

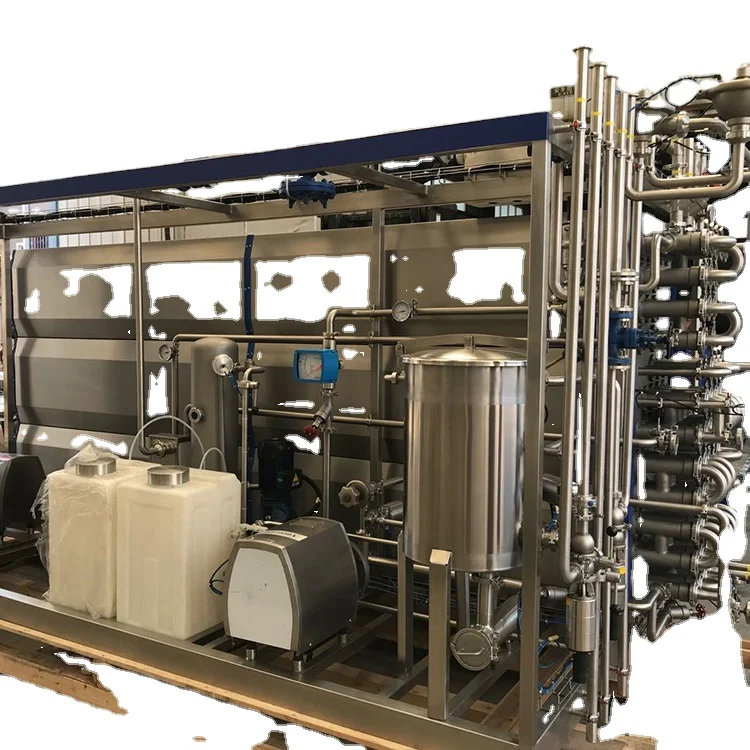

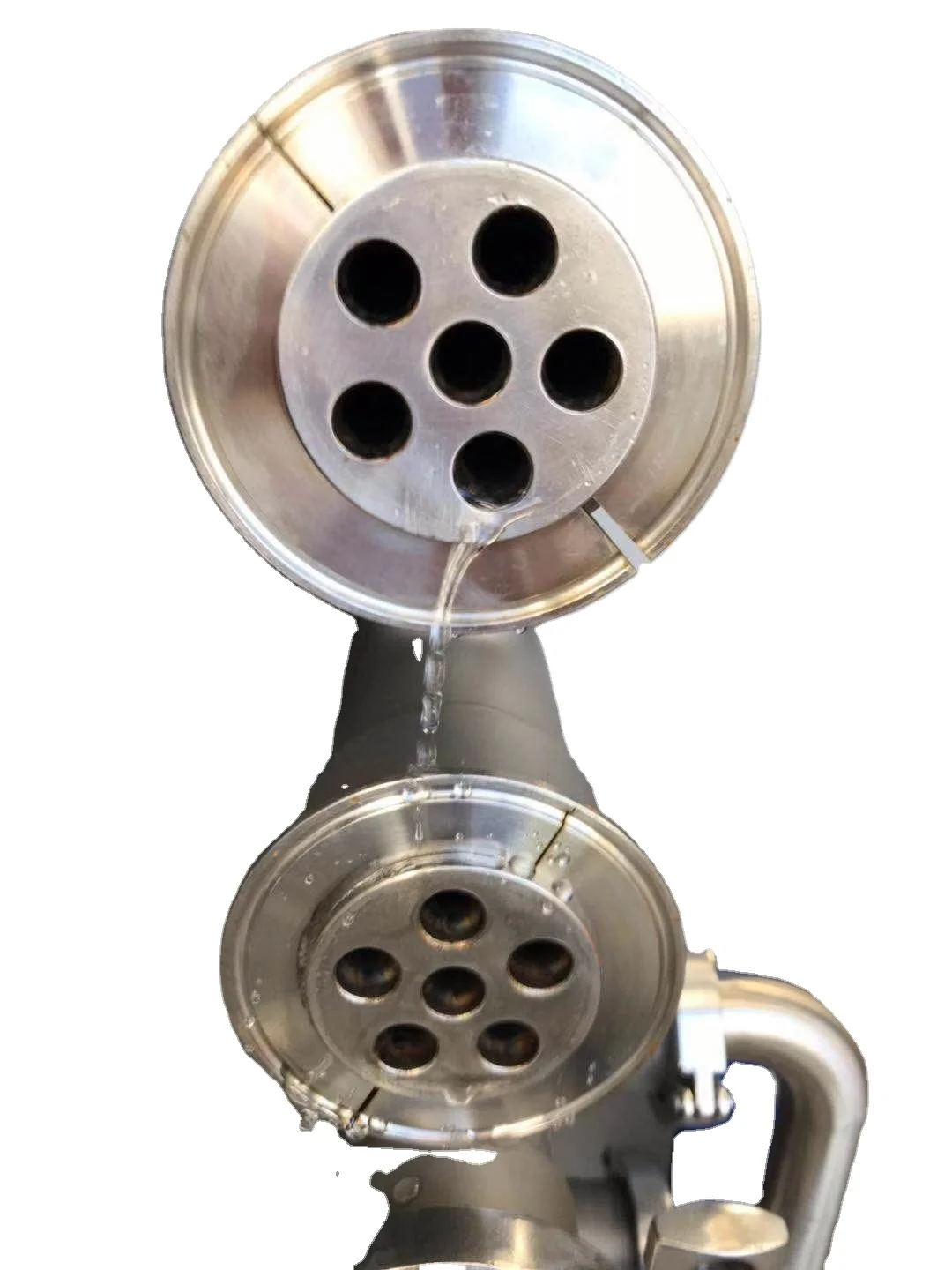

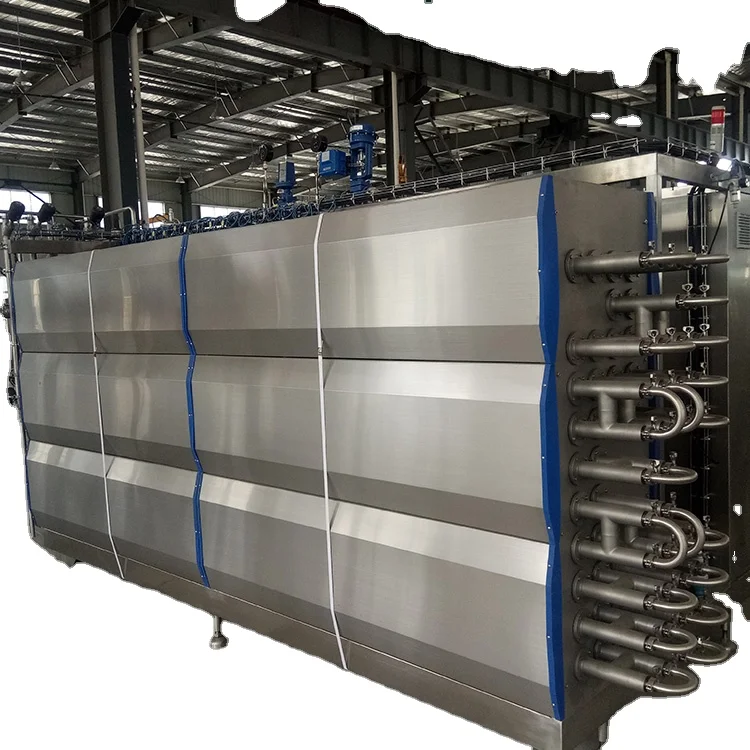

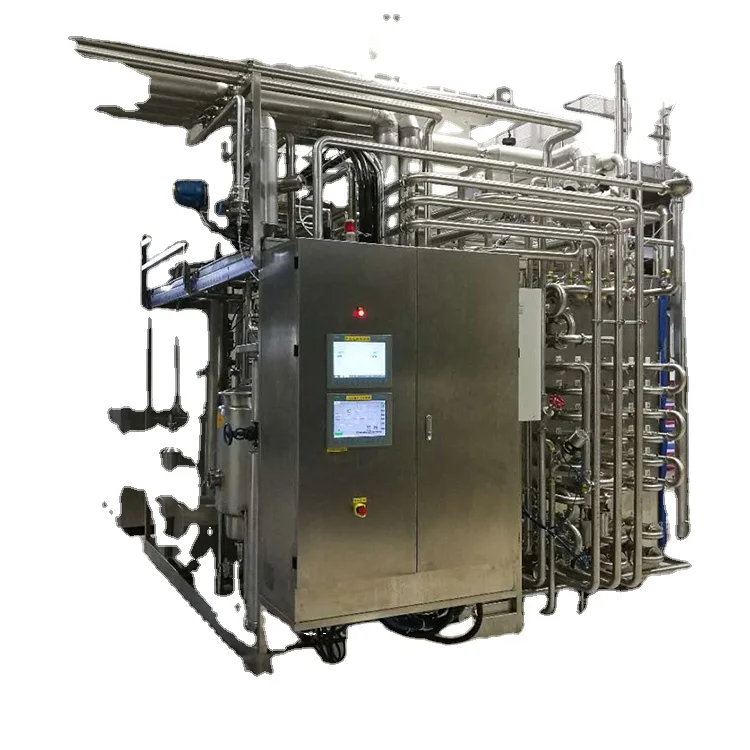

Fruit and vegetable fruit juice sterilizer milk tubular sterilizer
- Category: >>>
- Supplier: Shanghai Qingji Beverage Machinery Co. Ltd.
Share on (1600526750576):
Product Overview
Description
Product Description

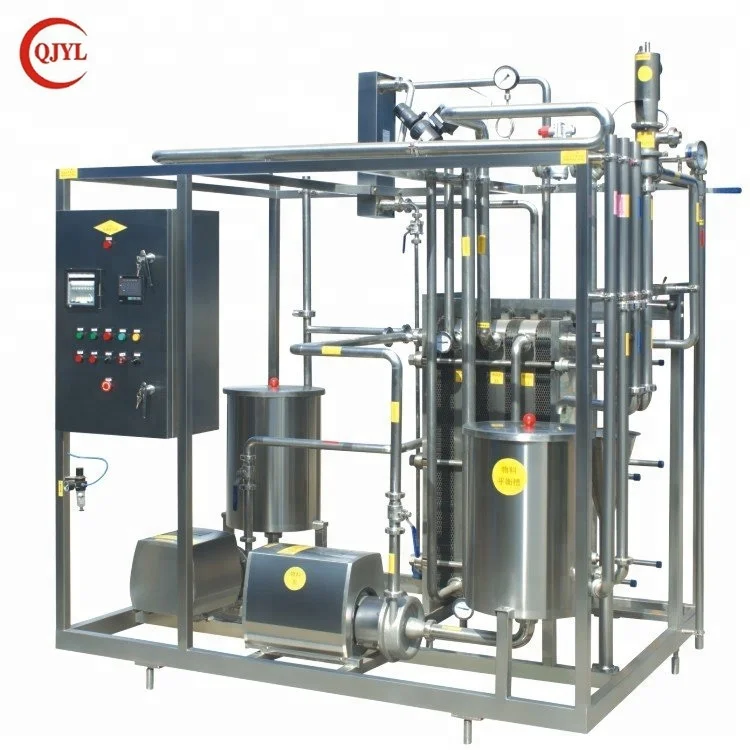

Small uht plate milk pasteurizer machine for sale
| Small Capacity Automatic 500lph Plate Type Dairy Milk Sterilizer | ||||||||||
type and specification | capacity (t/h) | steam consumption (kg/h) | steam pressure (kg) | ice water flow(t/h) | power (kw) | dimension l*h*d(m) | weight (kg) | diameter(mm) | ||
| material | steam | medium | ||||||||
| BR0.1C-X-1MJ | 1 | 20 | 2.5 | 3000 | 1.9 | 1.6*1.4*1.8 | 560 | 25 | 1" | 25 |
| BR0.1C-X-1.5MJ | 1.5 | 30 | 2.5 | 4500 | 2.2 | 1.6*1.4*1.8 | 560 | 25 | 1" | 25 |
| BR0.25C-X-2MJ | 2 | 94 | 2.5 | 6000 | 4 | 2.0*1.8*2.0 | 560 | 38 | 1" | 38 |
| BR0.25C-X-3MJ | 3 | 141 | 2.5 | 9000 | 4 | 2.0*1.8*2.0 | 630 | 38 | 1" | 38 |
| BR0.25C-X-4MJ | 4 | 188 | 2.5 | 12000 | 4 | 2.0*1.8*2.0 | 710 | 38 | 1" | 38 |
| BR0.25C-X-5MJ | 5 | 235 | 2.5 | 15000 | 5.5 | 2.3*1.8*2.0 | 760 | 51 | DN32 | 51 |
| BR0.25C-X-6MJ | 6 | 282 | 2.5 | 18000 | 5.5 | 2.3*1.8*2.0 | 850 | 51 | DN32 | 51 |
| BR0.25C-X-8MJ | 8 | 376 | 2.5 | 24000 | 5.5 | 2.3*1.8*2.0 | 980 | 51 | DN32 | 51 |
| BR0.6C-X-10MJ | 10 | 470 | 2.5 | 30000 | 7.8 | 2.5*1.8*2.0 | 1590 | 51 | DN32 | 51 |
| Process:5℃→65℃(Homogeneous)→120℃(30s)→5℃ Ice water temperature:2℃ | ||||||||||
Products Show
Related products
Certifications
Company Information
Packaging & Shipping
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine
3) MOQ ?
Our MOQ is 1 set machine.
