Professional Multi Function 4 In 1 Network and Cable Tester RJ45/RJ11/USB/BNC LAN Cable remote cable tester
- Category: >>>
- Supplier: Ningbo Xinfeng Electronic Technology Co. Ltd.
Share on (1600526751673):
Product Overview
Description
you may also like
Product name | 4 In 1 Network Cable Tester | ||||
Material | Plastic | ||||

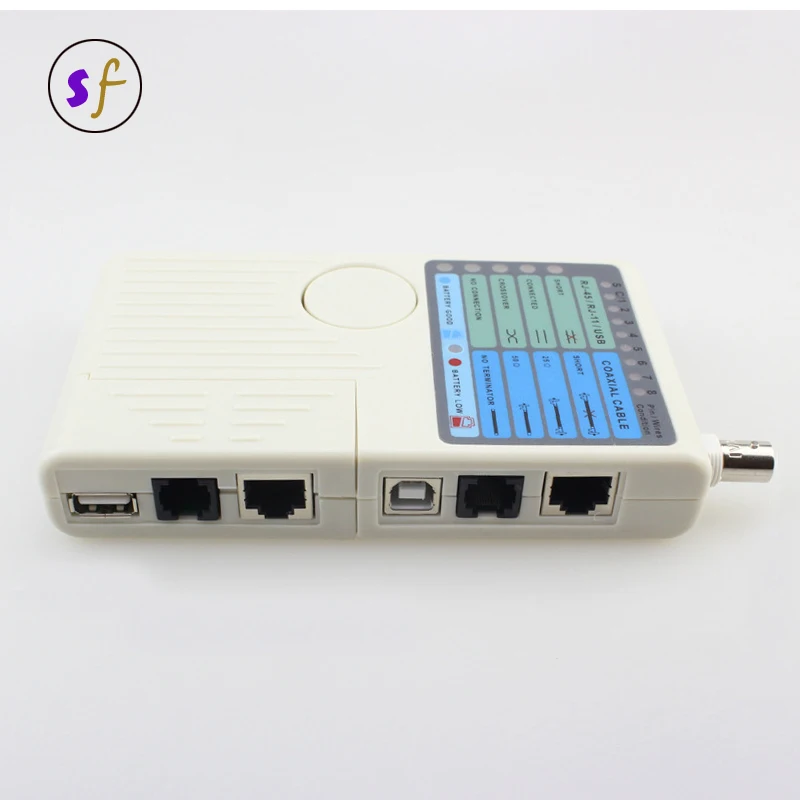

Port | RJ45, RJ11, BNC, USB | ||||
Color | White | ||||
Weight | 0.25kg | ||||
Size | 160*85*26mm | ||||
Functions:
1. Testing pairs of twisted pairs 1, 2, 3, 4, 5, 6, 7, 8 and G, and distinguishing which one is wrong, short circuit and open circuit.
2. Switch ON is the normal test speed, S is the slow test speed, M is the manual gear.
Twisted pair test:

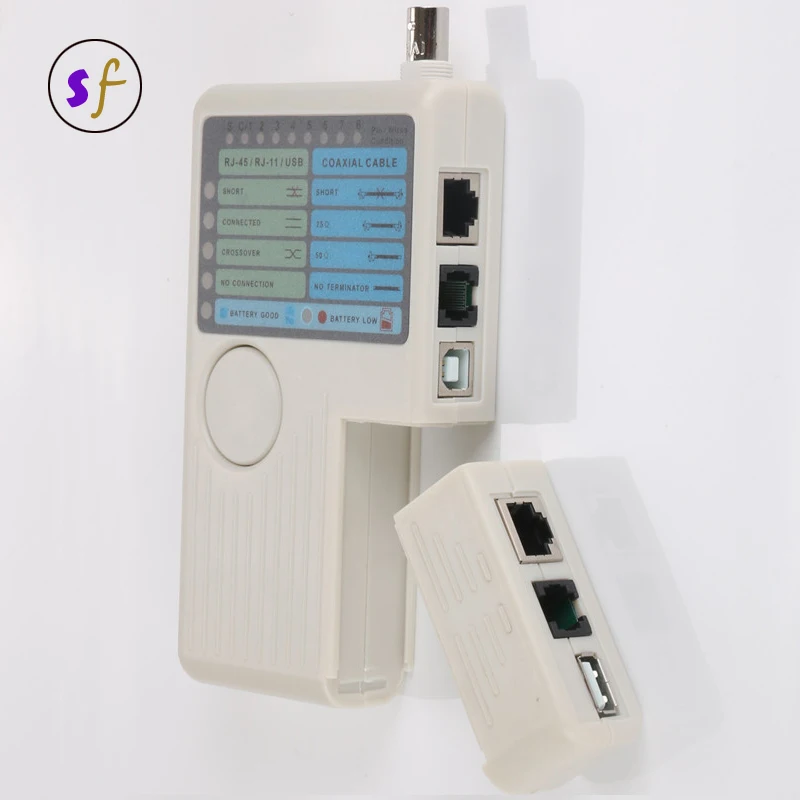

Turn on the power supply, insert the plug into the main tester and remote tester respectively. The main indicator lights shine one by one from 1 to G. The following illustrations:
Main Tester: 1-2-3-4-5-6-7-8-G
Remote Tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4-5-6 - - - (RJ12)
1-2-3-4------------ (RJ11)
If the connection is abnormal, it should be shown as follows:
1. When a network line such as Line 3 is disconnected, neither the main tester nor the remote test terminal No. 3 lights are on.
2. When several lines are not connected, then several lines are not lit, and when less than two lines are connected, the lights are not on.
3. When the two ends of the net line are in disorder, the example 2 and 4 lines are in disorder, they are shown as follows:
The main tester remains unchanged: 1-2-3-4-5-6-7-8-G
The remote test end is: 1-4-3-2-5-6-7-8-G
4. When there are two short-circuits in the network, the main tester will not show up, while the remote test terminal will show that both of the short-circuits are slightly bright, if there are more than three (including three)
When short circuit occurs, the lights of all short circuit lines are not on.
If the wiring frame and wall base module are tested
two matching jumpers (such as 110P4-RJ45) are needed to be introduced to the tester.
Such a lightweight tester can be carried with you. It is an indispensable tool for the general network construction and maintenance. It can find out the cable connection problems more effectively and time-saving. The most attractive thing is the price. This product is specially designed for export packaging, and its outsourcing is treated with matte glue. It is waterproof and more beautiful.
2. Switch ON is the normal test speed, S is the slow test speed, M is the manual gear.
Twisted pair test:
Turn on the power supply, insert the plug into the main tester and remote tester respectively. The main indicator lights shine one by one from 1 to G. The following illustrations:
Main Tester: 1-2-3-4-5-6-7-8-G
Remote Tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4-5-6 - - - (RJ12)
1-2-3-4------------ (RJ11)
If the connection is abnormal, it should be shown as follows:
1. When a network line such as Line 3 is disconnected, neither the main tester nor the remote test terminal No. 3 lights are on.
2. When several lines are not connected, then several lines are not lit, and when less than two lines are connected, the lights are not on.
3. When the two ends of the net line are in disorder, the example 2 and 4 lines are in disorder, they are shown as follows:
The main tester remains unchanged: 1-2-3-4-5-6-7-8-G
The remote test end is: 1-4-3-2-5-6-7-8-G
4. When there are two short-circuits in the network, the main tester will not show up, while the remote test terminal will show that both of the short-circuits are slightly bright, if there are more than three (including three)
When short circuit occurs, the lights of all short circuit lines are not on.
If the wiring frame and wall base module are tested
two matching jumpers (such as 110P4-RJ45) are needed to be introduced to the tester.
Such a lightweight tester can be carried with you. It is an indispensable tool for the general network construction and maintenance. It can find out the cable connection problems more effectively and time-saving. The most attractive thing is the price. This product is specially designed for export packaging, and its outsourcing is treated with matte glue. It is waterproof and more beautiful.
