48v 6KVA 40 120a Mppt Controller Solar Inverter Single Phase Sine Wave Inverter For Solar Panel System
- Category: >>>
- Supplier: Foshan Bokai Power System Equipment Co. Ltd.
Share on (1600526773132):
Product Overview
Description
Why Choose Us
Products Description
product features
Details Images
Product Paramenters
MODEL MI-**** | 5KVA | 6KVA | 7KVA | ||||
Rated power | 3500W | 4000W | 5000W | ||||
Battery voltage | 24/48VDC | ||||||
Net weight | 23KG | 25KG | 32KG | ||||
Grost weight | 29KG | 31KG | 38KG | ||||

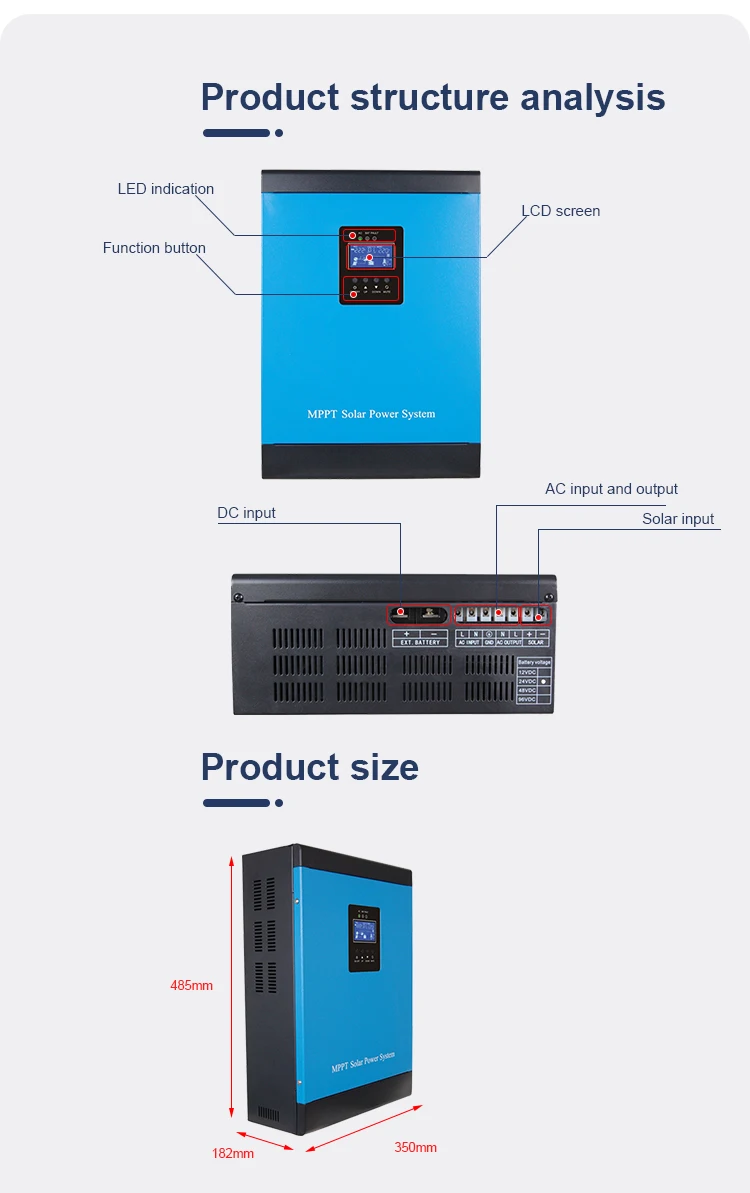

Dimension(L*W*H) | 485×350×182（mm） | ||||||
Solar power Controller (MPPT) | Solar rated voltage | 24V:36-90V 48V:72-160V | |||||
Maximum input voltage | 24V:105V 48V:180V | ||||||
Charging current | 40A,50A,60A，80A,100,120A(Optional) | ||||||
Protection type | Solar cells, anti-anti-charge protection,battery open-circuit protection,battery reversal protection | ||||||
inverter | AC luput voltage range(VAC) | 100/110/120/127/220/230/240V(+20%,-20%) | |||||
Iuput frequency(Hz) | 45-65Hz | ||||||
Output voltage range(VAC) | Inverter mode 100/110/120/127/220/230V240V(+2%,-2%) | ||||||
Utility output voltage range | constant voltage output 100/110/120/127/220/230V240VAC±10% | ||||||
Output frequency (Hz) | 50/60±1% | ||||||
Utility output frequency | 50Hz/ 60Hz automatic tracking | ||||||
Output wavefrom | Pure sine wave | ||||||
Efficiency | ≥85% | ||||||
THD | ≤3% | ||||||
Transfer time(ms) | ≤4ms | ||||||
Overload protection | rated power >110%; >130%, 10S power off; >150%, 0.6s power off | ||||||
Temperature protection | ≥85℃ alarm,≥90℃ Shutdown the machine | ||||||
Battery protection | Automatic detection and discharge protection, overcharge protection,intelligent management | ||||||

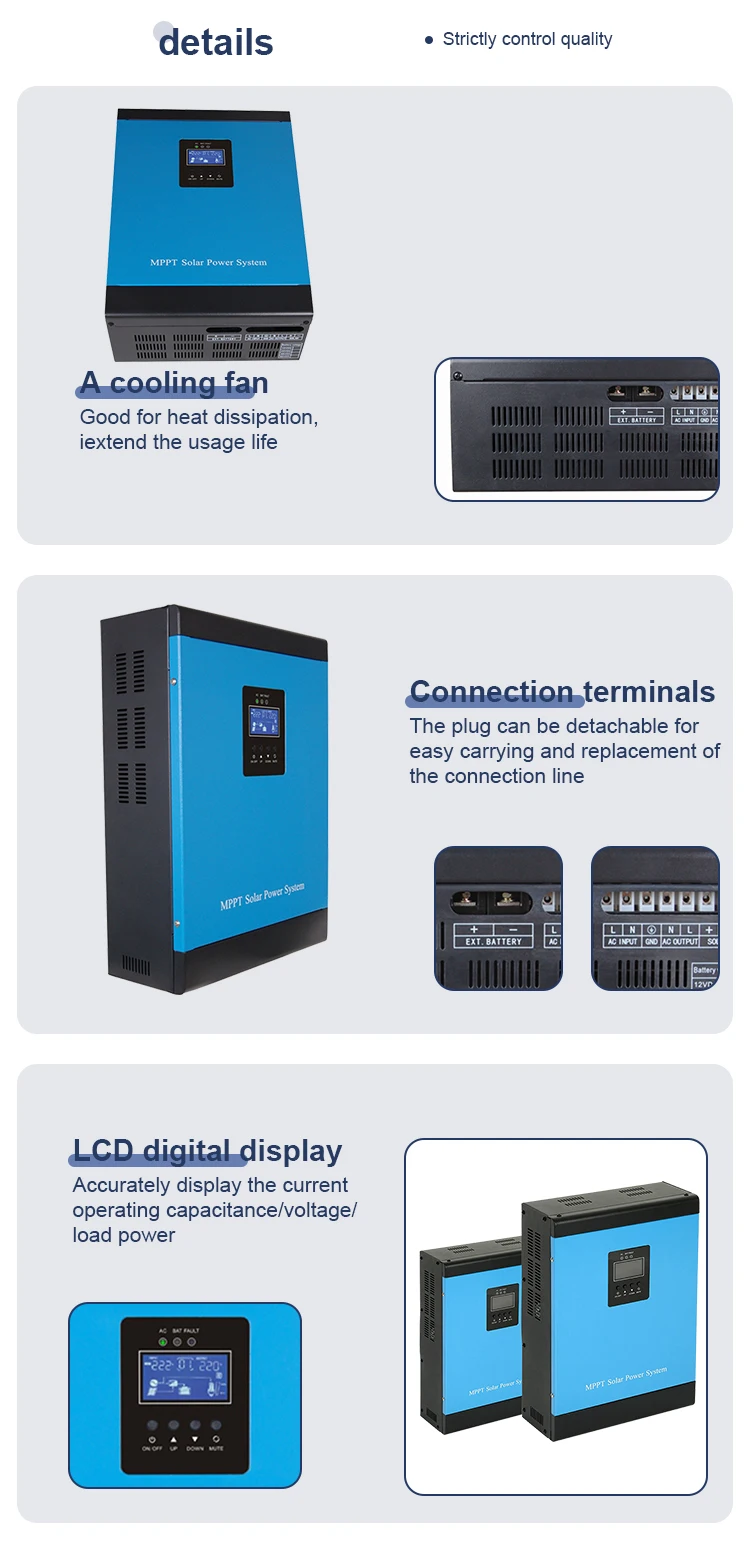

Cooling method | Automatic detection of wind cooling ≤42℃ fan rotating heat dissipation, ≥55°C fan high rotating heat dissipation | ||||||
Display | LCD (inverter output voltage,input AC voltage,battery capacity percentage,load capacity percentage,etc.) | ||||||
