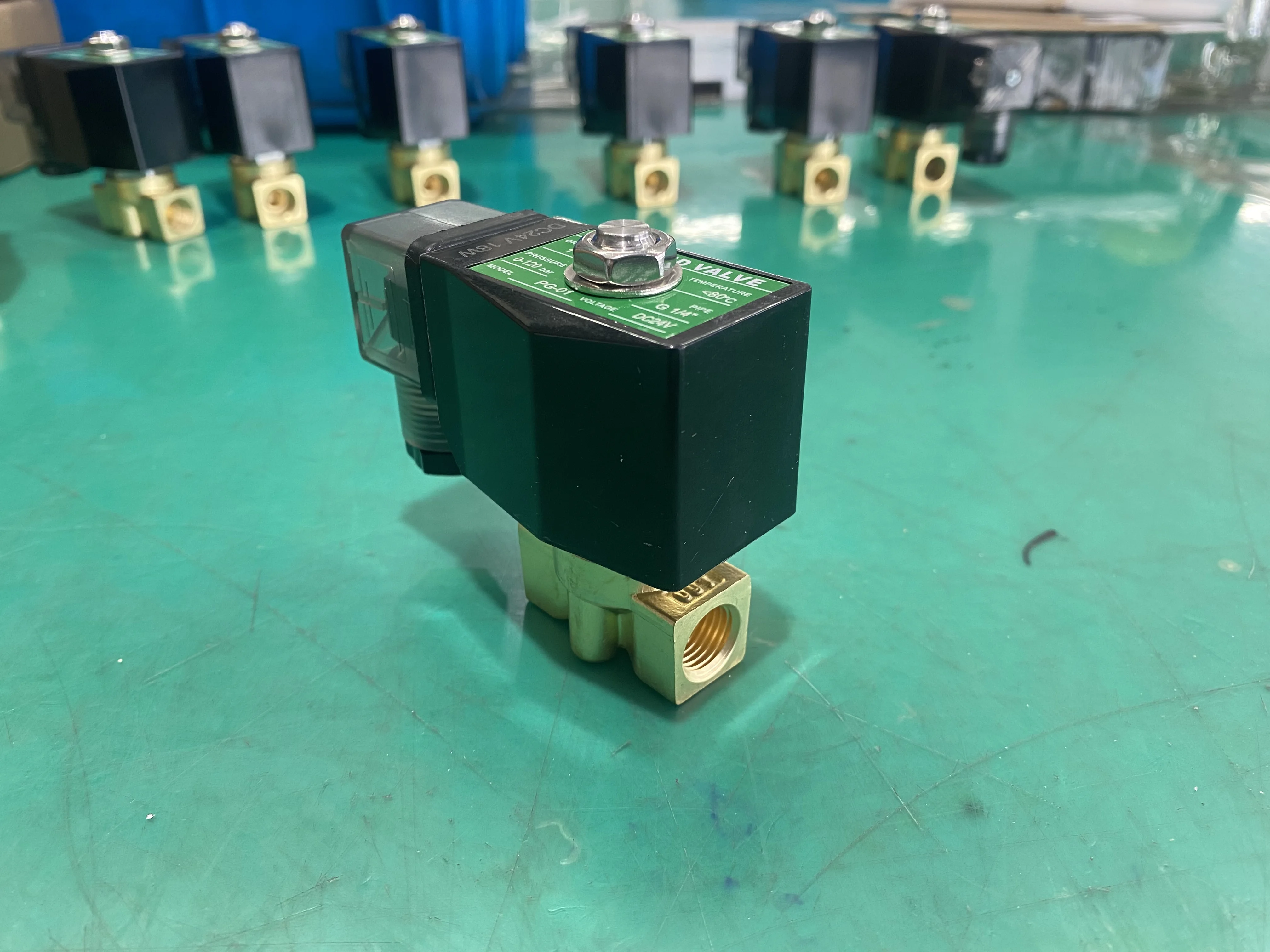

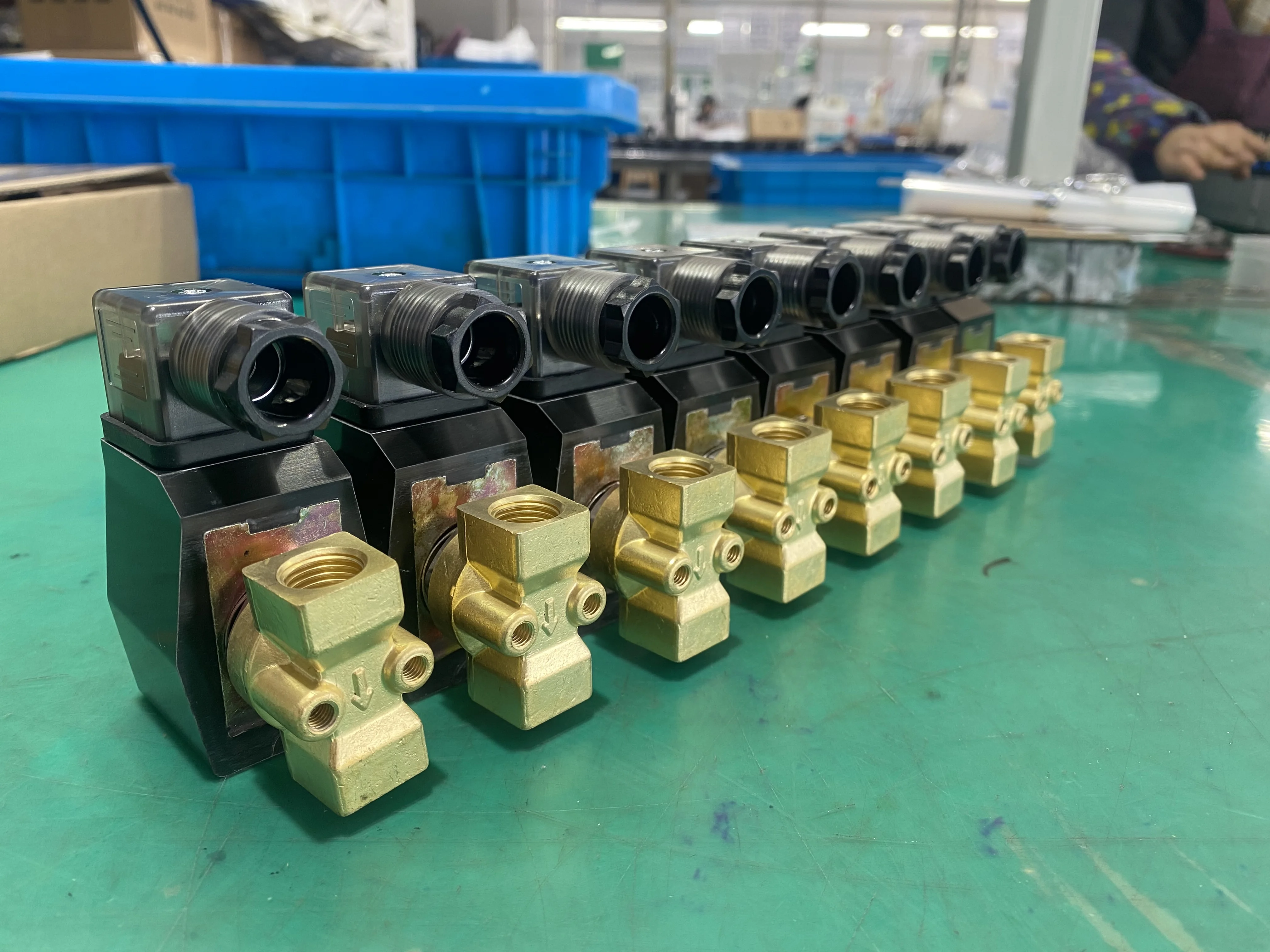

Custom 35bar 50bar 90bar 100bar 120bar 200bar brass stainless 2/2 way compressor solenoid valve high pressure electric valve
- Category: >>>
- Supplier: Ningbo Yuxin Pneumatic Co. Ltd.
Share on (1600526796567):
Product Overview
Description
Specifications:
Custom 35bar 50bar 90bar 100bar 120bar 200bar brass stainless 2/2 way compressor solenoid valve high pressure electric valve
high pressure air solenoid valve
2 position 2 way Direct acting
Body material Brass or stainless steel
Fluids:Air,Water,Light Oil, gas etc.
Port size: 1/8" 1/4”, 3/8” 1/2"
connect Thread: G, NPT, BSPT
Seal material FKM: -5~150°C; TEFLON: -10~180°C
Working Pressure: 0-200bar
Normally Closed Orifice:1mm-10mm
Working Voltage: 110VAC 220VAC DC12 DC24V
high pressure electric valve | |||||||||
Model | Port size | Orifice (mm) | cv | Pressure range (bar) | |||||
AC | DC | ||||||||
Air | Water | Oil | Air | Water | Oil | ||||
Brass body | |||||||||
YXPG-01 | 1/8”,1/4” | 1 | 0.04 | 0-120 | 0-120 | 0-100 | 0-120 | 0-120 | 0-100 |
YXPG-M02 | 1/8”,1/4” | 1.5 | 0.1 | 0-90 | 0-90 | 0-70 | 0-90 | 0-90 | 0-70 |
YXPG-02 | 1/8”,1/4” | 2 | 0.15 | 0-50 | 0-50 | 0-40 | 0-50 | 0-50 | 0-40 |

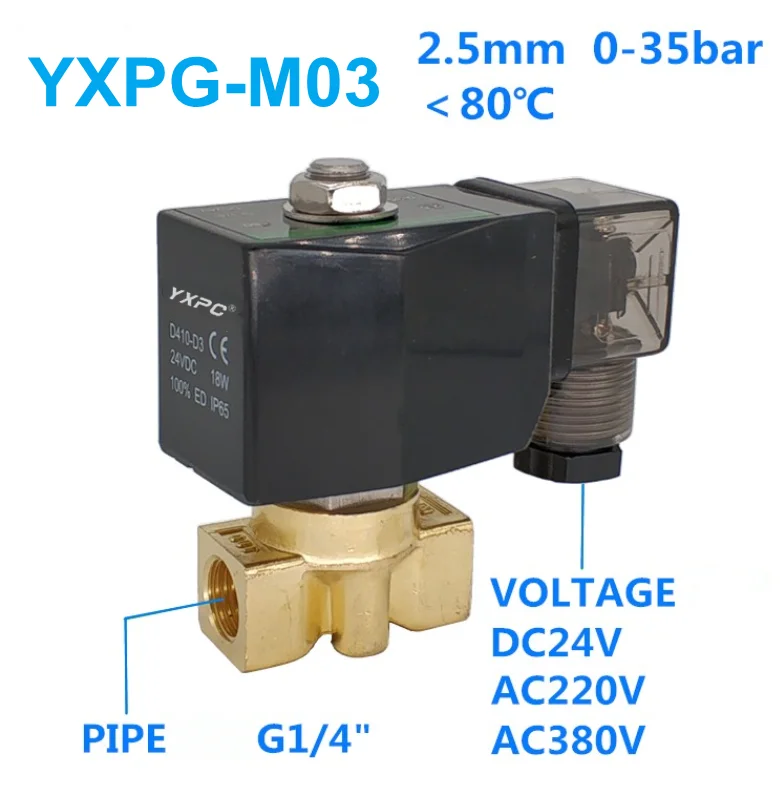

YXPG-M03 | 1/8”,1/4” | 2.5 | 0.23 | 0-35 | 0-35 | 0-25 | 0-35 | 0-35 | 0-25 |
Stainless steel SS304 body | |||||||||
YXSPG-01 | 1/8”,1/4” | 1.2 | 0.05 | 0-200 | 0-200 | 0-150 | 0-200 | 0-200 | 0-150 |
YXSPG-02 | 1/4” | 2 | 0.15 | 0-100 | 0-100 | 0-80 | 0-100 | 0-100 | 0-80 |
YXSPG-1001 | 1/4”,3/8” | 6 | 0.8 | 0.5-100 | 0.5-100 | 0.5-80 | 0.5-70 | 0.5-70 | 0.5-50 |
YXSPG-1002 | 1/4”,3/8” | 6 | 0.8 | ||||||
YXSPG-1003 | 3/8” | 10 | 1.8 | ||||||
YXSPG-1004 | 1/2” | 10 | 1.8 | ||||||

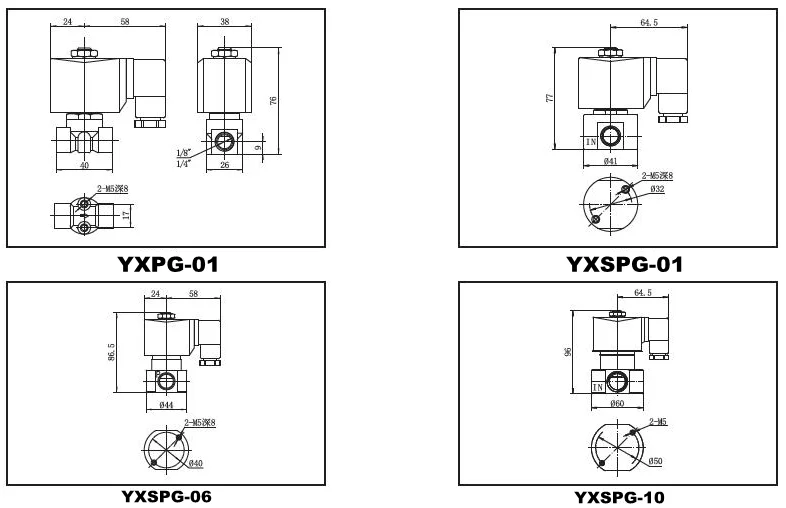

Dimension size :
Our adavntages:
What we offer:
1)Nonstandard customize service with good quality control
2) Highly competitive prices supply goods from factory directly.
3) state-of-art technology products.
4) Best professional team of researching in pneumatic field.
5) Smooth communication with after-sales team to deal with customer suggestions and complaints.
6) Effective OEM&ODM service
7) Own advanced CNS machines, drill machines, online-testing system etc.
8) applied lots of patent for solenoid valve
9) introduced professional engineers to to provide innovative solutions.
10)Factory production quality control
2) Highly competitive prices supply goods from factory directly.
3) state-of-art technology products.
4) Best professional team of researching in pneumatic field.
5) Smooth communication with after-sales team to deal with customer suggestions and complaints.
6) Effective OEM&ODM service
7) Own advanced CNS machines, drill machines, online-testing system etc.
8) applied lots of patent for solenoid valve
9) introduced professional engineers to to provide innovative solutions.
10)Factory production quality control
1.Is sample order acceptable?
Yes,it is ok.Before we received the first order, please afford the sample cost and express fee. We
will return the sample cost back to you within your first order
2 .Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
3.How to guarantee the quality of your products?
Strict detection during production and Strict sampling inspection on products before shipment and intact product packaging ensured.
4.How to place the order?
You can send us email or inquiry at Alibaba directly.
5.How to make the payment?
We accept Bank T/T, and Trade assurance on Alibaba.
6. Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.
7.Can we make customized product for high pressure solenoid valve ?
will return the sample cost back to you within your first order
2 .Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
3.How to guarantee the quality of your products?
Strict detection during production and Strict sampling inspection on products before shipment and intact product packaging ensured.
4.How to place the order?
You can send us email or inquiry at Alibaba directly.
5.How to make the payment?
We accept Bank T/T, and Trade assurance on Alibaba.
6. Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.
7.Can we make customized product for high pressure solenoid valve ?
Yes, we are good at making customized products.
