Wet Drum Magnetic Separator Mineral Separator Wet Magnetic Separator
- Category: >>>
- Supplier: Shanghai Minggong Heavy Equipment Co. Ltd.
Share on (1600526816562):
Product Overview
Description
Product Showcase
1.Application of magnetic beneficiation plant
Magnetic separation process the mineral according to the differences of magnetic intensity. It is mainly applied to:
1. the separation of ferrous mineral
Magnetic separation is the main procession way for iron ore. The ore grade will be increased and the content of detrimental impurity will be reduced after being processed.
Magnetic separation is the main procession way for iron ore. The ore grade will be increased and the content of detrimental impurity will be reduced after being processed.
2. the separation of nonferrous and rare mineral
Many nosferrous and rare minerals have different magnetic intrnsity. It is hard to get the ideal beneficiation effect only by using gravity separation and flotation separation . The combination of magnetic , gravity, flotation is widely applied in practice.
Many nosferrous and rare minerals have different magnetic intrnsity. It is hard to get the ideal beneficiation effect only by using gravity separation and flotation separation . The combination of magnetic , gravity, flotation is widely applied in practice.
3. the recovering of gravity separation medium
the magnetite and the ferrosilicon are medium during the gravity separation.
the magnetite and the ferrosilicon are medium during the gravity separation.
4. Removing iron impurities from non-metallic
Iron removing can protect crushers and other equipments, The iron removing is very common during nonmetallic mineral processing . Dry magnetic separation has been used in Kyanite, quartz , feldspar, red tourmaline nepheline diorite for a long time .
Iron removing can protect crushers and other equipments, The iron removing is very common during nonmetallic mineral processing . Dry magnetic separation has been used in Kyanite, quartz , feldspar, red tourmaline nepheline diorite for a long time .
5. the recovery of steel slag from the metallurgy smelting and pollutant removing from seage
the steel slag can be recovered by grinding and dry magnetic separation . High gradient magnetic separation can be used to remove the impurities from the sewage.
susceptibility, magnetic substance can be separated from the mixture under magnetic and mechanical force. Then the mixture is sent to flotation machine. According to the features of different ores, we can add different additive into the mixture to separate the ore which we want from the mixture. After the seperation from the mixture, the ore we want always contains a lot of water, then we need a thickner to have it concentrated and then dried by a drier, enventually we can get dry ore.
the steel slag can be recovered by grinding and dry magnetic separation . High gradient magnetic separation can be used to remove the impurities from the sewage.

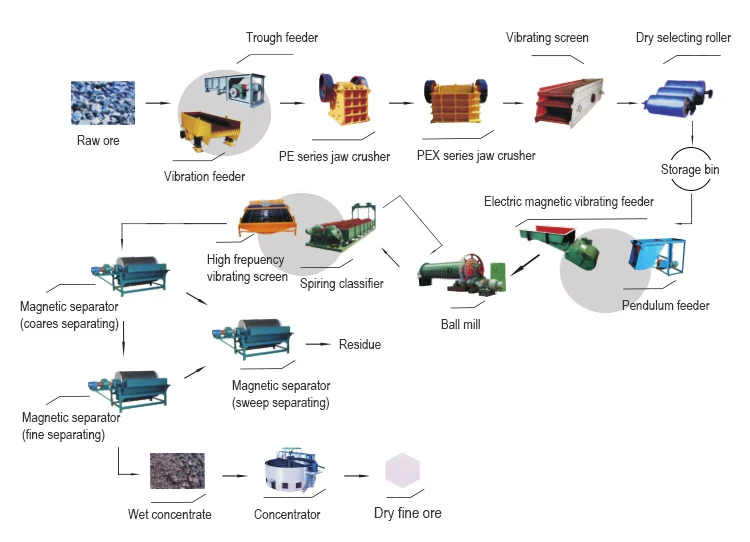

2.Working process of magnetic beneficiation plant
The ore is first sent to the jaw crusher for primary crushing. Then the ore with a proper size for secondary crushing will be sent into the ball mill for fine crushing and grinding. The ore powder discharged from the ball mill will be sent to the next procedure: classifying. Because of the different sedimentation rate due to the varied specific gravity, spiral classifier can clean and group the ore mixture. The cleaned and grouped mixture is sent to magnetic separator, due to the different
susceptibility, magnetic substance can be separated from the mixture under magnetic and mechanical force. Then the mixture is sent to flotation machine. According to the features of different ores, we can add different additive into the mixture to separate the ore which we want from the mixture. After the seperation from the mixture, the ore we want always contains a lot of water, then we need a thickner to have it concentrated and then dried by a drier, enventually we can get dry ore.

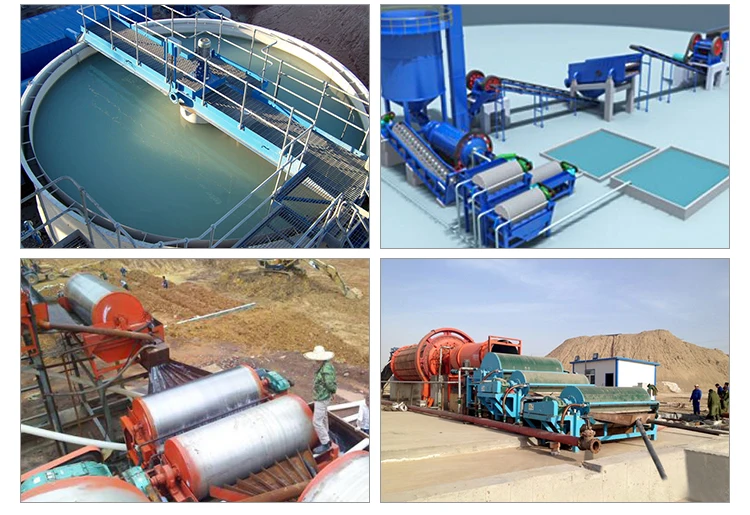

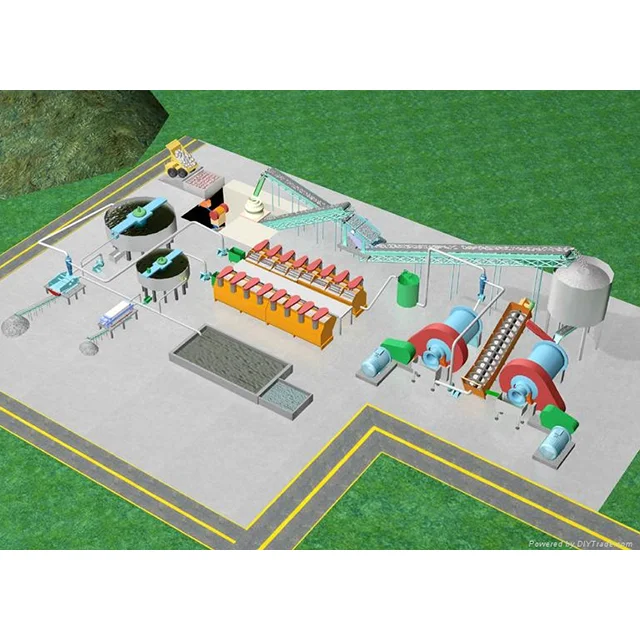

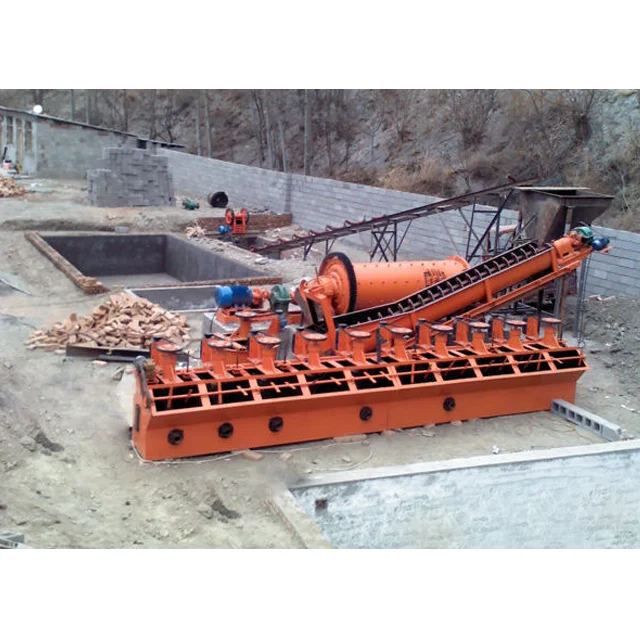

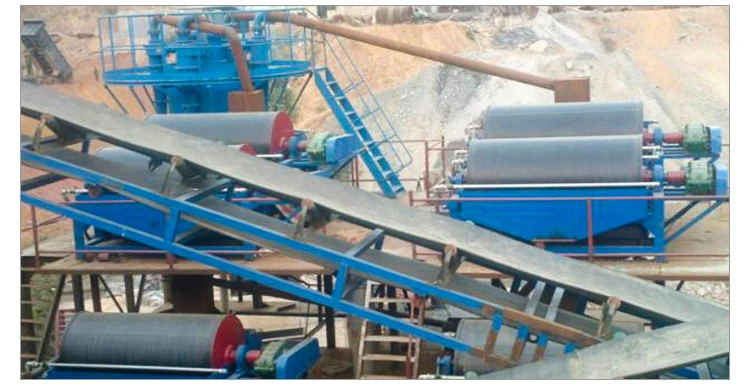

Magnetic beneficiation plant
Magnetic separator main technical parameters
Model | Dia. of shell (mm) | Length of shell (mm) | Rotary speed of cylinder(r/min) | Feeding size (mm) | Capacity (t/h) | Power (kw) |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |

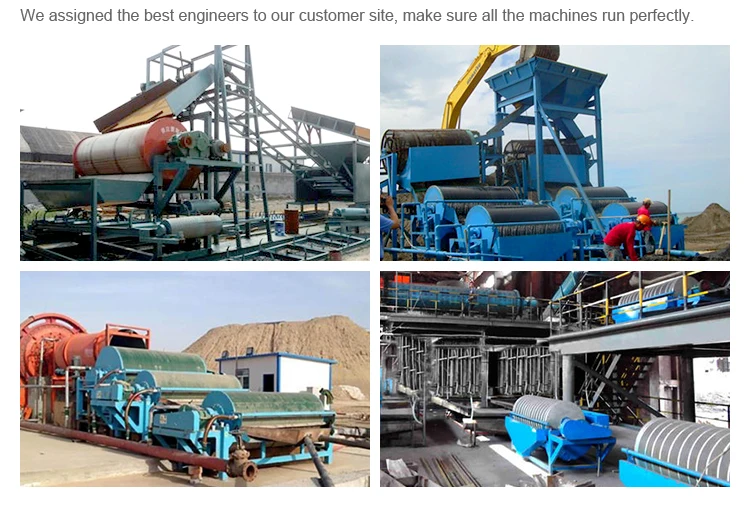

Our Project
More Products

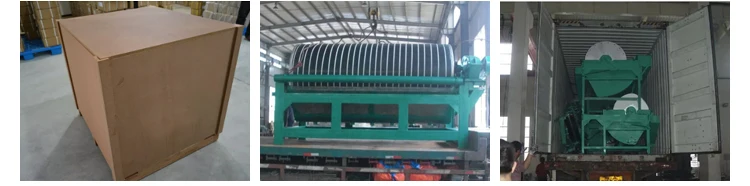

Packaging & Shipping
Packaging Details：We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
Company Information
Shanghai Minggong Heavy Equipment Co., Ltd. is a manufacturer specialized in large and medium-sized mining machinery, metallurgical machinery and building material equipment R & D, production and marketing. In 2005, our company bought 40000 square meters of land in Shanghai Jiading Malu High-Tech Park and built a factory of 18000 square meters, with assets of RMB 15 million and more than 400 employees. Our firm has a scientific research group with 70 technologists and 20 senior engineers. 15 years of experience ensures a well-trained riveter and welder team. Our company has long-term cooperation with many research institutions in China and abroad, bringing in advanced technology of the world.The products include large-sized ball mills, large-sized rotary kilns, rotary dryers, complete cement plants, jaw crushers, impact crushers, sand makers (vertical shaft impact crushers), feeders, vibrating screens, sand washing machines, belt conveyors and others, totally over one hundred models. These machines are widely used in mining, chemistry, metallurgy, construction material, coal and refractory material industries. The products have passed ISO9001:2000 international quality certification and CE quality certification. Our quality policy is 'Quality first, reputation first, customer first'. The products have been sold to Russia, Japan, Australia, Uzbekistan, Korea, Myanmar, Indonesia, Iran, Chile, Mali, Guinea, Tanzania, Nigeria, the Philippines, Bangladesh and Cuba.Our company emphasizes fundamental management, has an enterprise management system and carries out position management & ABC management. The production technology is managed by computers. For product development, our firm adopts CAD / CAPP technology. Our company keeps developing new products, investing in technical innovation and improving product quality, to meet different needs of customers.
Our service
Service---customers is the first!
We not only have experienced engineers and after-sales groups but deal with the trade through internet and form our own sales network.
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
6>. Provide perfect service;
7>. Provide technical exchanges.
FAQ
Q1: How long is the warranty of the magnetic beneficiation plant?
A1: Our warranty period is one year generally.
Q2: Can I visit your factory?
A2: Yes. We warmly welcome you to visit our factory.
We will take you to our customer site to have a real look.
We will arrange a car to pick you up at the Xinzheng International Airport.
We will take you to our customer site to have a real look.
We will arrange a car to pick you up at the Xinzheng International Airport.
Q3: Do you provide equipment operation training?
A3: Yes. We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports.
Q4: Do you provide flow chart?
A4: Yes. Our experienced engineers are specialized in designing process flow for various project for different final product sizes.
Q5: Can you test our samples?
A5: Yes. You can send your samples to us for test and analysis.
