Hot selling pepsi filling machine soda water soft drink bottling line plant Oem Factory Price
- Category: >>>
- Supplier: Zhangjiagang Tech Machinery Co. Ltd.
Share on (1600526829404):
Product Overview
Description

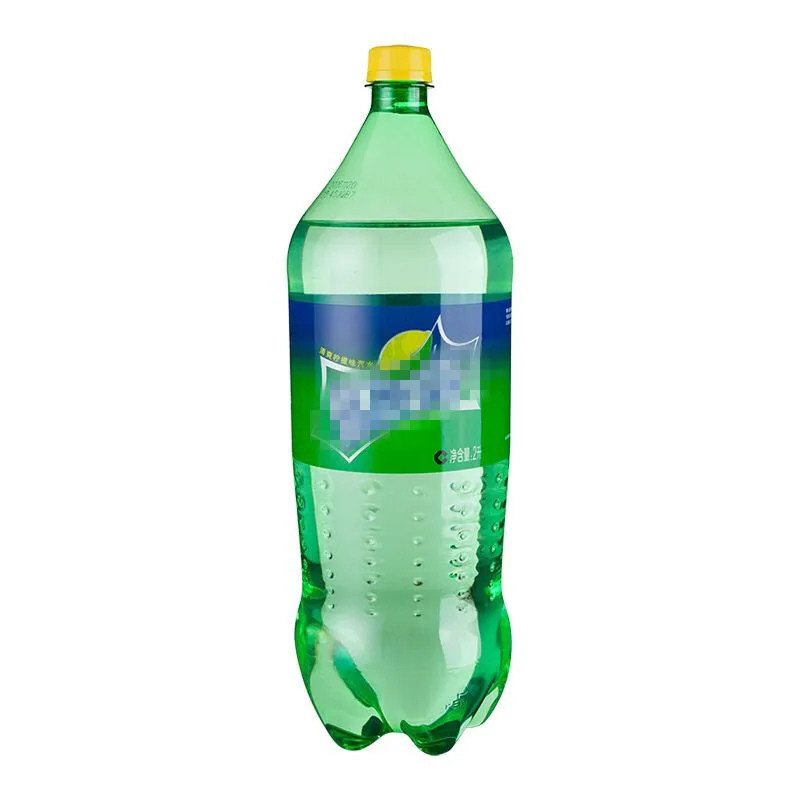

Suitable bottle
This set machine can work PET bottle size from 200ml to 2000ml (2L).
Products Description

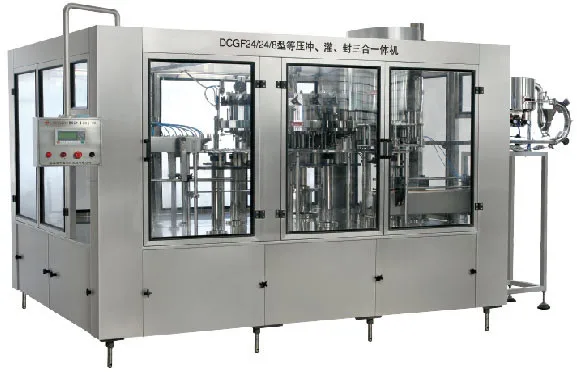

The series equipment is used in production of PET bottle-packing carbonated beverage such as Coca-Cola, containing gas mineral water, sprite, containing gas juice etc. The machine combines washing/filling/capping with complete automation, and the filling process adopted the micro-pressure technology, which makes filling process faster and more stable.
Characteristic:
1. It can carry out bottle washing filling and capping in one machine.
2. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient.
3. It adopts bottleneck blocking type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
4. The main machine adopts advanced PLC control technology. The key electric elements are adopting international famous products.
1. It can carry out bottle washing filling and capping in one machine.
2. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient.
3. It adopts bottleneck blocking type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
4. The main machine adopts advanced PLC control technology. The key electric elements are adopting international famous products.

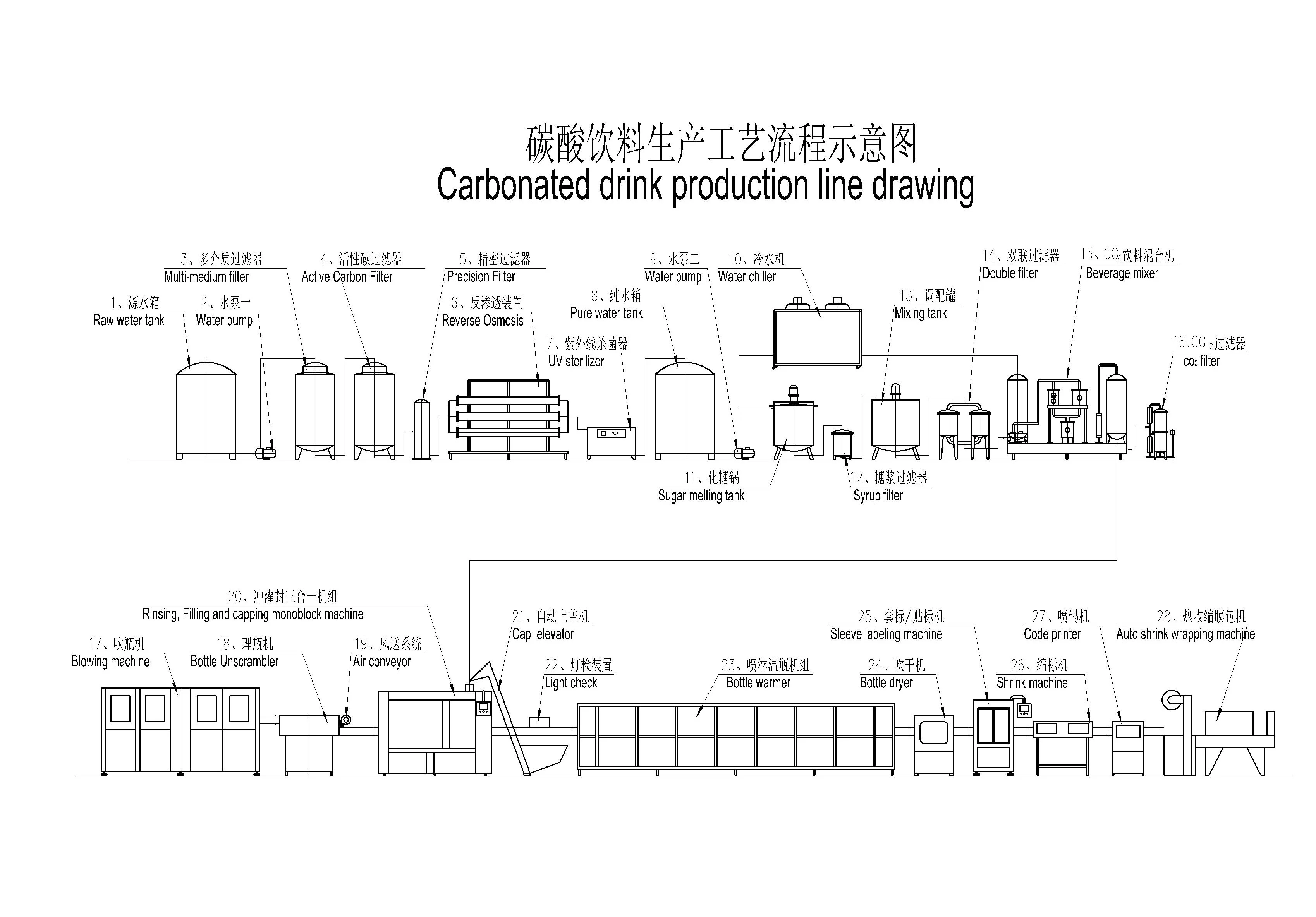

working process
Product Paramenters
Model | DCGF14-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 |
Washing Heads | 14 | 18 | 24 | 32 | 40 |
Filling heads | 12 | 18 | 24 | 32 | 40 |
Capping heads | 5 | 6 | 8 | 10 | 12 |
Capacity (bph) | 3000 | 4000 | 6000 | 8000 | 12000 |
Filling precision | ≤+5mm | ≤+5mm | ≤+5mm | ≤+5mm | ≤+5mm |
Power(kw) | 2.2 | 3.75 | 4.8 | 5.5 | 6.3 |
Weight(kg) | 2500 | 3500 | 4800 | 5600 | 6500 |
Dimension(mm) | 2250x1700x2300 | 2400x1960x2300 | 3010x2180x2400 | 4000x2250x2500 | 4200x3000x3150 |
Details Images
Full Automatic Bottle Unscrambler
It is used for arranging PET bottles and transport by vacuum conveyor. This machine is easy and reliable in running, also it has beautiful appearance. It is easy to connect with various filling machine or filling line.
Also you can choose Semi-automatic type
Air conveyor
Usage: Transporting bottles from blowing machine (bottle umscrambler) to the filling machine
cap elevator
The cap elevator is mainly used for conveying the cap from a low position to a capping machine hopper in a higher position, and is an auxiliary device of the capping machine. The output can be 2,000 per hour to 36,000 per hour, according to customer requirements. Can be used in a variety of beverage bottle caps (including plastic covers, aluminum covers, metal covers, crown
caps, etc.).
caps, etc.).
Washing head
Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180* along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

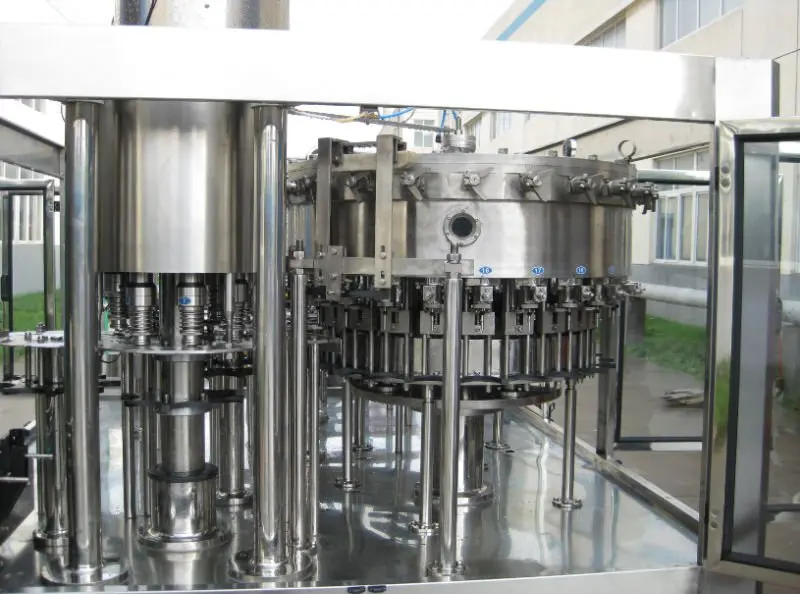

filling head
The most advanced technology is employed in the design.The gravity fixed liquid surface filling is used. The filling is fast,the amount of liquid is accurately controlled and the dropping and leakage are avoided.
capping head
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged,the capping is reliable.
The bottle-necks are cramped and bottles are suspended during the operation process. This avoids many malfunctions caused by thinner bottle body or different highness of bottles.This design also reduce dramatically the required number of changeable parts ,make it more convenient and quickly to change to another type of bottles. The bottle-necks are cramped and bottles are suspended during the operation proces. This avoids many malfunctions caused by thinner bottle body or different highness of bottles.This design also reduce dramatically the required number of changeable parts ,make it more convenient and quickly to change to another type of bottles.
Air dryer
Adopt high-pressure blower, discharge the air from a small gap, to blow off the water on the bottle body. The gap is laid
incline, which can make the whole body touch the air. It consist of high-pressure blower, blowpipe, frame, control device, surge
tank etc.
incline, which can make the whole body touch the air. It consist of high-pressure blower, blowpipe, frame, control device, surge
tank etc.
Automatic labeling machine
Sleeves made of elastic stretch film can be applied to the slightly rounded area of plastic containers without glue, for they are shrunk with stream or hot air to fit the container shape. Suitable product: plastic containers in beverage, health, cosmetic, daily consumption fields etc. Applying the sleeves made of elastic stretch film to the slightly rounded area of plastic containers without glue.
Automatic packing machine
Full automatic shrink packaging machine mainly consists of mechanical devices for product conveying, aggregating and aligning, propelling for packaging film, film roll laying, bottle pressing device, heating seal, shrinking by heating, cooling and forming, pneumatic control system as well as electrical control system. All these are combined to achieve the whole technological processes, from conveying product to feeding material, packaging film, laying film, sealing and cutting, shrinking by heating, and
to cooling and forming
to cooling and forming
Supporting equipment

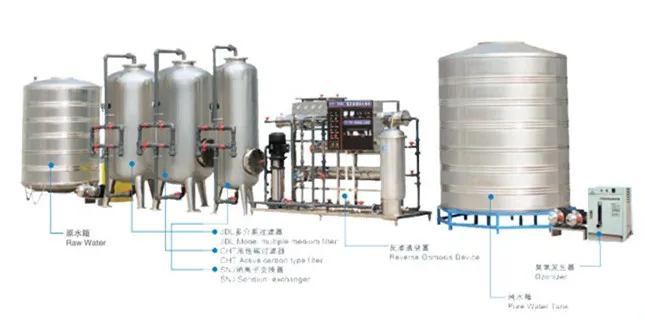

Water treatment
The water treatment system is pre-treating amd desalting the tap water in the raw water tank in the RO system to get pure water.The pre-treatment device consists of quartz sand filter, active carbon filter, natrium ion exchanger and precision filter onizer and so on. we adopt imported RO membrane of Hydranautics from U.S.A for RO system. The structure of whole line is simple, the operation is convenient, the technical level is high. This system is the most ideal drinkable water production line.
Sugar melting tank
The equipment is a simple structure, easy to use, with heating, stirring and cooling devices of sugar melting equipment.
Syrup filter
The filter is mainly used for removing impurities from sugar paddle, and the filtered sugar solution is clear and transparent. It has no odor and odor.
Mixing tank
The dispenser can mix syrup, food flavors, food additives and water evenly.
Double filter
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Beverage mixer
The beverage mixer is designed to improve the proportion of water, syrup and carbon dioxide accurately and elaborately. It adopts foreign advanced technology static mixer to reduce water layer, increase carbonation time and ensure beverage mixing effect. Carbon dioxide reflux deoxidization is used to save carbon dioxide and achieve the purpose of deoxidization. High quality water pump and Siemens electrical appliances constitute a perfect utomatic control system It has the advantages of coordinated action, beautiful appearance, convenient cleaning and high degree of automation. It is suitable for mixing various types of drinks. Such as soft and hard drinks such as soda, juice and cola.
CO2 Filter
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Profile

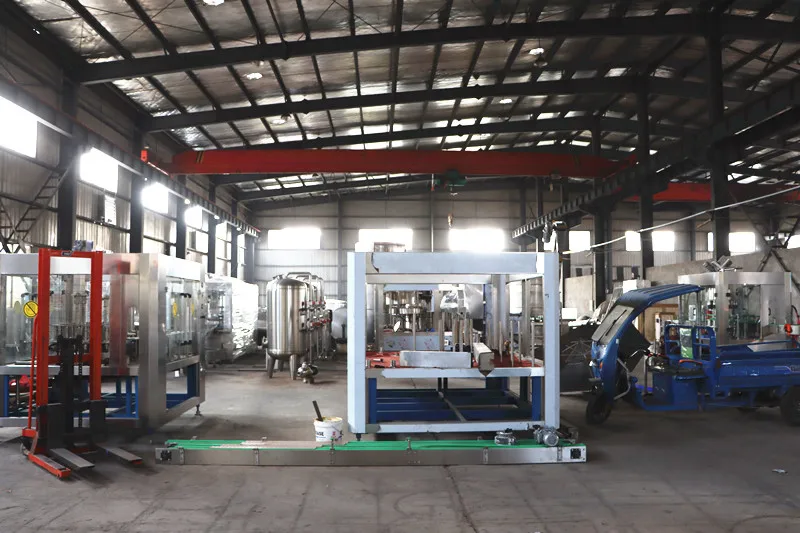

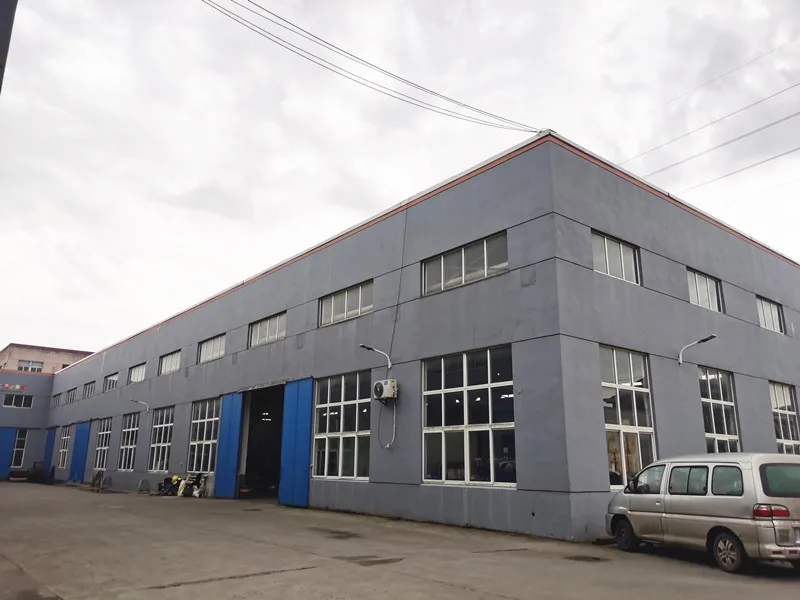

TECH machinery is a company with 15 years of production experience, is a dynamic and positive team. The company sets development, production, sales, after-sales as one; on the basis of consolidating the original high-quality, absorbing the latest technology in the world, providing a perfect solution for lots of customers. The main production equipment includes: water washing filling capping 3-in-1 machine, Carbonated beverage washing filling capping 3-in-1 machine, hot beverage tea washing filling capping 3-in-1 machine, barrel water filling machine etc. Pre-treatment equipment includes: water treatment equipment, sugar pot, production line necessary set Automatic labeling machine, automatic sticker labeling machine, film packaging machine, packing machine, palletizer, etc.; at the same time, it also provides PET bottle blowing machine, etc. Our customers are from all over the world, the main market: China, Myanmar, Cambodia, Thailand, Tanzania, Bangladesh, Russia and other countries and regions. Many years of sales also received good comments from customers, as well as satisfactory reply.

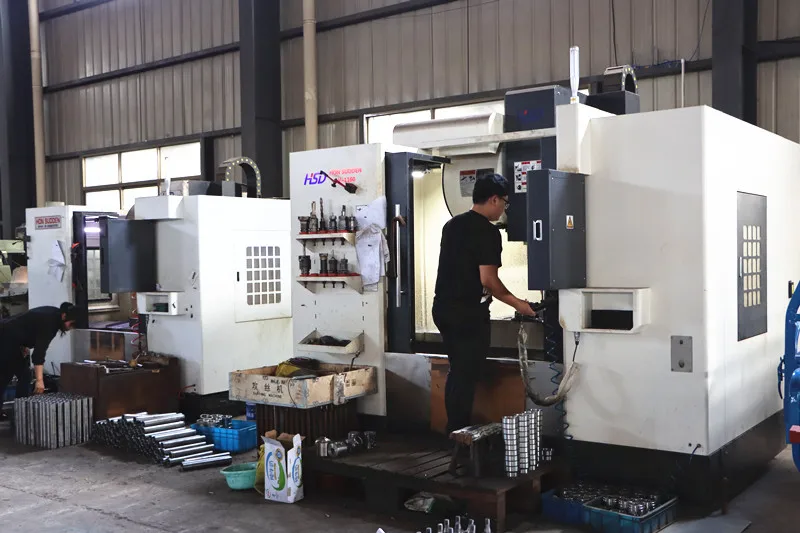

we have professional processing machine such as CNC, and we have experienced workers.
Sales department and technology department
We can supply professional sales project, and design machines for you.
Touch screen: Mitsubishi /Siemens
PLC: Mitsubishi
Inverter: Mitsubishi
Contactor: Siemens/ Schneider
Product packaging
Shipping
Delivery to Sea port by truck, then ship to customer's factory.

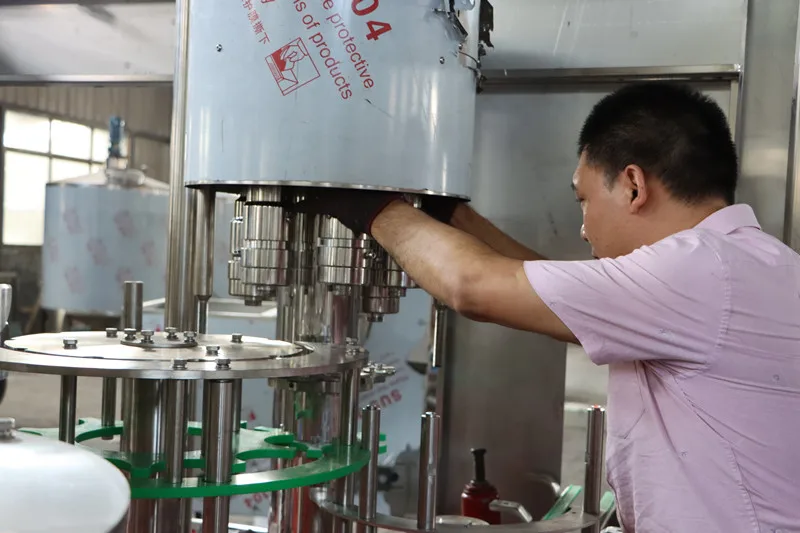

Projects in customer's factory
Project in customer's factory
We supply complete project for customer, from A to Z. Turnkey project.
