Product Overview
Description
Product Overview
AWS-PET Famous Brand Motor Plastic Recycling Washing Machines Sale

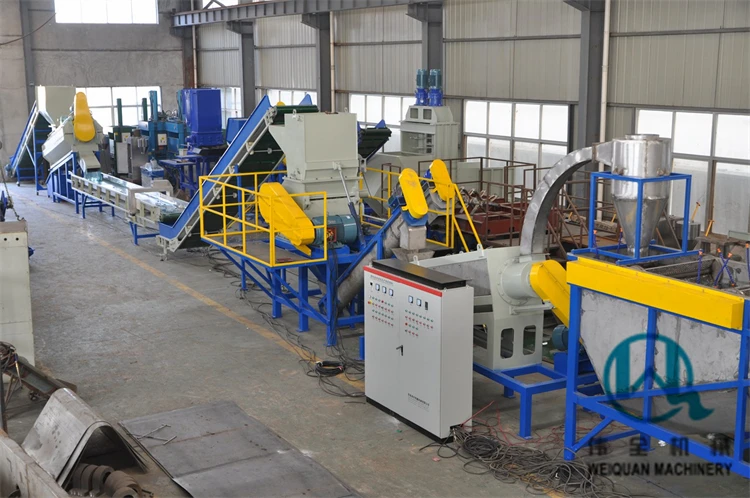

This Waste plastic PET bottle recycling washing machine is designed and manufactured by WeiQuan machine, which is widely used for waste plastic PET material, such as water bottles, pet sheet, pet containers, etc.
The waste dirty material go through delabelling, crushing, washing, drying, and collecting process will turn to be clean flakes for reuse.
This PET bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
The waste dirty material go through delabelling, crushing, washing, drying, and collecting process will turn to be clean flakes for reuse.
This PET bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
FEATURES AT A GLANCE
Baler opener
Motor power for mixing：\t4 kw*2
Motor power for convey belt：\t4 kw
Processed capacity：\t1000-3000 kg/h
Size of processing package：\t<1400*1600*1000mm
Motor power for convey belt：\t4 kw
Processed capacity：\t1000-3000 kg/h
Size of processing package：\t<1400*1600*1000mm

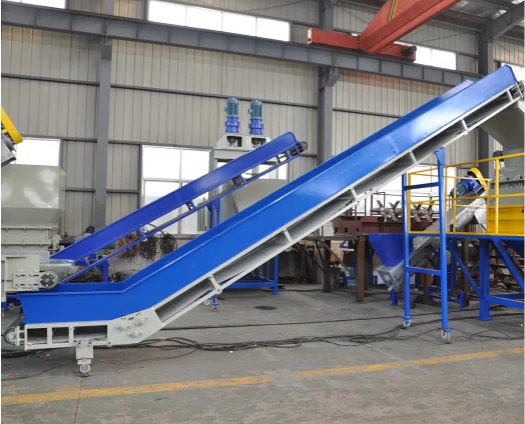

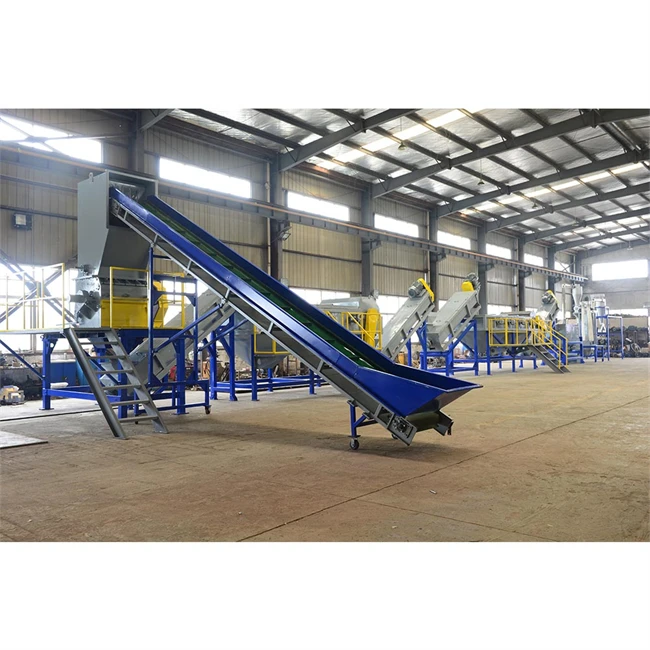

Belt Conveyor
Transport PET bottle into rolling separator
Motor power\t2.2 kw, with inverter control.
Length of belt：4500 mm
Width：\t800 mm
Install isolation stick against-slide on the surface of belt.
Adjust height of conveying belt freely.
Small moving wheels are flexible and convenient.
Motor power\t2.2 kw, with inverter control.
Length of belt：4500 mm
Width：\t800 mm
Install isolation stick against-slide on the surface of belt.
Adjust height of conveying belt freely.
Small moving wheels are flexible and convenient.

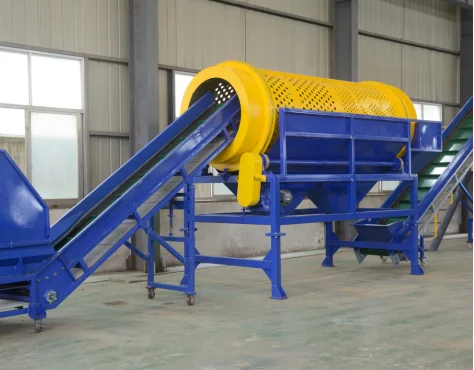

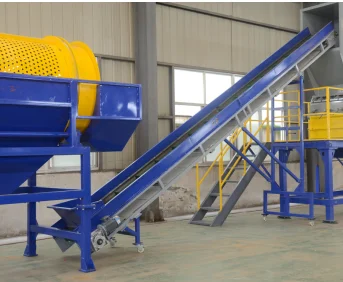

Rolling Separator
Diameter of barrel:1500 mm
Length of barrel:4500 mm
Motor power:3 kw
Rotary speed:\t<130 RPM
Weight:\t1800kg
Basic material of barrel Carbon steel coated with metal Zn
Length of barrel:4500 mm
Motor power:3 kw
Rotary speed:\t<130 RPM
Weight:\t1800kg
Basic material of barrel Carbon steel coated with metal Zn
Belt Conveyor
Transport PET bottle into label remover.)
Motor power\t2.2 kw, with inverter control.
Width\t800 mm
Length of belt\t4500 mm
Install isolation stick against-slide on the surface of belt.
Adjust height of conveying belt freely.
Small moving wheels are flexible and convenient.
Width\t800 mm
Length of belt\t4500 mm
Install isolation stick against-slide on the surface of belt.
Adjust height of conveying belt freely.
Small moving wheels are flexible and convenient.

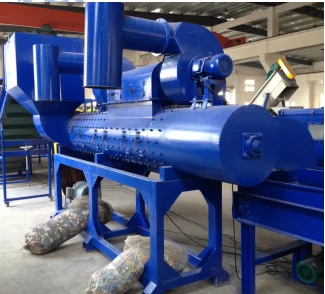

Label Remover
Effectively remove labels on the bottle surface.
Motor power\t18.5 kw
Blower motor\t3 kw* 2
Length of the shaft\t4000 mm
The diameter of the shaft\t600 mm
Ratio for label removing\t80%-90%for pressing bottle
90%-95%for non- pressing bottle
Blower motor\t3 kw* 2
Length of the shaft\t4000 mm
The diameter of the shaft\t600 mm
Ratio for label removing\t80%-90%for pressing bottle
90%-95%for non- pressing bottle

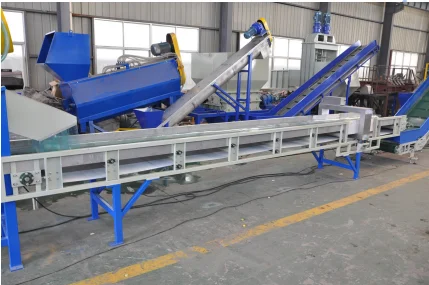

Manual Sorting Table with Metal Detector
Manually select bottles that do not meet the requirements.
Width of belt\t:800 mm
Length of sorting table:8000 mm
Height:1200 mm
Motor power\t3 kw, with inverter control.
Length of sorting table:8000 mm
Height:1200 mm
Motor power\t3 kw, with inverter control.

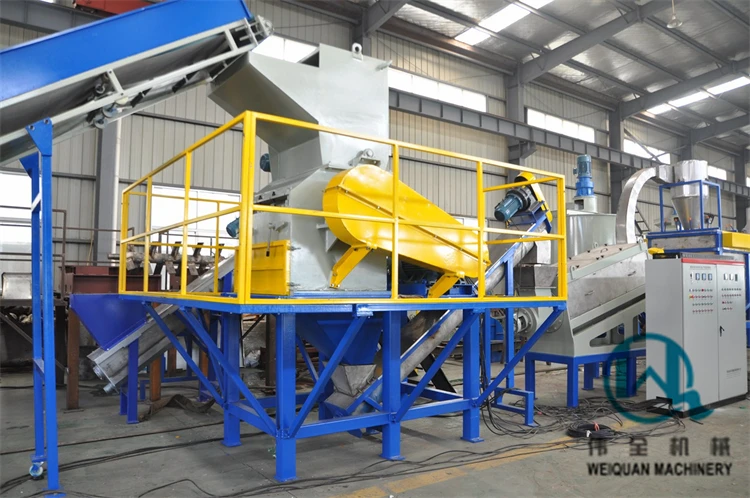

Shredder & Crusher
Divide large-size raw materials into relatively uniform small-size raw materials through shredding and crushing
Crushing bottle to small flakes.
Divide large-size raw materials into relatively uniform small-size raw materials through shredding and crushing
Crushing bottle to small flakes.

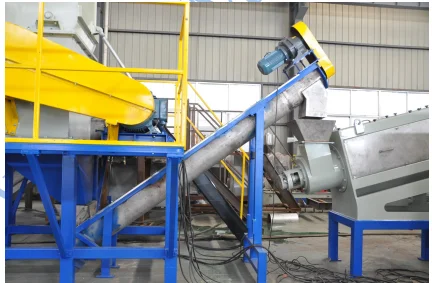

Screw Loader
Effective length:4000 mm
Screw diameter:350 mm
Rotating speed:35 RPM
Motor power\t:3 kw
Material for contact with PET flake\tStainless steel 304
There will be 1000mm length mesh at the bottom.
Screw diameter:350 mm
Rotating speed:35 RPM
Motor power\t:3 kw
Material for contact with PET flake\tStainless steel 304
There will be 1000mm length mesh at the bottom.
High Speed Friction Washer
Preliminarily remove stains and save the amount of hot water.
Motor power: 37 kw
Rotary speed of screw:2200 RPM
Material for contact with PET flake\tStainless steel 304
The machine inside with water spray system.
With a water tank to collect waste water.
The paddle inside the friction washer can be dismantled and changed.
Rotary speed of screw:2200 RPM
Material for contact with PET flake\tStainless steel 304
The machine inside with water spray system.
With a water tank to collect waste water.
The paddle inside the friction washer can be dismantled and changed.

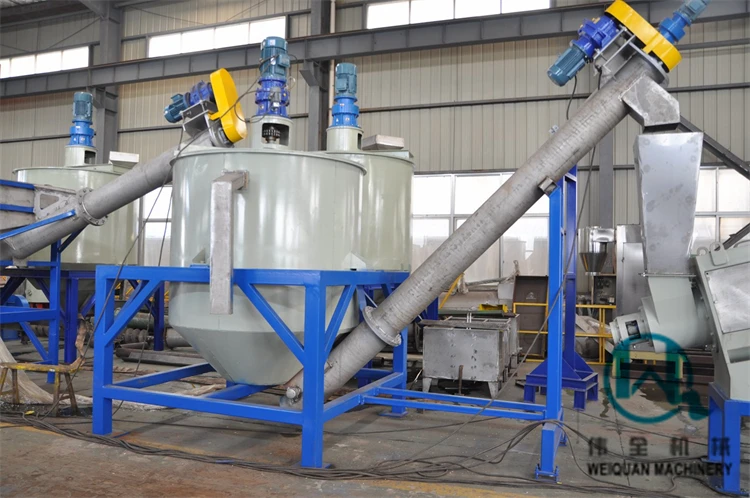

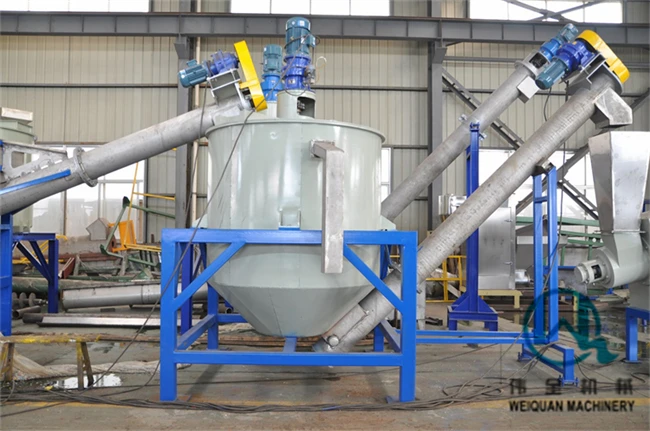

Hot washing tank
In the case of high temperature and the presence of chemicals, remove oil stains and other dirty things that are difficult to clean.
Pot diameter\tφ1800mm
Stirring motor power\t7.5 kw
Heating way\tElectricity or steam heating
Height\t2100 mm
Material for contact with PET flake\tStainless steel 304
With one set of water collecting tank , collect the floating plastic material, such as PVC label, PE caps...etc
Water after water treatment can be recycled use, the sieve made of stainless steel 304.
Stirring motor power\t7.5 kw
Heating way\tElectricity or steam heating
Height\t2100 mm
Material for contact with PET flake\tStainless steel 304
With one set of water collecting tank , collect the floating plastic material, such as PVC label, PE caps...etc
Water after water treatment can be recycled use, the sieve made of stainless steel 304.
Motor power of screw loader 3 kw, with inverter control.
Motor power of roller:\t2.2 kw
Quantity of roller:\t2 sets
Tank dimension:\t3.9m(L)*1.2m(W)*2m(H)
Material for contact with PET flake\tStainless steel 304
A staircase and platform will be provided for you to inspect the inside of the floating water tank.

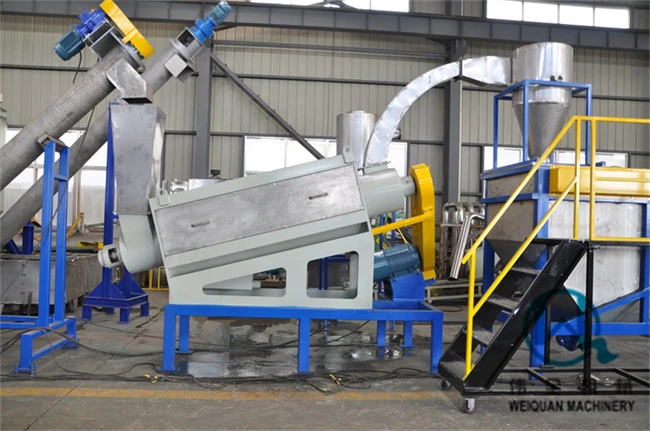

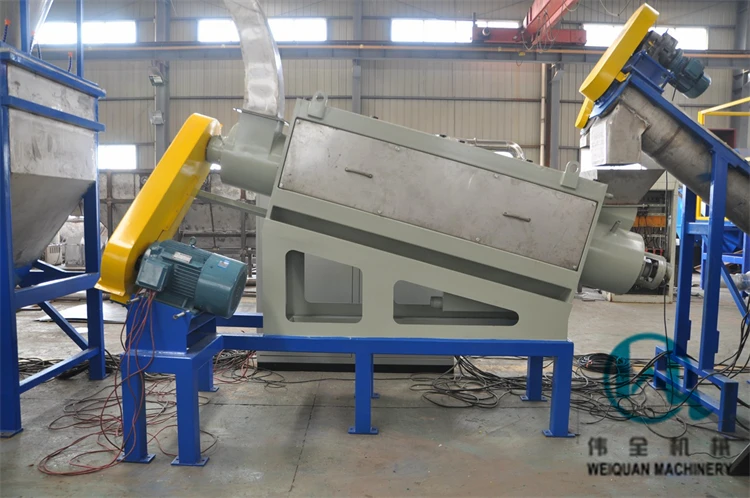

Dewatering Machine

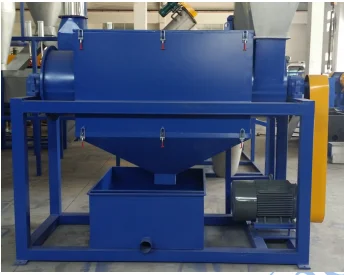

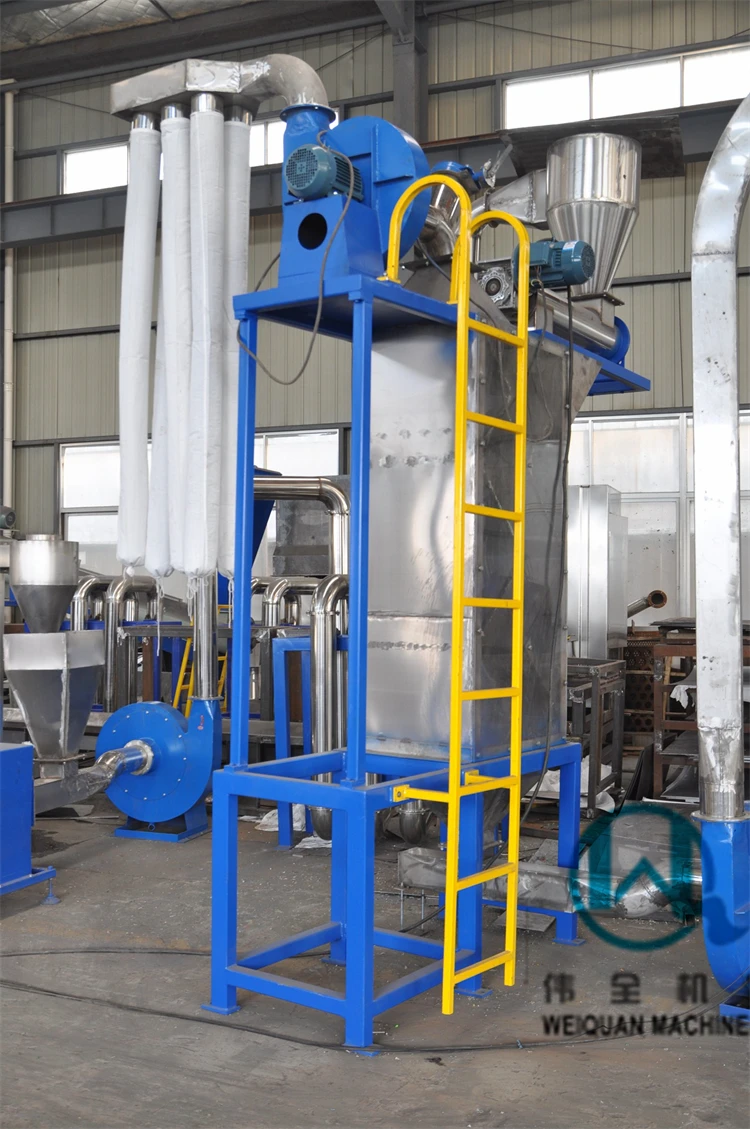

Label Separator
Removing the remaining label and dust in PET flakes.
Automatic butterfly valve :1.5 kw
Air blower:4 kw
Material for contact with PET flake\tStainless steel 304
Air blower:4 kw
Material for contact with PET flake\tStainless steel 304

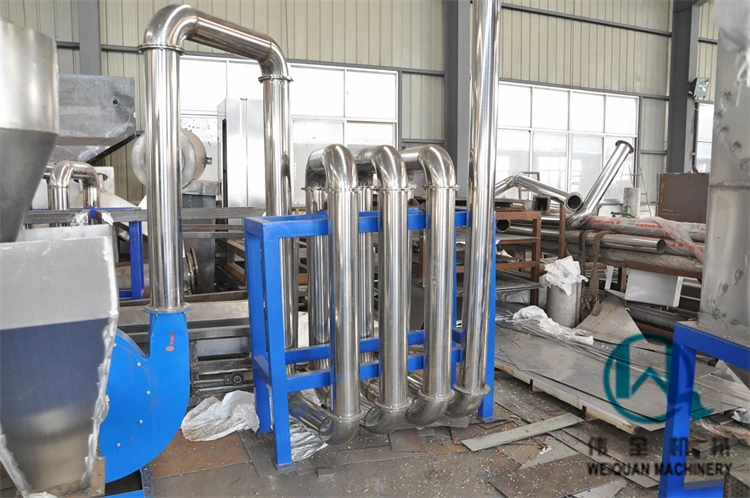

Pipe dry machine
With hot air to dry the bottle flakes.

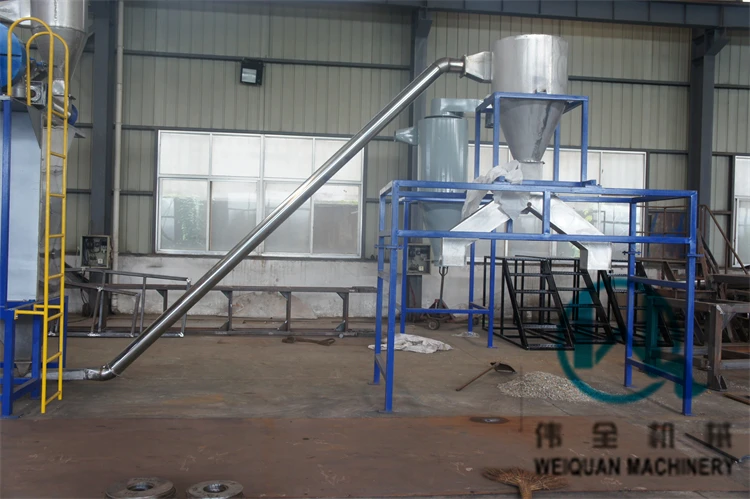

Packing silo
Function: flakes storage and packing.
Motor power of loading blower: 7.5 kw
Volume of silo:1.5 cubic
Material for contact with PET flake\tStainless steel 304
Volume of silo:1.5 cubic
Material for contact with PET flake\tStainless steel 304

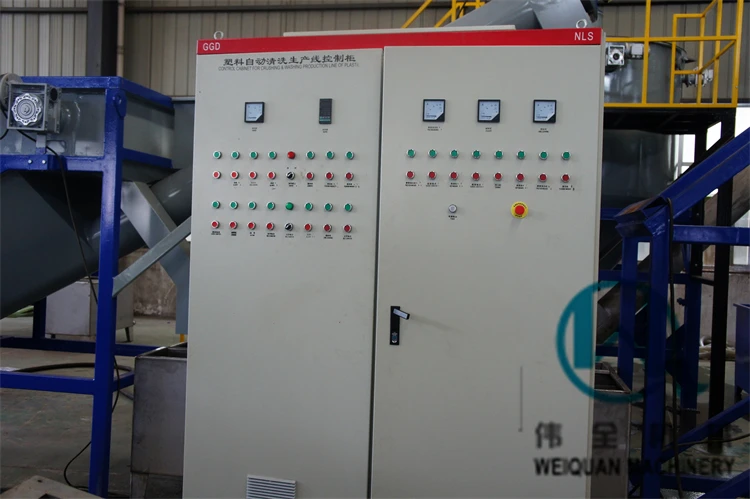

Intelligent Control System
With CE/CSA/TUV/SGS/ISO standard, all parameters can be set on the touch screen. 1.Electric control component(Schneider), e.g.Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.
With CE/CSA/TUV/SGS/ISO standard, all parameters can be set on the touch screen. 1.Electric control component(Schneider), e.g.Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.

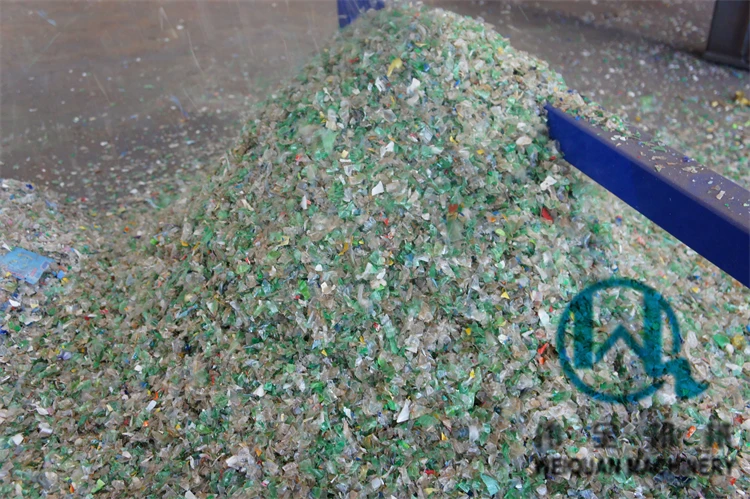

Final bottle flakes
PRODUCT SPECIFICATIONS
Item | Capacity (KG/H) | Length of the line (meter) | Power (kw) | Working mode |
PET-300 | 300 | Around 25 | To be determined | automatic |
PET-500 | 500 | Around50 | To be determined | automatic |
PET-1000 | 1000 | Around65 | To be determined | automatic |
PET-1500 | 1500 | Around80 | To be determined | automatic |
PET-2000 | 2000 | Around100 | To be determined | automatic |
PET-3000 | 3000 | Around110 | To be determined | automatic |
SALES AND SERVICE NETWORK

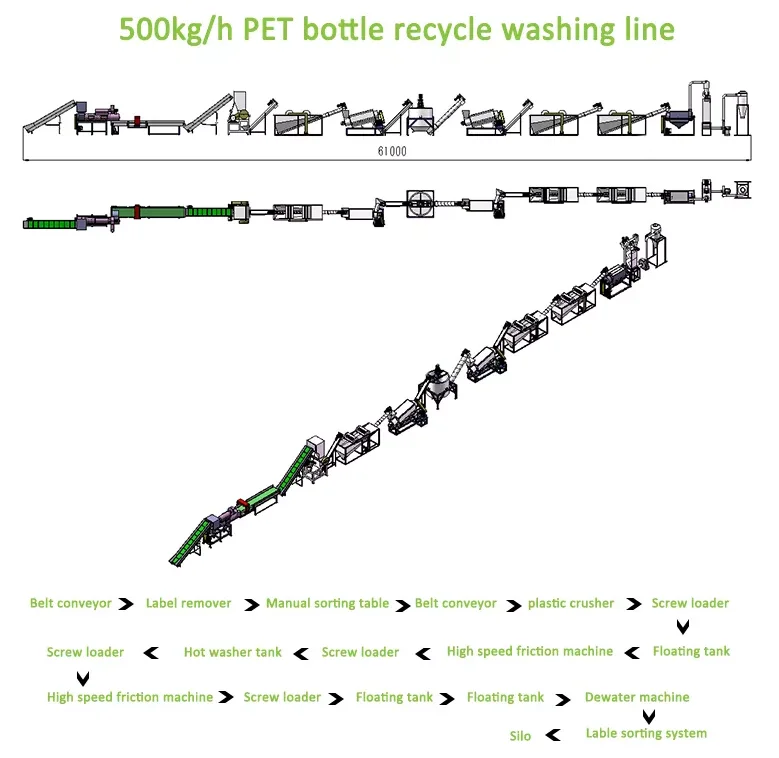

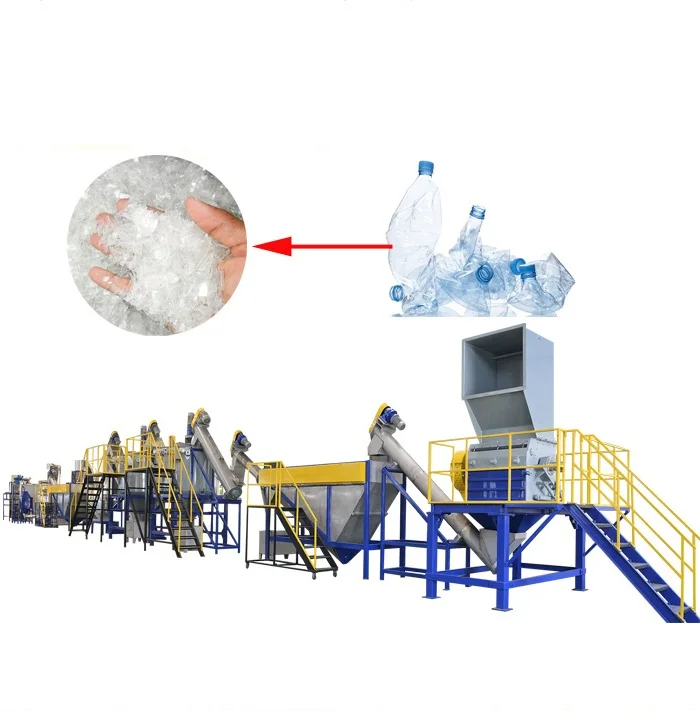

PET bottle washing line
PET bottles/bottle bales/flakes washing and recycling line mainly used to recycling waste PET bottle, The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation.the humidity of final output could be within1%.It adopts hot water washing to get good quality. Various output capacities can be chosen: 500kg/h, 1000kg/h, 1500kg/h 2000kg/h.3000kg/h,5000kh/h.The waste dirty material go through delabelling, crushing, washing, drying, and collecting process will turn to be clean flakes for reuse.
This pet bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
This pet bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
PP PE film Washing recycling line
Description:
Material: Plastic PP PE Film/PP PE Woven Bags/HDPE LDPE PP PE Bottles
Product size: 30-100mm or customized
Moisture content: <3%
Main Features:
1) This whole production line is used to crush, wash, dewater and dry PP, PE Film.
2) It takes the advantages of simple structure, easy operation, high capacity, low energy consumption, safety, reliability, etc.
3) This whole production line is automatic controlling, structure arrangement compact, high production efficiency, nice cleanness.
4) Production capacity: 100-3000kg/h.
5) After drying the water content is only 3% (according to the thickness of film).
Material: Plastic PP PE Film/PP PE Woven Bags/HDPE LDPE PP PE Bottles
Product size: 30-100mm or customized
Moisture content: <3%
Main Features:
1) This whole production line is used to crush, wash, dewater and dry PP, PE Film.
2) It takes the advantages of simple structure, easy operation, high capacity, low energy consumption, safety, reliability, etc.
3) This whole production line is automatic controlling, structure arrangement compact, high production efficiency, nice cleanness.
4) Production capacity: 100-3000kg/h.
5) After drying the water content is only 3% (according to the thickness of film).
plastic crush
water floating tank
squeezer and soli
Waste PP PE film woven bags plastic water ring pelletizing line / granulating machine
Usage:
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
It is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas. It can produce ample,consolidated and fine luster granules.
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
It is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas. It can produce ample,consolidated and fine luster granules.
single extruder
vibrator motor
water cutting
FAQ
1): Are you a factory or trading company?
We are a factory and can provide customized services.
2): What services will you provide?
We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably
production.
Except one year quality guarantee, we will provide after-sell service for all the life.
3): What can i buy from you?
Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing
Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
4): Why should i buy from you not from other suppliers?
We have more than 10 years experience in fabricating the machine.
5): What basic terms can you accept?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
We are a factory and can provide customized services.
2): What services will you provide?
We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably
production.
Except one year quality guarantee, we will provide after-sell service for all the life.
3): What can i buy from you?
Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing
Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
4): Why should i buy from you not from other suppliers?
We have more than 10 years experience in fabricating the machine.
5): What basic terms can you accept?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
