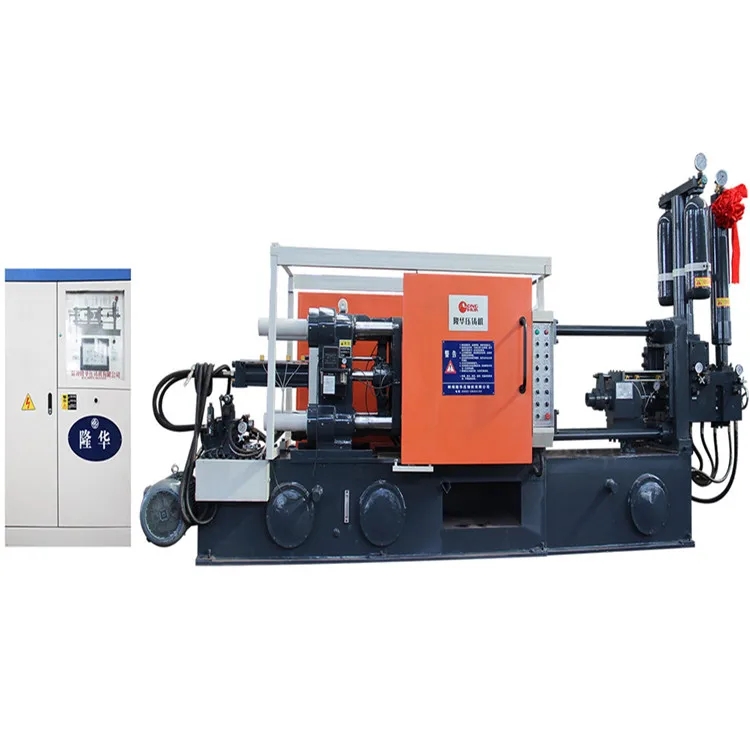

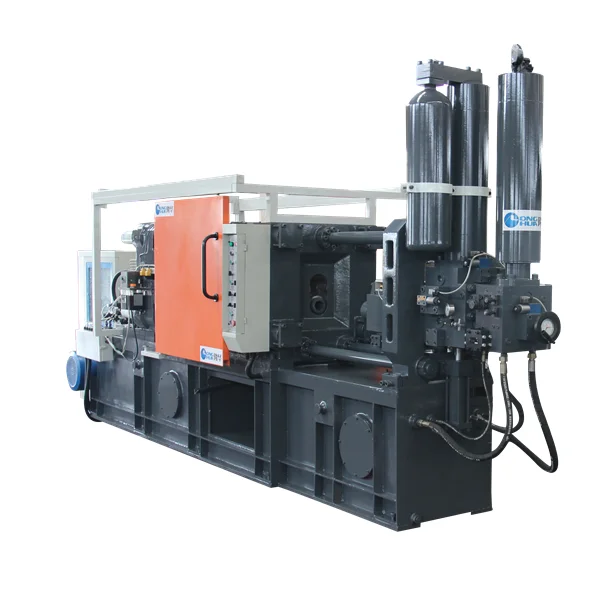

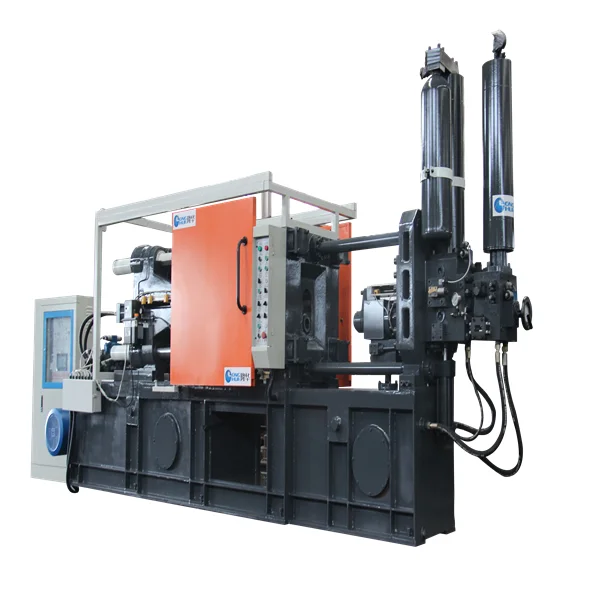

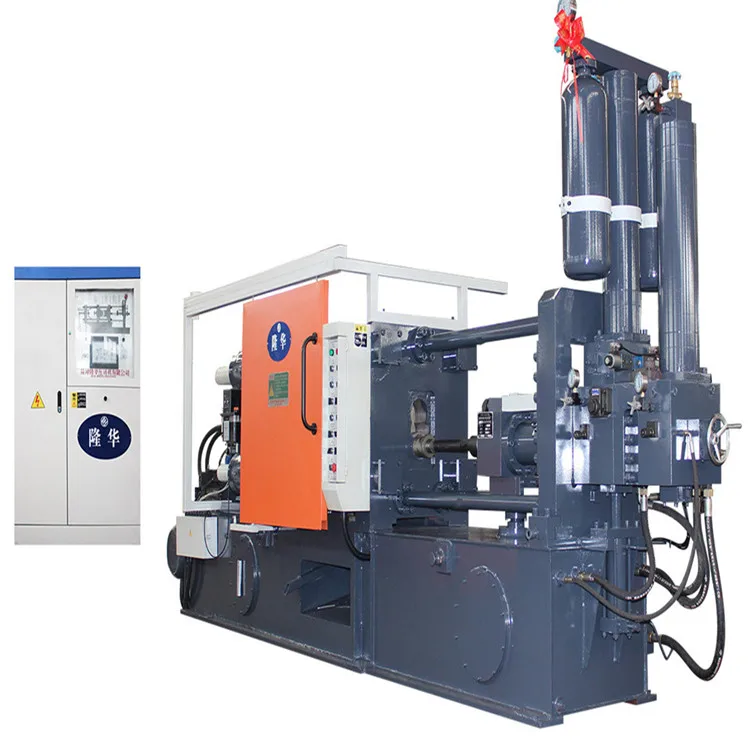

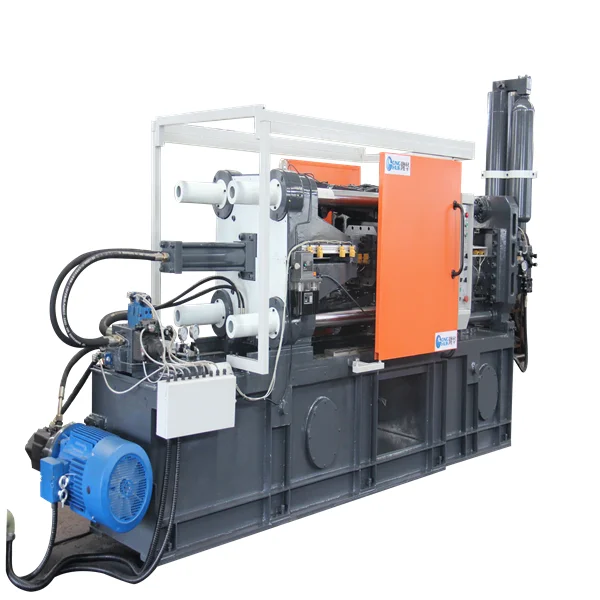

Lh 280t Faucet Foundry Brass Casting Machine Metal Hardware Accessories Making Machine
- Category: >>>
- Supplier: Anhui Anchine Machinery Co. Ltd.
Share on (1600526870577):
Product Overview
Description

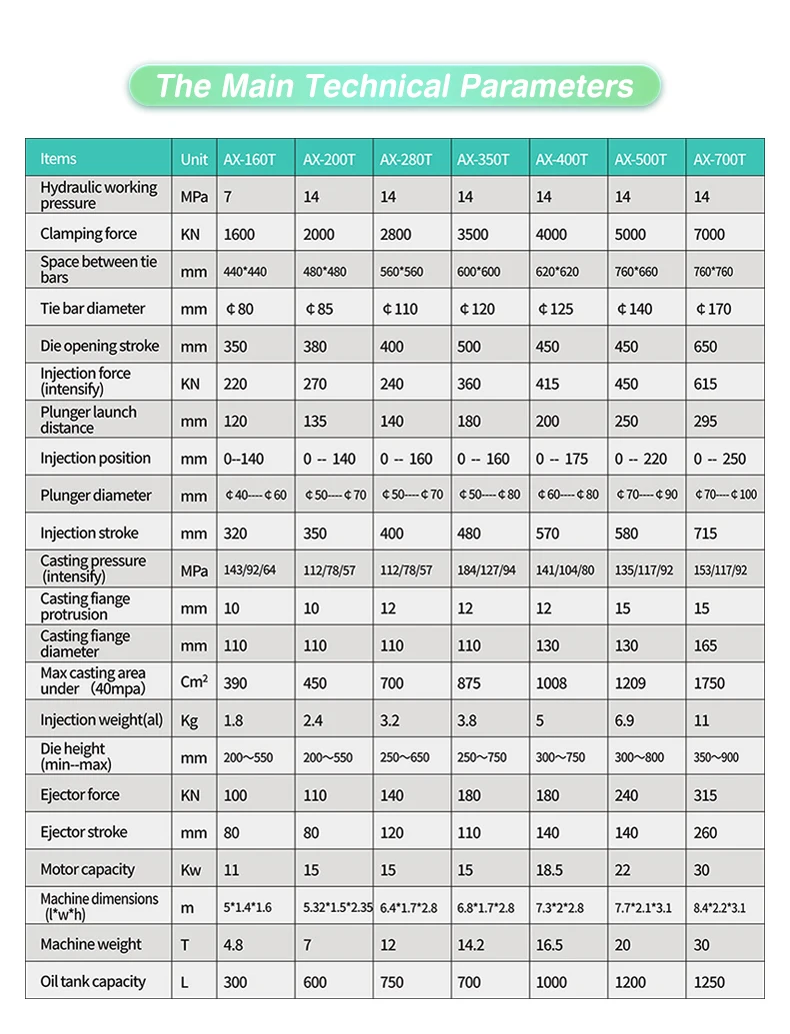

ITEMS | UNIT | SPECIFICATION |
HYDRAULIC WORKING PRESSURE | MPA | 14 |
CLAMPING FORCE | KN | 1800 |
SPACE BETWEEN TIE BARS | MM | 480*450 |
TIE BAR DIAMETER | MM | ￠85 |
DIE OPENING STROKE | MM | 380 |
INJECTION FORCE(INTENSIFY) | KN | 270 |
PLUNGER LAUNCH DISTANCE | MM | 130 |
INJECTION POSITION | MM | 0 -- 140 |
PLUNGER DIAMETER | MM | ￠50----￠70 |
INJECTION STROKE | MM | 350 |
CASTING PRESSURE (INTENSIFY) | MPA | 112/78/57 |
CASTING FIANGE PROTRUSION | MM | 10 |
CASTING FIANGE DIAMETER | MM | 110 |
MAX CASTING AREA UNDER （40MPA） | CM2 | 450 |
INJECTION WEIGHT(AL) | KG | 2.4 |
DIE HEIGHT(MIN--MAX) | MM | 200～550 |
EJECTOR FORCE | KN | 110 |
EJECTOR STROKE | MM | 80 |
MOTOR CAPACITY | KW | 15 |
MACHINE DIMENSIONS (L*W*H) | M | 5.22*1.4*2.35 |
MACHINE WEIGHT | T | 6.7 |
OIL TANK CAPACITY | L | 600 |
We reserve the right to make any technical improvement without further notice
FAQ
1.Q: Are you a factory or a trading company?
A:We are a professional manufacturer of die casting machines and we welcome you to visit our factory.
2.Q:How's your after-sale service?
A:we can gave you one-year after sales warranty .
Provide video for teaching,installation instruction,and other relevant technical documents.
1.Q: Are you a factory or a trading company?
A:We are a professional manufacturer of die casting machines and we welcome you to visit our factory.
2.Q:How's your after-sale service?
A:we can gave you one-year after sales warranty .
Provide video for teaching,installation instruction,and other relevant technical documents.
Professional Engineers are available to service machinery overseas,for testing,training your technicians how to run the machines.
3. Q:How to place order?
A:We hope you can provide us as much detail as possible about your requirements. So we suggest the most suitable design for you!
4.Q: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. Q:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
3. Q:How to place order?
A:We hope you can provide us as much detail as possible about your requirements. So we suggest the most suitable design for you!
4.Q: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. Q:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
