Hot Selling 20mm Thickness Pre Insulated Duct Aluminum Composite Panel
- Category: >>>
- Supplier: Xiamen Green Foam Insulation Material Co. Ltd.
Share on (1600526887958):
Product Overview
Description

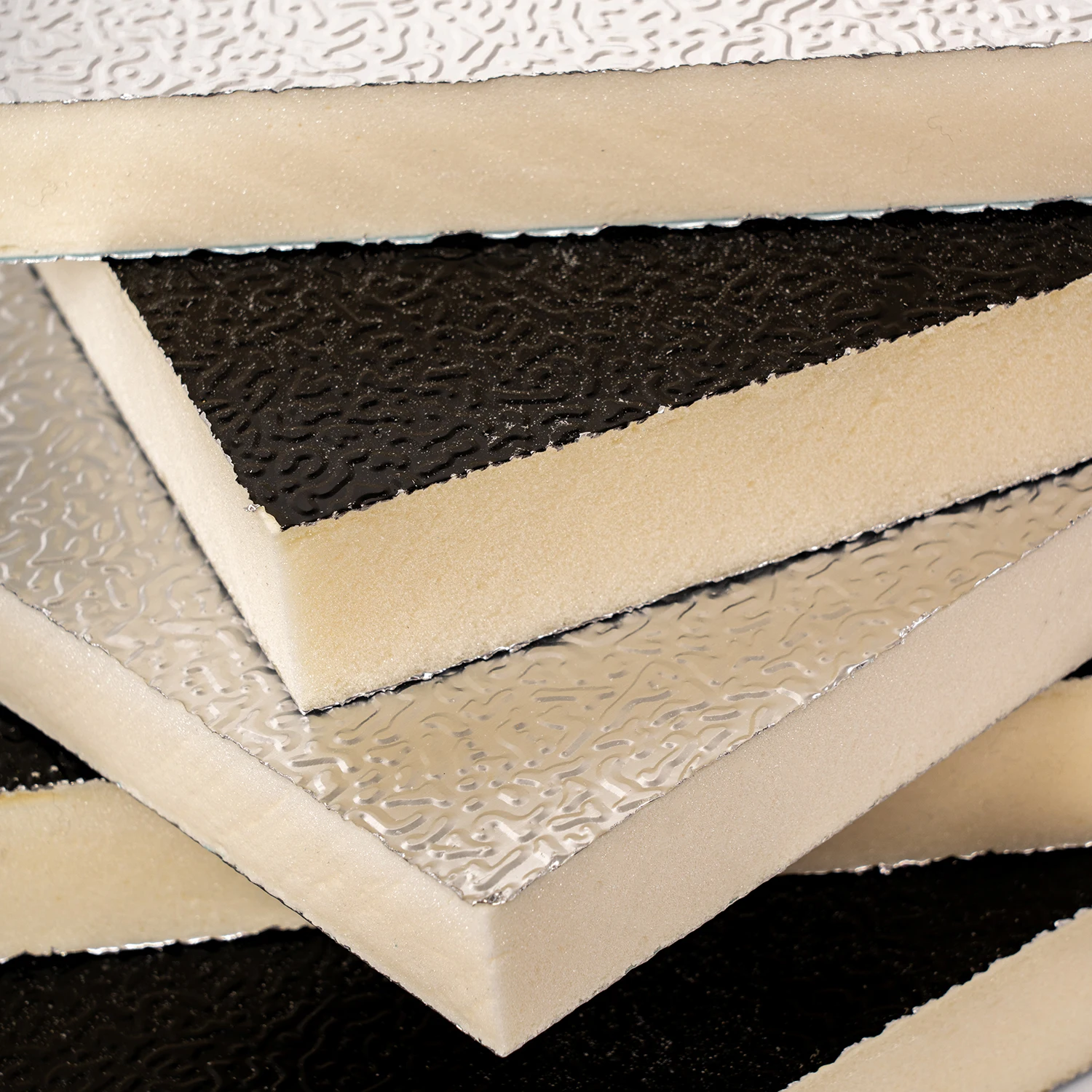

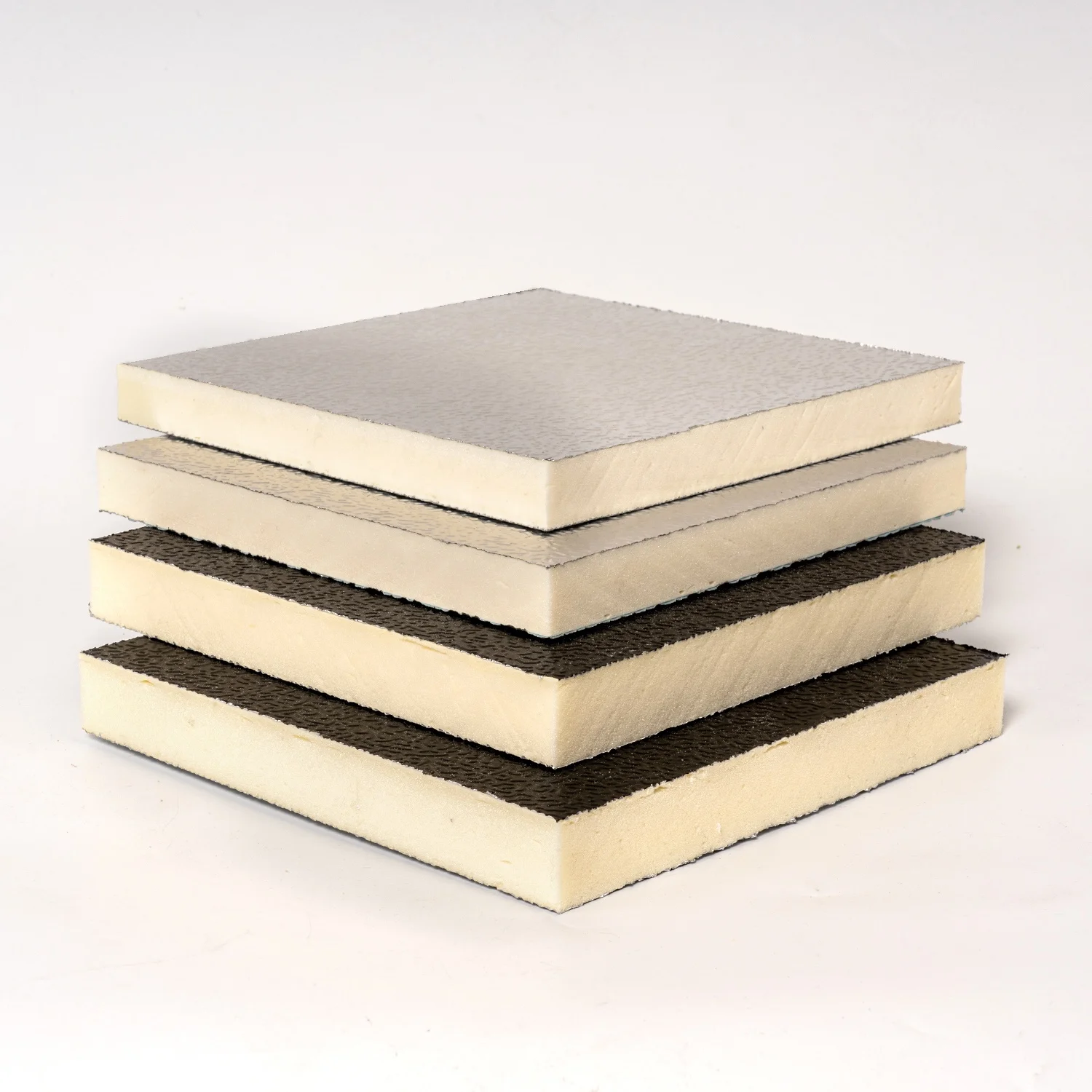

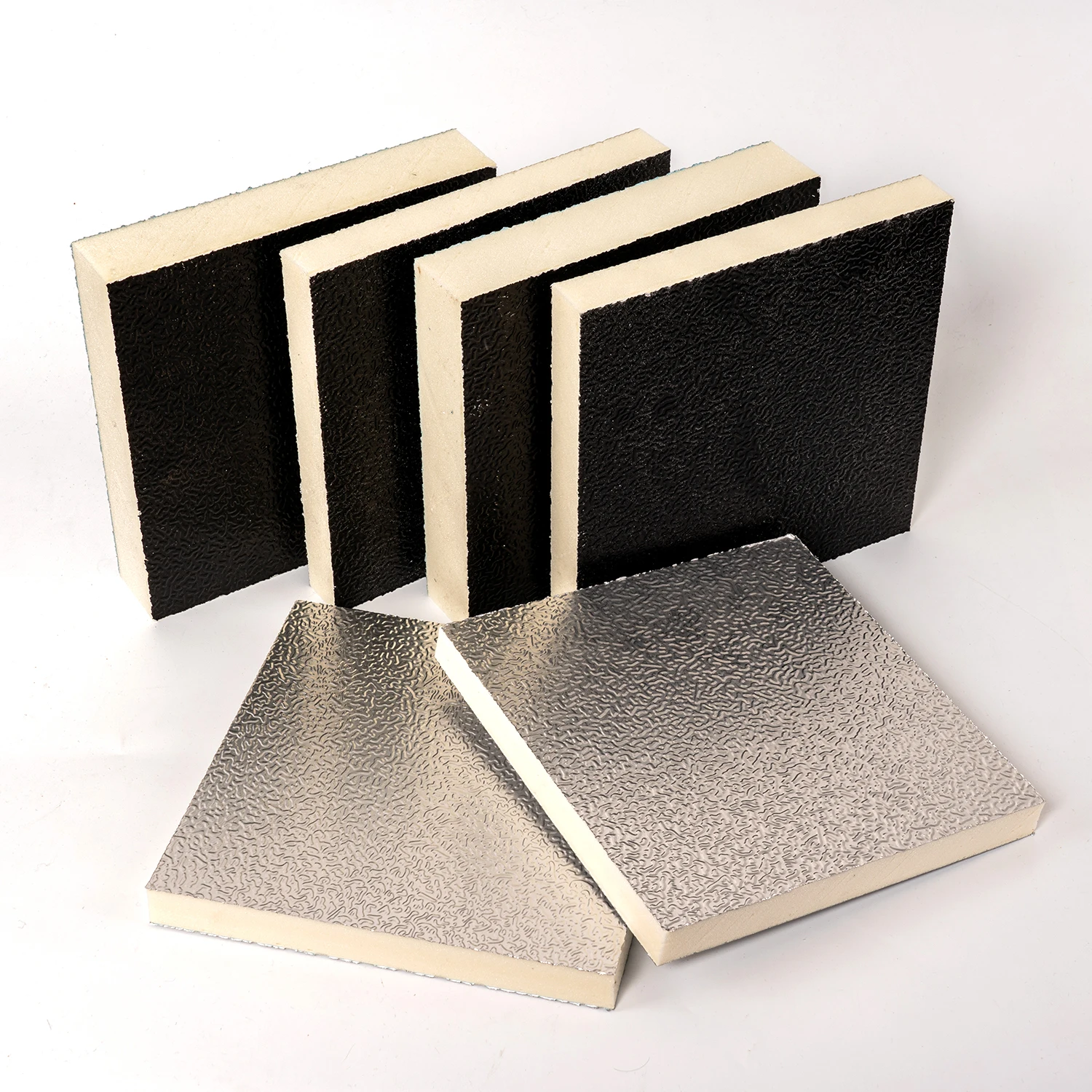

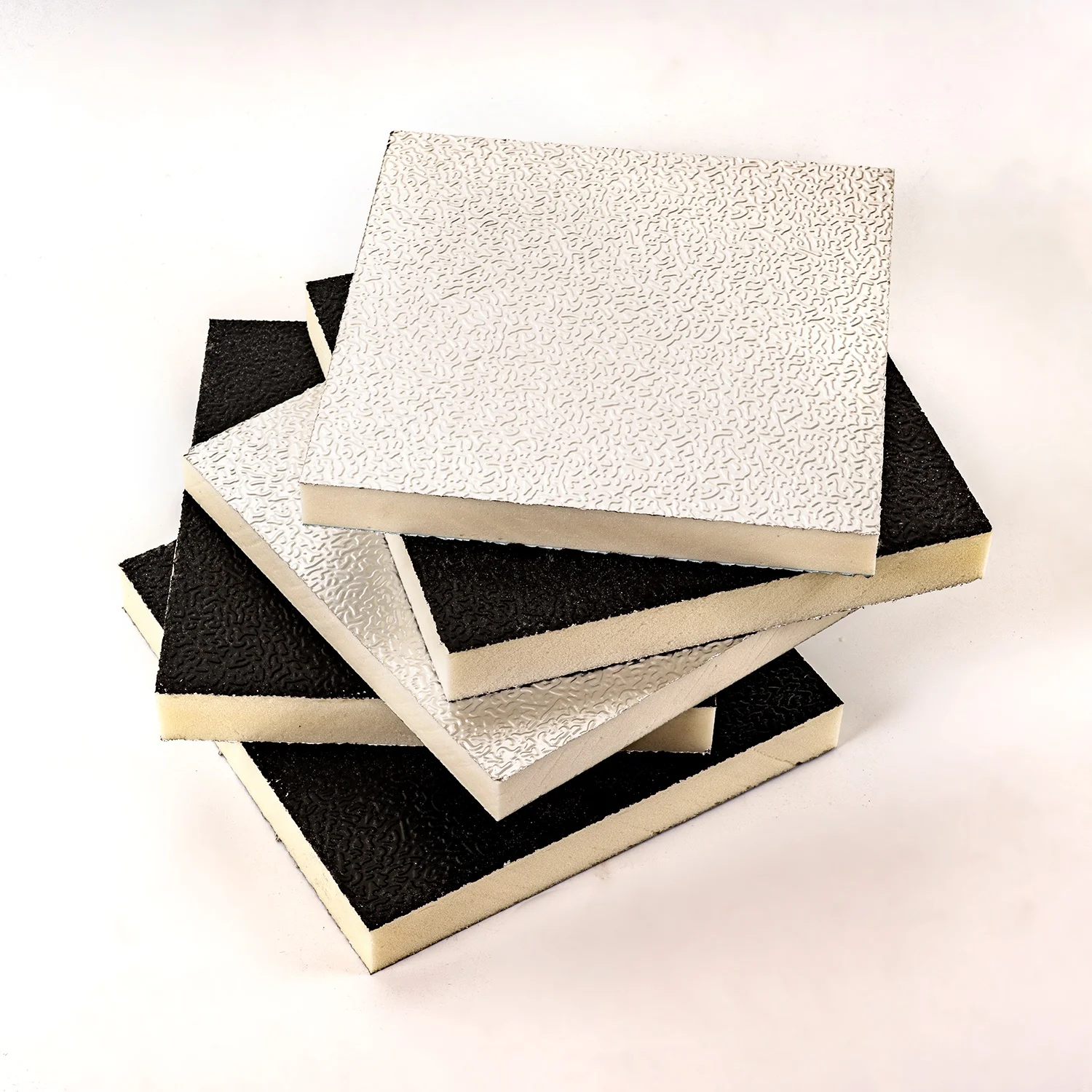

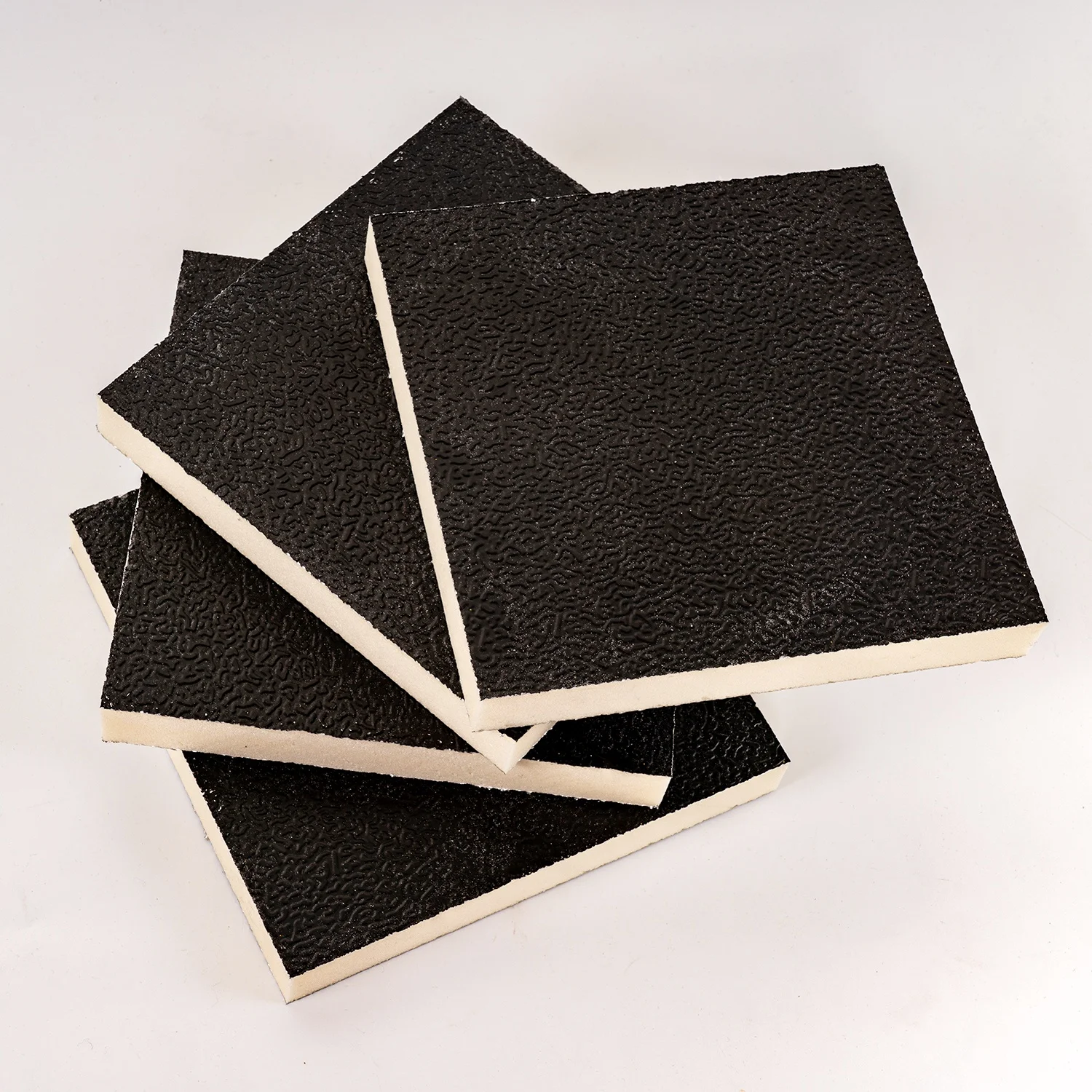

Hot selling 20mm thickness pre insulated duct aluminum composite panel
20mm Thickness Aluminum Foil Insulation Phenolic/PU/PIR Foam Air Duct Panel / PU Air Duct / Polyurethane Pre-insulated Duct Panel / PU Pre-insulated duct panel
Specification:
Hot selling 20mm thickness pre insulated duct aluminum composite panel
1. Be used for HVAC Duct system;
2. Light weight;
3. Low thermal conductivity.
Product Description
Greenfoam Aluminum Foil Insulation Phenolic/PU/PIR Foam Air Duct Panel is used for central air conditioning duct system. It is energy saving and environment-friendly. It had become more and more pupular all over the world.

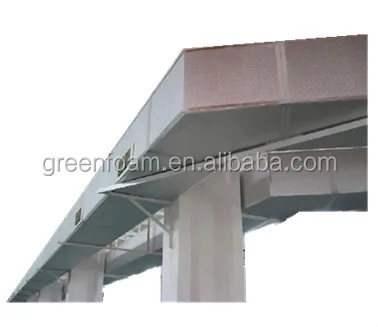

Compared with traditional galvanized Iron (steel metal) duckwork, Aluminum Foil Insulation Phenolic / PU / PIR Foam Air Duct Panel have offers a hight performance, light weight and robust ductwork system that requires only a single fix installation process. It is widely used in the ventilation systems of central air conditioning units in hospital, hotel, market, supermarket, guesthouse, airport, stadium, workshop, food store, pure project and so on.
Technical Data:
| Standard Size | 3950/2950/2900*1200*20mm |
| Foam Density | 50-55kg/m3 |
| Aluminum foil thickness | 80/80micron, 80/200micron |
| Thermal Conductivity | 0.02W/m.k |
| Compressive Strength | 0.25MPa |
| Bending Strength | 2MPa |
| Water Absorption | 0.1% |
| Dimension Change | 0.3% |
| Maximum Wind Velocity | 13-20m/s |
| Maximum Running Temperature | 70 ℃ |

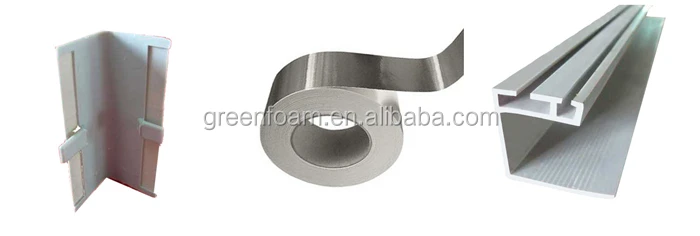

Accessories and Tools:

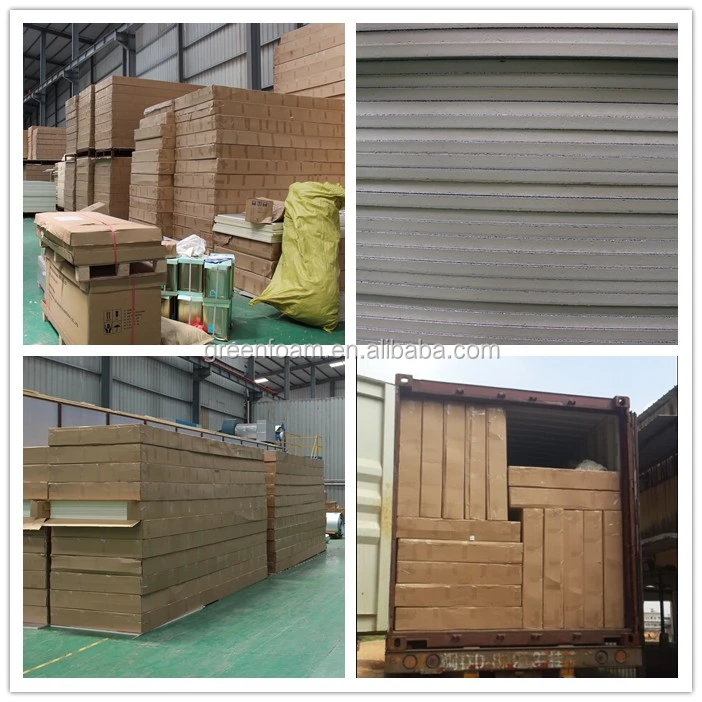

Packaging & Shipping
Aluminum Foil Insulation PU/PIR/Phenolic Air Duct Panel will be packed as below details:
1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).
2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.

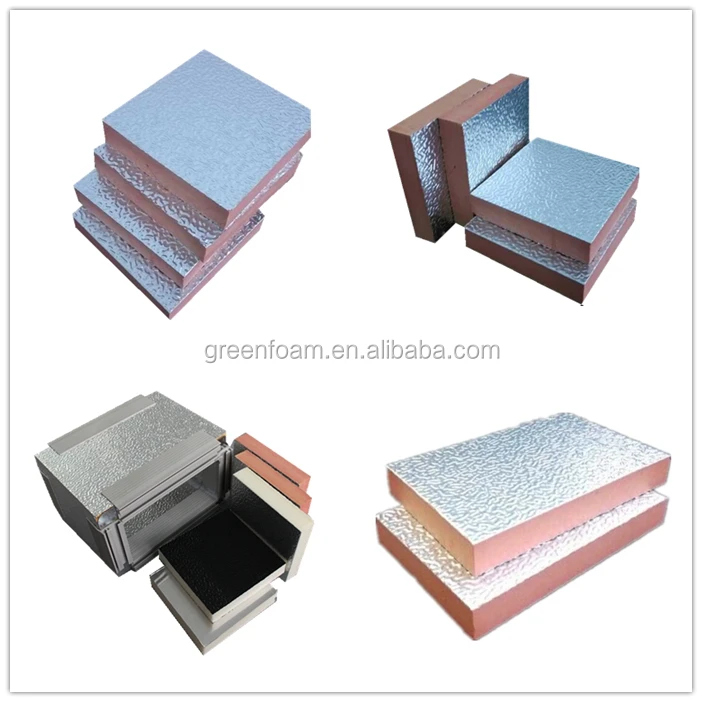

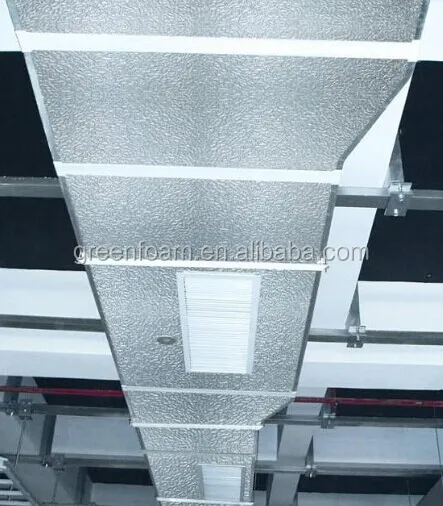

Photos:
Company Information

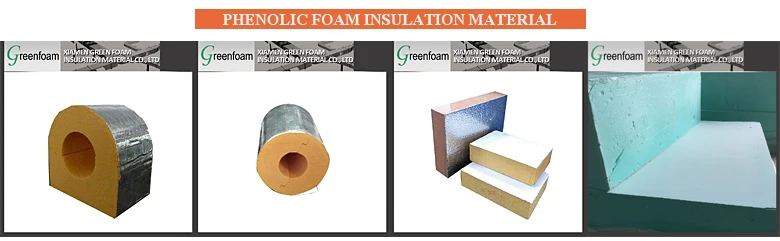

Green Foam Insulation Material Co., Ltd is a professional manufacturer of Pre-insulated HVAC duct system and other thermal insulation materials, such as Polyurethane(PU)/PIR/Phenolic foam pre-insulated HVAC duct, Phenolic Foam Insulation Board, Aluminum Foil Insulation Phenolic/ PU / PIR Air Duct Panel, Phenolic Foam Pipe Insulation, Insulated Flexible Duct, Air Grille & Diffuser, Air Damper etc.
Greenfoam is approved by ISO 9001:2008 quality management system. It always takes "Save Energy, Safe System" as the mission of our sustainable development. Product quality is our core-competitiveness.
Trade Shows
Factory view
Business Negotiation
Hot selling product
 |
 |
 |
If you need more info, please feel free to contact us:
Tel: 0086-592 5213898
Mob: 0086-153 5928 0538(Annie)
Skype: anniehuang623
Website: //www.greenfoamduct.com/
