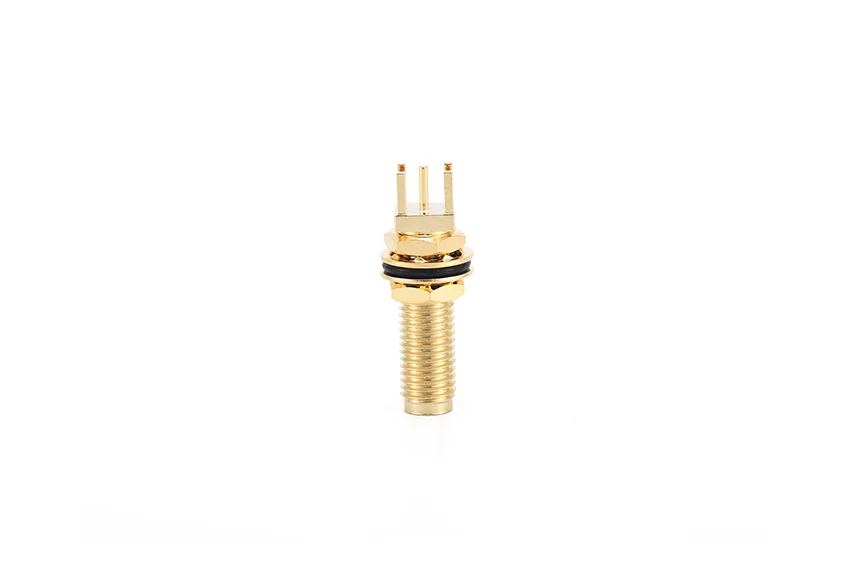

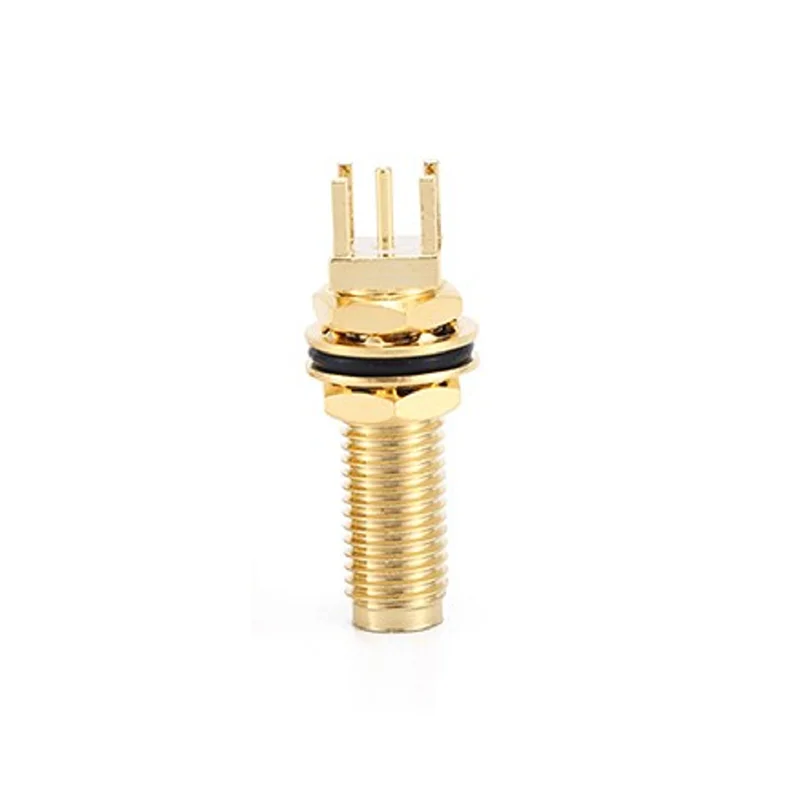

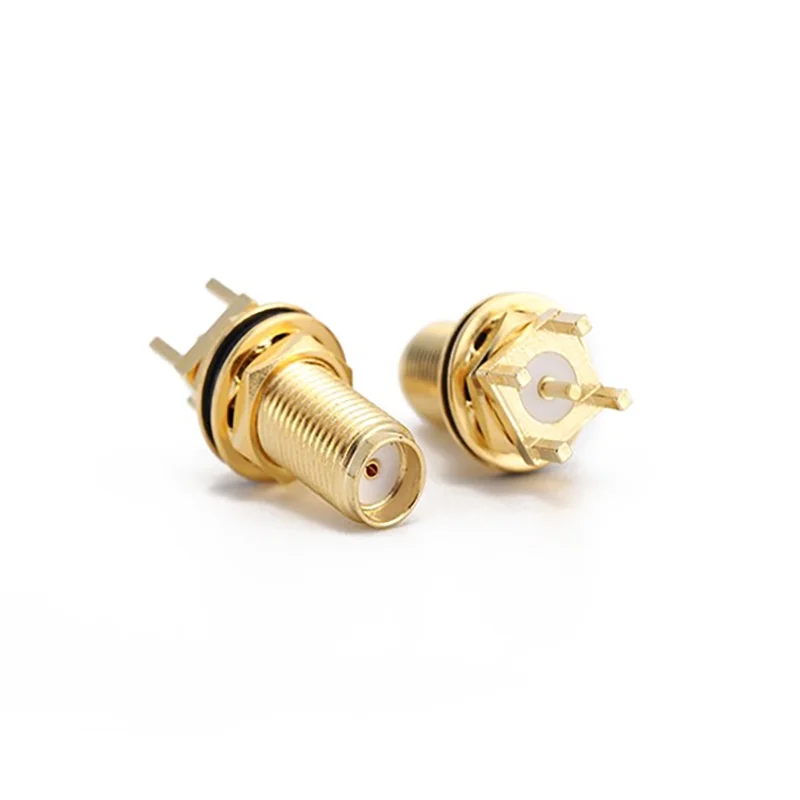

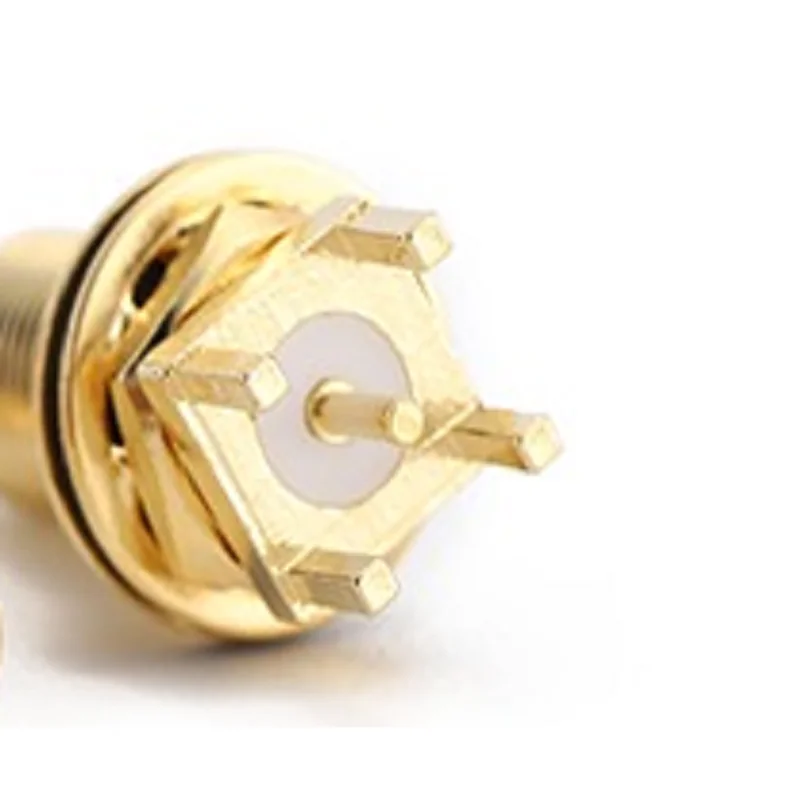

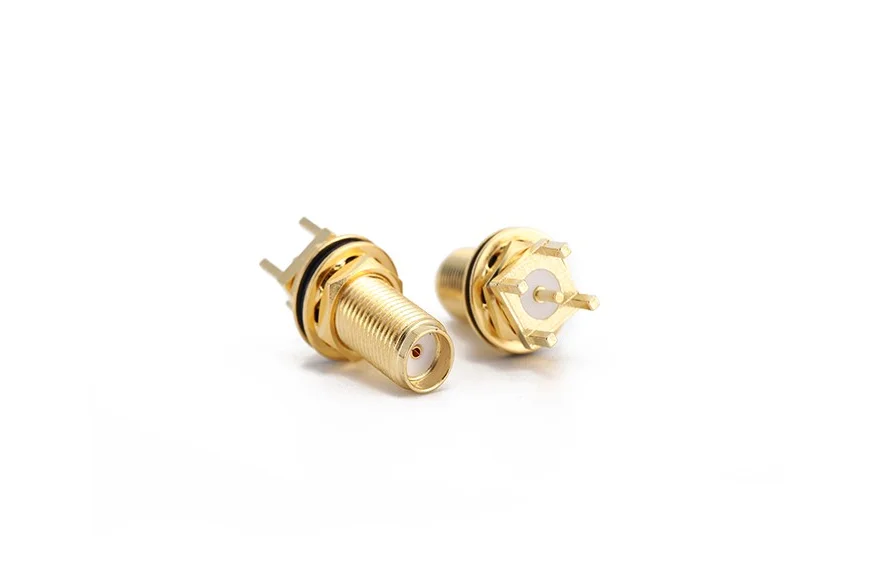

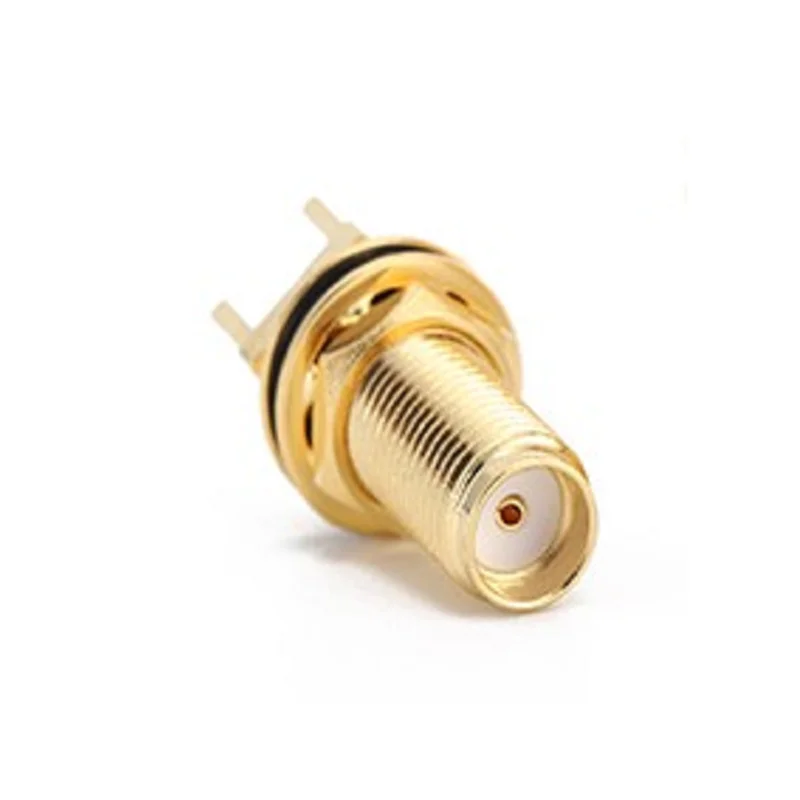

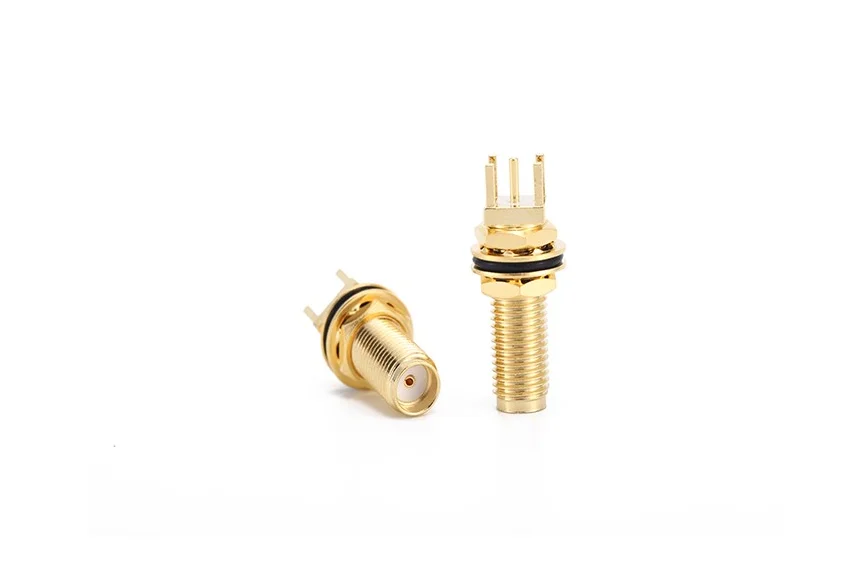

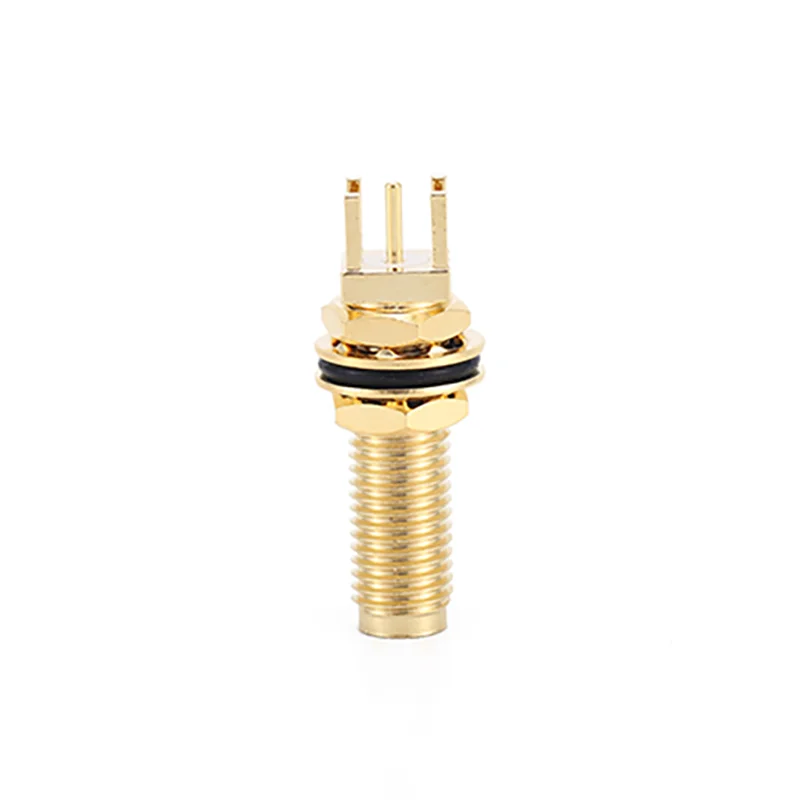

SMA Female(Jack) Bulkhead RF Coaxial Connector PCB Mount DC~6GHz
- Category: >>>
- Supplier: Danyang Teruilai Electronics Co. Ltd.
Share on (1600526910807):
Product Overview
Description
Product Paramenters
Specification
Product Detail
SMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

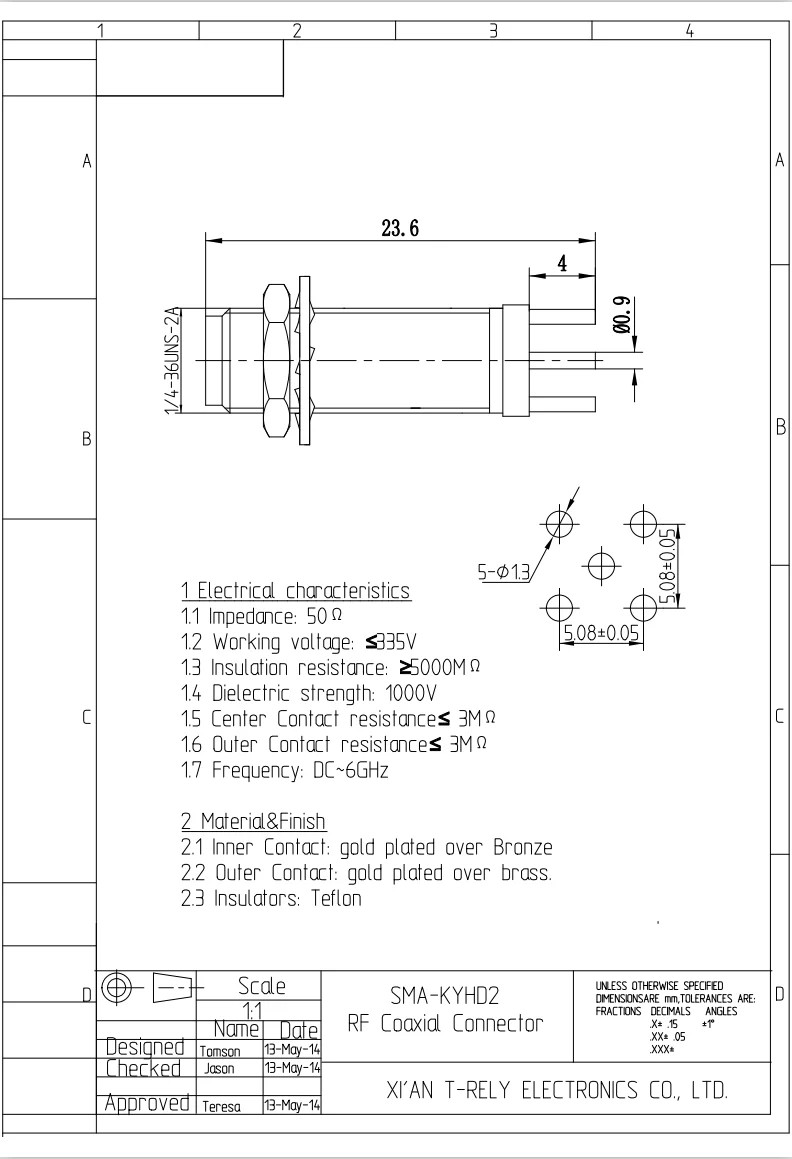

Teruilai P/N: SMA-KYHD2
RoHS Certificate: Compliant
Frequency range | DC-6GHZ | Durability (matings) | ≧500 | ||
Dieletric withstanding voltage | ≧1000V | Temperature range | -55℃ to +155℃ | ||
Characteristic impedance | 50Ω | Connector parts | Material | Plating | |
Insulation Resistance | ≧5000MΩ | Body | Brass | Gold-plated | |
.Center conductor | ≦3.0mΩ | Pin contacts | Bronze | Gold-plated | |
.Outer conductor | ≦3mΩ | Insulators | Teflon | ||
VSWR | 1.2:1 | Working Voltage | ≦335V | ||
