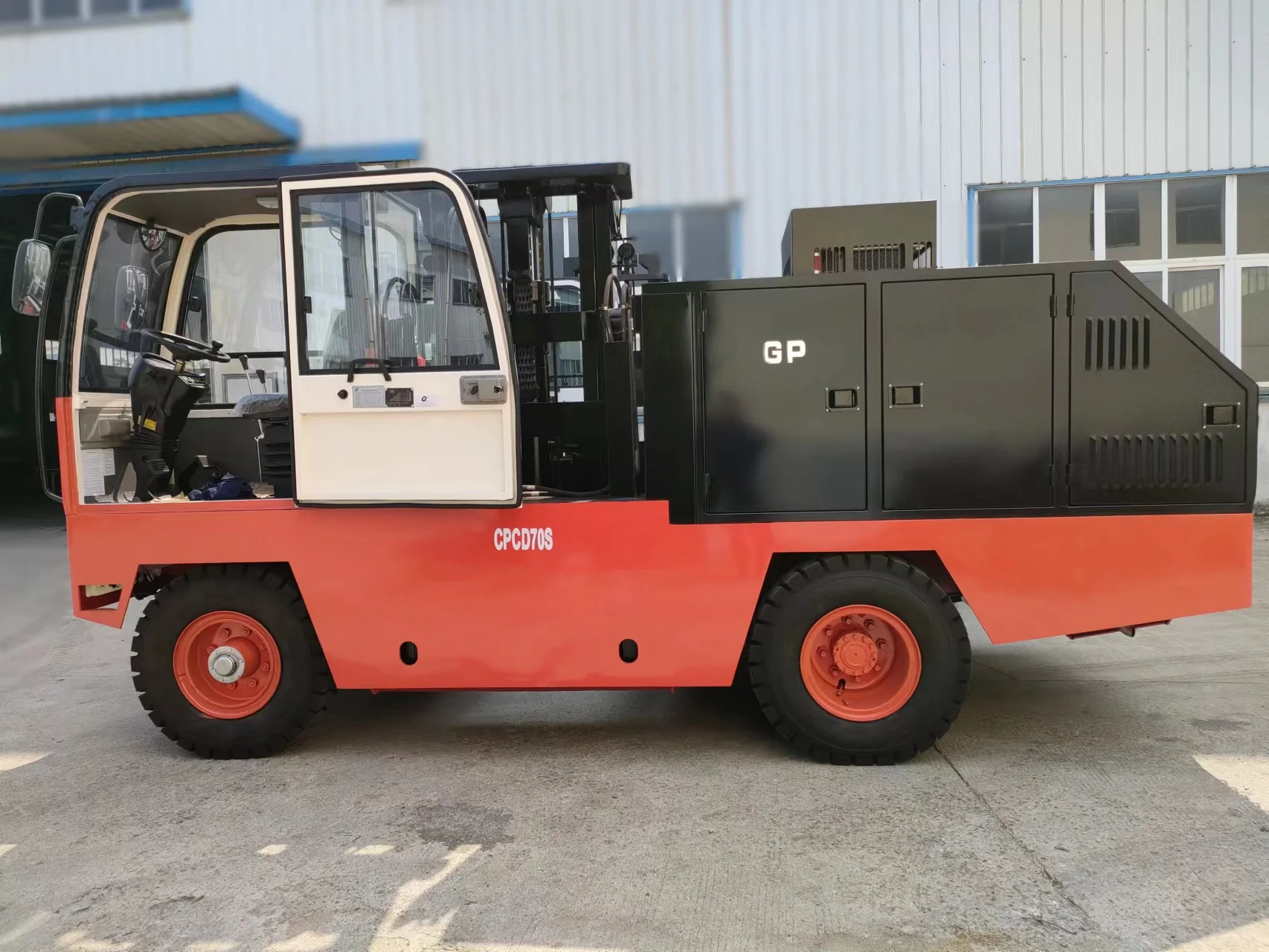

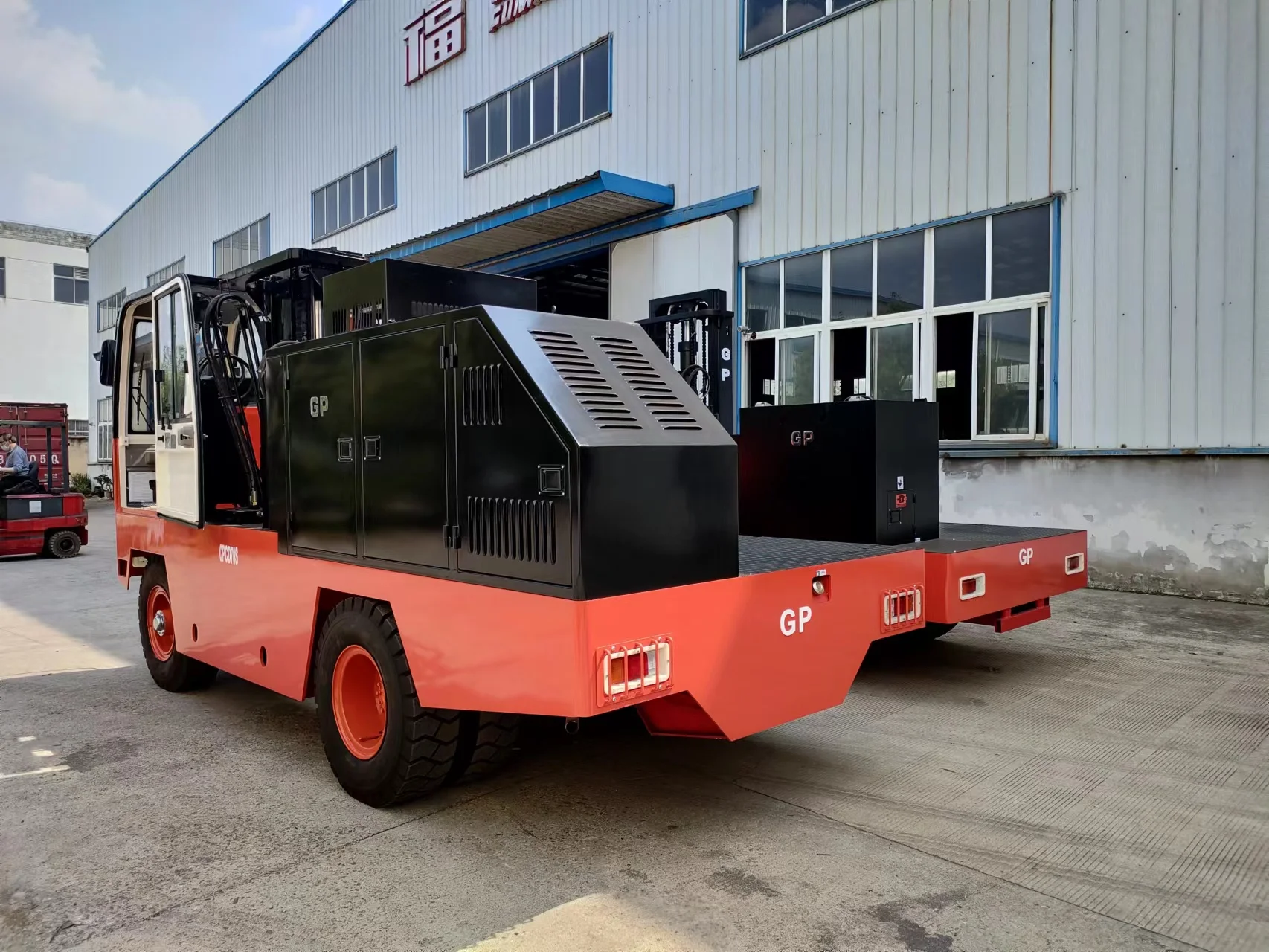

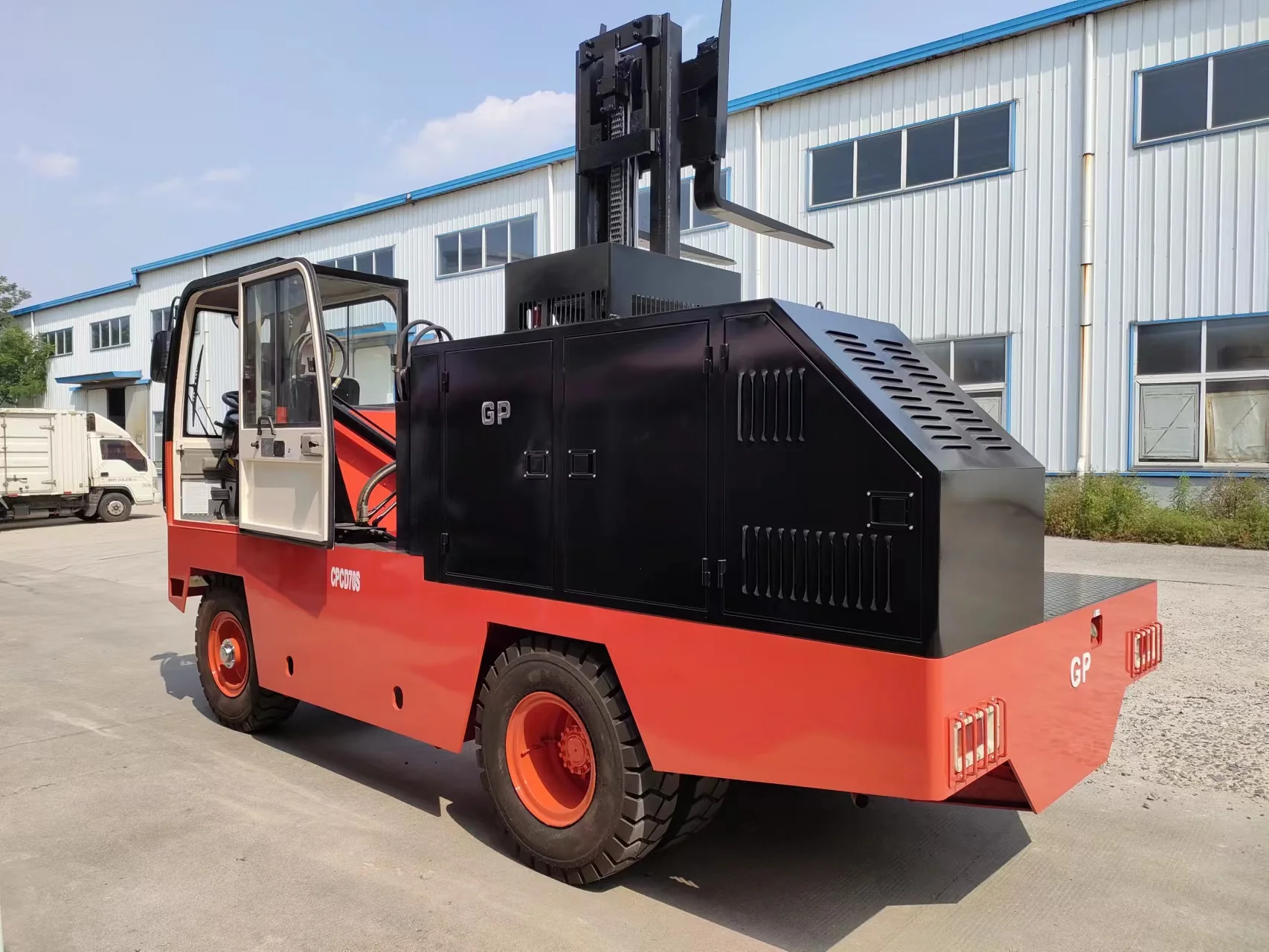

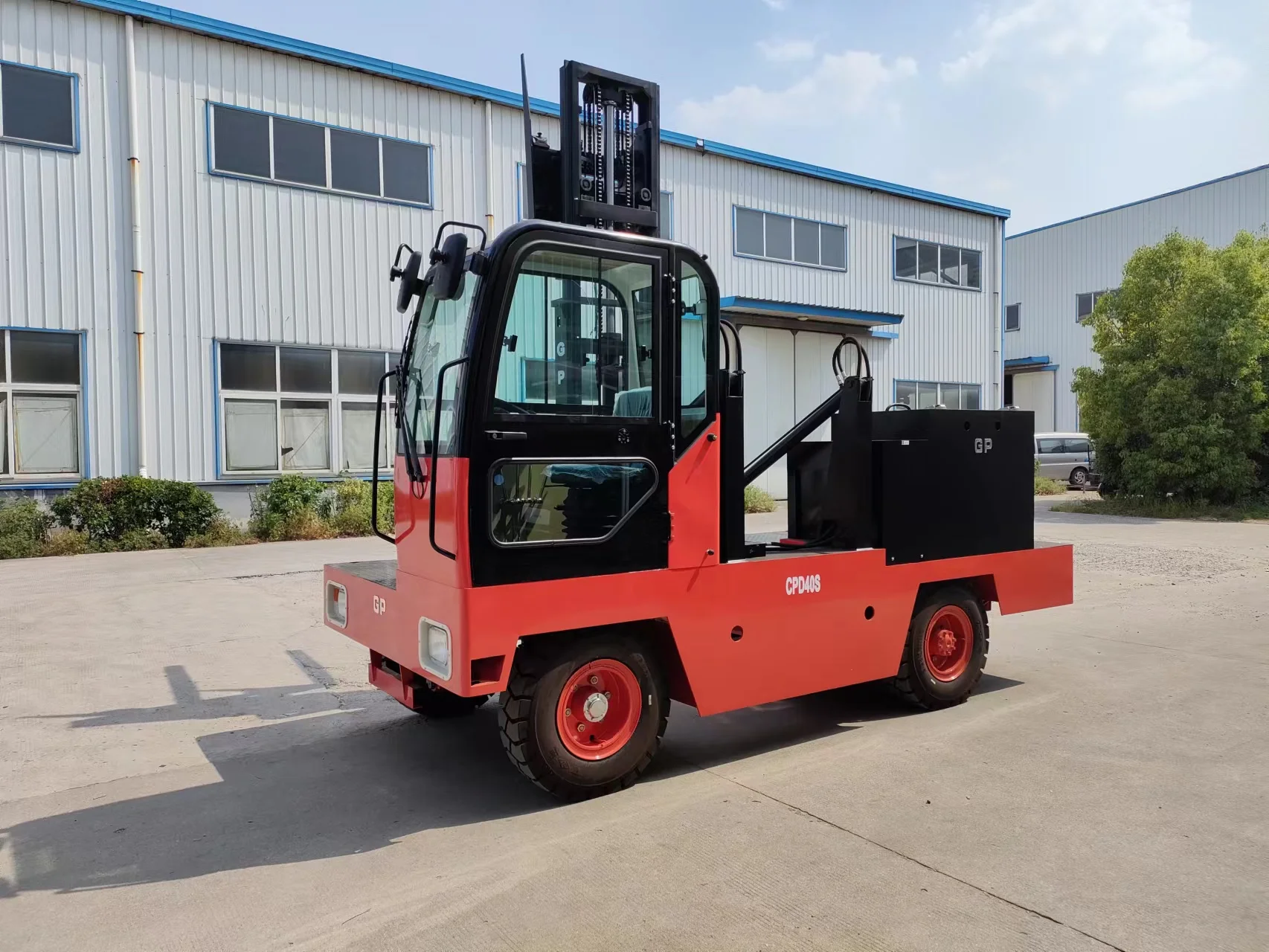

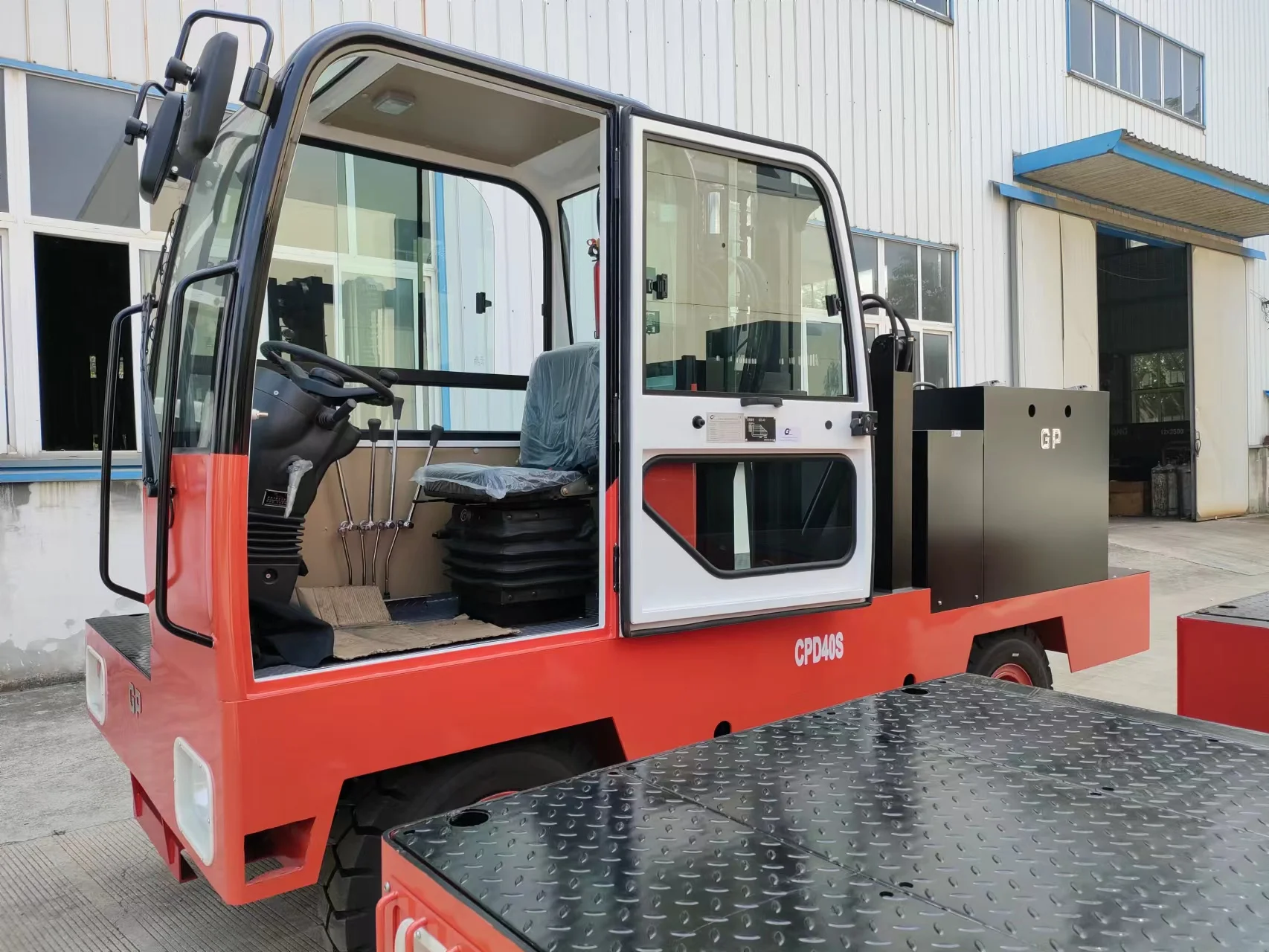

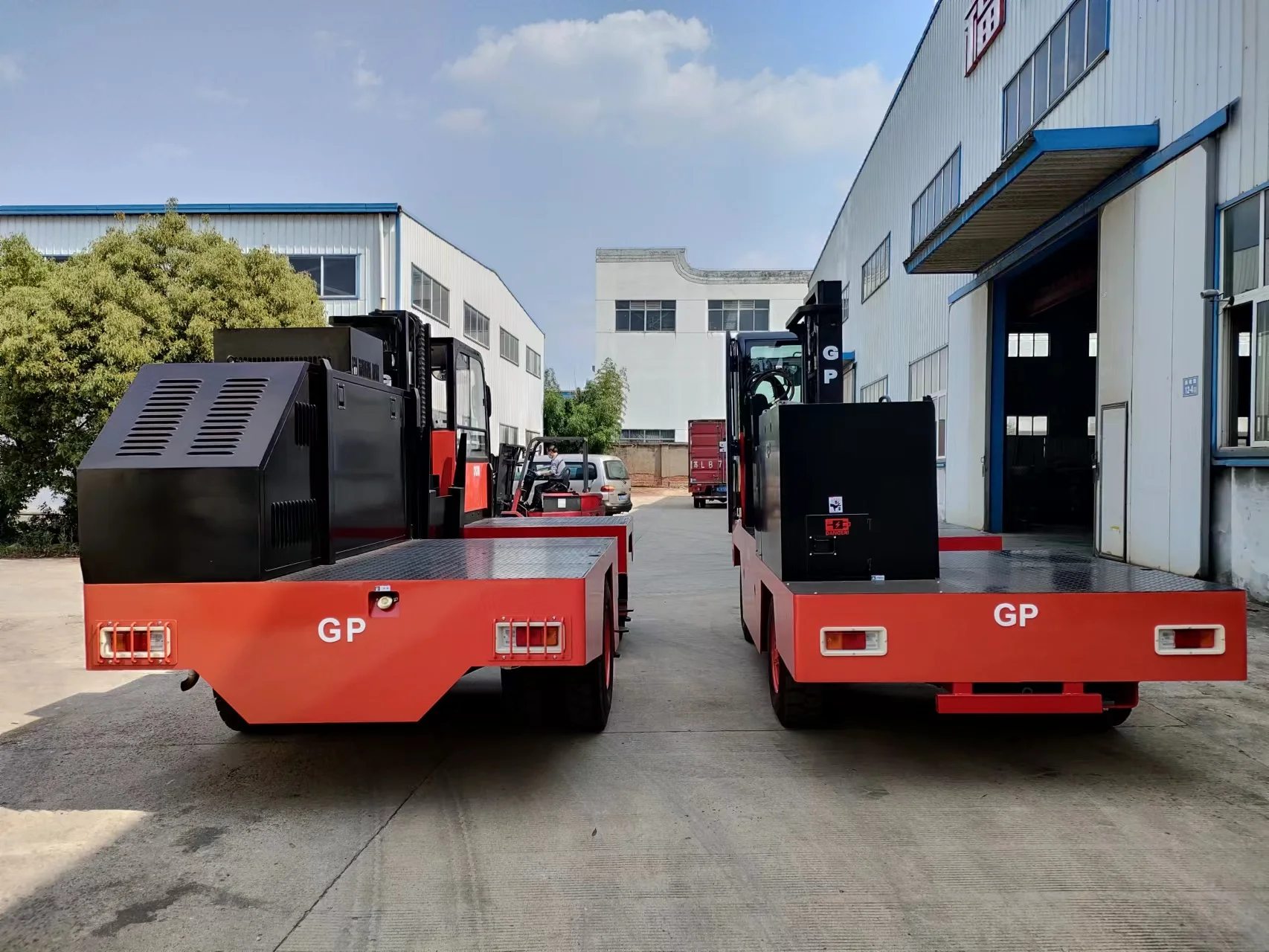

Very Narrow Aisle Mini Electric Forklift 4 Ton 7T 10T sideForklift Truck For Warehouse

Model

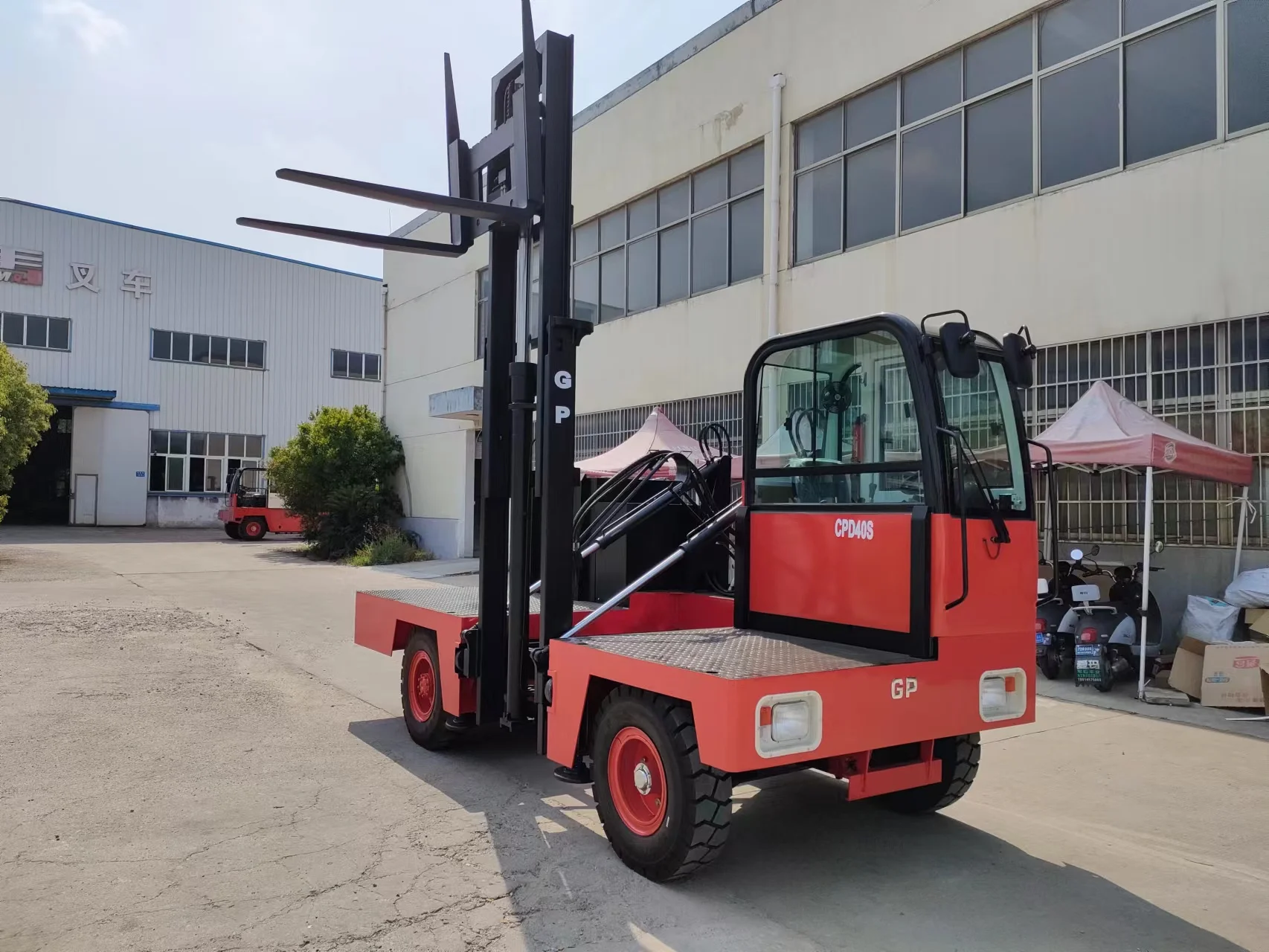

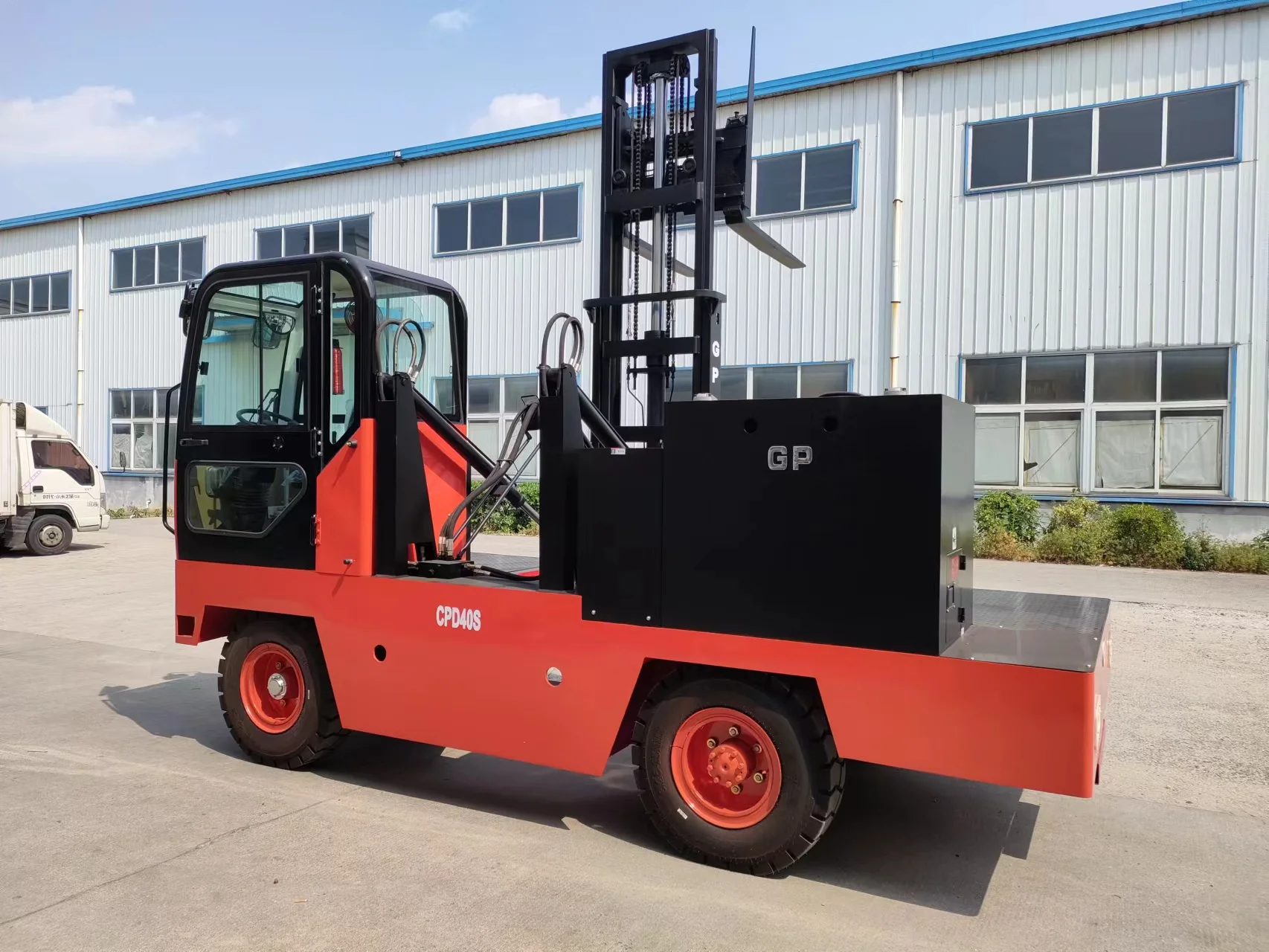

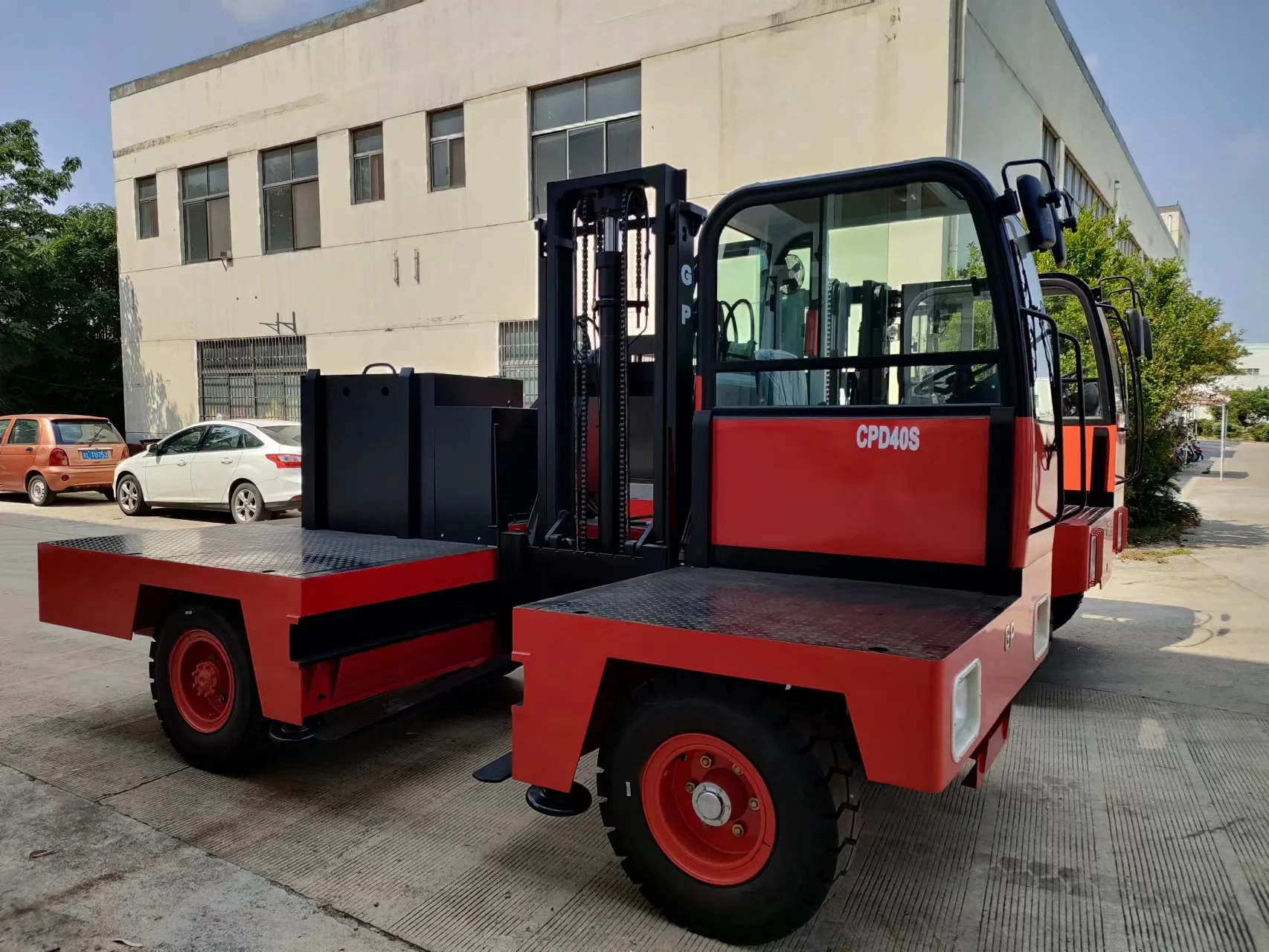

CPD40S

Load capacity

4000kg

Max lift height

6.0m

Free lift

0.3m

Max lifting speed

0.25m/s

Max travel speed with/without load

13/15km/h

Fork Tilt angle(up/down)

5°/3°

Min turning radius(outside)

4.1m

Climbing degree (full load)

13%

Min ground clearance (full load)

0.17m

Overall dimension

Length

4.40m

Width

2.0m

Height

When the fork is in the lowest position

2.65m

When the fork is in the highest position

6.16m

Wheel base

2.46m

Tread

1.6m

Pallet height(full load)

0.92m

Pallet width

1.15m

Fork length

1.22m

Maximum fork spacing

0.94m

Tyre

8.25-15-14PR

Overall weight

7200kg

Battery(V/AH)

80V/500Ah

Drive motor

16.6kw

Oil pump motor

13.5kw

Traveling speed regulation mode

Double electric double control full AC(USA CURTIS electric controller)
