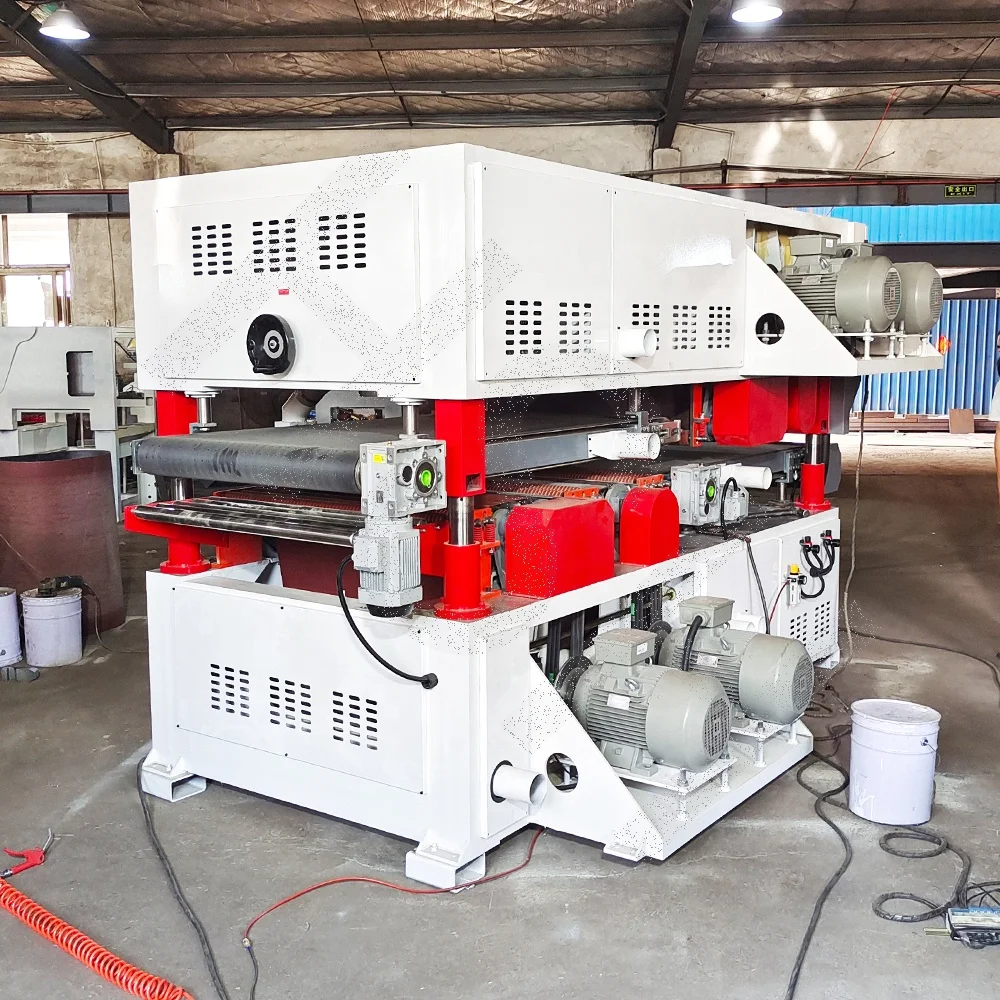

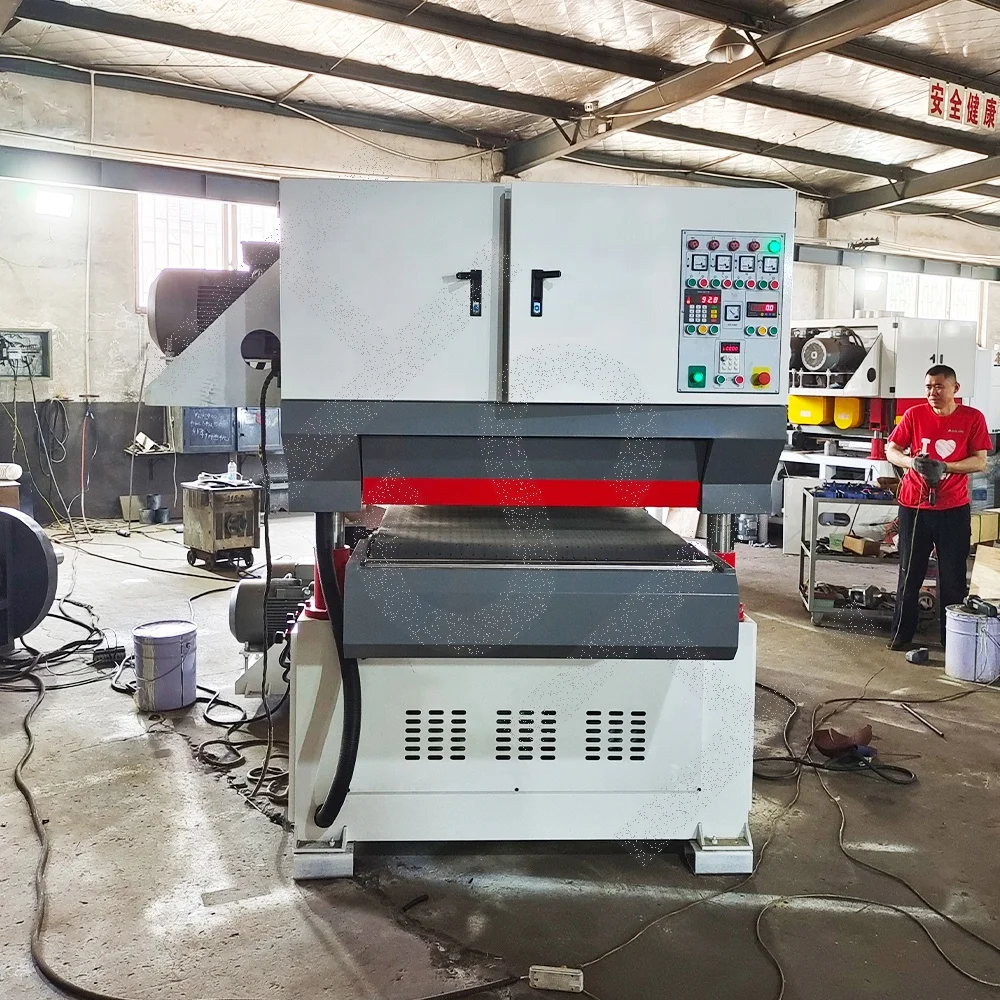

Manufacturer of Wood Double Side Belt Sander For Thin Boards 2mm Vacuum Table
- Category: >>>
- Supplier: Qingdao Hongshenghong Machinery Co. Ltd.
Share on (1600526915969):
Product Overview
Description

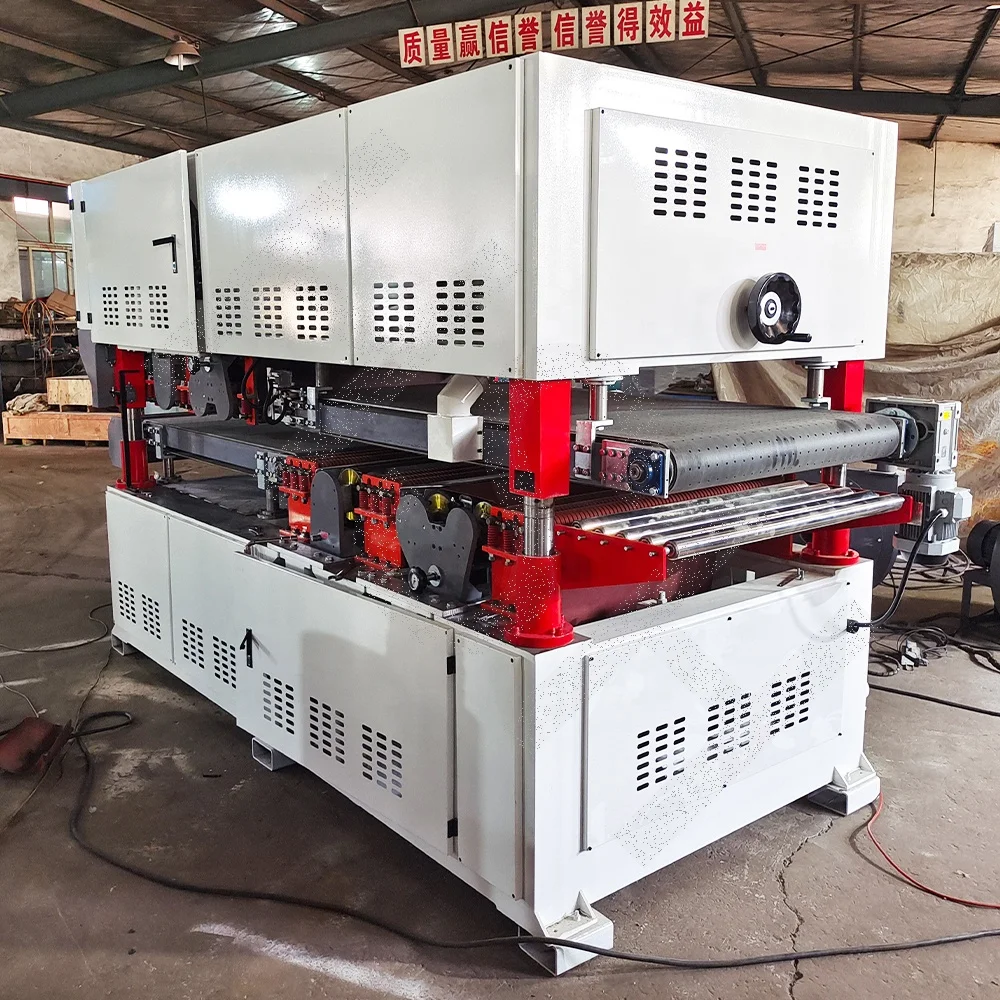

Double Sided Belt Sanding Machine
Product Paramenters
Model | R-RP-R-RP1000 |
Max.working width | 1000mm |
Min. working length | 500mm |
Max.working thickness | 3~150mm |
Speed of conveyor belt | 6~30m/min |
Total motor power | 55.74kW |
No.1 upper abrasive belt power | 15kW |
No.2 upper abrasive belt power | 11kW |
Power of upper conveyor belt | 1.5kW |
Power of upper lifting | 0.37kW |
No.1 lower abrasive belt power | 15kW |
No.2 lower abrasive belt power | 11kW |
Power of lower conveyor belt | 1.5kW |
Power of lower lifting | 0.37kW |
Diameter of rollers | 190mm |
Size of abrasive belt | 1020*2000mm |
Working pressure | 0.6Mpa |
Consumption of Compressed air | 8000m³/h |
Overall dimensions | 4200*2200*2300mm |
Net weight | 4500kg |

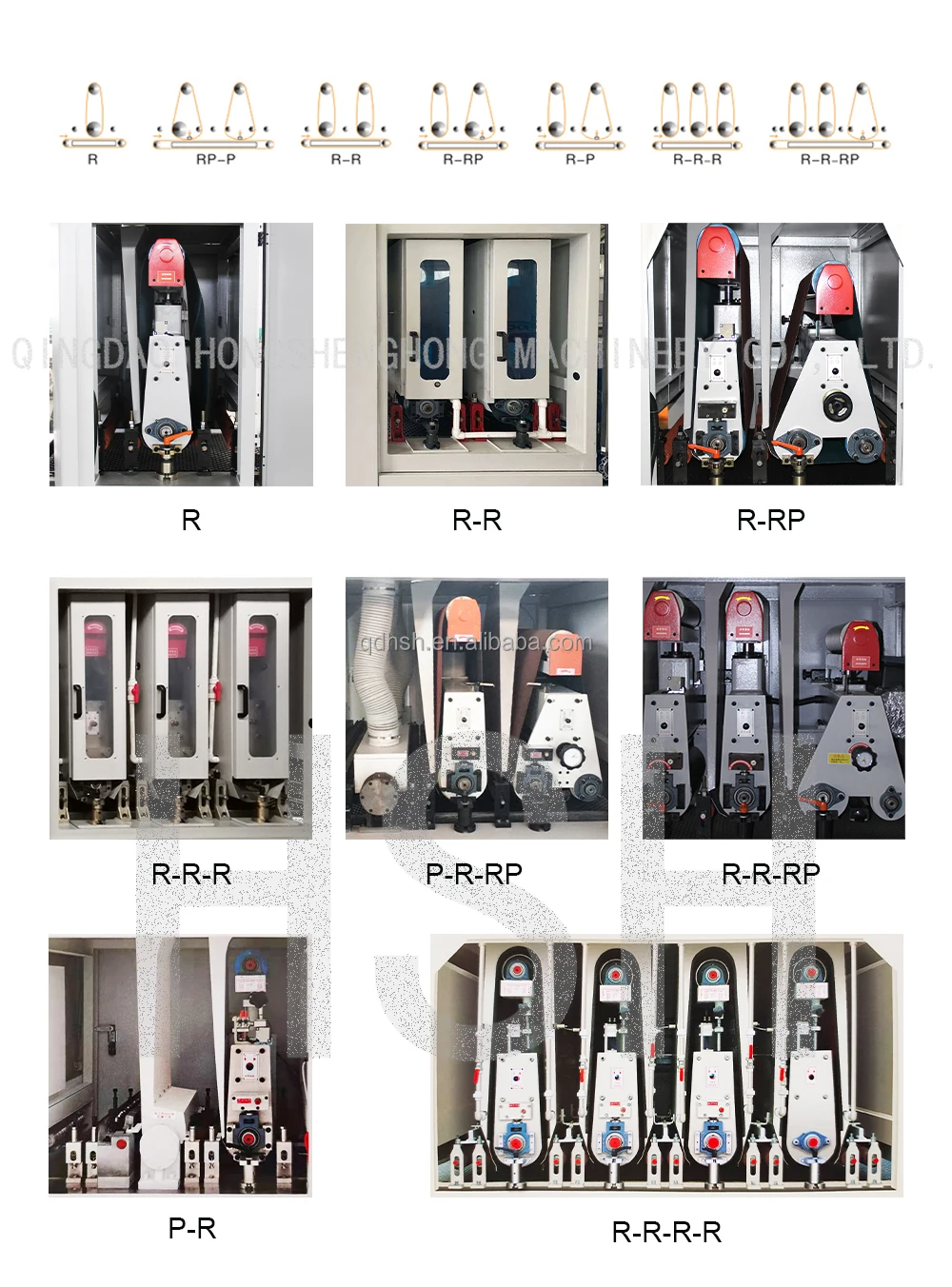

Product Configuration
R-RP roller for top sanding
R-RP roller for bottom sanding

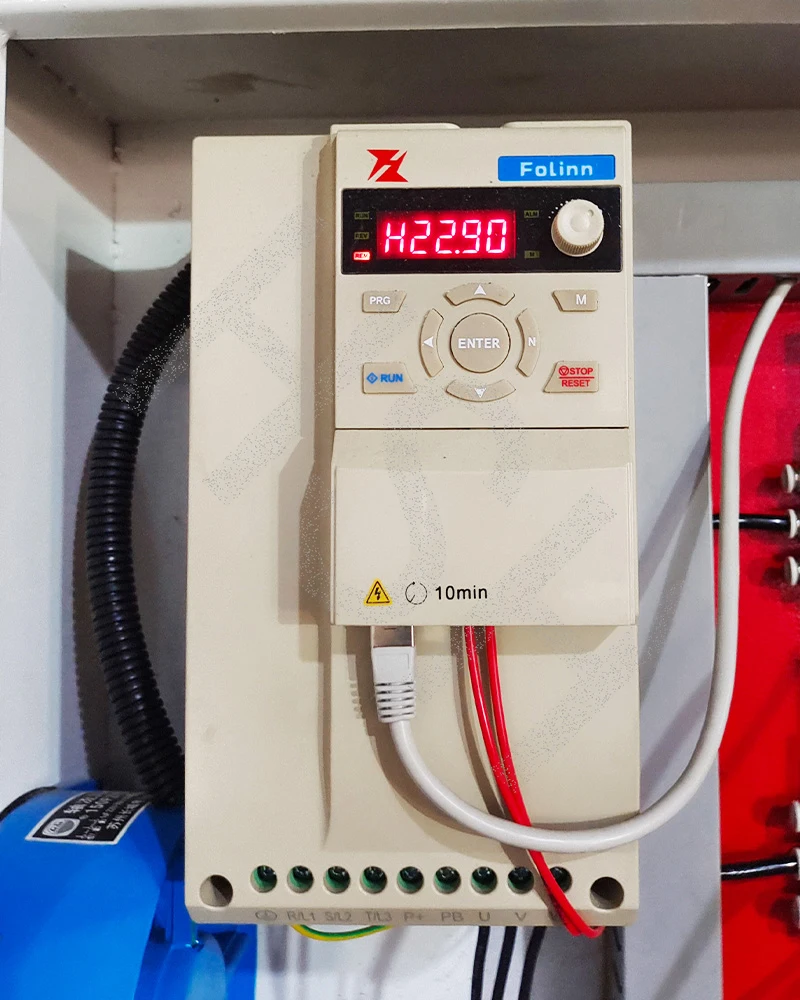

Inverter for frequency control speed

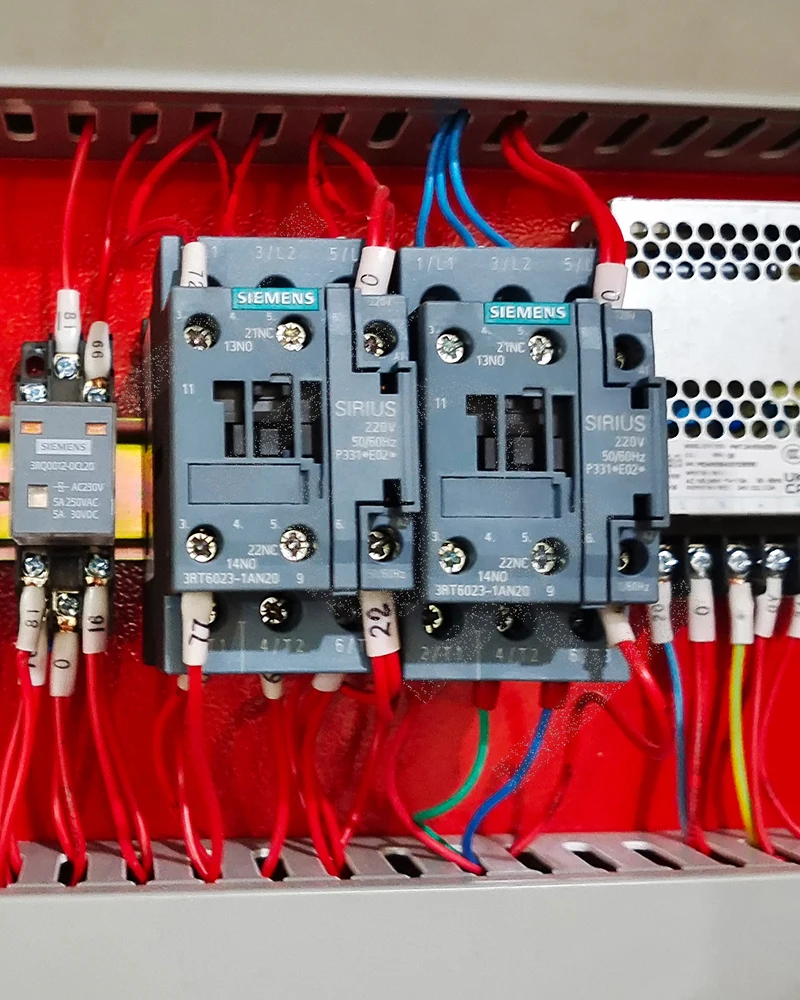

SIEMENS brand electric components and contactors

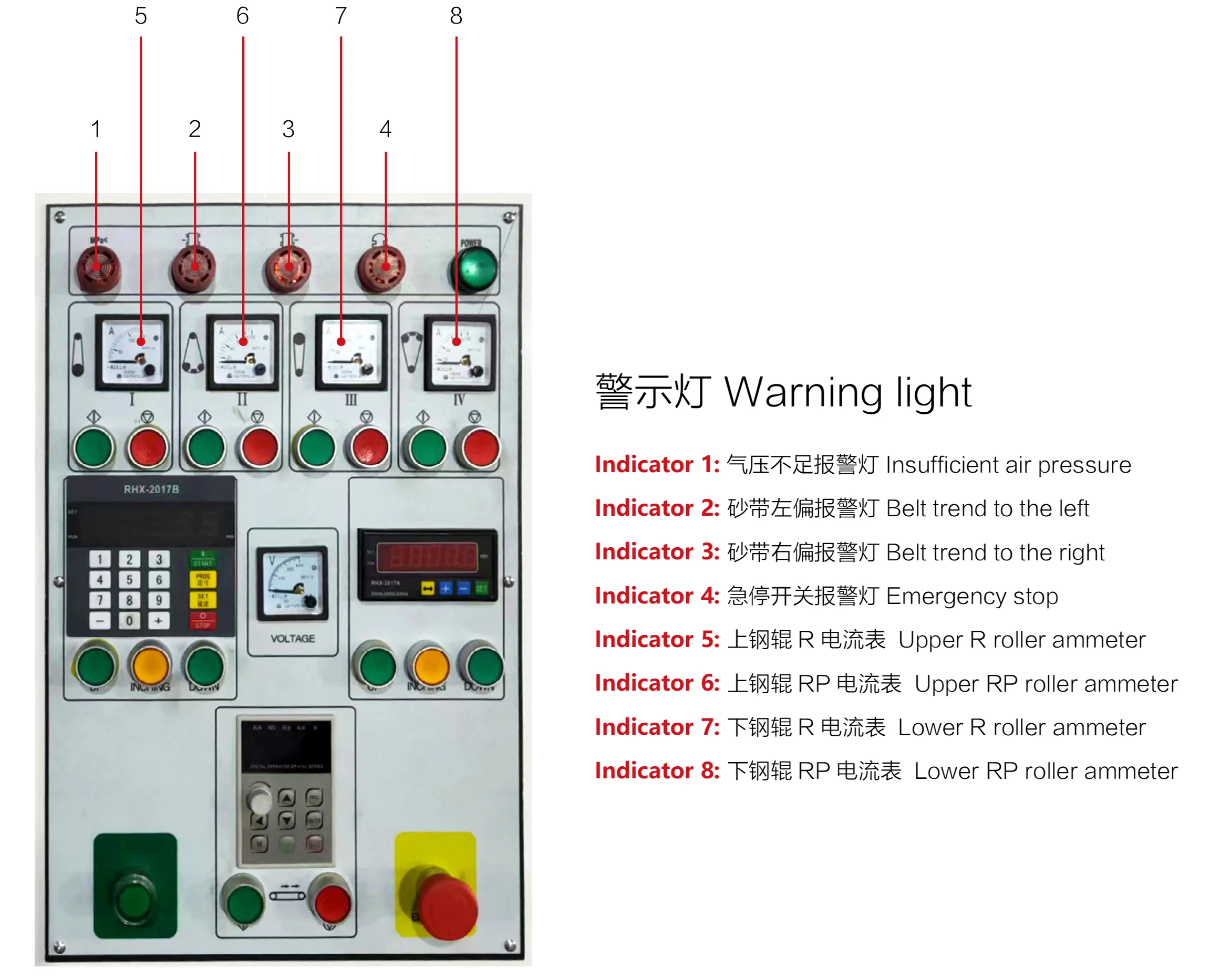

Control panel (PLC)
Samples After Processing

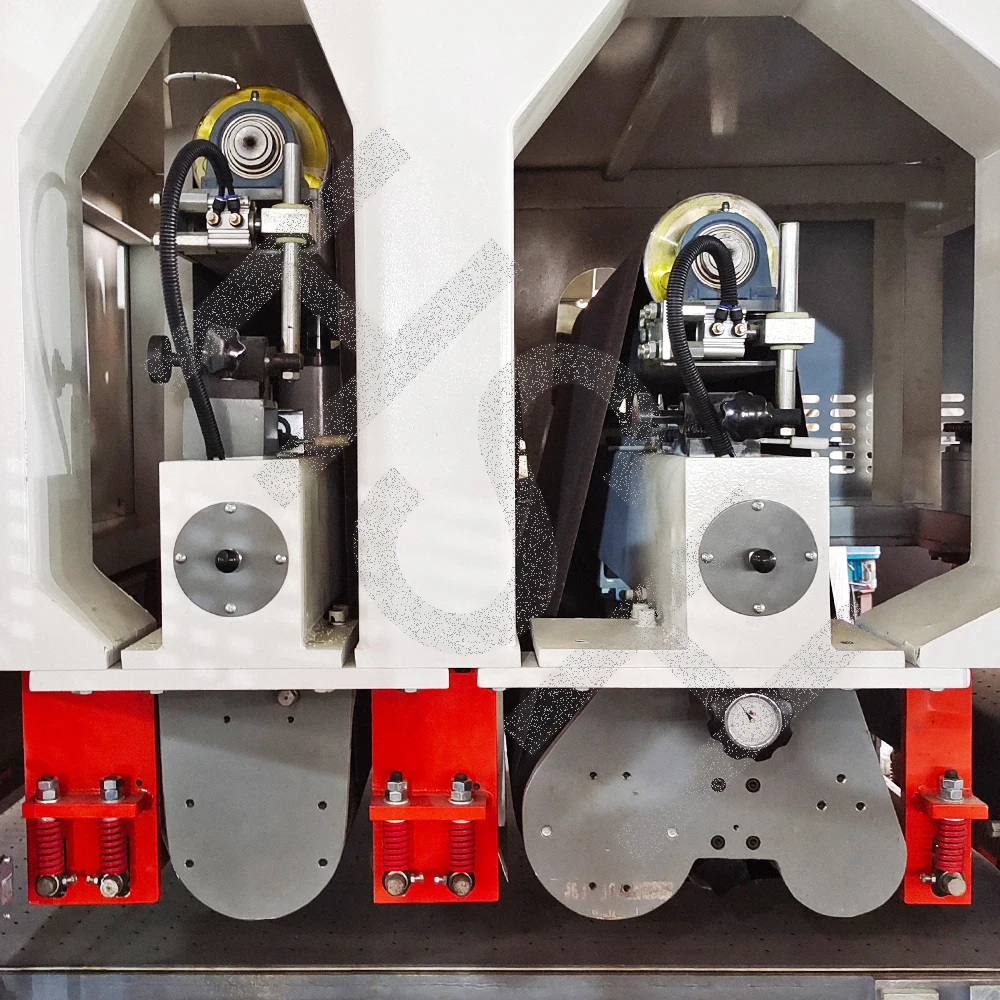

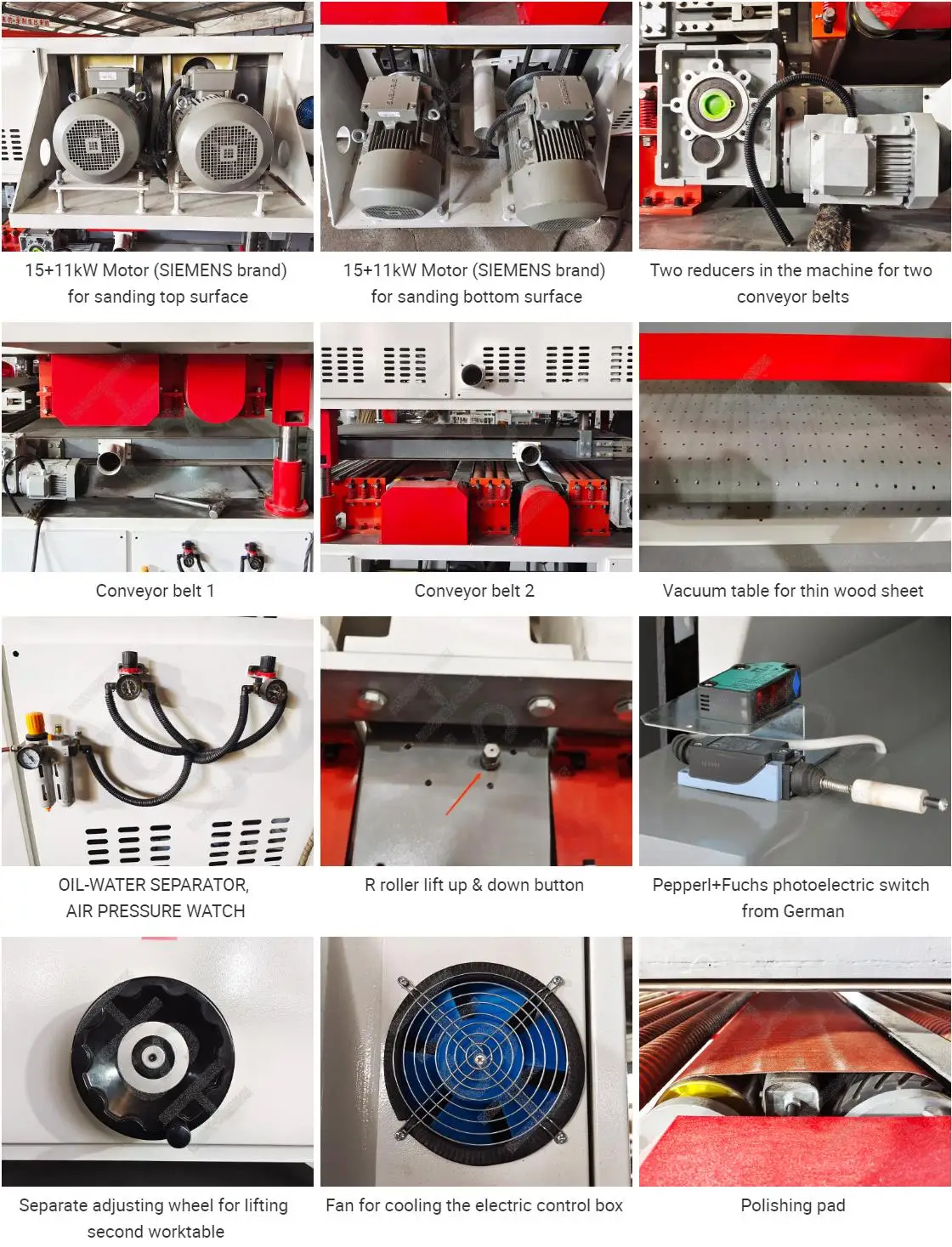

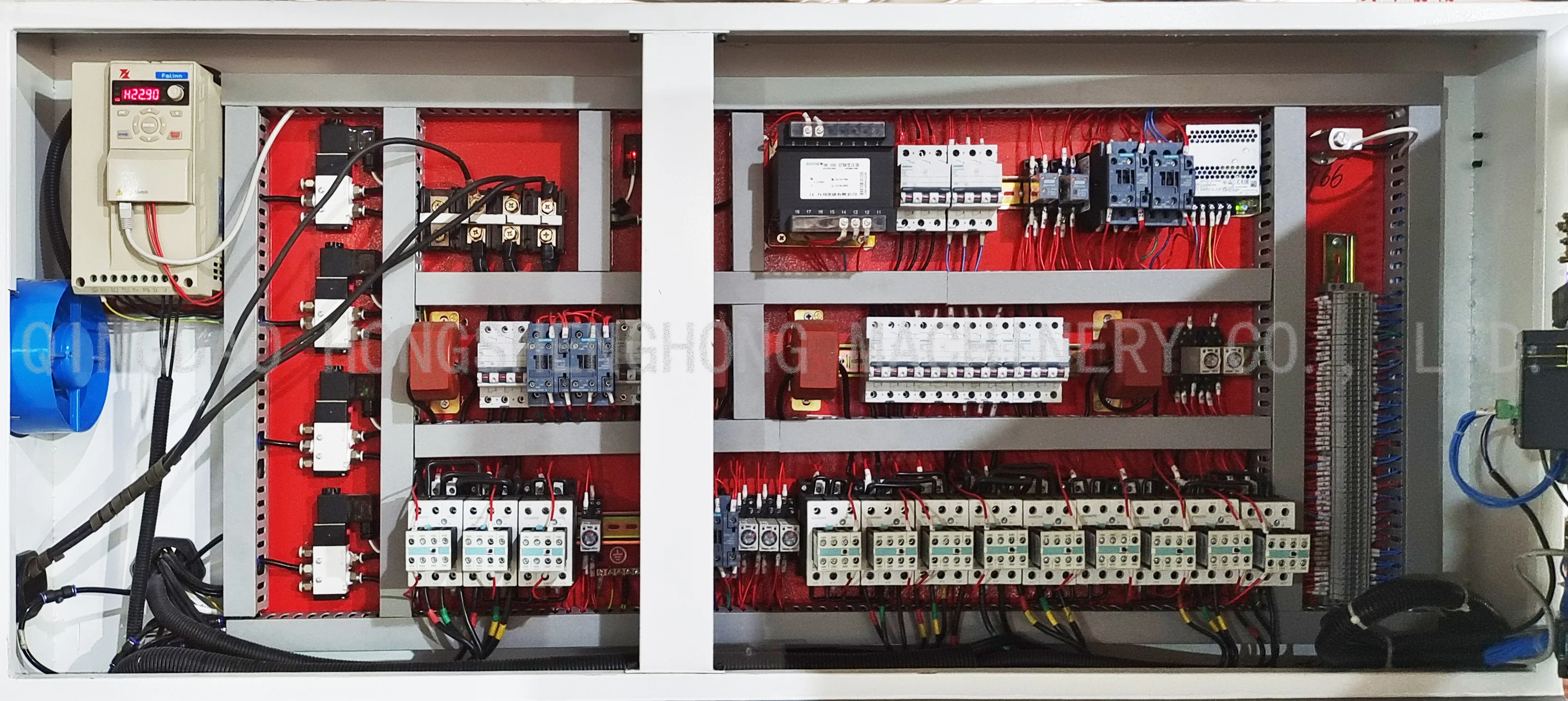

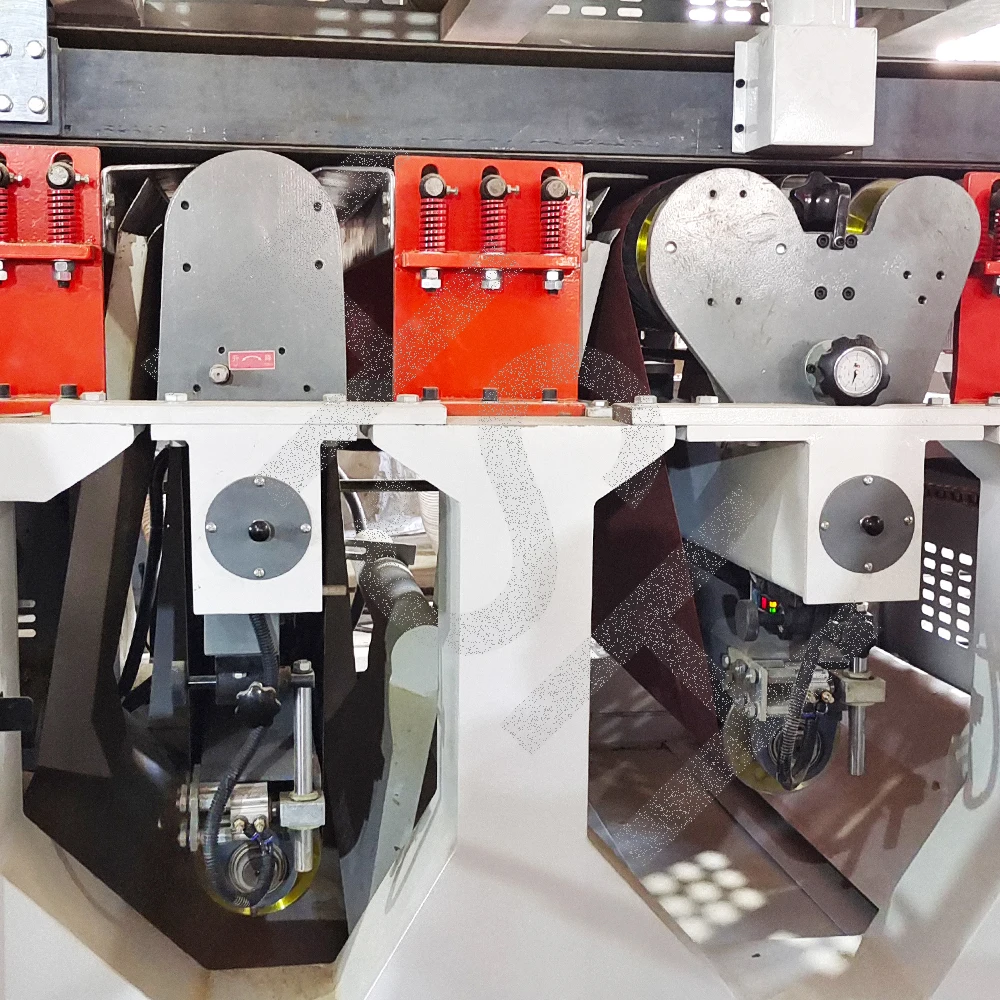

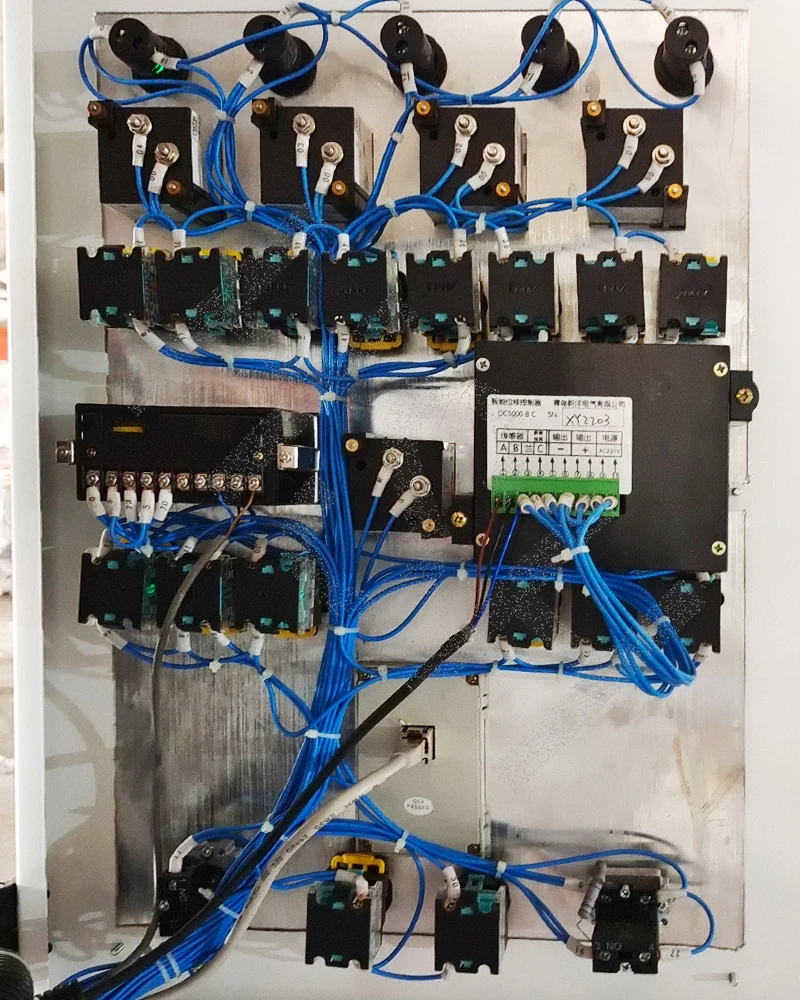

Inner Structure

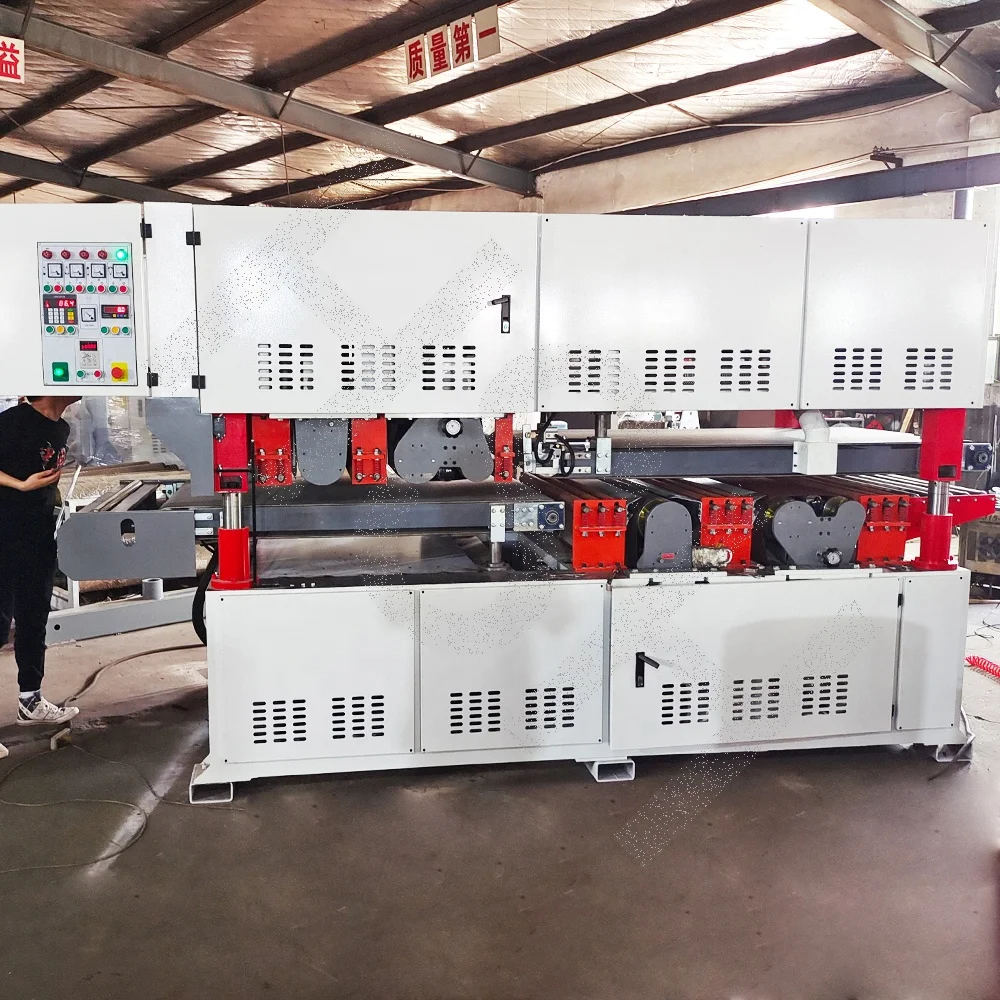

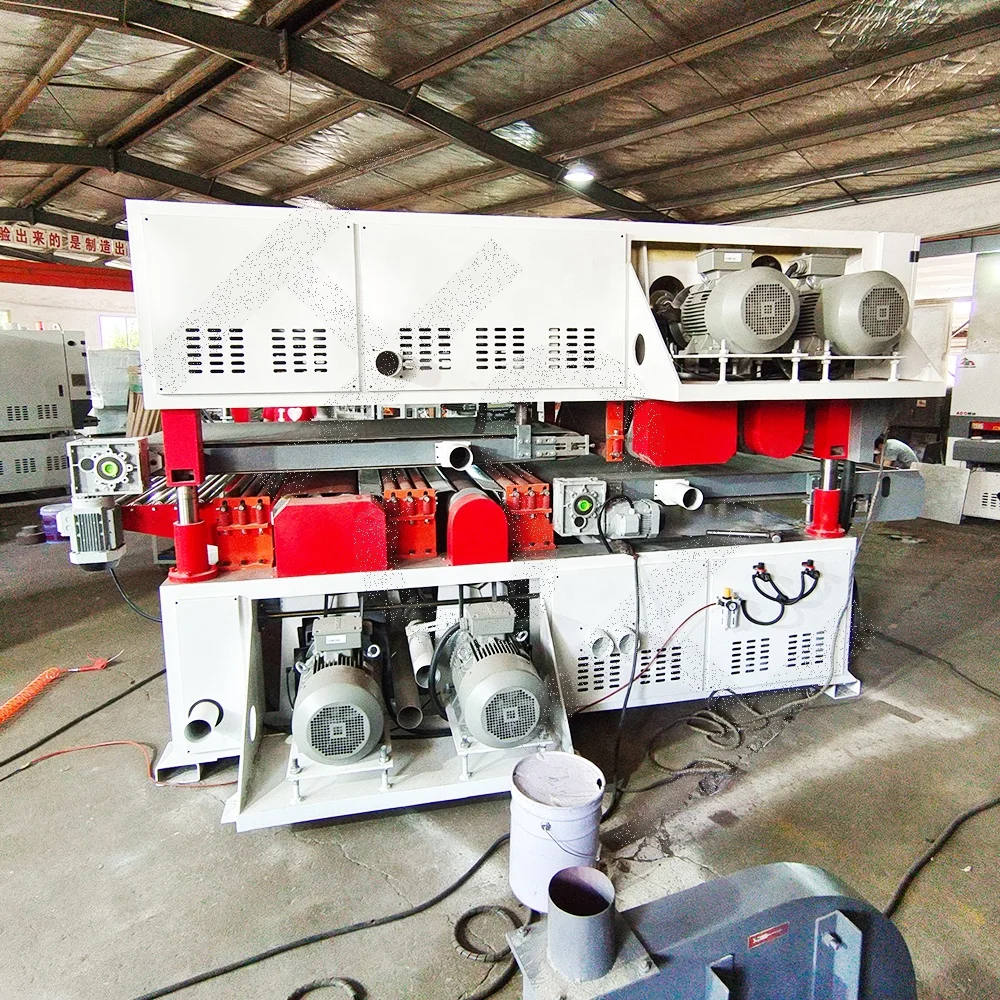

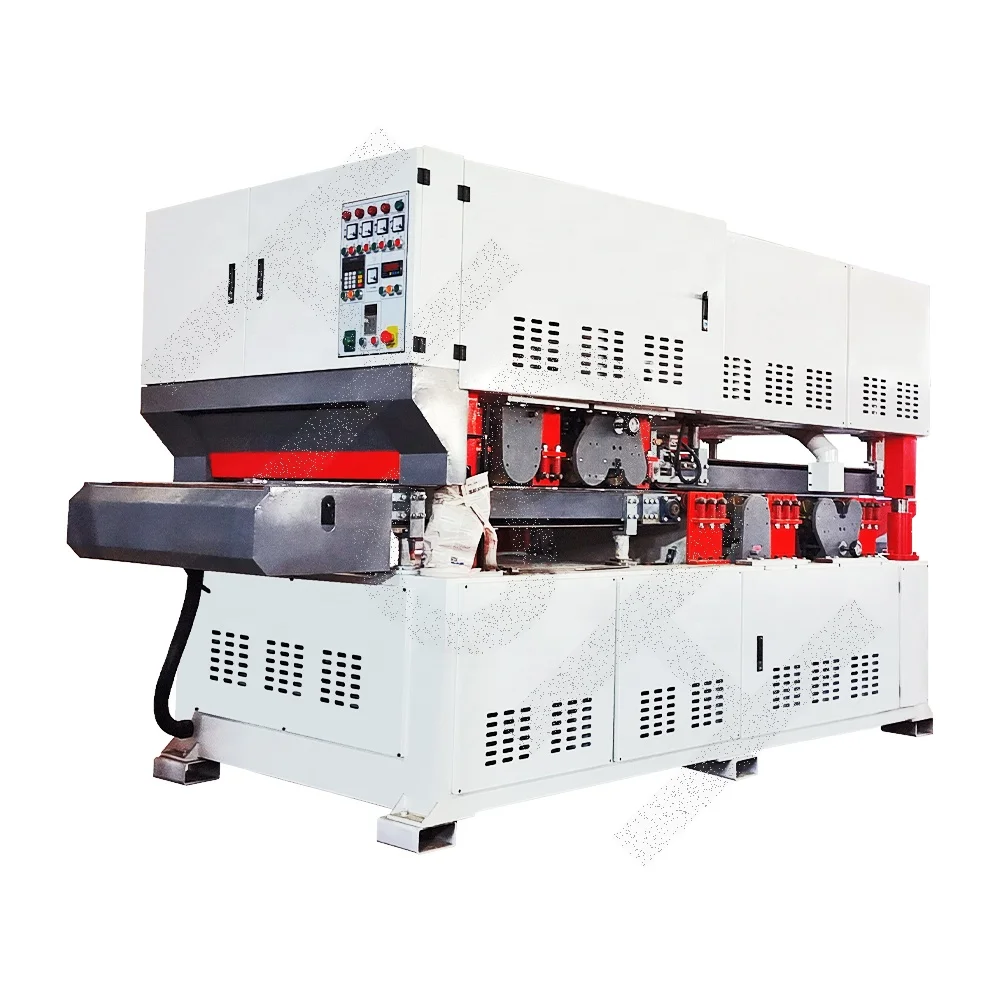

Similar Machine

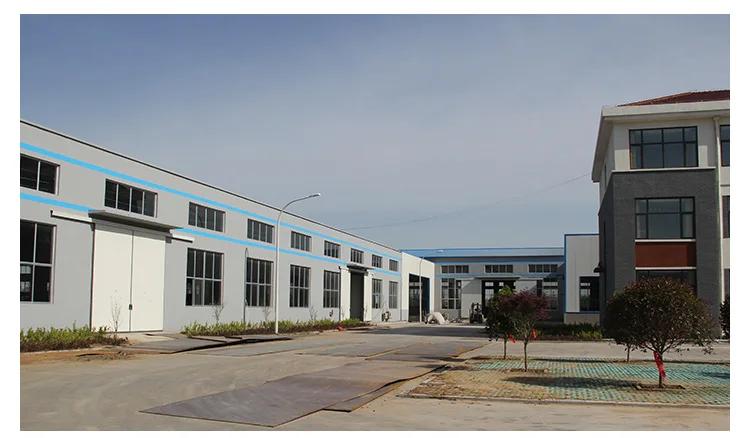

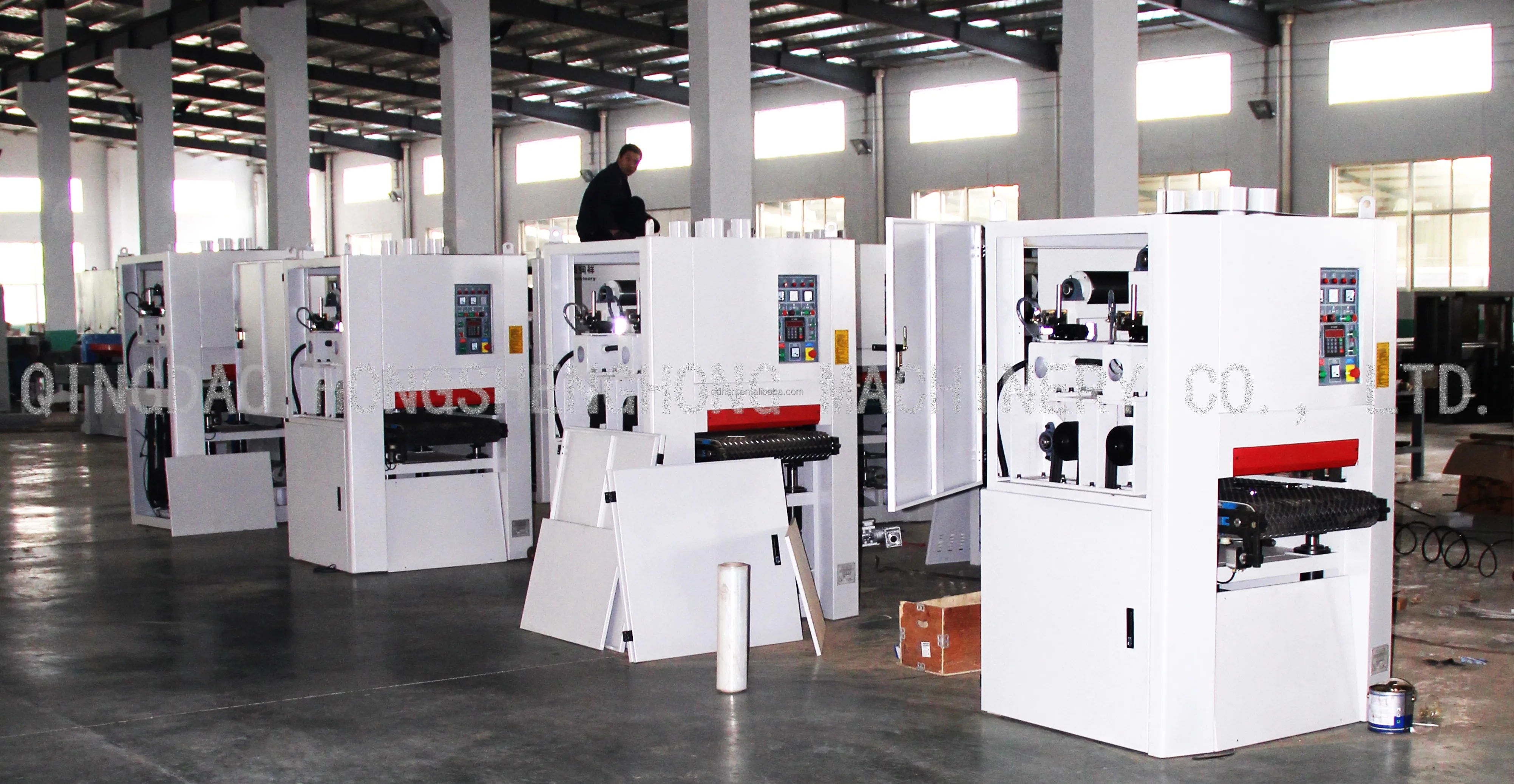

Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sale service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
