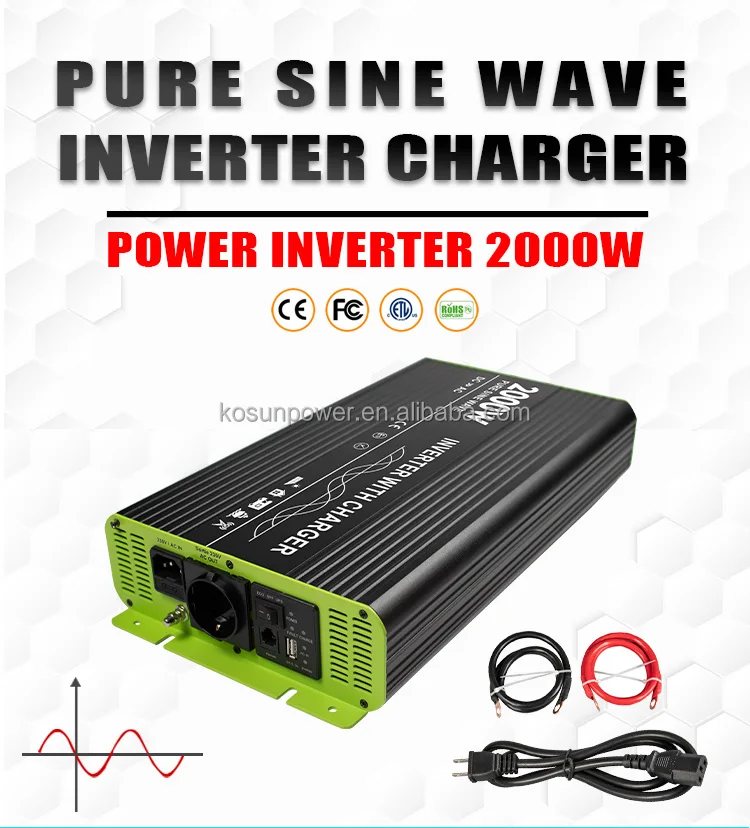

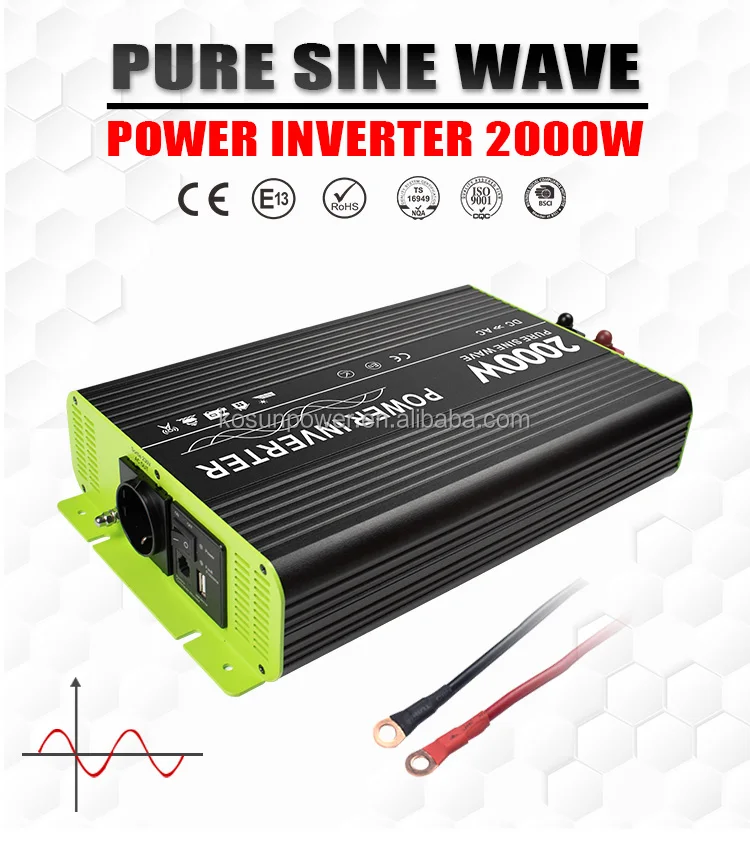

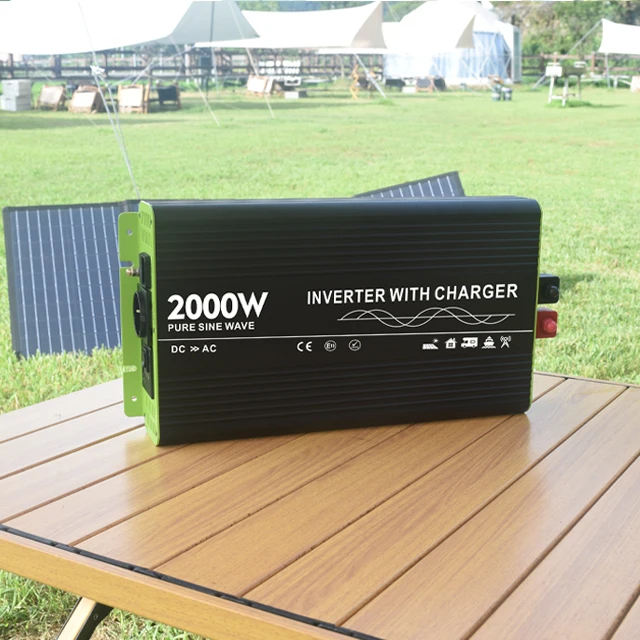

12VDC TO 110V/220V/230VAC Pure Sine Wave 2000W Inverter&Converter With Battery Charger Used For Car RV Vehicle 4WD
- Category: >>>
- Supplier: Ningbo Kosun New Energy Co. Ltd.
Share on (1600526917835):
Product Overview
Description
Produsts Profile

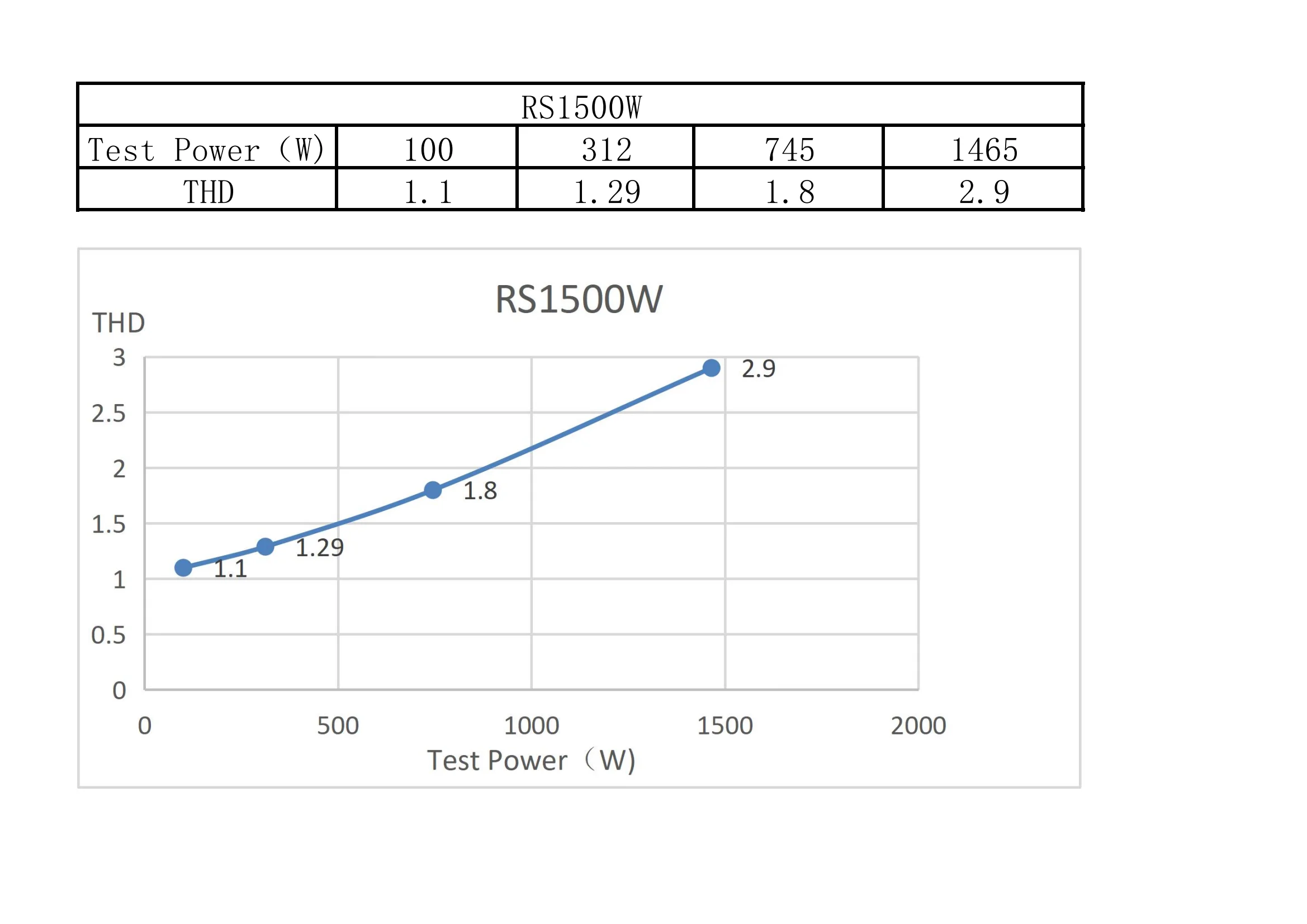

THD<3%

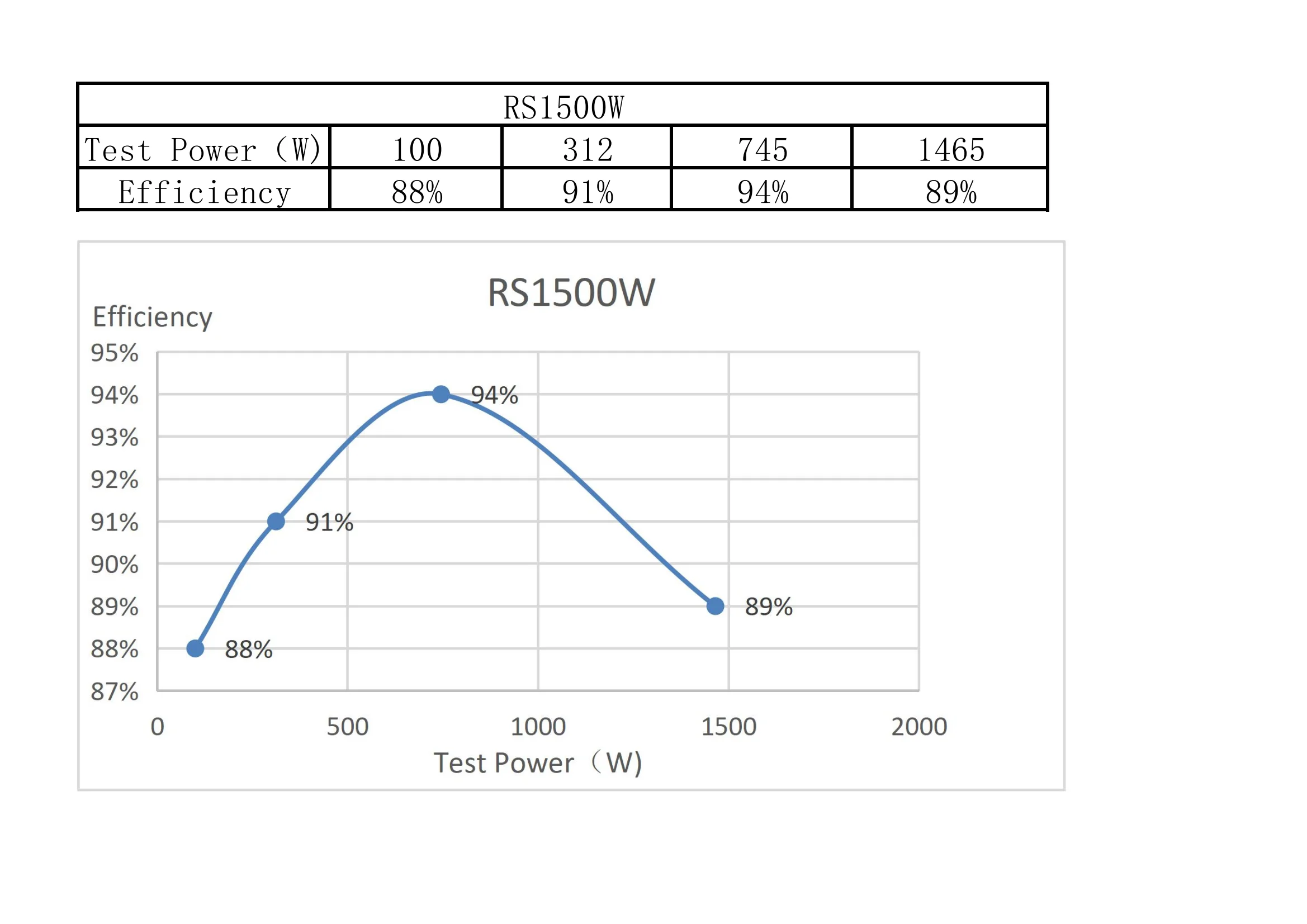

94% Efficiency

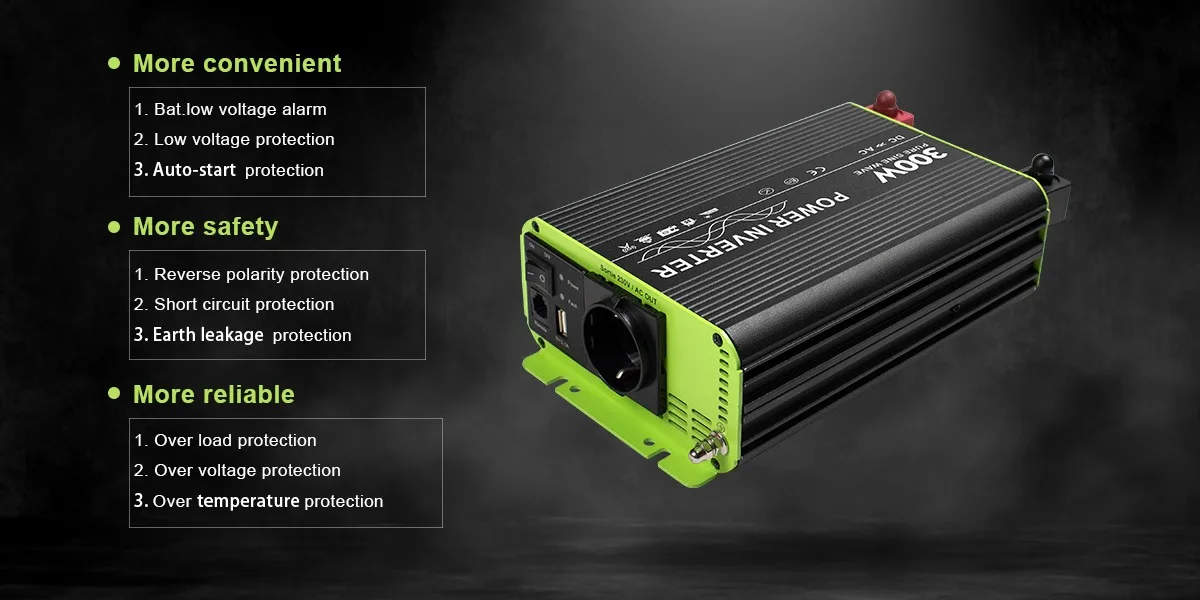

11 Protection Functions:
Soft start protection
Over current output protection

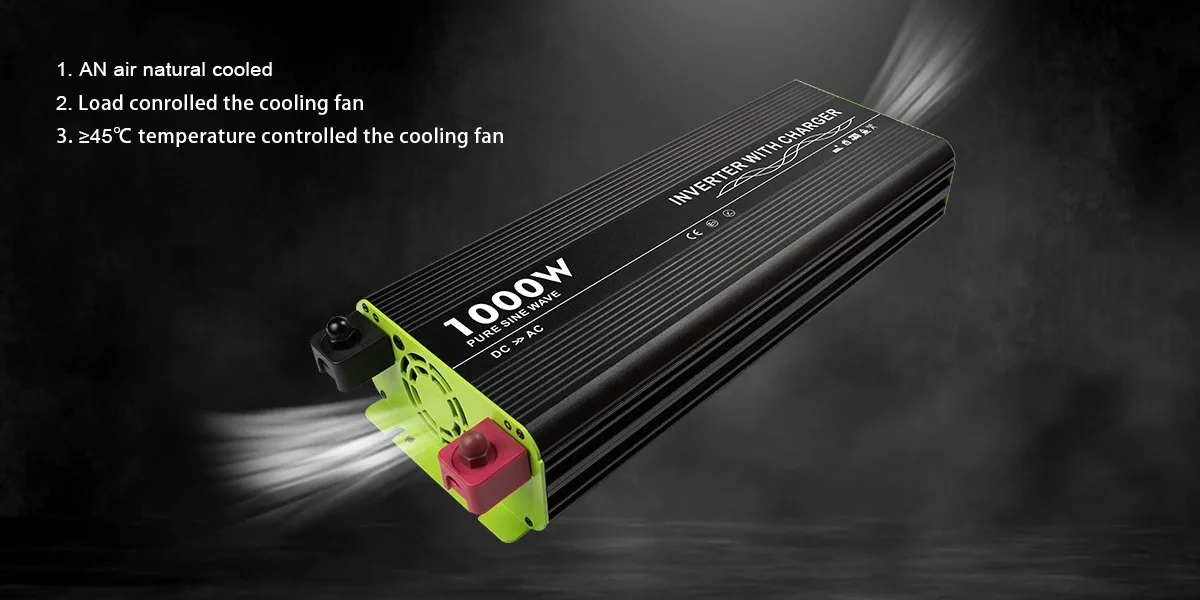

Smart Cooling Fan

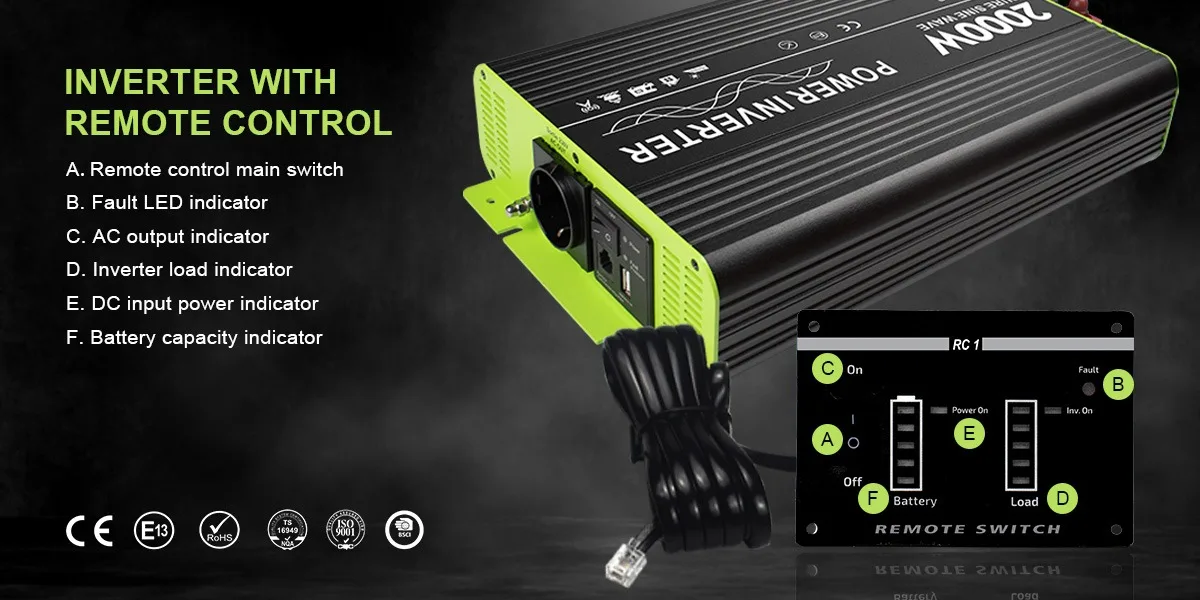

Optional Remote Function
Over 20 years Experience Engineers
±0.2 Tolerance Stable Performance
Under voltage alarm | Input voltage below than 10.5V±0.2V in to under voltage alarm | ||||||
Undervoltage protection | Input voltage below than 10V±0.2V,in to shutdown protection | ||||||
Overvoltage protection | Input voltage over than 16±0.2V,in to shutdown protection | ||||||
Strong After-sales Service

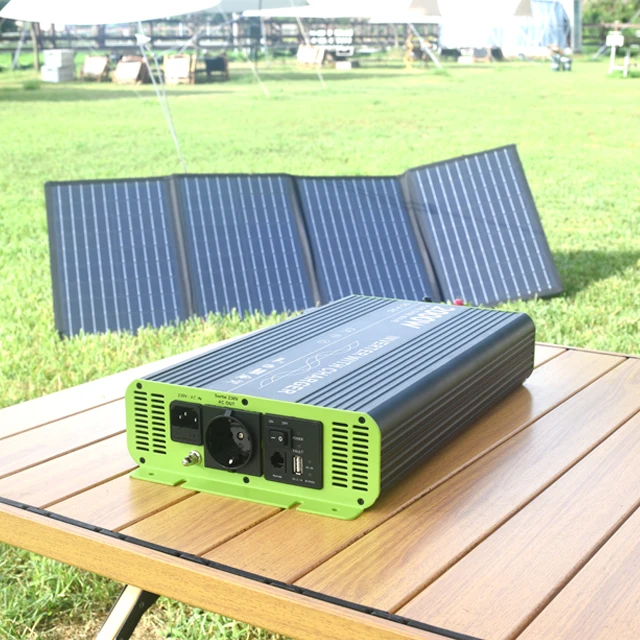

Scene
Highly Recognized Market:
*Germany Market
*France Market
*Australia Market
*Norway Market
*Peru Market
*Mexico Market
*Colombia Market
*South Africa Market
*Brazil Market
Parameter
MODEL | RSC2000P-112 | RSC2000P-124 | RSC2000P-212 | RSC2020P-224 | |||||
Rated Power | 2000W | ||||||||
Maximum Output Power | 2200W for 180 Sec./2400W for 10 Sec./Surge power 4000W for 2 Sec. | ||||||||
AC Voltage | Factory setting set at 110V AC | Factory setting set at 230V AC | |||||||
100/110/115/120VAC(Optional) | 220/230/240VAC(Optional) | ||||||||
Wave Form | Ture Sine Wave(THD<4%)at rated input voltage | ||||||||
Standard Receptacles | Schuko/UK/Australia/Universal/USA/France/JP/Brazil | ||||||||
Battery Voltage | 12V | 24V | 12V | 24V | |||||
DC Current | 150A | 75A | 150A | 75A | |||||
Efficiency | 92% | 93% | 93% | 94% | |||||
Battery types | Recommend use Lithium &sealed lead acid battery | ||||||||
Charger current range | 4~20A | 2~10A | 4~20A | 2~10A | |||||
Max output voltage | 14.8VDC | 29.6VDC | 14.8VDC | 29.6VDC | |||||
Absorption voltage | 14.6VDC | 29.2VDC | 14.6VDC | 29.2VDC | |||||
Float voltage | 13.8VDC | 27.6VDC | 13.8VDC | 27.6VDC | |||||
BYPASS | Relay | 30A | |||||||
PROTECTIONS | Reverse polarity/battery low voltage alarm/shut down/over voltage/over load/over current/over temperature/short circuit/earth leakage | ||||||||

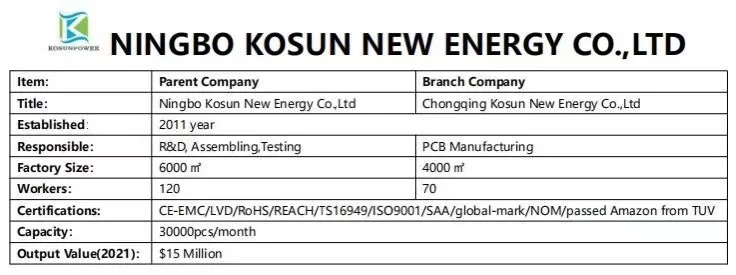

30000pcs/Month Capacity 11 Years Factory
Exhibition:
Experiment Room
Vibration:8 hours.
Working Temperature:-25℃~+60℃
Working Temperature:-25℃~+60℃
Working Humidity:0~95%RH Non-condensing
Recommend
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2011,sell to
Europe(50.00%),America(20.00%),Oceania(15%),Asia(5.00%)Africa(5.00%),Domestic Market(5.00%). There are more than 120 staff in our
office.
2. how can we guarantee quality?

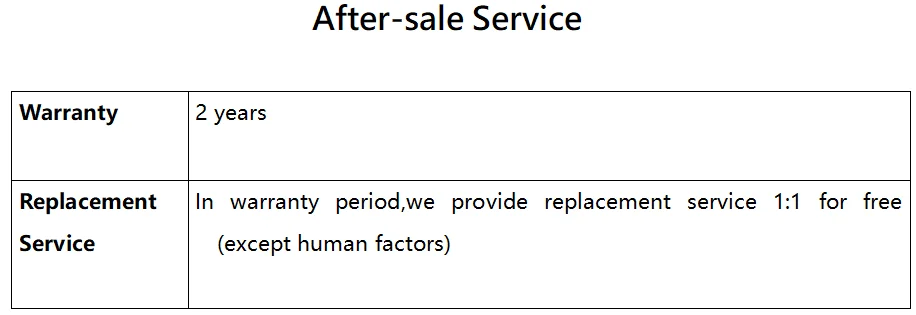

2 years warranty for pure sine wave products;1 Year warranty for modified sine wave products.
our 24 - hour after - sale service mechanism to ensure and expand the market of our customer
3.what can you buy from us?
Power inverters,Power inverter with charger, Solar controllers,smart charger.
4. why should you buy from us not from other suppliers?
*Sufficient power inverter supplier

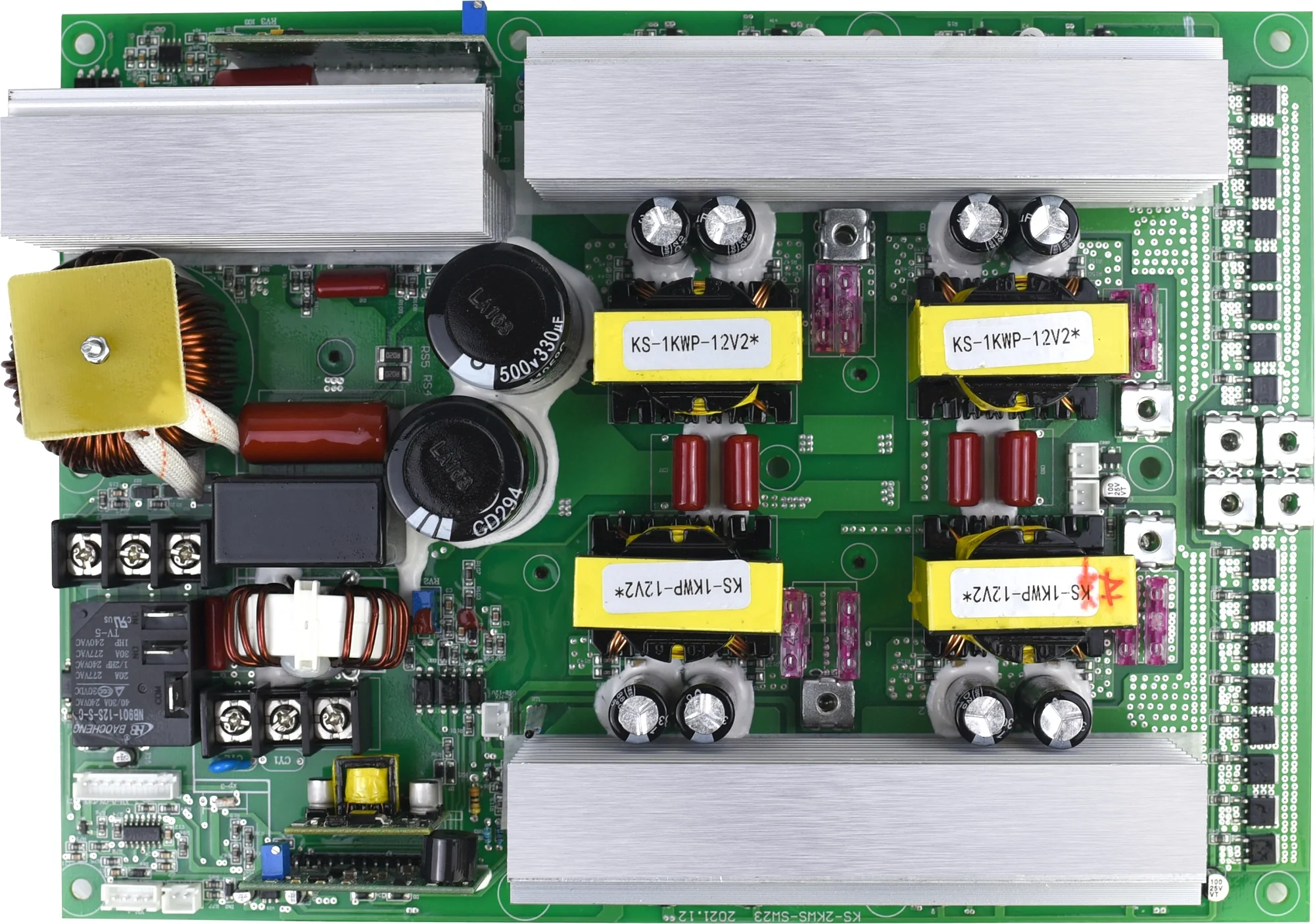

*all the PCB lines and mould are original and self-existent from our 20 years certificated engineers team to ensure the
quality，and all your technical problem can be solved in 24hours.
*We use ERP software to manage the quality and trace after sale,each inverter has a unique number recorded each steps in producing
*Our branch company supported by the government in the new energy industry (6000m2 free plant), it makes save cost
*Warranty 2 years and we support replacement for free,Our 24 - hour after - sale service mechanism to ensure and expand the market
of our customer
5. what services can we provide?
Provide free consultation
Provide OEM ODM service
Reliable product performance
Professional shipping service
Secure after-sales service
