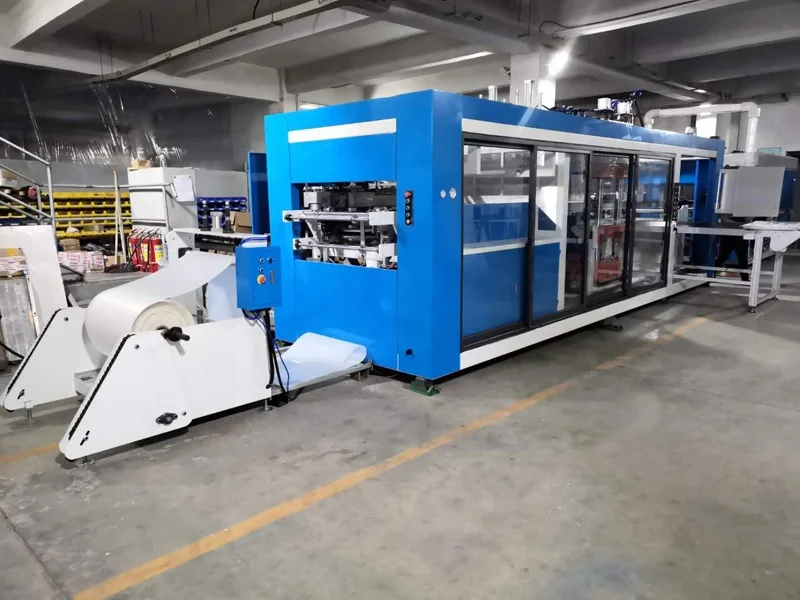

DB 72/76 Automatic 3 station plastic forming machine disposable dental vacuum forming machine

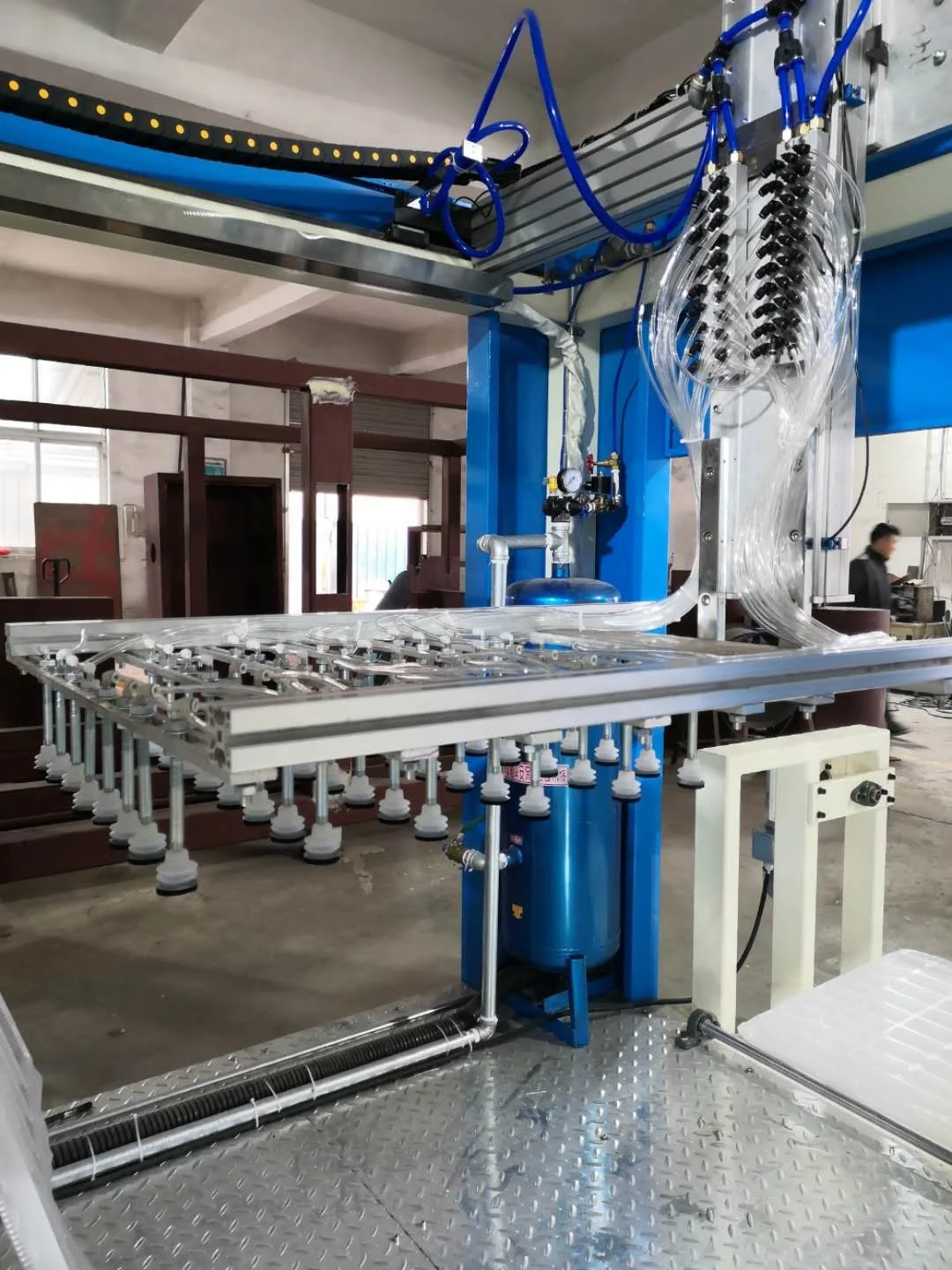

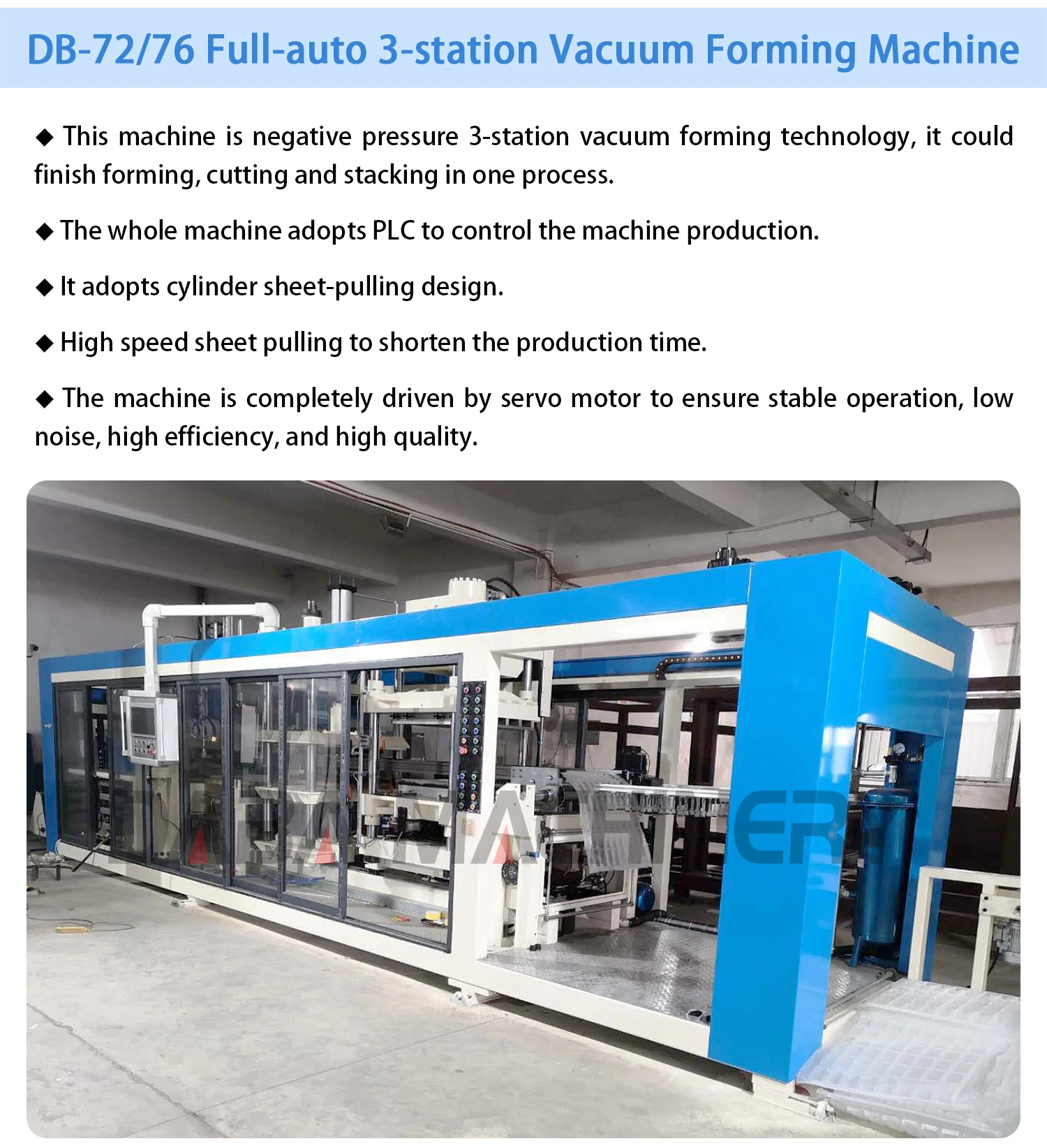

DB-72/76 Automatic 3-station plastic forming machine disposable dental vacuum forming machine
DB-72/76 Automatic 3-station plastic forming machine disposable dental vacuum forming machine
DB-72/76 Automatic 3-station plastic forming machine disposable dental vacuum forming machine
DB-72/76 Automatic 3-station plastic forming machine disposable dental vacuum forming machine
DB-72/76 Automatic 3-station plastic forming machine disposable dental vacuum forming machine
DB-72/76 Automatic 3-station plastic forming machine disposable dental vacuum forming machine

DB 72/76 Automatic 3 station plastic forming machine disposable dental vacuum forming machine

Share on (1600526923084):


Price:$66,000.00 - $68,000.00

Quantity:


Product Overview

Description







Application Area:

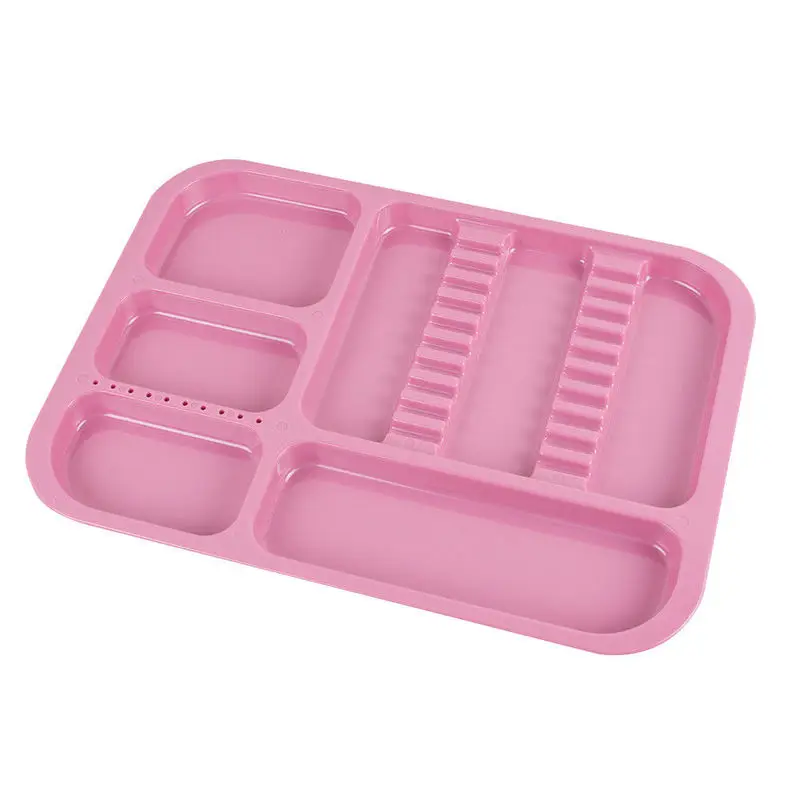

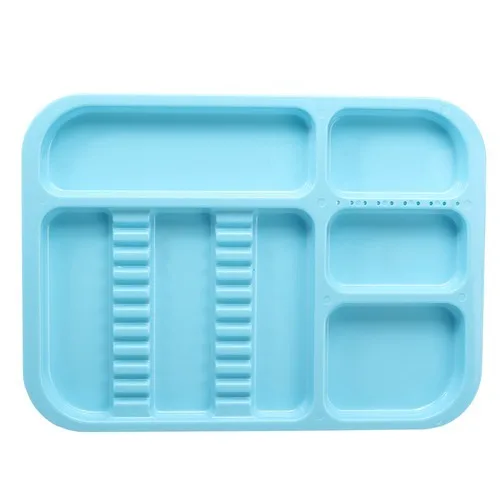

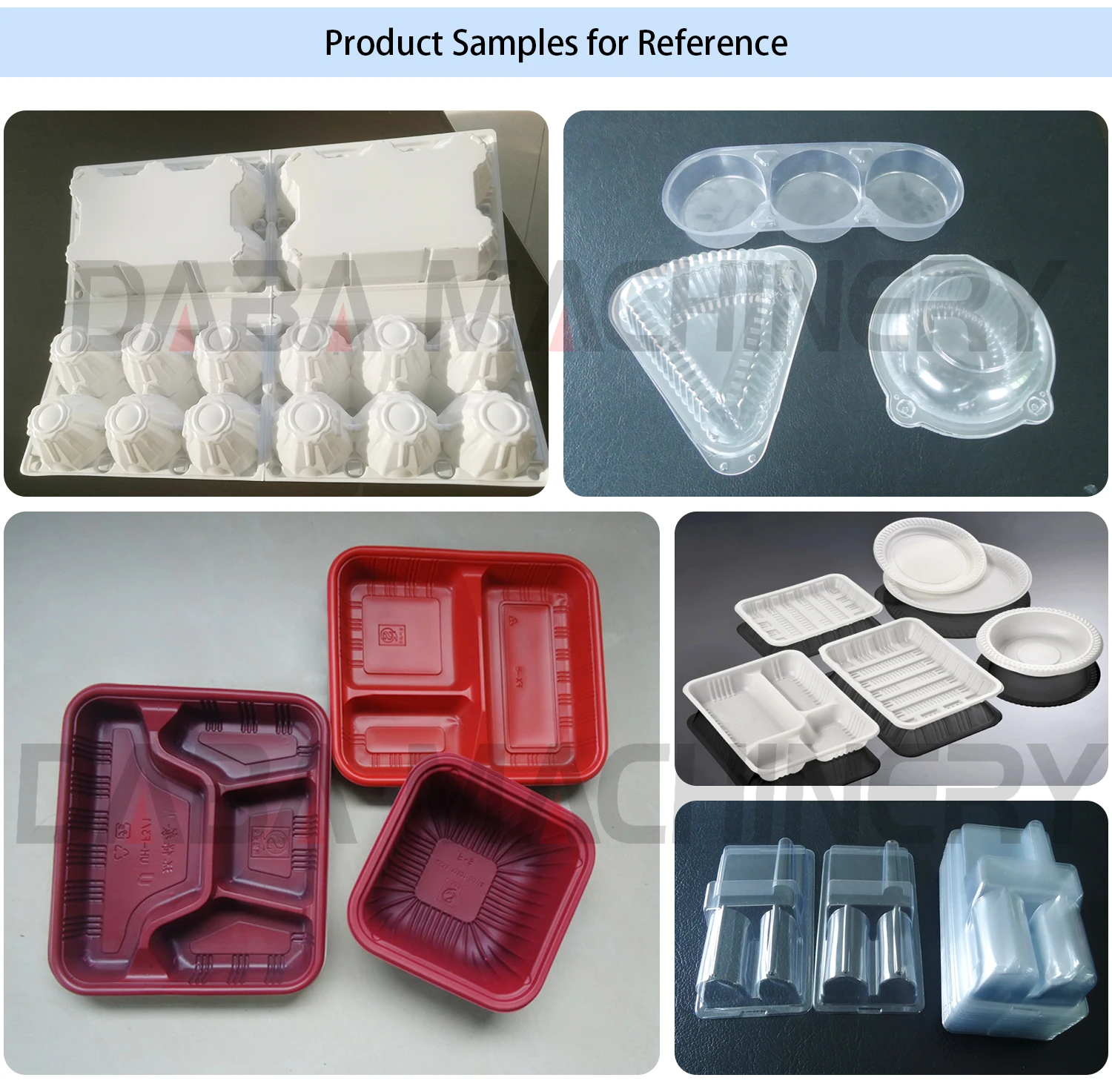

This machine is suitable for forming HIPS, PS, PP, PVC, PET sheet that can produce boxes, trays, fast food
boxes, dishes, lids, cookies tray,egg tray, mobile phone tray & other blister tray.










No.
Item
Data
1
Model
DB-720/760
2
Max Forming area
720*760 mm
3
Forming height
0-150mm
4
Supported Material
PET, APET, PP, PS, PVC, ABS
5
Material thickness
0.2-1.8 mm
6
Production speed
200-1500 times/hour
7
Mould-up times
1 or 2 times (free to install)
8
Mould-up move
Electromotion
9
Eject-die
Shake to mould-down
10
Overall power consumption
25kw/hour
11
Vacuum pump power
4.0 KW/150m³
12
Servo motor
3kw
13
Power
380V 50HZ
14
Air consumption
6.5kg/cm, 1000-1500Liter /min
15
Chiller power
3HP
16

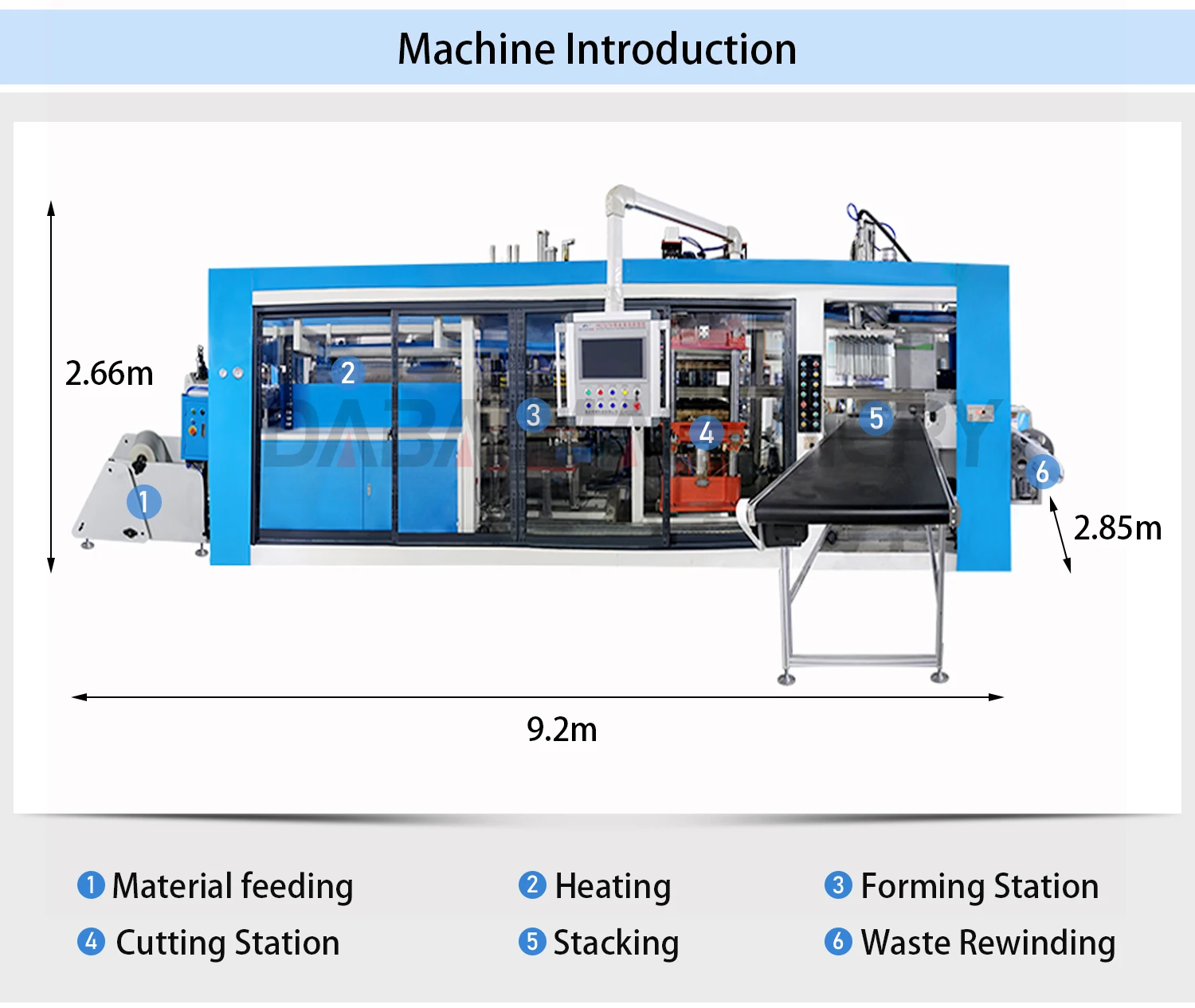

Overall dimension
(L)9200*(W)2850*(H)2660mm
17
Weight
9200kg
